AE71LG-EWHDS (1985)
Toyota Corolla
Production
Aug 1985
-
Jul 1987
Engine
4A
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )AE71..GEN

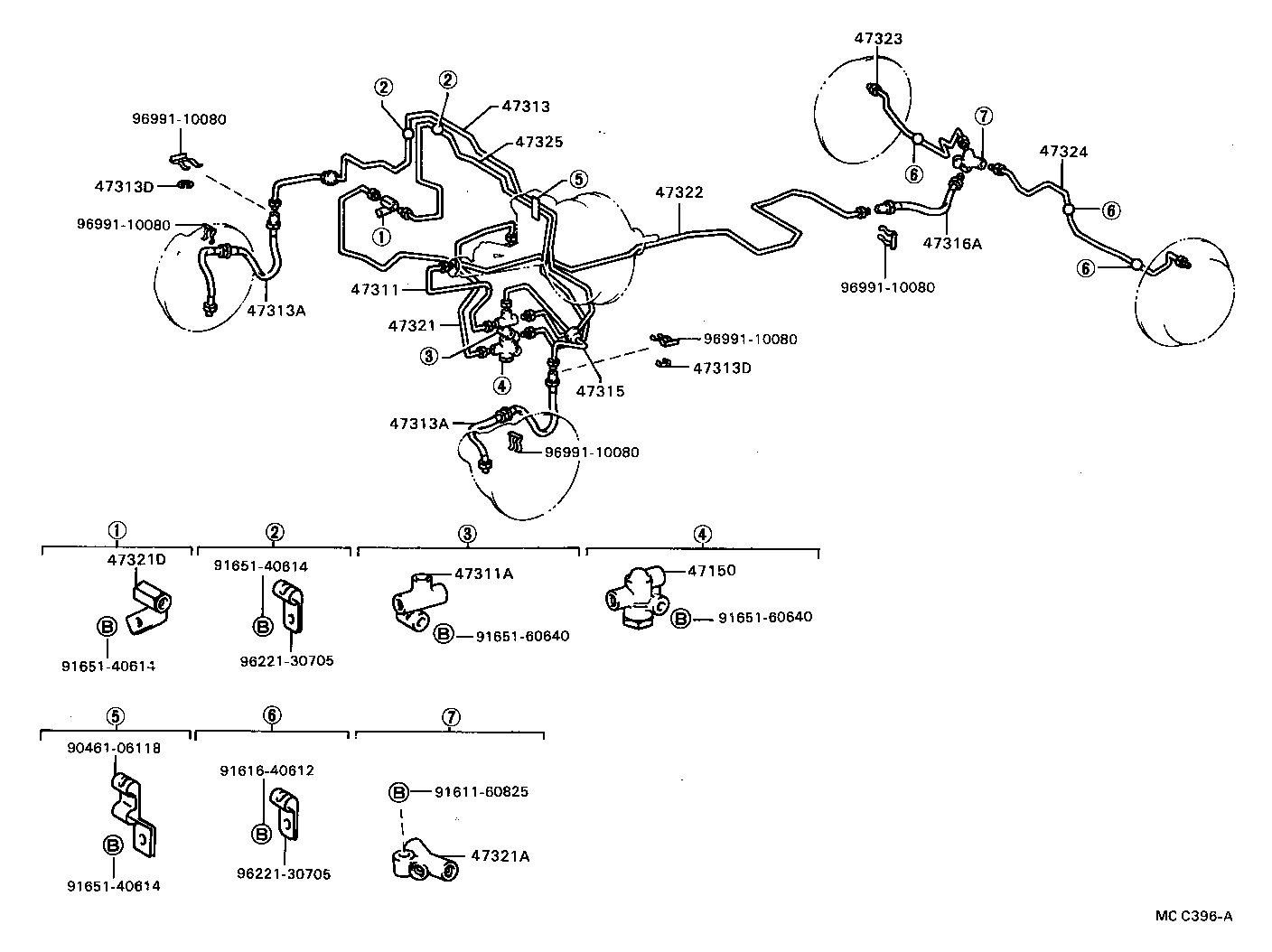

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47312-12120 |
AE71..GEN |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10002 |
AE71..GEN |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-12181 |
AE71..GEN |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02476 |
AE71,CE70,KE70..EUR,GEN |
2 | ||
| 90947-02393 |
AE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02476 |
AE71,CE70,KE70..EUR,GEN |
2 | ||
| 90947-02393 |
AE71,CE70,KE70,TE7#..EUR,GEN,SA,SAA |
2 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
AE71,CE70,KE70,TE7# |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
AE71,CE70,KE70,TE7# |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12320 |
AE71..GEN |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47322-12100 |
AE71..GEN |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10029 |
AE71,CE70,KE70,TE71..DV,WG |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10001 |
AE71..GEN |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47324-13040 |
AE71..GEN |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47325-13060 |
AE71..GEN |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47326-12010 |
AE71..GEN |
1 | ||
| Common parts | ||||
| 90461-06118 | ||||
| 91611-60825 | ||||
| 91616-40612 | ||||
| 91651-40614 | ||||
| 91651-60640 | ||||
| 96221-30705 | ||||
| 96991-10080 | ||||
