AE71LG-EWHDS (1985)

Toyota Corolla

Production Aug 1985 - Jul 1987
Engine 4A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )AE71..GEN

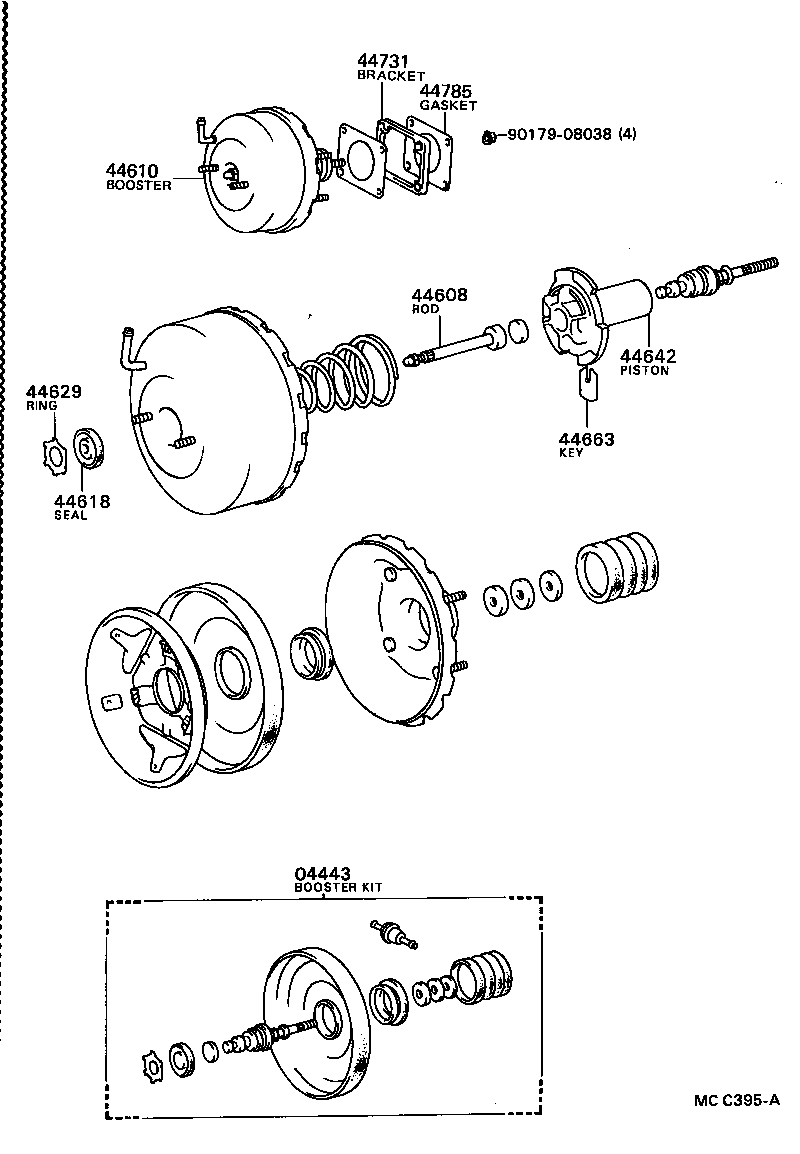

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44629 44642 44663 44731 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-12210

AE71..GEN

 1
44610 - BOOSTER ASSY, BRAKE
44610-12350

AE71..GEN

 1
44642 - PISTON, BRAKE BOOSTER
44642-16050

AE71..GEN

AISIN

 1
44663 - KEY, VALVE STOPPER
44635-28120

AE71..GEN

 1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44731-12030

AE71..GEN

 1
44785 - GASKET, BRAKE BOOSTER
44785-14010

AE71,CE70,KE70,TE7#

 1
Common parts
90179-08038
