AE71LG-EWHDS (1985)
Toyota Corolla
Production
Aug 1985
-
Jul 1987
Engine
4A
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )4A..GEN

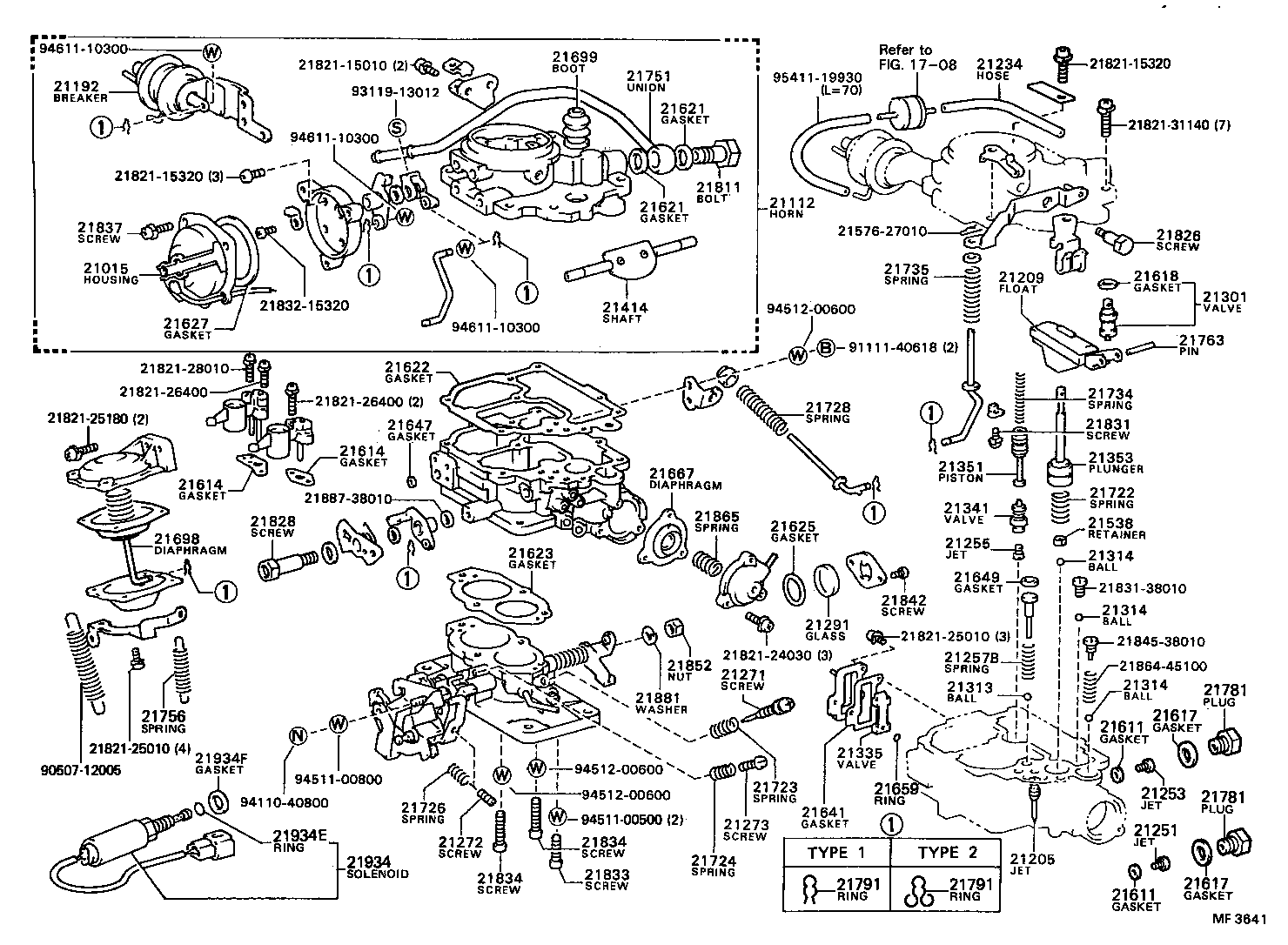

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21112 - HORN, AIR | ||||
| 21112-16081 |
4A..AE71 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41099 |
4A..AE71..GEN ID=0.99 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42150 |
4A..AE71..GEN ID=1.50 |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43080 |
4A..AE71..GEN ID=0.80 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-26371 |
4A..AE71..GEN |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21828-25180 |
4A#..AE71 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21844-33010 |
4A#..AE71 |
2 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
4A#..AE71 |
2 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
4A#..AE71 |
3 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
4A#..AE71 |
3 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
4A#..AE71 |
3 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-38310 |
4A..AE71..GEN |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
4A#..AE71 |
2 | ||
| 21351 - PISTON, POWER | ||||
| 21351-33080 |
4A#..AE71 |
2 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-33010 |
4A#..AE71 |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
4A#..AE71 |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
4A#..AE71 |
4 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
4A#..AE71 |
4 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33010 |
4A#..AE71 1ST |
2 | ||
| 21614-33080 |
4A#..AE71 2ND |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33010 |
4A#..AE71 1ST |
2 | ||
| 21614-33080 |
4A#..AE71 2ND |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
4A#..AE71 |
4 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
4A#..AE71 |
4 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
4A#..AE71 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
4A#..AE71 |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
4A#..AE71 |
2 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-25180 |
4A#..AE71 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
4A#..AE71 |
2 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21641-23012 |
4A..AE71..GEN |
1 | ||
| 21647 - GASKET, DIAPHRAGM HOUSING CAP | ||||
| 21649-33080 |
4A#..AE71 |
2 | ||
| 21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER) | ||||
| 21641-33011 |
4A#..AE71 |
2 | ||
| 21659 - RING, O(FOR THERMOSTATIC VALVE) | ||||
| 21641-24030 |
4A..AE71..GEN |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
4A#..AE71 |
2 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
4A#..AE71 |
2 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-21030 |
4A#..AE71 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-21030 |
4A#..AE71 |
2 | ||
| 21728 - SPRING, THROTTLE VALVE RETURN | ||||
| 21756-25181 |
4A#..AE71 |
1 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
4A#..AE71 |
1 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
4A#..AE71 |
2 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-33010 |
4A#..AE71 |
4 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31140 |
4A#..AE71 W/HOLE |
4 | ||
| 21844-26400 |
4A#..AE71 |
4 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31140 |
4A#..AE71 W/HOLE |
4 | ||
| 21844-26400 |
4A#..AE71 |
4 | ||
| 21837 - SCREW, COIL HOUSING SET | ||||
| 21821-25010 |
4A#..AE71 |
1 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
4A#..AE71 |
4 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
4A#..AE71 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
4A#..AE71 |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
4A#..AE71 |
2 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21821-15010 | ||||
| 21821-15320 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-25180 | ||||
| 21821-26400 | ||||
| 21821-28010 | ||||
| 21821-31140 | ||||
| 21831-38010 | ||||
| 21832-15320 | ||||
| 21845-38010 | ||||
| 21864-45100 | ||||
| 21887-38010 | ||||
| 90507-12005 | ||||
| 91111-40618 | ||||
| 93119-13012 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 1708 | ||||
