AE71LG-EWHDS (1985)

Toyota Corolla

Production Aug 1985 - Jul 1987
Engine 4A
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )4A..GEN

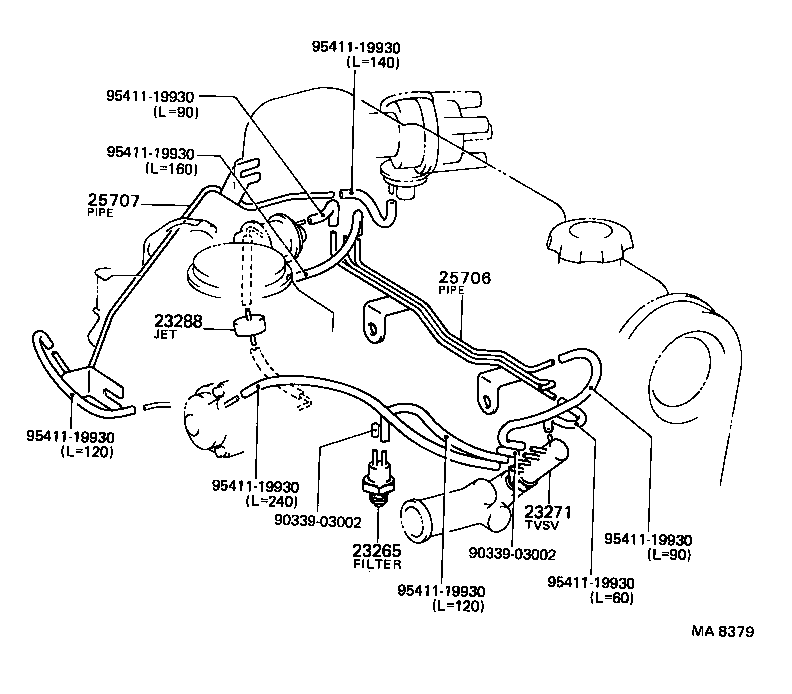

Click highlighted areas on diagram

diagram 23265 23271 23288 25706 25707 9033903002 9033903002 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11023

4A..AE71..GEN

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-14020

4A..AE71..GEN

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-14010

4A..AE71..GEN

 1
Common parts
90339-03002
95411-19930
