XZB50R-ZEMSYQ (2006)

Toyota Coaster

Production Aug 2006 - Dec 2016
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

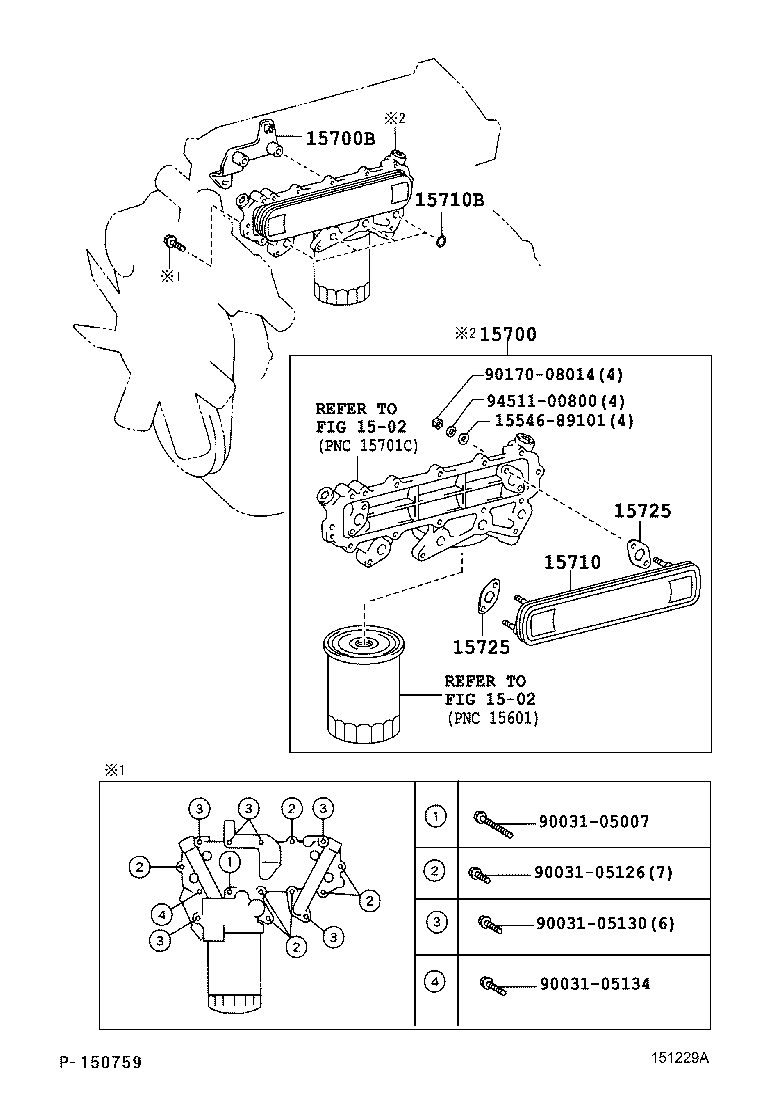

(0608-0908)N04C

Click highlighted areas on diagram

diagram 1502 1502 1554689101 15700 15700B 15710 15710B 15725 15725 9003105007 9003105126 9003105130 9003105134 9017008014 9451100800
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-78131

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
15700-78173

N04C..XZB40,5#

 1
15700-E0023

N04C..XZB40,5#..ARL,GEN,TAIW

 1
15700-E0023

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
15700B - BRACKET(FOR OIL COOLER)
82702-E1530

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
23211-78401

N04C..XZB40,5#..ARL,GEN,TAIW

 1
82702-37420

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
15710 - COOLER ASSY, OIL
15710-78060

N04C..XZB40,5#

 1
S1571-22260

N04C..XZB40,5#..ARL,GEN,TAIW

 1
S1571-22260

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
15710-89104

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
15710B - RING, O(FOR OIL COOLER)
90033-01101

N04C..XZB40,5#

 4
90301-19005

N04C..XZB40,5#

 4
SZ301-19018

N04C..XZB40,5#

W(PNC 15710C)

 4
SZ301-19018

N04C..XZB40,5#

 4
90033-01101

N04C..XZB40,5#

W/O(PNC 15710C)

 4
15725 - GASKET, OIL COOLER COVER
S1571-71270

N04C..XZB40,5#

 2
15785-EV010

N04C..XZB40,5#..ARL,GEN,TAIW

 2
15725-78020

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC

 2
15785-EV010

N04C..XZB40,5#

 2
15725 - GASKET, OIL COOLER COVER
S1571-71270

N04C..XZB40,5#

 2
15785-EV010

N04C..XZB40,5#..ARL,GEN,TAIW

 2
15725-78020

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC

 2
15785-EV010

N04C..XZB40,5#

 2
Common parts
15546-89101
90031-05007
90031-05126
90031-05130
90031-05134
90170-08014
94511-00800
Linked diagrams
1502

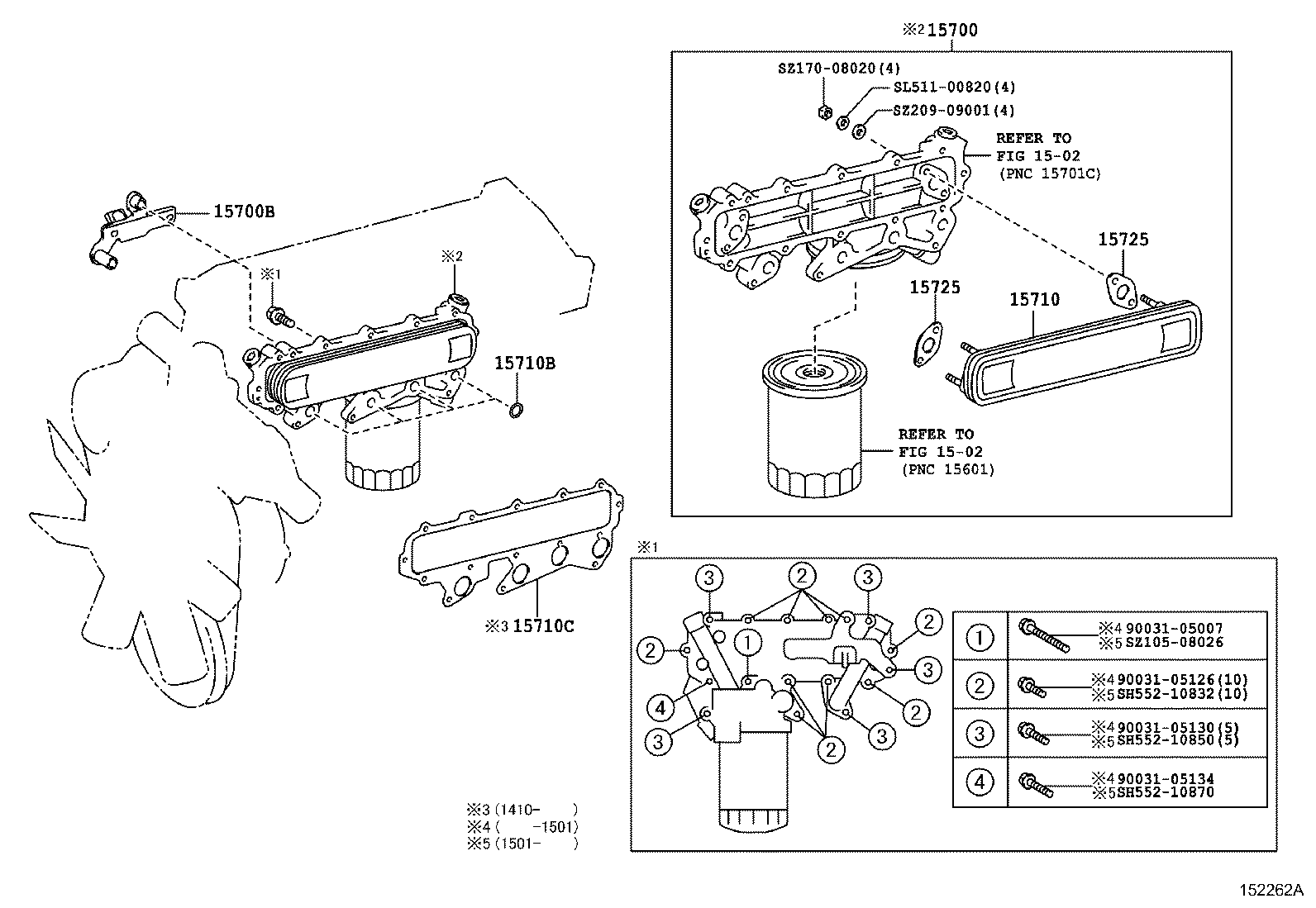

(0908-1605)N04C..RHD ; (0908-1605)N04C..XZB50..LHD..EUR,TAIW

Click highlighted areas on diagram

diagram 1502 1502 15700 15700B 15710 15710B 15710C 15725 15725 9003105007 9003105126 9003105130 9003105134 SH55210832 SH55210850 SH55210870 SL51100820 SZ10508026 SZ17008020 SZ20909001
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-78131

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
15700-78173

N04C..XZB40,5#

 1
15700-E0023

N04C..XZB40,5#..ARL,GEN,TAIW

 1
15700-E0023

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
15700B - BRACKET(FOR OIL COOLER)
82702-E1530

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
23211-78401

N04C..XZB40,5#..ARL,GEN,TAIW

 1
82702-37420

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
15710 - COOLER ASSY, OIL
15710-78060

N04C..XZB40,5#

 1
S1571-22260

N04C..XZB40,5#..ARL,GEN,TAIW

 1
S1571-22260

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
15710-89104

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
15710B - RING, O(FOR OIL COOLER)
90033-01101

N04C..XZB40,5#

 4
90301-19005

N04C..XZB40,5#

 4
SZ301-19018

N04C..XZB40,5#

W(PNC 15710C)

 4
SZ301-19018

N04C..XZB40,5#

 4
90033-01101

N04C..XZB40,5#

W/O(PNC 15710C)

 4
15710C - GASKET(FOR OIL COOLER)
15725-E0020

N04C..XZB40,5#

 1
15725-E0020

N04C..XZB40,5#

 1
15725 - GASKET, OIL COOLER COVER
S1571-71270

N04C..XZB40,5#

 2
15785-EV010

N04C..XZB40,5#..ARL,GEN,TAIW

 2
15725-78020

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC

 2
15785-EV010

N04C..XZB40,5#

 2
15725 - GASKET, OIL COOLER COVER
S1571-71270

N04C..XZB40,5#

 2
15785-EV010

N04C..XZB40,5#..ARL,GEN,TAIW

 2
15725-78020

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC

 2
15785-EV010

N04C..XZB40,5#

 2
Common parts
90031-05007
90031-05126
90031-05130
90031-05134
SH552-10832
SH552-10850
SH552-10870
SL511-00820
SZ105-08026
SZ170-08020
SZ209-09001
Linked diagrams
1502

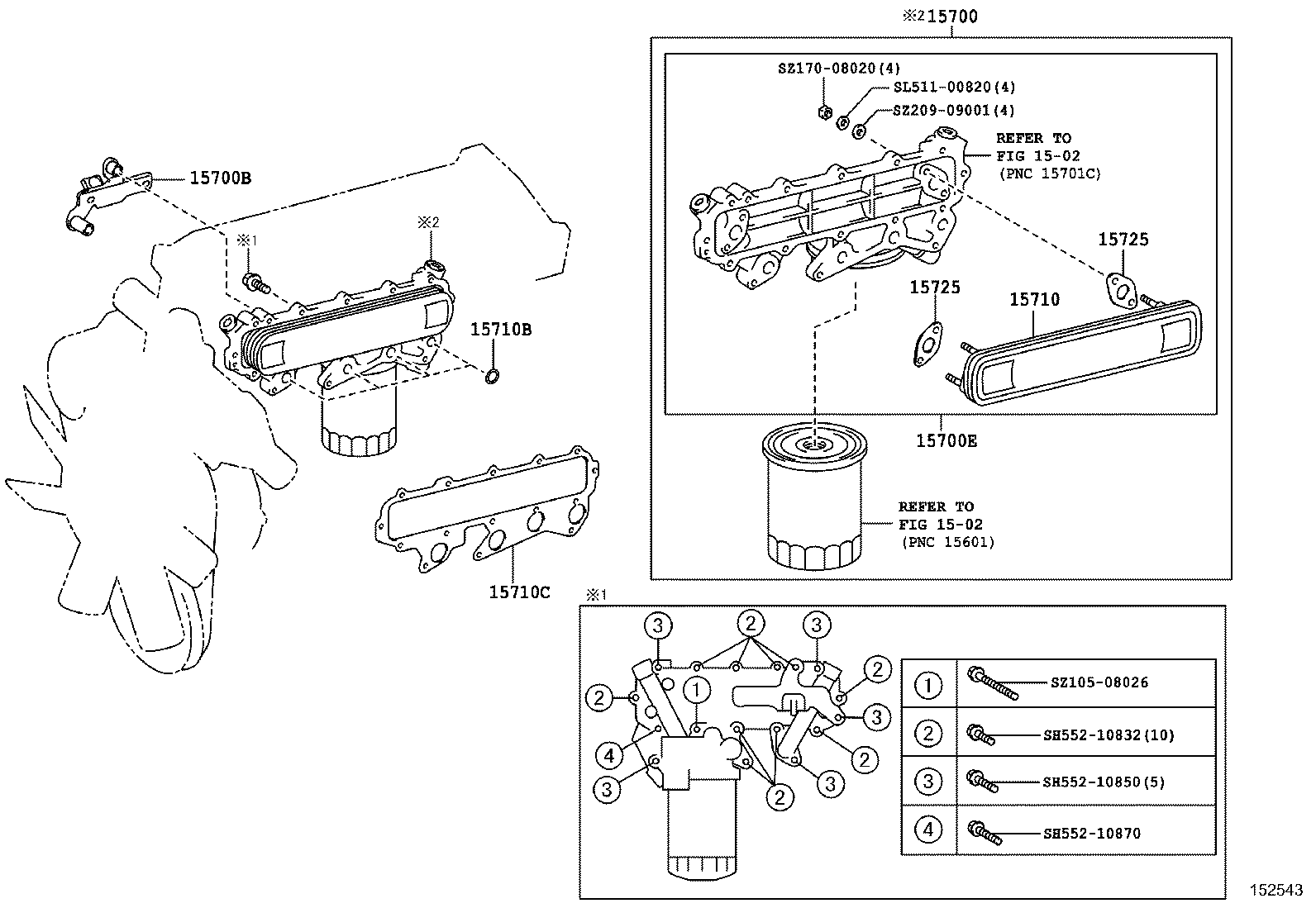

(1605- )N04C..XZB40,59..HRF ; (1605- )N04C..XZB50..20S,21S

Click highlighted areas on diagram

diagram 1502 1502 15700 15700B 15700E 15710 15710B 15710C 15725 15725 SH55210832 SH55210850 SH55210870 SL51100820 SZ10508026 SZ17008020 SZ20909001
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-78131

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
15700-78173

N04C..XZB40,5#

 1
15700-E0023

N04C..XZB40,5#..ARL,GEN,TAIW

 1
15700-E0023

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
15700B - BRACKET(FOR OIL COOLER)
82702-E1530

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
23211-78401

N04C..XZB40,5#..ARL,GEN,TAIW

 1
82702-37420

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
15700E - COOLER SUB-ASSY, OIL, W/O OIL FILTER
S1570-EV030

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
15710 - COOLER ASSY, OIL
15710-78060

N04C..XZB40,5#

 1
S1571-22260

N04C..XZB40,5#..ARL,GEN,TAIW

 1
S1571-22260

N04C..XZB40,59..HRF;N04C..XZB50..20S,21S

 1
15710-89104

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
15710B - RING, O(FOR OIL COOLER)
90033-01101

N04C..XZB40,5#

 4
90301-19005

N04C..XZB40,5#

 4
SZ301-19018

N04C..XZB40,5#

W(PNC 15710C)

 4
SZ301-19018

N04C..XZB40,5#

 4
90033-01101

N04C..XZB40,5#

W/O(PNC 15710C)

 4
15710C - GASKET(FOR OIL COOLER)
15725-E0020

N04C..XZB40,5#

 1
15725-E0020

N04C..XZB40,5#

 1
15725 - GASKET, OIL COOLER COVER
S1571-71270

N04C..XZB40,5#

 2
15785-EV010

N04C..XZB40,5#..ARL,GEN,TAIW

 2
15725-78020

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC

 2
15785-EV010

N04C..XZB40,5#

 2
15725 - GASKET, OIL COOLER COVER
S1571-71270

N04C..XZB40,5#

 2
15785-EV010

N04C..XZB40,5#..ARL,GEN,TAIW

 2
15725-78020

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC

 2
15785-EV010

N04C..XZB40,5#

 2
Common parts
SH552-10832
SH552-10850
SH552-10870
SL511-00820
SZ105-08026
SZ170-08020
SZ209-09001
Linked diagrams
1502
