XZB50R-ZEMRYQ (2006)

Toyota Coaster

Production Aug 2006 - Aug 2009
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )N04C

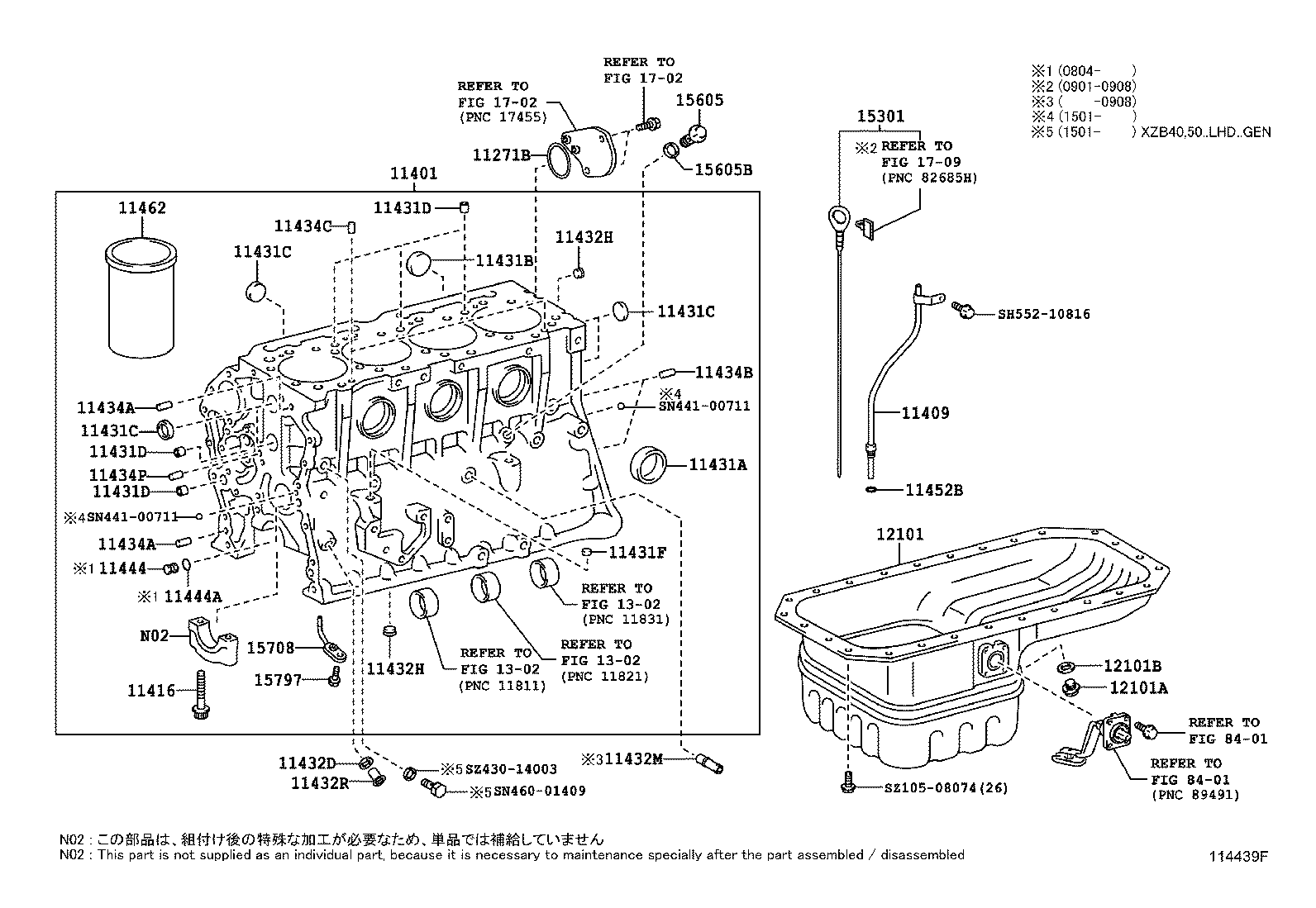

Click highlighted areas on diagram

diagram 11271B 11401 11409 11416 11431A 11431B 11431C 11431C 11431C 11431D 11431D 11431D 11431F 11432D 11432H 11432H 11432M 11432R 11434A 11434A 11434B 11434C 11434P 11444 11444A 11452B 11462 12101 12101A 12101B 1302 1302 1302 15301 15605 15605B 15708 15797 1702 1702 1709 8401 8401 SH55210816 SN44100711 SN44100711 SN46001409 SZ10508074 SZ43014003
Part # Description Qty Price
11271B - RING, O(FOR CYLINDER BLOCK REAR PLATE)
90301-69001

N04C..XZB50..WOC..CBU

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-78250

N04C..XZB5#

 1
11410-78320

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
11410-78321

N04C..XZB40,5#

 1
11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE
11409-78080

N04C..XZB40,5#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02156

N04C..XZB50..WOC..CBU

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90033-31026

N04C..XZB50..WOC..CBU

 3
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90033-31035

N04C..XZB50..WOC..CBU

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
90033-31034

N04C..XZB50..WOC..CBU

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
90033-31034

N04C..XZB50..WOC..CBU

 5
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
90033-31034

N04C..XZB50..WOC..CBU

 5
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90033-31020

N04C..XZB50..WOC..CBU

 5
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90033-31020

N04C..XZB50..WOC..CBU

 5
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90033-31020

N04C..XZB50..WOC..CBU

 5
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
90331-14005

N04C..XZB50..WOC..CBU

 1
11432D - GASKET, W/HEAD TAPER SCREW PLUG
90202-10011

N04C..XZB50..WOC..CBU

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-21001

N04C..XZB50..WOC..CBU

 2
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-21001

N04C..XZB50..WOC..CBU

 2
11432M - UNION(FOR CYLINDER BLOCK)
12229-78020

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90033-41017

N04C..XZB50..WOC..CBU

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08015

N04C..XZB5#

L=24,OD=8

 2
90032-50050

N04C..XZB50..WOC..CBU

L=24,OD=8

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08015

N04C..XZB5#

L=24,OD=8

 2
90032-50050

N04C..XZB50..WOC..CBU

L=24,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90032-50060

N04C..XZB50..WOC..CBU

L=24,OD=12

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08016

N04C..XZB5#

L=16,OD=8

 2
90032-50049

N04C..XZB50..WOC..CBU

L=16,OD=8

 2
11434P - PIN, STRAIGHT(FOR OIL PUMP SET)
90250-05022

N04C..XZB50..WOC..CBU

L=10,OD=5

 1
11444 - PLUG, HOLE
11444-78020

N04C..XZB50..WOC..CBU

 1
11444A - RING, O
90033-01070

N04C..XZB50..WOC..CBU

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90033-01058

N04C..XZB50..WOC..CBU

 1
11462 - LINER, CYLINDER
11461-78051

N04C..XZB50..WOC..CBU

MARK C

 4
11461-78021

N04C..XZB50..WOC..CBU

MARK A

 4
11461-78031

N04C..XZB50..WOC..CBU

MARK B

 4
12101 - PAN SUB-ASSY, OIL
12101-78160

N04C..XZB50..WOC..CBU

 1
12101-78130

N04C..XZB5#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90033-41020

N04C..XZB50..WOC..CBU

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90034-30047

N04C..XZB50..WOC..CBU

 1
90034-30046

N04C..XZB5#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-78120

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
15301-78121

N04C..XZB40,5#

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15703-78030

N04C..XZB50..WOC..CBU

 1
15605B - GASKET(FOR OIL CHECK VALVE)
90034-30043

N04C..XZB50..WOC..CBU

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
11418-78010

N04C..XZB50..WOC..CBU

 4
15797 - BOLT, OIL NOZZLE UNION
90031-05123

N04C..XZB50..WOC..CBU

 4
Common parts
SH552-10816
SN441-00711
SN460-01409
SZ105-08074
SZ430-14003
