XZB50R-ZEMNYQ (2006)
Toyota Coaster

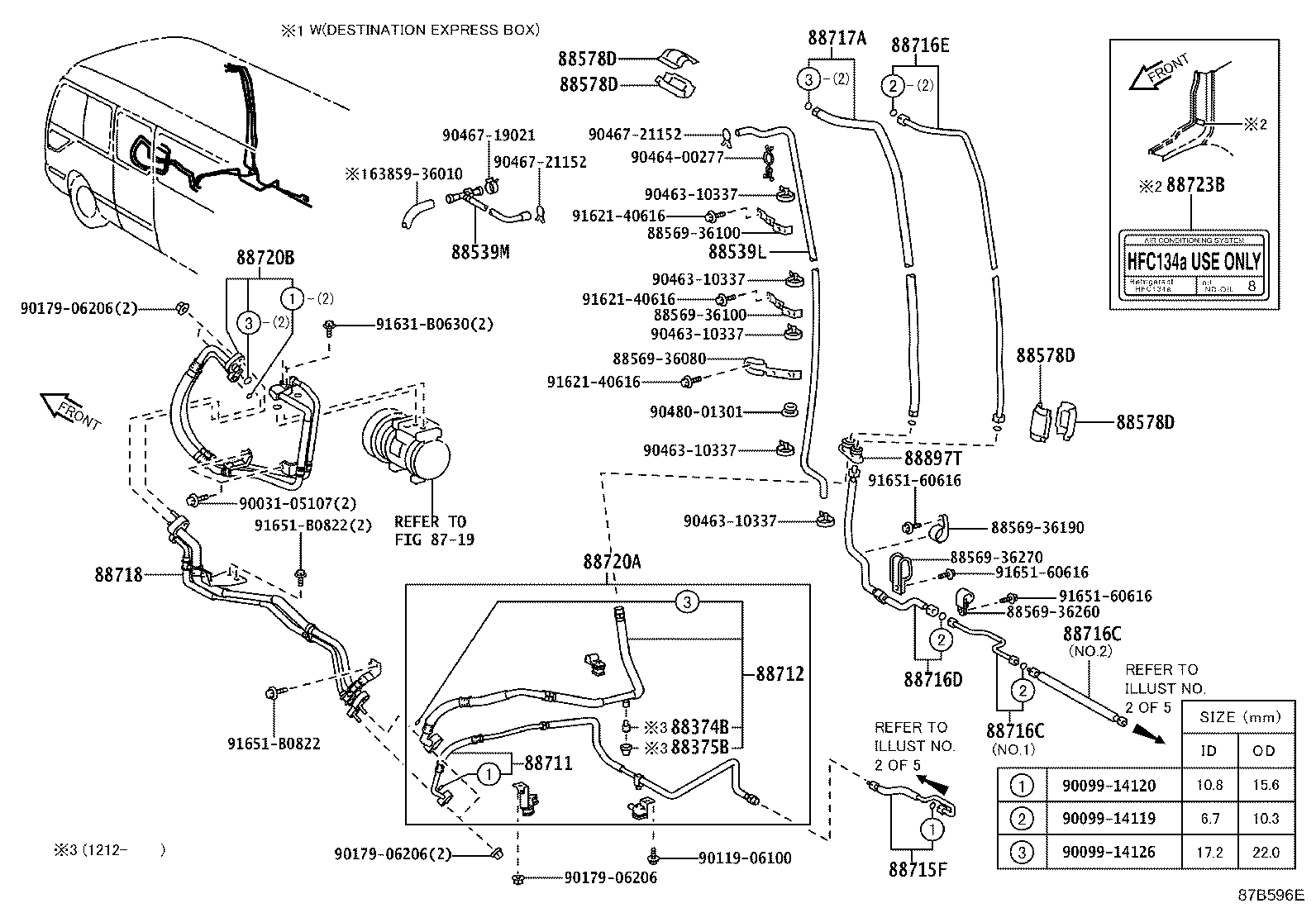

ILLUST NO. 3 OF 5(0608- )XZB40,5#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
XZB40,5#..ARL,GEN |
1 | ||
| 88374-30010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
XZB40,5#..ARL,GEN |
1 | ||
| 88375-30290 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| 88539L - HOSE, DRAIN COOLER | ||||
| 88539-36150 |
BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC |
1 | ||
| 88539M - HOSE, DRAIN COOLER, NO.2 | ||||
| 88539-36170 |
BZB50,HZB50,TRB40,50,XZB5#..HRF..WC |
1 | ||
| 88539-36230 |
BZB40,50,XZB40 |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-36731 |
XZB40,5#..ARL,GEN |
1 | ||
| 88711-36721 |
TRB40,50..WC |
1 | ||
| 88711-36732 |
XZB40,5#..ARL,GEN |
1 | ||
| 88711-36730 |
XZB40,59;XZB50..RHD..(20S,21S)..WC |
1 | ||
| 88711-36720 |
TRB40,50..WC |
1 | ||
| 88711-36480 |
BZB40,50 |
1 | ||
| 88711-36721 |
TRB40,50..WC |
1 | ||
| 88711-36732 |
XZB40,5#..RHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-36690 |
XZB40,59;XZB50..RHD..(20S,21S)..WC |
1 | ||
| 88712-36691 |
XZB40,5#..ARL,GEN |
1 | ||
| 88712-36680 |
TRB40,50..WC |
1 | ||
| 88712-36692 |
XZB40,5#..ARL,GEN |
1 | ||
| 88712-36461 |
BZB40,50 |
1 | ||
| 88712-36680 |
TRB40,50..WC |
1 | ||
| 88712-36692 |
XZB40,5#..RHD |
1 | ||
| 88715F - PIPE, COOLER REFRIGERANT DISCHARGE, F | ||||
| 88715-36130 |
BB42,HZB50,XZB40,5#..RHD..WC |
1 | ||
| 88715-36130 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
1 | ||
| 88715-36670 |
BZB40,50 |
1 | ||
| 88715-36230 |
TRB40,50..WC |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-36260 |
BB4#,50,HZB50..RHD..HRF..WC..CBU NO.2 |
1 | ||
| 88716-36260 |
BB42,HZB50,TRB40,50,XZB40,5#..WC NO.2 |
1 | ||
| 88716-36511 |
BZB40,50 NO.1 |
1 | ||
| 88716-36520 |
BZB40,50 NO.2 |
1 | ||
| 88716-36320 |
BB42,HZB50,XZB40,5#..RHD..WC NO.1 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-36260 |
BB4#,50,HZB50..RHD..HRF..WC..CBU NO.2 |
1 | ||
| 88716-36260 |
BB42,HZB50,TRB40,50,XZB40,5#..WC NO.2 |
1 | ||
| 88716-36511 |
BZB40,50 NO.1 |
1 | ||
| 88716-36520 |
BZB40,50 NO.2 |
1 | ||
| 88716-36320 |
BB42,HZB50,XZB40,5#..RHD..WC NO.1 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-36150 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
1 | ||
| 88716-36150 |
BZB40,50 NO.1 |
1 | ||
| 88716-36150 |
BB42,HZB50,XZB40,5#..RHD..WC |
1 | ||
| 88716-36492 |
BZB40,50 NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-36220 |
BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| 88716-36220 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-36110 |
BB4#,50,HZB50..RHD..HRF..WC..CBU NO.1 |
1 | ||
| 88717-36110 |
BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| 88718 - PIPE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88710-36470 |
XZB40,5#..WC |
1 | ||
| 88710-36430 |
XZB40,59;XZB50..RHD..(20S,21S)..WC |
1 | ||
| 88710-36470 |
XZB40,5#..ARL,GEN |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-36110 |
XZB40,59;XZB50..RHD..(20S,21S)..WC |
1 | ||
| 88720-36111 |
XZB40,5#..RHD |
1 | ||
| 88720-36111 |
XZB40,5#..ARL,GEN |
1 | ||
| 88720B - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-36120 |
XZB40,5#..WC |
1 | ||
| 88720-36120 |
XZB40,59;XZB50..(20S,21S)..WC |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL |
1 | ||
| 88723-20040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-36040 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40..WC..(ARL,GCC,GEN,SCO) |
1 | ||
| 88897-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| Common parts | ||||
| 63859-36010 | ||||
| 88569-36080 | ||||
| 88569-36100 | ||||
| 88569-36190 | ||||
| 88569-36260 | ||||
| 88569-36270 | ||||
| 90031-05107 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14126 | ||||
| 90119-06100 | ||||
| 90179-06206 | ||||
| 90463-10337 | ||||
| 90464-00277 | ||||
| 90467-19021 | ||||
| 90467-21152 | ||||
| 90480-01301 | ||||
| 91621-40616 | ||||
| 91631-B0630 | ||||
| 91651-60616 | ||||
| 91651-B0822 | ||||
| Linked diagrams | ||||
| 8719 | ||||

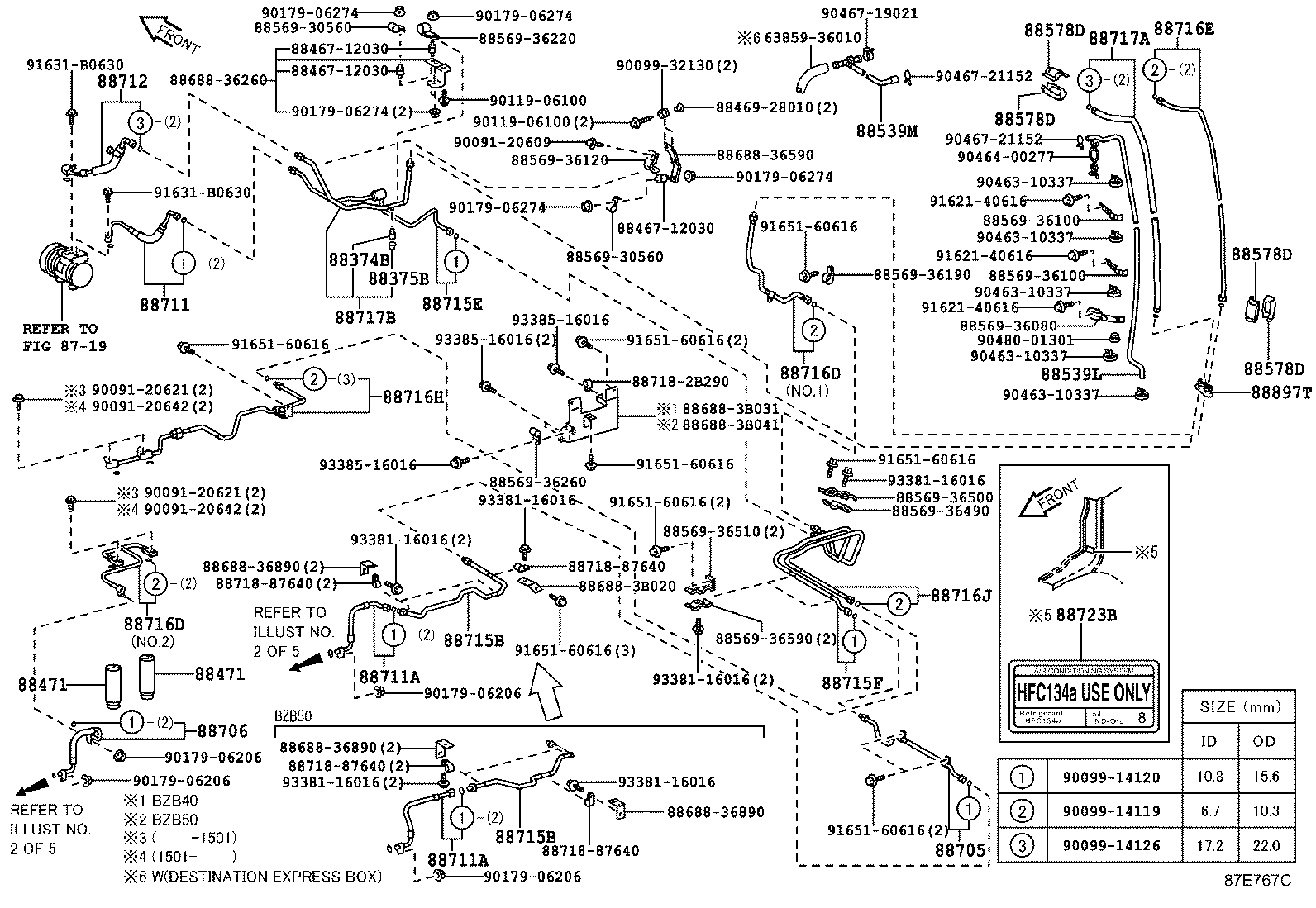

ILLUST NO. 3 OF 5(1501- )TRB40,50..WC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88539L - HOSE, DRAIN COOLER | ||||
| 88539-36150 |
BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC |
1 | ||
| 88539M - HOSE, DRAIN COOLER, NO.2 | ||||
| 88539-36170 |
BZB50,HZB50,TRB40,50,XZB5#..HRF..WC |
1 | ||
| 88539-36230 |
BZB40,50,XZB40 |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-36731 |
XZB40,5#..ARL,GEN |
1 | ||
| 88711-36721 |
TRB40,50..WC |
1 | ||
| 88711-36732 |
XZB40,5#..ARL,GEN |
1 | ||
| 88711-36730 |
XZB40,59;XZB50..RHD..(20S,21S)..WC |
1 | ||
| 88711-36720 |
TRB40,50..WC |
1 | ||
| 88711-36480 |
BZB40,50 |
1 | ||
| 88711-36721 |
TRB40,50..WC |
1 | ||
| 88711-36732 |
XZB40,5#..RHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-36690 |
XZB40,59;XZB50..RHD..(20S,21S)..WC |
1 | ||
| 88712-36691 |
XZB40,5#..ARL,GEN |
1 | ||
| 88712-36680 |
TRB40,50..WC |
1 | ||
| 88712-36692 |
XZB40,5#..ARL,GEN |
1 | ||
| 88712-36461 |
BZB40,50 |
1 | ||
| 88712-36680 |
TRB40,50..WC |
1 | ||
| 88712-36692 |
XZB40,5#..RHD |
1 | ||
| 88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E | ||||
| 88715-36320 |
BZB40,50 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-36260 |
BB4#,50,HZB50..RHD..HRF..WC..CBU NO.2 |
1 | ||
| 88716-36260 |
BB42,HZB50,TRB40,50,XZB40,5#..WC NO.2 |
1 | ||
| 88716-36511 |
BZB40,50 NO.1 |
1 | ||
| 88716-36520 |
BZB40,50 NO.2 |
1 | ||
| 88716-36320 |
BB42,HZB50,XZB40,5#..RHD..WC NO.1 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-36260 |
BB4#,50,HZB50..RHD..HRF..WC..CBU NO.2 |
1 | ||
| 88716-36260 |
BB42,HZB50,TRB40,50,XZB40,5#..WC NO.2 |
1 | ||
| 88716-36511 |
BZB40,50 NO.1 |
1 | ||
| 88716-36520 |
BZB40,50 NO.2 |
1 | ||
| 88716-36320 |
BB42,HZB50,XZB40,5#..RHD..WC NO.1 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-36220 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
1 | ||
| 88716-36220 |
BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-36483 |
BZB40,50 |
1 | ||
| 88716-36A00 |
BZB40,50 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-36110 |
BB4#,50,HZB50..RHD..HRF..WC..CBU NO.1 |
1 | ||
| 88717-36110 |
BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-36230 |
BZB40,50 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL |
1 | ||
| 88723-20040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-36040 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40..WC..(ARL,GCC,GEN,SCO) |
1 | ||
| 88897-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| Common parts | ||||
| 88467-12030 | ||||
| 88469-28010 | ||||
| 88569-30560 | ||||
| 88569-36080 | ||||
| 88569-36100 | ||||
| 88569-36110 | ||||
| 88569-36120 | ||||
| 88569-36190 | ||||
| 88569-36220 | ||||
| 88569-36260 | ||||
| 88569-36270 | ||||
| 88688-36271 | ||||
| 88688-36280 | ||||
| 88688-36650 | ||||
| 88688-36660 | ||||
| 88688-3B130 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14126 | ||||
| 90099-32130 | ||||
| 90119-06100 | ||||
| 90179-06161 | ||||
| 90179-06206 | ||||
| 90179-06274 | ||||
| 90463-10337 | ||||
| 90464-00277 | ||||
| 90464-00345 | ||||
| 90467-19021 | ||||
| 90467-21152 | ||||
| 90480-01301 | ||||
| 91621-40616 | ||||
| 91631-B0630 | ||||
| 91651-40612 | ||||
| 91651-60616 | ||||
| 96111-10400 | ||||
ILLUST NO. 3 OF 5(1501- )BZB40,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
XZB40,5#..ARL,GEN |
1 | ||
| 88374-30010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
XZB40,5#..ARL,GEN |
1 | ||
| 88375-30290 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-50020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-50020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
2 | ||
| 88539L - HOSE, DRAIN COOLER | ||||
| 88539-36150 |
BZB40,50,HZB50,TRB40,50,XZB40,5#..HRF..WC |
1 | ||
| 88539M - HOSE, DRAIN COOLER, NO.2 | ||||
| 88539-36170 |
BZB50,HZB50,TRB40,50,XZB5#..HRF..WC |
1 | ||
| 88539-36230 |
BZB40,50,XZB40 |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-90B01 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
4 | ||
| 88578-90B01 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..WC |
4 | ||
| 88705 - PIPE SUB-ASSY, DISCHARGE | ||||
| 88705-36191 |
BZB40,50 |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88721-36150 |
BZB40,50 |
1 | ||
| 88706-36042 |
BB42,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-36731 |
XZB40,5#..ARL,GEN |
1 | ||
| 88711-36721 |
TRB40,50..WC |
1 | ||
| 88711-36732 |
XZB40,5#..ARL,GEN |
1 | ||
| 88711-36730 |
XZB40,59;XZB50..RHD..(20S,21S)..WC |
1 | ||
| 88711-36720 |
TRB40,50..WC |
1 | ||
| 88711-36480 |
BZB40,50 |
1 | ||
| 88711-36721 |
TRB40,50..WC |
1 | ||
| 88711-36732 |
XZB40,5#..RHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-36690 |
XZB40,59;XZB50..RHD..(20S,21S)..WC |
1 | ||
| 88712-36691 |
XZB40,5#..ARL,GEN |
1 | ||
| 88712-36680 |
TRB40,50..WC |
1 | ||
| 88712-36692 |
XZB40,5#..ARL,GEN |
1 | ||
| 88712-36461 |
BZB40,50 |
1 | ||
| 88712-36680 |
TRB40,50..WC |
1 | ||
| 88712-36692 |
XZB40,5#..RHD |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-36091 |
BB42,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-36091 |
BB42,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| 88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E | ||||
| 88715-36320 |
BZB40,50 |
1 | ||
| 88715F - PIPE, COOLER REFRIGERANT DISCHARGE, F | ||||
| 88715-36130 |
BB42,HZB50,XZB40,5#..RHD..WC |
1 | ||
| 88715-36130 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
1 | ||
| 88715-36670 |
BZB40,50 |
1 | ||
| 88715-36230 |
TRB40,50..WC |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-36150 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
1 | ||
| 88716-36150 |
BZB40,50 NO.1 |
1 | ||
| 88716-36150 |
BB42,HZB50,XZB40,5#..RHD..WC |
1 | ||
| 88716-36492 |
BZB40,50 NO.2 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-36150 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
1 | ||
| 88716-36150 |
BZB40,50 NO.1 |
1 | ||
| 88716-36150 |
BB42,HZB50,XZB40,5#..RHD..WC |
1 | ||
| 88716-36492 |
BZB40,50 NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-36220 |
BB4#,50,HZB50..RHD..HRF..WC..CBU |
1 | ||
| 88716-36220 |
BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-36483 |
BZB40,50 |
1 | ||
| 88716-36A00 |
BZB40,50 |
1 | ||
| 88716J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88716-36A10 |
BZB40,50 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-36110 |
BB4#,50,HZB50..RHD..HRF..WC..CBU NO.1 |
1 | ||
| 88717-36110 |
BZB40,50,HZB50,XZB40,5#..RHD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-36230 |
BZB40,50 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL |
1 | ||
| 88723-20040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-36040 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40..WC..(ARL,GCC,GEN,SCO) |
1 | ||
| 88897-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC |
1 | ||
| Common parts | ||||
| 63859-36010 | ||||
| 88467-12030 | ||||
| 88469-28010 | ||||
| 88569-30560 | ||||
| 88569-36080 | ||||
| 88569-36100 | ||||
| 88569-36120 | ||||
| 88569-36190 | ||||
| 88569-36220 | ||||
| 88569-36260 | ||||
| 88569-36490 | ||||
| 88569-36500 | ||||
| 88569-36510 | ||||
| 88569-36590 | ||||
| 88688-36260 | ||||
| 88688-36590 | ||||
| 88688-36890 | ||||
| 88688-3B020 | ||||
| 88688-3B031 | ||||
| 88688-3B041 | ||||
| 88718-2B290 | ||||
| 88718-87640 | ||||
| 90091-20609 | ||||
| 90091-20621 | ||||
| 90091-20642 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14126 | ||||
| 90099-32130 | ||||
| 90119-06100 | ||||
| 90179-06206 | ||||
| 90179-06274 | ||||
| 90463-10337 | ||||
| 90464-00277 | ||||
| 90467-19021 | ||||
| 90467-21152 | ||||
| 90480-01301 | ||||
| 91621-40616 | ||||
| 91631-B0630 | ||||
| 91651-60616 | ||||
| 93381-16016 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
