XZB50L-ZRMSYW1 (2006)

Toyota Coaster

Production Aug 2006 - Nov 2013
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

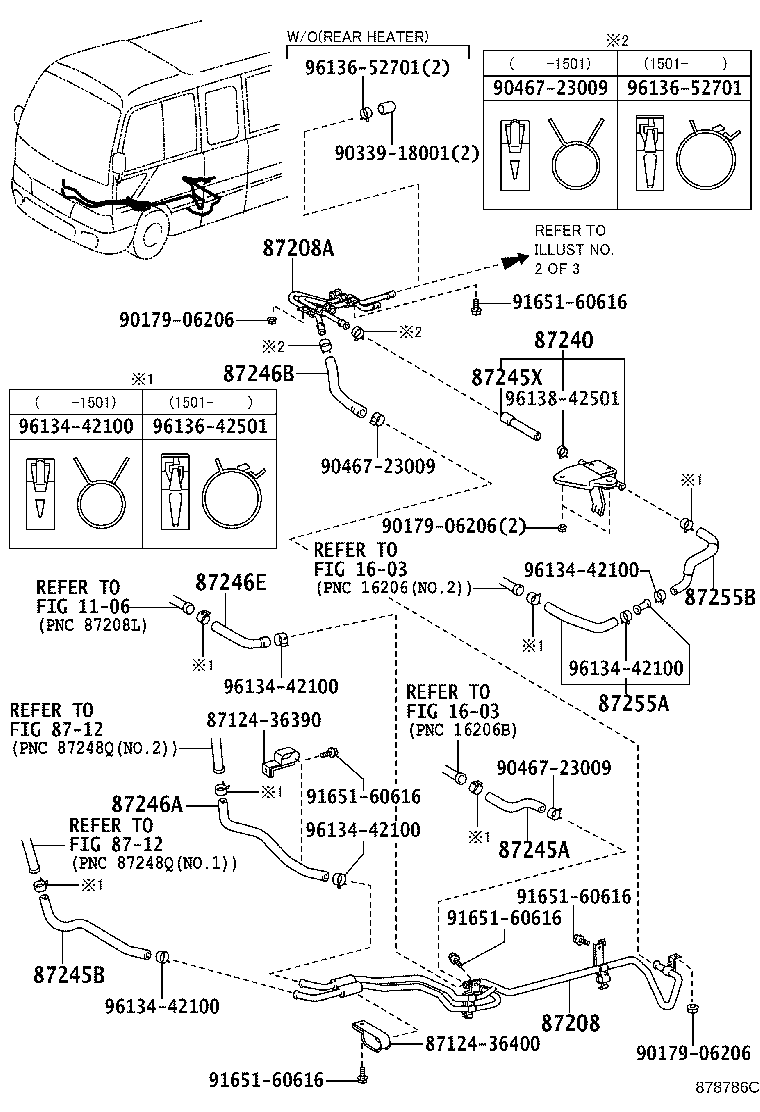

ILLUST NO. 1 OF 3(0608- )XZB40,50..LHD

Click highlighted areas on diagram

FRONT

diagram 1106 1603 1603 8712 8712 8712436390 8712436400 87208 87208A 87240 87245A 87245B 87245X 87246A 87246B 87246E 87255A 87255B 9017906206 9017906206 9017906206 9033918001 9046723009 9046723009 9046723009 9165160616 9165160616 9165160616 9165160616 9165160616 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613642501 9613652701 9613652701 9613842501
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36B80

XZB50..LHD..IV

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36B70

XZB50..LHD..IV

 1
87240 - VALVE ASSY, HEATER WATER
87240-36030

HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F

W(REAR HEATER)

 1
87245X - HOSE, HEATER WATER
99556-30100

HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F

*H,L=55

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B500

BB42,HZB50,RZB40,50..LHD

 1
87246B - HOSE, HEATER WATER, OUTLET B
99556-30065

BB42,HZB50,RZB40,50..LHD

*H,L=65

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-36D50

XZB50..LHD..IV

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87209-36A80

XZB50..LHD..IV

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-36A60

XZB50..IV

 1
Common parts
87124-36390
87124-36400
90179-06206
90339-18001
90467-23009
91651-60616
96134-42100
96136-42501
96136-52701
96138-42501
Linked diagrams
1106
1603
8712
