XZB50L-ZRMSYW1 (2006)
Toyota Coaster
Production
Aug 2006
-
Nov 2013
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

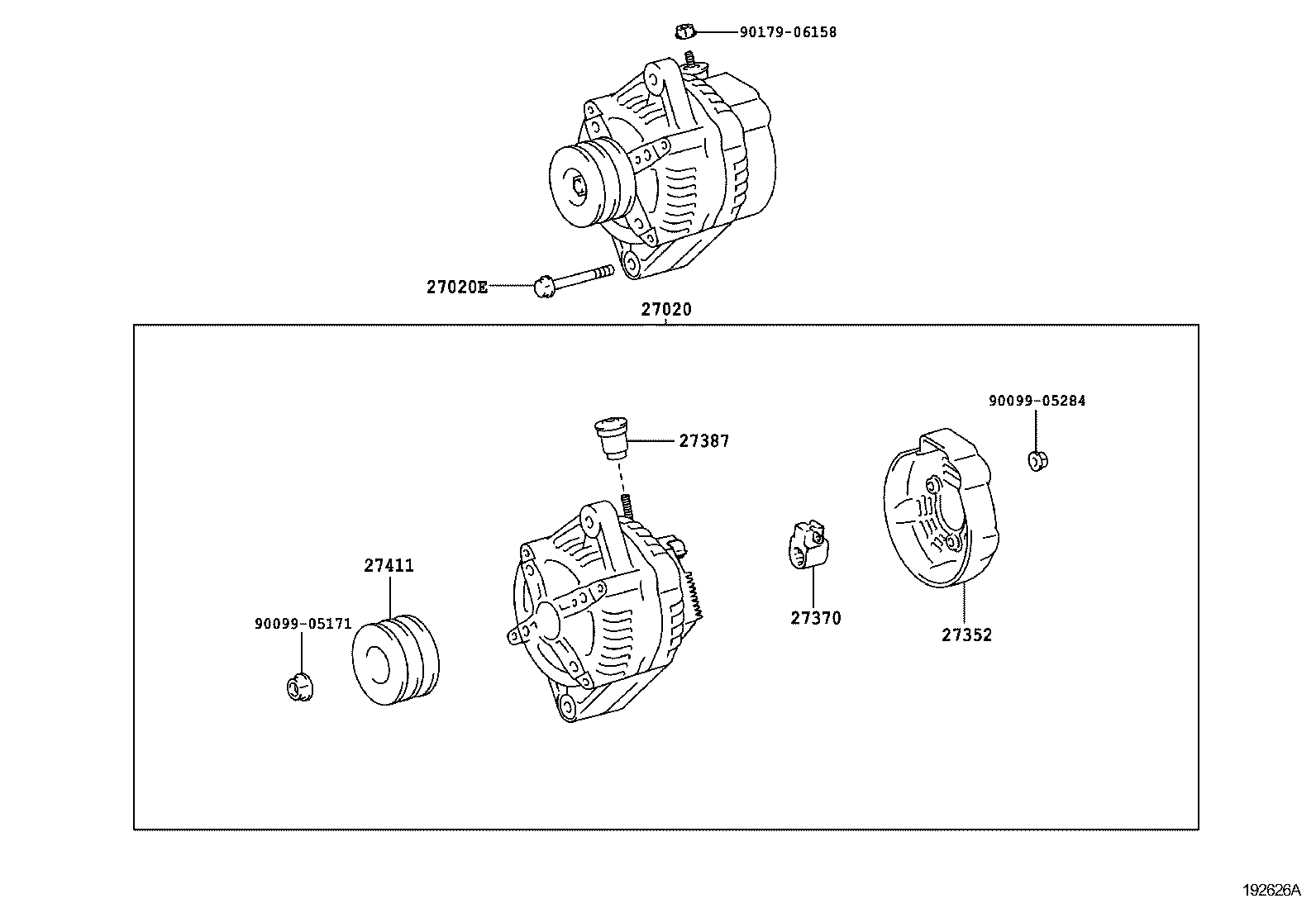

(0608-1010)N04C..XZB50..EUR,TAIW
Click highlighted areas on diagram
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78110 |
N04C..XZB50..IV 24V 80A |
1 | ||
| 27060-78180 |
N04C..XZB50..IV 24V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90031-05093 |
N04C..XZB50..IV |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27352-89104 |
N04C..XZB50..IV |
1 | ||
| S2735-21152 |
N04C..XZB50..IV |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58460 |
N04C..XZB50..IV |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZB50..IV 24V 80A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89109 |
N04C..XZB50..IV |
1 | ||
| S2743-11810 |
N04C..XZB50..IV |
1 | ||
| Common parts | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||

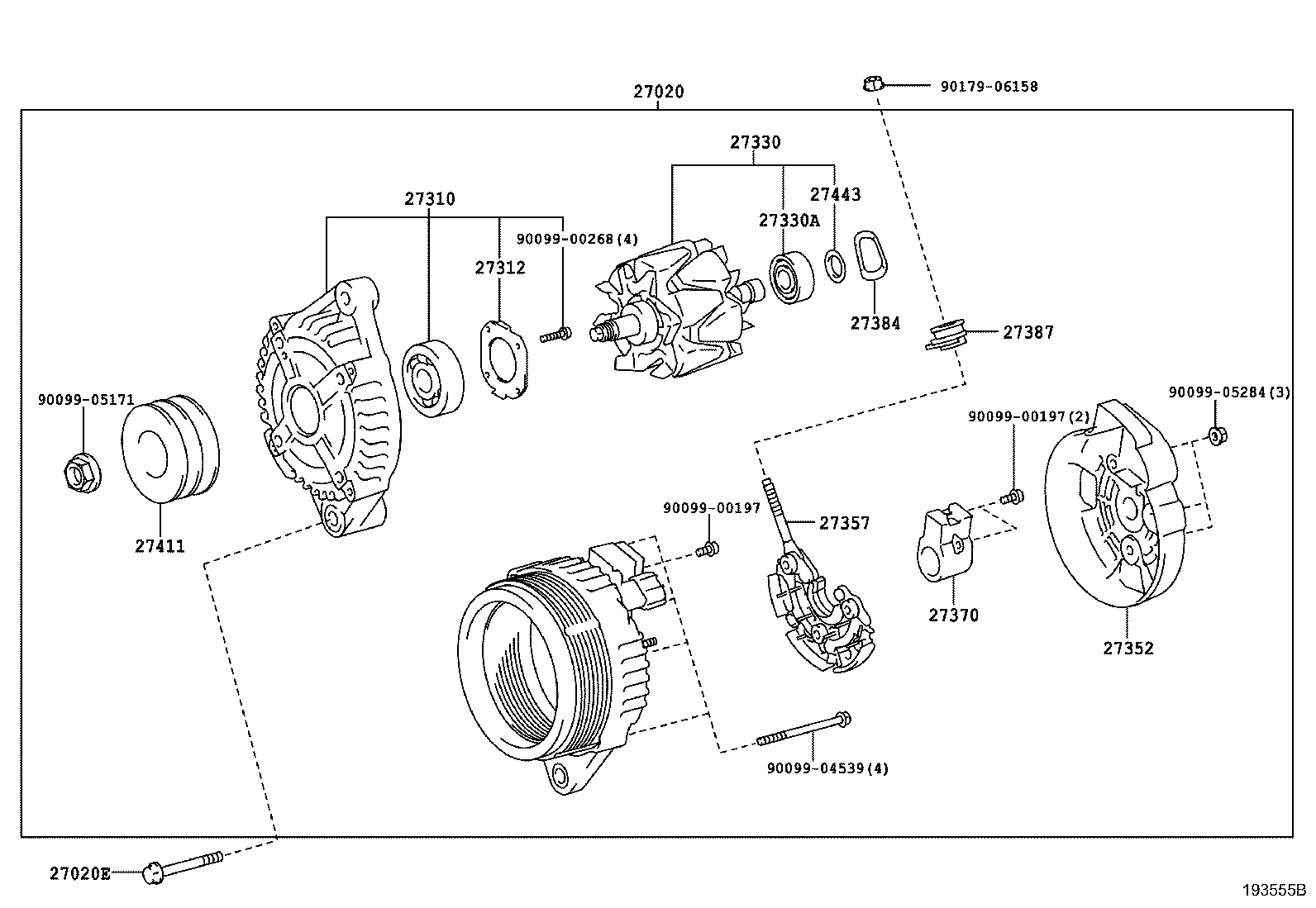

(1010-1311)N04C..XZB50..IV
Click highlighted areas on diagram
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78110 |
N04C..XZB50..IV 24V 80A |
1 | ||
| 27060-78180 |
N04C..XZB50..IV 24V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90031-05093 |
N04C..XZB50..IV |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-78180 |
N04C..XZB50..IV |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
N04C..XZB50..IV |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-89108 |
N04C..XZB50..IV |
1 | ||
| S2733-02010 |
N04C..XZB50..IV |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10222 |
N04C..XZB50..IV |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27352-89104 |
N04C..XZB50..IV |
1 | ||
| S2735-21152 |
N04C..XZB50..IV |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| S2735-61461 |
N04C..XZB50..IV |
1 | ||
| 27356-89104 |
N04C..XZB50..IV |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58460 |
N04C..XZB50..IV |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
N04C..XZB50..IV |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZB50..IV 24V 80A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89109 |
N04C..XZB50..IV |
1 | ||
| S2743-11810 |
N04C..XZB50..IV |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
N04C..XZB50..IV |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||
