XZB50L-ZRMSYW1 (2006)

Toyota Coaster

Production Aug 2006 - Nov 2013
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )N04C

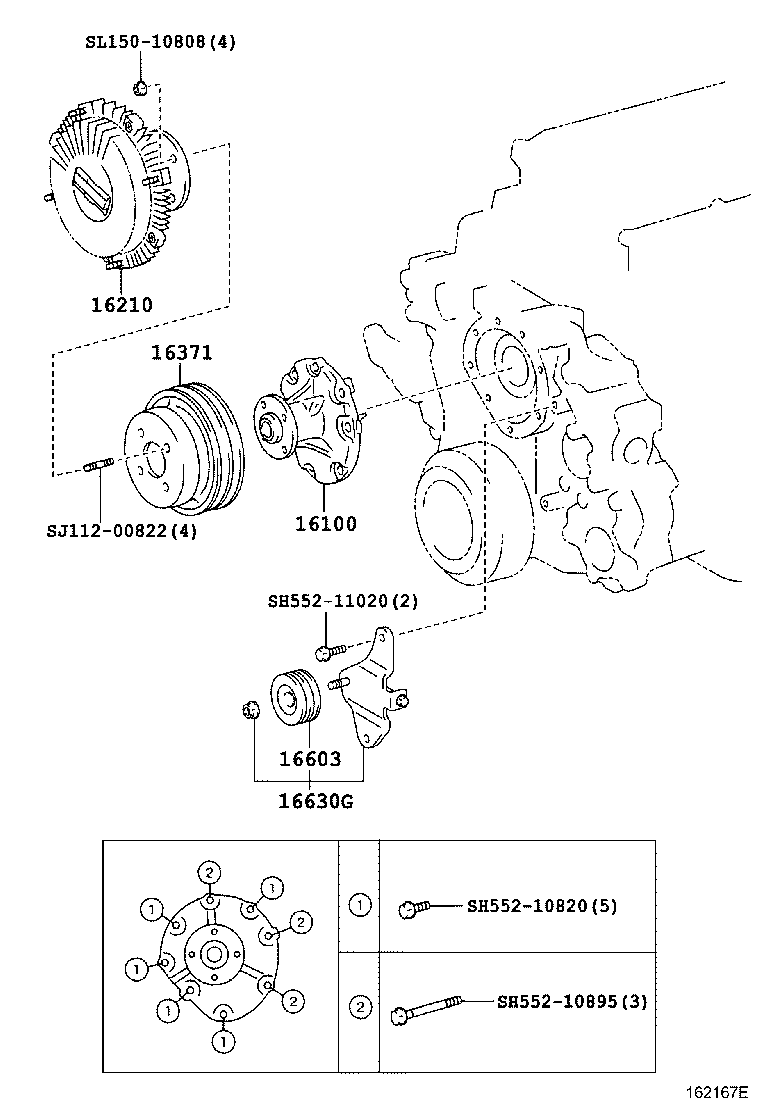

Click highlighted areas on diagram

diagram 16100 16210 16371 16603 16630G SH55210820 SH55210895 SH55211020 SJ11200822 SL15010808
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-78110

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
16100-78112

N04C..XZB40,5#..WC;N04C..XZB50..WOC..IV

 1
16100-78111

N04C..XZB40,5#

 1
16100-78170

N04C..XZB50..IV

 1
16210 - COUPLING ASSY, FLUID
16250-78190

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC

 1
S1625-01850

N04C..XZB50..IV

 1
16371 - PULLEY, FAN
S1610-51140

N04C..XZB50..IV

 1
16308-78030

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-E0031

N04C..XZB50..IV

 1
16603-78061

N04C..XZB40,5#..WC;N04C..XZB50..WOC..IV

 1
16603-78060

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
16630G - PULLEY ASSY, IDLER
16630-E0321

N04C..XZB50..IV

 1
16630-78180

N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S

 1
16630-78181

N04C..XZB40,5#..WC;N04C..XZB50..WOC..IV

 1
Common parts
SH552-10820
SH552-10895
SH552-11020
SJ112-00822
SL150-10808
