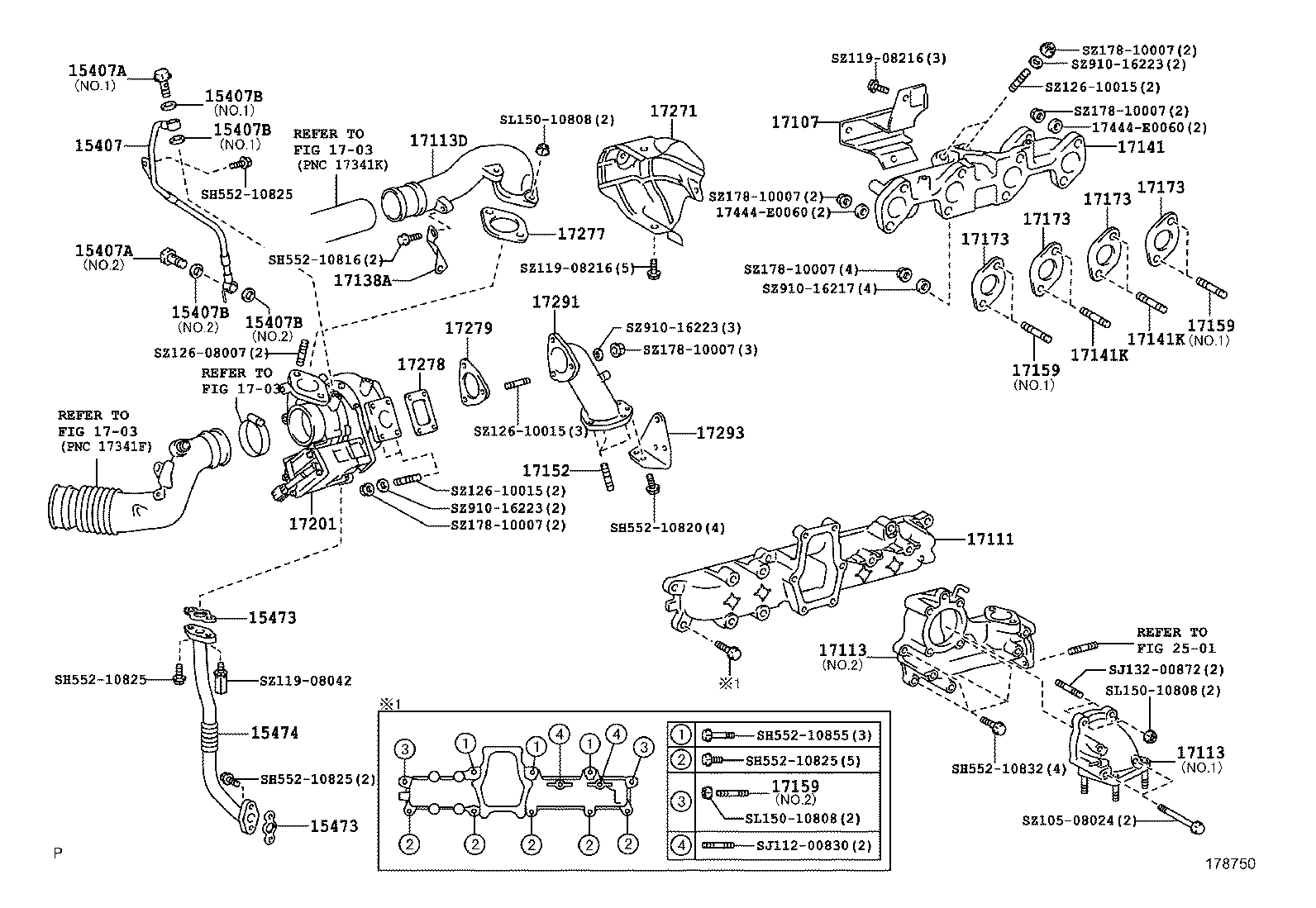

XZB50L-ZEMSYR (2006)
Toyota Coaster
(0608-1501)N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| S2410-61330 |
N04C..XZB40,5# |
1 | ||
| 29601-78090 |
N04C..XZB40,5# |
1 | ||
| S2410-61330 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 15407-78150 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| SZ401-14004 |
N04C..XZB40,5# NO.2 |
1 | ||
| 90034-01010 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
1 | ||
| SZ401-12001 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S NO.1 |
1 | ||
| 90031-09073 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.1 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| SZ401-14004 |
N04C..XZB40,5# NO.2 |
1 | ||
| 90034-01010 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
1 | ||
| SZ401-12001 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S NO.1 |
1 | ||
| 90031-09073 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.1 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90202-14004 |
N04C..XZB50 NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90201-14014 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SL722-01210 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB40,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90202-14004 |
N04C..XZB50 NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90201-14014 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SL722-01210 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB40,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90202-14004 |
N04C..XZB50 NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90201-14014 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SL722-01210 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB40,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90202-14004 |
N04C..XZB50 NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90201-14014 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SL722-01210 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB40,5# NO.2 |
2 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| S2413-51161 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
2 | ||
| S2413-51161 |
N04C..XZB40,5#..ARL,GEN,TAIW |
2 | ||
| 15471-78011 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
2 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| S2413-51161 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
2 | ||
| S2413-51161 |
N04C..XZB40,5#..ARL,GEN,TAIW |
2 | ||
| 15471-78011 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
2 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| S2410-72050 |
N04C..XZB40,5# |
1 | ||
| 29601-78110 |
N04C..XZB40,5# |
1 | ||
| S2410-72050 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT | ||||
| 17107-78162 |
N04C..XZB40,5# |
1 | ||
| 17107-78061 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S |
1 | ||
| 17107-E0012 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17107-E0012 |
N04C..XZB40,5# |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-78050 |
N04C..XZB40,5# |
1 | ||
| 17111-E0230 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17111-78100 |
N04C..XZB40,5# |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78122 |
N04C..XZB40,5# NO.2 |
1 | ||
| 17103-78101 |
N04C..XZB40,5# NO.1 |
1 | ||
| 17103-78102 |
N04C..XZB40,5# NO.1 |
1 | ||
| 17103-78100 |
N04C..XZB50 NO.1 |
1 | ||
| 17103-E0412 |
N04C..XZB40,5# NO.1 |
1 | ||
| 17113-E0A50 |
N04C..XZB40,5# NO.2 |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78122 |
N04C..XZB40,5# NO.2 |
1 | ||
| 17103-78101 |
N04C..XZB40,5# NO.1 |
1 | ||
| 17103-78102 |
N04C..XZB40,5# NO.1 |
1 | ||
| 17103-78100 |
N04C..XZB50 NO.1 |
1 | ||
| 17103-E0412 |
N04C..XZB40,5# NO.1 |
1 | ||
| 17113-E0A50 |
N04C..XZB40,5# NO.2 |
1 | ||
| 17113C - INSULATOR, INTAKE PIPE | ||||
| 17107-78080 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S |
1 | ||
| 17113D - PIPE, INTAKE, NO.1 | ||||
| 17113-78311 |
N04C..XZB5# |
1 | ||
| 17113-78312 |
N04C..XZB40,5# |
1 | ||
| 17113-E0332 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17113-E0332 |
N04C..XZB40,5# |
1 | ||
| 17138A - STAY, INTAKE PIPE | ||||
| 17138-78281 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
1 | ||
| 17138-E0441 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17138-78220 |
N04C..XZB5# |
1 | ||
| 17138-E0441 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-78090 |
N04C..XZB40,5# |
1 | ||
| 17141-78100 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S |
1 | ||
| 17141-E0370 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17141-E0370 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC |
6 | ||
| SZ126-10012 |
N04C..XZB40,5# |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90031-16091 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC |
3 | ||
| SZ126-10015 |
N04C..XZB40,5# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90031-16085 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SZ126-08007 |
N04C..XZB40,5# NO.2 |
2 | ||
| 90031-16109 |
N04C..XZB40,5#..ARL,GEN,TAIW NO.1 |
2 | ||
| SZ126-10006 |
N04C..XZB40,5# NO.1 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90031-16085 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SZ126-08007 |
N04C..XZB40,5# NO.2 |
2 | ||
| 90031-16109 |
N04C..XZB40,5#..ARL,GEN,TAIW NO.1 |
2 | ||
| SZ126-10006 |
N04C..XZB40,5# NO.1 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90031-16085 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SZ126-08007 |
N04C..XZB40,5# NO.2 |
2 | ||
| 90031-16109 |
N04C..XZB40,5#..ARL,GEN,TAIW NO.1 |
2 | ||
| SZ126-10006 |
N04C..XZB40,5# NO.1 |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
4 | ||
| S1710-41880 |
N04C..XZB40,5#..ARL,GEN,TAIW |
4 | ||
| S1710-41880 |
N04C..XZB40,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
4 | ||
| S1710-41880 |
N04C..XZB40,5#..ARL,GEN,TAIW |
4 | ||
| S1710-41880 |
N04C..XZB40,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
4 | ||
| S1710-41880 |
N04C..XZB40,5#..ARL,GEN,TAIW |
4 | ||
| S1710-41880 |
N04C..XZB40,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
4 | ||
| S1710-41880 |
N04C..XZB40,5#..ARL,GEN,TAIW |
4 | ||
| S1710-41880 |
N04C..XZB40,5# |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-78171 |
N04C..XZB40,5# |
1 | ||
| 17201-78170 |
N04C..XZB5# |
1 | ||
| 17201-78260 |
N04C..XZB40,5# |
1 | ||
| 17201-78261 |
N04C..XZB40,5# |
1 | ||
| 17201-E0701 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-78070 |
N04C..XZB40,5# |
1 | ||
| 17271-78050 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S |
1 | ||
| 17271-E0190 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17271-E0190 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| S2417-91430 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| S2417-91430 |
N04C..XZB40,5# |
1 | ||
| 17277-78010 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| S2410-91860 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17278-78020 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
1 | ||
| S2410-91860 |
N04C..XZB40,5# |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 90917-06087 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC |
1 | ||
| 17451-E0110 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-E0020 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17291-78100 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
1 | ||
| 17291-E0020 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17455-78190 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
1 | ||
| S1745-82952 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| S1745-82952 |
N04C..XZB40,5# |
1 | ||
| Common parts | ||||
| 17444-78160 | ||||
| 90031-01187 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05125 | ||||
| 90031-05126 | ||||
| 90031-05131 | ||||
| 90031-05171 | ||||
| 90031-16055 | ||||
| 90031-16085 | ||||
| 90031-16091 | ||||
| 90031-16108 | ||||
| 90031-19155 | ||||
| 90031-75001 | ||||
| 90031-75006 | ||||
| 90035-60055 | ||||
| 90035-60074 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 2501 | ||||

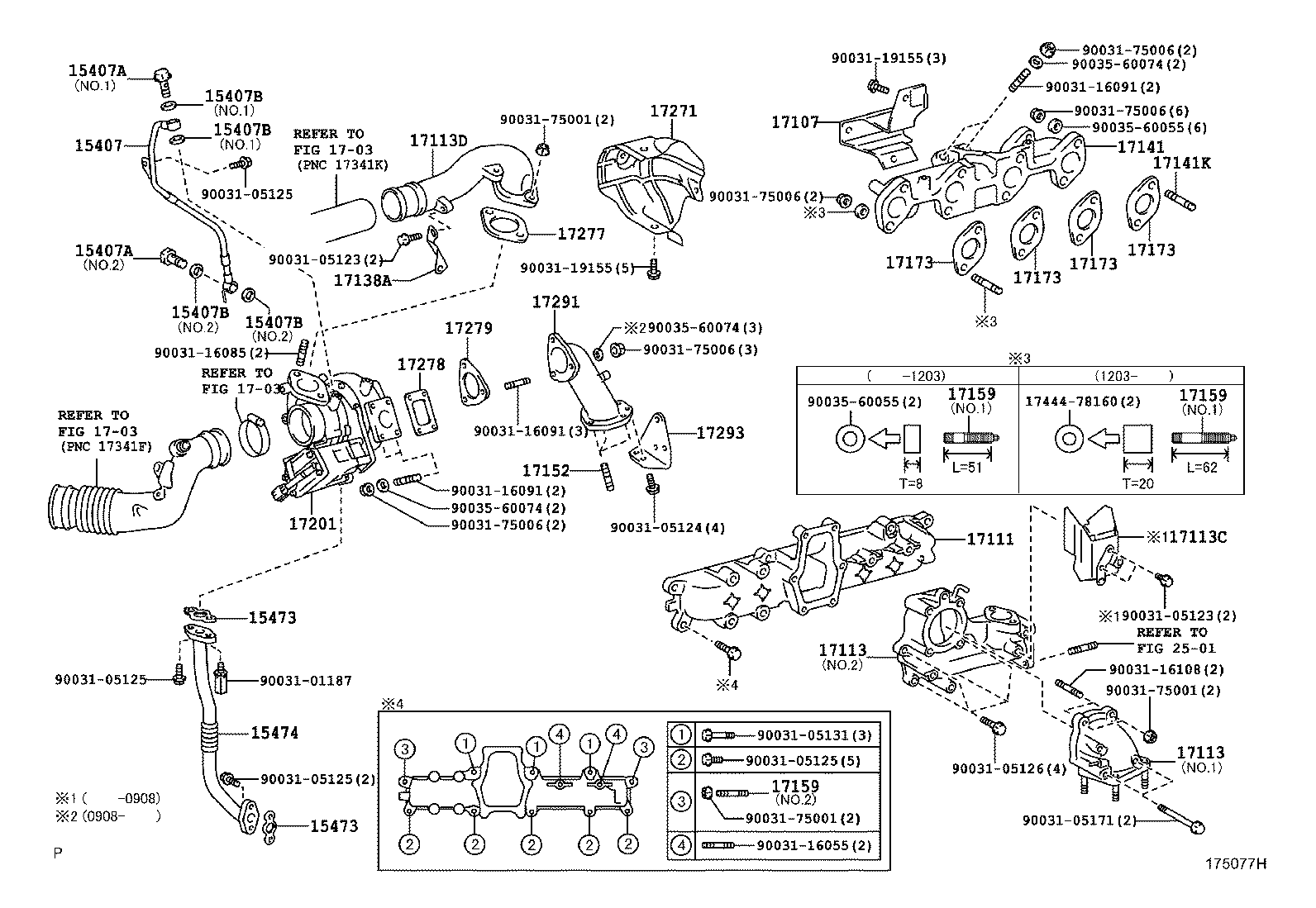

(1501- )N04C..XZB40,59..HRF ; (1501- )N04C..XZB50..20S,21S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| S2410-61330 |
N04C..XZB40,5# |
1 | ||
| 29601-78090 |
N04C..XZB40,5# |
1 | ||
| S2410-61330 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 15407-78150 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| SZ401-14004 |
N04C..XZB40,5# NO.2 |
1 | ||
| 90034-01010 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
1 | ||
| SZ401-12001 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S NO.1 |
1 | ||
| 90031-09073 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.1 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| SZ401-14004 |
N04C..XZB40,5# NO.2 |
1 | ||
| 90034-01010 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
1 | ||
| SZ401-12001 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S NO.1 |
1 | ||
| 90031-09073 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.1 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90202-14004 |
N04C..XZB50 NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90201-14014 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SL722-01210 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB40,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90202-14004 |
N04C..XZB50 NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90201-14014 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SL722-01210 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB40,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90202-14004 |
N04C..XZB50 NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90201-14014 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SL722-01210 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB40,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90202-14004 |
N04C..XZB50 NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90201-14014 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SL722-01210 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB40,5# NO.2 |
2 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| S2413-51161 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
2 | ||
| S2413-51161 |
N04C..XZB40,5#..ARL,GEN,TAIW |
2 | ||
| 15471-78011 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
2 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| S2413-51161 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
2 | ||
| S2413-51161 |
N04C..XZB40,5#..ARL,GEN,TAIW |
2 | ||
| 15471-78011 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
2 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| S2410-72050 |
N04C..XZB40,5# |
1 | ||
| 29601-78110 |
N04C..XZB40,5# |
1 | ||
| S2410-72050 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT | ||||
| 17107-78162 |
N04C..XZB40,5# |
1 | ||
| 17107-78061 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S |
1 | ||
| 17107-E0012 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17107-E0012 |
N04C..XZB40,5# |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-78050 |
N04C..XZB40,5# |
1 | ||
| 17111-E0230 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17111-78100 |
N04C..XZB40,5# |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78122 |
N04C..XZB40,5# NO.2 |
1 | ||
| 17103-78101 |
N04C..XZB40,5# NO.1 |
1 | ||
| 17103-78102 |
N04C..XZB40,5# NO.1 |
1 | ||
| 17103-78100 |
N04C..XZB50 NO.1 |
1 | ||
| 17103-E0412 |
N04C..XZB40,5# NO.1 |
1 | ||
| 17113-E0A50 |
N04C..XZB40,5# NO.2 |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78122 |
N04C..XZB40,5# NO.2 |
1 | ||
| 17103-78101 |
N04C..XZB40,5# NO.1 |
1 | ||
| 17103-78102 |
N04C..XZB40,5# NO.1 |
1 | ||
| 17103-78100 |
N04C..XZB50 NO.1 |
1 | ||
| 17103-E0412 |
N04C..XZB40,5# NO.1 |
1 | ||
| 17113-E0A50 |
N04C..XZB40,5# NO.2 |
1 | ||
| 17113D - PIPE, INTAKE, NO.1 | ||||
| 17113-78311 |
N04C..XZB5# |
1 | ||
| 17113-78312 |
N04C..XZB40,5# |
1 | ||
| 17113-E0332 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17113-E0332 |
N04C..XZB40,5# |
1 | ||
| 17138A - STAY, INTAKE PIPE | ||||
| 17138-78281 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
1 | ||
| 17138-E0441 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17138-78220 |
N04C..XZB5# |
1 | ||
| 17138-E0441 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-78090 |
N04C..XZB40,5# |
1 | ||
| 17141-78100 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S |
1 | ||
| 17141-E0370 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17141-E0370 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC |
6 | ||
| SZ126-10012 |
N04C..XZB40,5# |
4 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC |
6 | ||
| SZ126-10012 |
N04C..XZB40,5# |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90031-16091 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC |
3 | ||
| SZ126-10015 |
N04C..XZB40,5# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90031-16085 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SZ126-08007 |
N04C..XZB40,5# NO.2 |
2 | ||
| 90031-16109 |
N04C..XZB40,5#..ARL,GEN,TAIW NO.1 |
2 | ||
| SZ126-10006 |
N04C..XZB40,5# NO.1 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90031-16085 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SZ126-08007 |
N04C..XZB40,5# NO.2 |
2 | ||
| 90031-16109 |
N04C..XZB40,5#..ARL,GEN,TAIW NO.1 |
2 | ||
| SZ126-10006 |
N04C..XZB40,5# NO.1 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16069 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC NO.1 |
2 | ||
| 90031-16085 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC NO.2 |
2 | ||
| SZ126-08007 |
N04C..XZB40,5# NO.2 |
2 | ||
| 90031-16109 |
N04C..XZB40,5#..ARL,GEN,TAIW NO.1 |
2 | ||
| SZ126-10006 |
N04C..XZB40,5# NO.1 |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
4 | ||
| S1710-41880 |
N04C..XZB40,5#..ARL,GEN,TAIW |
4 | ||
| S1710-41880 |
N04C..XZB40,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
4 | ||
| S1710-41880 |
N04C..XZB40,5#..ARL,GEN,TAIW |
4 | ||
| S1710-41880 |
N04C..XZB40,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
4 | ||
| S1710-41880 |
N04C..XZB40,5#..ARL,GEN,TAIW |
4 | ||
| S1710-41880 |
N04C..XZB40,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
4 | ||
| S1710-41880 |
N04C..XZB40,5#..ARL,GEN,TAIW |
4 | ||
| S1710-41880 |
N04C..XZB40,5# |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-78171 |
N04C..XZB40,5# |
1 | ||
| 17201-78170 |
N04C..XZB5# |
1 | ||
| 17201-78260 |
N04C..XZB40,5# |
1 | ||
| 17201-78261 |
N04C..XZB40,5# |
1 | ||
| 17201-E0701 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-78070 |
N04C..XZB40,5# |
1 | ||
| 17271-78050 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S |
1 | ||
| 17271-E0190 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17271-E0190 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| S2417-91430 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| S2417-91430 |
N04C..XZB40,5# |
1 | ||
| 17277-78010 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| S2410-91860 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17278-78020 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
1 | ||
| S2410-91860 |
N04C..XZB40,5# |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 90917-06087 |
N04C..XZB40,59;N04C..XZB50..(20S,21S)..WC |
1 | ||
| 17451-E0110 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-E0020 |
N04C..XZB40,59..HRF;N04C..XZB50..20S,21S |
1 | ||
| 17291-78100 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
1 | ||
| 17291-E0020 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17455-78190 |
N04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..(20S,21S)..WC |
1 | ||
| S1745-82952 |
N04C..XZB40,5#..ARL,GEN,TAIW |
1 | ||
| S1745-82952 |
N04C..XZB40,5# |
1 | ||
| Common parts | ||||
| 17444-E0060 | ||||
| SH552-10816 | ||||
| SH552-10820 | ||||
| SH552-10825 | ||||
| SH552-10832 | ||||
| SH552-10855 | ||||
| SJ112-00830 | ||||
| SJ132-00872 | ||||
| SL150-10808 | ||||
| SZ105-08024 | ||||
| SZ119-08042 | ||||
| SZ119-08216 | ||||
| SZ126-08007 | ||||
| SZ126-10015 | ||||
| SZ178-10007 | ||||
| SZ910-16217 | ||||
| SZ910-16223 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 2501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
