XZB50L-ZEMSYR (2006)

Toyota Coaster

Production Aug 2006 - Dec 2016
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301- )

Click highlighted areas on diagram

GLIDE DOOR

diagram 58392 58393A 5852 67025A 68750A 68759 68790A 68799 69207S 69230A 69272C 69281 69290E 69290E 69330B 69340A 69480 69490D 69630A 69701D 69741E 69751C 8202 8202 8401 85450A 9010906196 9011906680 9011906680 9011908357 9011908743 9011908842 9014880028 9014880028 9015940202 9017908138 9038606050 91511B0614 91511B0614 9155180608 9155180608 9155180608 9155180608 9163160825 9338315008 9338515010 9413061000
Part # Description Qty Price
Common parts
90109-06196
90119-06680
90119-08357
90119-08743
90119-08842
90148-80028
90159-40202
90179-08138
90386-06050
91511-B0614
91551-80608
91631-60825
93383-15008
93385-15010
94130-61000
Linked diagrams
5852
8202
8401

(9301-1501)

Click highlighted areas on diagram

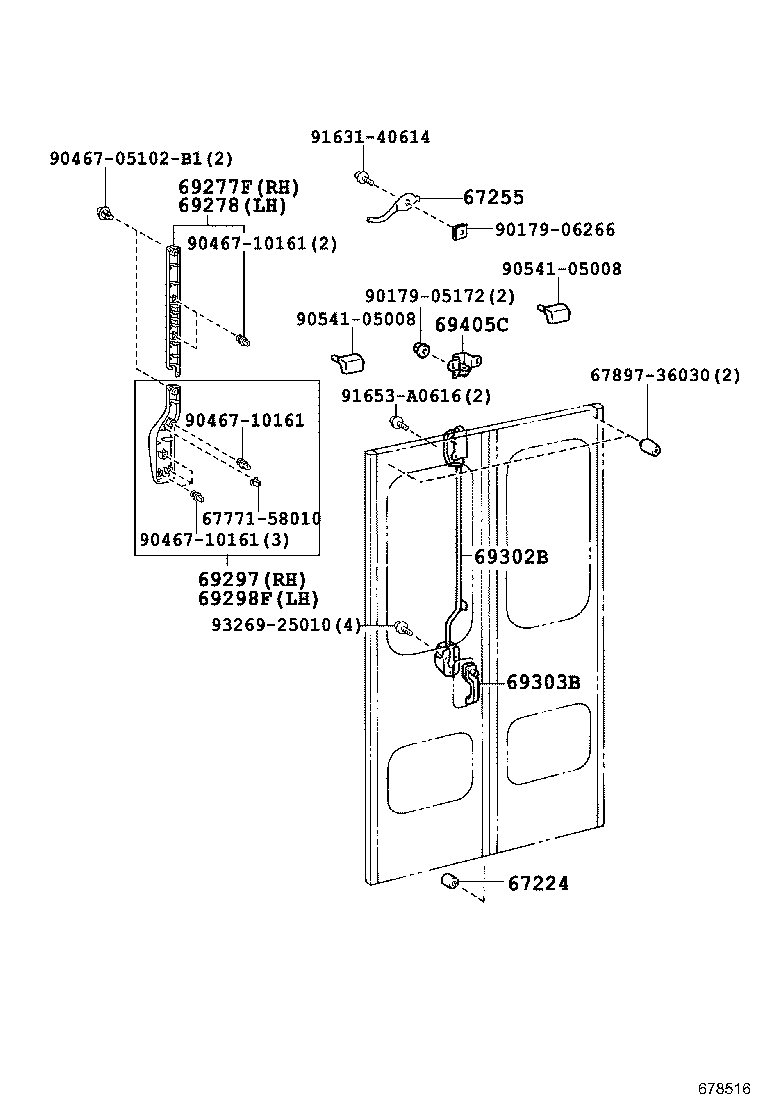

FOLDING DOOR

diagram 67224 67224 67255 6777158010 6789736030 69277F 69278 69297 69298F 69302B 69303B 69405C 8512 9016435037 9016435037 9017904001 9017905172 9017906266 9046705102B1 9046710161 9046710161 9046710161 9054103010 9054105008 9054105008 9163140614 91653A0616 9323924012 9326925010
Part # Description Qty Price
67224 - GUM, DOOR CUSHION, NO.2
67224-90500

BB4#,58,HZB50,RZB40,50..STD..CBU

 1
90541-09125

BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F

 1
90541-09125

BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..CBU

 1
67224 - GUM, DOOR CUSHION, NO.2
67224-90500

BB4#,58,HZB50,RZB40,50..STD..CBU

 1
90541-09125

BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F

 1
90541-09125

BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..CBU

 1
67255 - STOPPER, CENTER INSIDE LOCK
67255-36020

BB42,HZB50,RZB40,50..LHD..STD..CBU

 1
69277F - BEZEL, DOOR INSIDE HANDLE, NO.1 RH
69277-36010B0

BB42,50,HZB50,TRB40,50,XZB50..LHD..(GEN,TAIW)

MD.CHARCOAL,TRIM1#

 1
69277-36010B0

BB42,HZB50,TRB40,50,XZB40,50..LHD

MD.CHARCOAL,TRIM1#

 1
69297 - BEZEL, DOOR INSIDE HANDLE, NO.2 RH
69297-36010B0

XZB50..TAIW

MD.CHARCOAL,TRIM1#

 1
69297-36020B0

BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU

W(*FD AUTO),MD.CHARCOAL,TRIM1#

 1
69297-36020B0

BB42,HZB50,TRB40,50,XZB40,50..LHD

W(*FD AUTO),MD.CHARCOAL,TRIM1#

 1
69298F - BEZEL, DOOR INSIDE HANDLE, NO.2 LH
69298-36020B0

BZB40,50,XZB40

MD.CHARCOAL,TRIM1#

 1
69298-36010B0

BZB40,50,XZB40

W/O(DESTINATION EXPRESS BOX),MD.CHARCOAL,TRIM1#

 1
69302B - LOCK SUB-ASSY, CENTER DOOR INSIDE HANDLE
69302-36020

BB42,58,HZB50,RZB40,50..LHD..STD..CBU

 1
69302-36050B0

BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU

W(*FD AUTO),MD.CHARCOAL,TRIM1#

 1
69302-36050B0

BB42,HZB50,TRB40,50,XZB40,50..LHD

W(*FD AUTO),MD.CHARCOAL,TRIM1#

 1
69303B - HANDLE SUB-ASSY, CENTER DOOR LOCK, OUTSIDE
69303-36010

BB50..IV;BB4#,58,HZB50,RZB40,50..STD

 1
69303-36010

BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F

 1
69405C - STOPPER SUB-ASSY, CENTER DOOR INSIDE LOOK
69405-90B00

BB4#,58,HZB50,RZB40,50..STD..CBU

 1
69405-90B00

BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F

 1
Common parts
67771-58010
67897-36030
90164-35037
90179-04001
90179-05172
90179-06266
90467-05102B1
90467-10161
90541-03010
90541-05008
91631-40614
91653-A0616
93239-24012
93269-25010
Linked diagrams
8512

(1209- )

Click highlighted areas on diagram

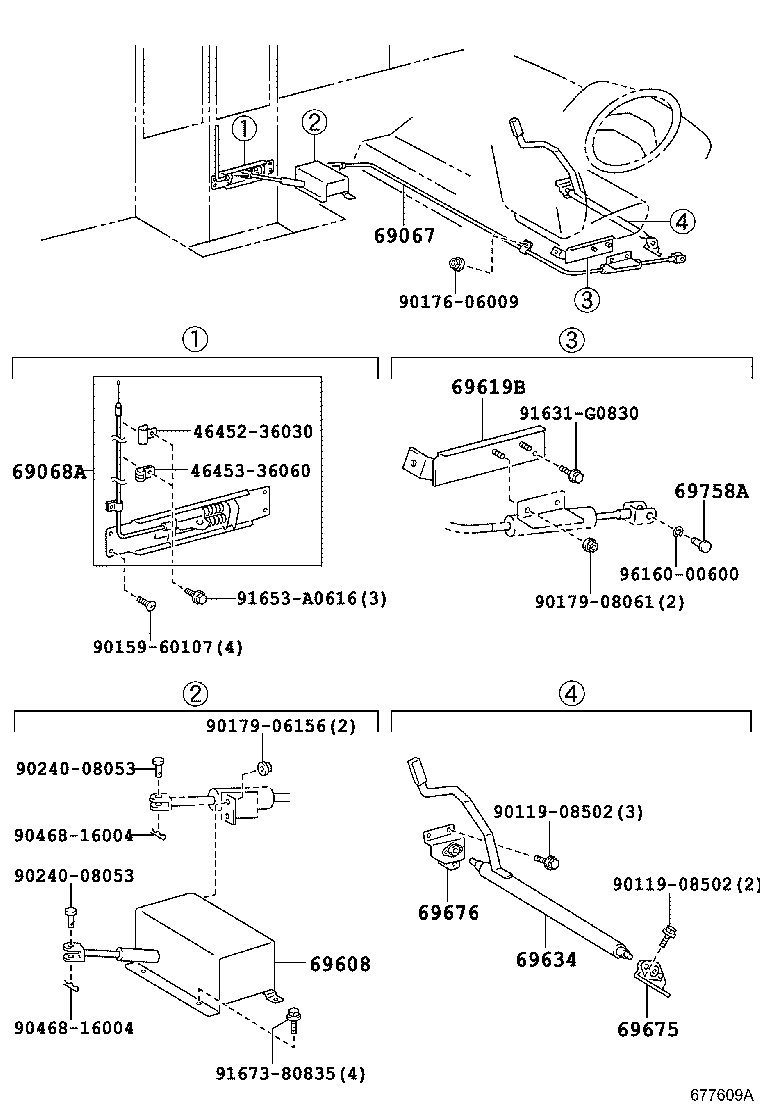

MECHANICAL DOOR

diagram 4645236030 4645336060 69067 69068A 69608 69619B 69634 69675 69676 69758A 9011908502 9011908502 9015960107 9017606009 9017906156 9017908061 9024008053 9024008053 9046816004 9046816004 91631G0830 91653A0616 9167380835 9616000600
Part # Description Qty Price
69067 - CABLE SUB-ASSY, CENTER DOOR REMOTE CONTROL, NO.1
69067-36040

BZB40,50,XZB40..HRF

 1
69068A - CABLE SUB-ASSY, CENTER DOOR REMOTE CONTROL, NO.2
69068-36040

BZB40,50,XZB40

 1
69068-36040

BZB40,50,XZB40..HRF

 1
69608 - LINK SUB-ASSY, CENTER DOOR REMOTE CONTROL
69608-36010

BZB40,50,XZB40..HRF

 1
69619B - RETAINER, DOOR LOCK REMOTE CONTROL BASE
69619-36020

BZB40,50,XZB40..HRF

 1
69634 - ROD, CENTER DOOR REMOTE CONTROL
69634-36060

BZB40,50,XZB40..HRF

 1
69675 - BASE, CENTER DOOR REMOTE CONTROL, NO.1
69675-36020

BZB40,50,XZB40..HRF

 1
69676 - BASE, CENTER DOOR REMOTE CONTROL, NO.2
69676-36040

BZB40,50,XZB40..HRF

 1
69758A - PIN, CENTER DOOR LOCK CONTROL LINK
69758-36010

BZB40,50,XZB40..HRF

 1
Common parts
46452-36030
46453-36060
90119-08502
90159-60107
90176-06009
90179-06156
90179-08061
90240-08053
90468-16004
91631-G0830
91653-A0616
91673-80835
96160-00600

(1501- )

Click highlighted areas on diagram

FOLDING DOOR

diagram 67224 67255 6777158010 6789736030 69277F 69278 69297 69298F 69302B 69303B 69405C 9017905172 9017906266 9046705102B1 9046710161 9046710161 9046710161 9054105008 9054105008 9163140614 91653A0616 9326925010
Part # Description Qty Price
67224 - GUM, DOOR CUSHION, NO.2
67224-90500

BB4#,58,HZB50,RZB40,50..STD..CBU

 1
90541-09125

BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F

 1
90541-09125

BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..CBU

 1
67255 - STOPPER, CENTER INSIDE LOCK
67255-36020

BB42,HZB50,RZB40,50..LHD..STD..CBU

 1
69277F - BEZEL, DOOR INSIDE HANDLE, NO.1 RH
69277-36010B0

BB42,50,HZB50,TRB40,50,XZB50..LHD..(GEN,TAIW)

MD.CHARCOAL,TRIM1#

 1
69277-36010B0

BB42,HZB50,TRB40,50,XZB40,50..LHD

MD.CHARCOAL,TRIM1#

 1
69297 - BEZEL, DOOR INSIDE HANDLE, NO.2 RH
69297-36010B0

XZB50..TAIW

MD.CHARCOAL,TRIM1#

 1
69297-36020B0

BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU

W(*FD AUTO),MD.CHARCOAL,TRIM1#

 1
69297-36020B0

BB42,HZB50,TRB40,50,XZB40,50..LHD

W(*FD AUTO),MD.CHARCOAL,TRIM1#

 1
69298F - BEZEL, DOOR INSIDE HANDLE, NO.2 LH
69298-36020B0

BZB40,50,XZB40

MD.CHARCOAL,TRIM1#

 1
69298-36010B0

BZB40,50,XZB40

W/O(DESTINATION EXPRESS BOX),MD.CHARCOAL,TRIM1#

 1
69302B - LOCK SUB-ASSY, CENTER DOOR INSIDE HANDLE
69302-36020

BB42,58,HZB50,RZB40,50..LHD..STD..CBU

 1
69302-36050B0

BB42,50,HZB50,TRB40,50,XZB50..LHD..CBU

W(*FD AUTO),MD.CHARCOAL,TRIM1#

 1
69302-36050B0

BB42,HZB50,TRB40,50,XZB40,50..LHD

W(*FD AUTO),MD.CHARCOAL,TRIM1#

 1
69303B - HANDLE SUB-ASSY, CENTER DOOR LOCK, OUTSIDE
69303-36010

BB50..IV;BB4#,58,HZB50,RZB40,50..STD

 1
69303-36010

BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F

 1
69405C - STOPPER SUB-ASSY, CENTER DOOR INSIDE LOOK
69405-90B00

BB4#,58,HZB50,RZB40,50..STD..CBU

 1
69405-90B00

BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F

 1
Common parts
67771-58010
67897-36030
90179-05172
90179-06266
90467-05102B1
90467-10161
90541-05008
91631-40614
91653-A0616
93269-25010
