XZB40R-ZCMSY (2008)

Toyota Coaster

Production Mar 2008 - Dec 2016
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

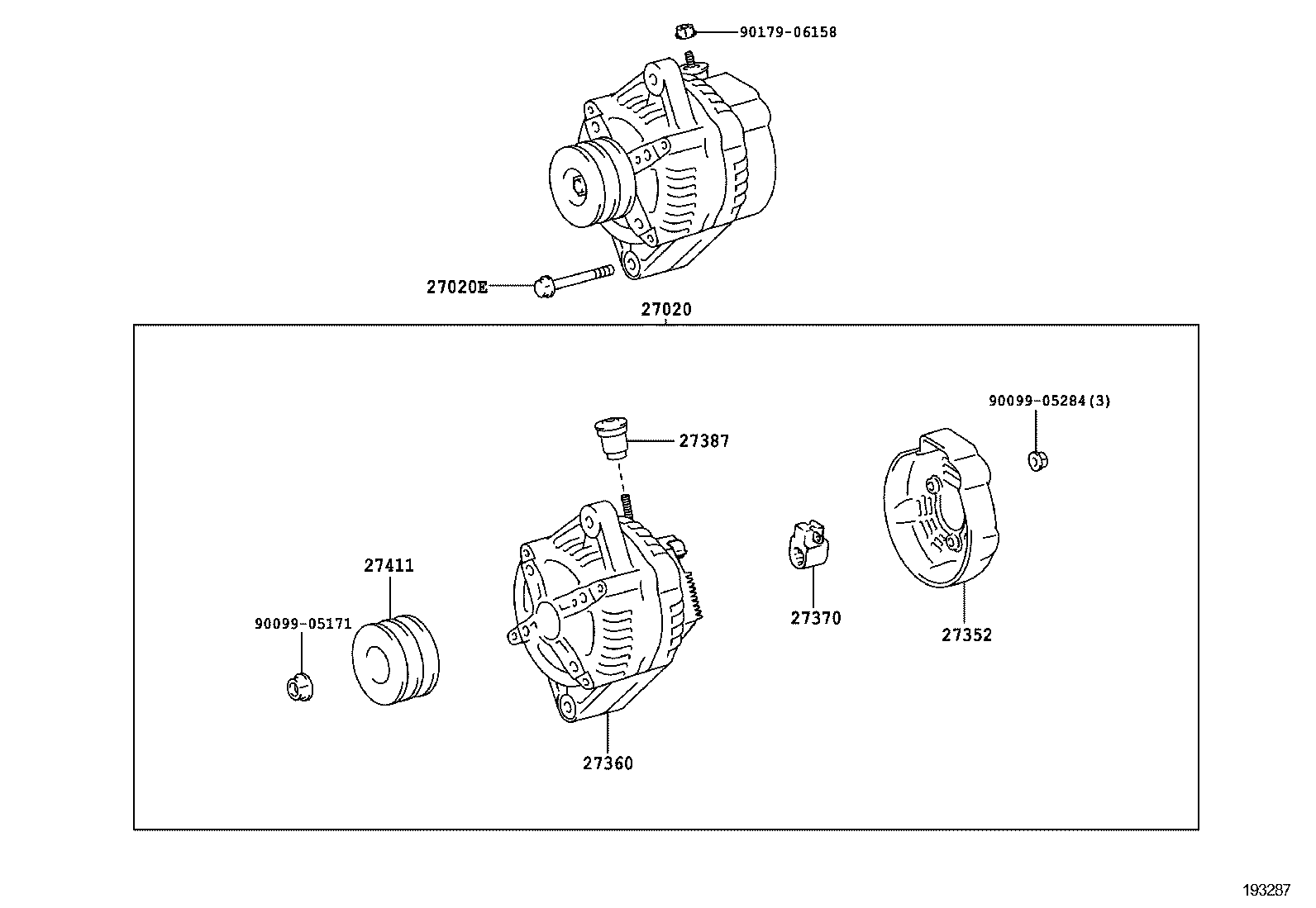

(0908-1010)N04C..ARL,GEN,TAIW

Click highlighted areas on diagram

12V 130A

diagram 27020 27020E 27352 27360 27370 27387 27411 9009905171 9009905284 9017906158
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-78150

N04C..XZB40,5#..ARL,GEN,TAIW

12V 130A

 1
27060-78200

N04C..XZB40,5#..ARL,GEN,TAIW

12V 130A

 1
27060-E0330

N04C..XZB40,5#

12V 130A

 1
27020E - BOLT(FOR ALTERNATOR)
SZ105-10067

N04C..XZB40,5#

 1
27352 - COVER, FRAME BRUSH
27352-89105

N04C..XZB40,5#..ARL,GEN,TAIW

 1
S2735-21180

N04C..XZB40,5#

 1
27360 - COIL ASSY, ALTERNATOR
S2746-01030

N04C..XZB40,5#

 1
27360-89104

N04C..XZB40,5#..ARL,GEN,TAIW

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
S2737-01370

N04C..XZB40,5#

 1
27370-58460

N04C..XZB40,5#..ARL,GEN

 1
27387 - INSULATOR, TERMINAL
S2738-71350

N04C..XZB40,5#

 1
27387-20130

N04C..XZB40,5#..ARL,GEN

 1
27411 - PULLEY, ALTERNATOR
S2743-11800

N04C..XZB40,5#

 1
Common parts
90099-05171
90099-05284
90179-06158

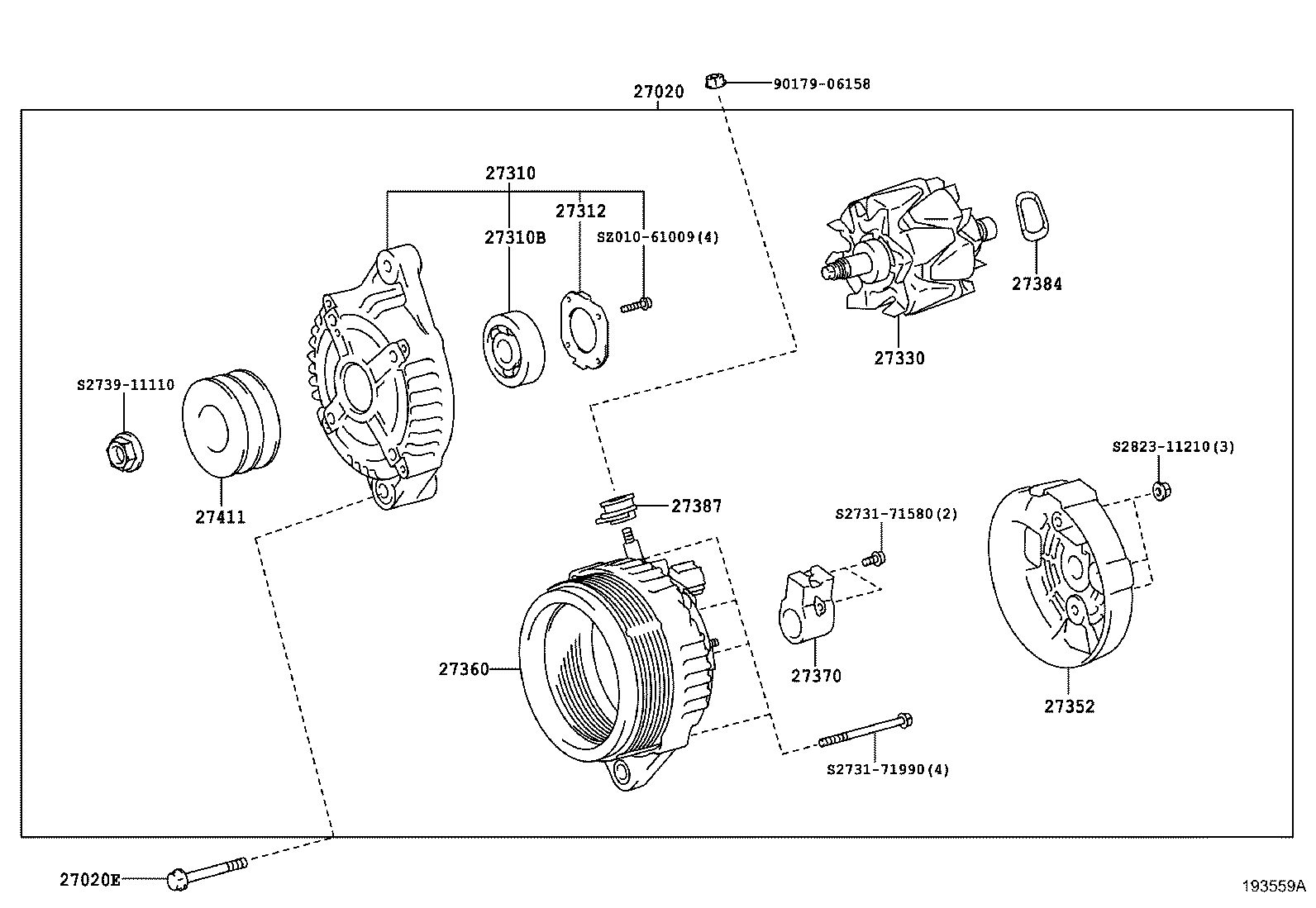

(1010- )N04C..ARL,GEN,TAIW

Click highlighted areas on diagram

12V 130A

diagram 27020 27020E 27310 27310B 27312 27330 27352 27360 27370 27384 27387 27411 9017906158 S273171580 S273171990 S273911110 S282311210 SZ01061009
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-78150

N04C..XZB40,5#..ARL,GEN,TAIW

12V 130A

 1
27060-78200

N04C..XZB40,5#..ARL,GEN,TAIW

12V 130A

 1
27060-E0330

N04C..XZB40,5#

12V 130A

 1
27020E - BOLT(FOR ALTERNATOR)
SZ105-10067

N04C..XZB40,5#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-78200

N04C..XZB40,5#..ARL,GEN,TAIW

 1
27310-EV030

N04C..XZB40,5#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
S2825-22190

N04C..XZB40,5#

 1
90099-10142

N04C..XZB40,5#..ARL,GEN,TAIW

 1
27312 - PLATE, RETAINER
27312-72100

N04C..XZB40,5#..ARL,GEN,TAIW

 1
S2731-21670

N04C..XZB40,5#

 1
27330 - ROTOR ASSY, ALTERNATOR
S2733-02070

N04C..XZB40,5#

 1
27330-33090

N04C..XZB40,5#..ARL,GEN,TAIW

 1
27352 - COVER, FRAME BRUSH
27352-89105

N04C..XZB40,5#..ARL,GEN,TAIW

 1
S2735-21180

N04C..XZB40,5#

 1
27360 - COIL ASSY, ALTERNATOR
S2746-01030

N04C..XZB40,5#

 1
27360-89104

N04C..XZB40,5#..ARL,GEN,TAIW

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
S2737-01370

N04C..XZB40,5#

 1
27370-58460

N04C..XZB40,5#..ARL,GEN

 1
27384 - WASHER
27384-50030

N04C..XZB40,5#..ARL,GEN,TAIW

 1
S2738-41310

N04C..XZB40,5#

 1
27387 - INSULATOR, TERMINAL
S2738-71350

N04C..XZB40,5#

 1
27387-20130

N04C..XZB40,5#..ARL,GEN

 1
27411 - PULLEY, ALTERNATOR
S2743-11800

N04C..XZB40,5#

 1
Common parts
90179-06158
S2731-71580
S2731-71990
S2739-11110
S2823-11210
SZ010-61009
