TRB40L-BRMSKV (2007)

Toyota Coaster

Production Aug 2007 - Dec 2016
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

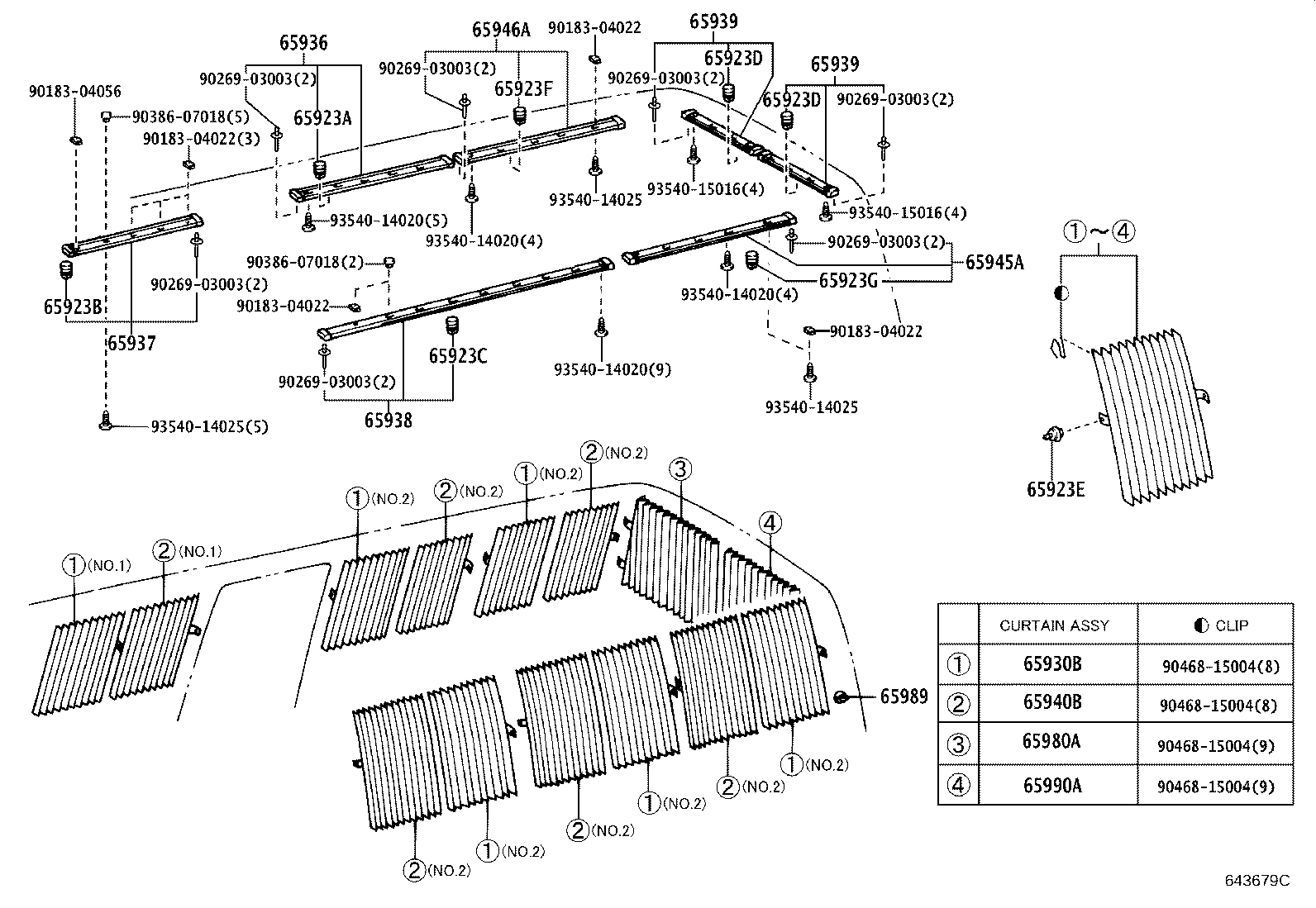

ILLUST NO. 2 OF 2(9301-1501)BB42,RZB40,TRB40..LHD

Click highlighted areas on diagram

diagram 65923A 65923B 65923C 65923D 65923D 65923E 65923F 65923G 65930B 65936 65937 65938 65939 65939 65940B 65945A 65946A 65980A 65989 65990A 9018304022 9018304056 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9038607018 9046815004 9046815004 9046815004 9046815004 9354014020 9354014020 9354014020 9354014020 9354014020 9354014025 9354014025 9354014025 9354014025 9354015016 9354015016 9354015016 9354015016 9354015016 9354024020 9354024020 9354024020 9354024020 9354024020 9354024025 9354024025 9354024025 9354024025 9354025016 9354025016 9354025016 9354025016 9354025016
Part # Description Qty Price
65923A - HOOK, CURTAIN, NO.1
65923-36010

BB42,TRB40..GCC;HZB50,TRB50,XZB50..WC..(GCC,GEN)

 14
65923B - HOOK, CURTAIN, NO.2
65923-36010

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

 14
65923C - HOOK, CURTAIN, NO.3
65923-36010

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

 28
65923D - HOOK, CURTAIN, NO.4
65923-36010

BB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC

 16
65923D - HOOK, CURTAIN, NO.4
65923-36010

BB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC

 16
65923E - HOOK, CURTAIN
65923-36020

BB42,TRB40..GCC

W(LUGGAGE COMPARTMENT DOOR)

 14
65923F - HOOK, CURTAIN, NO.5
65923-36010

BB42,TRB40..GCC

 14
65923G - HOOK, CURTAIN, NO.6
65923-36010

BB42,TRB40..GCC

 14
65930B - CURTAIN ASSY, SIDE WINDOW, FRONT RH
65930-36041B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

MEDIUM CHARCOAL,TRIM1#,NO.2

 5
65930-36051B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

MEDIUM CHARCOAL,TRIM1#,NO.1

 1
65936 - RAIL, CURTAIN, NO.1
65096-36031B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..WC..(GCC,GEN)

MD.CHARCOAL,TRIM1#

 1
65937 - RAIL, CURTAIN, NO.2
85051-36041B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

MD.CHARCOAL,TRIM1#

 1
65938 - RAIL, CURTAIN, NO.3
85052-36021B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

MD.CHARCOAL,TRIM1#

 1
65939 - RAIL, CURTAIN, NO.4
85055-36010B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC

MD.CHARCOAL,TRIM1#

 2
65939 - RAIL, CURTAIN, NO.4
85055-36010B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC

MD.CHARCOAL,TRIM1#

 2
65940B - CURTAIN ASSY, SIDE WINDOW, FRONT LH
65940-36031B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..STD..WC..(GCC,GEN)

MEDIUM CHARCOAL,TRIM1#,NO.2

 5
65940-36060B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

MEDIUM CHARCOAL,TRIM1#,NO.1

 1
65945A - RAIL, CURTAIN, NO.5
85053-36021B0

BB42,TRB40..GCC

MD.CHARCOAL,TRIM1#

 1
65946A - RAIL SUB-ASSY, CURTAIN, REAR LH
85054-36021B0

BB42,TRB40..GCC

MD.CHARCOAL,TRIM1#

 1
65980A - CURTAIN ASSY, BACK WINDOW, RH
65980-36021B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC

MEDIUM CHARCOAL,TRIM1#

 1
65990A - CURTAIN ASSY, BACK WINDOW, LH
65990-36021B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC

MEDIUM CHARCOAL,TRIM1#

 1
Common parts
90183-04022
90183-04056
90269-03003
90386-07018
90468-15004
93540-14020
93540-14025
93540-15016
93540-24020
93540-24025
93540-25016

ILLUST NO. 2 OF 2(1501- )BB42,TRB40..GCC

Click highlighted areas on diagram

diagram 65923A 65923B 65923C 65923D 65923D 65923E 65923F 65923G 65930B 65936 65937 65938 65939 65939 65940B 65945A 65946A 65980A 65989 65990A 9018304022 9018304022 9018304022 9018304022 9018304056 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9026903003 9038607018 9038607018 9046815004 9046815004 9046815004 9046815004 9354014020 9354014020 9354014020 9354014020 9354014025 9354014025 9354014025 9354015016 9354015016
Part # Description Qty Price
65923A - HOOK, CURTAIN, NO.1
65923-36010

BB42,TRB40..GCC;HZB50,TRB50,XZB50..WC..(GCC,GEN)

 14
65923B - HOOK, CURTAIN, NO.2
65923-36010

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

 14
65923C - HOOK, CURTAIN, NO.3
65923-36010

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

 28
65923D - HOOK, CURTAIN, NO.4
65923-36010

BB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC

 16
65923D - HOOK, CURTAIN, NO.4
65923-36010

BB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC

 16
65923E - HOOK, CURTAIN
65923-36020

BB42,TRB40..GCC

W(LUGGAGE COMPARTMENT DOOR)

 14
65923F - HOOK, CURTAIN, NO.5
65923-36010

BB42,TRB40..GCC

 14
65923G - HOOK, CURTAIN, NO.6
65923-36010

BB42,TRB40..GCC

 14
65930B - CURTAIN ASSY, SIDE WINDOW, FRONT RH
65930-36041B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

MEDIUM CHARCOAL,TRIM1#,NO.2

 5
65930-36051B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

MEDIUM CHARCOAL,TRIM1#,NO.1

 1
65936 - RAIL, CURTAIN, NO.1
65096-36031B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..WC..(GCC,GEN)

MD.CHARCOAL,TRIM1#

 1
65937 - RAIL, CURTAIN, NO.2
85051-36041B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

MD.CHARCOAL,TRIM1#

 1
65938 - RAIL, CURTAIN, NO.3
85052-36021B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

MD.CHARCOAL,TRIM1#

 1
65939 - RAIL, CURTAIN, NO.4
85055-36010B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC

MD.CHARCOAL,TRIM1#

 2
65939 - RAIL, CURTAIN, NO.4
85055-36010B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC

MD.CHARCOAL,TRIM1#

 2
65940B - CURTAIN ASSY, SIDE WINDOW, FRONT LH
65940-36031B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..STD..WC..(GCC,GEN)

MEDIUM CHARCOAL,TRIM1#,NO.2

 5
65940-36060B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..LHD..WC..(GCC,GEN)

MEDIUM CHARCOAL,TRIM1#,NO.1

 1
65945A - RAIL, CURTAIN, NO.5
85053-36021B0

BB42,TRB40..GCC

MD.CHARCOAL,TRIM1#

 1
65946A - RAIL SUB-ASSY, CURTAIN, REAR LH
85054-36021B0

BB42,TRB40..GCC

MD.CHARCOAL,TRIM1#

 1
65980A - CURTAIN ASSY, BACK WINDOW, RH
65980-36021B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC

MEDIUM CHARCOAL,TRIM1#

 1
65990A - CURTAIN ASSY, BACK WINDOW, LH
65990-36021B0

BB42,TRB40..GCC;HZB50,TRB50,XZB50..30S..WC

MEDIUM CHARCOAL,TRIM1#

 1
Common parts
90183-04022
90183-04056
90269-03003
90386-07018
90468-15004
93540-14020
93540-14025
93540-15016
