TRB40L-BRMSKV (2007)

Toyota Coaster

Production Aug 2007 - Dec 2016
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )2TRFE..TRB40..GCC

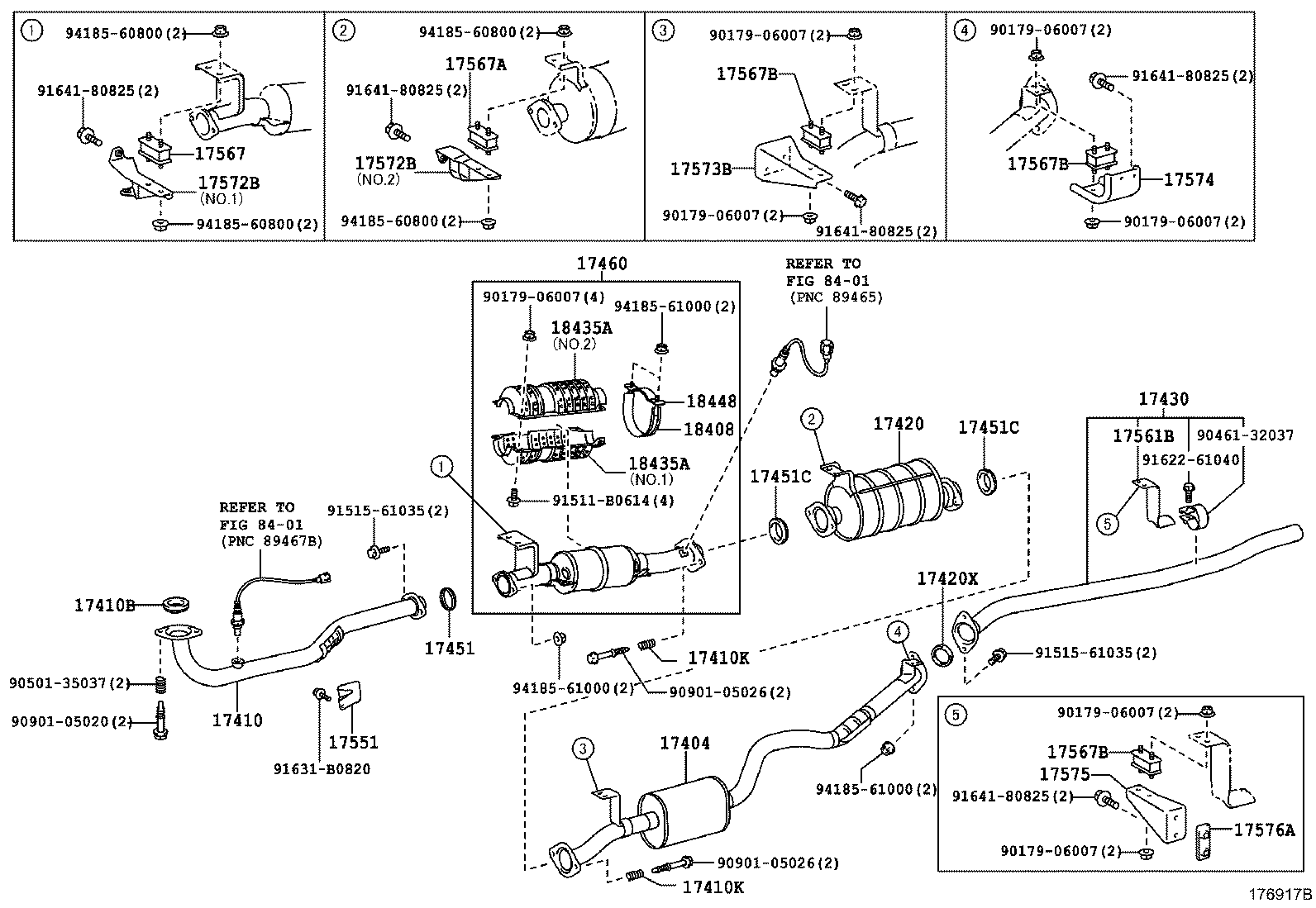

Click highlighted areas on diagram

diagram 17404 17410 17410B 17410K 17410K 17420 17420X 17430 17451 17451C 17451C 17460 17551 17561B 17567 17567A 17567B 17567B 17567B 17572B 17572B 17573B 17574 17575 17576A 18408 18435A 18435A 18448 8401 8401 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9046132037 9050135037 9090105020 9090105026 9090105026 91511B0614 9151561035 9151561035 9162261040 91631B0820 9164180825 9164180825 9164180825 9164180825 9164180825 9418560800 9418560800 9418560800 9418560800 9418561000 9418561000 9418561000
Part # Description Qty Price
17404 - PIPE SUB-ASSY, EXHAUST FORKED
17404-58040

14B,2TRFE..BB42,TRB40..GCC

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-75590

2TRFE..TRB40,50..GCC

 1
17410-75590

2TRFE..TRB40,50..GCC

 1
17410B - GASKET, EXHAUST PIPE
17451-22070

2TRFE..TRB40,50

 1
17451-22070

2TRFE..TRB40,50

 1
17410K - SPRING, EXHAUST PIPE
90501-35035

2TRFE..TRB40..GCC

 4
90501-35028

2TRFE..TRB40..GCC

 4
90501-35028

2TRFE..TRB40..GCC

 4
17410K - SPRING, EXHAUST PIPE
90501-35035

2TRFE..TRB40..GCC

 4
90501-35028

2TRFE..TRB40..GCC

 4
90501-35028

2TRFE..TRB40..GCC

 4
17420 - PIPE ASSY, EXHAUST, CENTER
17403-75280

2TRFE..TRB40..GCC

 1
17403-75280

2TRFE..TRB40..GCC

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06054

N04C..XZB50..20S,21S;14B,2TRFE..BB42,TRB40..GCC;N04C,2TRFE..TRB50,XZB59..GEN

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58710

14B,1HZ,2TRFE..BB42,HZB50,TRB40,50..GCC

 1
17451 - GASKET, EXHAUST PIPE
90917-06073

2TRFE..TRB40

 1
90917-06073

2TRFE..TRB40,50

 1
17451C - GASKET, EXHAUST PIPE, NO.3
17451-74040

2TRFE..TRB40..GCC

 2
17451-74040

2TRFE..TRB40..GCC

 2
17451C - GASKET, EXHAUST PIPE, NO.3
17451-74040

2TRFE..TRB40..GCC

 2
17451-74040

2TRFE..TRB40..GCC

 2
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-75070

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

 1
17460-75070

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-17011

14B,1BZFPE,1HZ,2TRFE..BB42,BZB40,50,HZB50,TRB40,50

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-68010

14B,1HZ,2TRFE..BB42,HZB50,TRB40,50..GCC

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-75050

2TRFE..TRB40,50..GCC;N04C..XZB40,50..LHD..GEN

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-75050

2TRFE..TRB40..GCC

 1
17567-75050

2TRFE..TRB40..GCC

 1
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-17020

14B,1HZ,2TRFE..BB42,HZB50,TRB40,50..GCC

 3
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-17020

14B,1HZ,2TRFE..BB42,HZB50,TRB40,50..GCC

 3
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-17020

14B,1HZ,2TRFE..BB42,HZB50,TRB40,50..GCC

 3
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-75260

2TRFE..TRB40..GCC

NO.2

 1
17572-75260

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

NO.2:REFER ILLUST.

 1
17572-75220

N04C..XZB40..26S;2TRFE..TRB40,50..GCC;N04C,1BZFPE..BZB40,50,XZB50..STD..GEN

NO.1:REFER ILLUST.

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-75260

2TRFE..TRB40..GCC

NO.2

 1
17572-75260

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

NO.2:REFER ILLUST.

 1
17572-75220

N04C..XZB40..26S;2TRFE..TRB40,50..GCC;N04C,1BZFPE..BZB40,50,XZB50..STD..GEN

NO.1:REFER ILLUST.

 1
17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17573-75190

14B,1HZ,2TRFE..BB42,HZB50,TRB40,50..GCC

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-75040

14B,1HZ,2TRFE..BB42,HZB50,TRB40,50..GCC

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-75080

14B,1HZ,2TRFE..BB42,HZB50,TRB40,50..GCC

 1
17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6
17576-75040

14B,1HZ,2TRFE..BB42,HZB50,TRB40,50..GCC

 1
18408 - BAND SUB-ASSY, CONVERTOR PROTECTOR SUPPORT
18408-75010

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

 1
18408-75010

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-75080

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

NO.1:REFER ILLUST.

 1
18435-75080

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

NO.1

 1
18435-75090

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

NO.2

 1
18435-75090

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

NO.2:REFER ILLUST.

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-75080

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

NO.1:REFER ILLUST.

 1
18435-75080

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

NO.1

 1
18435-75090

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

NO.2

 1
18435-75090

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

NO.2:REFER ILLUST.

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18438-75020

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

 1
18438-75020

1BZFPE..BZB40,50;2TRFE..TRB40,50..GCC

 1
Common parts
90179-06007
90461-32037
90501-35037
90901-05020
90901-05026
91511-B0614
91515-61035
91622-61040
91631-B0820
91641-80825
94185-60800
94185-61000
Linked diagrams
8401
