TRB40L-BRMRK (2007)
Toyota Coaster

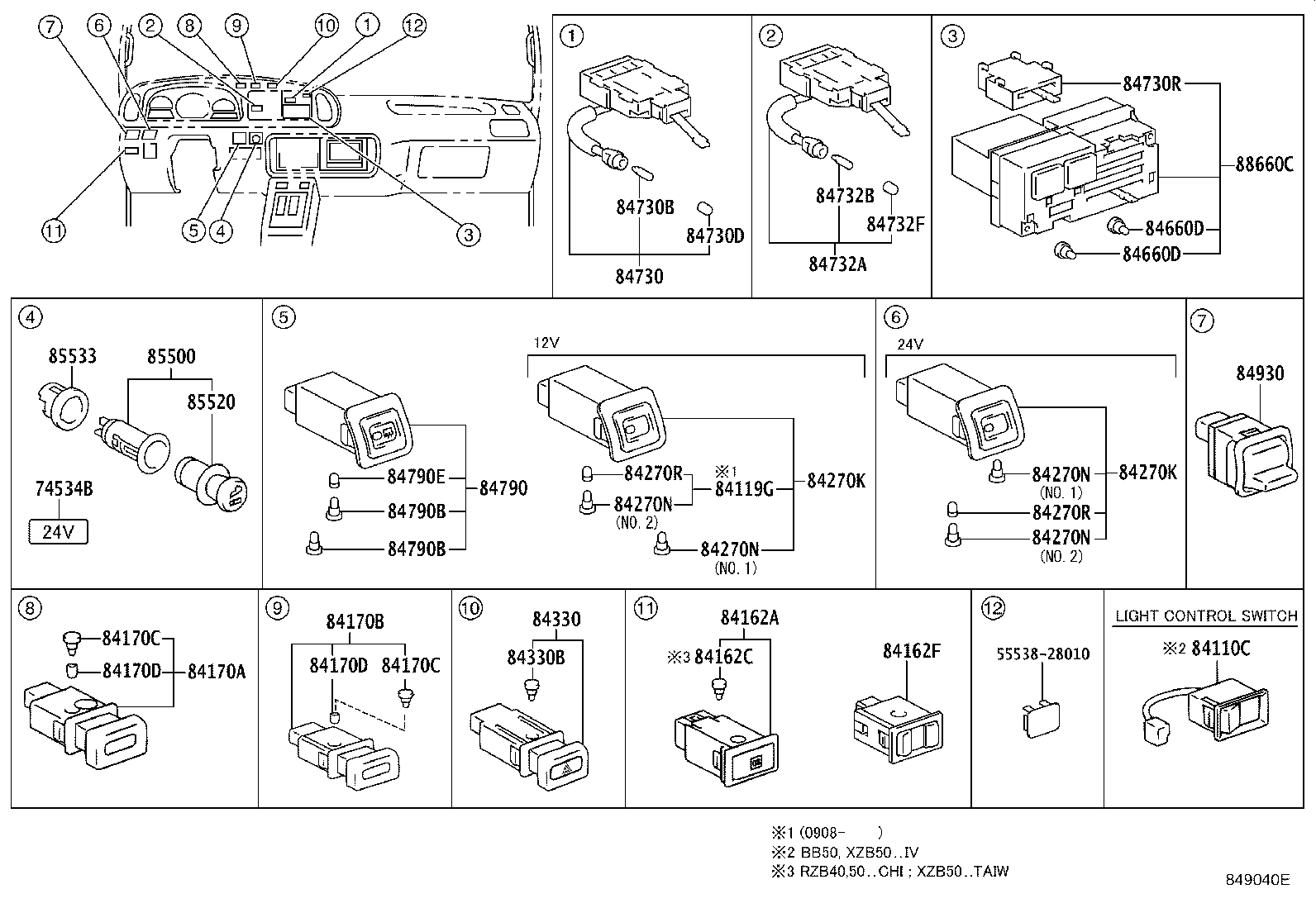

ILLUST NO. 2 OF 6(0708- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74534B - PLATE, VOLTAGE CAUTION | ||||
| 74534-90K00 |
BB4#,5#,HZB50 |
1 | ||
| 84119G - BLUB | ||||
| 90010-01156 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-36040 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 84170-36020 |
BB42,HZB50..LHD..WOC;TRB40,50,XZB40,50..LHD 12V |
1 | ||
| 84170-36020 |
TRB40,50 12V |
1 | ||
| 84170B - SWITCH ASSY, ROOM LAMP NO.2 | ||||
| 84170-36050 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 84170-36030 |
BB42,HZB50..LHD..WOC;TRB40,50,XZB40,50..LHD 12V |
1 | ||
| 84170-36030 |
TRB40,50 12V |
1 | ||
| 84170C - BULB,ROOM LAMP SWITCH | ||||
| 84999-10610 |
BB40,42,5#,HZB50..CBU 24V |
2 | ||
| 90010-01012 |
XZB40,5#..ARL,GEN 12V |
2 | ||
| 84999-10320 |
BB42,HZB50..LHD..WOC;TRB40,50,XZB40,50..LHD 12V |
2 | ||
| 84170C - BULB,ROOM LAMP SWITCH | ||||
| 84999-10610 |
BB40,42,5#,HZB50..CBU 24V |
2 | ||
| 90010-01012 |
XZB40,5#..ARL,GEN 12V |
2 | ||
| 84999-10320 |
BB42,HZB50..LHD..WOC;TRB40,50,XZB40,50..LHD 12V |
2 | ||
| 84170D - CAP BULB,ROOM LAMP SWITCH | ||||
| 84998-10270 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
2 | ||
| 84170D - CAP BULB,ROOM LAMP SWITCH | ||||
| 84998-10270 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
2 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-36030 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-36030 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 84270N - BULB, DPR SWICH ASSY | ||||
| 84999-10320 |
XZB40,5#..ARL,GEN,TAIW NO.2 |
1 | ||
| 84999-10520 |
XZB40,5#..ARL,GEN,TAIW NO.1 |
1 | ||
| 84270N - BULB, DPR SWICH ASSY | ||||
| 84999-10320 |
XZB40,5#..ARL,GEN,TAIW NO.2 |
1 | ||
| 84999-10520 |
XZB40,5#..ARL,GEN,TAIW NO.1 |
1 | ||
| 84270N - BULB, DPR SWICH ASSY | ||||
| 84999-10320 |
XZB40,5#..ARL,GEN,TAIW NO.2 |
1 | ||
| 84999-10520 |
XZB40,5#..ARL,GEN,TAIW NO.1 |
1 | ||
| 84270N - BULB, DPR SWICH ASSY | ||||
| 84999-10320 |
XZB40,5#..ARL,GEN,TAIW NO.2 |
1 | ||
| 84999-10520 |
XZB40,5#..ARL,GEN,TAIW NO.1 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-36090 |
BB4#,5#,HZB50 24V |
1 | ||
| 84332-36080 |
BB42,HZB50..LHD..WOC;TRB40,50,XZB40,50..LHD 12V |
1 | ||
| 84332-36120 |
BB42..RHD..WOC;BZB40,50,XZB40,5#..ARL,GEN 12V |
1 | ||
| 84332-36080 |
TRB40,50 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10610 |
BB4#,5#,HZB50 28V 0.84W |
1 | ||
| 84999-10320 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 14V 0.84W |
1 | ||
| 84999-10320 |
XZB40,5#..ARL,GEN,TAIW 14V 0.84W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-36060 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 84732-36060 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10590 |
RZB40..WC;RZB50..GCC;BB4#,5#,HZB50;RZB50..HRF..GEN 24V 2.0W |
1 | ||
| 90981-11014 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 14V 1.4W |
1 | ||
| 90981-11014 |
XZB40,5#..ARL,GEN,TAIW 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 84998-10050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-36050 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V |
1 | ||
| 84732-36080 |
BB42,HZB50..WOC;TRB40,50,XZB40,50..21S,26S,30S 12V |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 84999-10590 |
HZB50..30S..4FC;HZB50..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#..STD..(ARL,EUR,GCC,GEN) 24V 2.0W |
1 | ||
| 90981-11014 |
BB42,HZB50..WOC;TRB40,50,XZB40,50..21S,26S,30S 14V 1.4W |
1 | ||
| 84732F - CAP, REAR HEATER BLOWER SWITCH | ||||
| 84998-10050 |
HZB50..30S..4FC;HZB50,RZB40..(ARL,EUR,GCC,GEN)..5F;BB40,42,5#,RZB50..STD..(ARL,EUR,GCC,GEN) |
1 | ||
| 84998-10050 |
BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-36060 |
TRB40,50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
TRB40,50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) 14V 0.84W |
1 | ||
| 84999-10520 |
TRB40,50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) 14V 1.12W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 |
TRB40,50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) 14V 0.84W |
1 | ||
| 84999-10520 |
TRB40,50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) 14V 1.12W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10060 |
BB42,HZB50,TRB40,50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-36010 |
XZB40,5#..ARL,GEN,TAIW 12V |
1 | ||
| 84930-36010 |
TRB40,50 12V |
1 | ||
| 84930-36010 |
BB42,HZB50..LHD..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-17060 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 85500-17060 |
XZB40,5#..ARL,GEN,TAIW 12V |
1 | ||
| 85500-17060 |
TRB40,50 12V |
1 | ||
| 85500-36020 |
BB4#,5#,HZB50 24V |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-17020 |
TRB40,50 12V |
1 | ||
| 85520-17020 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 85520-17020 |
XZB40,5#..ARL,GEN,TAIW 12V |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30041 |
BB42..RHD;BB42..LHD..SRF;XZB50..WC..CBU;BB50,BZB40,50,HZB50,TRB40,50,XZB40,59 |
1 | ||
| 85533-30041 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 85533-30040 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| Common parts | ||||
| 55538-28010 | ||||

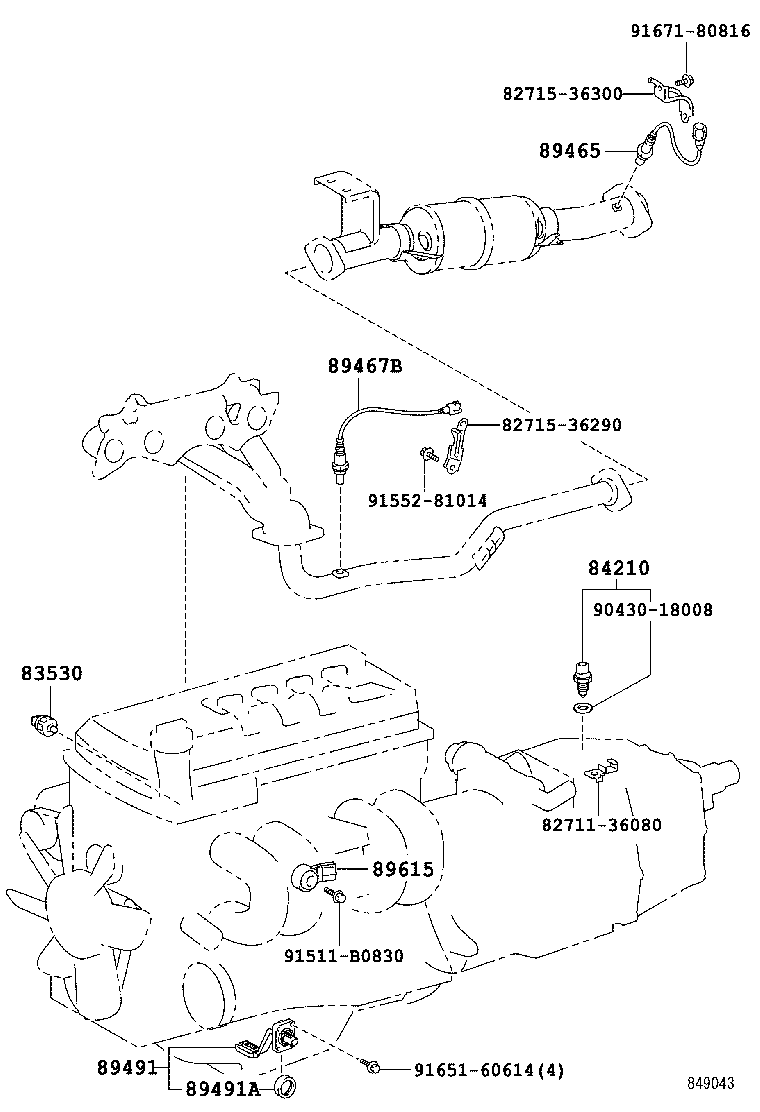

ILLUST NO. 1 OF 6(0708- )TRB40,50
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14070 |
BB4#,5# |
1 | ||
| 83530-28020 |
TRB40,50 DENSO |
1 | ||
| 83530-60020 |
TRB40,50 YAZAKI |
1 | ||
| 83530-E0220 |
XZB40,5# |
1 | ||
| 83530-60020 |
TRB40,50 YAZAKI |
1 | ||
| 83530-28020 |
TRB40,50 DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 84210-52050 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
1 | ||
| 84210-52050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-36070 |
BB4#,5# |
1 | ||
| S8346-01580 |
XZB40,5# |
1 | ||
| 89491-36110 |
TRB40,50 |
1 | ||
| 89491-36110 |
TRB40,50 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
HZB50,TRB40,50 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
TRB40,50 |
1 | ||
| 89615-20090 |
TRB40,50 |
1 | ||
| Common parts | ||||
| 82711-36080 | ||||
| 82715-36290 | ||||
| 82715-36300 | ||||
| 90430-18008 | ||||
| 91511-B0830 | ||||
| 91552-81014 | ||||
| 91651-60614 | ||||
| 91671-80816 | ||||

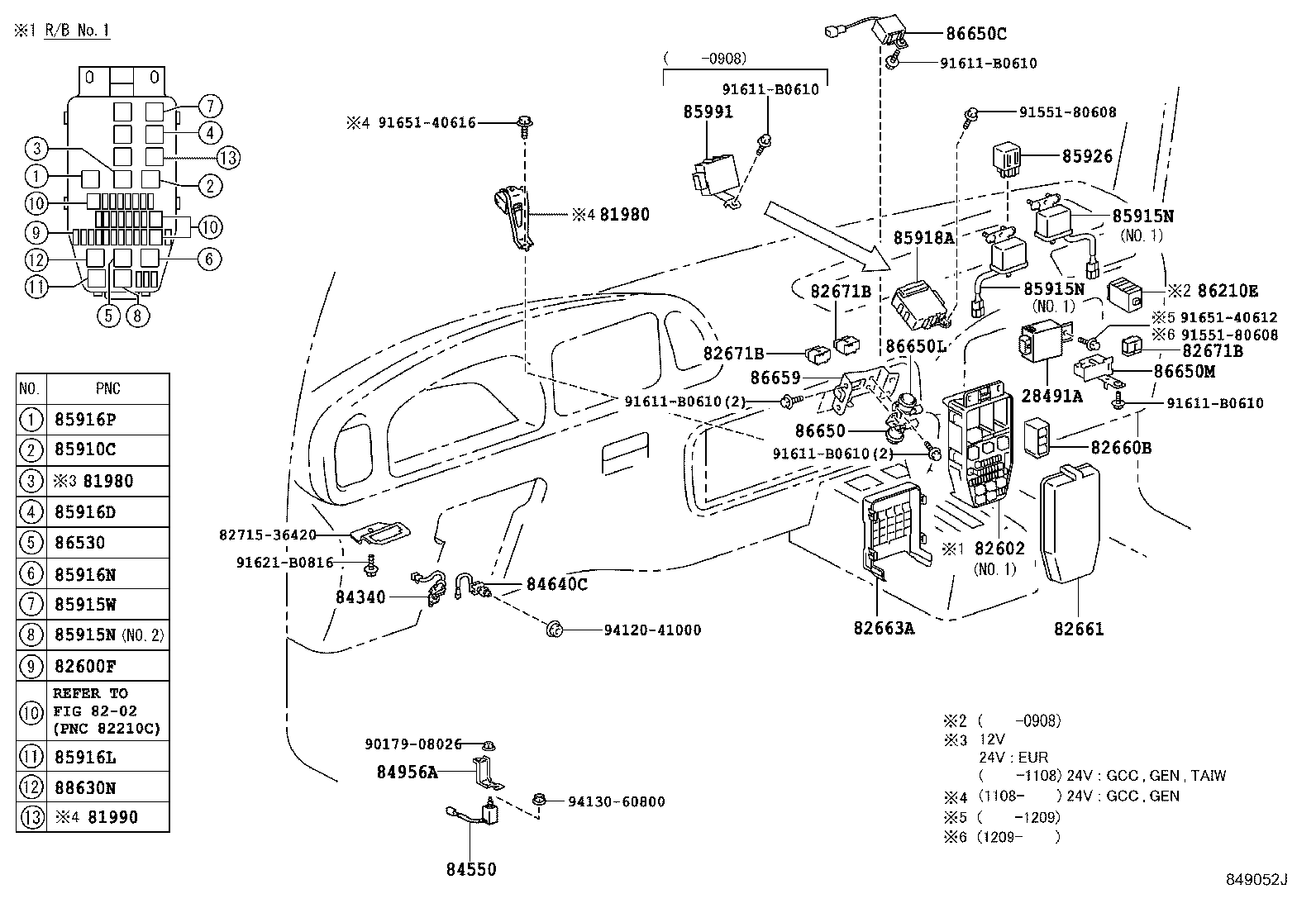

ILLUST NO. 3 OF 6(0708-1501)LHD
INSTRUMENT PANEL & COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60010 |
HZB50;BB4#,5#..CBU 24V |
1 | ||
| 81980-25110 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 81980-32010 |
TRB40,50..GEN |
1 | ||
| 81980-32010 |
BB42,HZB50..WOC;TRB40,50,XZB40,50..LHD..GEN 12V |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60010 |
HZB50;BB4#,5#..CBU 24V |
1 | ||
| 81980-25110 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 81980-32010 |
TRB40,50..GEN |
1 | ||
| 81980-32010 |
BB42,HZB50..WOC;TRB40,50,XZB40,50..LHD..GEN 12V |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB4#,5#,HZB50,RZB40,50 10A |
1 | ||
| 90982-09005 |
BB4#,5#,HZB50,RZB40,50 7.5A |
1 | ||
| 90982-09003 |
BB4#,5#,HZB50,RZB40,50 15A |
1 | ||
| 90982-09004 |
BB4#,5#,HZB50,RZB40,50 20A,YELLOW |
1 | ||
| 90982-09009 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 20A,MINI FUSE,YELLOW |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-36010 |
BB4#,5#,HZB50,RZB40,50 NO.1 |
1 | ||
| 82602-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# NO.1 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-26150 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-36200 |
TRB40,50 |
1 | ||
| 82661-36201 |
TRB40,50 |
1 | ||
| 82661-36202 |
TRB40,50 |
1 | ||
| 82661-36133 |
XZB40,5#..GEN |
1 | ||
| 82661-36202 |
TRB40,50 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36070 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 84340-25030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-36030 |
BB42..WOC;BB42..HRF;BB42..LHD..WC;BB50,BZB40,50,HZB50,XZB40,5#..ARL,GCC,GEN,TAIW |
1 | ||
| 84550-36030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-36060 |
BB4#,5#,HZB50..5F |
2 | ||
| 84640-36060 |
XZB40,5#..5F |
1 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
XZB40,5#..ARL,GEN,TAIW 12V |
1 | ||
| 85915W - RELAY, AUTOMATIC DOOR | ||||
| 90987-02005 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 90987-02012 |
XZB40,5#..ARL,GEN,TAIW 12V |
1 | ||
| 90987-02027 |
BB42,HZB50..LHD..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 90987-02027 |
BB42,HZB50..LHD..WOC;BZB40,50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW 12V |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
XZB40,5#..GEN,TAIW 12V |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02005 |
BB4#,5#,HZB50 24V |
1 | ||
| 90987-02012 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 90987-02012 |
XZB40,5#..ARL,GEN,TAIW 12V |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02007 |
BB4#,5#,HZB50 24V |
1 | ||
| 90987-04010 |
XZB40,5#..ARL,GEN,TAIW 12V |
1 | ||
| 90987-04010 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-01004 |
BB4#,5#,HZB50 24V |
1 | ||
| 90987-02012 |
XZB40,5#..ARL,GEN,TAIW 12V |
1 | ||
| 90987-02012 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 86650 - BUZZER ASSY, VACUUM INDICATOR | ||||
| 86650-36080 |
BB4#,5#,HZB50 24V |
1 | ||
| 86659 - BRACKET, BUZZER | ||||
| 86659-36020 |
BB4#,5#,HZB50 |
1 | ||
| Common parts | ||||
| 82715-36420 | ||||
| 90179-08026 | ||||
| 91551-80608 | ||||
| 91611-B0610 | ||||
| 91621-B0816 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 94120-41000 | ||||
| 94130-60800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

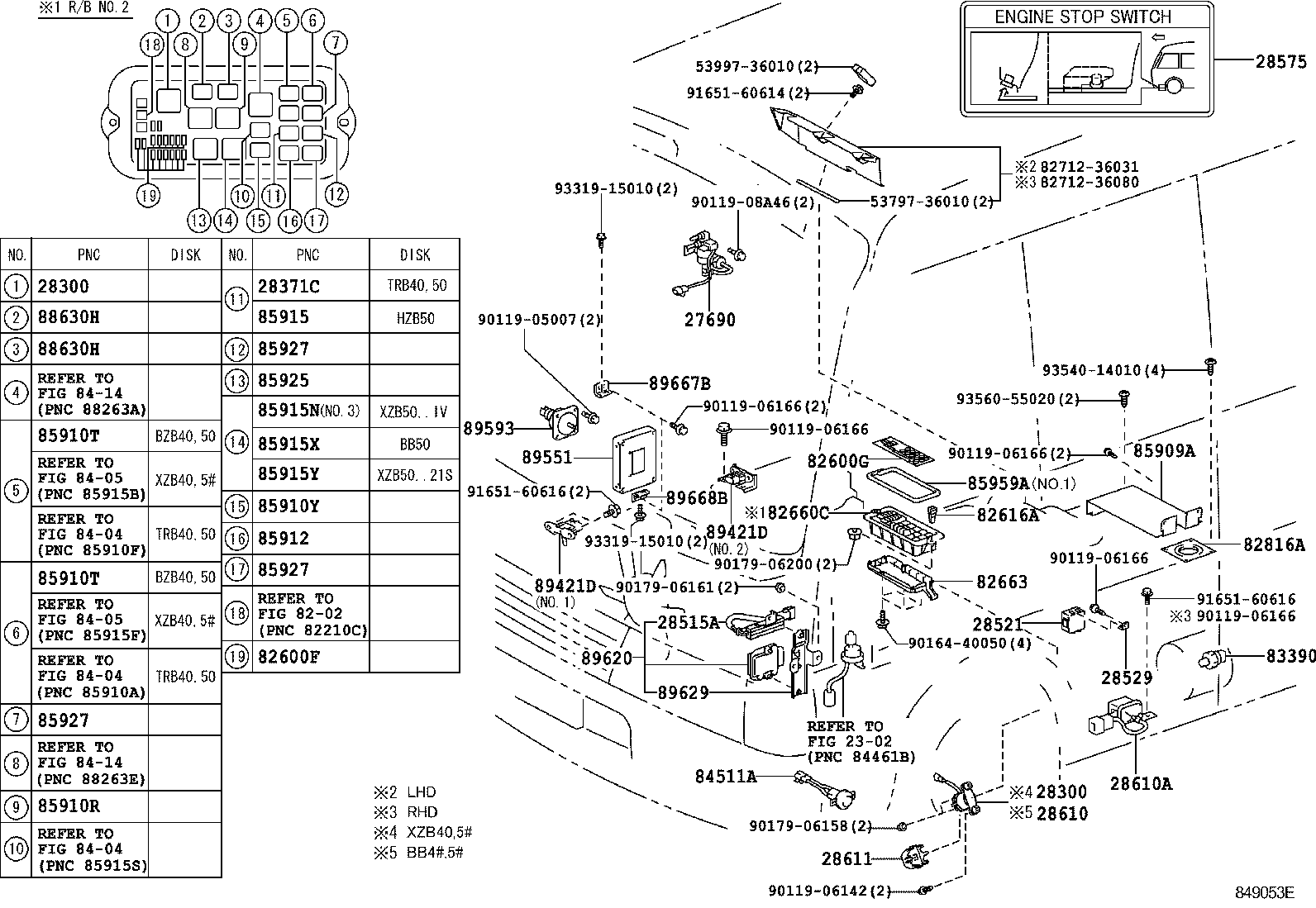

ILLUST NO. 5 OF 6(0708- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
2TRFE..TRB40,50 12V |
1 | ||
| 90987-02025 |
14B,1HZ..BB42,HZB50..WOC;N04C,1BZFPE,2TRFE..BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
2TRFE..TRB40,50 12V |
1 | ||
| 90987-02025 |
14B,1HZ..BB42,HZB50..WOC;N04C,1BZFPE,2TRFE..BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2TRFE..TRB40,50 |
1 | ||
| 90987-02027 |
2TRFE..TRB40,50 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB4#,5#,HZB50,RZB40,50 10A |
1 | ||
| 90982-09005 |
BB4#,5#,HZB50,RZB40,50 7.5A |
1 | ||
| 90982-09003 |
BB4#,5#,HZB50,RZB40,50 15A |
1 | ||
| 90982-09004 |
BB4#,5#,HZB50,RZB40,50 20A,YELLOW |
1 | ||
| 90982-09009 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-36251 |
TRB40,50 |
1 | ||
| 82683-36250 |
TRB40,50 12V |
1 | ||
| 82683-36251 |
TRB40,50 |
1 | ||
| 82683-36270 |
XZB40,5#..ARL,GEN,TAIW 12V |
1 | ||
| 82683-36270 |
XZB40,5# |
1 | ||
| 82616A - PULLER, FUSE, NO.2 | ||||
| 82616-20010 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-36020 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-36010 |
BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 82816A - BRACKET, WIRING HARNESS GROMMET | ||||
| 82816-36010 |
HZB50;BB4#,5#,RZB40,50..CBU |
1 | ||
| 82816-36040 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW |
1 | ||
| 82816-36030 |
XZB50..(20S,21S)..WC;BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,59 |
1 | ||
| 82816-36041 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 82816-36041 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-36020 |
BB4#,5#,HZB50 |
1 | ||
| 83390-36020 |
BB42,BZB40,50,HZB50,XZB40,5# |
1 | ||
| 85910R - RELAY, ENGINE STOP | ||||
| 90987-04003 |
XZB40,5#..GEN |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02012 |
BB42,HZB50..WOC;TRB40,50,XZB40,50..21S,26S,30S 12V |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
TRB40,50,XZB40,50..(21S,26S,30S)..(ARL,GCC,GEN) |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02012 |
XZB40,5#..ARL,GEN,TAIW 12V |
3 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02012 |
XZB40,5#..ARL,GEN,TAIW 12V |
3 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02012 |
XZB40,5#..ARL,GEN,TAIW 12V |
3 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36060 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02012 |
XZB40,5#..ARL,GEN,TAIW 12V |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02012 |
XZB40,5#..ARL,GEN,TAIW 12V |
2 | ||
| Common parts | ||||
| 53797-36010 | ||||
| 53997-36010 | ||||
| 82712-36031 | ||||
| 82712-36080 | ||||
| 90119-05007 | ||||
| 90119-06142 | ||||
| 90119-06166 | ||||
| 90119-08A46 | ||||
| 90164-40050 | ||||
| 90179-06158 | ||||
| 90179-06161 | ||||
| 90179-06200 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 93319-15010 | ||||
| 93540-14010 | ||||
| 93560-55020 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||
ILLUST NO. 1 OF 6(1501- )XZB40,5#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
BB4#,5#,HZB50 |
1 | ||
| S8342-01250 |
XZB40,5# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14070 |
BB4#,5# |
1 | ||
| 83530-28020 |
TRB40,50 DENSO |
1 | ||
| 83530-60020 |
TRB40,50 YAZAKI |
1 | ||
| 83530-E0220 |
XZB40,5# |
1 | ||
| 83530-60020 |
TRB40,50 YAZAKI |
1 | ||
| 83530-28020 |
TRB40,50 DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BB4#,5#,HZB50,RZB40,50..5F |
1 | ||
| 84210-52050 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
1 | ||
| 84210-52050 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..5F |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-36090 |
BB4#,5#,HZB50..5F |
1 | ||
| 84540-37020 |
XZB40,5#..5F |
1 | ||
| 89424G - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-37010 |
XZB40,5# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-36031 |
XZB40,5# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-36070 |
BB4#,5# |
1 | ||
| S8346-01580 |
XZB40,5# |
1 | ||
| 89491-36110 |
TRB40,50 |
1 | ||
| 89491-36110 |
TRB40,50 |
1 | ||
| Common parts | ||||
| 82715-36260 | ||||
| 82715-36400 | ||||
| 82715-36410 | ||||
| 90430-18008 | ||||
| 91551-80816 | ||||
| 91651-40825 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| SH511-10612 | ||||
| SL722-01010 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||
ILLUST NO. 6 OF 6(9301- )
DOOR,ROOF,FLOOR & BACK DOOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36010 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36010 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-36010 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S |
1 | ||
| 84235B - CUSHION, COURTESY SWITCH(FOR BACK DOOR) | ||||
| 84234-22010 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S |
1 | ||
ILLUST NO. 6 OF 6(1501- )
DOOR,ROOF,FLOOR & BACK DOOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08228 |
BZB40,50,HZB50,XZB40,5# 50A,TERM.:MALE,RED |
1 | ||
| 90982-08202 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08274 |
BZB40,50,TRB40,50 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08281 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08280 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08286 |
XZB40,5# 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08282 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB4#,5#,HZB50,RZB40,50 10A |
1 | ||
| 90982-09005 |
BB4#,5#,HZB50,RZB40,50 7.5A |
1 | ||
| 90982-09003 |
BB4#,5#,HZB50,RZB40,50 15A |
1 | ||
| 90982-09004 |
BB4#,5#,HZB50,RZB40,50 20A,YELLOW |
1 | ||
| 90982-09009 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 20A,MINI FUSE,YELLOW |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-36020 |
BB42,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-36020 |
BB42,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-36020 |
BB4#,5#,HZB50,RZB40,50 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82620-36090 |
BZB40,50;BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-36020 |
BB4#,5#,HZB50,RZB40,50 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82620-36090 |
BZB40,50;BB42,HZB50,TRB40,50,XZB40,50..LHD |
1 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-36103 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 82622-36150 |
TRB40,50 |
1 | ||
| 82622-36152 |
TRB40,50 |
1 | ||
| 82622-36104 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 82622-36151 |
TRB40,50 |
1 | ||
| 82622-36152 |
TRB40,50 |
1 | ||
| 82622-36104 |
XZB40,5# |
1 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-36103 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 82622-36150 |
TRB40,50 |
1 | ||
| 82622-36152 |
TRB40,50 |
1 | ||
| 82622-36104 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 82622-36151 |
TRB40,50 |
1 | ||
| 82622-36152 |
TRB40,50 |
1 | ||
| 82622-36104 |
XZB40,5# |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80523 |
BB42,50,HZB50,TRB40,50,XZB40,5# LABEL=36190 |
1 | ||
| 83320-80261 |
BB42,50,HZB50,TRB40,50,XZB40,5# LABEL=36170 |
1 | ||
| 83320-80276 |
BB42,50,HZB50,TRB40,50,XZB40,5# LABEL=36180 |
1 | ||
| 83320-80261 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 83320-80523 |
BB42,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-36010 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..CBU |
1 | ||
| 84962-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-36010 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..CBU |
1 | ||
| 84962-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-36060 |
TRB40,50 12V |
1 | ||
| 85940-36060 |
TRB40,XZB40..26S;TRB50,XZB50..30S;BB42,HZB50..LHD..WOC 12V |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-36100 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 86650-36170 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW 12V |
1 | ||
| 86650-36150 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW 12V |
1 | ||
| 86650-36170 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| Common parts | ||||
| 83161-20200 | ||||
| 90168-40061 | ||||
| 91553-80614 | ||||
| 91611-B0825 | ||||
| 91651-40614 | ||||
| 91651-60616 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8512 | ||||
ILLUST NO. 3 OF 6(1501- )LHD
INSTRUMENT PANEL & COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60010 |
HZB50;BB4#,5#..CBU 24V |
1 | ||
| 81980-25110 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 81980-32010 |
TRB40,50..GEN |
1 | ||
| 81980-32010 |
BB42,HZB50..WOC;TRB40,50,XZB40,50..LHD..GEN 12V |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60010 |
HZB50;BB4#,5#..CBU 24V |
1 | ||
| 81980-25110 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 81980-32010 |
TRB40,50..GEN |
1 | ||
| 81980-32010 |
BB42,HZB50..WOC;TRB40,50,XZB40,50..LHD..GEN 12V |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08280 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB4#,5#,HZB50,RZB40,50 10A |
1 | ||
| 90982-09005 |
BB4#,5#,HZB50,RZB40,50 7.5A |
1 | ||
| 90982-09003 |
BB4#,5#,HZB50,RZB40,50 15A |
1 | ||
| 90982-09004 |
BB4#,5#,HZB50,RZB40,50 20A,YELLOW |
1 | ||
| 90982-09009 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# 20A,MINI FUSE,YELLOW |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-36010 |
BB4#,5#,HZB50,RZB40,50 NO.1 |
1 | ||
| 82602-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# NO.1 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-26150 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-36200 |
TRB40,50 |
1 | ||
| 82661-36201 |
TRB40,50 |
1 | ||
| 82661-36202 |
TRB40,50 |
1 | ||
| 82661-36133 |
XZB40,5#..GEN |
1 | ||
| 82661-36202 |
TRB40,50 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-36020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30350 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
2 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-36060 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36070 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 84340-25030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-36030 |
BB42..WOC;BB42..HRF;BB42..LHD..WC;BB50,BZB40,50,HZB50,XZB40,5#..ARL,GCC,GEN,TAIW |
1 | ||
| 84550-36030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-36060 |
BB4#,5#,HZB50..5F |
2 | ||
| 84640-36060 |
XZB40,5#..5F |
1 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-36040 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 85915W - RELAY, AUTOMATIC DOOR | ||||
| 90987-02005 |
BB4#,5#,HZB50..CBU 24V |
1 | ||
| 90987-02012 |
XZB40,5#..ARL,GEN,TAIW 12V |
1 | ||
| 90987-02027 |
BB42,HZB50..LHD..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 90987-02027 |
BB42,HZB50..LHD..WOC;BZB40,50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW 12V |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
XZB40,5#..GEN,TAIW 12V |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02005 |
BB4#,5#,HZB50 24V |
1 | ||
| 90987-02012 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 90987-02012 |
XZB40,5#..ARL,GEN,TAIW 12V |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02007 |
BB4#,5#,HZB50 24V |
1 | ||
| 90987-04010 |
XZB40,5#..ARL,GEN,TAIW 12V |
1 | ||
| 90987-04010 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 90987-02012 |
XZB40,5#..ARL,GEN 12V |
2 | ||
| 85996B - BRACKET, RELAY, NO.2 | ||||
| 85996-36010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-36100 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-01004 |
BB4#,5#,HZB50 24V |
1 | ||
| 90987-02012 |
XZB40,5#..ARL,GEN,TAIW 12V |
1 | ||
| 90987-02012 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-04010 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02012 |
XZB40,5#..ARL,GEN,TAIW 12V |
2 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90179-08026 | ||||
| 91551-80608 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
