TRB40L-BRMRK (2007)
Toyota Coaster

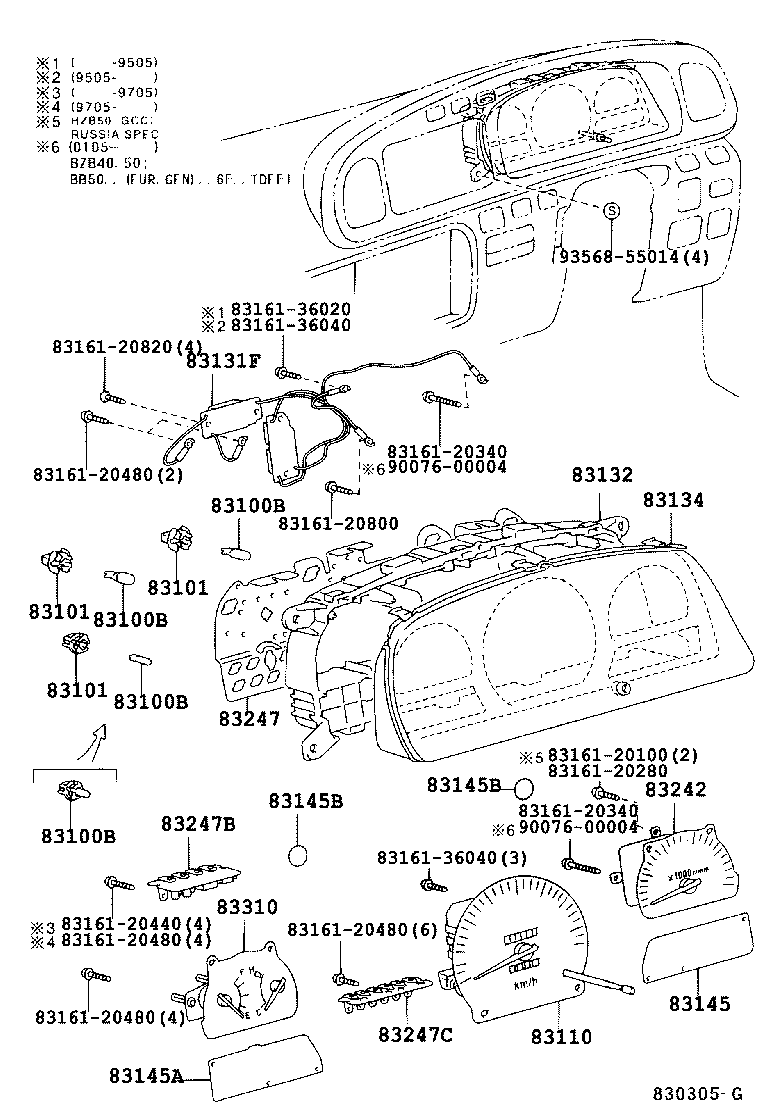

ILLUST NO. 1 OF 3(9301-0908)BB4#,5#,BZB40,50,HZB50,RZB40,50,TRB40,50
W/0(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
BB4#,5#,HZB50,RZB40,50 24V 1.4W |
1 | ||
| 90010-06062 |
TRB40,50 YELLOW |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
BB4#,5#,HZB50,RZB40,50 24V 1.4W |
1 | ||
| 90010-06062 |
TRB40,50 YELLOW |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
BB4#,5#,HZB50,RZB40,50 24V 1.4W |
1 | ||
| 90010-06062 |
TRB40,50 YELLOW |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
BB4#,5#,HZB50,RZB40,50 24V 1.4W |
1 | ||
| 90010-06062 |
TRB40,50 YELLOW |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,5#,HZB50,RZB40,50 SMALL TYPE(24V 1.2W OR 1.4W OR 1.8W) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,5#,HZB50,RZB40,50 SMALL TYPE(24V 1.2W OR 1.4W OR 1.8W) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,5#,HZB50,RZB40,50 SMALL TYPE(24V 1.2W OR 1.4W OR 1.8W) |
1 | ||
| 83131F - DROPER ASSY, METER | ||||
| 83131-36100 |
BB40,43,5#;HZB50..ARL,EUR,GCC |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-36020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-36080 |
BB40,43,5#;HZB50..ARL,EUR,GCC |
1 | ||
| 83821-36850 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 83821-36850 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83832-36672 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-36672 |
TRB40,50 |
1 | ||
| 83831-36161 |
BB42,BZB40,50,HZB50,XZB40,5# |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89320 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89320 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-36830 |
TRB40,50 |
1 | ||
| 83861-36791 |
XZB40,5#..GEN,TAIW |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-36240 |
BB4#,5#,HZB50 24V |
1 | ||
| 83862-36672 |
BB42,50,HZB50,XZB40,5#..ARL,GCC,GEN,TAIW 24V |
1 | ||
| 83862-36643 |
BB42,HZB50..WOC;BZB40,50,TRB40,50 12V |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-36020 |
BB4#,5#,HZB50..ARL,EUR,GEN,SCO 24V |
1 | ||
| Common parts | ||||
| 83161-20340 | ||||
| 83161-20440 | ||||
| 83161-20480 | ||||
| 83161-20800 | ||||
| 83161-20820 | ||||
| 83161-36040 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 3(9301-0908)BB4#,5#,BZB40,50,HZB50,RZB40,50,XZB40,5#
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
BB4#,5#,HZB50,RZB40,50 24V 1.4W |
1 | ||
| 90010-06062 |
TRB40,50 YELLOW |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
BB4#,5#,HZB50,RZB40,50 24V 1.4W |
1 | ||
| 90010-06062 |
TRB40,50 YELLOW |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
BB4#,5#,HZB50,RZB40,50 24V 1.4W |
1 | ||
| 90010-06062 |
TRB40,50 YELLOW |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11022 |
BB4#,5#,HZB50,RZB40,50 24V 1.4W |
1 | ||
| 90010-06062 |
TRB40,50 YELLOW |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,5#,HZB50,RZB40,50 SMALL TYPE(24V 1.2W OR 1.4W OR 1.8W) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,5#,HZB50,RZB40,50 SMALL TYPE(24V 1.2W OR 1.4W OR 1.8W) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-95020 |
BB4#,5#,HZB50,RZB40,50 SMALL TYPE(24V 1.2W OR 1.4W OR 1.8W) |
1 | ||
| 83131F - DROPER ASSY, METER | ||||
| 83131-36100 |
BB40,43,5#;HZB50..ARL,EUR,GCC |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-36020 |
BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-36080 |
BB40,43,5#;HZB50..ARL,EUR,GCC |
1 | ||
| 83821-36850 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 83821-36850 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83832-36672 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83831-36672 |
TRB40,50 |
1 | ||
| 83831-36161 |
BB42,BZB40,50,HZB50,XZB40,5# |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89320 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89320 |
BB4#,5#,HZB50,RZB40,50 |
2 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-36672 |
XZB40,5# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-36830 |
TRB40,50 |
1 | ||
| 83861-36791 |
XZB40,5#..GEN,TAIW |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-36240 |
BB4#,5#,HZB50 24V |
1 | ||
| 83862-36672 |
BB42,50,HZB50,XZB40,5#..ARL,GCC,GEN,TAIW 24V |
1 | ||
| 83862-36643 |
BB42,HZB50..WOC;BZB40,50,TRB40,50 12V |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-36020 |
BB4#,5#,HZB50..ARL,EUR,GEN,SCO 24V |
1 | ||
| Common parts | ||||
| 83161-20100 | ||||
| 83161-20280 | ||||
| 83161-20340 | ||||
| 83161-20440 | ||||
| 83161-20480 | ||||
| 83161-20800 | ||||
| 83161-20820 | ||||
| 83161-36020 | ||||
| 83161-36040 | ||||
| 90076-00004 | ||||
| 93568-55014 | ||||

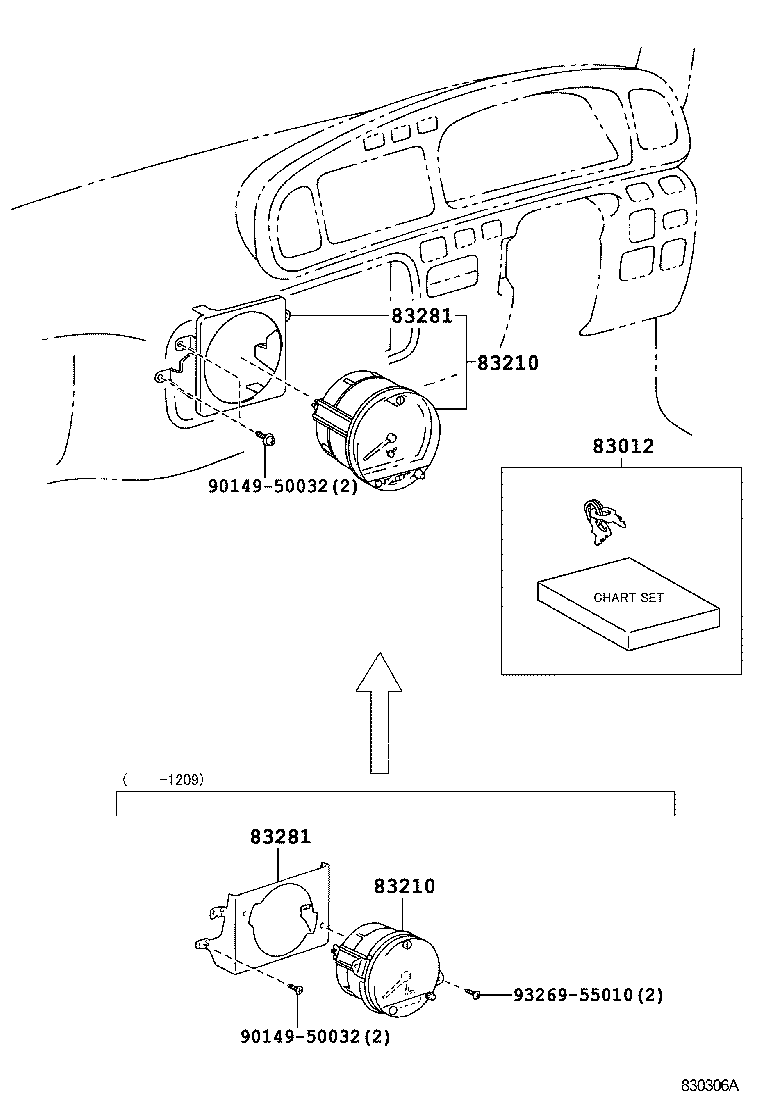

ILLUST NO. 3 OF 3(9301- )
TACHOGRAPH ASSY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90149-50032 | ||||
| 93269-55010 | ||||

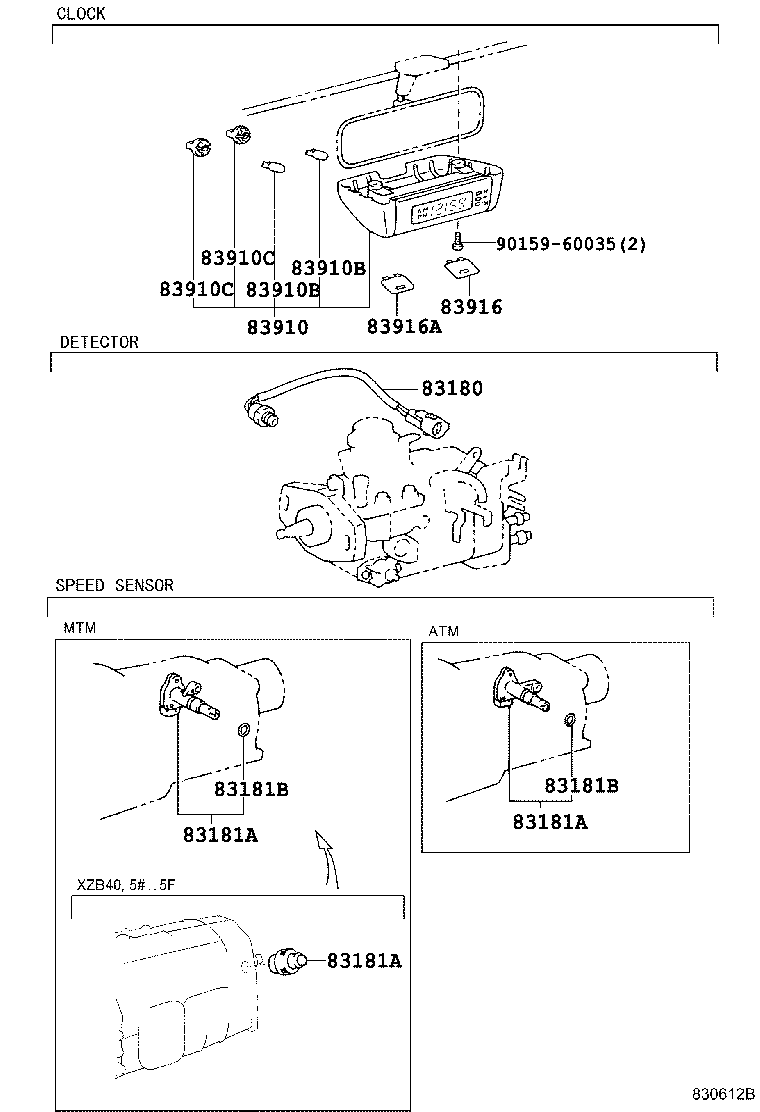

ILLUST NO. 2 OF 3(9301- )
CLOCK & SPEED SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-36010 |
BB42,BZB40,50,HZB50,TRB40,50 |
1 | ||
| 83181-36030 |
XZB40,5#..5F |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-36010 |
BB42,BZB40,50,HZB50,TRB40,50 |
1 | ||
| 83181-36030 |
XZB40,5#..5F |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-36010 |
BB42,BZB40,50,HZB50,TRB40,50 |
1 | ||
| 83181-36030 |
XZB40,5#..5F |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18004 |
XZB50..4FC;BB42,BZB40,50,HZB50,TRB40,50 |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18004 |
XZB50..4FC;BB42,BZB40,50,HZB50,TRB40,50 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-36060B0 |
XZB40,5#..ARL,GEN,TAIW MD.CHARCOAL,TRIM1# |
1 | ||
| 83910-36070B0 |
TRB40..WOC MD.CHARCOAL,TRIM1# |
1 | ||
| 83910-36070B0 |
BB42,HZB50,TRB40,XZB40,50..WOC 12V,MD.CHARCOAL,TRIM1# |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 84999-50300 |
XZB40,5#..ARL,GEN,TAIW 14V 3.4W |
2 | ||
| 84999-50300 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 14V 3.4W |
2 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 84999-50300 |
XZB40,5#..ARL,GEN,TAIW 14V 3.4W |
2 | ||
| 84999-50300 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 14V 3.4W |
2 | ||
| 83910C - SOCKET SUB-ASSY, CLOCK BULB | ||||
| 84999-50110 |
XZB40,5#..ARL,GEN,TAIW 12V |
2 | ||
| 84999-50110 |
TRB40,50 12V |
2 | ||
| 84999-50110 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
2 | ||
| 83910C - SOCKET SUB-ASSY, CLOCK BULB | ||||
| 84999-50110 |
XZB40,5#..ARL,GEN,TAIW 12V |
2 | ||
| 84999-50110 |
TRB40,50 12V |
2 | ||
| 84999-50110 |
BB42,HZB50..WOC;BZB40,50,TRB40,50,XZB40,5# 12V |
2 | ||
| 83916 - CLIP, CLOCK, NO.1 | ||||
| 83916-36010B0 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 83916A - CLIP, CLOCK, NO.2 | ||||
| 83916-36020B0 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-60035 | ||||

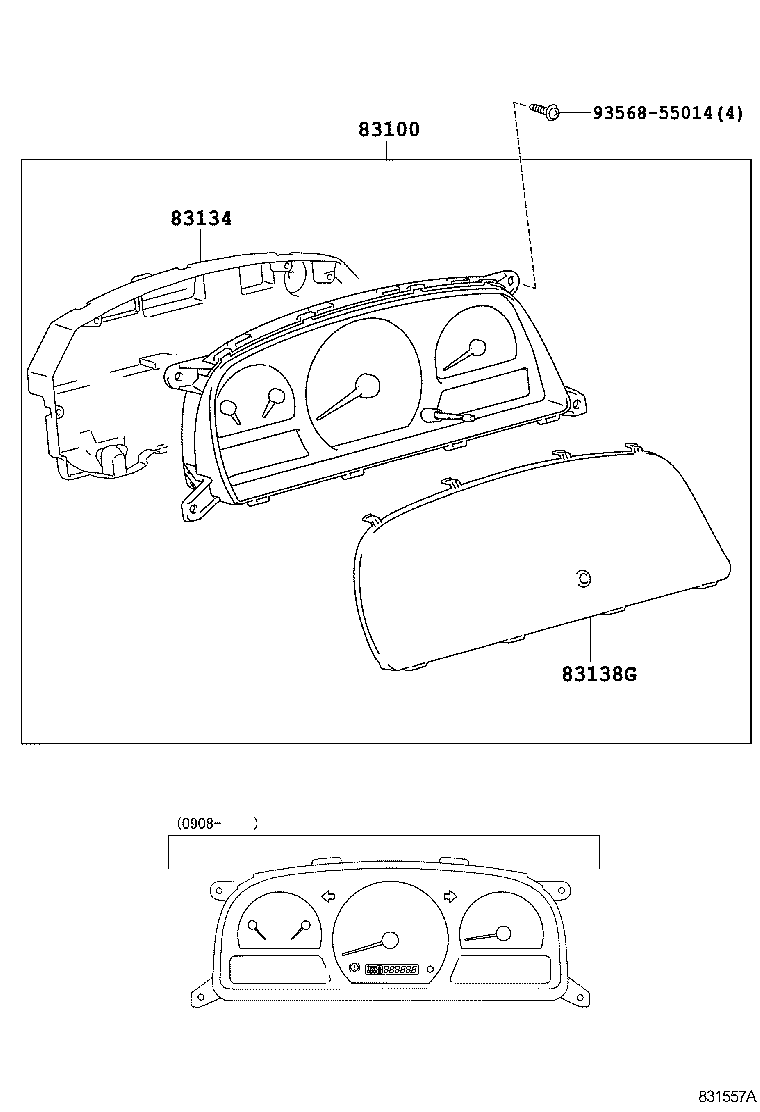

ILLUST NO. 1 OF 3(0908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-36B30 |
TRB40,50..GEN W(WIDE WATER TEMPERATURE METER) |
1 | ||
| 83800-36B81 |
XZB40,5#..GEN,TAIW |
1 | ||
| 83800-36A40 |
TRB40,50..GEN NIGERIA SPEC |
1 | ||
| 83800-36B70 |
XZB40,5#..GEN |
1 | ||
| 83800-36B20 |
TRB40,50..GEN |
1 | ||
| 83800-36B82 |
XZB40,5#..GEN,TAIW |
1 | ||
| 83800-36B31 |
TRB40,50..GEN W(WIDE WATER TEMPERATURE METER) |
1 | ||
| 83800-36B21 |
TRB40,50..GEN |
1 | ||
| 83800-36B31 |
TRB40,50..GEN W(WIDE WATER TEMPERATURE METER) |
1 | ||
| 83800-36B21 |
TRB40,50..GEN |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-36080 |
BB40,43,5#;HZB50..ARL,EUR,GCC |
1 | ||
| 83821-36850 |
BB42,50,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 83821-36850 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-36850 |
BB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW |
1 | ||
| 83852-36850 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
