TRB40L-BRMRK (2007)

Toyota Coaster

Production Aug 2007 - Dec 2016
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301- )

Click highlighted areas on diagram

SEMI-SEALD BEAM HEADLAMP

diagram 81105 81106 81110 81110B 81110D 81110S 81110T 81111A 81111A 81113 81114 81131 81131 8113612571 8113612571 81150 81151A 81151A 81153 81154 9007525515 9007525515 9015950335 9015960247 9018906006 9018906111
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-36190

BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-36170

BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN

 1
81110 - HEADLAMP ASSY, RH
81110-36232

BB42,HZB50..LHD..WOC;TRB40,50,XZB40,50..LHD..GEN

12V

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13063

XZB40,5#..ARL,GEN,TAIW

12V 55W,HALOGEN

 2
90981-13013

BB42,HZB50..WOC;TRB40,50,XZB40,50..LHD..GEN

12V 45/40W,WHITE

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13063

XZB40,5#..ARL,GEN,TAIW

12V 55W,HALOGEN

 2
90981-13013

BB42,HZB50..WOC;TRB40,50,XZB40,50..LHD..GEN

12V 45/40W,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-02018

BB42,HZB50..WOC;TRB40,50,XZB40,50..LHD..GEN

12V 45/40W,*WSB

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02019

BB42,HZB50..LHD..WOC;TRB40,50,XZB40,50..LHD..GEN

12V 45/40W,*WSB

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-20280

BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-20280

BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81153-95010

BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-95010

BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN

 1
81131 - SCREW, HEADLAMP ADJUSTING
81131-20043

BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN

 8
81131 - SCREW, HEADLAMP ADJUSTING
81131-20043

BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN

 8
81150 - HEADLAMP ASSY, LH
81150-36212

BB42,HZB50..LHD..WOC;TRB40,50,XZB40,50..LHD..GEN

12V

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20280

BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN

 2
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-20280

BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN

 2
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81113-95010

BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-95010

BB42,HZB50,TRB40,50,XZB40,50..(26S,30S)..GEN

 1
Common parts
81136-12571
90075-25515
90159-50335
90159-60247
90189-06006
90189-06111

(0708- )

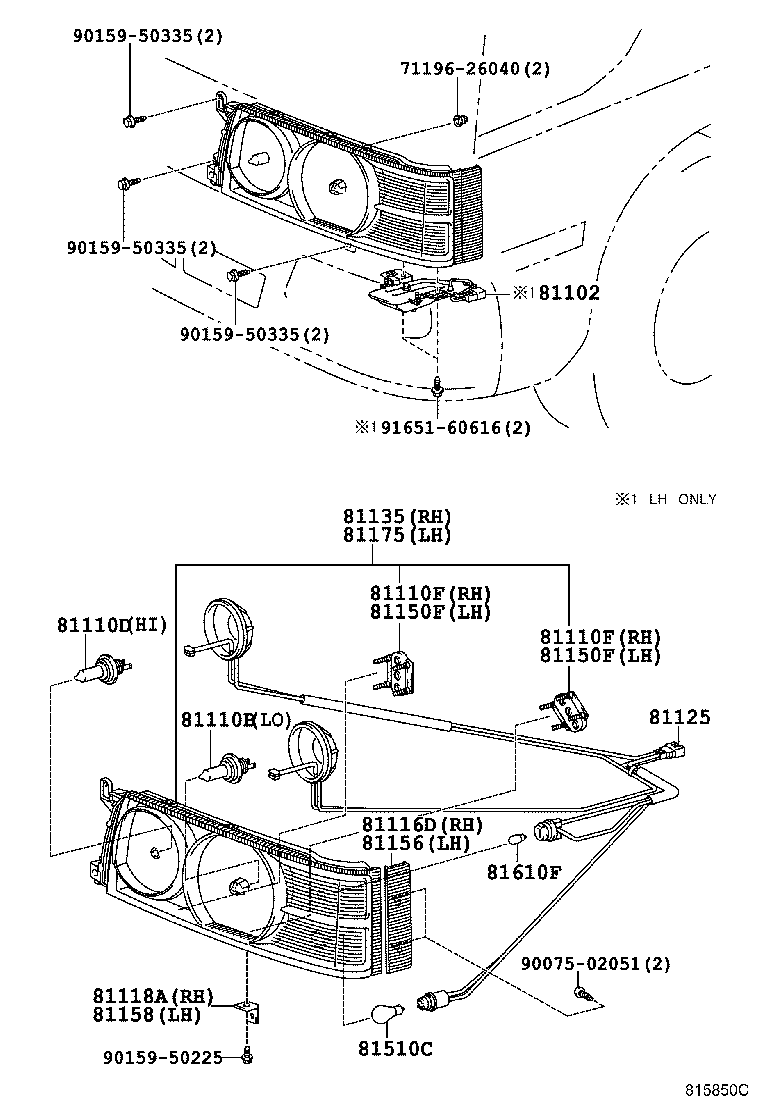

Click highlighted areas on diagram

diagram 7119626040 81102 81110B 81110D 81110F 81110F 81116D 81118A 81125 81135 81150F 81150F 81156 81158 81175 81510C 81610F 9007502051 9015950225 9015950335 9015950335 9015950335 9165160616
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13063

XZB40,5#..ARL,GEN,TAIW

12V 55W,HALOGEN

 2
90981-13013

BB42,HZB50..WOC;TRB40,50,XZB40,50..LHD..GEN

12V 45/40W,WHITE

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13063

XZB40,5#..ARL,GEN,TAIW

12V 55W,HALOGEN

 2
90981-13013

BB42,HZB50..WOC;TRB40,50,XZB40,50..LHD..GEN

12V 45/40W,WHITE

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-36550

BZB40,50,XZB40,5#..GEN

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-36530

BZB40,50,XZB40,5#..GEN

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15009

XZB40,5#..ARL,GEN,TAIW

12V 21W,AMBER

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

XZB40,5#..ARL,GEN,TAIW

12V 5W

 2
Common parts
71196-26040
90075-02051
90159-50225
90159-50335
91651-60616
