TRB40L-BRMRK (2007)
Toyota Coaster

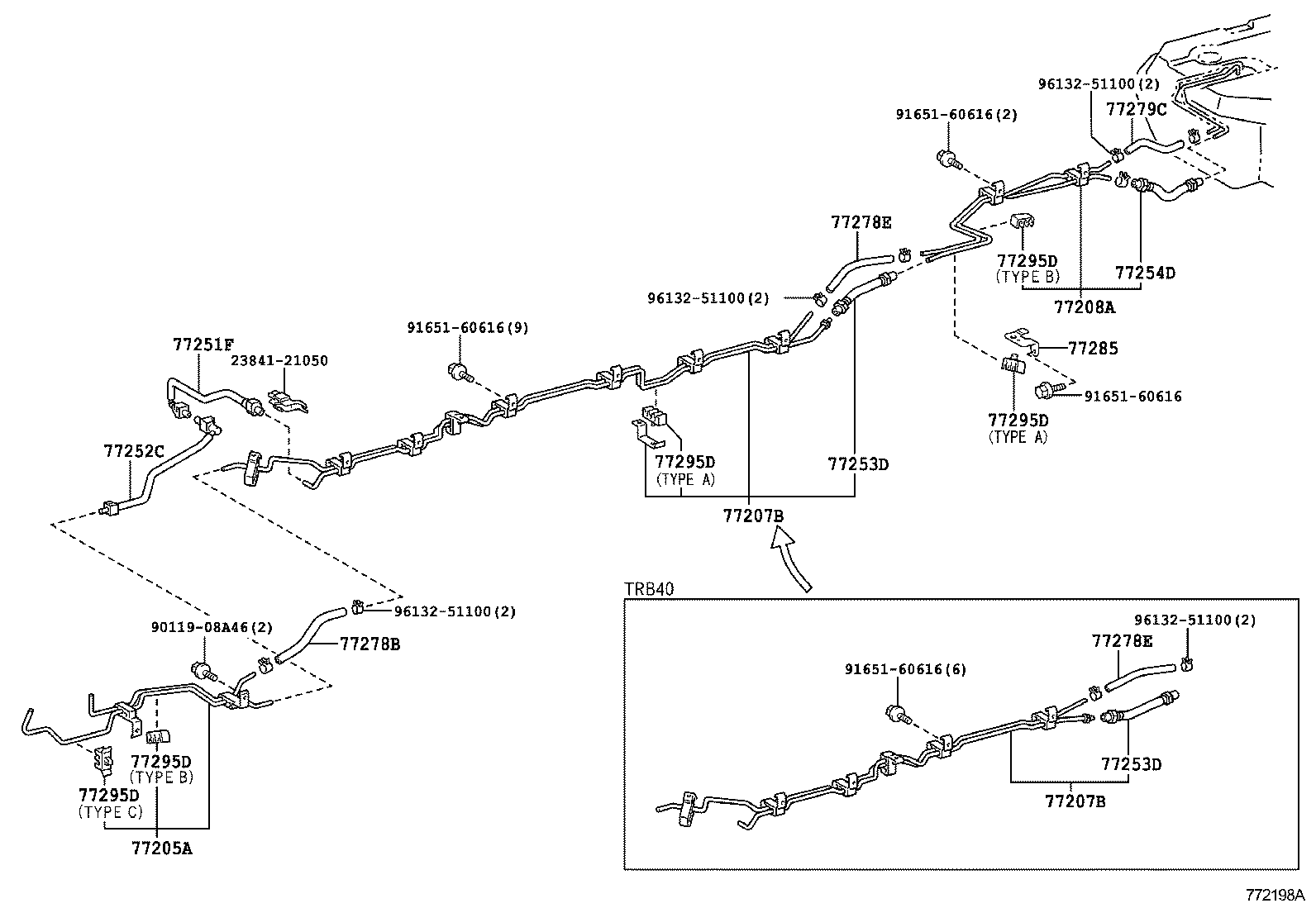

ILLUST NO. 2 OF 4(0708-1501)TRB40,50
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205A - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36A70 |
XZB40,5# |
1 | ||
| 77205-36A50 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 77205-36A30 |
TRB40,50 |
1 | ||
| 77205-36B00 |
TRB40,50 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-36320 |
TRB40 |
1 | ||
| 77207-36390 |
TRB40 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-36320 |
TRB40 |
1 | ||
| 77207-36390 |
TRB40 |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-36150 |
BB4#,5# |
1 | ||
| 77208-36280 |
TRB40,50 |
1 | ||
| 77208-36260 |
XZB40,5# |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77209-36140 |
TRB40 |
1 | ||
| 77259-36181 |
HZB50,XZB40,5#..ARL,GCC,GEN,TAIW |
1 | ||
| 77209-36120 |
TRB40,50 |
1 | ||
| 77259-36181 |
HZB50,XZB40,5# |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 77209-36100 |
TRB40,50 |
1 | ||
| 77209-36130 |
TRB40,50 |
1 | ||
| 77259-36440 |
XZB40,5# |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95338-12018 |
HZB50,XZB40,5#..ARL,GCC,GEN,TAIW |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95338-12018 |
HZB50,XZB40,5#..ARL,GCC,GEN,TAIW |
1 | ||
| 77254D - HOSE, FUEL | ||||
| 95332-10018 |
BB4#,5# |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08015 |
XZB40,5#..ARL,GEN,TAIW L=160 |
1 | ||
| 95333-06020 |
TRB40,50 *H,L=200 |
1 | ||
| 95333-06030 |
TRB40,50 *H,L=240 |
1 | ||
| 95337-08019 |
XZB40,5# L=190 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95334-06022 |
TRB40 |
1 | ||
| 95337-08034 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95334-06022 |
TRB40 |
1 | ||
| 95337-08034 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 95334-06017 |
TRB40,50 |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77281-36140 |
BB42,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-53020 |
XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST. |
1 | ||
| 77285-42110 |
XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST. |
2 | ||
| 77285-26100 |
XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST. |
2 | ||
| 77295-36080 |
TRB40,50 |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-53020 |
XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST. |
1 | ||
| 77285-42110 |
XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST. |
2 | ||
| 77285-26100 |
XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST. |
2 | ||
| 77295-36080 |
TRB40,50 |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-53020 |
XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST. |
1 | ||
| 77285-42110 |
XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST. |
2 | ||
| 77285-26100 |
XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST. |
2 | ||
| 77295-36080 |
TRB40,50 |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-53020 |
XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST. |
1 | ||
| 77285-42110 |
XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST. |
2 | ||
| 77285-26100 |
XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST. |
2 | ||
| 77295-36080 |
TRB40,50 |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-53020 |
XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST. |
1 | ||
| 77285-42110 |
XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST. |
2 | ||
| 77285-26100 |
XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST. |
2 | ||
| 77295-36080 |
TRB40,50 |
1 | ||
| Common parts | ||||
| 23841-21050 | ||||
| 90119-08A46 | ||||
| 91651-60616 | ||||
| 96132-51100 | ||||

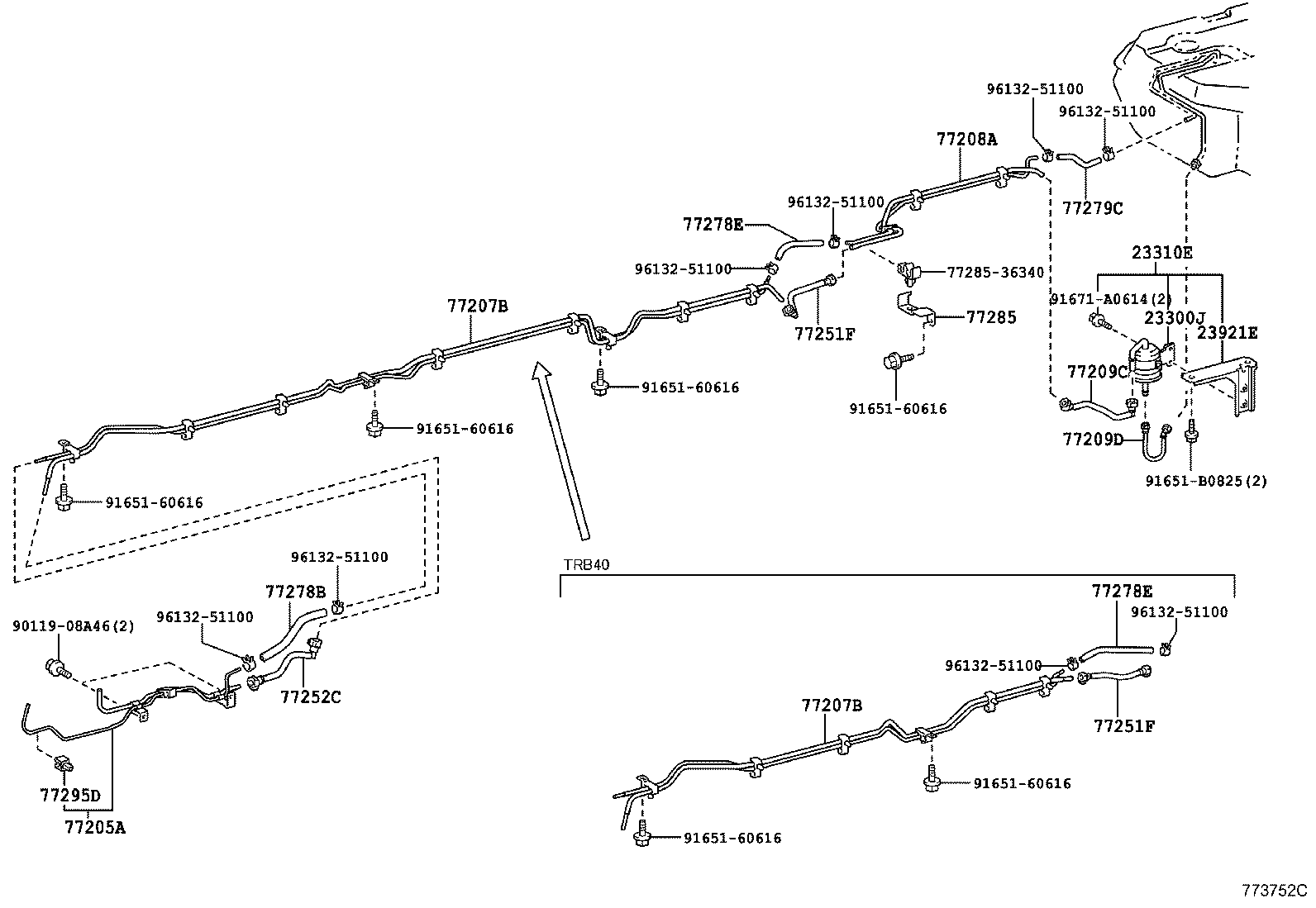

ILLUST NO. 2 OF 4(1501- )TRB40,50
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-31210 |
2TRFE..TRB40,50 |
1 | ||
| 23310E - FILTER ASSY, FUEL PUMP | ||||
| 23310-31010 |
2TRFE..TRB40,50 |
1 | ||
| 23921E - SUPPORT, FUEL FILTER | ||||
| 23921-31040 |
2TRFE..TRB40,50 |
1 | ||
| 77205A - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36A70 |
XZB40,5# |
1 | ||
| 77205-36A50 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 77205-36A30 |
TRB40,50 |
1 | ||
| 77205-36B00 |
TRB40,50 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-36320 |
TRB40 |
1 | ||
| 77207-36390 |
TRB40 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-36320 |
TRB40 |
1 | ||
| 77207-36390 |
TRB40 |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-36150 |
BB4#,5# |
1 | ||
| 77208-36280 |
TRB40,50 |
1 | ||
| 77208-36260 |
XZB40,5# |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-36160 |
TRB40,50 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-36171 |
TRB40,50 |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77209-36140 |
TRB40 |
1 | ||
| 77259-36181 |
HZB50,XZB40,5#..ARL,GCC,GEN,TAIW |
1 | ||
| 77209-36120 |
TRB40,50 |
1 | ||
| 77259-36181 |
HZB50,XZB40,5# |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77209-36140 |
TRB40 |
1 | ||
| 77259-36181 |
HZB50,XZB40,5#..ARL,GCC,GEN,TAIW |
1 | ||
| 77209-36120 |
TRB40,50 |
1 | ||
| 77259-36181 |
HZB50,XZB40,5# |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 77209-36100 |
TRB40,50 |
1 | ||
| 77209-36130 |
TRB40,50 |
1 | ||
| 77259-36440 |
XZB40,5# |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08015 |
XZB40,5#..ARL,GEN,TAIW L=160 |
1 | ||
| 95333-06020 |
TRB40,50 *H,L=200 |
1 | ||
| 95333-06030 |
TRB40,50 *H,L=240 |
1 | ||
| 95337-08019 |
XZB40,5# L=190 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95334-06022 |
TRB40 |
1 | ||
| 95337-08034 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95334-06022 |
TRB40 |
1 | ||
| 95337-08034 |
XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 95334-06017 |
TRB40,50 |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77281-36140 |
BB42,HZB50,TRB40,50,XZB40,5# |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-53020 |
XZB40,5#..ARL,GEN,TAIW TYPE J:REFER ILLUST. |
1 | ||
| 77285-42110 |
XZB40,5#..ARL,GEN,TAIW TYPE K:REFER ILLUST. |
2 | ||
| 77285-26100 |
XZB40,5#..ARL,GEN,TAIW TYPE F:REFER ILLUST. |
2 | ||
| 77295-36080 |
TRB40,50 |
1 | ||
| Common parts | ||||
| 77285-36340 | ||||
| 90119-08A46 | ||||
| 91651-60616 | ||||
| 91651-B0825 | ||||
| 91671-A0614 | ||||
| 96132-51100 | ||||
