Toyota Coaster TRB40 ARMREST & VISOR

TRB40L-BRMRK (2007)

Toyota Coaster

Production Aug 2007 - Dec 2016

Engine 2TRFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9301-1501)

Click highlighted areas on diagram

Part #	Description	Period	Qty
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-36020B0	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-36020B0	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74610A - GRIP SUB-ASSY, ASSIST
74690-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74610D - GRIP ASSY, ASSIST, NO.4 RH
74690-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74610G - GRIP ASSY, ASSIST, NO.6 RH
74690-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74610H - GRIP ASSY, ASSIST, NO.7 RH
74690-36010B0	BB42,TRB40,XZB40..LHD;HZB50,TRB50,XZB50..LHD..30S MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74610K - GRIP ASSY, ASSIST, NO.2 LH
74690-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74610L - GLIP ASSY, ASSIST, NO.3 LH
74690-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74610M - GRIP ASSY, ASSIST, NO.4 LH
74690-36010B0	HZB50..26S;HZB50..30S..GCC;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74610P - GRIP ASSY, ASSIST, NO.6 LH
74690-36010B0	HZB50..26S;HZB50..30S..GCC;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74610Q - GRIP ASSY, ASSIST, NO.7 LH
74690-36010B0	HZB50..30S..GCC;TRB50,XZB50..30S;BB42,TRB40,XZB40..LHD MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74615E - PLUG, FRONT ASSIST GRIP, NO.1 RH
74615-60011B0	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74615E - PLUG, FRONT ASSIST GRIP, NO.1 RH
74615-60011B0	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74616C - PLUG, FRONT ASSIST GRIP, NO.1 LH
74616-60011B0	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74616C - PLUG, FRONT ASSIST GRIP, NO.1 LH
74616-60011B0	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74617B - PLUG, DOOR ASSIST GRIP
74617-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74617H - PLUG, ASSIST GRIP, NO.4 RH
74617-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74617K - PLUG, ASSIST GRIP, NO.6 RH
74617-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74617L - PLUG, ASSIST GRIP, NO.7 RH
74617-36010B0	BB42,TRB40,XZB40..LHD;HZB50,TRB50,XZB50..LHD..30S MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74617N - PLUG, ASSIST GRIP, NO.2 LH
74617-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	4
74617P - PLUG, ASSIST GRIP, NO.3 LH
74617-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	4
74617Q - PLUG, ASSIST GRIP, NO.4 LH
74617-36010B0	HZB50..26S;HZB50..30S..GCC;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	4
74617S - PLUG, ASSIST GRIP, NO.6 LH
74617-36010B0	HZB50..26S;HZB50..30S..GCC;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	4
74617T - PLUG, ASSIST GRIP, NO.7 LH
74617-36010B0	HZB50..30S..GCC;TRB50,XZB50..30S;BB42,TRB40,XZB40..LHD MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	4
Common parts
90167-60015
90189-06006
93210-16016
93210-16020
93210-16025
93260-56020
93311-16014

ILLUST NO. 2 OF 2(9301-1501)

Click highlighted areas on diagram

Part #	Description	Period	Qty
74310 - VISOR ASSY, RH
74310-36030B0	XZB40..26S;BB42,BZB40,50,HZB50,TRB40,50,XZB50..STD..(GCC,GEN,TAIW) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74317 - COVER, VISOR BRACKET, RH
74317-36020B0	BB42,HZB50,TRB40,XZB40,50..WOC MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74318 - COVER, VISOR BRACKET, LH
74317-36020B0	BB42,HZB50,TRB40,XZB40,50..WOC MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74320 - VISOR ASSY, LH
74320-36030B0	BB42,HZB50,TRB40,50 MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74710 - EXTINGUISHER ASSY
74710-36032	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)	05/2016 - 12/2999	1
74710-36031	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)	01/2015 - 04/2016	1
74716A - RETAINER, EXTINGUISHER, NO.2
74716-90K00	BB42,HZB50,TRB40,50,XZB40,50..20S,26S,30S	01/2015 - 12/2999	2
Common parts
90167-50060
91611-B0616
91631-B0616

ILLUST NO. 1 OF 2(1501- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
74310 - VISOR ASSY, RH
74310-36030B0	XZB40..26S;BB42,BZB40,50,HZB50,TRB40,50,XZB50..STD..(GCC,GEN,TAIW) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74317 - COVER, VISOR BRACKET, RH
74317-36020B0	BB42,HZB50,TRB40,XZB40,50..WOC MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74318 - COVER, VISOR BRACKET, LH
74317-36020B0	BB42,HZB50,TRB40,XZB40,50..WOC MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74320 - VISOR ASSY, LH
74320-36030B0	BB42,HZB50,TRB40,50 MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-36020B0	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-36020B0	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74615E - PLUG, FRONT ASSIST GRIP, NO.1 RH
74615-60011B0	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74615E - PLUG, FRONT ASSIST GRIP, NO.1 RH
74615-60011B0	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74616C - PLUG, FRONT ASSIST GRIP, NO.1 LH
74616-60011B0	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74616C - PLUG, FRONT ASSIST GRIP, NO.1 LH
74616-60011B0	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74710 - EXTINGUISHER ASSY
74710-36032	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)	05/2016 - 12/2999	1
74710-36031	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN)	01/2015 - 04/2016	1
74716A - RETAINER, EXTINGUISHER, NO.2
74716-90K00	BB42,HZB50,TRB40,50,XZB40,50..20S,26S,30S	01/2015 - 12/2999	2
Common parts
90167-50060
90167-60015
90189-06006
91611-B0616
91631-B0616
93210-16016
93311-16014

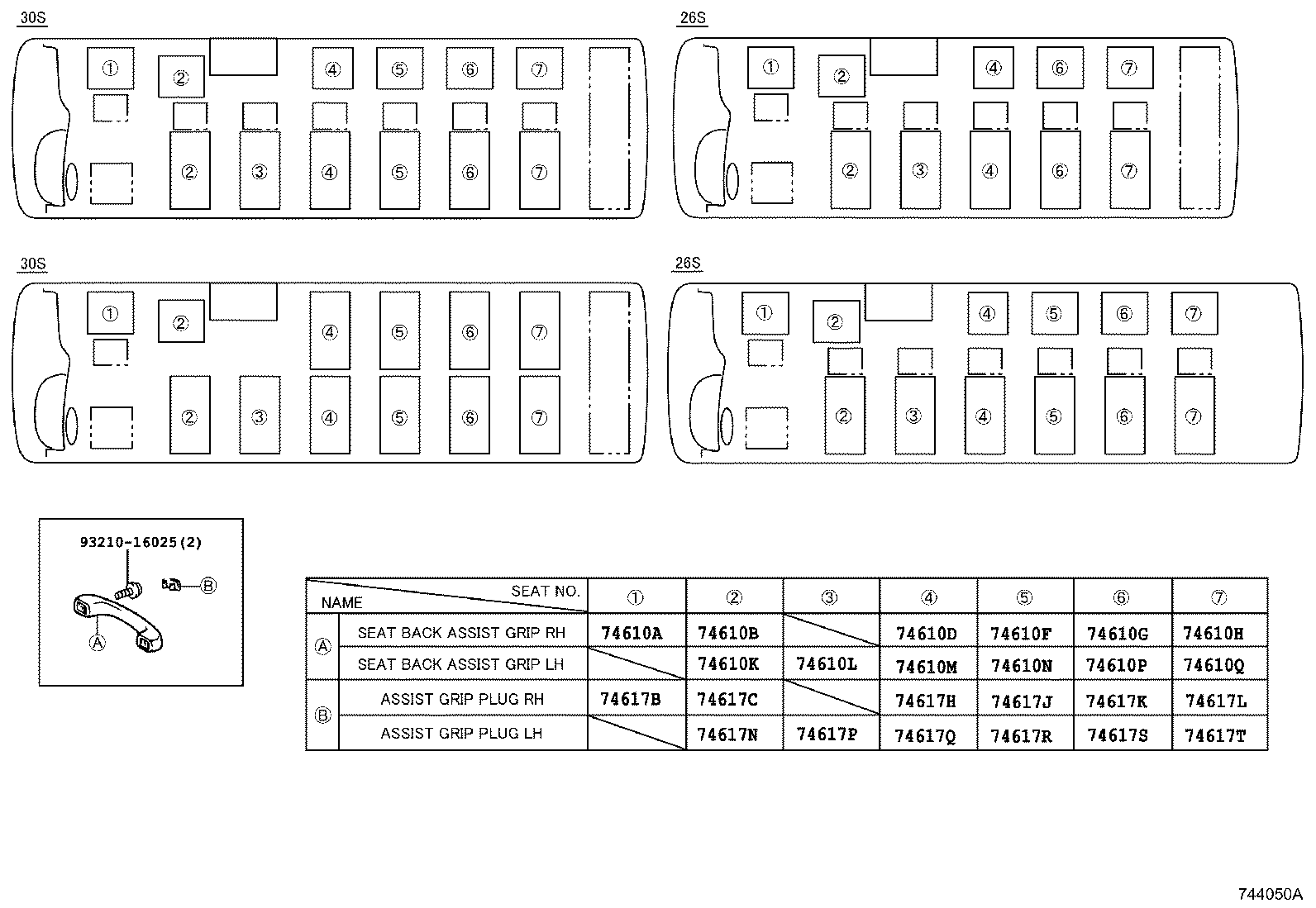

ILLUST NO. 2 OF 2(1501- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
74610A - GRIP SUB-ASSY, ASSIST
74690-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74610D - GRIP ASSY, ASSIST, NO.4 RH
74690-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74610G - GRIP ASSY, ASSIST, NO.6 RH
74690-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74610H - GRIP ASSY, ASSIST, NO.7 RH
74690-36010B0	BB42,TRB40,XZB40..LHD;HZB50,TRB50,XZB50..LHD..30S MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
74610K - GRIP ASSY, ASSIST, NO.2 LH
74690-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74610L - GLIP ASSY, ASSIST, NO.3 LH
74690-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74610M - GRIP ASSY, ASSIST, NO.4 LH
74690-36010B0	HZB50..26S;HZB50..30S..GCC;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74610P - GRIP ASSY, ASSIST, NO.6 LH
74690-36010B0	HZB50..26S;HZB50..30S..GCC;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74610Q - GRIP ASSY, ASSIST, NO.7 LH
74690-36010B0	HZB50..30S..GCC;TRB50,XZB50..30S;BB42,TRB40,XZB40..LHD MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74617B - PLUG, DOOR ASSIST GRIP
74617-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74617H - PLUG, ASSIST GRIP, NO.4 RH
74617-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74617K - PLUG, ASSIST GRIP, NO.6 RH
74617-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74617L - PLUG, ASSIST GRIP, NO.7 RH
74617-36010B0	BB42,TRB40,XZB40..LHD;HZB50,TRB50,XZB50..LHD..30S MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	2
74617N - PLUG, ASSIST GRIP, NO.2 LH
74617-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	4
74617P - PLUG, ASSIST GRIP, NO.3 LH
74617-36010B0	BB42,HZB50,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	4
74617Q - PLUG, ASSIST GRIP, NO.4 LH
74617-36010B0	HZB50..26S;HZB50..30S..GCC;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	4
74617S - PLUG, ASSIST GRIP, NO.6 LH
74617-36010B0	HZB50..26S;HZB50..30S..GCC;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	4
74617T - PLUG, ASSIST GRIP, NO.7 LH
74617-36010B0	HZB50..30S..GCC;TRB50,XZB50..30S;BB42,TRB40,XZB40..LHD MD.CHARCOAL,TRIM1#	01/2015 - 12/2016	4
Common parts
93210-16025
