TRB40L-BRMRK (2007)

Toyota Coaster

Production Aug 2007 - Dec 2016
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9301- )

Click highlighted areas on diagram

SINGLE SWING BACK DOOR(TRIM)

diagram 64790C 64790D 67751A 6777295J01 68291 9015950279 9018906006
Part # Description Qty Price
64790C - PANEL ASSY, BACK DOOR TRIM, LH
64790-36010E1

HZB50..30S;BB42,5#,RZB40,50..STD..(GCC,GEN)..CBU

GREIGE,TRIM4#

 1
Common parts
67772-95J01
90159-50279
90189-06006

ILLUST NO. 1 OF 2(9301- )

Click highlighted areas on diagram

LUGGAGE DOOR(PANEL)

diagram 67005 67115 67868J 67868J 67881A 67882C
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67008-36020

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE BOX)

 1
67115 - PANEL, BACK DOOR, OUTER
67115-36030

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

 1
67868J - RETAINER, DOOR WEATHERSTRIP
67867-12150

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67867-12150

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67868J - RETAINER, DOOR WEATHERSTRIP
67867-12150

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67867-12150

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-36040

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR)

 1
67881-36040

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR)

 1
67882C - WEATHERSTRIP, BACK DOOR, NO.2
67882-36010

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR)

 1

ILLUST NO. 1 OF 2(9301- )

Click highlighted areas on diagram

DOUBLE SWING BACK DOOR(PANEL)

diagram 67005D 67006A 67847 67848 67853C 67868F 67868J 67868J 67868J 67881A 67882C 67883E 67884A 68131 68131 68611A 68611A 68617B 68617B 68650C 68660 9017906128 9017906128 9033301009 9033301009 9033335002 9033335004 9033335004 91511B0614 91511B0614
Part # Description Qty Price
67868J - RETAINER, DOOR WEATHERSTRIP
67867-12150

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67867-12150

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67868J - RETAINER, DOOR WEATHERSTRIP
67867-12150

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67867-12150

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67868J - RETAINER, DOOR WEATHERSTRIP
67867-12150

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67867-12150

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-36040

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR)

 1
67881-36040

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR)

 1
67882C - WEATHERSTRIP, BACK DOOR, NO.2
67882-36010

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR)

 1
Common parts
90179-06128
90333-01009
90333-35002
90333-35004
91511-B0614

ILLUST NO. 1 OF 2(9301-1501)

Click highlighted areas on diagram

SINGLE SWING BACK DOOR(PANEL)

diagram 55521B 64561 64562 64563 67005 67199 67297 67807 67848 67868J 67881A 67883C 68131 68611A 68617B 68650 69411C 9011906324 9017906128 9033301009 9033335004 91511B0614 9155380614 9354014010
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67008-36020

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE BOX)

 1
67868J - RETAINER, DOOR WEATHERSTRIP
67867-12150

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67867-12150

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-36040

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR)

 1
67881-36040

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR)

 1
Common parts
90119-06324
90179-06128
90333-01009
90333-35004
91511-B0614
91553-80614
93540-14010

ILLUST NO. 2 OF 2(9301- )

Click highlighted areas on diagram

DOUBLE SWING BACK DOOR(TRIM)

diagram 55521B 64780C 64790C 64790C 64790D 67751A 67751A 67751A 6777295J01 6777295J01 6777295J01 67807 68291 68291 69411C 9015950279 9018906006 9155380614 9354014010
Part # Description Qty Price
64780C - PANEL ASSY, BACK DOOR TRIM, RH
64780-36010E1

HZB50..30S;BB42,5#,RZB40,50..STD..(GCC,GEN)..CBU

GREIGE,TRIM4#

 1
64790C - PANEL ASSY, BACK DOOR TRIM, LH
64790-36010E1

HZB50..30S;BB42,5#,RZB40,50..STD..(GCC,GEN)..CBU

GREIGE,TRIM4#

 1
64790C - PANEL ASSY, BACK DOOR TRIM, LH
64790-36010E1

HZB50..30S;BB42,5#,RZB40,50..STD..(GCC,GEN)..CBU

GREIGE,TRIM4#

 1
Common parts
67772-95J01
90159-50279
90189-06006
91553-80614
93540-14010

ILLUST NO. 1 OF 2(1501- )

Click highlighted areas on diagram

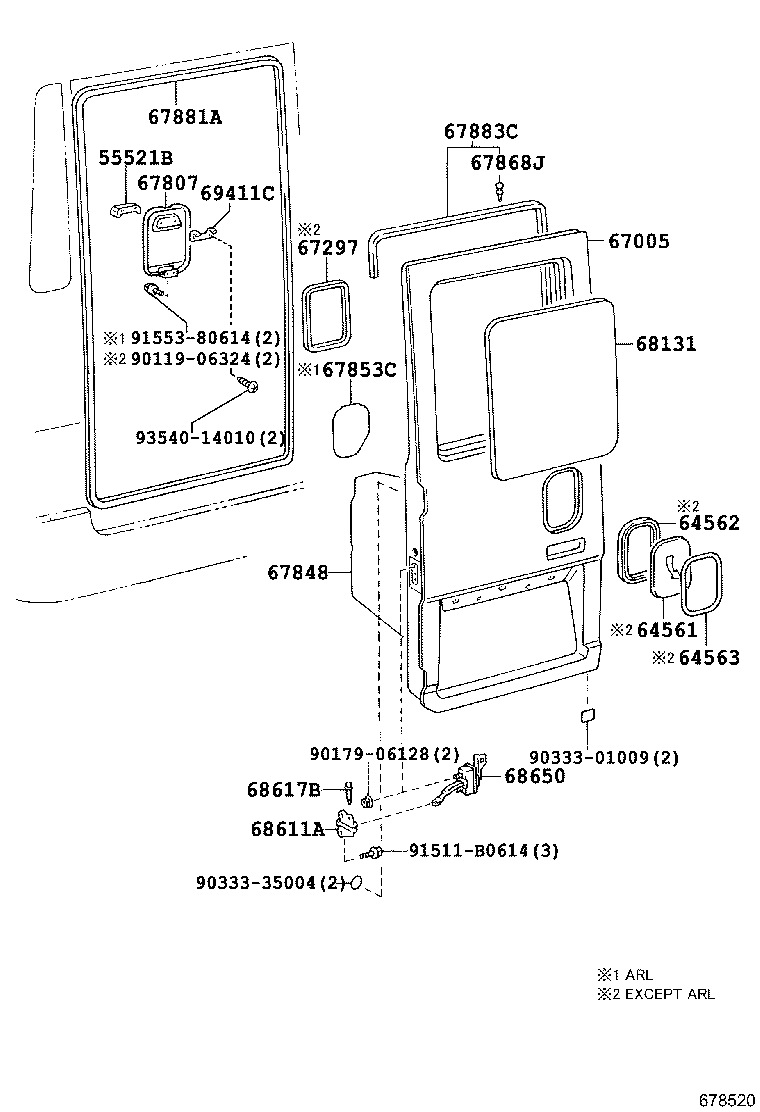

SINGLE SWING BACK DOOR(PANEL)

diagram 55521B 64561 64562 64563 67005 67297 67807 67848 67853C 67868J 67881A 67883C 68131 68611A 68617B 68650 69411C 9011906324 9017906128 9033301009 9033335004 91511B0614 9155380614 9354014010
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67008-36020

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE BOX)

 1
67868J - RETAINER, DOOR WEATHERSTRIP
67867-12150

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67867-12150

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.2

 9
67868-30040

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR),NO.1

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-36040

TRB40,50;BB42..RHD..SRF..WC

W(LUGGAGE COMPARTMENT DOOR)

 1
67881-36040

BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S

W(LUGGAGE COMPARTMENT DOOR)

 1
Common parts
90119-06324
90179-06128
90333-01009
90333-35004
91511-B0614
91553-80614
93540-14010
