TRB40L-BRMRK (2007)

Toyota Coaster

Production Aug 2007 - Dec 2016
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0708- )TRB40,50

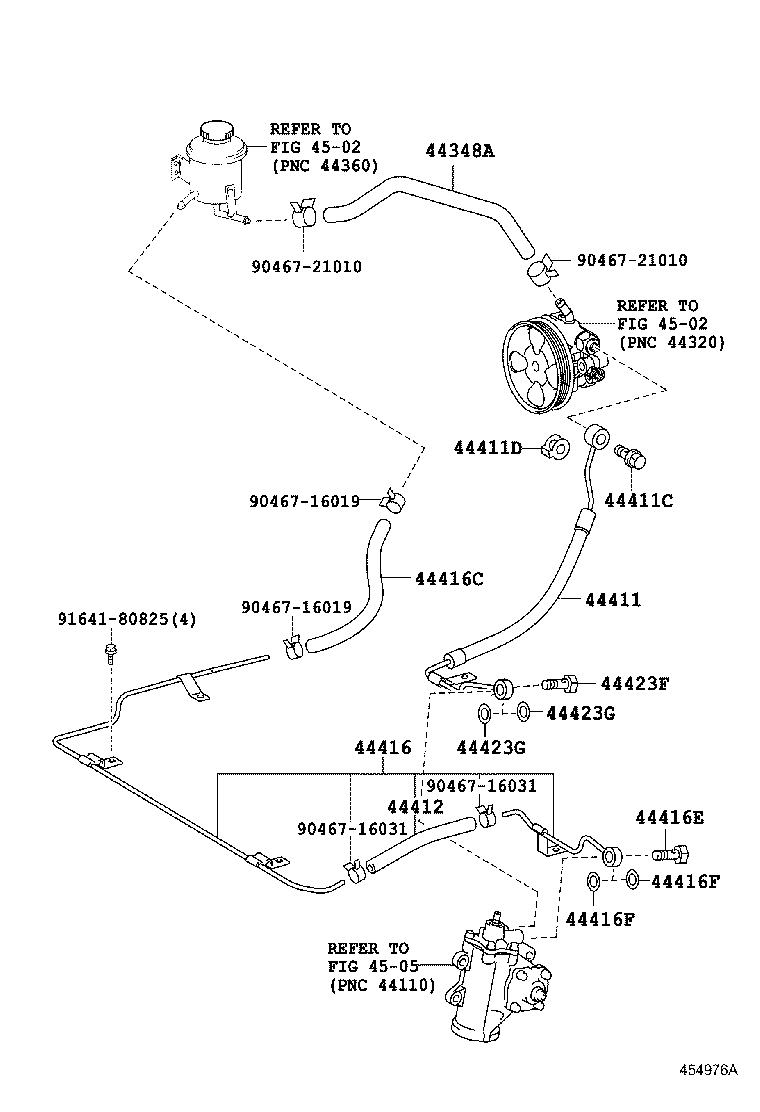

Click highlighted areas on diagram

diagram 44348A 44411 44411C 44411D 44412 44416 44416C 44416E 44416F 44416F 44423F 44423G 44423G 4502 4502 4505 9046716019 9046716019 9046716031 9046716031 9046721010 9046721010 9164180825
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-36370

TRB40,50

 1
44348-36370

TRB40,50

 1
44348-36360

XZB40,5#

 1
44411 - HOSE, PRESSURE FEED
44411-36371

BB42,5#..LHD

 1
44411-36570

TRB40,50

 1
44411-36570

TRB40,50

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024

BB4#,5#,HZB50

 1
96341-41603

XZB40,5#

 1
90401-16034

TRB40,50

 1
90401-16034

TRB40,50

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

BB4#,5#,HZB50,RZB40,50

 2
44327-30030

BB42,BZB40,50,HZB50,XZB40,5#

 1
44327-30040

TRB40,50

 1
44327-30040

TRB40,50

 1
44412 - HOSE, RETURN
90445-18137

BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36360

BB42,5#,HZB50..LHD

 1
44416-36381

TRB40,50

 1
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
90445-18139

TRB40,50;HZB50..RHD

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
90401-14003

BB4#,5#,HZB50,RZB40,50

 1
90401-14003

BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#

 1
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB4#,5#,HZB50,RZB40,50

 2
90430-14014

BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#

 2
44416F - GASKET(FOR RETURN TUBE)
90430-14235

BB4#,5#,HZB50,RZB40,50

 2
90430-14014

BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#

 2
44423F - BOLT, UNION
90401-14003

BB4#,5#,HZB50,RZB40,50

 1
90401-14003

BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#

 1
44423G - GASKET, UNION BOLT
90430-14235

BB4#,5#,HZB50,RZB40,50

 2
90430-14014

BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#

 2
44423G - GASKET, UNION BOLT
90430-14235

BB4#,5#,HZB50,RZB40,50

 2
90430-14014

BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#

 2
Common parts
90467-16019
90467-16031
90467-21010
91641-80825
Linked diagrams
4502
4505
