Toyota Coaster TRB40 TIMING GEAR COVER & REAR END PLATE

Manufacturers Home
Toyota
EU
COASTER
TRB40L-BRMRK (2007)
1106 - TIMING GEAR COVER & REAR END PLATE

TRB40L-BRMRK (2007)

Toyota Coaster

Production Aug 2007 - Dec 2016

Engine 2TRFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

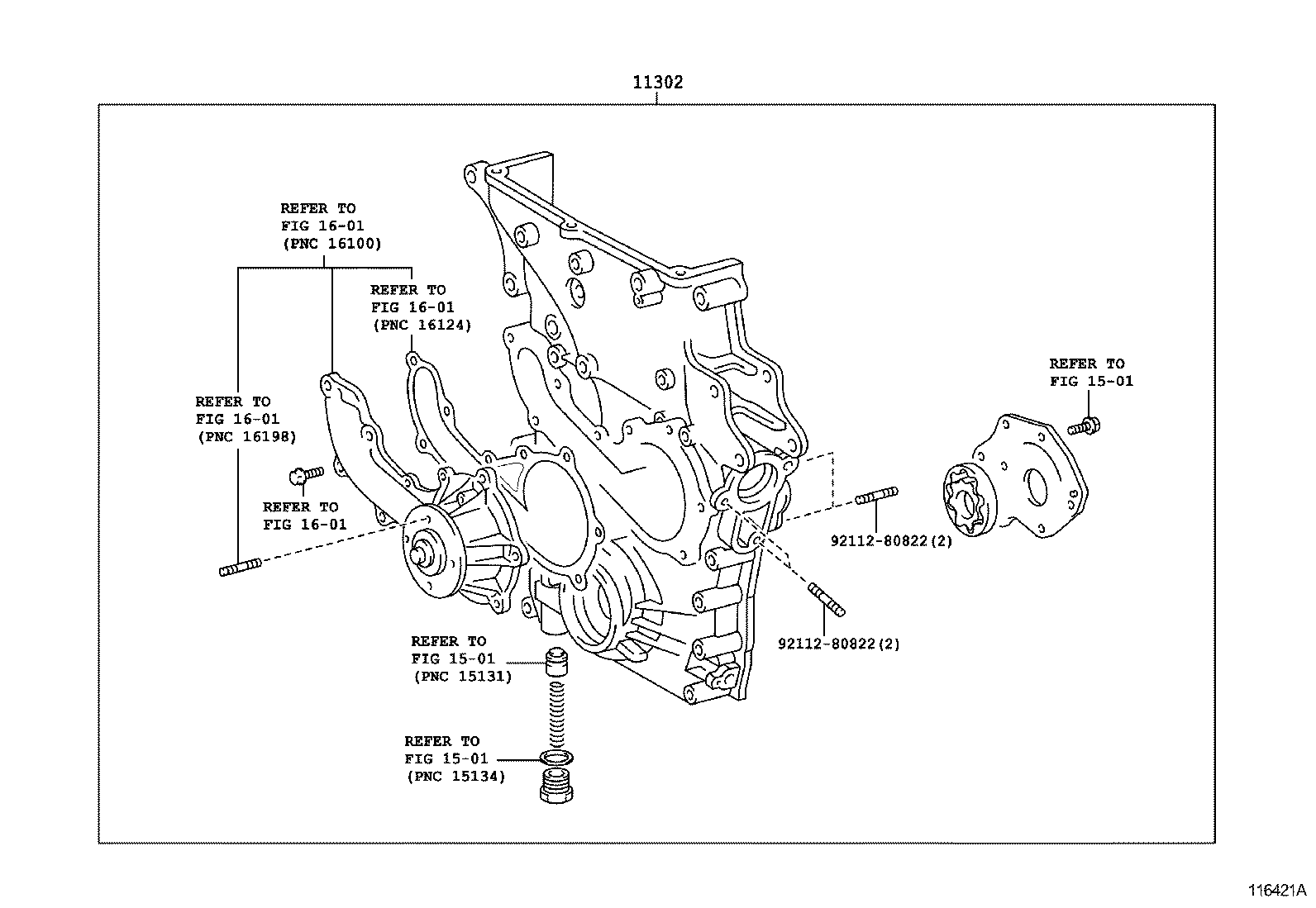

ILLUST NO. 2 OF 2(0708- )2TRFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-75071	2TRFE..TRB40,50	11/2007 - 02/2009	1
11310-75074	2TRFE..TRB40,50	06/2014 - 01/2015	1
11310-75070	2TRFE..TRB40,50	08/2007 - 11/2007	1
11310-75073	2TRFE..TRB40,50	02/2009 - 06/2014	1
11310-75074	2TRFE..TRB40,50	01/2015 - 12/2999	1
Common parts
92112-80822
Linked diagrams
1501
1601

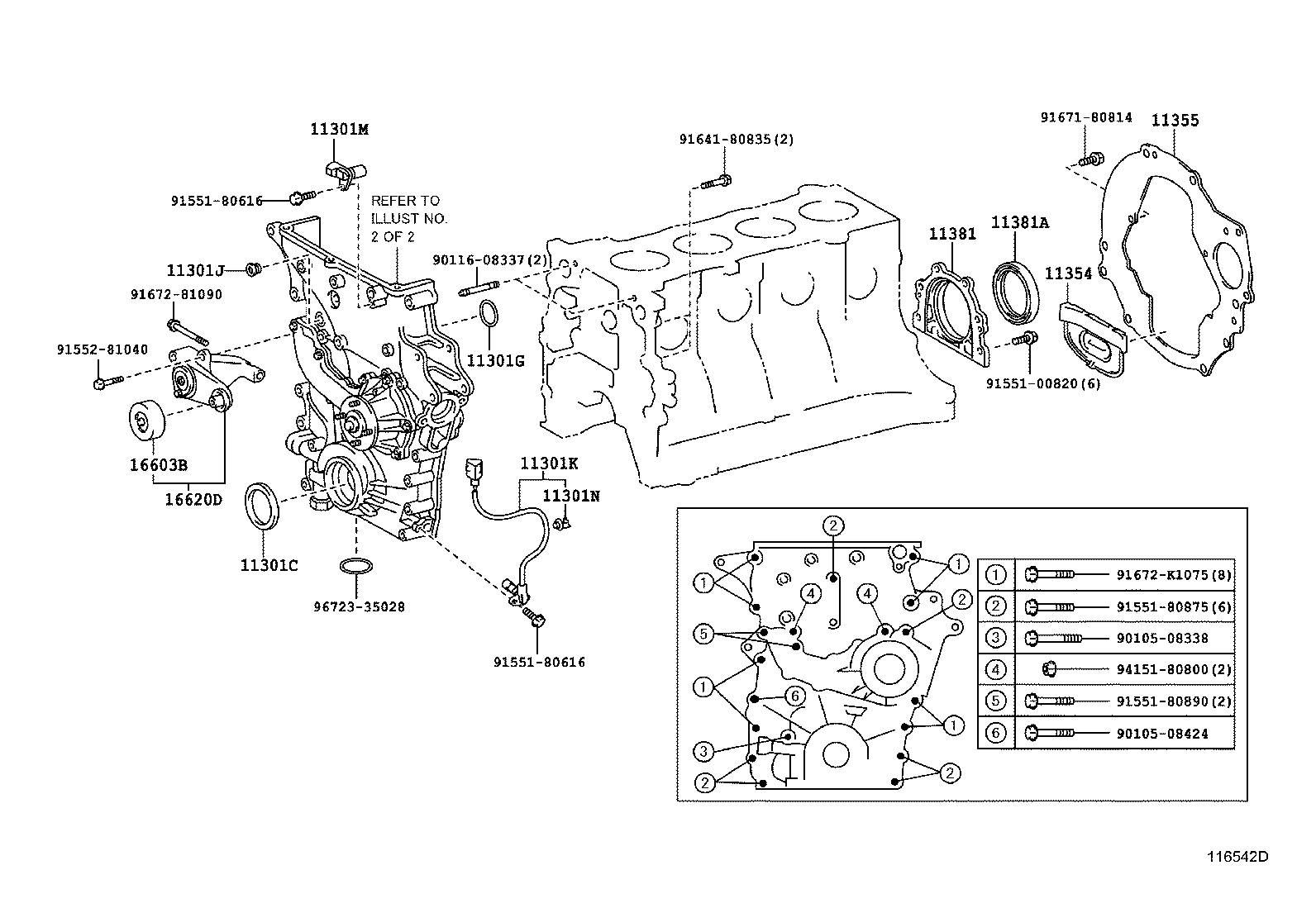

ILLUST NO. 1 OF 2(0708-1408)2TRFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-48029	2TRFE..TRB40,50	08/2007 - 10/2014	1
90311-48031	2TRFE..TRB40,50	11/2014 - 01/2015	1
90311-48031	2TRFE..TRB40,50	01/2015 - 12/2999	1
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-25014	2TRFE..TRB40,50	01/2015 - 12/2999	1
90301-25014	2TRFE..TRB40,50	08/2007 - 01/2015	1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-16022	2TRFE..TRB40,50	01/2015 - 12/2999	1
90341-16022	2TRFE..TRB40,50	08/2007 - 01/2015	1
11301K - SENSOR, CRANK POSITION
90919-05059	2TRFE..TRB40,50	08/2007 - 01/2015	1
90919-05059	2TRFE..TRB40,50	01/2015 - 12/2999	1
11301M - SENSOR, CAM POSITION
90919-05036	2TRFE..TRB40,50	08/2007 - 01/2015	1
90919-05036	2TRFE..TRB40,50	01/2015 - 12/2999	1
11301N - CLAMP
90469-07018	2TRFE..TRB40,50	01/2015 - 12/2999	1
90469-07018	2TRFE..TRB40,50	08/2007 - 01/2015	1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-75030	2TRFE..TRB40,50	01/2015 - 12/2999	1
11354-75030	2TRFE..TRB40,50	08/2007 - 01/2015	1
11355 - PLATE, REAR END
11355-75021	2TRFE..TRB40,50	08/2007 - 01/2015	1
11355-75021	2TRFE..TRB40,50	01/2015 - 12/2999	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-75011	2TRFE..TRB40,50	12/2008 - 06/2014	1
11381-75012	2TRFE..TRB40,50	07/2014 - 01/2015	1
11381-75010	2TRFE..TRB40,50	08/2007 - 12/2008	1
11381-75012	2TRFE..TRB40,50	01/2015 - 12/2999	1
11381A - SEAL, ENGINE REAR OIL
90311-88005	2TRFE..TRB40,50	08/2007 - 10/2014	1
90311-88006	2TRFE..TRB40,50	01/2015 - 12/2999	1
90311-88006	2TRFE..TRB40,50	11/2014 - 01/2015	1
16603B - PULLEY SUB-ASSY, IDLER
16603-75010	2TRFE..TRB40,50	08/2007 - 04/2012	1
16603-75020	2TRFE..TRB40,50	04/2012 - 01/2015	1
16620D - TENSIONER ASSY, V-RIBBED BELT
16620-75030	2TRFE..TRB40,50	04/2012 - 01/2015	1
16620-75011	2TRFE..TRB40,50	09/2008 - 04/2012	1
16620-75010	2TRFE..TRB40,50	08/2007 - 09/2008	1
Common parts
90105-08338
90105-08424
90116-08337
91551-00820
91551-80616
91551-80875
91551-80890
91552-81040
91641-80835
91671-80814
91672-81090
91672-K1075
94151-80800
96723-35028

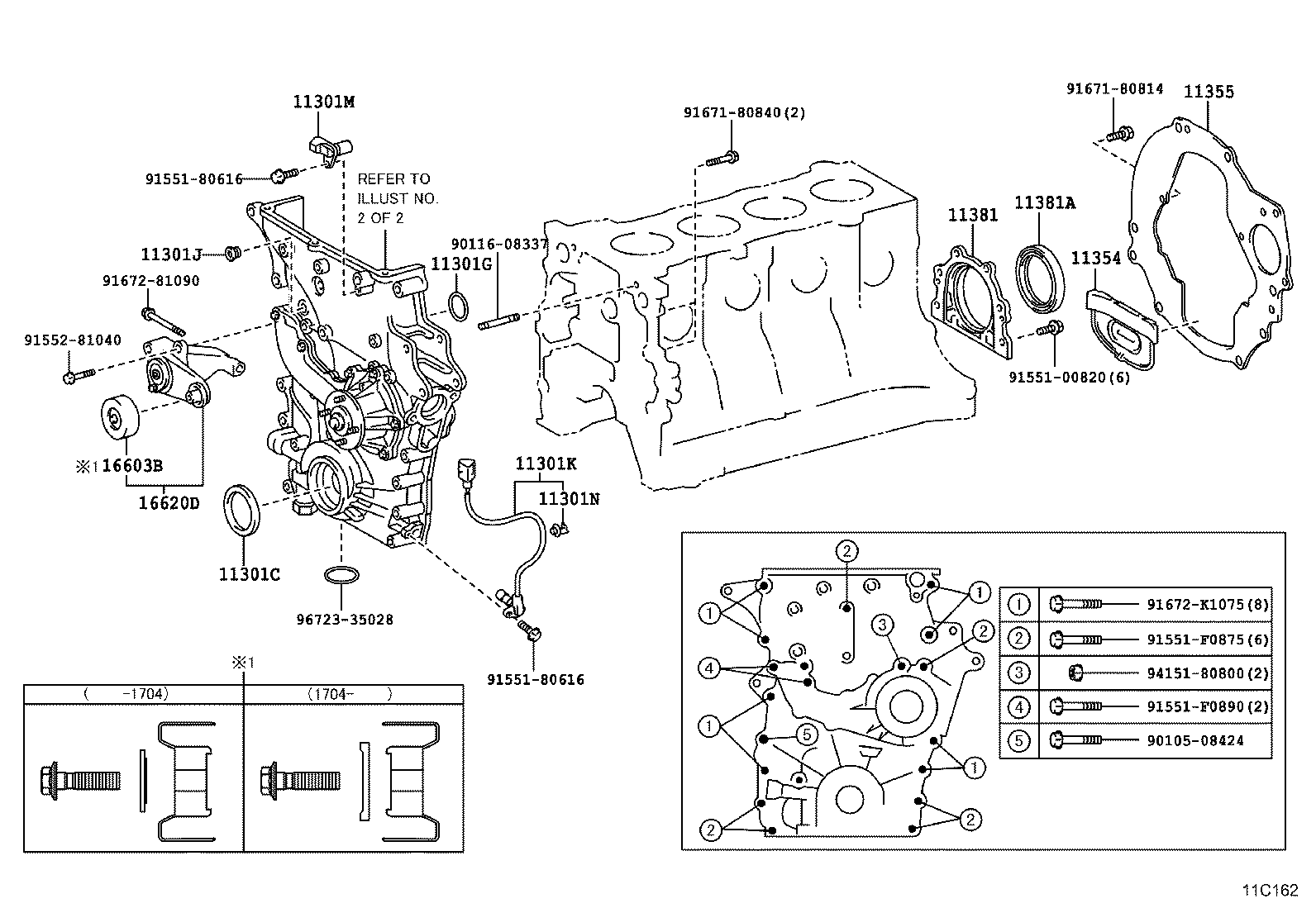

ILLUST NO. 1 OF 2(1408- )2TRFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-48029	2TRFE..TRB40,50	08/2007 - 10/2014	1
90311-48031	2TRFE..TRB40,50	11/2014 - 01/2015	1
90311-48031	2TRFE..TRB40,50	01/2015 - 12/2999	1
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-25014	2TRFE..TRB40,50	01/2015 - 12/2999	1
90301-25014	2TRFE..TRB40,50	08/2007 - 01/2015	1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-16022	2TRFE..TRB40,50	01/2015 - 12/2999	1
90341-16022	2TRFE..TRB40,50	08/2007 - 01/2015	1
11301K - SENSOR, CRANK POSITION
90919-05059	2TRFE..TRB40,50	08/2007 - 01/2015	1
90919-05059	2TRFE..TRB40,50	01/2015 - 12/2999	1
11301M - SENSOR, CAM POSITION
90919-05036	2TRFE..TRB40,50	08/2007 - 01/2015	1
90919-05036	2TRFE..TRB40,50	01/2015 - 12/2999	1
11301N - CLAMP
90469-07018	2TRFE..TRB40,50	01/2015 - 12/2999	1
90469-07018	2TRFE..TRB40,50	08/2007 - 01/2015	1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-75030	2TRFE..TRB40,50	01/2015 - 12/2999	1
11354-75030	2TRFE..TRB40,50	08/2007 - 01/2015	1
11355 - PLATE, REAR END
11355-75021	2TRFE..TRB40,50	08/2007 - 01/2015	1
11355-75021	2TRFE..TRB40,50	01/2015 - 12/2999	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-75011	2TRFE..TRB40,50	12/2008 - 06/2014	1
11381-75012	2TRFE..TRB40,50	07/2014 - 01/2015	1
11381-75010	2TRFE..TRB40,50	08/2007 - 12/2008	1
11381-75012	2TRFE..TRB40,50	01/2015 - 12/2999	1
11381A - SEAL, ENGINE REAR OIL
90311-88005	2TRFE..TRB40,50	08/2007 - 10/2014	1
90311-88006	2TRFE..TRB40,50	01/2015 - 12/2999	1
90311-88006	2TRFE..TRB40,50	11/2014 - 01/2015	1
16603B - PULLEY SUB-ASSY, IDLER
16603-75010	2TRFE..TRB40,50	08/2007 - 04/2012	1
16603-75020	2TRFE..TRB40,50	04/2012 - 01/2015	1
16620D - TENSIONER ASSY, V-RIBBED BELT
16620-75030	2TRFE..TRB40,50	04/2012 - 01/2015	1
16620-75011	2TRFE..TRB40,50	09/2008 - 04/2012	1
16620-75010	2TRFE..TRB40,50	08/2007 - 09/2008	1
Common parts
90105-08424
90116-08337
91551-00820
91551-80616
91551-F0875
91551-F0890
91552-81040
91671-80814
91671-80840
91672-81090
91672-K1075
94151-80800
96723-35028

TRB40L-BRMRK (2007)

ILLUST NO. 2 OF 2(0708- )2TRFE

ILLUST NO. 1 OF 2(0708-1408)2TRFE

ILLUST NO. 1 OF 2(1408- )2TRFE
