RZB40L-BRMSK (1999)

Toyota Coaster

Production Jul 1999 - Aug 2007
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

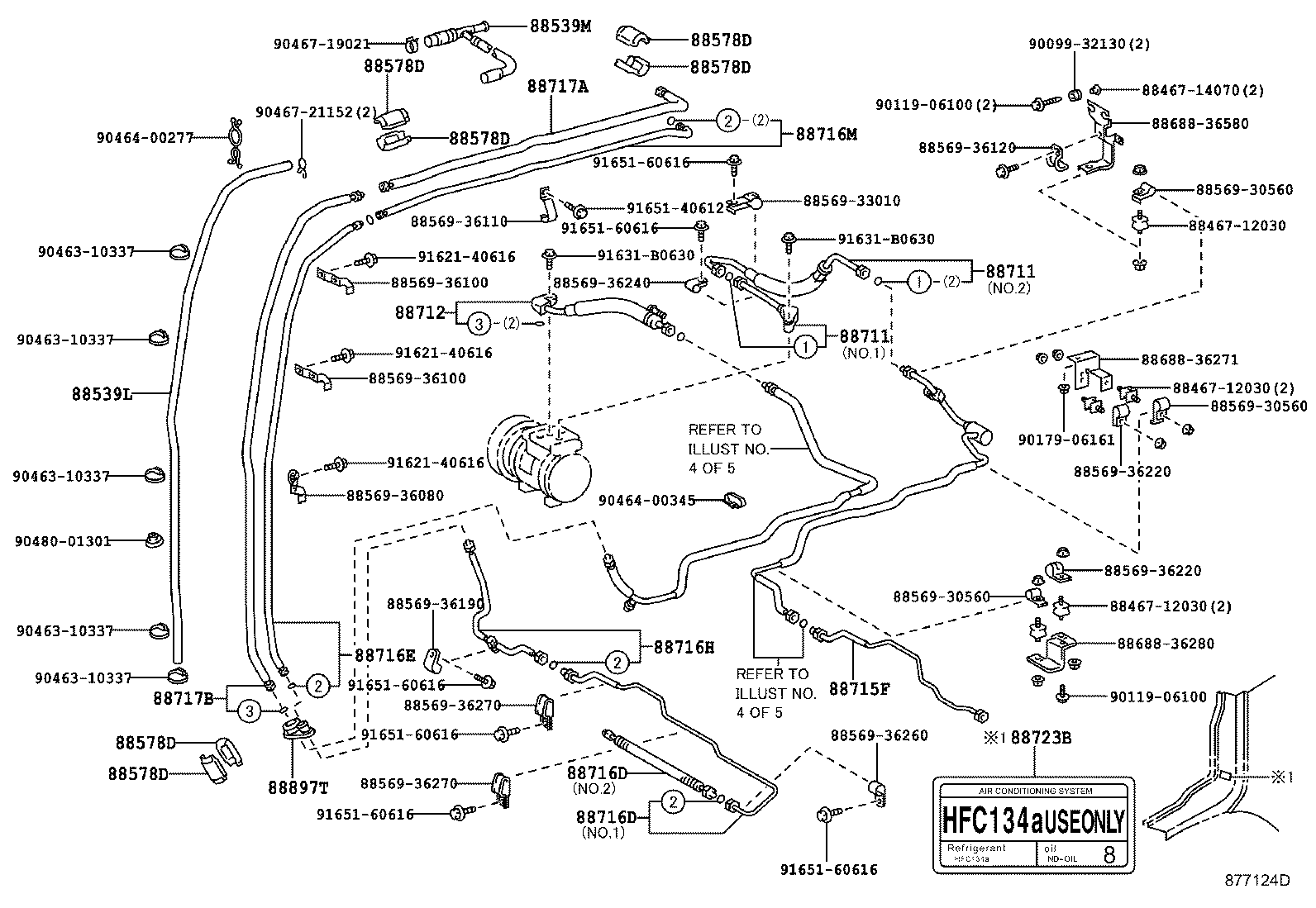

ILLUST NO. 3 OF 5(9301-0408)LHD..WC..5F..DSL ; (9301-1501)30S..4FC ; (9301-1501)BB50..22S ; (9301-15

Click highlighted areas on diagram

diagram 88374B 88375B 8846712030 8846712030 8846712030 8846730270 8846730270 8846928010 88539L 8856930560 8856930560 8856930560 8856936080 8856936100 8856936100 8856936100 8856936120 8856936220 8856936220 8856936230 8856936260 8856936270 88578D 88578D 88578D 88578D 88578D 88578D 8868836240 8868836270 8868836280 88705 88705 88706A 88707 88711 88711 88712 88712 88715E 88715J 88715J 88716D 88716D 88716E 88716H 88716M 88717A 88717B 88717C 88717D 88723B 88897T 9009932130 9011906100 9011906100 9017906161 9017906274 9046310337 9046310337 9046310337 9046310337 9046310337 9046400277 9046721152 9048001301 9162140616 9162140616 9162140616 9163260630 9163260630 9163260630 9163260630 9165160616 9165160616 9165160616
Part # Description Qty Price
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

BB43,RZB40,50..WC;BB42,50,HZB50..RHD..HRF..WC..(DSL,TD)

 1
88375-30290

BB43,RZB40,50..WC;BB42,50,HZB50..RHD..HRF..WC..(DSL,TD)

 1
88539L - HOSE, DRAIN COOLER
88539-36190

RZB40,50..SRF..WC

 1
88539-36190

RZB40,50..SRF..WC

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 6
88578-90B01

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 6
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 6
88578-90B01

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 6
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 6
88578-90B01

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 6
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 6
88578-90B01

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 6
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 6
88578-90B01

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 6
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 6
88578-90B01

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 6
88706A - TUBE SUB-ASSY, LIQUID, A
88706-36060

BB42,HZB50,RZB40,50..LHD..(17S,20S,26S,30S)..WC..(GCC,GEN)

 1
88706-36060

BB42,HZB50,RZB40,50..LHD..(17S,20S,26S,30S)..WC..(GCC,GEN)

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-36040

RZB50..GCC;RZB50..HRF..GEN;BB42,RZB40..LHD..WC

 1
88707-36040

RZB50..GCC;RZB50..HRF..GEN;BB42,RZB40..LHD..WC

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36451

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.1

 1
88711-36451

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.1

 1
88715-36211

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.2

 1
88715-36211

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.2

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36451

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.1

 1
88711-36451

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.1

 1
88715-36211

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.2

 1
88715-36211

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.2

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36180

RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)

 1
88712-36180

RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)

 1
88712-36180

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 1
88712-36180

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36180

RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)

 1
88712-36180

RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)

 1
88712-36180

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 1
88712-36180

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 1
88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E
88715-36420

RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)

 1
88715-36420

RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)

 1
88715J - TUBE, DISCHARGE, J
88715-36160

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.1

 1
88715-36160

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.1

 1
88715-36192

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.2

 1
88715-36192

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.2

 1
88715J - TUBE, DISCHARGE, J
88715-36160

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.1

 1
88715-36160

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.1

 1
88715-36192

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.2

 1
88715-36192

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

NO.2

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-36260

RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,5#,HZB50,RZB40..LHD..WC..5F

NO.2

 1
88716-36260

RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,5#,HZB50,RZB40..LHD..WC..5F

NO.2

 1
88716-36330

BB42,HZB50,RZB40,50..LHD..(17S,20S,26S,30S)..WC..(GCC,GEN)

NO.1

 1
88716-36330

BB42,HZB50,RZB40,50..LHD..(17S,20S,26S,30S)..WC..(GCC,GEN)

NO.1

 1
88716-36260

BB42,HZB50,RZB40,50..LHD..(17S,20S,26S,30S)..WC..(GCC,GEN)

NO.2

 1
88716-36260

BB42,HZB50,RZB40,50..LHD..(17S,20S,26S,30S)..WC..(GCC,GEN)

NO.2

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-36260

RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,5#,HZB50,RZB40..LHD..WC..5F

NO.2

 1
88716-36260

RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,5#,HZB50,RZB40..LHD..WC..5F

NO.2

 1
88716-36330

BB42,HZB50,RZB40,50..LHD..(17S,20S,26S,30S)..WC..(GCC,GEN)

NO.1

 1
88716-36330

BB42,HZB50,RZB40,50..LHD..(17S,20S,26S,30S)..WC..(GCC,GEN)

NO.1

 1
88716-36260

BB42,HZB50,RZB40,50..LHD..(17S,20S,26S,30S)..WC..(GCC,GEN)

NO.2

 1
88716-36260

BB42,HZB50,RZB40,50..LHD..(17S,20S,26S,30S)..WC..(GCC,GEN)

NO.2

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-36250

RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC

 1
88716-36250

RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC

 1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88716-36130

BB42,50,HZB50,RZB40,50..LHD..(17S,19S,20S,26S,30S)..WC..(GCC,GEN)..(DSL,EFI,TDEFI)

 1
88716-36130

BB42,50,HZB50,RZB40,50..LHD..(17S,19S,20S,26S,30S)..WC..(GCC,GEN)..(DSL,EFI,TDEFI)

 1
88716-36130

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 1
88716-36130

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-36150

RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC

 1
88717-36150

RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC

 1
88717-36150

RZB40,50..SRF..WC

 1
88717-36150

RZB40,50..SRF..WC

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-36140

RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC

 1
88717-36140

RZB50..SRF..GCC;BB42,HZB50,RZB40..LHD..SRF..WC

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-36170

RZB50..GCC;RZB50..HRF..GEN;BB42,RZB40..LHD..WC

 1
88717-36170

RZB50..GCC;RZB50..HRF..GEN;BB42,RZB40..LHD..WC

 1
88717-36270

RZB40,50..WC

 1
88717-36270

RZB40,50..WC

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-36180

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 1
88717-36180

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 1
88723-20040

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 1
88723-20040

RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL

 1
88723-20040

RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL

 1
88897T - GROMMET, COOLER
88897-36040

RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40..WC..(ARL,GCC,GEN,SCO)

 1
88897-36040

RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL;BB4#,5#,RZB40..WC..(ARL,GCC,GEN,SCO)

 1
88897-36040

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 1
88897-36040

RZB50;RZB40..WC..GEN;RZB40..SRF..GCC

 1
Common parts
88467-12030
88467-30270
88469-28010
88569-30560
88569-36080
88569-36100
88569-36120
88569-36220
88569-36230
88569-36260
88569-36270
88688-36240
88688-36270
88688-36280
90099-32130
90119-06100
90179-06161
90179-06274
90463-10337
90464-00277
90467-21152
90480-01301
91621-40616
91632-60630
91651-60616

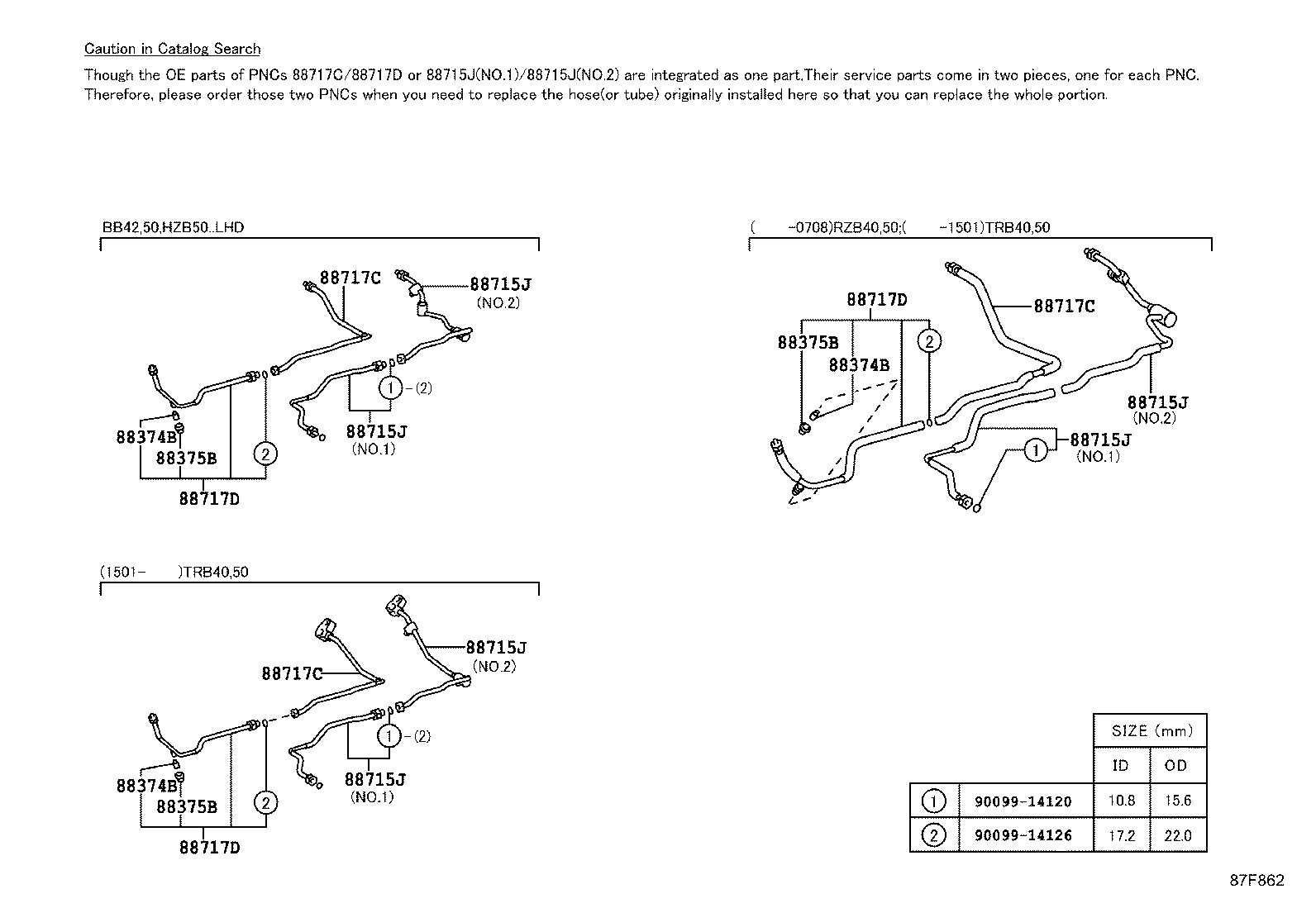

ILLUST NO. 3 OF 5(9301-1501)HZB50..LHD..WC..TD ; (9301-1501)BB42..LHD..SRF..WOC ; (9301-1501)BB58,RZ
