Toyota Coaster RZB40 HEADLAMP - JDM Part Detective

RZB40L-BRMSK (1999)

Toyota Coaster

Production Jul 1999 - Aug 2007

Engine 3RZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9301-0108) ; (0108-0408)EX..TD

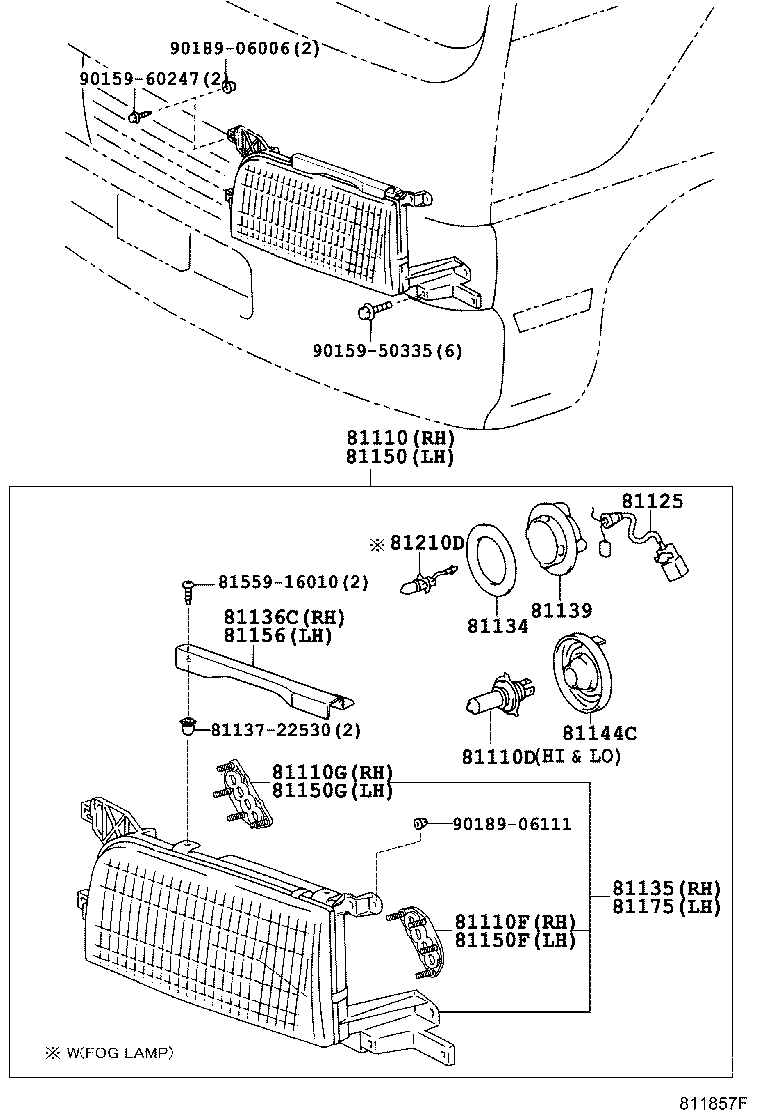

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-36251	RZB40,50..GCC,GEN;BB42,HZB50..LHD..WOC 12V, YELLOW BULB	07/1999 - 08/2001	1
81110-36231	RZB40,50..(26S,30S)..GEN;BB42,HZB50..LHD..WOC..GEN W(SEMI-SEALED BEAM HEADLAMP),12V	07/1999 - 06/2003	1
81110-36211	BB42,HZB50,RZB40..LHD..WOC..GEN;RZB40,50..(26S,30S)..WC..(GCC,GEN) 12V	07/1999 - 06/2003	1
81110-36232	RZB40,50..STD;BB42,HZB50..LHD..WOC W(SEMI-SEALED BEAM HEADLAMP),12V	06/2003 - 08/2004	1
81110-36212	RZB40,50..GEN;BB42,HZB50..LHD..WOC	08/2004 - 01/2007	1
81110-36232	RZB50;RZB40..GEN;RZB40..SRF..GCC W(SEMI-SEALED BEAM HEADLAMP),12V	08/2004 - 08/2007	1
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13014	RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V 45/40W,YELLOW	01/1993 - 07/1999	2
90981-13014	RZB40,50..GCC,GEN;BB42,HZB50..LHD..WOC 12V 45/40W,YELLOW	07/1999 - 08/2001	2
90981-13013	RZB40,50..GEN;BB42,HZB50..LHD..WOC..GEN 12V 45/40W,WHITE	07/1999 - 08/2004	2
90981-13013	RZB50;RZB40..GEN;RZB40..SRF..GCC 12V 45/40W,WHITE	08/2004 - 08/2007	2
81150 - HEADLAMP ASSY, LH
81150-36211	RZB40,50..GEN;BB42,HZB50..LHD..WOC..GEN W(SEMI-SEALED BEAM HEADLAMP),12V	07/1999 - 08/2001	1
81150-36231	RZB40,50..GCC,GEN;BB42,HZB50..LHD..WOC 12V, YELLOW BULB	07/1999 - 08/2001	1
81150-36191	BB42,HZB50,RZB40..LHD..WOC..GEN;RZB40,50..(26S,30S)..WC..(GCC,GEN) 12V	07/1999 - 06/2003	1
81150-36212	RZB40,50..STD;BB42,HZB50..LHD..WOC W(SEMI-SEALED BEAM HEADLAMP),12V	06/2003 - 08/2004	1
81150-36192	RZB40,50..GEN;BB42,HZB50..LHD..WOC	08/2004 - 01/2007	1
81150-36212	RZB50;RZB40..GEN;RZB40..SRF..GCC W(SEMI-SEALED BEAM HEADLAMP),12V	08/2004 - 08/2007	1
Common parts
81137-22530
81559-16010
90159-50335
90159-60247
90189-06006
90189-06111

(0108-0708)XZB50..CBU ; (0108-0708)BB42,5#,BZB40,50,HZB50,RZB40,50,XZB59

Click highlighted areas on diagram

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-36251	RZB40,50..GCC,GEN;BB42,HZB50..LHD..WOC 12V, YELLOW BULB	07/1999 - 08/2001	1
81110-36231	RZB40,50..(26S,30S)..GEN;BB42,HZB50..LHD..WOC..GEN W(SEMI-SEALED BEAM HEADLAMP),12V	07/1999 - 06/2003	1
81110-36211	BB42,HZB50,RZB40..LHD..WOC..GEN;RZB40,50..(26S,30S)..WC..(GCC,GEN) 12V	07/1999 - 06/2003	1
81110-36232	RZB40,50..STD;BB42,HZB50..LHD..WOC W(SEMI-SEALED BEAM HEADLAMP),12V	06/2003 - 08/2004	1
81110-36212	RZB40,50..GEN;BB42,HZB50..LHD..WOC	08/2004 - 01/2007	1
81110-36232	RZB50;RZB40..GEN;RZB40..SRF..GCC W(SEMI-SEALED BEAM HEADLAMP),12V	08/2004 - 08/2007	1
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13014	RZB40,50;BB42,HZB50..LHD..WOC..DSL 12V 45/40W,YELLOW	01/1993 - 07/1999	2
90981-13014	RZB40,50..GCC,GEN;BB42,HZB50..LHD..WOC 12V 45/40W,YELLOW	07/1999 - 08/2001	2
90981-13013	RZB40,50..GEN;BB42,HZB50..LHD..WOC..GEN 12V 45/40W,WHITE	07/1999 - 08/2004	2
90981-13013	RZB50;RZB40..GEN;RZB40..SRF..GCC 12V 45/40W,WHITE	08/2004 - 08/2007	2
81150 - HEADLAMP ASSY, LH
81150-36211	RZB40,50..GEN;BB42,HZB50..LHD..WOC..GEN W(SEMI-SEALED BEAM HEADLAMP),12V	07/1999 - 08/2001	1
81150-36231	RZB40,50..GCC,GEN;BB42,HZB50..LHD..WOC 12V, YELLOW BULB	07/1999 - 08/2001	1
81150-36191	BB42,HZB50,RZB40..LHD..WOC..GEN;RZB40,50..(26S,30S)..WC..(GCC,GEN) 12V	07/1999 - 06/2003	1
81150-36212	RZB40,50..STD;BB42,HZB50..LHD..WOC W(SEMI-SEALED BEAM HEADLAMP),12V	06/2003 - 08/2004	1
81150-36192	RZB40,50..GEN;BB42,HZB50..LHD..WOC	08/2004 - 01/2007	1
81150-36212	RZB50;RZB40..GEN;RZB40..SRF..GCC W(SEMI-SEALED BEAM HEADLAMP),12V	08/2004 - 08/2007	1
Common parts
81137-22530
81559-16010
90159-50335
90159-60247
90189-06006
90189-06111

RZB40L-BRMSK (1999)

(9301-0108) ; (0108-0408)EX..TD

(0108-0708)XZB50..CBU ; (0108-0708)BB42,5#,BZB40,50,HZB50,RZB40,50,XZB59
