RZB40L-BRMSK (1999)
Toyota Coaster
(9301- )BB42,TRB40..LHD ; (9309-0708)RZB40

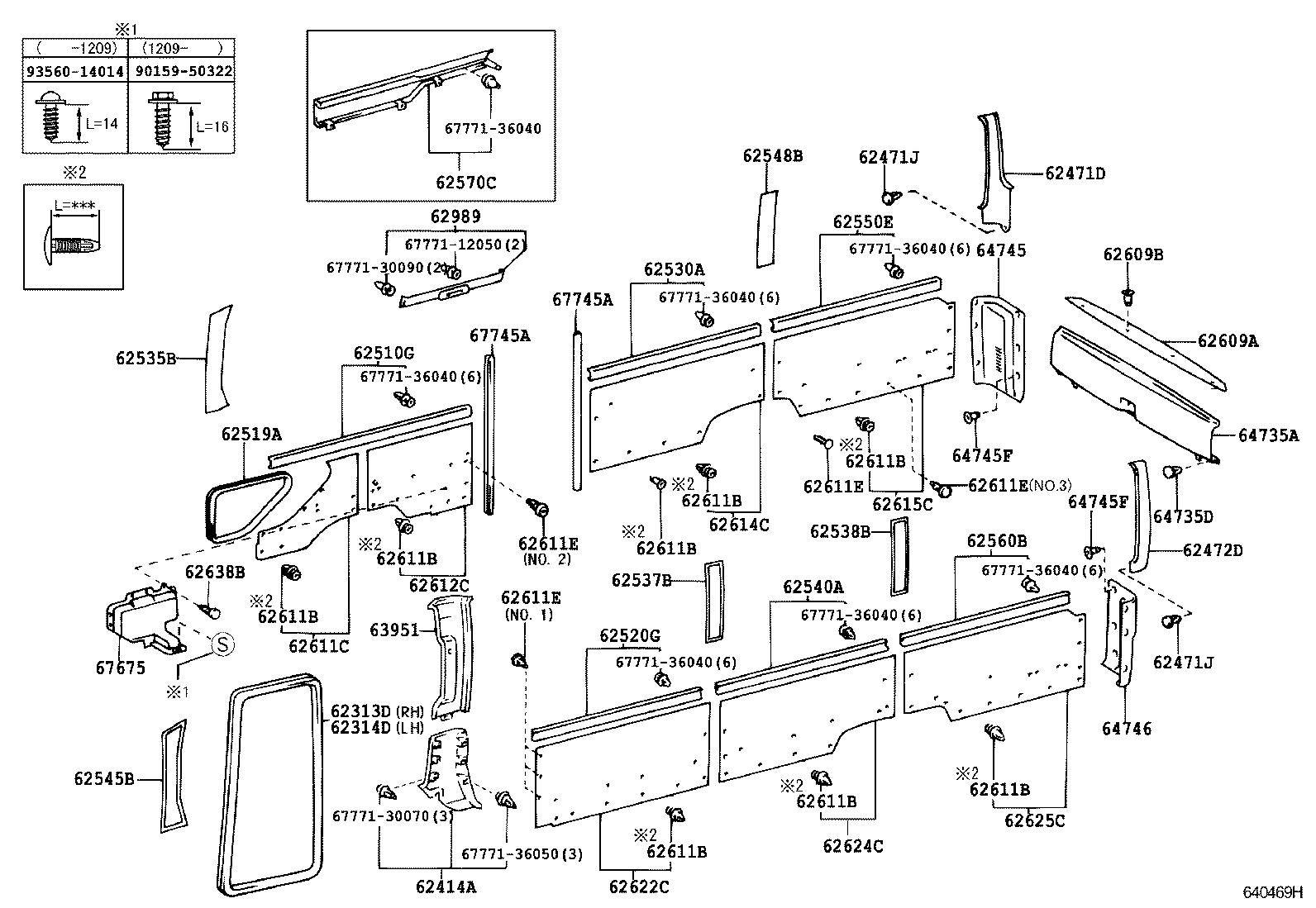

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-36010A1 |
BB4#,5#,HZB50,RZB40,50..17S,22S,23S,26S,30S IVORY,TRIM4# |
1 | ||
| 62313-36010B0 |
BB50..(17S,21S,30S)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-36010B0 |
BB50..(17S,21S,30S)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62313-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62313-36010A1 |
BB4#,5#,HZB50,RZB40,50..17S,22S,23S,26S,30S IVORY,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-36010A0 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,5#,HZB50,RZB40..LHD..WC..CBU..5F IVORY,TRIM4# |
1 | ||
| 62414-36010B0 |
BB50..LHD..GEN;BB42,58,HZB50,RZB40,50..LHD..WC..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62414-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..WC..CBU IVORY,TRIM4# |
1 | ||
| 62414-36010B0 |
RZB40..WC..GEN;RZB40..SRF..GCC;BB42,50,58,HZB50,RZB50..LHD..WC..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 62414-36011B0 |
RZB40,50..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62510-36290E0 |
BB42..GCC;HZB50,RZB40,50..LHD..STD..CBU W(ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36230E0 |
BB42..GCC;HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 62510-36231E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F GREIGE,TRIM4# |
1 | ||
| 62510-36241E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..WC..(GCC,GEN)..CBU..5F W(DELUXE ROOM CURTAIN),GREIGE,TRIM4# |
1 | ||
| 62510-36301E0 |
BB50,RZB40,50..STD..WC..CBU..5F W(DELUXE ROOM CURTAIN & 3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36291E0 |
BB42..22S;BB42..WOC..GCC;BB42..LHD..HRF..WOC;BB5#,RZB40,50..22S,23S,26S,30S W(3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36241B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..WC..(GCC,GEN)..5F W(DELUXE ROOM CURTAIN),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36291B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) W(3 POINT FRONT SEAT BELT),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36301B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..WC..(GCC,GEN)..5F W(DELUXE ROOM CURTAIN & 3 POINT FRONT SEAT BELT),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36231B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..5F DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36241B0 |
RZB50;RZB40..WC..GEN;RZB40..SRF..GCC W(DELUXE ROOM CURTAIN),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36301B0 |
RZB50;RZB40..WC..GEN;RZB40..SRF..GCC W(DELUXE ROOM CURTAIN & 3 POINT FRONT SEAT BELT),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36231B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36291B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),DK.CHARCOAL,TRIM1# |
1 | ||
| 62519A - TRIM, SIDE LOWER WINDOW | ||||
| 62519-36010A0 |
BB50..LHD..CBU;HZB50..LHD..EX;BB4#,58,HZB50,RZB40,50..17S,22S,23S,26S,30S IVORY,TRIM4# |
1 | ||
| 62519-36010B0 |
BZB50..STD;BB42,50,58,BZB40,HZB50,RZB40,50..(17S,19S,20S,21S,23S,26S,30S)..(ARL,GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62519-36010A0 |
BB4#,RZB40,50;HZB50..LHD..EX;HZB50..(DX,STD)..DSL IVORY,TRIM4# |
1 | ||
| 62519-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-36340E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 62520-36341E0 |
BB42,5#,HZB50,RZB40,50..LHD..(22S,23S,26S,30S) GREIGE,TRIM4# |
1 | ||
| 62520-36341B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62520-36341B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 62530A - TRIM ASSY, SIDE NO.2, RH | ||||
| 62530-36260E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 62530-36261B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62530-36261E0 |
BB42,5#,HZB50,RZB40,50..LHD..(22S,23S,26S,30S) GREIGE,TRIM4# |
1 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62570-36010E0 |
BB42..GCC;HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 62570-36011E0 |
BB42,5#,HZB50,RZB40,50..LHD..(22S,23S,26S,30S) GREIGE,TRIM4# |
1 | ||
| 62570-36011B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62550E - TRIM ASSY, SIDE NO.3, RH | ||||
| 62550-36070E0 |
BB42,RZB40..STD GREIGE,TRIM4# |
1 | ||
| 62540-36231E0 |
BB4#,RZB40..STD GREIGE,TRIM4# |
1 | ||
| 62540-36231B0 |
BB42,BZB40,RZB40..STD..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62560B - TRIM ASSY, SIDE, NO.3 LH | ||||
| 62560-36070E0 |
BB42,RZB40..STD GREIGE,TRIM4# |
1 | ||
| 62530-36261E0 |
BB4#,RZB40..STD GREIGE,TRIM4# |
1 | ||
| 62530-36261B0 |
BB42,BZB40,RZB40..STD..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62570-36010E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN,SCO) GREIGE,TRIM4# |
1 | ||
| 62570-36011E0 |
HZB50..STD..(GCC,GEN);BB42,5#,RZB40,50..LHD..(22S,23S,26S,30S)..WC GREIGE,TRIM4# |
1 | ||
| 62570-36011B0 |
HZB50..30S;BB42,RZB40..LHD..STD..WC..(GCC,GEN);BB50,58,BZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62609A - BOARD SUB-ASSY, LUGGAGE PARTITION | ||||
| 62691-36010A0 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F IVORY,TRIM4# |
1 | ||
| 62691-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62691-36010B0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62691-36010A0 |
HZB50..30S;HZB50..LHD..EX;HZB50..LHD..TD;BB42,RZB40,50..STD..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62609B - CLIP (FOR LUGGAGE PARTITION BOARD) | ||||
| 90467-08104A1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F IVORY,TRIM4# |
4 | ||
| 90467-08104B1 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 90467-08104B1 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
4 | ||
| 90467-08104A1 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) IVORY,TRIM4# |
4 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611C - BOARD, SIDE TRIM NO.1, RH | ||||
| 62611-36010B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62611-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 62611-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) IVORY,TRIM4# |
1 | ||
| 62611-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62611-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-05020A0 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-08104A1 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-05020A0 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-08104A1 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-05020A0 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-08104A1 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-05020A0 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-08104A1 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62612-36050A0 |
BB42,HZB50,RZB40,50..LHD..STD..GEN IVORY,TRIM4# |
1 | ||
| 62612-36240A0 |
BB42,HZB50,RZB40,50..LHD..STD..GEN W(3-POINT FRONT SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36070A0 |
BB42,HZB50,RZB40,50..LHD..STD..GEN W(3-POINT DRIVERS SEAT BELT & 2-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36360A0 |
BB42..WC..GCC;BB42,50,HZB50,RZB40,50..LHD..STD..GEN..CBU..5F IVORY,TRIM4# |
1 | ||
| 62612-36380A0 |
BB42..LHD..HRF..WOC;BB5#,RZB40,50..22S,23S,26S,30S W(3 POINT PASSENGER SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36370A0 |
BB42..LHD..HRF..WOC;BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F W(3 POINT DRIVERS SEAT BELT & 2 POINT PASSENGERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36360B0 |
BB42,50..LHD..(GCC,GEN)..5F;HZB50,RZB40,50..LHD..STD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36370B0 |
BB42..HRF..WOC;RZB40..STD..(GCC,GEN);BB50,RZB50..30S..WC..(GCC,GEN) W(3-POINT DRIVERS SEAT BELT & 2-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36380B0 |
BB42..HRF..WOC;RZB40..STD..(GCC,GEN);BB50,58,RZB50..(23S,30S)..WC..(GCC,GEN) W(3-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36380B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC W(3-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36360B0 |
BB42,50,HZB50,RZB40,50..LHD..GEN..5F MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36370B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC W(3-POINT DRIVERS SEAT BELT & 2-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62614-36010A0 |
BB42,RZB40..(17S,26S)..STD;BB43,58,HZB50,RZB50..STD..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62614-36010A0 |
HZB50..STD..(GCC,GEN);BB4#,5#,RZB40,50..(17S,23S,26S,30S)..STD IVORY,TRIM4# |
1 | ||
| 62614-36010B0 |
BB50..GEN..TD;BB42,58,BZB40,HZB50,RZB40,50..STD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62614-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62615C - BOARD, SIDE TRIM NO.5, RH | ||||
| 62615-36020A0 |
BB42,HZB50,RZB40,50..(26S,30S)..GEN W(FOLDING SEAT),IVORY,TRIM4# |
1 | ||
| 62615-36010A0 |
BB42,HZB50..GCC;RZB40,50..26S,30S IVORY,TRIM4# |
1 | ||
| 62615-36250A0 |
BB42,50,HZB50,RZB40,50..26S,30S IVORY,TRIM4# |
1 | ||
| 62615-36300A0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(CHI,GEN) W(FOLDING REAR SEAT),IVORY,TRIM4# |
1 | ||
| 62615-36250B0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62615-36300B0 |
RZB40,50..GEN;BB42..HRF..WOC;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62615-36250B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62622-36090A0 |
BB42,RZB40..LHD..26S;BB58,HZB50,RZB50..LHD..STD..CBU IVORY,TRIM4# |
1 | ||
| 62622-36090A0 |
BB42,5#,HZB50,RZB40,50..LHD..(23S,26S,30S) IVORY,TRIM4# |
1 | ||
| 62622-36090B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62622-36090B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62624-36010A0 |
HZB50..STD..(GCC,GEN);BB4#,5#,RZB40,50..(17S,23S,26S,30S)..STD IVORY,TRIM4# |
1 | ||
| 62624-36010A0 |
BB42,RZB40..(17S,26S)..STD;BB43,58,HZB50,RZB50..STD..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62624-36010B0 |
BB50..GEN..TD;BB42,58,BZB40,HZB50,RZB40,50..STD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62624-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62625C - BOARD, SIDE TRIM NO.5, LH | ||||
| 62625-36020A0 |
BB42,HZB50,RZB40,50..(26S,30S)..GEN W(FOLDING SEAT),IVORY,TRIM4# |
1 | ||
| 62625-36010A0 |
BB42,HZB50..GCC;RZB40,50..26S,30S IVORY,TRIM4# |
1 | ||
| 62625-36310A0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(CHI,GEN) W(FOLDING REAR SEAT),IVORY,TRIM4# |
1 | ||
| 62625-36260A0 |
BB42,50,HZB50,RZB40,50..26S,30S IVORY,TRIM4# |
1 | ||
| 62625-36260B0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62625-36310B0 |
RZB40,50..GEN;BB42..HRF..WOC;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62625-36260B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62638B - CLIP | ||||
| 90467-08104B1 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
6 | ||
| 90467-08104A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
6 | ||
| 90467-08104B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
6 | ||
| 62989 - COVER, CENTER DOOR LOCK | ||||
| 62989-36010A0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU IVORY,TRIM4# |
1 | ||
| 62989-36011A1 |
BB50..WOC..5F;BB42,5#,HZB50,RZB40,50..LHD..(22S,23S,26S,30S) IVORY,TRIM4# |
1 | ||
| 62989-36011B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62989-36011B0 |
RZB40..GEN;RZB40..SRF..GCC;BB42,50,58,HZB50,RZB50..LHD..(23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||
| 62989-36012B0 |
RZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 63951 - COVER, COOLER PIPE | ||||
| 63951-36100A0 |
BB42,HZB50,RZB40..LHD..SRF..WC..GEN IVORY,TRIM4# |
1 | ||
| 63951-36110A1 |
BB42,HZB50,RZB40,50..LHD..SRF..WC W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36100A1 |
BB42,HZB50,RZB40..LHD..SRF..WC..GEN IVORY,TRIM4# |
1 | ||
| 63951-36140A1 |
BB42,HZB50,RZB40..LHD..SRF..WC..GEN W(DX ROOM CARTAIN),IVORY,TRIM4# |
1 | ||
| 63951-36150A1 |
RZB40..SRF..WC;BB42,HZB50,RZB50..SRF..WC..GCC W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36110B0 |
BB42,HZB50,RZB40,50..SRF..WC W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36100B0 |
BB42,HZB50,RZB40..SRF..WC..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36150B0 |
RZB40..SRF..WC;BB42,HZB50,RZB50..SRF..GCC W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36140B0 |
BB42,HZB50,RZB40..SRF..WC..GEN W(DX ROOM CARTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36140B0 |
BB42,HZB50,RZB40..SRF..WC..GEN W(DX ROOM CARTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36110B0 |
RZB40,50..SRF..WC W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36100B0 |
BB42,HZB50,RZB40..SRF..WC..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36150B0 |
RZB40,50..SRF..WC W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 64735A - GARNISH, CENTER BACK RAIL INNER | ||||
| 64735-36010A1 |
HZB50..EX;HZB50..LHD..STD;BB42,50,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
1 | ||
| 64735-36010A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
1 | ||
| 64735-36010B0 |
BB50..LHD..GEN;BB42,HZB50,RZB40,50..GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 64735-36010A1 |
BB50..LHD..CBU;BB42,HZB50,RZB40,50..(CHI,GCC,GEN)..5F IVORY,TRIM4# |
1 | ||
| 64735D - CLIP(FOR CENTER BACK RAIL INNER GARNISH) | ||||
| 90467-05009 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50,RZB50..30S..(GCC,GEN);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
2 | ||
| 90467-05009 |
HZB50..EX;HZB50..LHD..STD;BB42,50,RZB40,50..CBU |
2 | ||
| 90467-05009 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
2 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-36010A0 |
HZB50..30S..GEN;BB42,RZB40,50..STD..GEN W(FOLDING SEAT),IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
BB42,HZB50,RZB40,50..GCC,GEN W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
BB42..LHD..HRF..WOC;RZB40..STD..(GCC,GEN);BB43,5#,RZB50..(GCC,GEN)..CBU W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36010B0 |
BB50..WC..GEN..TD;BB42,HZB50,RZB40,50..GCC,GEN W(LUGGAGE COMPARTMENT DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64745-36010A0 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB50,RZB40,50..LHD..CBU;HZB50..RHD..HRF..STD..WC..GEN..5F W(LUGGAGE COMPARTMENT DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36020B0 |
HZB50..30S;BB42,50,58,RZB40,50..(19S,20S,23S,26S,30S)..(GCC,GEN) W(DOUBLE SWING BACK DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
14 | ||
| 67771-36030B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
14 | ||
| 67771-36030A0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
14 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
14 | ||
| 67771-36030B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
14 | ||
| 67771-36030A0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
14 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-36010A0 |
HZB50..30S..GEN;BB42,RZB40,50..STD..GEN W(FOLDING SEAT & *RW),IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
RZB40..EX..GCC;BB42,HZB50,RZB40,50..GEN W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64746-36020A0 |
HZB50..30S..GEN;BB42,RZB40,50..STD..GEN W(FOLDING SEAT),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB50,RZB40,50..LHD..CBU;HZB50..RHD..HRF..STD..WC..GEN..5F W(LUGGAGE COMPARTMENT DOOR & REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
BB50..EX..IV;BB42,HZB50..GCC;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB5#,RZB40,50..(23S,26S,30S)..WC..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 64746-36020A0 |
BB42..SRF;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..RHD..HRF..STD..WC..GEN..5F;BB50,RZB40,50..LHD..(GCC,GEN)..CBU W(LUGGAGE COMPARTMENT DOOR),IVORY,TRIM4# |
1 | ||
| 64746-36010B0 |
BB42..HRF..WOC;RZB40,50..GCC,GEN;BB50..WC..GEN..TD W(FOLDING SEAT & *RW),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36030B0 |
BB42..HRF..WOC;BB50..(19S,20S,30S)..GEN;BB58,BZB40,RZB40,50..STD..(GCC,GEN) W(SINGLE SWING BACK DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36020B0 |
BB42..HRF..WOC;RZB40,50..GCC,GEN;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 67675 - COVER, SIDE TRIM BOARD, FRONT RH | ||||
| 67675-36030B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 67675-36030A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 67675-36030B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36010B0 |
BB50..(17S,20S,21S,30S)..(EX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..STD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
2 | ||
| 67745-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
2 | ||
| 67745-36010A1 |
BB42,50..LHD..HRF..WOC..5F;BB5#,RZB40,50..22S,23S,26S,30S IVORY,TRIM4# |
2 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36010B0 |
BB50..(17S,20S,21S,30S)..(EX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..STD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
2 | ||
| 67745-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
2 | ||
| 67745-36010A1 |
BB42,50..LHD..HRF..WOC..5F;BB5#,RZB40,50..22S,23S,26S,30S IVORY,TRIM4# |
2 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-30070 | ||||
| 67771-30090 | ||||
| 67771-36040 | ||||
| 67771-36050 | ||||
| 90159-50322 | ||||
| 93560-14014 | ||||
(9301-0108)LHD..IV..TD ; (9301-1501)BB50..STD..WC..GEN..CBU..TD ; (9301- )TAIW ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-36010A1 |
BB4#,5#,HZB50,RZB40,50..17S,22S,23S,26S,30S IVORY,TRIM4# |
1 | ||
| 62313-36010B0 |
BB50..(17S,21S,30S)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-36010B0 |
BB50..(17S,21S,30S)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62313-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62313-36010A1 |
BB4#,5#,HZB50,RZB40,50..17S,22S,23S,26S,30S IVORY,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-36010A0 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB42,5#,HZB50,RZB40..LHD..WC..CBU..5F IVORY,TRIM4# |
1 | ||
| 62414-36010B0 |
BB50..LHD..GEN;BB42,58,HZB50,RZB40,50..LHD..WC..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62414-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..WC..CBU IVORY,TRIM4# |
1 | ||
| 62414-36010B0 |
RZB40..WC..GEN;RZB40..SRF..GCC;BB42,50,58,HZB50,RZB50..LHD..WC..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 62414-36011B0 |
RZB40,50..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62510-36290E0 |
BB42..GCC;HZB50,RZB40,50..LHD..STD..CBU W(ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36230E0 |
BB42..GCC;HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 62510-36231E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F GREIGE,TRIM4# |
1 | ||
| 62510-36241E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..WC..(GCC,GEN)..CBU..5F W(DELUXE ROOM CURTAIN),GREIGE,TRIM4# |
1 | ||
| 62510-36301E0 |
BB50,RZB40,50..STD..WC..CBU..5F W(DELUXE ROOM CURTAIN & 3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36291E0 |
BB42..22S;BB42..WOC..GCC;BB42..LHD..HRF..WOC;BB5#,RZB40,50..22S,23S,26S,30S W(3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36241B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..WC..(GCC,GEN)..5F W(DELUXE ROOM CURTAIN),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36291B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) W(3 POINT FRONT SEAT BELT),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36301B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..WC..(GCC,GEN)..5F W(DELUXE ROOM CURTAIN & 3 POINT FRONT SEAT BELT),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36231B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..5F DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36241B0 |
RZB50;RZB40..WC..GEN;RZB40..SRF..GCC W(DELUXE ROOM CURTAIN),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36301B0 |
RZB50;RZB40..WC..GEN;RZB40..SRF..GCC W(DELUXE ROOM CURTAIN & 3 POINT FRONT SEAT BELT),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36231B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36291B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),DK.CHARCOAL,TRIM1# |
1 | ||
| 62519A - TRIM, SIDE LOWER WINDOW | ||||
| 62519-36010A0 |
BB50..LHD..CBU;HZB50..LHD..EX;BB4#,58,HZB50,RZB40,50..17S,22S,23S,26S,30S IVORY,TRIM4# |
1 | ||
| 62519-36010B0 |
BZB50..STD;BB42,50,58,BZB40,HZB50,RZB40,50..(17S,19S,20S,21S,23S,26S,30S)..(ARL,GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62519-36010A0 |
BB4#,RZB40,50;HZB50..LHD..EX;HZB50..(DX,STD)..DSL IVORY,TRIM4# |
1 | ||
| 62519-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-36340E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 62520-36341E0 |
BB42,5#,HZB50,RZB40,50..LHD..(22S,23S,26S,30S) GREIGE,TRIM4# |
1 | ||
| 62520-36341B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62520-36341B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 62530A - TRIM ASSY, SIDE NO.2, RH | ||||
| 62530-36260E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 62530-36261B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62530-36261E0 |
BB42,5#,HZB50,RZB40,50..LHD..(22S,23S,26S,30S) GREIGE,TRIM4# |
1 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62570-36010E0 |
BB42..GCC;HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 62570-36011E0 |
BB42,5#,HZB50,RZB40,50..LHD..(22S,23S,26S,30S) GREIGE,TRIM4# |
1 | ||
| 62570-36011B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62550E - TRIM ASSY, SIDE NO.3, RH | ||||
| 62550-36070E0 |
BB42,RZB40..STD GREIGE,TRIM4# |
1 | ||
| 62540-36231E0 |
BB4#,RZB40..STD GREIGE,TRIM4# |
1 | ||
| 62540-36231B0 |
BB42,BZB40,RZB40..STD..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62560B - TRIM ASSY, SIDE, NO.3 LH | ||||
| 62560-36070E0 |
BB42,RZB40..STD GREIGE,TRIM4# |
1 | ||
| 62530-36261E0 |
BB4#,RZB40..STD GREIGE,TRIM4# |
1 | ||
| 62530-36261B0 |
BB42,BZB40,RZB40..STD..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62570-36010E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN,SCO) GREIGE,TRIM4# |
1 | ||
| 62570-36011E0 |
HZB50..STD..(GCC,GEN);BB42,5#,RZB40,50..LHD..(22S,23S,26S,30S)..WC GREIGE,TRIM4# |
1 | ||
| 62570-36011B0 |
HZB50..30S;BB42,RZB40..LHD..STD..WC..(GCC,GEN);BB50,58,BZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62609A - BOARD SUB-ASSY, LUGGAGE PARTITION | ||||
| 62691-36010A0 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F IVORY,TRIM4# |
1 | ||
| 62691-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62691-36010B0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62691-36010A0 |
HZB50..30S;HZB50..LHD..EX;HZB50..LHD..TD;BB42,RZB40,50..STD..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62609B - CLIP (FOR LUGGAGE PARTITION BOARD) | ||||
| 90467-08104A1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F IVORY,TRIM4# |
4 | ||
| 90467-08104B1 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
4 | ||
| 90467-08104B1 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
4 | ||
| 90467-08104A1 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) IVORY,TRIM4# |
4 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611C - BOARD, SIDE TRIM NO.1, RH | ||||
| 62611-36010B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(17S,20S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62611-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 62611-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) IVORY,TRIM4# |
1 | ||
| 62611-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62611-36010A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-05020A0 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-08104A1 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62612-36050A0 |
BB42,HZB50,RZB40,50..LHD..STD..GEN IVORY,TRIM4# |
1 | ||
| 62612-36240A0 |
BB42,HZB50,RZB40,50..LHD..STD..GEN W(3-POINT FRONT SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36070A0 |
BB42,HZB50,RZB40,50..LHD..STD..GEN W(3-POINT DRIVERS SEAT BELT & 2-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36360A0 |
BB42..WC..GCC;BB42,50,HZB50,RZB40,50..LHD..STD..GEN..CBU..5F IVORY,TRIM4# |
1 | ||
| 62612-36380A0 |
BB42..LHD..HRF..WOC;BB5#,RZB40,50..22S,23S,26S,30S W(3 POINT PASSENGER SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36370A0 |
BB42..LHD..HRF..WOC;BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F W(3 POINT DRIVERS SEAT BELT & 2 POINT PASSENGERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36360B0 |
BB42,50..LHD..(GCC,GEN)..5F;HZB50,RZB40,50..LHD..STD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36370B0 |
BB42..HRF..WOC;RZB40..STD..(GCC,GEN);BB50,RZB50..30S..WC..(GCC,GEN) W(3-POINT DRIVERS SEAT BELT & 2-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36380B0 |
BB42..HRF..WOC;RZB40..STD..(GCC,GEN);BB50,58,RZB50..(23S,30S)..WC..(GCC,GEN) W(3-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36380B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC W(3-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36360B0 |
BB42,50,HZB50,RZB40,50..LHD..GEN..5F MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36370B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC W(3-POINT DRIVERS SEAT BELT & 2-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62614-36010A0 |
BB42,RZB40..(17S,26S)..STD;BB43,58,HZB50,RZB50..STD..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62614-36010A0 |
HZB50..STD..(GCC,GEN);BB4#,5#,RZB40,50..(17S,23S,26S,30S)..STD IVORY,TRIM4# |
1 | ||
| 62614-36010B0 |
BB50..GEN..TD;BB42,58,BZB40,HZB50,RZB40,50..STD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62614-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62615C - BOARD, SIDE TRIM NO.5, RH | ||||
| 62615-36020A0 |
BB42,HZB50,RZB40,50..(26S,30S)..GEN W(FOLDING SEAT),IVORY,TRIM4# |
1 | ||
| 62615-36010A0 |
BB42,HZB50..GCC;RZB40,50..26S,30S IVORY,TRIM4# |
1 | ||
| 62615-36250A0 |
BB42,50,HZB50,RZB40,50..26S,30S IVORY,TRIM4# |
1 | ||
| 62615-36300A0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(CHI,GEN) W(FOLDING REAR SEAT),IVORY,TRIM4# |
1 | ||
| 62615-36250B0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62615-36300B0 |
RZB40,50..GEN;BB42..HRF..WOC;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62615-36250B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62622-36090A0 |
BB42,RZB40..LHD..26S;BB58,HZB50,RZB50..LHD..STD..CBU IVORY,TRIM4# |
1 | ||
| 62622-36090A0 |
BB42,5#,HZB50,RZB40,50..LHD..(23S,26S,30S) IVORY,TRIM4# |
1 | ||
| 62622-36090B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62622-36090B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62624-36010A0 |
HZB50..STD..(GCC,GEN);BB4#,5#,RZB40,50..(17S,23S,26S,30S)..STD IVORY,TRIM4# |
1 | ||
| 62624-36010A0 |
BB42,RZB40..(17S,26S)..STD;BB43,58,HZB50,RZB50..STD..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62624-36010B0 |
BB50..GEN..TD;BB42,58,BZB40,HZB50,RZB40,50..STD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62624-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62625C - BOARD, SIDE TRIM NO.5, LH | ||||
| 62625-36020A0 |
BB42,HZB50,RZB40,50..(26S,30S)..GEN W(FOLDING SEAT),IVORY,TRIM4# |
1 | ||
| 62625-36010A0 |
BB42,HZB50..GCC;RZB40,50..26S,30S IVORY,TRIM4# |
1 | ||
| 62625-36310A0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(CHI,GEN) W(FOLDING REAR SEAT),IVORY,TRIM4# |
1 | ||
| 62625-36260A0 |
BB42,50,HZB50,RZB40,50..26S,30S IVORY,TRIM4# |
1 | ||
| 62625-36260B0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62625-36310B0 |
RZB40,50..GEN;BB42..HRF..WOC;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62625-36260B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62638B - CLIP | ||||
| 90467-08104B1 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
6 | ||
| 90467-08104A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
6 | ||
| 90467-08104B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
6 | ||
| 62989 - COVER, CENTER DOOR LOCK | ||||
| 62989-36010A0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU IVORY,TRIM4# |
1 | ||
| 62989-36011A1 |
BB50..WOC..5F;BB42,5#,HZB50,RZB40,50..LHD..(22S,23S,26S,30S) IVORY,TRIM4# |
1 | ||
| 62989-36011B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62989-36011B0 |
RZB40..GEN;RZB40..SRF..GCC;BB42,50,58,HZB50,RZB50..LHD..(23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||
| 62989-36012B0 |
RZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 63951 - COVER, COOLER PIPE | ||||
| 63951-36100A0 |
BB42,HZB50,RZB40..LHD..SRF..WC..GEN IVORY,TRIM4# |
1 | ||
| 63951-36110A1 |
BB42,HZB50,RZB40,50..LHD..SRF..WC W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36100A1 |
BB42,HZB50,RZB40..LHD..SRF..WC..GEN IVORY,TRIM4# |
1 | ||
| 63951-36140A1 |
BB42,HZB50,RZB40..LHD..SRF..WC..GEN W(DX ROOM CARTAIN),IVORY,TRIM4# |
1 | ||
| 63951-36150A1 |
RZB40..SRF..WC;BB42,HZB50,RZB50..SRF..WC..GCC W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36110B0 |
BB42,HZB50,RZB40,50..SRF..WC W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36100B0 |
BB42,HZB50,RZB40..SRF..WC..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36150B0 |
RZB40..SRF..WC;BB42,HZB50,RZB50..SRF..GCC W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36140B0 |
BB42,HZB50,RZB40..SRF..WC..GEN W(DX ROOM CARTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36140B0 |
BB42,HZB50,RZB40..SRF..WC..GEN W(DX ROOM CARTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36110B0 |
RZB40,50..SRF..WC W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36100B0 |
BB42,HZB50,RZB40..SRF..WC..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36150B0 |
RZB40,50..SRF..WC W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 64735A - GARNISH, CENTER BACK RAIL INNER | ||||
| 64735-36010A1 |
HZB50..EX;HZB50..LHD..STD;BB42,50,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
1 | ||
| 64735-36010A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
1 | ||
| 64735-36010B0 |
BB50..LHD..GEN;BB42,HZB50,RZB40,50..GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 64735-36010A1 |
BB50..LHD..CBU;BB42,HZB50,RZB40,50..(CHI,GCC,GEN)..5F IVORY,TRIM4# |
1 | ||
| 64735D - CLIP(FOR CENTER BACK RAIL INNER GARNISH) | ||||
| 90467-05009 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50,RZB50..30S..(GCC,GEN);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
2 | ||
| 90467-05009 |
HZB50..EX;HZB50..LHD..STD;BB42,50,RZB40,50..CBU |
2 | ||
| 90467-05009 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
2 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-36010A0 |
HZB50..30S..GEN;BB42,RZB40,50..STD..GEN W(FOLDING SEAT),IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
BB42,HZB50,RZB40,50..GCC,GEN W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
BB42..LHD..HRF..WOC;RZB40..STD..(GCC,GEN);BB43,5#,RZB50..(GCC,GEN)..CBU W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36010B0 |
BB50..WC..GEN..TD;BB42,HZB50,RZB40,50..GCC,GEN W(LUGGAGE COMPARTMENT DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64745-36010A0 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB50,RZB40,50..LHD..CBU;HZB50..RHD..HRF..STD..WC..GEN..5F W(LUGGAGE COMPARTMENT DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36020B0 |
HZB50..30S;BB42,50,58,RZB40,50..(19S,20S,23S,26S,30S)..(GCC,GEN) W(DOUBLE SWING BACK DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
14 | ||
| 67771-36030B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
14 | ||
| 67771-36030A0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
14 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
14 | ||
| 67771-36030B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
14 | ||
| 67771-36030A0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
14 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-36010A0 |
HZB50..30S..GEN;BB42,RZB40,50..STD..GEN W(FOLDING SEAT & *RW),IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
RZB40..EX..GCC;BB42,HZB50,RZB40,50..GEN W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64746-36020A0 |
HZB50..30S..GEN;BB42,RZB40,50..STD..GEN W(FOLDING SEAT),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB50,RZB40,50..LHD..CBU;HZB50..RHD..HRF..STD..WC..GEN..5F W(LUGGAGE COMPARTMENT DOOR & REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
BB50..EX..IV;BB42,HZB50..GCC;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB5#,RZB40,50..(23S,26S,30S)..WC..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 64746-36020A0 |
BB42..SRF;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..RHD..HRF..STD..WC..GEN..5F;BB50,RZB40,50..LHD..(GCC,GEN)..CBU W(LUGGAGE COMPARTMENT DOOR),IVORY,TRIM4# |
1 | ||
| 64746-36010B0 |
BB42..HRF..WOC;RZB40,50..GCC,GEN;BB50..WC..GEN..TD W(FOLDING SEAT & *RW),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36030B0 |
BB42..HRF..WOC;BB50..(19S,20S,30S)..GEN;BB58,BZB40,RZB40,50..STD..(GCC,GEN) W(SINGLE SWING BACK DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36020B0 |
BB42..HRF..WOC;RZB40,50..GCC,GEN;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 67675 - COVER, SIDE TRIM BOARD, FRONT RH | ||||
| 67675-36030B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 67675-36030A0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU IVORY,TRIM4# |
1 | ||
| 67675-36030B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36010B0 |
BB50..(17S,20S,21S,30S)..(EX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..STD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
2 | ||
| 67745-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
2 | ||
| 67745-36010A1 |
BB42,50..LHD..HRF..WOC..5F;BB5#,RZB40,50..22S,23S,26S,30S IVORY,TRIM4# |
2 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36010B0 |
BB50..(17S,20S,21S,30S)..(EX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..STD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
2 | ||
| 67745-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
2 | ||
| 67745-36010A1 |
BB42,50..LHD..HRF..WOC..5F;BB5#,RZB40,50..22S,23S,26S,30S IVORY,TRIM4# |
2 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-30070 | ||||
| 67771-30090 | ||||
| 67771-36040 | ||||
| 67771-36050 | ||||
| 75597-36010 | ||||
| 90159-40052 | ||||
| 90159-50322 | ||||
| 93560-14014 | ||||
| Linked diagrams | ||||
| 7456 | ||||
(9301-0608)BB50..RHD..EUR ; (9301- )BB50,HZB50,XZB50..RHD..EX..CBU ; (0211-0608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-36010A1 |
BB4#,5#,HZB50,RZB40,50..17S,22S,23S,26S,30S IVORY,TRIM4# |
1 | ||
| 62313-36010B0 |
BB50..(17S,21S,30S)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..(17S,23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62510G - TRIM ASSY, SIDE NO.1, RH | ||||
| 62510-36290E0 |
BB42..GCC;HZB50,RZB40,50..LHD..STD..CBU W(ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36230E0 |
BB42..GCC;HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 62510-36231E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F GREIGE,TRIM4# |
1 | ||
| 62510-36241E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..WC..(GCC,GEN)..CBU..5F W(DELUXE ROOM CURTAIN),GREIGE,TRIM4# |
1 | ||
| 62510-36301E0 |
BB50,RZB40,50..STD..WC..CBU..5F W(DELUXE ROOM CURTAIN & 3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36291E0 |
BB42..22S;BB42..WOC..GCC;BB42..LHD..HRF..WOC;BB5#,RZB40,50..22S,23S,26S,30S W(3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 62510-36241B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..WC..(GCC,GEN)..5F W(DELUXE ROOM CURTAIN),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36291B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) W(3 POINT FRONT SEAT BELT),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36301B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..WC..(GCC,GEN)..5F W(DELUXE ROOM CURTAIN & 3 POINT FRONT SEAT BELT),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36231B0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..5F DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36241B0 |
RZB50;RZB40..WC..GEN;RZB40..SRF..GCC W(DELUXE ROOM CURTAIN),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36301B0 |
RZB50;RZB40..WC..GEN;RZB40..SRF..GCC W(DELUXE ROOM CURTAIN & 3 POINT FRONT SEAT BELT),DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36231B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 62510-36291B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),DK.CHARCOAL,TRIM1# |
1 | ||
| 62520G - TRIM ASSY, SIDE NO.1, LH | ||||
| 62520-36340E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 62520-36341E0 |
BB42,5#,HZB50,RZB40,50..LHD..(22S,23S,26S,30S) GREIGE,TRIM4# |
1 | ||
| 62520-36341B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62520-36341B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC DK.CHARCOAL,TRIM1# |
1 | ||
| 62530A - TRIM ASSY, SIDE NO.2, RH | ||||
| 62530-36260E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 62530-36261B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62530-36261E0 |
BB42,5#,HZB50,RZB40,50..LHD..(22S,23S,26S,30S) GREIGE,TRIM4# |
1 | ||
| 62540A - TRIM ASSY, SIDE NO.2, LH | ||||
| 62570-36010E0 |
BB42..GCC;HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 62570-36011E0 |
BB42,5#,HZB50,RZB40,50..LHD..(22S,23S,26S,30S) GREIGE,TRIM4# |
1 | ||
| 62570-36011B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62550E - TRIM ASSY, SIDE NO.3, RH | ||||
| 62550-36070E0 |
BB42,RZB40..STD GREIGE,TRIM4# |
1 | ||
| 62540-36231E0 |
BB4#,RZB40..STD GREIGE,TRIM4# |
1 | ||
| 62540-36231B0 |
BB42,BZB40,RZB40..STD..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62560B - TRIM ASSY, SIDE, NO.3 LH | ||||
| 62560-36070E0 |
BB42,RZB40..STD GREIGE,TRIM4# |
1 | ||
| 62530-36261E0 |
BB4#,RZB40..STD GREIGE,TRIM4# |
1 | ||
| 62530-36261B0 |
BB42,BZB40,RZB40..STD..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62570C - TRIM ASSY, SIDE NO.4 | ||||
| 62570-36010E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN,SCO) GREIGE,TRIM4# |
1 | ||
| 62570-36011E0 |
HZB50..STD..(GCC,GEN);BB42,5#,RZB40,50..LHD..(22S,23S,26S,30S)..WC GREIGE,TRIM4# |
1 | ||
| 62570-36011B0 |
HZB50..30S;BB42,RZB40..LHD..STD..WC..(GCC,GEN);BB50,58,BZB50,RZB50..(17S,20S,23S,30S)..(GCC,GEN) DK.CHARCOAL,TRIM1# |
1 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611B - CLIP (FOR SIDE TRIM BOARD) | ||||
| 90467-08104A1 |
BB42,RZB40..(17S,26S)..STD IVORY,TRIM4# |
61 | ||
| 90467-08104A1 |
BB42..WC..GCC;BB42,RZB40..LHD..26S..GEN IVORY,TRIM4# |
54 | ||
| 90467-08104A1 |
BB4#..RHD;RZB40..26S;BB42..LHD..SRF;BB42..LHD..HRF..WOC W(3 POINT FRONT SEAT BELT),IVORY,TRIM4# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..STD..(GCC,GEN) W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42..LHD;RZB40..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 90467-08104B1 |
RZB40..GEN;RZB40..SRF..GCC W(3 POINT FRONT SEAT BELT),MD.CHARCOAL,TRIM1# |
58 | ||
| 90467-08104B1 |
BB42,RZB40..LHD..GEN MD.CHARCOAL,TRIM1# |
54 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-05020A0 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-08104A1 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 62611E - RETAINER, DOOR TRIM | ||||
| 90467-05020A0 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=6 |
1 | ||
| 90467-08104A1 |
BB4#,HZB50,RZB40,50..CBU..5F IVORY,TRIM4#,NO.2,D=9.3 |
1 | ||
| 62612C - BOARD, SIDE TRIM NO.2, RH | ||||
| 62612-36050A0 |
BB42,HZB50,RZB40,50..LHD..STD..GEN IVORY,TRIM4# |
1 | ||
| 62612-36240A0 |
BB42,HZB50,RZB40,50..LHD..STD..GEN W(3-POINT FRONT SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36070A0 |
BB42,HZB50,RZB40,50..LHD..STD..GEN W(3-POINT DRIVERS SEAT BELT & 2-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36360A0 |
BB42..WC..GCC;BB42,50,HZB50,RZB40,50..LHD..STD..GEN..CBU..5F IVORY,TRIM4# |
1 | ||
| 62612-36380A0 |
BB42..LHD..HRF..WOC;BB5#,RZB40,50..22S,23S,26S,30S W(3 POINT PASSENGER SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36370A0 |
BB42..LHD..HRF..WOC;BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F W(3 POINT DRIVERS SEAT BELT & 2 POINT PASSENGERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 62612-36360B0 |
BB42,50..LHD..(GCC,GEN)..5F;HZB50,RZB40,50..LHD..STD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36370B0 |
BB42..HRF..WOC;RZB40..STD..(GCC,GEN);BB50,RZB50..30S..WC..(GCC,GEN) W(3-POINT DRIVERS SEAT BELT & 2-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36380B0 |
BB42..HRF..WOC;RZB40..STD..(GCC,GEN);BB50,58,RZB50..(23S,30S)..WC..(GCC,GEN) W(3-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36380B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC W(3-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36360B0 |
BB42,50,HZB50,RZB40,50..LHD..GEN..5F MD.CHARCOAL,TRIM1# |
1 | ||
| 62612-36370B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC W(3-POINT DRIVERS SEAT BELT & 2-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62614C - BOARD, SIDE TRIM NO.4, RH | ||||
| 62614-36010A0 |
BB42,RZB40..(17S,26S)..STD;BB43,58,HZB50,RZB50..STD..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62614-36010A0 |
HZB50..STD..(GCC,GEN);BB4#,5#,RZB40,50..(17S,23S,26S,30S)..STD IVORY,TRIM4# |
1 | ||
| 62614-36010B0 |
BB50..GEN..TD;BB42,58,BZB40,HZB50,RZB40,50..STD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62614-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62615C - BOARD, SIDE TRIM NO.5, RH | ||||
| 62615-36020A0 |
BB42,HZB50,RZB40,50..(26S,30S)..GEN W(FOLDING SEAT),IVORY,TRIM4# |
1 | ||
| 62615-36010A0 |
BB42,HZB50..GCC;RZB40,50..26S,30S IVORY,TRIM4# |
1 | ||
| 62615-36250A0 |
BB42,50,HZB50,RZB40,50..26S,30S IVORY,TRIM4# |
1 | ||
| 62615-36300A0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(CHI,GEN) W(FOLDING REAR SEAT),IVORY,TRIM4# |
1 | ||
| 62615-36250B0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62615-36300B0 |
RZB40,50..GEN;BB42..HRF..WOC;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62615-36250B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62622C - BOARD, SIDE TRIM NO.2, LH | ||||
| 62622-36090A0 |
BB42,RZB40..LHD..26S;BB58,HZB50,RZB50..LHD..STD..CBU IVORY,TRIM4# |
1 | ||
| 62622-36090A0 |
BB42,5#,HZB50,RZB40,50..LHD..(23S,26S,30S) IVORY,TRIM4# |
1 | ||
| 62622-36090B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62622-36090B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62624C - BOARD, SIDE TRIM NO.4, LH | ||||
| 62624-36010A0 |
HZB50..STD..(GCC,GEN);BB4#,5#,RZB40,50..(17S,23S,26S,30S)..STD IVORY,TRIM4# |
1 | ||
| 62624-36010A0 |
BB42,RZB40..(17S,26S)..STD;BB43,58,HZB50,RZB50..STD..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 62624-36010B0 |
BB50..GEN..TD;BB42,58,BZB40,HZB50,RZB40,50..STD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62624-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62625C - BOARD, SIDE TRIM NO.5, LH | ||||
| 62625-36020A0 |
BB42,HZB50,RZB40,50..(26S,30S)..GEN W(FOLDING SEAT),IVORY,TRIM4# |
1 | ||
| 62625-36010A0 |
BB42,HZB50..GCC;RZB40,50..26S,30S IVORY,TRIM4# |
1 | ||
| 62625-36310A0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(CHI,GEN) W(FOLDING REAR SEAT),IVORY,TRIM4# |
1 | ||
| 62625-36260A0 |
BB42,50,HZB50,RZB40,50..26S,30S IVORY,TRIM4# |
1 | ||
| 62625-36260B0 |
BB42,50,HZB50,RZB40,50..(26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62625-36310B0 |
RZB40,50..GEN;BB42..HRF..WOC;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 62625-36260B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
1 | ||
| 62638B - CLIP | ||||
| 90467-08104B1 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
6 | ||
| 90467-08104A1 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
6 | ||
| 90467-08104B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
6 | ||
| 62989 - COVER, CENTER DOOR LOCK | ||||
| 62989-36010A0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU IVORY,TRIM4# |
1 | ||
| 62989-36011A1 |
BB50..WOC..5F;BB42,5#,HZB50,RZB40,50..LHD..(22S,23S,26S,30S) IVORY,TRIM4# |
1 | ||
| 62989-36011B0 |
BB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)..(GCC,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 62989-36011B0 |
RZB40..GEN;RZB40..SRF..GCC;BB42,50,58,HZB50,RZB50..LHD..(23S,26S,30S) MD.CHARCOAL,TRIM1# |
1 | ||
| 62989-36012B0 |
RZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 63951 - COVER, COOLER PIPE | ||||
| 63951-36100A0 |
BB42,HZB50,RZB40..LHD..SRF..WC..GEN IVORY,TRIM4# |
1 | ||
| 63951-36110A1 |
BB42,HZB50,RZB40,50..LHD..SRF..WC W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36100A1 |
BB42,HZB50,RZB40..LHD..SRF..WC..GEN IVORY,TRIM4# |
1 | ||
| 63951-36140A1 |
BB42,HZB50,RZB40..LHD..SRF..WC..GEN W(DX ROOM CARTAIN),IVORY,TRIM4# |
1 | ||
| 63951-36150A1 |
RZB40..SRF..WC;BB42,HZB50,RZB50..SRF..WC..GCC W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),IVORY,TRIM4# |
1 | ||
| 63951-36110B0 |
BB42,HZB50,RZB40,50..SRF..WC W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36100B0 |
BB42,HZB50,RZB40..SRF..WC..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36150B0 |
RZB40..SRF..WC;BB42,HZB50,RZB50..SRF..GCC W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36140B0 |
BB42,HZB50,RZB40..SRF..WC..GEN W(DX ROOM CARTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36140B0 |
BB42,HZB50,RZB40..SRF..WC..GEN W(DX ROOM CARTAIN),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36110B0 |
RZB40,50..SRF..WC W(SEPARATE TYPE HEAD REST & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36100B0 |
BB42,HZB50,RZB40..SRF..WC..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 63951-36150B0 |
RZB40,50..SRF..WC W(DX ROOM CARTAIN & 3-POINT DRIVERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 64735A - GARNISH, CENTER BACK RAIL INNER | ||||
| 64735-36010A1 |
HZB50..EX;HZB50..LHD..STD;BB42,50,RZB40,50..17S,19S,22S,26S,30S IVORY,TRIM4# |
1 | ||
| 64735-36010A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
1 | ||
| 64735-36010B0 |
BB50..LHD..GEN;BB42,HZB50,RZB40,50..GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 64735-36010A1 |
BB50..LHD..CBU;BB42,HZB50,RZB40,50..(CHI,GCC,GEN)..5F IVORY,TRIM4# |
1 | ||
| 64735D - CLIP(FOR CENTER BACK RAIL INNER GARNISH) | ||||
| 90467-05009 |
BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50,RZB50..30S..(GCC,GEN);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);BB42,50,HZB50..HRF..(19S,26S,30S)..WC..(DSL,TDEFI) |
2 | ||
| 90467-05009 |
HZB50..EX;HZB50..LHD..STD;BB42,50,RZB40,50..CBU |
2 | ||
| 90467-05009 |
HZB50..(20S,30S)..(GCC,GEN);BB42,50,RZB40,50..(17S,22S,26S,30S)..(GCC,GEN) |
2 | ||
| 64745 - COVER, REAR COMBINATION LAMP SERVICE, RH | ||||
| 64745-36010A0 |
HZB50..30S..GEN;BB42,RZB40,50..STD..GEN W(FOLDING SEAT),IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
BB42,HZB50,RZB40,50..GCC,GEN W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64745-36020A0 |
BB42..LHD..HRF..WOC;RZB40..STD..(GCC,GEN);BB43,5#,RZB50..(GCC,GEN)..CBU W(DOUBLE SWING BACK DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36010B0 |
BB50..WC..GEN..TD;BB42,HZB50,RZB40,50..GCC,GEN W(LUGGAGE COMPARTMENT DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64745-36010A0 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB50,RZB40,50..LHD..CBU;HZB50..RHD..HRF..STD..WC..GEN..5F W(LUGGAGE COMPARTMENT DOOR),IVORY,TRIM4# |
1 | ||
| 64745-36020B0 |
HZB50..30S;BB42,50,58,RZB40,50..(19S,20S,23S,26S,30S)..(GCC,GEN) W(DOUBLE SWING BACK DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
14 | ||
| 67771-36030B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
14 | ||
| 67771-36030A0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
14 | ||
| 64745F - RETAINER, DOOR TRIM | ||||
| 67771-36030A0 |
BB42,HZB50,RZB40,50..GCC,GEN IVORY,TRIM4# |
14 | ||
| 67771-36030B1 |
HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
14 | ||
| 67771-36030A0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 IVORY,TRIM4# |
14 | ||
| 64746 - COVER, REAR COMBINATION LAMP SERVICE, LH | ||||
| 64746-36010A0 |
HZB50..30S..GEN;BB42,RZB40,50..STD..GEN W(FOLDING SEAT & *RW),IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
RZB40..EX..GCC;BB42,HZB50,RZB40,50..GEN W(*DSBD),IVORY,TRIM4# |
1 | ||
| 64746-36020A0 |
HZB50..30S..GEN;BB42,RZB40,50..STD..GEN W(FOLDING SEAT),IVORY,TRIM4# |
1 | ||
| 64746-36010A0 |
BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;BB50,RZB40,50..LHD..CBU;HZB50..RHD..HRF..STD..WC..GEN..5F W(LUGGAGE COMPARTMENT DOOR & REAR WIPER),IVORY,TRIM4# |
1 | ||
| 64746-36030A0 |
BB50..EX..IV;BB42,HZB50..GCC;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB5#,RZB40,50..(23S,26S,30S)..WC..(GCC,GEN) IVORY,TRIM4# |
1 | ||
| 64746-36020A0 |
BB42..SRF;HZB50..LHD..WOC;HZB50..HRF..GCC;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..RHD..HRF..STD..WC..GEN..5F;BB50,RZB40,50..LHD..(GCC,GEN)..CBU W(LUGGAGE COMPARTMENT DOOR),IVORY,TRIM4# |
1 | ||
| 64746-36010B0 |
BB42..HRF..WOC;RZB40,50..GCC,GEN;BB50..WC..GEN..TD W(FOLDING SEAT & *RW),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36030B0 |
BB42..HRF..WOC;BB50..(19S,20S,30S)..GEN;BB58,BZB40,RZB40,50..STD..(GCC,GEN) W(SINGLE SWING BACK DOOR),MD.CHARCOAL,TRIM1# |
1 | ||
| 64746-36020B0 |
BB42..HRF..WOC;RZB40,50..GCC,GEN;BB50..WC..GEN..TD W(FOLDING SEAT),MD.CHARCOAL,TRIM1# |
1 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36010B0 |
BB50..(17S,20S,21S,30S)..(EX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..STD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
2 | ||
| 67745-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
2 | ||
| 67745-36010A1 |
BB42,50..LHD..HRF..WOC..5F;BB5#,RZB40,50..22S,23S,26S,30S IVORY,TRIM4# |
2 | ||
| 67745A - MOULDING, CENTER DOOR TRIM | ||||
| 67745-36010B0 |
BB50..(17S,20S,21S,30S)..(EX,STD)..(ARL,GEN);BB42,58,BZB40,50,HZB50,RZB40,50..STD..(GCC,GEN) MD.CHARCOAL,TRIM1# |
2 | ||
| 67745-36010B0 |
RZB50;RZB40..GEN;RZB40..SRF..GCC MD.CHARCOAL,TRIM1# |
2 | ||
| 67745-36010A1 |
BB42,50..LHD..HRF..WOC..5F;BB5#,RZB40,50..22S,23S,26S,30S IVORY,TRIM4# |
2 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-30070 | ||||
| 67771-30090 | ||||
| 67771-36040 | ||||
| 67771-36050 | ||||
| 67921-95500 | ||||
| 75597-36010 | ||||
| 90159-50322 | ||||
| 90468-04109 | ||||
| 93560-14014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
