RZB40L-BRMRKV (1999)
Toyota Coaster
(9301-0408)LHD

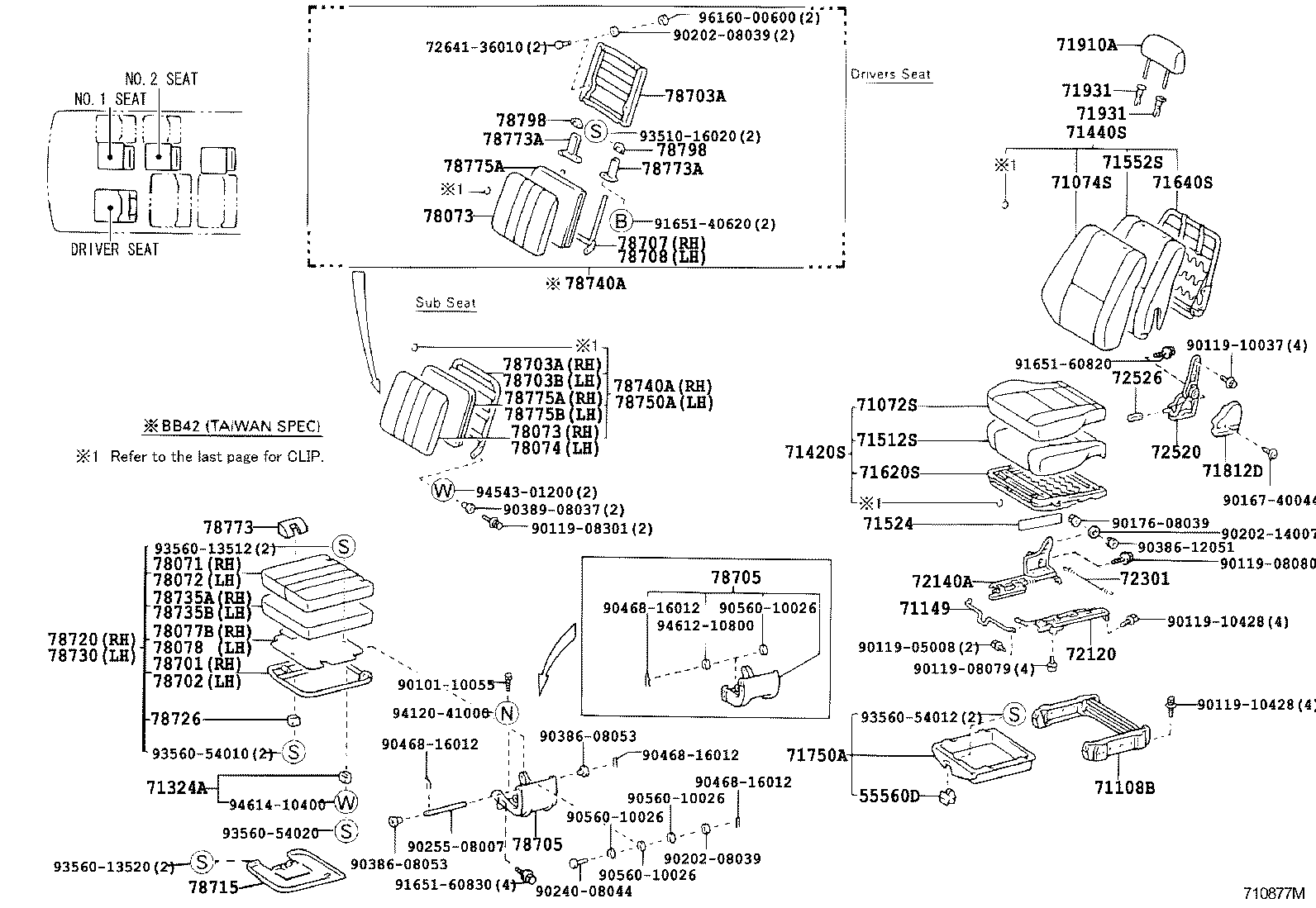

DRIVER & SUB SEAT NO.1-NO.7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 72250-36010E0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 GREIGE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-36020E1 |
BB42,HZB50,RZB40,50..STD..GCC HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 71072-36010E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 71072-36050E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 71072-36011E7 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU W(SEPARATE TYPE HEAD REST & DRIVERS 3-POINT TYPE SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-36020E1 |
HZB50..GEN..4FC;BB42,HZB50,RZB40,50..STD..GCC HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 71074-36010E2 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104 & W(SEPARATE TYPE HEADREST),GREIGE,TRIM4# |
1 | ||
| 71074-36060E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104 & W(HEADREST),GREIGE,TRIM4# |
1 | ||
| 71074-36010E2 |
BB42..LHD..HRF..WOC;BB50,RZB40,50..STD..(GCC,GEN)..CBU SEAT = TYPE D-*104 & W(HEADREST),GREIGE,TRIM4# |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-36011C0 |
BB42..LHD..HRF..WOC;BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE A OR TYPE B OR TYPE D -*104,BLACK,TRIM4# |
1 | ||
| 71108-36010E0 |
BB4#,HZB50,RZB40,50..CBU GREIGE,TRIM4# |
1 | ||
| 71149 - WIRE, FRONT SEAT CUSHION CONNECTING | ||||
| 71149-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 71149-36010 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-36010 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 71324-36020 |
RZB40..WOC..GCC;RZB40..22S..GEN |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-36020E1 |
HZB50..GEN..4FC;BB42,HZB50,RZB40,50..STD..GCC ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 71420-36010E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 71420-36070E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 71420-36060E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU ***,SEAT = TYPE D-*104 & W(SEPARATE TYPE HEADREST),GREIGE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-36010E2 |
BB42,HZB50,RZB40,50..STD..GCC ***,GREIGE,TRIM4# |
1 | ||
| 71440-36020E1 |
BB42,HZB50,RZB40,50..STD..GCC ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 71440-36070E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(SEPARATE TYPE HEADREST),GREIGE,TRIM4# |
1 | ||
| 71440-36012E2 |
BB42..LHD..HRF..WOC;BB50,RZB40,50..STD..(GCC,GEN)..CBU ***,SEAT = TYPE D-*104 & W(HEADREST),GREIGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-36010 |
BB42,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 71502-36011 |
BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 71524-36010 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-36010 |
BB42,5#,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 71552-36010 |
BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-36010 |
BB42,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 71620-36020 |
BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-36021 |
BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 71640-36010 |
BB42,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-36010E0 |
BB4#,5#,HZB50,RZB40,50..CBU GREIGE,TRIM4# |
1 | ||
| 71750-36010E0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 GREIGE,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20110E0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 71812-20110E0 |
BB42,5#,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60040E2 |
HZB50..GCC,SCO;HZB50..GEN..4FC;BB4#,RZB40,50..STD..(ARL,GCC);BB42,HZB50..RHD..(DX,STD)..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 71910-60040E2 |
BB42..22S;BB42,HZB50..GCC;BB42,50..RHD..5F;BB42..LHD..HRF..WOC;HZB50..RHD..(DX,STD);BB5#,RZB40,50..STD..CBU GREIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-10020E4 |
HZB50..GEN..4FC;HZB50,RZB40..LHD..EX;BB42,HZB50..RHD..(19S,20S,22S,26S,30S);BB4#,HZB50,RZB40,50..(19S,26S,30S)..STD..(ARL,GCC) W/O(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-10070E4 |
HZB50..GEN..4FC;HZB50,RZB40..LHD..EX;BB42,HZB50..RHD..(19S,20S,22S,26S,30S);BB4#,HZB50,RZB40,50..(19S,26S,30S)..STD..(ARL,GCC) W(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-44010E5 |
BB50..EX;BB50..STD..CBU;BB42,58,HZB50,RZB40,50 W(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71931-12040L3 |
BB50..EX;BB50..STD..CBU;BB42,58,HZB50,RZB40,50 W/O(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-10020E4 |
HZB50..GEN..4FC;HZB50,RZB40..LHD..EX;BB42,HZB50..RHD..(19S,20S,22S,26S,30S);BB4#,HZB50,RZB40,50..(19S,26S,30S)..STD..(ARL,GCC) W/O(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-10070E4 |
HZB50..GEN..4FC;HZB50,RZB40..LHD..EX;BB42,HZB50..RHD..(19S,20S,22S,26S,30S);BB4#,HZB50,RZB40,50..(19S,26S,30S)..STD..(ARL,GCC) W(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-44010E5 |
BB50..EX;BB50..STD..CBU;BB42,58,HZB50,RZB40,50 W(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71931-12040L3 |
BB50..EX;BB50..STD..CBU;BB42,58,HZB50,RZB40,50 W/O(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-36010 |
BB42,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 72120-36010 |
BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-36011 |
BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 72140-36010 |
BB42,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-60020 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-36010 |
BB42,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 72520-36020 |
BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-60030E2 |
BB42,5#,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 72525-95700E0 |
BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 78071 - COVER SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78071-36030E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4#,NO.2 SEAT |
1 | ||
| 78071-36050E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4#,NO.2 SEAT |
1 | ||
| 78071-36060E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4#,NO.1 SEAT |
1 | ||
| 78071-36080E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4#,NO.1 SEAT |
1 | ||
| 78071-36051E4 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM41,NO.2 SEAT |
1 | ||
| 78071-36090E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4#,NO.1 SEAT |
1 | ||
| 78071-36100E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4#,NO.2 SEAT |
1 | ||
| 78071-36081E3 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104 & W(CUP HOLDER),GREIGE,TRIM4#,NO.1 SEAT |
1 | ||
| 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78072-36010E3 |
BB42,RZB40..LHD..26S HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
4 | ||
| 78072-36040E4 |
BB42,RZB40..LHD..26S GREIGE,TRIM4# |
4 | ||
| 78072-36041E4 |
BB42..LHD..HRF..WOC;RZB40..26S..(GCC,GEN) SEAT = TYPE D-*104 & FOR 4 PERSONS,GREIGE,TRIM4# |
4 | ||
| 78072-36140E1 |
BB42..LHD;RZB40..26S;RZB40..22S..CHI SEAT = TYPE C-*104 & FOR 4 PERSONS,GREIGE,TRIM4# |
4 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-36020E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
2 | ||
| 78073-36050E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
2 | ||
| 78073-36040E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104 & FOR 2 PERSONS,GREIGE,TRIM4# |
2 | ||
| 78073-36050E4 |
BB42..LHD..HRF..WOC;BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104 & FOR 2 PERSONS,GREIGE,TRIM4# |
2 | ||
| 78073 - COVER SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78073-36020E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
2 | ||
| 78073-36050E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
2 | ||
| 78073-36040E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104 & FOR 2 PERSONS,GREIGE,TRIM4# |
2 | ||
| 78073-36050E4 |
BB42..LHD..HRF..WOC;BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104 & FOR 2 PERSONS,GREIGE,TRIM4# |
2 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-36020E3 |
BB42,RZB40..LHD..26S HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
4 | ||
| 78073-36050E4 |
BB42,RZB40..LHD..26S SEAT = TYPE D-*104,GREIGE,TRIM4# |
4 | ||
| 78073-36040E1 |
BB42..LHD;RZB40..26S;RZB40..22S..CHI SEAT = TYPE C-*104 & FOR 4 PERSONS,GREIGE,TRIM4# |
4 | ||
| 78073-36050E4 |
BB42..LHD..HRF..WOC;RZB40..26S..(GCC,GEN) SEAT = TYPE D-*104 & FOR 4 PERSONS,GREIGE,TRIM4# |
4 | ||
| 78077B - BOARD SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78077-36010E3 |
HZB50..4FC;BB42,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 78077-36020 |
BB42,RZB40..22S;BB42,RZB40..WOC..GCC FOR 2 PERSONS |
2 | ||
| 78078 - BOARD SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78078-36010E3 |
BB42,RZB40..LHD..26S GREIGE,TRIM4# |
4 | ||
| 78078-36011 |
BB42,RZB40..WOC..GCC FOR 4 PERSONS |
4 | ||
| 78701 - FRAME SUB-ASSY, SUB SEAT CUSHION, RH | ||||
| 78701-36030E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4#,NO.1 SEAT |
1 | ||
| 78701-36020E0 |
HZB50..4FC;BB42..LHD..SRF;BB58,HZB50,RZB40,50..LHD..STD..CBU..5F HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 78701-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4#,NO.2 SEAT |
1 | ||
| 78701-36040E0 |
BB50,RZB40,50..STD..CBU..5F GREIGE,TRIM4#,NO.1 SEAT |
1 | ||
| 78702 - FRAME SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78702-36020E0 |
BB42,RZB40..LHD..26S FOR 4 PERSONS,GREIGE,TRIM4# |
4 | ||
| 78702-36020E0 |
BB42..LHD;RZB40..26S;RZB40..22S..CHI FOR 4 PERSONS,GREIGE,TRIM4# |
4 | ||
| 78703A - FRAME SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78703-90B00E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
2 | ||
| 78703-90B00E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F FOR 2 PERSONS,GREIGE,TRIM4# |
2 | ||
| 78703A - FRAME SUB-ASSY, SUB SEAT BACK, RH | ||||
| 78703-90B00E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
2 | ||
| 78703-90B00E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F FOR 2 PERSONS,GREIGE,TRIM4# |
2 | ||
| 78703B - FRAME SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78703-90B00E0 |
BB42,RZB40..LHD..26S FOR 4 PERSONS,GREIGE,TRIM4# |
4 | ||
| 78703-90B00E0 |
BB42..LHD;RZB40..26S;RZB40..22S..CHI FOR 4 PERSONS,GREIGE,TRIM4# |
4 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-36010E0 |
BB42,RZB40..LHD..26S GREIGE,TRIM4#,NO.1 SEAT |
5 | ||
| 78705-36020E0 |
BB42,RZB40..LHD..26S HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4#,NO.2 SEAT & LH |
1 | ||
| 78705-36020E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4#,RH NO.2 SEAT & LH |
1 | ||
| 78705-36011E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) GREIGE,TRIM4#,RH,NO.2 SEAT |
1 | ||
| 78705-36011E0 |
BB42,RZB40..26S FOR 5 PERSONS,GREIGE,TRIM4#,NO.2 SEAT |
5 | ||
| 78705-36030E0 |
BB50,RZB40,50..(26S,30S)..(GCC,GEN) GREIGE,TRIM4#,RH,NO.1 SEAT |
1 | ||
| 78705-36030E0 |
BB50,RZB40,50..STD..CBU..5F GREIGE,TRIM4#,NO.1 SEAT |
1 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-36010E0 |
BB42,RZB40..LHD..26S GREIGE,TRIM4#,NO.1 SEAT |
5 | ||
| 78705-36020E0 |
BB42,RZB40..LHD..26S HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4#,NO.2 SEAT & LH |
1 | ||
| 78705-36020E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4#,RH NO.2 SEAT & LH |
1 | ||
| 78705-36011E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) GREIGE,TRIM4#,RH,NO.2 SEAT |
1 | ||
| 78705-36011E0 |
BB42,RZB40..26S FOR 5 PERSONS,GREIGE,TRIM4#,NO.2 SEAT |
5 | ||
| 78705-36030E0 |
BB50,RZB40,50..(26S,30S)..(GCC,GEN) GREIGE,TRIM4#,RH,NO.1 SEAT |
1 | ||
| 78705-36030E0 |
BB50,RZB40,50..STD..CBU..5F GREIGE,TRIM4#,NO.1 SEAT |
1 | ||
| 78715 - PANEL, SUB SEAT CUSHION | ||||
| 78715-36010E0 |
BB42,RZB40..LHD..26S GREIGE,TRIM4#,NO.1 SEAT |
5 | ||
| 78715-36020E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4#,RH NO.2 SEAT & LH |
1 | ||
| 78715-36020E0 |
BB42,RZB40..LHD..26S HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4#,NO.2 SEAT & LH |
1 | ||
| 78715-36010E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) GREIGE,TRIM4#,RH,NO.2 SEAT |
1 | ||
| 78715-36010E0 |
BB42,RZB40..26S FOR 5 PERSONS,GREIGE,TRIM4#,NO.2 SEAT |
5 | ||
| 78715-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4#,NO.1 SEAT |
1 | ||
| 78715-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) GREIGE,TRIM4#,RH,NO.1 SEAT |
1 | ||
| 78720 - CUSHION ASSY, SUB SEAT, RH | ||||
| 78720-36030E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4#,NO.2 SEAT |
1 | ||
| 78720-36070E2 |
BB42..LHD..26S;HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4#,NO.1 SEAT |
1 | ||
| 78720-36050E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4#,NO.2 SEAT |
1 | ||
| 78720-36060E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4#,NO.1 SEAT |
1 | ||
| 78720-36100E0 |
BB50,RZB40,50..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4#,NO.1 SEAT |
1 | ||
| 78720-36090E0 |
BB50,RZB40,50..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104 & W(CUP HOLDER),GREIGE,TRIM4# |
1 | ||
| 78720-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4#,NO.2 SEAT |
1 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-36010 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) NO.1 SEAT |
2 | ||
| 78726-90B00 |
BB42,RZB40..WOC..GCC NO.2 SEAT & LH |
10 | ||
| 78726-90B00 |
BB42,RZB40..LHD..26S NO.2 SEAT & LH |
10 | ||
| 78726-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN NO.1 SEAT |
2 | ||
| 78730 - CUSHION ASSY, SUB SEAT, LH | ||||
| 78730-36010E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 78730-36040E3 |
BB42,RZB40..LHD..26S ***,GREIGE,TRIM4# |
4 | ||
| 78730-36140E1 |
BB42..LHD;RZB40..26S;RZB40..22S..CHI ***,FOR 4 PERSONS,GREIGE,TRIM4# |
4 | ||
| 78735A - PAD, SUB SEAT CUSHION, RH | ||||
| 78735-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU NO.1 SEAT |
1 | ||
| 78735-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU NO.2 SEAT |
1 | ||
| 78735-36021 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN W(BOTTLE OPENER),NO.1 SEAT |
1 | ||
| 78735-36011 |
BB42,RZB40..22S;BB42,RZB40..WOC..GCC NO.2 SEAT |
1 | ||
| 78735B - PAD, SUB SEAT CUSHION, LH | ||||
| 78735-36030 |
BB42,RZB40..LHD..26S |
4 | ||
| 78735-36031 |
BB42,RZB40..WOC..GCC FOR 4 PERSONS |
4 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-36020E2 |
BB42..LHD..26S;HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
2 | ||
| 78740-36040E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
2 | ||
| 78740-36090E1 |
BB42..LHD..26S;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & FOR 2 PERSONS,GREIGE,TRIM4# |
2 | ||
| 78740-36040E3 |
BB42..LHD..HRF..WOC;BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & FOR 2 PERSONS,GREIGE,TRIM4# |
2 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-36020E2 |
BB42..LHD..26S;HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
2 | ||
| 78740-36040E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
2 | ||
| 78740-36090E1 |
BB42..LHD..26S;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & FOR 2 PERSONS,GREIGE,TRIM4# |
2 | ||
| 78740-36040E3 |
BB42..LHD..HRF..WOC;BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & FOR 2 PERSONS,GREIGE,TRIM4# |
2 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-36020E2 |
BB42,RZB40..LHD..26S ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
4 | ||
| 78740-36040E3 |
BB42,RZB40..LHD..26S ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
4 | ||
| 78740-36040E3 |
BB42..LHD..HRF..WOC;RZB40..26S..(GCC,GEN) ***,SEAT = TYPE D-*104 & FOR 4 PERSONS,GREIGE |
4 | ||
| 78740-36090E1 |
BB42..LHD;RZB40..26S ***,SEAT = TYPE C-*104 & FOR 4 PERSONS,GREIGE,TRIM4# |
4 | ||
| 78773 - COVER, SUB SEAT HINGE, RH | ||||
| 78773-36010E0 |
BB50,RZB40,50..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 78773A - HOOP, SUB SEAT BACK GUIDE | ||||
| 78773-36010E0 |
BB50,RZB40,50..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 78773A - HOOP, SUB SEAT BACK GUIDE | ||||
| 78773-36010E0 |
BB50,RZB40,50..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 78775A - PAD, SUB SEAT BACK, RH | ||||
| 78775-36040 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN FOR 2 PERSONS |
2 | ||
| 78775A - PAD, SUB SEAT BACK, RH | ||||
| 78775-36040 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN FOR 2 PERSONS |
2 | ||
| 78775B - PAD, SUB SEAT BACK, LH | ||||
| 78775-36040 |
BB42,RZB40..WOC..GCC FOR 4 PERSONS |
4 | ||
| Common parts | ||||
| 72641-36010 | ||||
| 90101-10055 | ||||
| 90119-05008 | ||||
| 90119-08079 | ||||
| 90119-08080 | ||||
| 90119-08301 | ||||
| 90119-10037 | ||||
| 90119-10428 | ||||
| 90167-40044 | ||||
| 90176-08039 | ||||
| 90202-08039 | ||||
| 90202-14007 | ||||
| 90240-08044 | ||||
| 90255-08007 | ||||
| 90386-08053 | ||||
| 90386-12051 | ||||
| 90389-08037 | ||||
| 90468-16012 | ||||
| 90560-10026 | ||||
| 91651-40620 | ||||
| 91651-60820 | ||||
| 91651-60830 | ||||
| 93510-16020 | ||||
| 93560-13512 | ||||
| 93560-13520 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
| 93560-54020 | ||||
| 94120-41000 | ||||
| 94543-01200 | ||||
| 94612-10800 | ||||
| 94614-10400 | ||||
| 96160-00600 | ||||

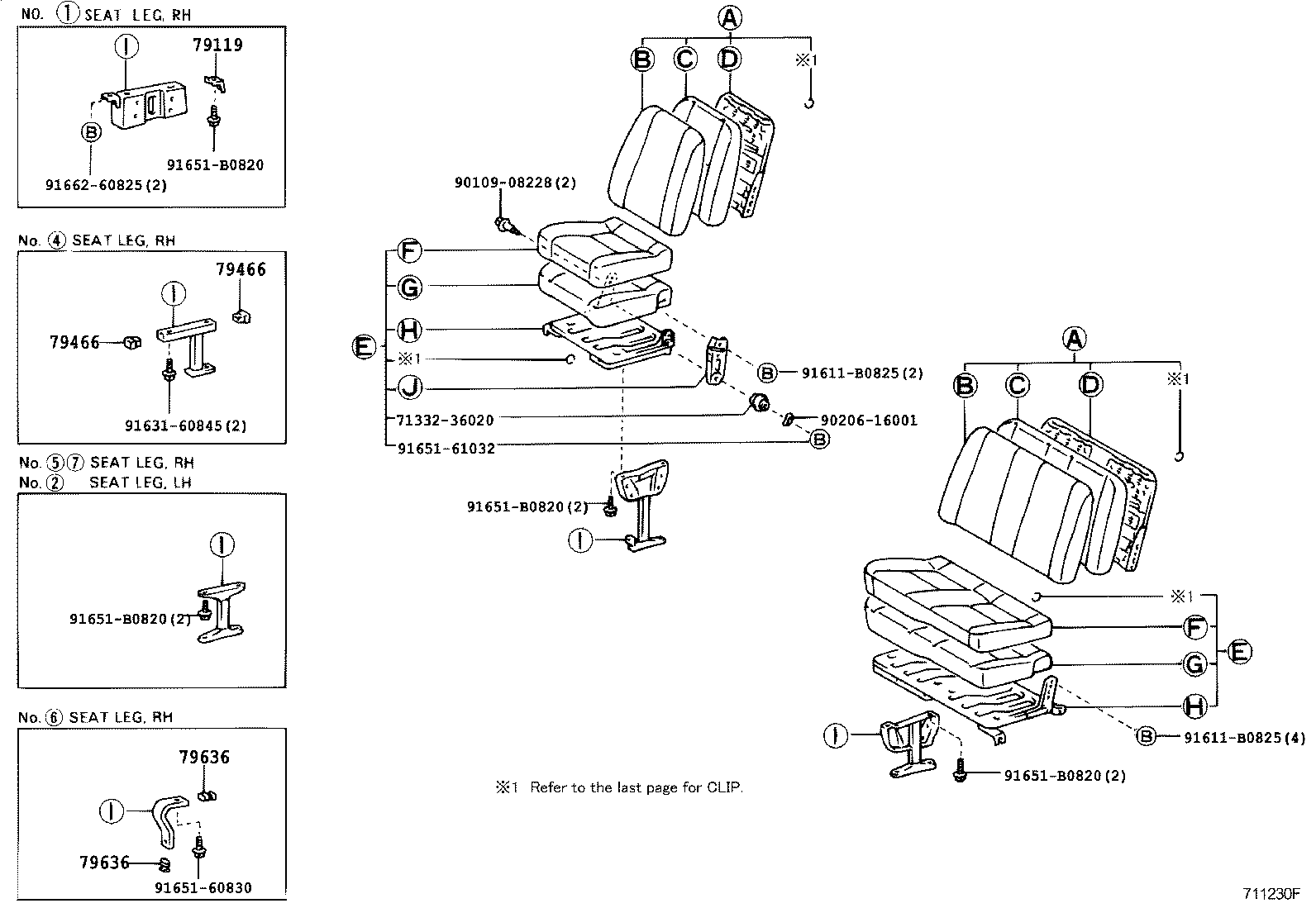

ILLUST NO. 1 OF 2(9301-1501)BB42,50,58,HZB50,RZB40,50,TRB40,50..LHD
REAR SEAT NO.1-NO.8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79119 - BRACKET, NO.1 SEAT LEG, NO.2 | ||||
| 79119-36010E0 |
BB42,HZB50,RZB40,50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 79119-36012C0 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..(4FC,5F) BLACK,TRIM4# |
1 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79366-36020 |
HZB50..GCC,SCO;HZB50..LHD..GEN;BB42,RZB40,50..LHD..(17S,26S,30S) |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79366-36020 |
HZB50..GCC,SCO;HZB50..LHD..GEN;BB42,RZB40,50..LHD..(17S,26S,30S) |
2 | ||
| 79636 - COVER, NO.6 SEAT LEG, RH | ||||
| 79236-36010 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) |
2 | ||
| 79236-36010 |
BB42,RZB40..WOC..GCC |
2 | ||
| 79636 - COVER, NO.6 SEAT LEG, RH | ||||
| 79236-36010 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) |
2 | ||
| 79236-36010 |
BB42,RZB40..WOC..GCC |
2 | ||
| Common parts | ||||
| 71332-36020 | ||||
| 90109-08228 | ||||
| 90206-16001 | ||||
| 91611-B0825 | ||||
| 91631-60845 | ||||
| 91651-60830 | ||||
| 91651-61032 | ||||
| 91651-B0820 | ||||
| 91662-60825 | ||||

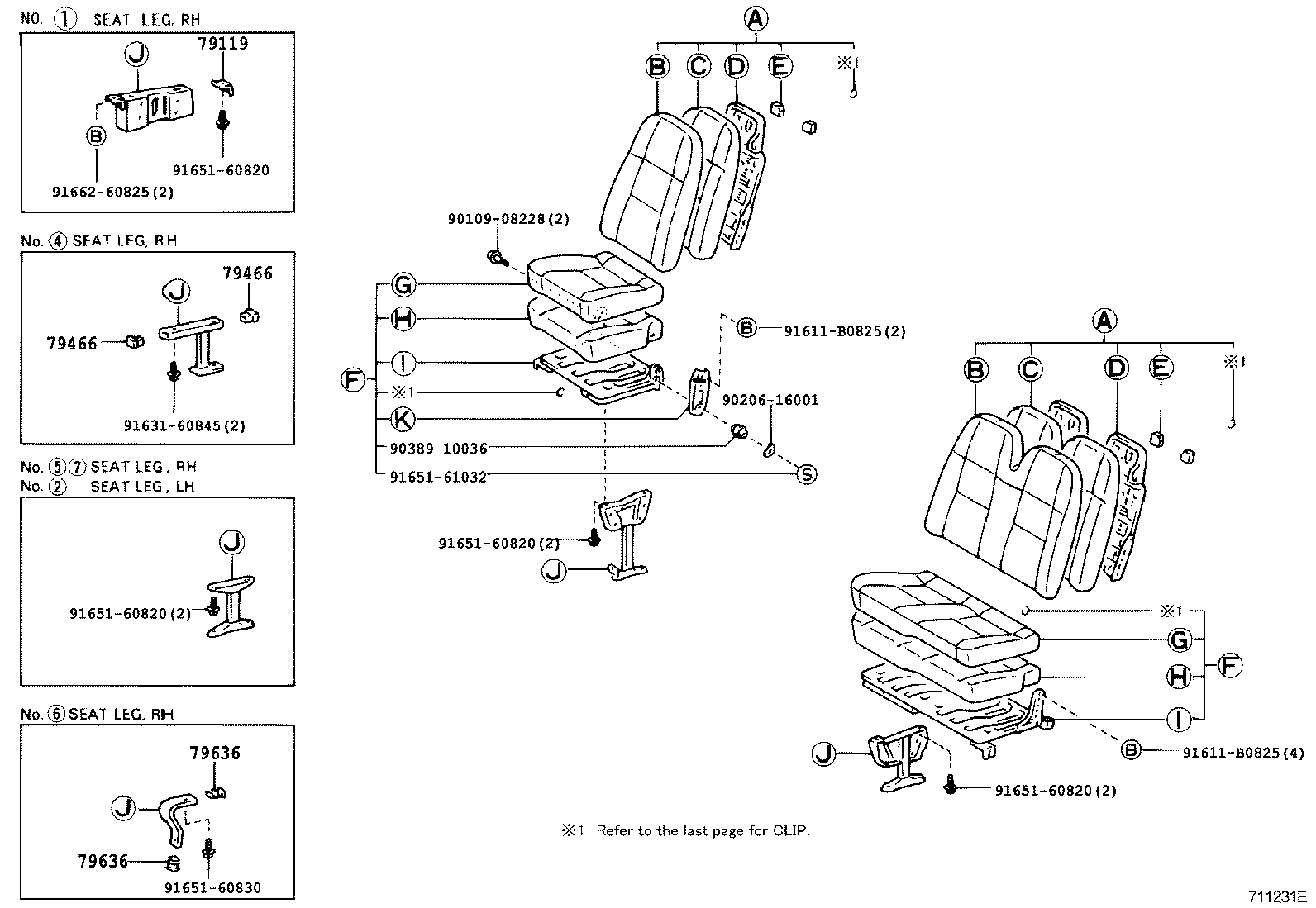

ILLUST NO. 1 OF 2(9301-1501)BB42,58,HZB50,RZB40,50,TRB40,50..LHD
HIGH BACK REAR SEAT NO.1-NO.7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79119 - BRACKET, NO.1 SEAT LEG, NO.2 | ||||
| 79119-36010E0 |
BB42,HZB50,RZB40,50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 79119-36012C0 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..(4FC,5F) BLACK,TRIM4# |
1 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79366-36020 |
HZB50..GCC,SCO;HZB50..LHD..GEN;BB42,RZB40,50..LHD..(17S,26S,30S) |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79366-36020 |
HZB50..GCC,SCO;HZB50..LHD..GEN;BB42,RZB40,50..LHD..(17S,26S,30S) |
2 | ||
| 79636 - COVER, NO.6 SEAT LEG, RH | ||||
| 79236-36010 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) |
2 | ||
| 79236-36010 |
BB42,RZB40..WOC..GCC |
2 | ||
| 79636 - COVER, NO.6 SEAT LEG, RH | ||||
| 79236-36010 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) |
2 | ||
| 79236-36010 |
BB42,RZB40..WOC..GCC |
2 | ||
| Common parts | ||||
| 90109-08228 | ||||
| 90206-16001 | ||||
| 90389-10036 | ||||
| 91611-B0825 | ||||
| 91631-60845 | ||||
| 91651-60820 | ||||
| 91651-60830 | ||||
| 91651-61032 | ||||
| 91662-60825 | ||||
(9301-1501)

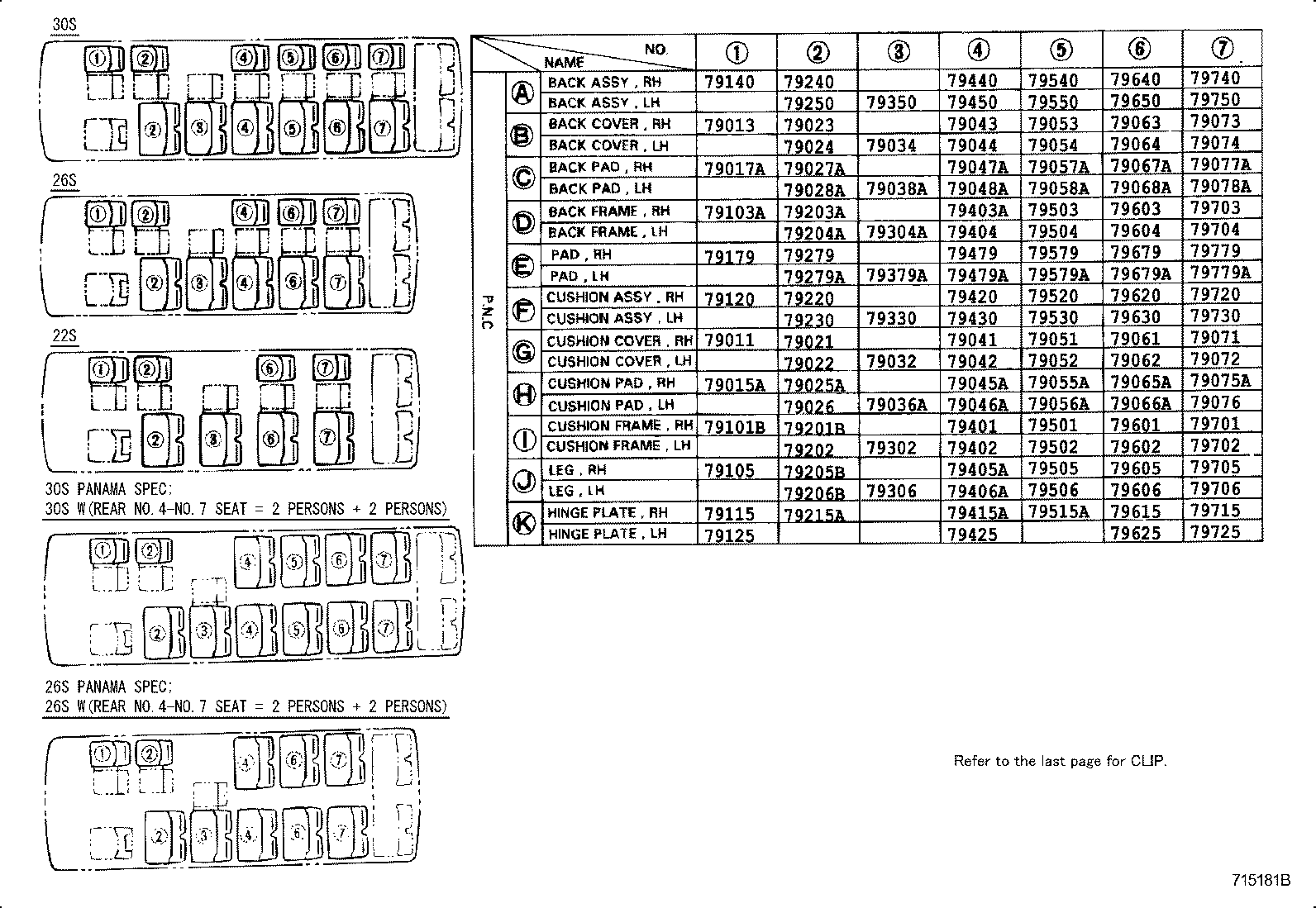

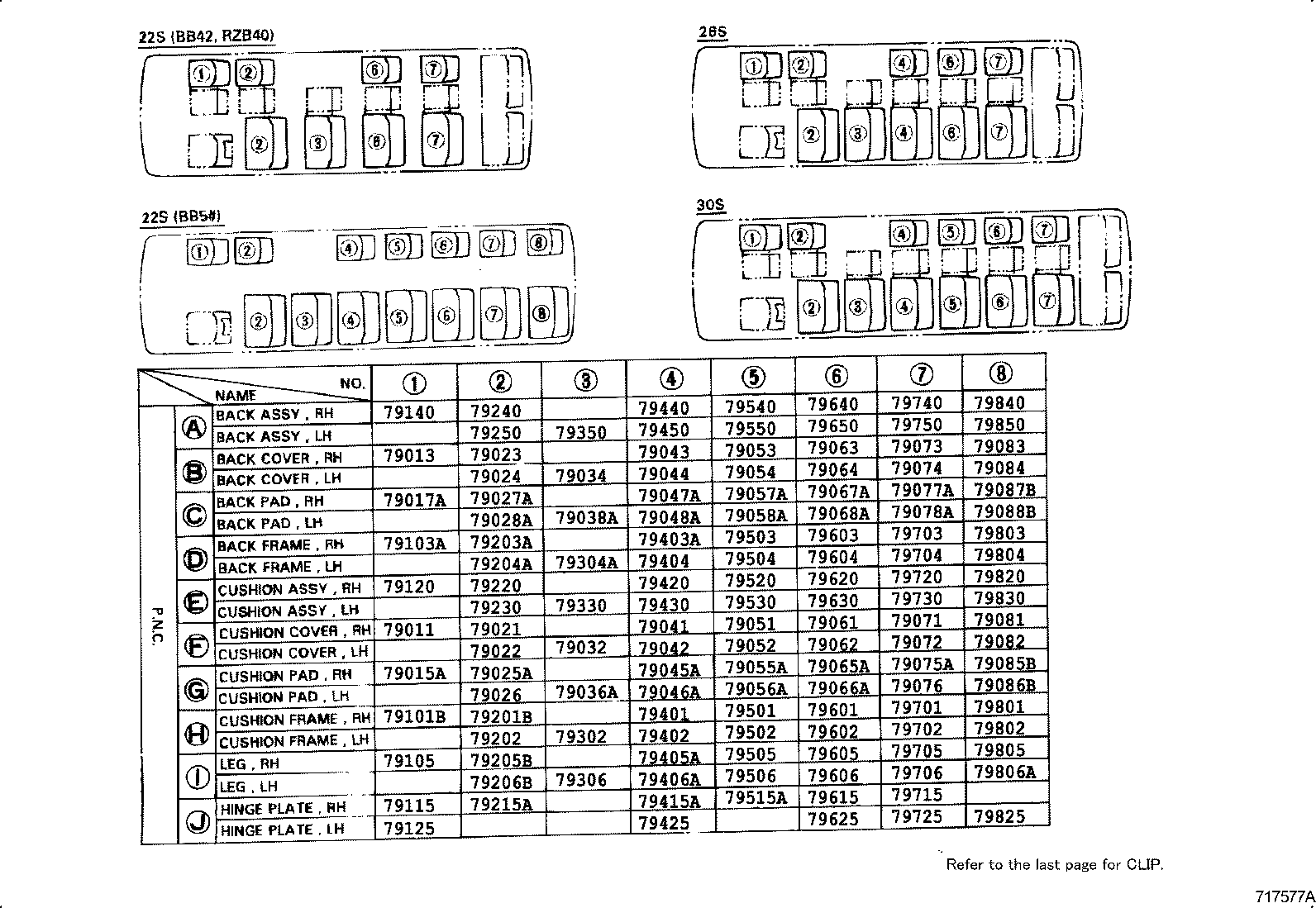

PART NAME CODE TABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-36060E3 |
BB42,HZB50,RZB40,50..STD..GCC HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79011-36050E3 |
BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
1 | ||
| 79011-36290E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F W(3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79011-36300E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE C-*104 & W/O(RECLINING SEAT),GREIGE,TRIM4# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-36050E3 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,HZB50..WC..GCC;BB42,HZB50..LHD..WOC;BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79015A - PAD SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79015-36020 |
BB42,HZB50,RZB40,50..STD..GCC |
1 | ||
| 79015-36110 |
RZB40..WOC..GCC;RZB40..22S..GEN W(ASSISTANTS SEAT BELT) |
1 | ||
| 79017A - PAD SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79017-36090 |
RZB40..22S..GEN;BB42,RZB40..WOC..GCC W(ASSISTANTS SEAT BELT & DRIVERS SEAT BELT & PASSENGERS SEAT BELT) |
1 | ||
| 79017-36090 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79017-36070 |
HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36070 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79011-36100E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79011-36120E3 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79011-36160E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79011-36080E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79012-36460E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-36050E3 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
HZB50..4FC;BB42,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
HZB50..4FC;BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79015-36070 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79015-36071 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79036-36011 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-36070 |
BB42..WC..GCC;BB42..LHD..22S;BB42..LHD..WOC;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
HZB50..4FC;BB42,HZB50,RZB40,50..LHD..STD..CBU..5F |
1 | ||
| 79017-36070 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,RZB40..WOC..GCC;BB42,HZB50,RZB40..22S..GEN |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79037-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79037-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79037-36020 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79036A - PAD, SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79036-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79038A - PAD SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79037-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79037-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79037-36020 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79011-36100E4 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79011-36120E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79011-36160E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79011-36080E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79013-36030E4 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36050E3 |
BB42..LHD..SRF;HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79015-36070 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU |
1 | ||
| 79015-36071 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) |
1 | ||
| 79036-36011 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79017-36090 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU |
1 | ||
| 79017-36070 |
BB42..LHD..SRF;HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36070 |
BB42,RZB40..WOC..GCC HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79037-36020 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) |
1 | ||
| 79037-36010 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79037-36020 |
BB42,RZB40..WOC..GCC HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79031-36060E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79031-36050E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79031-36080E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79031-36100E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79013-36030E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79015-36070 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79015-36081 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79036-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79017-36070 |
BB42,58,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79017-36090 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79017-36070 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79037-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79037-36020 |
RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79011-36100E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79011-36160E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79011-36080E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79013-36030E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79015-36071 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79015-36070 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79076 - PAD SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79036-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79017-36070 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79017-36070 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79037-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT & W(2-POINT PASSENGERS SEAT BELT) |
1 | ||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79037-36020 |
RZB40..WOC..GCC;RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79037-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36050E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36040E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36150E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79083-36042E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36030E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79084-36040E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36032E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79084-36140E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79087-36030 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79087-36030 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79087-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36030 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79088-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79088-36030 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79088-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79201-36040E0 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79201-36100E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79104-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
RZB40..WOC..GCC;BB42,RZB40..22S..GEN W(ASSISTANTS SEAT BELT & BOTTLE OPENER) |
1 | ||
| 79104-36030 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-36020E0 |
BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 79105-36022C0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F BLACK,TRIM4# |
1 | ||
| 79115 - PLATE, NO.1 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,HZB50,RZB40,50..LHD..(20S,22S,26S,30S) W(FRONT SEAT BELT = 3POINT) |
1 | ||
| 79115-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN W(FRONT SEAT BELT = 3POINT) |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-36040E2 |
BB42,HZB50,RZB40,50..STD..GCC ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79120-36110E1 |
BB42,HZB50,RZB40,50..STD..GCC ***,GREIGE,TRIM4# |
1 | ||
| 79120-36250E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104 & W(SEPARATE TYPE HEADREST),GREIGE,TRIM4# |
1 | ||
| 79120-36210E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-36030E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79101-36050E0 |
BB42,58,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 79101-36050E0 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) GREIGE,TRIM4# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-36020E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79104-36030 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79104-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79103-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79103-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36021 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79205-36020E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79205-36020C0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F BLACK,TRIM4# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79505-36010E0 |
BB42..LHD..SRF;HZB50,RZB40,50..LHD..CBU SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010C0 |
BB42..WC..GCC;BB42..LHD..HRF..WOC;BB42..LHD..SRF..GEN;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C OR TYPE D-*104,BLACK,TRIM4# |
1 | ||
| 79215A - PLATE, NO.2 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 79215B - PLATE, NO.1 SEAT CUSHION HINGE, RH | ||||
| 79115-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-36040E1 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79220-36030E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79120-36140E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79120-36180E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-36100E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79230-36220E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79330-36020E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79230-36210E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79140-36030E2 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79250-36110E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79302 - FRAME SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79202-36020E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42..22S;BB42..LHD..SRF;BB42..LHD..HRF..WOC;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79103-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79103-36021 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79306-36010E0 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79306-36010C0 |
BB42..WC..GCC;BB42..LHD..HRF..WOC;BB42..LHD..SRF..GEN;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F W(BOTTLE OPENER),BLACK,TRIM4# |
1 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79230-36100E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79330-36020E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79230-36220E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79230-36210E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79250-36110E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79401 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79201-36040E0 |
RZB40..26S;BB42..LHD..SRF;BB42,HZB50,RZB50..LHD..(22S,30S) GREIGE,TRIM4# |
1 | ||
| 79201-36040E0 |
BB42..LHD..SRF;BB42..LHD..HRF..WOC;BB50,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79402 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79202-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79403A - FRAME SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79104-36010 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU |
1 | ||
| 79104-36030 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79404 - FRAME SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79103-36021 |
BB42,RZB40..WOC..GCC HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79406-36010E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79406-36010C0 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C OR TYPE D-*104,BLACK,TRIM4# |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79306-36010E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79306-36010C0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) BLACK,TRIM4# |
1 | ||
| 79415C - PLATE, NO.1 SEAT CUSHION HINGE, RH | ||||
| 79115-36010 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79120-36090E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79120-36100E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79120-36280E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79120-36240E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79230-36100E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79330-36020E1 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79230-36210E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79230-36220E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79140-36030E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79250-36110E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79601 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79201-36050E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79201-36050E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79602 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79202-36020E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79603 - FRAME SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79104-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79104-36030 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79604 - FRAME SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79103-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79103-36020 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT & W(2-POINT PASSENGERS SEAT BELT) |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79103-36021 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79643-36030E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4#,FRONT |
1 | ||
| 79643-36030C0 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50,RZB40,50..LHD..(26S,30S) NO.6 SEAT LEG TYPE,BLACK,TRIM4#,FRONT |
1 | ||
| 79644-36010C0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) BLACK,TRIM4#,REAR |
1 | ||
| 79644-36010C0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) BLACK,TRIM4# |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79606-36010E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79606-36010C0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) BLACK,TRIM4# |
1 | ||
| 79615 - PLATE, NO.6 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79115-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79620-36030E1 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79620-36040E1 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79120-36380E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79120-36400E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79230-36100E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79330-36020E1 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79230-36220E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79230-36210E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79140-36030E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79250-36110E2 |
BB42..LHD..26S;HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
HZB50..4FC;BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79701 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79701-36050E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79201-36040E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79702 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79702-36060E0 |
BB42,58,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79703 - FRAME SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79104-36030 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79104-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79704 - FRAME SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79103-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79103-36021 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79505-36010E0 |
BB42..GCC,SCO;BB42..LHD..26S..GEN;HZB50..LHD..STD..DSL;HZB50..RHD..(20S,22S);BB40,RZB40,50..19S,26S,30S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010C0 |
HZB50..DX;RZB40..WOC..GCC SEAT = TYPE A OR TYPE C OR TYPE D-*104,BLACK,TRIM4# |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79306-36010E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79306-36010C0 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F W(BOTTLE OPENER),BLACK,TRIM4# |
1 | ||
| 79715 - PLATE, NO.7 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79115-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79720-36010E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79720-36020E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79120-36280E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79120-36240E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79730-36170E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79140-36030E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79250-36110E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79803-36010 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79803-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79803-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36010 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79804-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79804-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79804-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36020E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36100E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79840-36160E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79840-36102E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36040E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36120E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79850-36122E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79850-36190E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
(9301-1501)LHD..26S,30S
REAR SEAT FITTING PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 72702-36010 | ||||
| 90119-08A54 | ||||
| 91622-B1025 | ||||
| 91651-60830 | ||||
| 91651-60835 | ||||
| 91661-60825 | ||||
| 91661-60835 | ||||
(9301-1501)
LAST ROW SEAT(NO.8)FIX BENCH,W(*HBS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-36070E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79081-36120E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79081-36080E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79081-36140E0 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36050E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36040E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36150E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79083-36042E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36030E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79084-36040E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36032E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79084-36140E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36020 |
BB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN) |
1 | ||
| 79085-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79087-36030 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79087-36030 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79087-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36030 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79088-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79088-36030 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79088-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-36051E0 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79803-36010 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79803-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79803-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36010 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79804-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79804-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79804-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79805A - LEG SUB-ASSY, FOLD SEAT, FRONT | ||||
| 79805-36010E0 |
BB42,HZB50,RZB40,50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 79805-36010C0 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F BLACK,TRIM4# |
1 | ||
| 79820A - CUSHION ASSY, NO.8 SEAT | ||||
| 79820-36040E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT & W(PASSENGERS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79820-36170E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79820-36110E2 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79820-36050E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,W(PASSENGER SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79820-36320E0 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79820-36221E2 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79820-36251E3 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79820-36230E0 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36020E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36100E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79840-36160E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79840-36102E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36040E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36120E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79850-36122E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79850-36190E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79860 - SPRING ASSY, NO.8 SEAT CUSHION | ||||
| 79860-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79860-36010 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
4 | ||
| 79915-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
4 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
4 | ||
| 79915-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
4 | ||
| 79974 - BRACKET, SEAT BACK ASSIST, RH | ||||
| 79974-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
2 | ||
| 79974-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79974 - BRACKET, SEAT BACK ASSIST, RH | ||||
| 79974-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
2 | ||
| 79974-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79984 - BRACKET, SEAT BACK ASSIST, LH | ||||
| 79984-36010 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
2 | ||
| 79984-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79984 - BRACKET, SEAT BACK ASSIST, LH | ||||
| 79984-36010 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
2 | ||
| 79984-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| Common parts | ||||
| 90109-08277 | ||||
| 90159-60589 | ||||
| 90167-35014 | ||||
| 90179-10033 | ||||
| 91622-B1025 | ||||
| 91641-80835 | ||||
| 91651-60835 | ||||
| 91651-61020 | ||||
| 91651-61030 | ||||
| 91673-81022 | ||||
ILLUST NO. 2 OF 2(9301-1501)BB42,50,58,HZB50,RZB40,50,TRB40,50..LHD
HIGH BACK REAR SEAT NO.1-NO.7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-36060E3 |
BB42,HZB50,RZB40,50..STD..GCC HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79011-36050E3 |
BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
1 | ||
| 79011-36290E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F W(3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79011-36300E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE C-*104 & W/O(RECLINING SEAT),GREIGE,TRIM4# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-36050E3 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,HZB50..WC..GCC;BB42,HZB50..LHD..WOC;BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79015A - PAD SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79015-36020 |
BB42,HZB50,RZB40,50..STD..GCC |
1 | ||
| 79015-36110 |
RZB40..WOC..GCC;RZB40..22S..GEN W(ASSISTANTS SEAT BELT) |
1 | ||
| 79017A - PAD SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79017-36090 |
RZB40..22S..GEN;BB42,RZB40..WOC..GCC W(ASSISTANTS SEAT BELT & DRIVERS SEAT BELT & PASSENGERS SEAT BELT) |
1 | ||
| 79017-36090 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79017-36070 |
HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36070 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79011-36100E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79011-36120E3 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79011-36160E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79011-36080E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79012-36460E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-36050E3 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
HZB50..4FC;BB42,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
HZB50..4FC;BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79015-36070 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79015-36071 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79036-36011 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-36070 |
BB42..WC..GCC;BB42..LHD..22S;BB42..LHD..WOC;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
HZB50..4FC;BB42,HZB50,RZB40,50..LHD..STD..CBU..5F |
1 | ||
| 79017-36070 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,RZB40..WOC..GCC;BB42,HZB50,RZB40..22S..GEN |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79037-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79037-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79037-36020 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79036A - PAD, SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79036-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79038A - PAD SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79037-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79037-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79037-36020 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79011-36100E4 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79011-36120E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79011-36160E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79011-36080E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79013-36030E4 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36050E3 |
BB42..LHD..SRF;HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79015-36070 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU |
1 | ||
| 79015-36071 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) |
1 | ||
| 79036-36011 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79017-36090 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU |
1 | ||
| 79017-36070 |
BB42..LHD..SRF;HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36070 |
BB42,RZB40..WOC..GCC HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79037-36020 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) |
1 | ||
| 79037-36010 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79037-36020 |
BB42,RZB40..WOC..GCC HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79031-36060E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79031-36050E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79031-36080E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79031-36100E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79013-36030E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79015-36070 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79015-36081 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79036-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79017-36070 |
BB42,58,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79017-36090 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79017-36070 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79037-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79037-36020 |
RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79011-36100E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79011-36160E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79011-36080E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79013-36030E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79015-36071 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79015-36070 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79076 - PAD SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79036-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79017-36070 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79017-36070 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79037-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT & W(2-POINT PASSENGERS SEAT BELT) |
1 | ||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79037-36020 |
RZB40..WOC..GCC;RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79037-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79201-36040E0 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79201-36100E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79104-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
RZB40..WOC..GCC;BB42,RZB40..22S..GEN W(ASSISTANTS SEAT BELT & BOTTLE OPENER) |
1 | ||
| 79104-36030 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-36020E0 |
BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 79105-36022C0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F BLACK,TRIM4# |
1 | ||
| 79115 - PLATE, NO.1 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,HZB50,RZB40,50..LHD..(20S,22S,26S,30S) W(FRONT SEAT BELT = 3POINT) |
1 | ||
| 79115-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN W(FRONT SEAT BELT = 3POINT) |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-36040E2 |
BB42,HZB50,RZB40,50..STD..GCC ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79120-36110E1 |
BB42,HZB50,RZB40,50..STD..GCC ***,GREIGE,TRIM4# |
1 | ||
| 79120-36250E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104 & W(SEPARATE TYPE HEADREST),GREIGE,TRIM4# |
1 | ||
| 79120-36210E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-36030E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79101-36050E0 |
BB42,58,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 79101-36050E0 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) GREIGE,TRIM4# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-36020E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79104-36030 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79104-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79103-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79103-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36021 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79205-36020E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79205-36020C0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F BLACK,TRIM4# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79505-36010E0 |
BB42..LHD..SRF;HZB50,RZB40,50..LHD..CBU SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010C0 |
BB42..WC..GCC;BB42..LHD..HRF..WOC;BB42..LHD..SRF..GEN;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C OR TYPE D-*104,BLACK,TRIM4# |
1 | ||
| 79215A - PLATE, NO.2 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-36040E1 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79220-36030E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79120-36140E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79120-36180E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-36100E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79230-36220E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79330-36020E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79230-36210E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79140-36030E2 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79250-36110E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79302 - FRAME SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79202-36020E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42..22S;BB42..LHD..SRF;BB42..LHD..HRF..WOC;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79103-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79103-36021 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79306-36010E0 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79306-36010C0 |
BB42..WC..GCC;BB42..LHD..HRF..WOC;BB42..LHD..SRF..GEN;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F W(BOTTLE OPENER),BLACK,TRIM4# |
1 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79230-36100E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79330-36020E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79230-36220E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79230-36210E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79250-36110E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79401 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79201-36040E0 |
RZB40..26S;BB42..LHD..SRF;BB42,HZB50,RZB50..LHD..(22S,30S) GREIGE,TRIM4# |
1 | ||
| 79201-36040E0 |
BB42..LHD..SRF;BB42..LHD..HRF..WOC;BB50,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79402 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79202-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79403A - FRAME SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79104-36010 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU |
1 | ||
| 79104-36030 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79404 - FRAME SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79103-36021 |
BB42,RZB40..WOC..GCC HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79406-36010E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79406-36010C0 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C OR TYPE D-*104,BLACK,TRIM4# |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79306-36010E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79306-36010C0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) BLACK,TRIM4# |
1 | ||
| 79415A - PLATE, NO.4 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79120-36090E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79120-36100E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79120-36280E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79120-36240E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79230-36100E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79330-36020E1 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79230-36210E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79230-36220E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79140-36030E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79250-36110E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79601 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79201-36050E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79201-36050E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79602 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79202-36020E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79603 - FRAME SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79104-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79104-36030 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79604 - FRAME SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79103-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79103-36020 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT & W(2-POINT PASSENGERS SEAT BELT) |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79103-36021 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79643-36030E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4#,FRONT |
1 | ||
| 79643-36030C0 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50,RZB40,50..LHD..(26S,30S) NO.6 SEAT LEG TYPE,BLACK,TRIM4#,FRONT |
1 | ||
| 79644-36010C0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) BLACK,TRIM4#,REAR |
1 | ||
| 79644-36010C0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) BLACK,TRIM4# |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79606-36010E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79606-36010C0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) BLACK,TRIM4# |
1 | ||
| 79615 - PLATE, NO.6 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79115-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79620-36030E1 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79620-36040E1 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79120-36380E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79120-36400E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79230-36100E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79330-36020E1 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79230-36220E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79230-36210E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79140-36030E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79250-36110E2 |
BB42..LHD..26S;HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
HZB50..4FC;BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79701 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79701-36050E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79201-36040E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79702 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79702-36060E0 |
BB42,58,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79703 - FRAME SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79104-36030 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79104-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79704 - FRAME SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79103-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79103-36021 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79505-36010E0 |
BB42..GCC,SCO;BB42..LHD..26S..GEN;HZB50..LHD..STD..DSL;HZB50..RHD..(20S,22S);BB40,RZB40,50..19S,26S,30S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010C0 |
HZB50..DX;RZB40..WOC..GCC SEAT = TYPE A OR TYPE C OR TYPE D-*104,BLACK,TRIM4# |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79306-36010E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79306-36010C0 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F W(BOTTLE OPENER),BLACK,TRIM4# |
1 | ||
| 79715 - PLATE, NO.7 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79115-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79720-36010E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79720-36020E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79120-36280E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79120-36240E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79730-36170E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79140-36030E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79250-36110E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
(9301-1501)
LAST ROW SEAT(NO.8)=FOLDING BENCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-36070E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79081-36120E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79081-36080E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79081-36140E0 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36050E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36040E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36150E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79083-36042E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36030E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79084-36040E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36032E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79084-36140E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36020 |
BB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN) |
1 | ||
| 79085-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79087-36030 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79087-36030 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79087-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36030 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79088-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79088-36030 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79088-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-36051E0 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79803-36010 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79803-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79803-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36010 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79804-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79804-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79804-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79805A - LEG SUB-ASSY, FOLD SEAT, FRONT | ||||
| 79805-36010E0 |
BB42,HZB50,RZB40,50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 79805-36010C0 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F BLACK,TRIM4# |
1 | ||
| 79820A - CUSHION ASSY, NO.8 SEAT | ||||
| 79820-36040E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT & W(PASSENGERS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79820-36170E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79820-36110E2 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79820-36050E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,W(PASSENGER SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79820-36320E0 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79820-36221E2 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79820-36251E3 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79820-36230E0 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36020E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36100E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79840-36160E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79840-36102E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36040E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36120E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79850-36122E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79850-36190E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79860 - SPRING ASSY, NO.8 SEAT CUSHION | ||||
| 79860-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79860-36010 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
4 | ||
| 79915-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
4 | ||
| Common parts | ||||
| 64778-36020 | ||||
| 72969-60010 | ||||
| 78967-36020 | ||||
| 82711-12120 | ||||
| 90109-08277 | ||||
| 90119-10493 | ||||
| 90159-60035 | ||||
| 90159-60058 | ||||
| 90159-60589 | ||||
| 90167-35014 | ||||
| 90168-40043 | ||||
| 90179-08200 | ||||
| 90205-07002 | ||||
| 90206-10009 | ||||
| 90206-12003 | ||||
| 90206-15002 | ||||
| 90387-10070 | ||||
| 90389-10031 | ||||
| 90506-08035 | ||||
| 90506-10038 | ||||
| 91552-81025 | ||||
| 91631-60825 | ||||
| 91641-80835 | ||||
| 91651-60835 | ||||
| 91651-61020 | ||||
| 91651-61022 | ||||
| 91651-61030 | ||||
ILLUST NO. 2 OF 2(9301-1501)BB42,50,58,HZB50,RZB40,50,TRB40,50..LHD
REAR SEAT NO.1-NO.8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-36060E3 |
BB42,HZB50,RZB40,50..STD..GCC HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79011-36050E3 |
BB42,HZB50,RZB40,50..STD..GCC GREIGE,TRIM4# |
1 | ||
| 79011-36290E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F W(3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79011-36300E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE C-*104 & W/O(RECLINING SEAT),GREIGE,TRIM4# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-36050E3 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,HZB50..WC..GCC;BB42,HZB50..LHD..WOC;BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79015A - PAD SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79015-36020 |
BB42,HZB50,RZB40,50..STD..GCC |
1 | ||
| 79015-36110 |
RZB40..WOC..GCC;RZB40..22S..GEN W(ASSISTANTS SEAT BELT) |
1 | ||
| 79017A - PAD SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79017-36090 |
RZB40..22S..GEN;BB42,RZB40..WOC..GCC W(ASSISTANTS SEAT BELT & DRIVERS SEAT BELT & PASSENGERS SEAT BELT) |
1 | ||
| 79017-36090 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79017-36070 |
HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36070 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79011-36100E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79011-36120E3 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79011-36160E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79011-36080E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79012-36460E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79013-36050E3 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
HZB50..4FC;BB42,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
HZB50..4FC;BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79015-36070 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79015-36071 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79036-36011 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-36070 |
BB42..WC..GCC;BB42..LHD..22S;BB42..LHD..WOC;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
HZB50..4FC;BB42,HZB50,RZB40,50..LHD..STD..CBU..5F |
1 | ||
| 79017-36070 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,RZB40..WOC..GCC;BB42,HZB50,RZB40..22S..GEN |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79037-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79037-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79037-36020 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79036A - PAD, SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79036-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79038A - PAD SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79037-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79037-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79037-36020 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79011-36100E4 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79011-36120E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79011-36160E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79011-36080E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79013-36030E4 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36050E3 |
BB42..LHD..SRF;HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79015-36070 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU |
1 | ||
| 79015-36071 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) |
1 | ||
| 79036-36011 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79017-36090 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU |
1 | ||
| 79017-36070 |
BB42..LHD..SRF;HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36070 |
BB42,RZB40..WOC..GCC HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79037-36020 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) |
1 | ||
| 79037-36010 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79037-36020 |
BB42,RZB40..WOC..GCC HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79031-36060E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79031-36050E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79031-36080E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79031-36100E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79013-36030E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79015-36070 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79015-36081 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79036-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79017-36070 |
BB42,58,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79017-36090 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79017-36070 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79037-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79037-36020 |
RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79011-36100E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79011-36160E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79011-36080E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79012-36050E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79012-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79012-36450E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79013-36030E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36030E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79013-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79014-36070E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79023-36010E4 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79014-36110E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79015-36071 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79015-36070 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79076 - PAD SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79036-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79036-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79017-36070 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79017-36070 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36090 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79037-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT & W(2-POINT PASSENGERS SEAT BELT) |
1 | ||
| 79037-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79037-36020 |
RZB40..WOC..GCC;RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79037-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36050E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36040E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36150E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79083-36042E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36030E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79084-36040E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36032E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79084-36140E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79087-36030 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79087-36030 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79087-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36030 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79088-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79088-36030 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79088-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79201-36040E0 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79201-36100E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79104-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
RZB40..WOC..GCC;BB42,RZB40..22S..GEN W(ASSISTANTS SEAT BELT & BOTTLE OPENER) |
1 | ||
| 79104-36030 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79105 - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-36020E0 |
BB42,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 79105-36022C0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F BLACK,TRIM4# |
1 | ||
| 79115 - PLATE, NO.1 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,HZB50,RZB40,50..LHD..(20S,22S,26S,30S) W(FRONT SEAT BELT = 3POINT) |
1 | ||
| 79115-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN W(FRONT SEAT BELT = 3POINT) |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-36040E2 |
BB42,HZB50,RZB40,50..STD..GCC ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79120-36110E1 |
BB42,HZB50,RZB40,50..STD..GCC ***,GREIGE,TRIM4# |
1 | ||
| 79120-36250E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104 & W(SEPARATE TYPE HEADREST),GREIGE,TRIM4# |
1 | ||
| 79120-36210E0 |
BB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-36030E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79101-36050E0 |
BB42,58,HZB50,RZB40,50..LHD..CBU GREIGE,TRIM4# |
1 | ||
| 79101-36050E0 |
BB42,5#,HZB50,RZB40,50..LHD..(17S,20S,22S,23S,26S,30S) GREIGE,TRIM4# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-36020E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79104-36030 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79104-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79103-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79103-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36021 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79205-36020E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79205-36020C0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F BLACK,TRIM4# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79505-36010E0 |
BB42..LHD..SRF;HZB50,RZB40,50..LHD..CBU SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010C0 |
BB42..WC..GCC;BB42..LHD..HRF..WOC;BB42..LHD..SRF..GEN;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F SEAT = TYPE C OR TYPE D-*104,BLACK,TRIM4# |
1 | ||
| 79215A - PLATE, NO.2 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,58,HZB50,RZB40,50..LHD..CBU |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-36040E1 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79220-36030E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79120-36140E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79120-36180E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-36100E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79230-36220E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79330-36020E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79230-36210E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79140-36030E2 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79250-36110E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79302 - FRAME SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79202-36020E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42..22S;BB42..LHD..SRF;BB42..LHD..HRF..WOC;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79103-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79103-36021 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79306 - LEG SUB ASSY, NO.3 SEAT, LH | ||||
| 79306-36010E0 |
BB42..LHD..SRF;BB42..LHD..22S;HZB50,RZB40,50..LHD..STD..CBU W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79306-36010C0 |
BB42..WC..GCC;BB42..LHD..HRF..WOC;BB42..LHD..SRF..GEN;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F W(BOTTLE OPENER),BLACK,TRIM4# |
1 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79230-36100E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79330-36020E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79230-36220E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79230-36210E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79250-36110E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79401 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79201-36040E0 |
RZB40..26S;BB42..LHD..SRF;BB42,HZB50,RZB50..LHD..(22S,30S) GREIGE,TRIM4# |
1 | ||
| 79201-36040E0 |
BB42..LHD..SRF;BB42..LHD..HRF..WOC;BB50,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79402 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79202-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79403A - FRAME SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79104-36010 |
RZB40..26S;BB42,HZB50,RZB50..LHD..STD..CBU |
1 | ||
| 79104-36030 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79404 - FRAME SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79103-36021 |
BB42,RZB40..WOC..GCC HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79406-36010E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79406-36010C0 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50,RZB40,50..LHD..(26S,30S) SEAT = TYPE C OR TYPE D-*104,BLACK,TRIM4# |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79306-36010E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79306-36010C0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) BLACK,TRIM4# |
1 | ||
| 79415A - PLATE, NO.4 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79120-36090E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79120-36100E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79120-36280E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79120-36240E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79230-36100E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79330-36020E1 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79230-36210E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79230-36220E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79140-36030E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79250-36110E2 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79601 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79201-36050E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79201-36050E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79602 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79202-36020E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79603 - FRAME SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79104-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79104-36030 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79604 - FRAME SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79103-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79103-36020 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) HI-BACK HALF KNIT REAR SEAT & W(2-POINT PASSENGERS SEAT BELT) |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79103-36021 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79643-36030E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4#,FRONT |
1 | ||
| 79643-36030C0 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50,RZB40,50..LHD..(26S,30S) NO.6 SEAT LEG TYPE,BLACK,TRIM4#,FRONT |
1 | ||
| 79644-36010C0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) BLACK,TRIM4#,REAR |
1 | ||
| 79644-36010C0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) BLACK,TRIM4# |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79606-36010E0 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) GREIGE,TRIM4# |
1 | ||
| 79606-36010C0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) BLACK,TRIM4# |
1 | ||
| 79615 - PLATE, NO.6 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79115-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79620-36030E1 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79620-36040E1 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79120-36380E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S)..(GCC,GEN) ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79120-36400E0 |
BB42,50,HZB50,RZB40,50..LHD..(26S,30S) ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79230-36100E3 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,GREIGE,TRIM4# |
1 | ||
| 79330-36020E1 |
BB42,HZB50,RZB40,50..LHD..(26S,30S) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79230-36220E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79230-36210E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79140-36030E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79250-36110E2 |
BB42..LHD..26S;HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
HZB50..4FC;BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79701 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79701-36050E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79201-36040E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79702 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79702-36060E0 |
BB42,58,HZB50,RZB40,50..LHD..STD..CBU GREIGE,TRIM4# |
1 | ||
| 79202-36020E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79703 - FRAME SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79104-36030 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79104-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79104-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79104-36030 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79704 - FRAME SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79103-36020 |
BB42,HZB50,RZB40,50..LHD..STD..CBU HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79103-36021 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79103-36011 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79505-36010E0 |
BB42..GCC,SCO;BB42..LHD..26S..GEN;HZB50..LHD..STD..DSL;HZB50..RHD..(20S,22S);BB40,RZB40,50..19S,26S,30S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010C0 |
HZB50..DX;RZB40..WOC..GCC SEAT = TYPE A OR TYPE C OR TYPE D-*104,BLACK,TRIM4# |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79306-36010E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79306-36010C0 |
BB42..WC..GCC;BB42..LHD..26S..GEN;BB50,HZB50,RZB40,50..LHD..STD..CBU..5F W(BOTTLE OPENER),BLACK,TRIM4# |
1 | ||
| 79715 - PLATE, NO.7 SEAT CUSHION HINGE, NO.1 RH | ||||
| 79115-36010 |
BB42,HZB50,RZB40,50..LHD..STD..CBU |
1 | ||
| 79115-36010 |
BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79720-36010E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79720-36020E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79120-36280E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79120-36240E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79730-36170E1 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79140-36030E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79140-36020E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79140-36150E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79140-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(2-POINT REAR SEATBELT),GREIGE,TRIM4# |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79250-36090E4 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,GREIGE,TRIM4# |
1 | ||
| 79250-36110E2 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79240-36130E0 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79240-36190E1 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79803-36010 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79803-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79803-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36010 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79804-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79804-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79804-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36020E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36100E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79840-36160E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79840-36102E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36040E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36120E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79850-36122E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79850-36190E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
(9301-1501)
LAST ROW SEAT(NO.8)=FIX BENCH TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-36070E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79081-36120E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79081-36080E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79081-36140E0 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36050E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36040E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36150E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79083-36042E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36030E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79084-36040E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36032E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79084-36140E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36020 |
BB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN) |
1 | ||
| 79085-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79087-36030 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79087-36030 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79087-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36030 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79088-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79088-36030 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79088-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-36051E0 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79803-36010 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79803-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79803-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36010 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79804-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79804-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN W(2-POINT REAR SEATBELT) |
1 | ||
| 79804-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79805A - LEG SUB-ASSY, FOLD SEAT, FRONT | ||||
| 79805-36010E0 |
BB42,HZB50,RZB40,50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 79805-36010C0 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F BLACK,TRIM4# |
1 | ||
| 79820A - CUSHION ASSY, NO.8 SEAT | ||||
| 79820-36040E0 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,HI-BACK HALF KNIT REAR SEAT & W(PASSENGERS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79820-36170E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79820-36110E2 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79820-36050E3 |
BB42,HZB50,RZB40,50..LHD..STD..CBU ***,W(PASSENGER SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79820-36320E0 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79820-36221E2 |
BB42,50,HZB50,RZB40,50..LHD..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104 & W(SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79820-36251E3 |
BB42,50,HZB50,RZB40,50..LHD..STD..CBU..5F ***,SEAT = TYPE C-*104 & W(SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79820-36230E0 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36020E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36100E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79840-36160E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79840-36102E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36040E0 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,HI-BACK HALF KNIT REAR SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36120E3 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79850-36122E3 |
BB42,50,HZB50,RZB40,50..STD..(GCC,GEN)..CBU..5F ***,SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79850-36190E1 |
BB42,50,HZB50,RZB40,50..STD..(CHI,GCC,GEN)..CBU..5F ***,SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79860 - SPRING ASSY, NO.8 SEAT CUSHION | ||||
| 79860-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79860-36010 |
BB42,HZB50,RZB40,50..STD..(GCC,GEN) |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
4 | ||
| 79915-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
4 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
4 | ||
| 79915-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
4 | ||
| 79974 - BRACKET, SEAT BACK ASSIST, RH | ||||
| 79974-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
2 | ||
| 79974-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79974 - BRACKET, SEAT BACK ASSIST, RH | ||||
| 79974-36020 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
2 | ||
| 79974-36020 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79984 - BRACKET, SEAT BACK ASSIST, LH | ||||
| 79984-36010 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
2 | ||
| 79984-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79984 - BRACKET, SEAT BACK ASSIST, LH | ||||
| 79984-36010 |
HZB50..30S;BB42,RZB40,50..STD..(GCC,GEN) |
2 | ||
| 79984-36010 |
HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| Common parts | ||||
| 90109-08227 | ||||
| 90159-60589 | ||||
| 90167-35014 | ||||
| 90179-10033 | ||||
| 91622-B1025 | ||||
| 91641-80835 | ||||
| 91651-60835 | ||||
| 91651-61020 | ||||
| 91651-61030 | ||||
| 91673-81022 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
