RB20R-MDZER (1982)
Toyota Coaster
Production
May 1982
-
Oct 1986
Engine
22R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

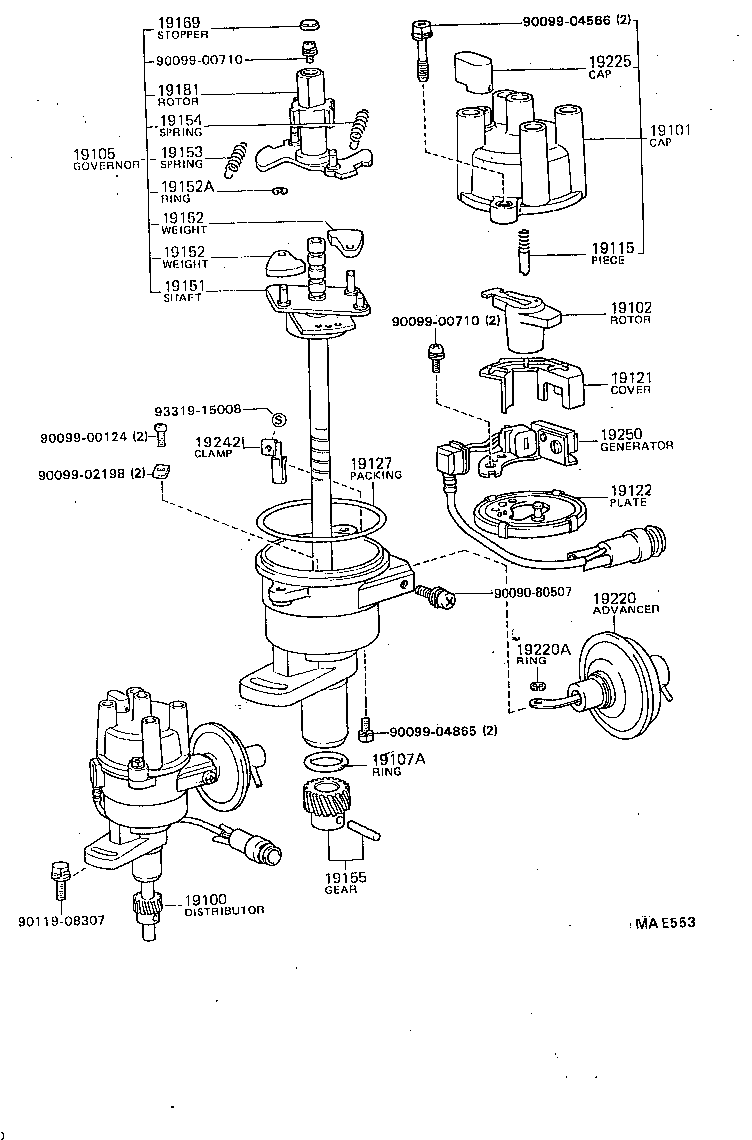

(8205-8408)22R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-35110 |
22R..RB20 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-38210 |
22R..RB20 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-15021 |
22R..RB20 |
1 | ||
| 19102-16060 |
22R..RB20 |
1 | ||
| 19102-35160 |
22R..RB20 |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-35081 |
22R..RB20 |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-37081 |
22R..RB20 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-35030 |
22R..RB20 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-35030 |
22R..RB20 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
22R..RB20 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-35081 |
22R..RB20 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-35081 |
22R..RB20 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-38210 |
22R..RB20 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-28040 |
22R..RB20 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-35110 |
22R..RB20 |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-38011 |
22R..RB20 |
1 | ||
| Common parts | ||||
| 90090-80507 | None epc.PartDetail.None | |||
| 90099-00124 | None epc.PartDetail.None | |||
| 90099-00710 | None epc.PartDetail.None | |||
| 90099-02198 | None epc.PartDetail.None | |||
| 90099-04566 | None epc.PartDetail.None | |||
| 90099-04865 | None epc.PartDetail.None | |||
| 90119-08307 | None epc.PartDetail.None | |||
| 93319-15008 | None epc.PartDetail.None | |||

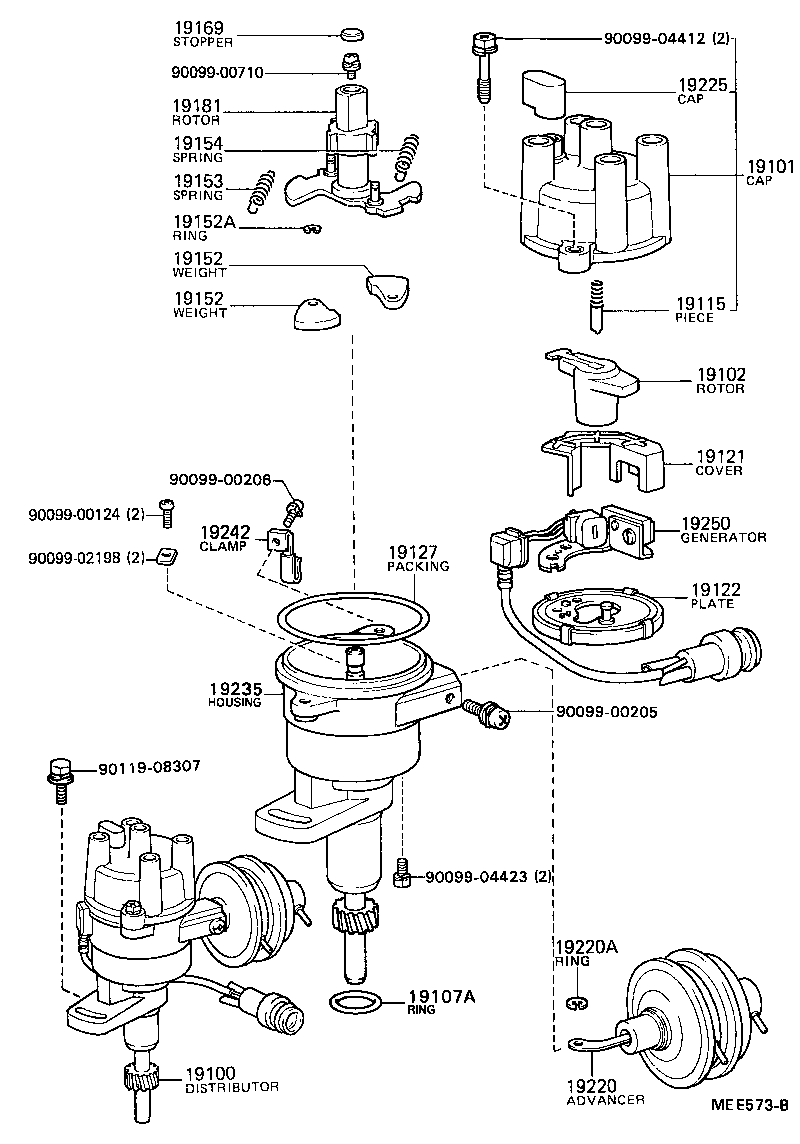

(8408- )22R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-35110 |
22R..RB20 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-38210 |
22R..RB20 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-15021 |
22R..RB20 |
1 | ||
| 19102-16060 |
22R..RB20 |
1 | ||
| 19102-35160 |
22R..RB20 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-35030 |
22R..RB20 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-35030 |
22R..RB20 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07109 |
22R..RB20 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-35081 |
22R..RB20 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-35081 |
22R..RB20 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-28040 |
22R..RB20 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-35110 |
22R..RB20 |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-38011 |
22R..RB20 |
1 | ||
| Common parts | ||||
| 90099-00124 | None epc.PartDetail.None | |||
| 90099-00205 | None epc.PartDetail.None | |||
| 90099-00206 | None epc.PartDetail.None | |||
| 90099-00710 | None epc.PartDetail.None | |||
| 90099-02198 | None epc.PartDetail.None | |||
| 90099-04412 | None epc.PartDetail.None | |||
| 90099-04423 | None epc.PartDetail.None | |||
| 90119-08307 | None epc.PartDetail.None | |||
