RB20R-MDZER (1982)
Toyota Coaster
Production
May 1982
-
Oct 1986
Engine
22R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8205- )FB30,RB20

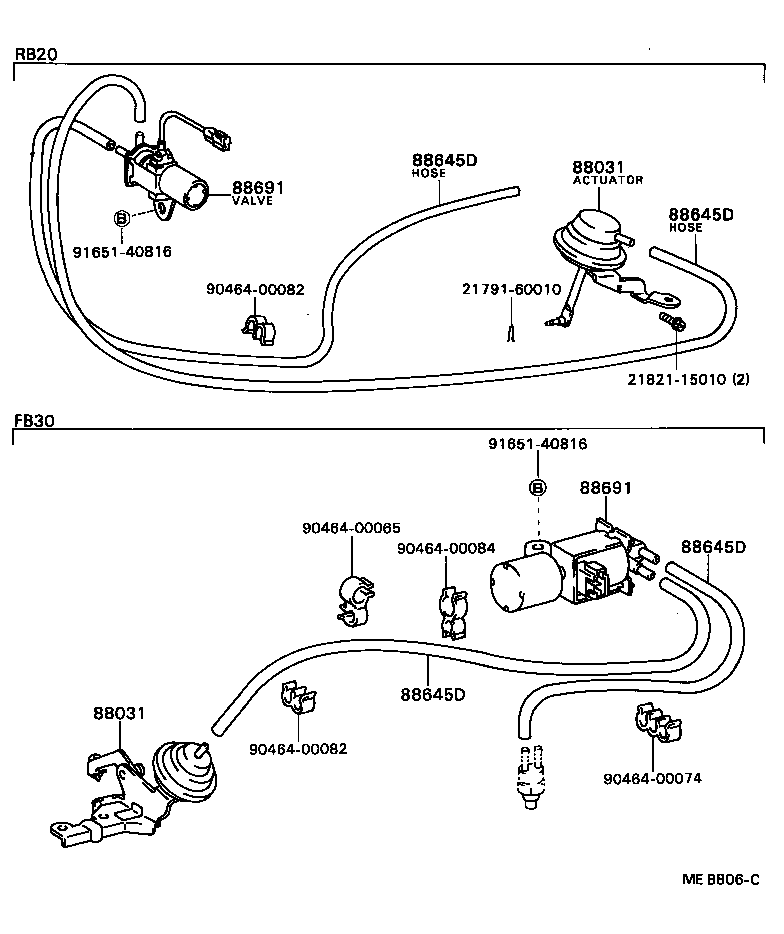

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-36012 |
RB20..WC..GEN |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-36012 |
RB20..WC..GEN |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10030 |
RB20..WC..(GEN,ME) *H,L=280,MARK=#0 |
1 | ||
| 95411-19960 |
RB20..WC..(GEN,ME) *H,L=330,MARK=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10030 |
RB20..WC..(GEN,ME) *H,L=280,MARK=#0 |
1 | ||
| 95411-19960 |
RB20..WC..(GEN,ME) *H,L=330,MARK=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10030 |
RB20..WC..(GEN,ME) *H,L=280,MARK=#0 |
1 | ||
| 95411-19960 |
RB20..WC..(GEN,ME) *H,L=330,MARK=#* |
1 | ||
| 88645D - HOSE (FOR IDLE UP DEVICE) | ||||
| 95411-10030 |
RB20..WC..(GEN,ME) *H,L=280,MARK=#0 |
1 | ||
| 95411-19960 |
RB20..WC..(GEN,ME) *H,L=330,MARK=#* |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88691-95A00 |
BB2#,FB30,HB30,HZB30,RB20..WC |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88691-95A00 |
BB2#,FB30,HB30,HZB30,RB20..WC |
1 | ||
| Common parts | ||||
| 21791-60010 | ||||
| 21821-15010 | ||||
| 90464-00065 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00084 | ||||
| 91651-40816 | ||||
