RB20R-MDZER (1982)
Toyota Coaster
Production
May 1982
-
Oct 1986
Engine
22R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

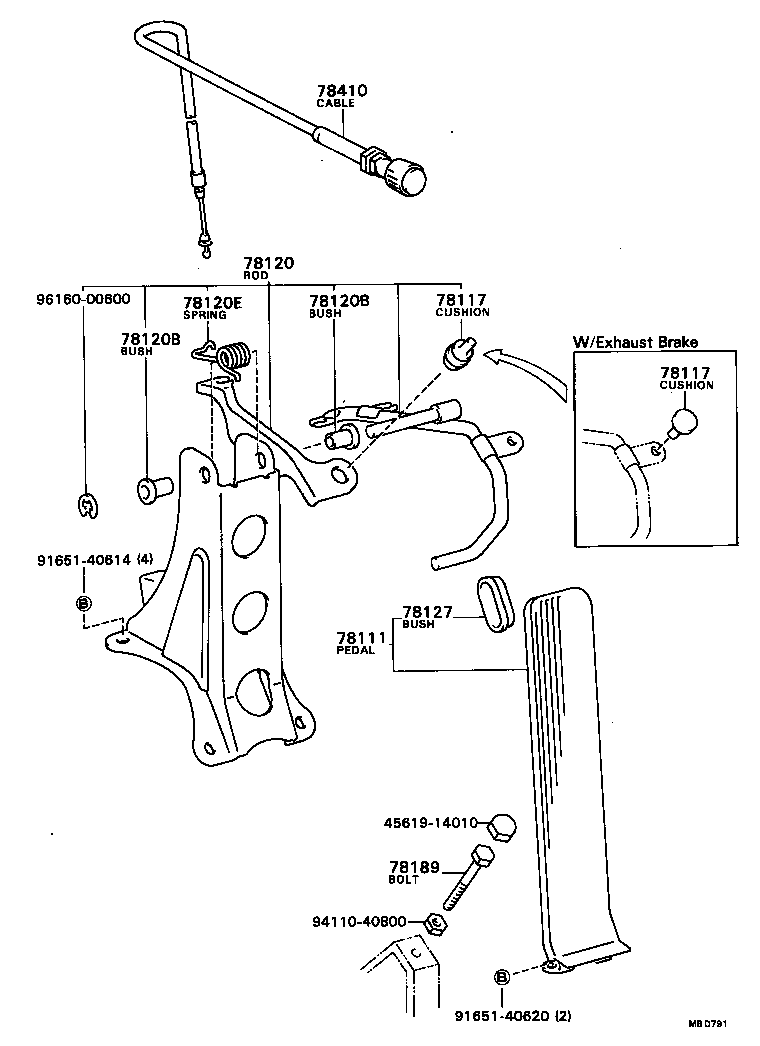

ILLUST NO. 1 OF 2(8205- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78111 - PEDAL, ACCELERATOR | ||||
| 78010-90B00 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-11001 |
BB20,30,RB20 |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-11001 |
BB20,30,RB20 |
1 | ||
| 78120 - ROD, ACCELERATOR LINK | ||||
| 78120-90B03 |
BB20,RB20..RHD..DLX;BB20,RB20..WOC..ARL W/ACCELERATOR INTER LOCK |
1 | ||
| 78120-90B00 |
BB2#,HB30,HZB30,RB20..RHD..(DLX,STD)..GEN |
1 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 90386-08155 |
BB2#,30,FB30,HB30,HDB30,HZB30,RB20 |
2 | ||
| 78120B - BUSH (FOR ACCELERATOR LINK ROD) | ||||
| 90386-08155 |
BB2#,30,FB30,HB30,HDB30,HZB30,RB20 |
2 | ||
| 78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-26042 |
BB2#,30,HB30,HDB30,HZB30,RB20..RHD |
1 | ||
| 78127 - BUSH, ACCELERATOR PEDAL, NO.2 | ||||
| 78127-20010 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 91131-40865 |
BB2#,FB30,HB30,HZB30,RB20..(DLX,STD)..(GEN,IRQ,ME) |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-90B00 |
BB2#,30,HB3#,HDB30,HZB30,RB20..RHD |
1 | ||
| Common parts | ||||
| 45619-14010 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 94110-40800 | ||||
| 96160-00600 | ||||

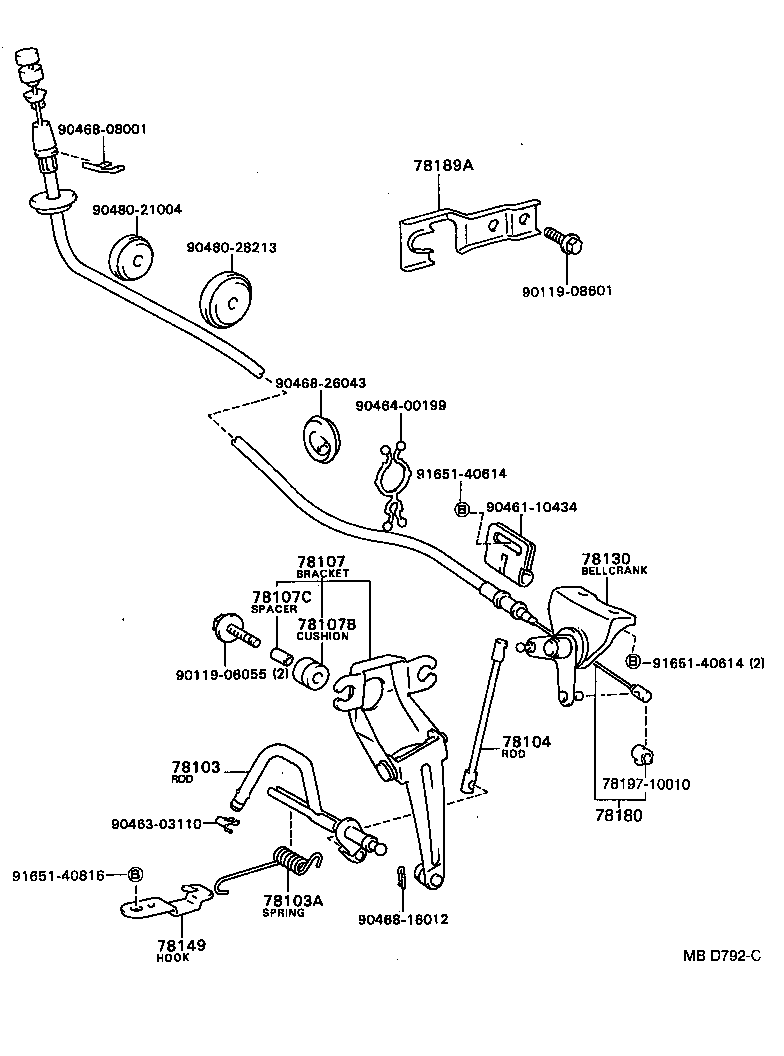

ILLUST NO. 2 OF 2(8205- )RB20..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78103-90B00 |
HZB30,RB20 |
1 | ||
| 78103A - SPRING (FOR ACCELERATOR CONNECTING ROD, NO.1) | ||||
| 90508-14407 |
RB20 |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-90B00 |
RB20 |
1 | ||
| 78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD | ||||
| 78170-90B00 |
RB20 |
1 | ||
| 78107B - CUSHION (FOR ACCELERATOR TORQUE ROD BRACKET) | ||||
| 90540-09001 |
RB20 |
2 | ||
| 78107C - SPACER (FOR ACCELERATOR TORQUE ROD BRACKET) | ||||
| 90560-06238 |
RB20 |
2 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78160-90B00 |
RB20 |
1 | ||
| 78149 - HOOK, ACCELERATOR TORQUE ROD SPRING | ||||
| 78149-20060 |
RB20 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-90B02 |
RB20..RHD |
1 | ||
| Common parts | ||||
| 78197-10010 | ||||
| 90119-06055 | ||||
| 90119-08601 | ||||
| 90461-10434 | ||||
| 90463-03110 | ||||
| 90464-00199 | ||||
| 90468-08001 | ||||
| 90468-16012 | ||||
| 90468-26043 | ||||
| 90480-21004 | ||||
| 90480-28213 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
