RB20R-MDZER (1982)
Toyota Coaster
Production
May 1982
-
Oct 1986
Engine
22R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8205- )

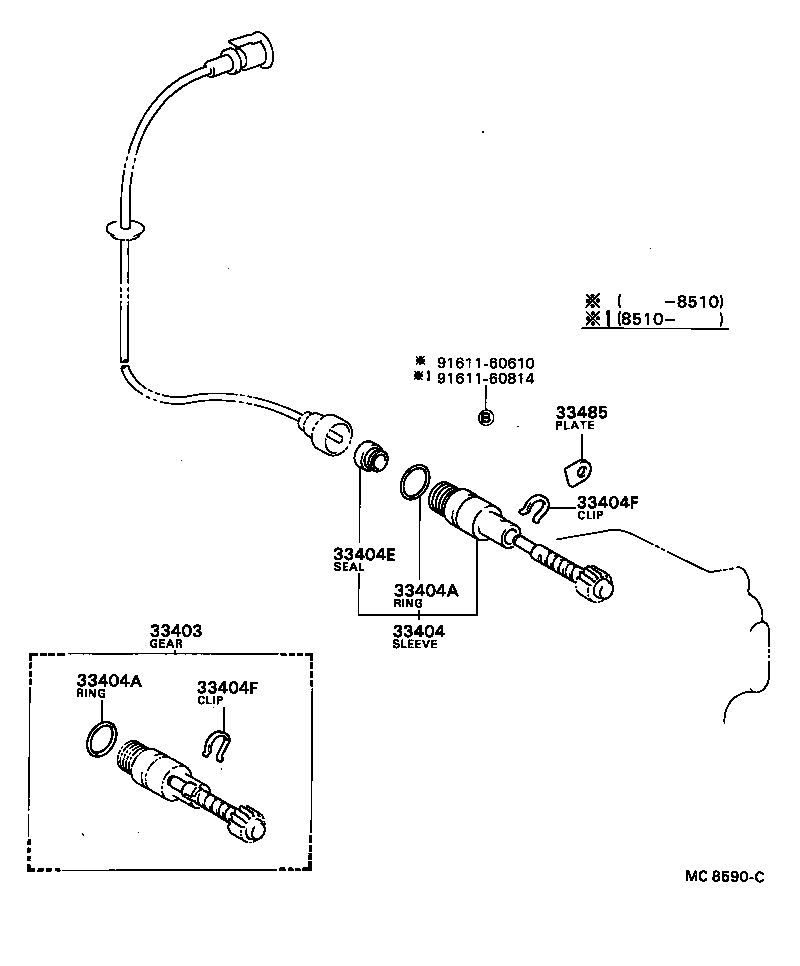

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33482-39105 |
RB20 N=17,MARK 17:4,N=17 |
1 | ||
| 33482-39105 |
RB20..DLX..WC N=17,MARK 17:4,N=17 |
1 | ||
| 33482-39095 |
RB20..DLX..WC..GEN N=16,MARK 16:4,N=16,W/700-16 OR 700R-16 |
1 | ||
| 33482-39105 |
RB20..GEN N=17,MARK 17:4,N=17 |
1 | ||
| 33482-39255 |
RB20..RHD..GEN;RB20..WOC..ARL N=25,MARK 25:6,N=25 |
1 | ||
| 33482-39245 |
RB20..GEN,ME N=24,MARK 24:6,N=24 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-35010 |
BB20,30,RB20 |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20 |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-36010 |
BB20,30,RB20 |
1 | ||
| Common parts | ||||
| 91611-60610 | ||||
| 91611-60814 | ||||
