RB20R-MDZER (1982)
Toyota Coaster
ILLUST NO. 1 OF 2(8205- )BB2#,3#,RB20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36090 |
RB20 |
1 | ||
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36090 |
RB20 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36050 |
RB20 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36050 |
RB20 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36050 |
RB20 |
1 | ||
| 31122 - GASKET, CLUTCH HOUSING COVER | ||||
| 31122-36010 |
RB20 |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-22030 |
RB20 |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-22030 |
RB20 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-22021 |
RB20 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-22021 |
RB20 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-36023 |
BB20,30,RB20 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-36023 |
BB20,30,RB20 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32106 |
BB20,30,RB20 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32106 |
BB20,30,RB20 |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-36022 |
BB20,30,RB20 |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-36022 |
BB20,30,RB20 |
1 | ||
| Common parts | ||||
| 90119-08092 | ||||
| 90119-08332 | ||||
| 90119-12006 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 91619-61235 | ||||
| 91619-61240 | ||||
| 91619-61250 | ||||
| 91619-61255 | ||||
| 91619-61265 | ||||
| 93311-16010 | ||||
| 94611-11200 | ||||

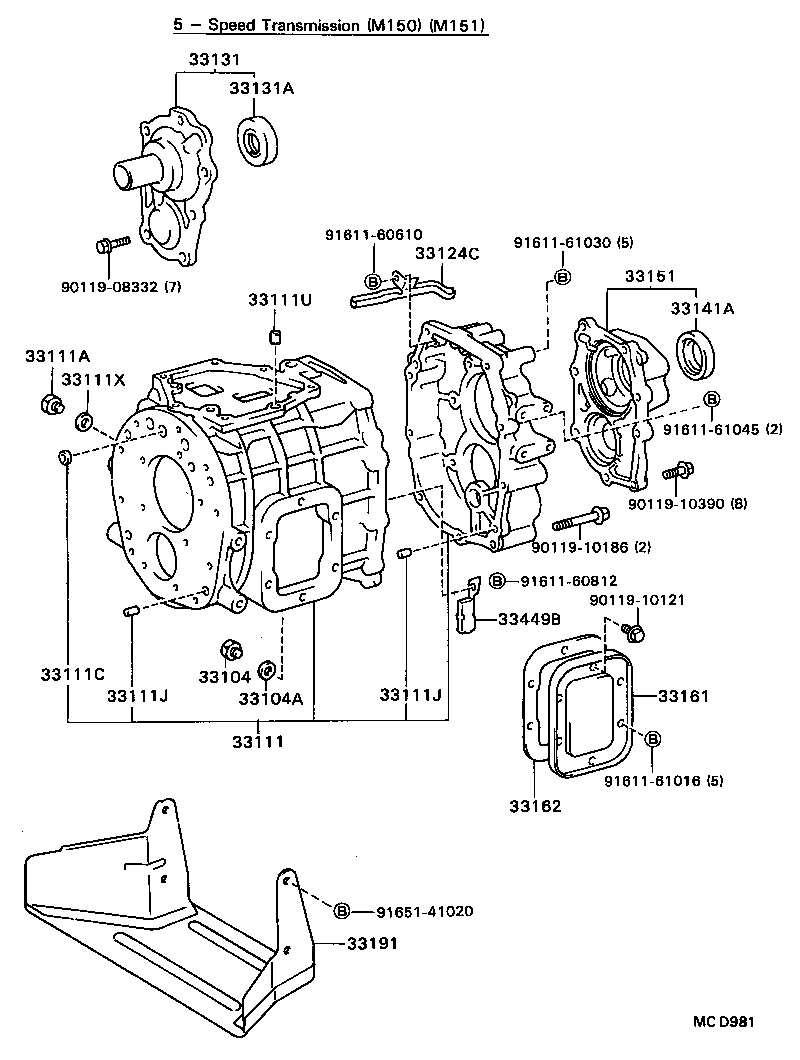

ILLUST NO. 2 OF 2(8205-8510)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
BB20,30,RB20 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
BB20,30,RB20 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
BB20,30,RB20 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
BB20,30,RB20 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-36033 |
BB20,30,RB20..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-36033 |
BB20,30,RB20..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
BB20,RB20 |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
BB20,RB20 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F L=17,OD=12,OD=12,L=17 |
2 | ||
| 90250-12216 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F L=14,OD=12,OD=12,L=14 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F L=17,OD=12,OD=12,L=17 |
2 | ||
| 90250-12216 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F L=14,OD=12,OD=12,L=14 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F L=17,OD=12,OD=12,L=17 |
2 | ||
| 90250-12216 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F L=14,OD=12,OD=12,L=14 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
BB20,30,RB20 |
1 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
BB20,30,RB20 |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-45001 |
BB20,30,RB20 |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-45001 |
BB20,30,RB20 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-36010 |
BB20,30,RB20..5F |
1 | ||
| 33157 - GASKET, TRANSMISSION CASE, NO.2 | ||||
| 33142-36020 |
BB20,30,RB20 |
1 | ||
| 33157 - GASKET, TRANSMISSION CASE, NO.2 | ||||
| 33142-36020 |
BB20,30,RB20 |
1 | ||
| Common parts | ||||
| 90101-12412 | ||||
| 90119-12115 | ||||
| 90119-12116 | ||||
| 91611-60825 | ||||
| 91619-61230 | ||||
| 91619-61245 | ||||
| 91619-61250 | ||||
| 94512-01200 | ||||
ILLUST NO. 2 OF 2(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
BB20,30,RB20 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
BB20,30,RB20 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-36033 |
BB20,30,RB20..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
BB20,RB20 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-16050 |
BB2#,30,RB20 OD=12,L=17 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F L=17,OD=12,OD=12,L=17 |
2 | ||
| 90250-12216 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F L=14,OD=12,OD=12,L=14 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F L=17,OD=12,OD=12,L=17 |
2 | ||
| 90250-12216 |
BB2#,3#,FB30,HB3#,HDB30,HZB30,RB20..5F L=14,OD=12,OD=12,L=14 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
BB20,30,RB20 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-36023 |
BB20,30,RB20 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32106 |
BB20,30,RB20 |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-45001 |
BB20,30,RB20 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-36010 |
BB20,30,RB20..5F |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10121 | ||||
| 90119-10186 | ||||
| 90119-10390 | ||||
| 91611-60610 | ||||
| 91611-60812 | ||||
| 91611-61016 | ||||
| 91611-61030 | ||||
| 91611-61045 | ||||
| 91651-41020 | ||||
