RB20R-MDZER (1982)
Toyota Coaster
Production
May 1982
-
Oct 1986
Engine
22R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

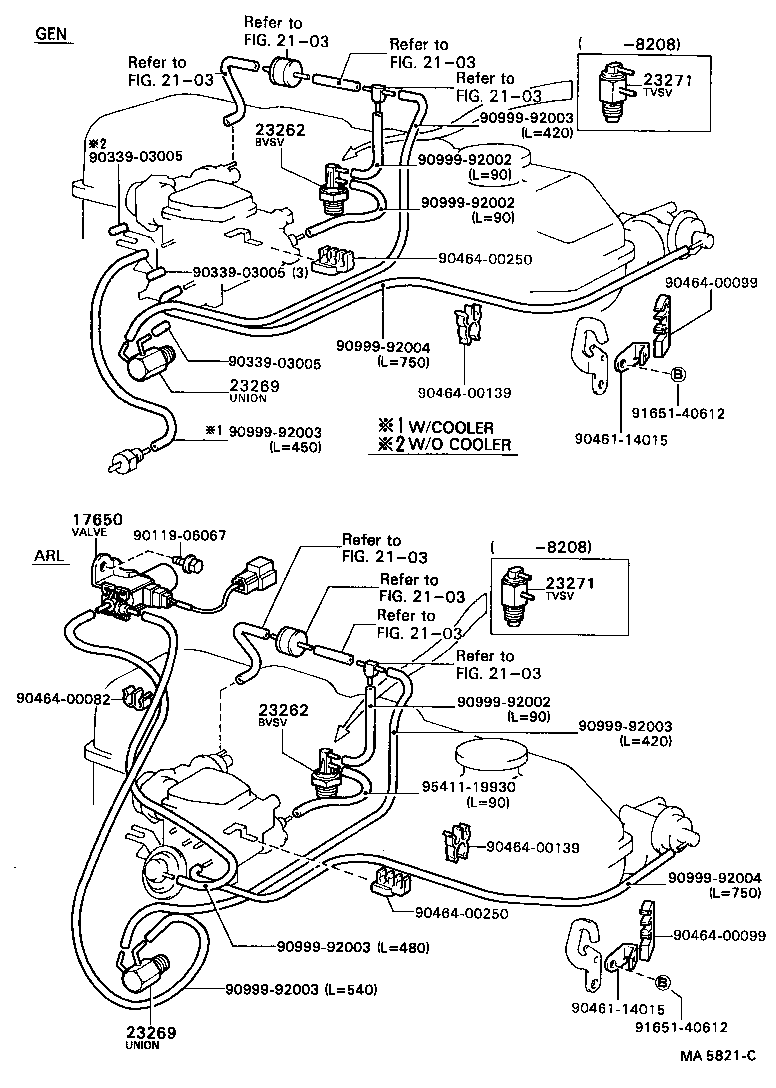

(8205-8408)22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54021 |
22R..RB20 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54021 |
22R..RB20 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02028 |
22R..RB20 |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02028 |
22R..RB20 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90339-03005 | ||||
| 90461-14015 | ||||
| 90464-00082 | ||||
| 90464-00099 | ||||
| 90464-00139 | ||||
| 90464-00250 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 91651-40612 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 2103 | ||||

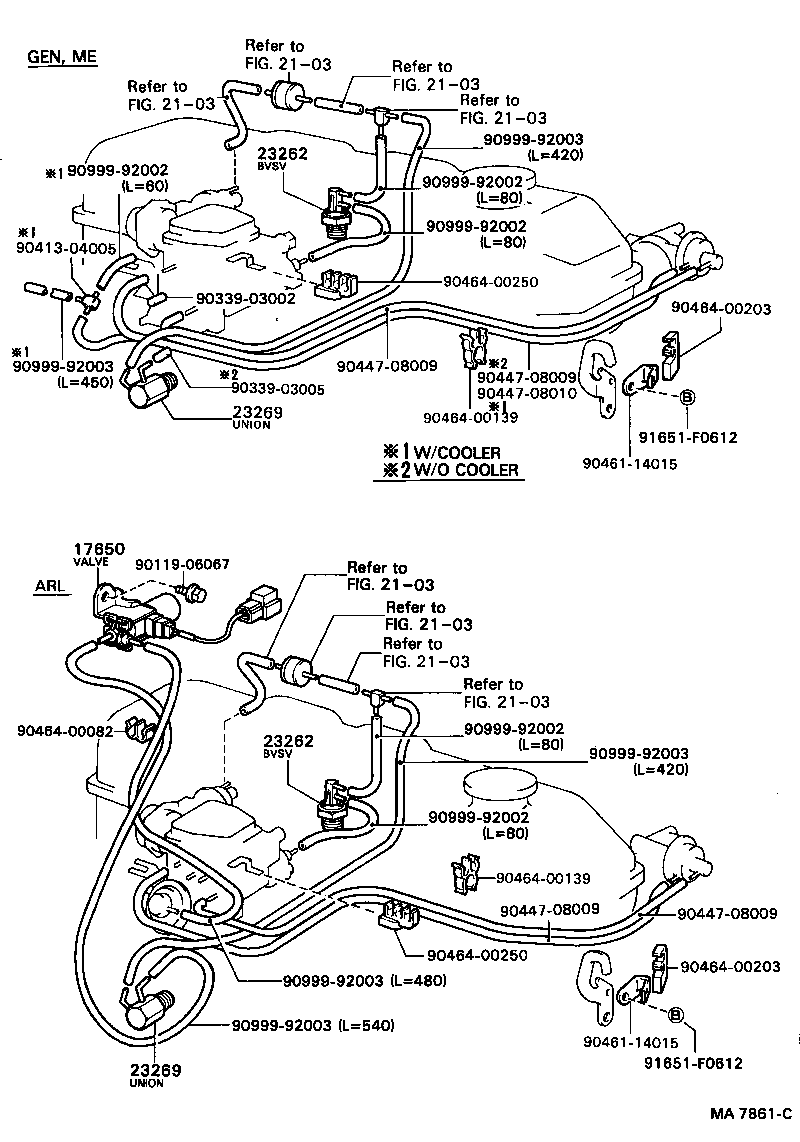

(8408- )22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54021 |
22R..RB20 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54021 |
22R..RB20 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90339-03002 | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90447-08009 | ||||
| 90447-08010 | ||||
| 90461-14015 | ||||
| 90464-00082 | ||||
| 90464-00139 | ||||
| 90464-00203 | ||||
| 90464-00250 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-F0612 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(8205- )22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
