RB20R-MDZER (1982)
Toyota Coaster
(8205- )22R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-35020 |
22R..RB20..GEN |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
22R..RB20 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
22R..RB20 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53040 |
22R..RB20..GEN,ME |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-35020 |
22R..RB20 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
22R..RB20 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38020 |
22R..RB20 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38020 |
22R..RB20 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
22R..RB20 7 BLADES,OD=380 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-35100 |
22R..RB20..GEN TROPICAL AREA |
1 | ||
| 16400-35260 |
22R..RB20..GEN TROPICAL AREA |
1 | ||
| 16400-35090 |
22R..RB20..GEN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
22R..RB20 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
22R..RB20 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
22R..RB20 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-90B00 |
22R..RB20..RHD..DLX W/OK MONITOR |
1 | ||
| 16470-90B01 |
22R..RB20..RHD |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12035 |
22R..RB20 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
22R..RB20 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
22R..RB20 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-90B00 |
22R..RB20..RHD |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-90B00 |
22R..RB20 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-35050 |
22R..RB20 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
22R..RB20 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
22R..RB20 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-35020 |
22R..RB20 RADIATOR SIDE |
1 | ||
| 16573-35010 |
22R..RB20 PUMP SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-35020 |
22R..RB20 RADIATOR SIDE |
1 | ||
| 16573-35010 |
22R..RB20 PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10450 |
22R..RB20 ID=45 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10450 |
22R..RB20 ID=45 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90460-49062 |
22R..RB20 ENGINE SIDE |
1 | ||
| 96111-10450 |
22R..RB20 PIPE SIDE,ID=45 |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90460-49062 |
22R..RB20 ENGINE SIDE |
1 | ||
| 96111-10450 |
22R..RB20 PIPE SIDE,ID=45 |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-35020 |
22R..RB20 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-58010 |
22R..RB20..RHD LH |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-58010 |
22R..RB20..RHD LH |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-58010 |
22R..RB20 |
1 | ||
| 16603 - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16630-35010 |
22R..RB20..WC |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-38020 |
22R..RB20..RHD |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91179-08041 | ||||
| 91611-60816 | ||||
| 91611-60822 | ||||
| 91611-61022 | ||||
| 91611-G0828 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 94110-40600 | ||||

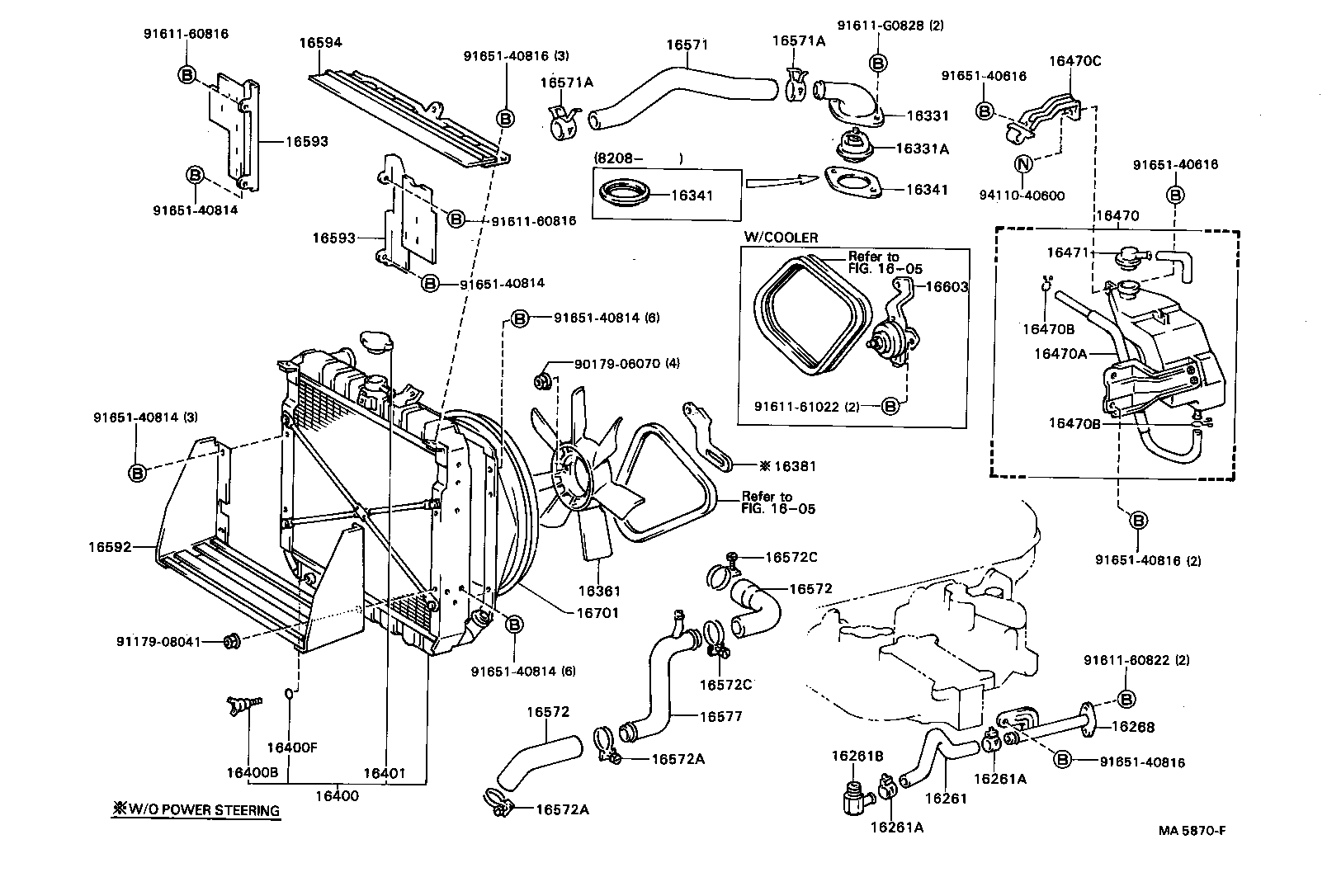

| Linked diagrams | ||||
| 1605 | ||||
