RB13L-MRE (1980)

Toyota Coaster

Production Aug 1980 - Apr 1982
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )22R

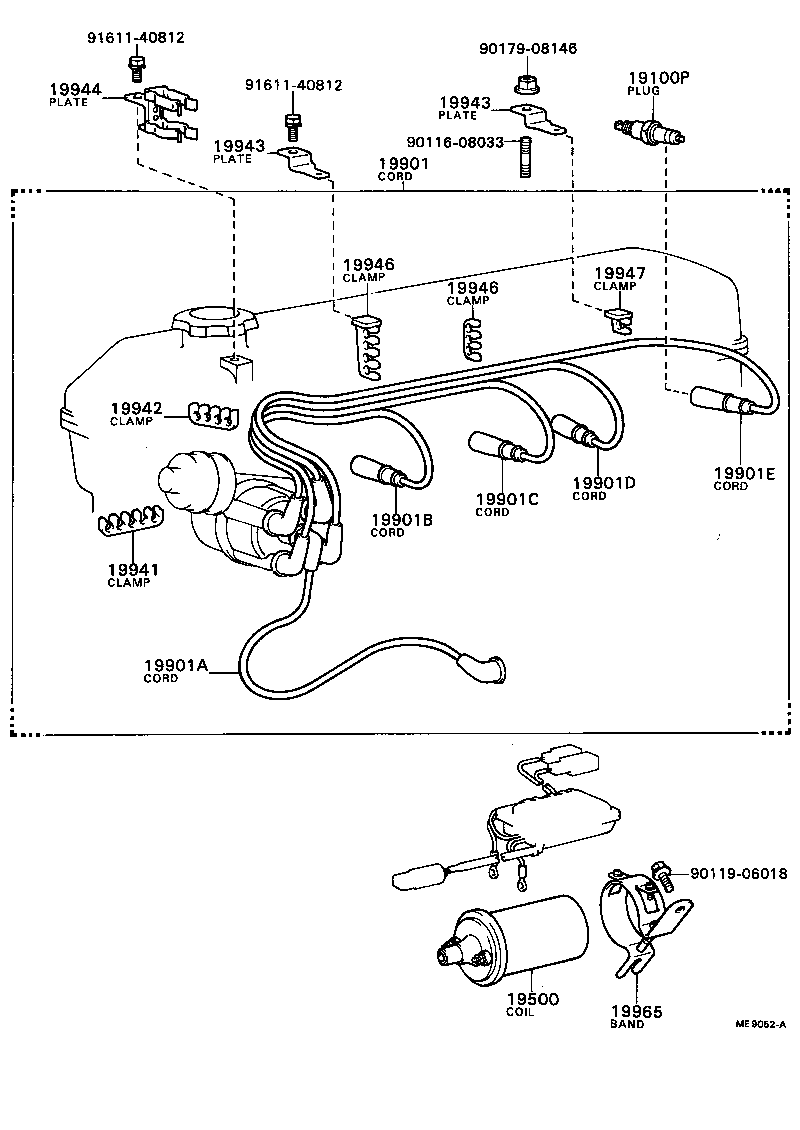

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19941 19942 19943 19943 19944 19946 19946 19947 19965 9011608033 9011906018 9017908146 9161140812 9161140812
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01059

20R,22R,5R..RB1#

W16EX-U,W16EX-U

 4
19500 - COIL ASSY, IGNITION
90919-02117

22R..RB13

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

20R,22R..RB11,13

 1
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-38010

22R..RB13

 1
19944-35010

22R..RB13

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00144

20R,22R..RB11,13

RR

 1
90464-00060

20R,22R..RB11,13

FR

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00144

20R,22R..RB11,13

RR

 1
90464-00060

20R,22R..RB11,13

FR

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

20R,22R..RB11,13

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03084

22R..RB13

 1
Common parts
90116-08033
90119-06018
90179-08146
91611-40812
