RB13L-MRE (1980)
Toyota Coaster
Production
Aug 1980
-
Apr 1982
Engine
22R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )22R

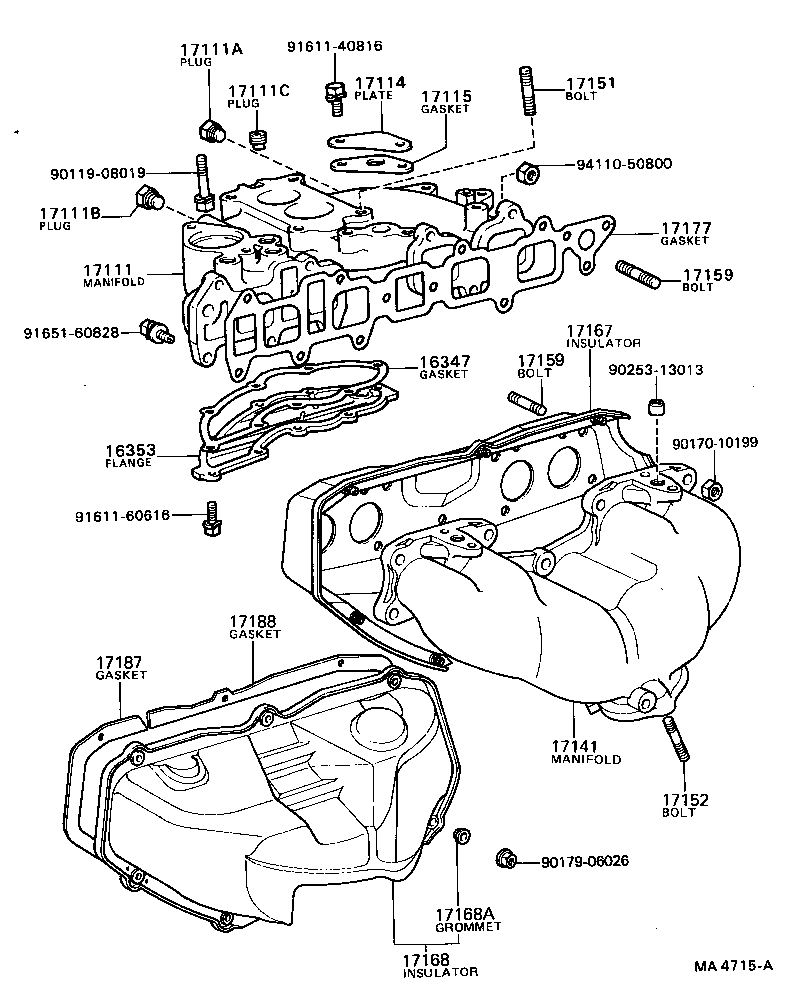

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-35010 |
22R..RB13 |
1 | ||
| 16353 - FLANGE, WATER BY-PASS | ||||
| 16353-35010 |
22R..RB13 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-35010 |
22R..RB13 |
1 | ||
| 17111-35012 |
22R..RB13 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90345-51025 |
22R..RB13 |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90345-53007 |
22R..RB13 |
1 | ||
| 17111C - PLUG, NO.3 | ||||
| 90340-16002 |
22R..RB13 |
1 | ||
| 17114 - PLATE, INTAKE MANIFOLD HOLE COVER | ||||
| 25617-38010 |
20R,22R..RB11,13 |
1 | ||
| 17115 - GASKET, INTAKE MANIFOLD HOLE COVER | ||||
| 25628-38010 |
20R,22R..RB11,13 |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08051 |
20R,22R..RB11,13 L=40,S=11&11 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
22R..RB13 L=46.5,S=14&20 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10050 |
22R..RB13 L=42,S=12&25 |
4 | ||
| 90116-08013 |
20R,22R..RB11,13 L=34.5,S=9&16 |
2 | ||
| 90116-10317 |
22R..RB13 L=36,S=13&13 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10050 |
22R..RB13 L=42,S=12&25 |
4 | ||
| 90116-08013 |
20R,22R..RB11,13 L=34.5,S=9&16 |
2 | ||
| 90116-10317 |
22R..RB13 L=36,S=13&13 |
3 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-35020 |
22R..RB13 |
1 | ||
| 17167-35021 |
22R..RB13 |
1 | ||
| 17168A - GROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR) | ||||
| 90480-12001 |
20R,22R..RB11,13 OD=12.5 |
4 | ||
| 90480-11001 |
20R,22R..RB11,13 OD=11.5 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-35011 |
22R..RB13 |
1 | ||
| 17188 - GASKET, HEAT INSULATOR, NO.2 | ||||
| 17188-38010 |
20R,22R..RB11,13 |
1 | ||
| Common parts | ||||
| 90119-08019 | ||||
| 90170-10199 | ||||
| 90179-06026 | ||||
| 90253-13013 | ||||
| 91611-40816 | ||||
| 91611-60616 | ||||
| 91651-60828 | ||||
| 94110-50800 | ||||
(8205-8208)22R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90170-10199 | ||||
| 90179-06026 | ||||
| 90179-10052 | ||||
| 91611-40816 | ||||
| 91611-60616 | ||||
| 91651-60828 | ||||
| 94110-50800 | ||||
