RB13L-MDZER (1980)

Toyota Coaster

Production Aug 1980 - Apr 1982
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )RB13..GEN

Click highlighted areas on diagram

diagram 77018 77022A 77022A 77022A 77031 77031B 77100 77100A 77100B 77121 77241 77241 77241A 77241A 77241B 77241B 77277 77277 77277A 77277A 77277B 77277B 77283 77308 77308A 77308B 77308C 77308G 77308G 77611 77611 77611A 77611A 77612 77612 77651 77651 9011908266 9015960038 9046106156 9046110186 9046110482 9046110547 9046110549 9046110549 9046110549 9161140816 9161140816 9161140816 9161140816 9161140820 9161140820 9161140820 9161161022 9165140616 9411040800 9411040800 9411040800 9412040800 9461210800 9613230600 9613230800 9616000400 9616000400
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-36071

BB10,RB1#

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06034

BB10,RB1#

*H,L=340

 1
95332-08028

BB10,RB1#

*H,L=280,ID=7.6

 2
77031 - CAP ASSY, FUEL TANK
77310-12041

RB1#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12040

RB1#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

BB10,RB1#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

BB10,RB1#

 1
77121 - PROTECTOR, FUEL TUBE
77243-36010

BB10,RB10;RB11,13..GEN

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36361

RB1#..LHD

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-36361

RB1#..LHD

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95335-08017

RB1#

L=170

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95335-08017

RB1#

L=170

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12024

RB13

L=300

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-12024

RB13

L=300

 1
77283 - BRACKET, FUEL TUBE
77283-36041

BB10,RB13

 2
77283-36040

BB10,RB1#

 2
77308 - COVER SUB-ASSY, FUEL INLET BOX
58802-90503

BB10,RB1#..LHD

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05080

BB10,RB1#

 2
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
58827-90501

BB10,RB13..LHD

 1
58827-90500

BB10,RB1#

 1
77308C - PIN, STRAIGHT(FOR FUEL INLET BOX COVER)
58824-90501

BB10,RB1#

 1
77308G - BUSH(FOR FUEL INLET BOX COVER)
58829-90500

BB10,RB1#

 2
77308G - BUSH(FOR FUEL INLET BOX COVER)
58829-90500

BB10,RB1#

 2
77611 - BAND, FUEL TANK
77601-36070

BB10,RB1#

RH

 2
77602-36020

BB10,RB1#

LH

 2
77611 - BAND, FUEL TANK
77601-36070

BB10,RB1#

RH

 2
77602-36020

BB10,RB1#

LH

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BB10,RB1#

 4
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

BB10,RB1#

 4
77612 - BRACKET SUB-ASSY, FUEL TANK
77502-36011

BB10,RB1#

LH

 2
77501-36011

BB10,RB1#

RH

 2
77612 - BRACKET SUB-ASSY, FUEL TANK
77502-36011

BB10,RB1#

LH

 2
77501-36011

BB10,RB1#

RH

 2
77651 - PACKING, FUEL TANK BRACKET
77651-36060

BB10,RB1#

 4
77651 - PACKING, FUEL TANK BRACKET
77651-36060

BB10,RB1#

 4
Common parts
90119-08266
90159-60038
90461-06156
90461-10186
90461-10482
90461-10547
90461-10549
91611-40816
91611-40820
91611-61022
91651-40616
94110-40800
94120-40800
94612-10800
96132-30600
96132-30800
96160-00400

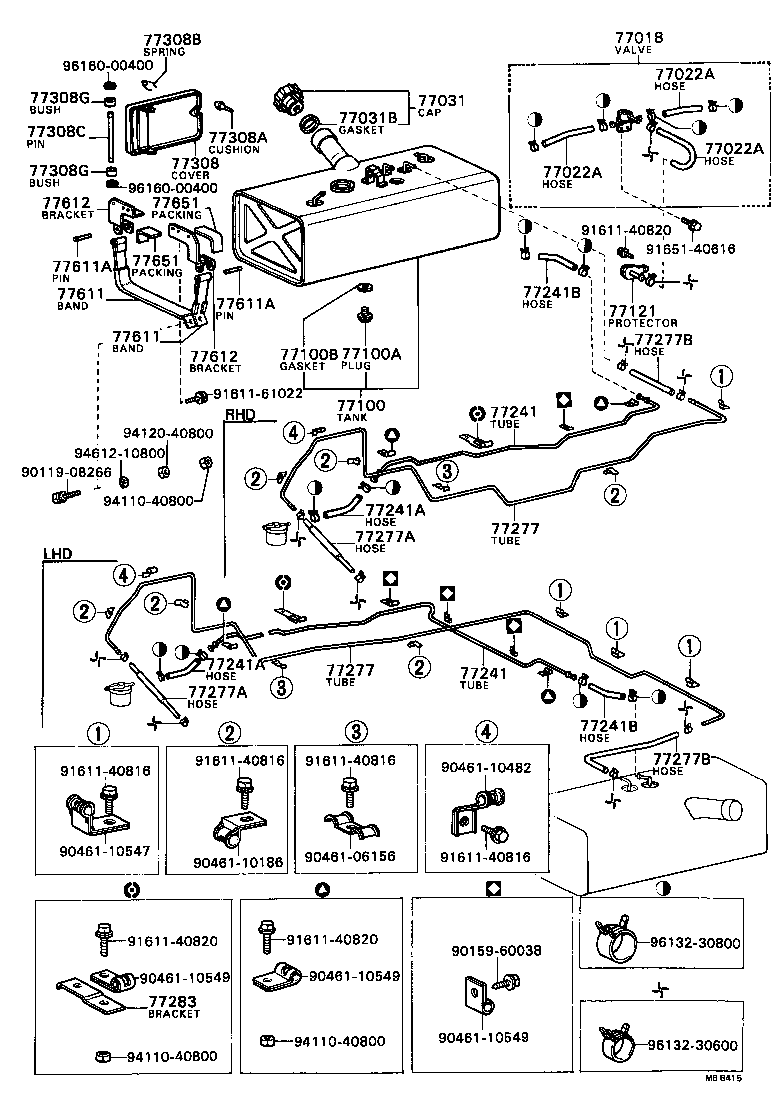

ILLUST NO. 1 OF 2(8205-8302)LHD

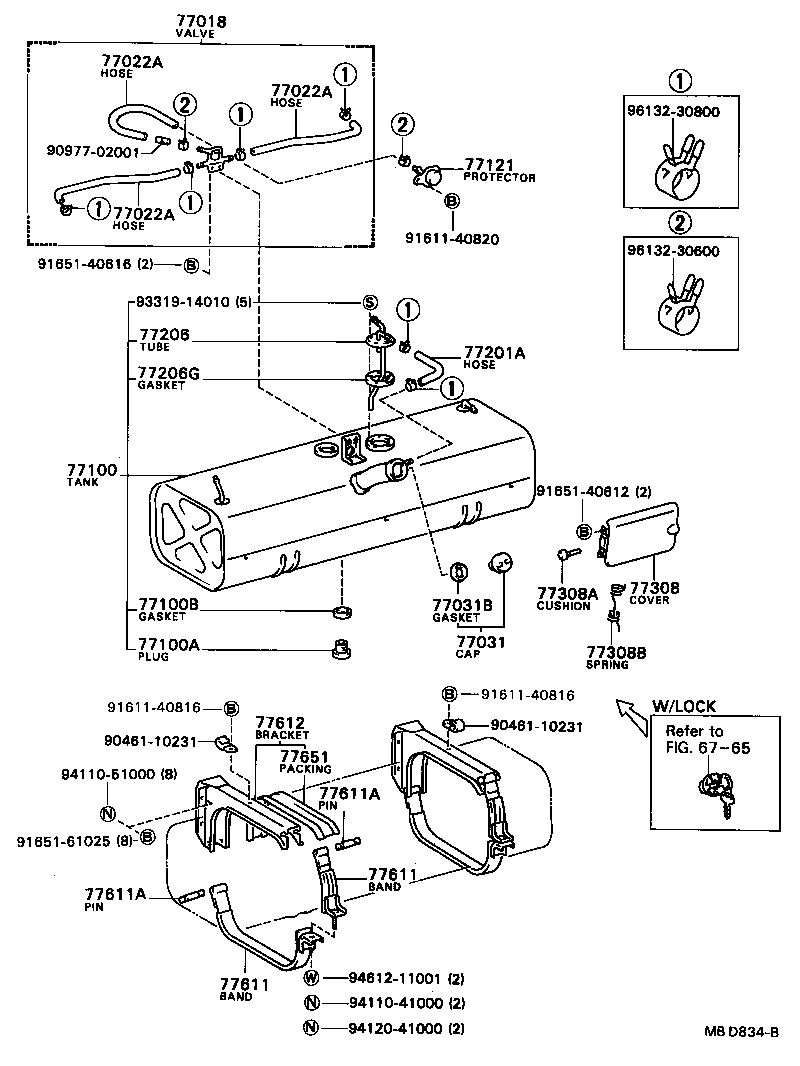

Click highlighted areas on diagram

diagram 6765 77018 77022A 77022A 77022A 77031 77031B 77100 77100A 77100B 77121 77201A 77206 77206G 77308 77308A 77308B 77611 77611 77611A 77611A 77612 77651 9046110231 9046110231 9097702001 9161140816 9161140816 9161140820 9165140612 9165140616 9165161025 9331914010 9411041000 9411051000 9412041000 9461211001 9613230600 9613230800
Part # Description Qty Price
Common parts
90461-10231
90977-02001
91611-40816
91611-40820
91651-40612
91651-40616
91651-61025
93319-14010
94110-41000
94110-51000
94120-41000
94612-11001
96132-30600
96132-30800
Linked diagrams
6765

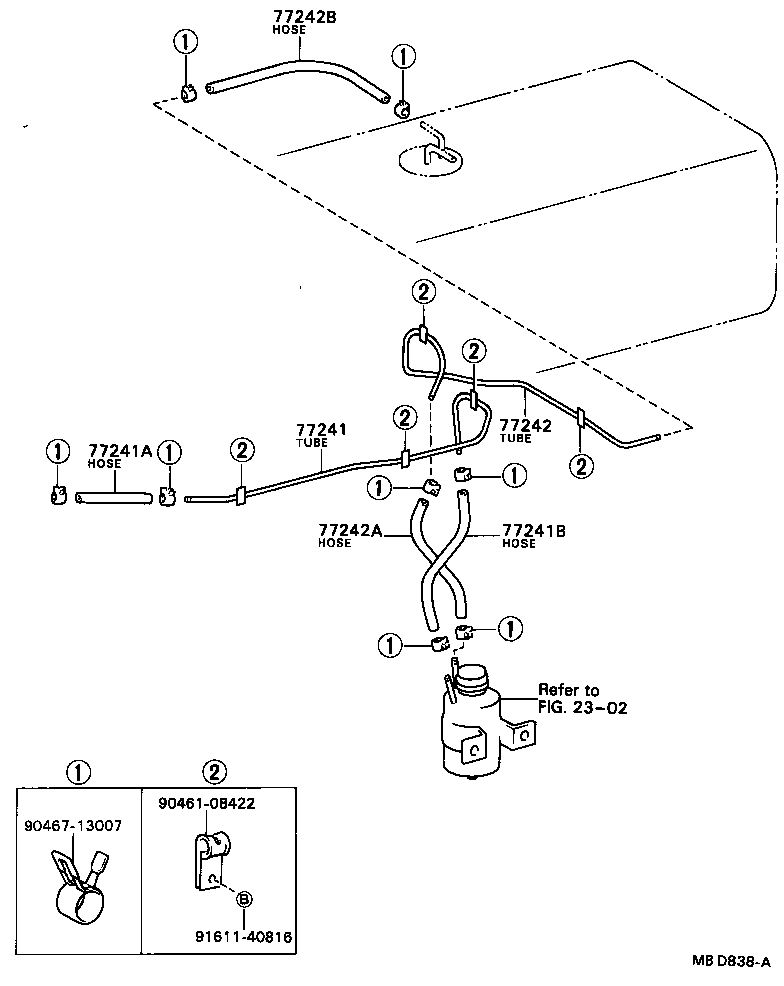

ILLUST NO. 2 OF 2(8205-8808)BB20,21,30..LHD
