RB11R-QDR (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

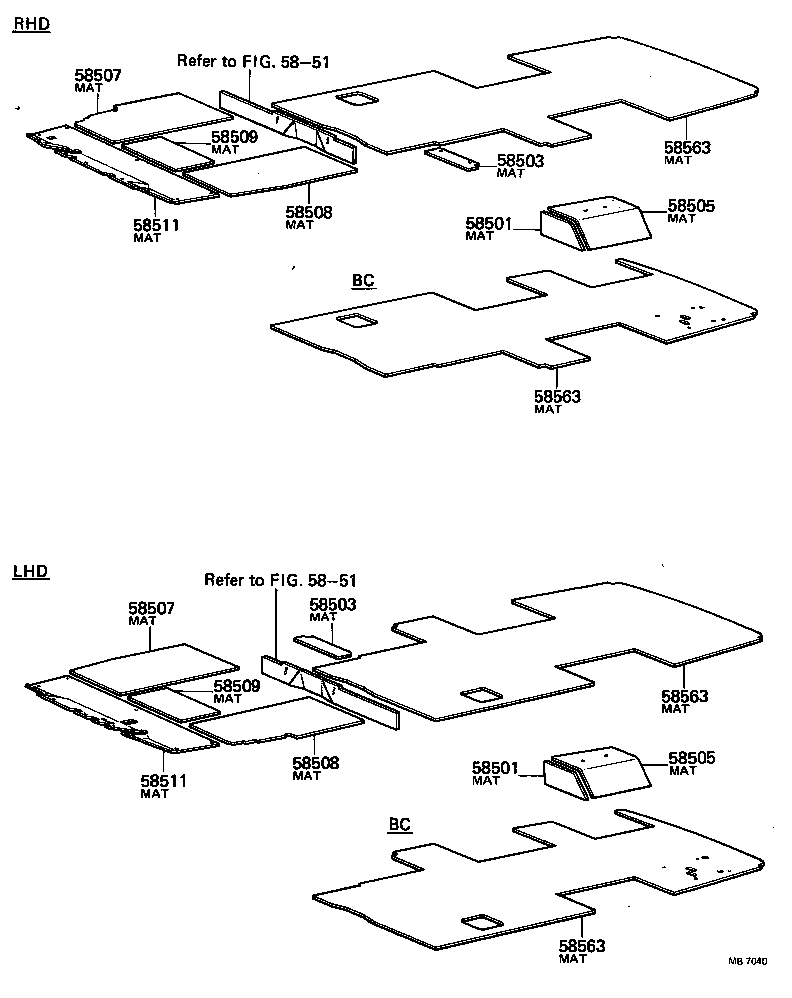

Click highlighted areas on diagram

diagram 58501 58501 58503 58503 58505 58505 58507 58507 58508 58508 58509 58509 5851 5851 58511 58511 58563 58563 58563 58563
Part # Description Qty Price
58501 - MAT, CONDENSER COVER, FRONT
58534-90740

BB10,RB11..BC

 1
58501 - MAT, CONDENSER COVER, FRONT
58534-90740

BB10,RB11..BC

 1
58503 - MAT ASSY, BATTERY SERVICE HOLE COVER
58529-90740

BB10,RB11..RHD..(25S,26S)

 1
58503 - MAT ASSY, BATTERY SERVICE HOLE COVER
58529-90740

BB10,RB11..RHD..(25S,26S)

 1
58505 - MAT, CONDENSER COVER, CENTER
58538-90742

BB10..BC;RB11..BC..GEN

 1
58505 - MAT, CONDENSER COVER, CENTER
58538-90742

BB10..BC;RB11..BC..GEN

 1
58507 - MAT SUB-ASSY, ENGINE UPPER FLOOR, RH
58517-90740

BB10,RB1#..RHD

 1
58507 - MAT SUB-ASSY, ENGINE UPPER FLOOR, RH
58517-90740

BB10,RB1#..RHD

 1
58508 - MAT SUB-ASSY, ENGINE UPPER FLOOR, LH
58518-90740

BB10,RB1#..RHD

 1
58508 - MAT SUB-ASSY, ENGINE UPPER FLOOR, LH
58518-90740

BB10,RB1#..RHD

 1
58509 - MAT SUB-ASSY, ENGINE UPPER FLOOR, CENTER
58519-90740

BB10,RB1#

 1
58509 - MAT SUB-ASSY, ENGINE UPPER FLOOR, CENTER
58519-90740

BB10,RB1#

 1
58511 - MAT, FLOOR, FRONT
58501-90740

BB10,RB1#..RHD

 1
58511 - MAT, FLOOR, FRONT
58501-90740

BB10,RB1#..RHD

 1
58563 - MAT, REAR FLOOR
58516-90741

BB10,RB11..RHD..BC

 1
58516-90746

BB10,RB11..RHD..BC

 1
58563 - MAT, REAR FLOOR
58516-90741

BB10,RB11..RHD..BC

 1
58516-90746

BB10,RB11..RHD..BC

 1
58563 - MAT, REAR FLOOR
58516-90741

BB10,RB11..RHD..BC

 1
58516-90746

BB10,RB11..RHD..BC

 1
58563 - MAT, REAR FLOOR
58516-90741

BB10,RB11..RHD..BC

 1
58516-90746

BB10,RB11..RHD..BC

 1
Linked diagrams

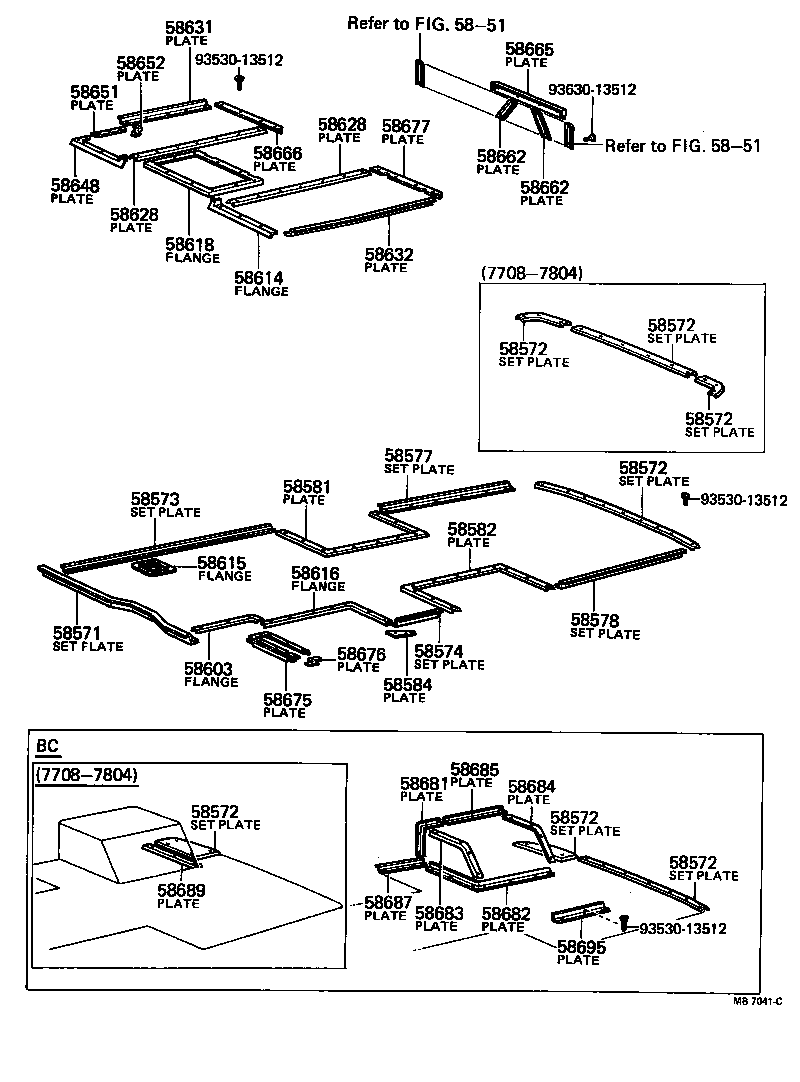

5851

(7708- )RHD

Click highlighted areas on diagram

diagram 5851 5851 58571 58572 58572 58572 58572 58572 58572 58572 58573 58574 58577 58578 58581 58582 58584 58603 58614 58615 58616 58618 58628 58628 58631 58632 58648 58651 58652 58662 58662 58665 58666 58675 58676 58677 58681 58682 58683 58684 58685 58687 58689 58695 9353013512 9353013512 9353013512 9363013512
Part # Description Qty Price
58571 - SET PLATE, REAR FLOOR MAT, FRONT
58626-90740

BB10,RB1#..RHD

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58625-90740

BB10,RB1#

LH

 1
58623-90740

BB10,RB1#

CTR

 1
58679-90740

BB10,RB11..BC

RH

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58625-90740

BB10,RB1#

LH

 1
58623-90740

BB10,RB1#

CTR

 1
58679-90740

BB10,RB11..BC

RH

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58625-90740

BB10,RB1#

LH

 1
58623-90740

BB10,RB1#

CTR

 1
58679-90740

BB10,RB11..BC

RH

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58625-90740

BB10,RB1#

LH

 1
58623-90740

BB10,RB1#

CTR

 1
58679-90740

BB10,RB11..BC

RH

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58625-90740

BB10,RB1#

LH

 1
58623-90740

BB10,RB1#

CTR

 1
58679-90740

BB10,RB11..BC

RH

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58625-90740

BB10,RB1#

LH

 1
58623-90740

BB10,RB1#

CTR

 1
58679-90740

BB10,RB11..BC

RH

 1
58572 - SET PLATE, REAR FLOOR MAT, REAR
58625-90740

BB10,RB1#

LH

 1
58623-90740

BB10,RB1#

CTR

 1
58679-90740

BB10,RB11..BC

RH

 1
58573 - SET PLATE, REAR FLOOR MAT SIDE, FRONT RH
58633-90740

BB10,RB1#..RHD

 1
58574 - SET PLATE, REAR FLOOR MAT SIDE, FRONT LH
58634-90741

BB10,RB1#..RHD

 1
58577 - SET PLATE, REAR FLOOR MAT SIDE, REAR RH
58636-90740

BB10,RB1#

 1
58578 - SET PLATE, REAR FLOOR MAT SIDE, REAR LH
58636-90740

BB10,RB1#

 1
58581 - PLATE, WHEEL HOUSE MAT SET, RH
58627-90740

BB10,RB1#

 1
58582 - PLATE, WHEEL HOUSE MAT SET, LH
58644-90740

BB10,RB1#

 1
58584 - PLATE, REAR FLOOR MAT SET DOOR PILLAR, REAR
58638-90741

BB10,RB1#..RHD

 1
58603 - FLANGE SUB-ASSY, BATTERY BOX UPPER FLOOR MAT SET
58621-90740

BB10,RB1#..RHD

 1
58614 - FLANGE, ENGINE UPPER SIDE FLOOR MAT SET, FRONT
58614-90741

BB10,RB1#..RHD

 1
58615 - FLANGE, FUEL TANK SERVICE HOLE MAT SET
58664-90740

BB10,RB1#

 1
58616 - FLANGE, STEP MAT SET
58616-90740

BB10,RB1#..RHD

 1
58618 - FLANGE, ENGINE UPPER FLOOR MAT SET, CENTER
58618-90740

BB10,RB1#

 1
58628 - PLATE, ENGINE UPPER FLOOR MAT SET
58628-90740

BB10,RB1#

 2
58628 - PLATE, ENGINE UPPER FLOOR MAT SET
58628-90740

BB10,RB1#

 2
58631 - PLATE, FRONT FLOOR MAT SET SIDE, RH
58631-90742

BB10,RB1#..RHD

 1
58632 - PLATE, FRONT FLOOR MAT SET SIDE, LH
58632-90740

BB10,RB1#..RHD

 1
58648 - PLATE, FRONT FLOOR MAT SET SIDE, RH NO.1
58648-90740

BB10,RB1#..RHD

 1
58651 - PLATE, FRONT FLOOR MAT SET SIDE, RH NO.2
58651-90740

BB10,RB1#..RHD

 1
58652 - PLATE, FRONT FLOOR MAT SET SIDE, RH NO.3
58653-90740

BB10,RB1#..RHD

 1
58662 - PLATE, ENGINE END PANEL SILENCER SET
58663-90740

BB10,RB1#

LH

 1
58663-90740

RB1#

LH

 1
58662-90740

RB1#

RH

 1
58662-90740

BB10,RB1#

RH

 1
58662 - PLATE, ENGINE END PANEL SILENCER SET
58663-90740

BB10,RB1#

LH

 1
58663-90740

RB1#

LH

 1
58662-90740

RB1#

RH

 1
58662-90740

BB10,RB1#

RH

 1
58665 - PLATE, ENGINE ROOM REAR PANEL MAT SET UPPER, CENTER
58665-90740

BB10,RB1#

 1
58666 - PLATE, ENGINE ROOM REAR PANEL MAT SET UPPER, RH
58666-90740

BB10,RB1#..RHD

 1
58675 - PLATE, BATTERY BOX UPPER FLOOR MAT SET, NO.1
58675-90744

BB10,RB1#..RHD..(25S,26S)

 1
58676 - PLATE,BATTERY BOX UPPER FLOOR MAT SET, NO.2
58676-90740

BB10,RB1#

 1
58677 - PLATE, ENGINE ROOM REAR PANEL MAT SET UPPER, LH
58678-90740

BB10,RB1#..RHD..(25S,26S)

 1
58681 - PLATE, CONDENSER COVER MAT SET, UPPER FRONT
58681-90740

BB10,RB11,13..BC

 1
58682 - PLATE, CONDENSER COVER MAT SET, LOWER FRONT
58682-90740

BB10,RB11,13..BC

 1
58683 - PLATE, CONDENSER COVER MAT SET, FRONT
58683-90740

BB10,RB11,13..BC

 1
58684 - PLATE, CONDENSER COVER MAT SET, REAR
58684-90740

BB10,RB11,13..BC

 1
58685 - PLATE, CONDENSER COVER MAT SET, UPPER
58685-90740

BB10,RB11,13..BC

 1
58687 - PLATE, REAR FLOOR MAT SET SIDE, REAR RH
58687-90740

BB10,RB11,13..BC

 1
58689 - PLATE, CONDENSER COVER MAT SET, LOWER REAR
58689-90741

BB10,RB11..BC

 1
58695 - PLATE, EVAPORATOR COVER MAT SET, LOWER
58695-90740

BB10,RB11,13..BC

 1
Common parts
93530-13512
93630-13512
