Toyota Coaster RB11 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
EU
COASTER
RB11R-KDR (1979)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

RB11R-KDR (1979)

Toyota Coaster

Production Nov 1979 - Aug 1980

Engine 20R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

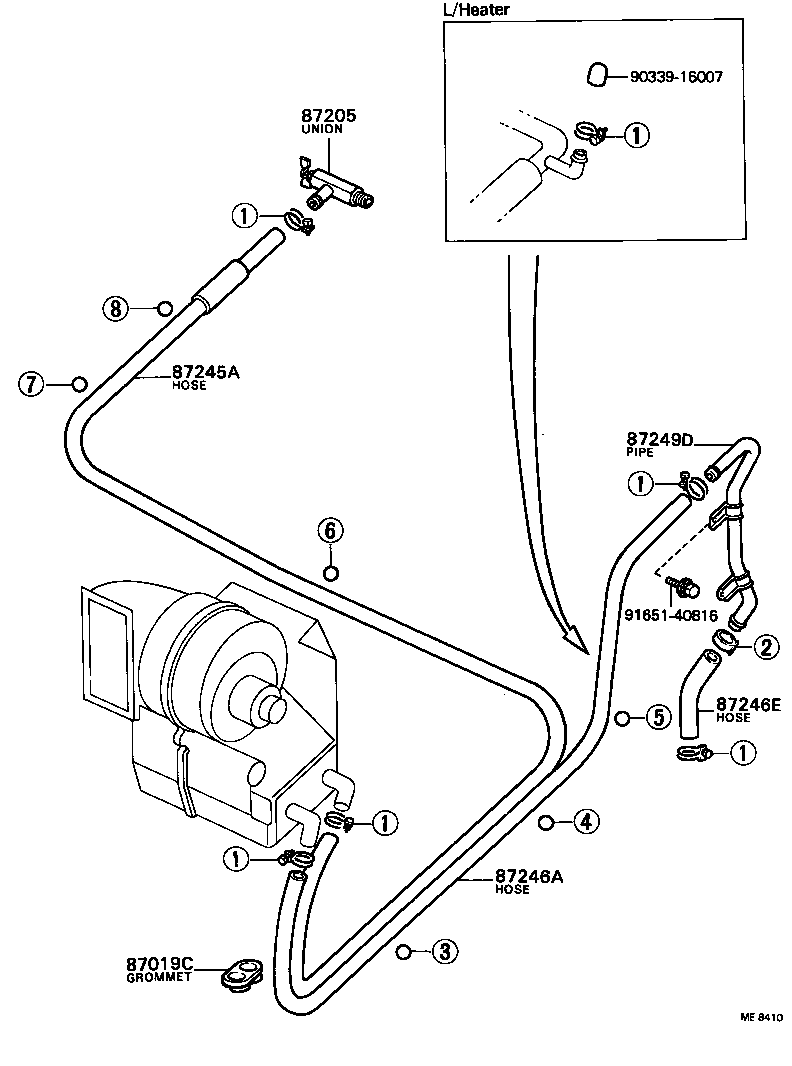

(7911- )RB1#..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
87019C - GROMMET, HEATER HOSE
90480-01059	BB10,RB1# FR HEATER	08/1977 - 04/1982	1
90480-69217	BB10,RB1# OD=60,RR,NO.1 HEATER	08/1977 - 11/1979	1
90480-20005	BB10,RB1# OD=24,RR HEATER	08/1977 - 08/1980	4
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-36060	RB11 RR	08/1977 - 05/1978	1
87240-36050	RB11 FR	08/1977 - 05/1978	1
87245A - HOSE, HEATER WATER, INLET A
87245-36090	RB11..RHD	08/1977 - 11/1979	1
87246A - HOSE, HEATER WATER, OUTLET A
99552-31550	RB11..RHD L=1550	08/1977 - 12/1979	1
87246E - HOSE, HEATER WATER, OUTLET E
99552-30070	RB11 L=70	08/1977 - 12/1979	1
87249D - PIPE, HEATER WATER OUTLET, D
87251-36160	RB11	08/1977 - 08/1978	1
Common parts
90339-16007
91651-40816

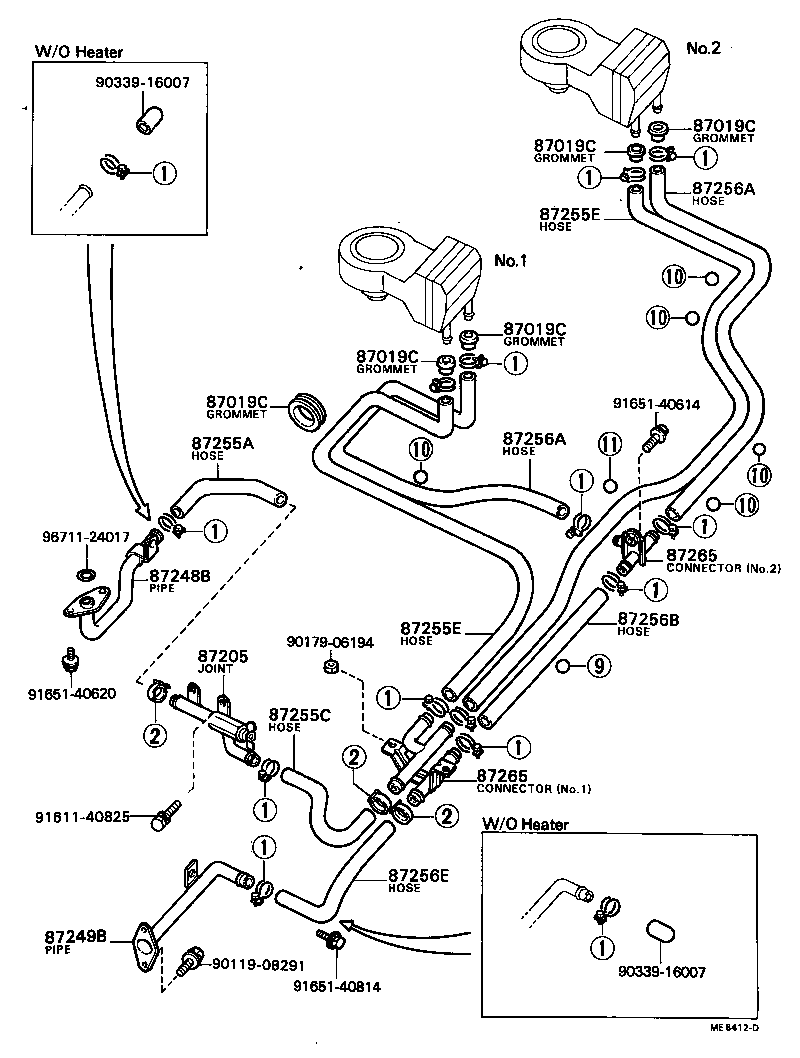

(7911- )RB1#..RHD..GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
87019C - GROMMET, HEATER HOSE
90480-01059	BB10,RB1# FR HEATER	08/1977 - 04/1982	1
90480-69217	BB10,RB1# OD=60,RR,NO.1 HEATER	08/1977 - 11/1979	1
90480-20005	BB10,RB1# OD=24,RR HEATER	08/1977 - 08/1980	4
87019C - GROMMET, HEATER HOSE
90480-01059	BB10,RB1# FR HEATER	08/1977 - 04/1982	1
90480-69217	BB10,RB1# OD=60,RR,NO.1 HEATER	08/1977 - 11/1979	1
90480-20005	BB10,RB1# OD=24,RR HEATER	08/1977 - 08/1980	4
87019C - GROMMET, HEATER HOSE
90480-01059	BB10,RB1# FR HEATER	08/1977 - 04/1982	1
90480-69217	BB10,RB1# OD=60,RR,NO.1 HEATER	08/1977 - 11/1979	1
90480-20005	BB10,RB1# OD=24,RR HEATER	08/1977 - 08/1980	4
87019C - GROMMET, HEATER HOSE
90480-01059	BB10,RB1# FR HEATER	08/1977 - 04/1982	1
90480-69217	BB10,RB1# OD=60,RR,NO.1 HEATER	08/1977 - 11/1979	1
90480-20005	BB10,RB1# OD=24,RR HEATER	08/1977 - 08/1980	4
87019C - GROMMET, HEATER HOSE
90480-01059	BB10,RB1# FR HEATER	08/1977 - 04/1982	1
90480-69217	BB10,RB1# OD=60,RR,NO.1 HEATER	08/1977 - 11/1979	1
90480-20005	BB10,RB1# OD=24,RR HEATER	08/1977 - 08/1980	4
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87240-36060	RB11 RR	08/1977 - 05/1978	1
87240-36050	RB11 FR	08/1977 - 05/1978	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87209-36150	RB11..GEN	08/1977 - 11/1979	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-31060	RB11..RHD..GEN L=1060,RR,NO.1 HEATER	08/1977 - 12/1977	1
99552-33000	BB10,RB1#..GEN L=3000,RR,NO.2 HEATER	08/1977 - 12/1977	1
99552-31550	BB10,RB11..RHD..(25S,26S) L=1550,RR,NO.1 HEATER	11/1979 - 12/1979	1
99552-33000	RB11..RHD..GEN L=3000,RR,NO.2 HEATER	11/1979 - 12/1979	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-31060	RB11..RHD..GEN L=1060,RR,NO.1 HEATER	08/1977 - 12/1977	1
99552-33000	BB10,RB1#..GEN L=3000,RR,NO.2 HEATER	08/1977 - 12/1977	1
99552-31550	BB10,RB11..RHD..(25S,26S) L=1550,RR,NO.1 HEATER	11/1979 - 12/1979	1
99552-33000	RB11..RHD..GEN L=3000,RR,NO.2 HEATER	11/1979 - 12/1979	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-32200	BB10,RB1#..GEN L=2200,RR,NO.2 HEATER	08/1977 - 12/1977	1
99552-32200	RB11..RHD..GEN L=2200,RR,NO.2 HEATER	11/1979 - 12/1979	1
99552-31060	BB10,RB1#..RHD..(25S,26S) L=1060,RR,NO.1 HEATER	08/1977 - 12/1977	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99552-32200	BB10,RB1#..GEN L=2200,RR,NO.2 HEATER	08/1977 - 12/1977	1
99552-32200	RB11..RHD..GEN L=2200,RR,NO.2 HEATER	11/1979 - 12/1979	1
99552-31060	BB10,RB1#..RHD..(25S,26S) L=1060,RR,NO.1 HEATER	08/1977 - 12/1977	1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99552-30800	RB11..RHD..GEN L=800	11/1979 - 12/1979	1
99552-32100	RB11..GEN L=2100	08/1977 - 08/1978	1
87265 - CONNECTOR, HEATER WATER HOSE
87251-36110	BB10,RB1#..RHD..GEN 3 WAY,NO.2	08/1977 - 04/1982	1
87251-36150	RB11..GEN 3 WAY,NO.1	08/1977 - 11/1979	1
87265 - CONNECTOR, HEATER WATER HOSE
87251-36110	BB10,RB1#..RHD..GEN 3 WAY,NO.2	08/1977 - 04/1982	1
87251-36150	RB11..GEN 3 WAY,NO.1	08/1977 - 11/1979	1
Common parts
90119-08291
90179-06194
90339-16007
91611-40825
91651-40614
91651-40620
91651-40814
96711-24017

(7911- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-06194
90460-24039
90461-08104
90461-08157
90461-08277
90461-08630
90461-10012
90461-10263
90461-10291
90461-10481
90462-12008
91651-40020
91651-40610
91651-40614
91651-40620
91651-40814
91656-40620
96112-10250

(7911- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82711-22270
90179-06194
90461-10279
91651-40620

RB11R-KDR (1979)

(7911- )RB1#..RHD

(7911- )RB1#..RHD..GEN

(7911- )

(7911- )
