RB11L-MDR (1979)

Toyota Coaster

Production Nov 1979 - Aug 1980
Engine 20R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7911- )20R,22R

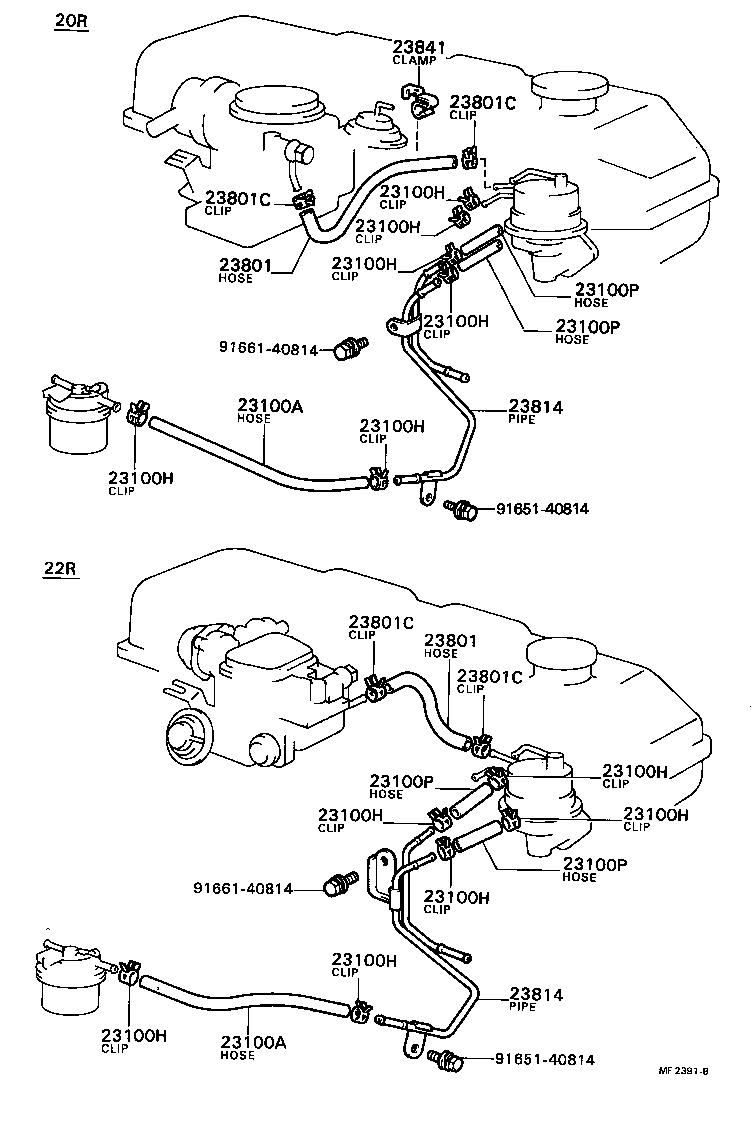

Click highlighted areas on diagram

diagram 23100A 23100A 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100P 23100P 23100P 23100P 23801 23801 23801C 23801C 23801C 23801C 23814 23814 23841 9165140814 9165140814 9166140814 9166140814
Part # Description Qty Price
23100A - HOSE, FUEL
95335-08046

20R..RB11

L=420

 1
95332-08030

20R..RB11

*H,L=240

 1
23100A - HOSE, FUEL
95335-08046

20R..RB11

L=420

 1
95332-08030

20R..RB11

*H,L=240

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R..RB11

PIPE SIDE

 3
96132-30800

20R,5R..RB1#

FILTER TO PUMP SIDE

 3
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R..RB11

PIPE SIDE

 3
96132-30800

20R,5R..RB1#

FILTER TO PUMP SIDE

 3
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R..RB11

PIPE SIDE

 3
96132-30800

20R,5R..RB1#

FILTER TO PUMP SIDE

 3
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R..RB11

PIPE SIDE

 3
96132-30800

20R,5R..RB1#

FILTER TO PUMP SIDE

 3
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R..RB11

PIPE SIDE

 3
96132-30800

20R,5R..RB1#

FILTER TO PUMP SIDE

 3
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R..RB11

PIPE SIDE

 3
96132-30800

20R,5R..RB1#

FILTER TO PUMP SIDE

 3
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R..RB11

PIPE SIDE

 3
96132-30800

20R,5R..RB1#

FILTER TO PUMP SIDE

 3
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R..RB11

PIPE SIDE

 3
96132-30800

20R,5R..RB1#

FILTER TO PUMP SIDE

 3
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R..RB11

PIPE SIDE

 3
96132-30800

20R,5R..RB1#

FILTER TO PUMP SIDE

 3
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R..RB11

PIPE SIDE

 3
96132-30800

20R,5R..RB1#

FILTER TO PUMP SIDE

 3
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R..RB11

PIPE SIDE

 3
96132-30800

20R,5R..RB1#

FILTER TO PUMP SIDE

 3
23100H - CLIP(FOR FUEL HOSE)
96132-30600

20R..RB11

PIPE SIDE

 3
96132-30800

20R,5R..RB1#

FILTER TO PUMP SIDE

 3
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-08030

20R..RB11

*H,L=260,ID=7.6

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-08030

20R..RB11

*H,L=260,ID=7.6

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

20R..RB11

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

20R..RB11

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

20R..RB11

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

20R..RB11

 2
23814 - PIPE, FUEL DELIVERY
23814-38020

20R..RB11

 1
23814 - PIPE, FUEL DELIVERY
23814-38020

20R..RB11

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90461-06170

20R..RB11

 1
Common parts
91651-40814
91661-40814
