RB10R-JR (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7911)5R

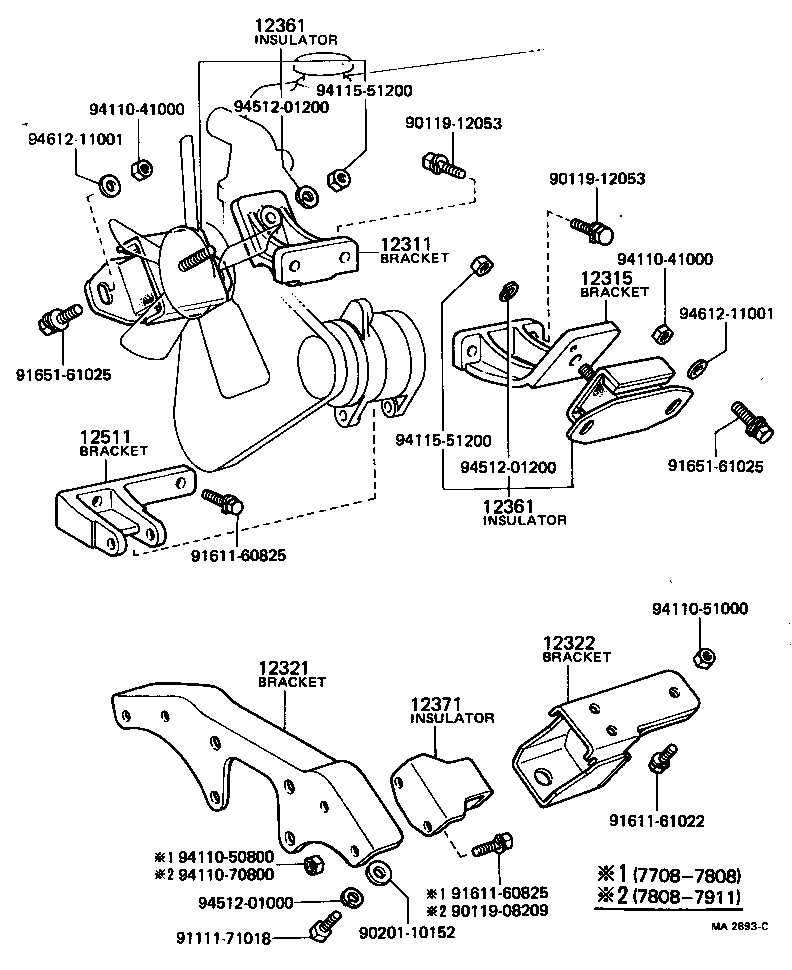

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12361 12361 12371 12511 9011908209 9011912053 9011912053 9020110152 9111171018 9161160825 9161160825 9161161022 9165161025 9165161025 9411041000 9411041000 9411050800 9411051000 9411070800 9411551200 9411551200 9451201000 9451201200 9451201200 9461211001 9461211001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-44020

5R..RB10

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-44010

5R..RB10

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-44012

5R..RB10

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-48011

5R..RB10

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49036

5R..RB10

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49036

5R..RB10

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-44012

5R..RB10

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-40020

5R..RB10

 1
12511-44020

5R..RB10

 1
Common parts
90119-08209
90119-12053
90201-10152
91111-71018
91611-60825
91611-61022
91651-61025
94110-41000
94110-50800
94110-51000
94110-70800
94115-51200
94512-01000
94512-01200
94612-11001
