8716 - HEATING & AIR CONDITIONING - WATER PIPING

HZB50R-ZGMSS (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

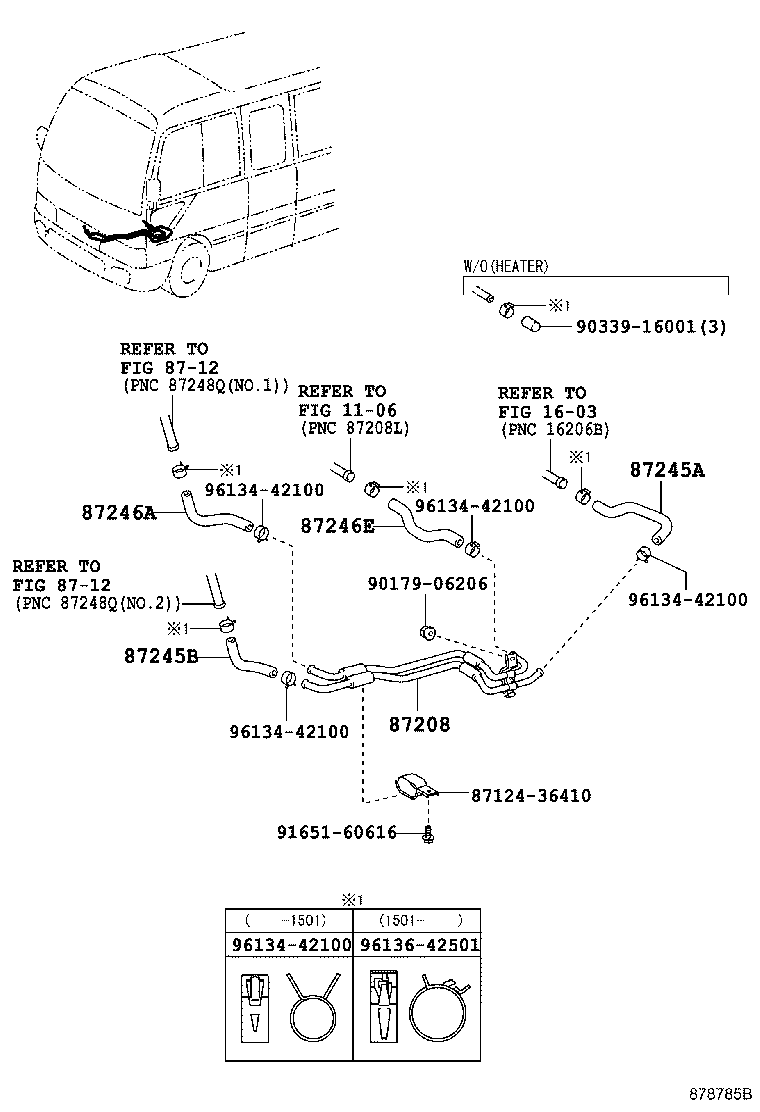

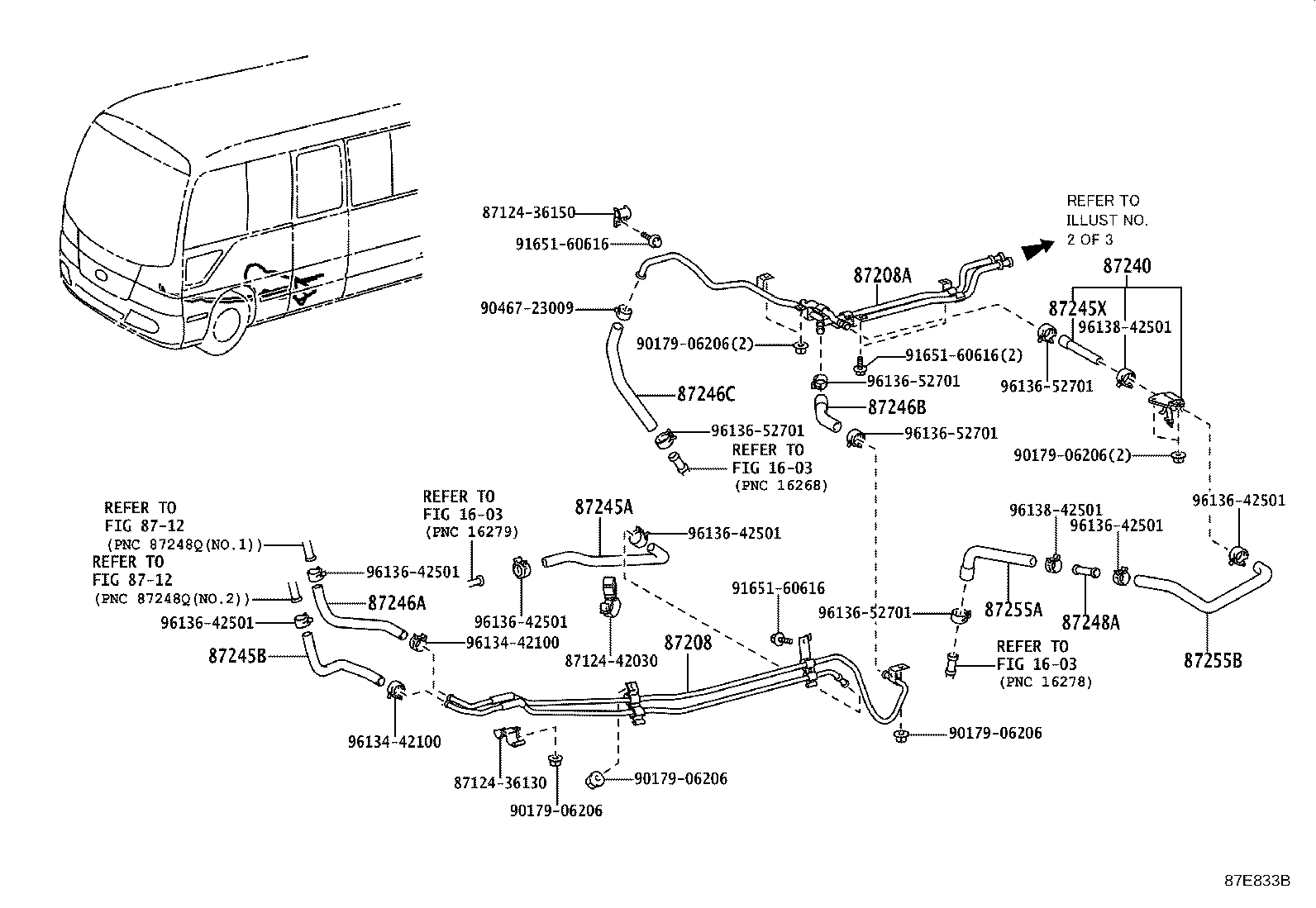

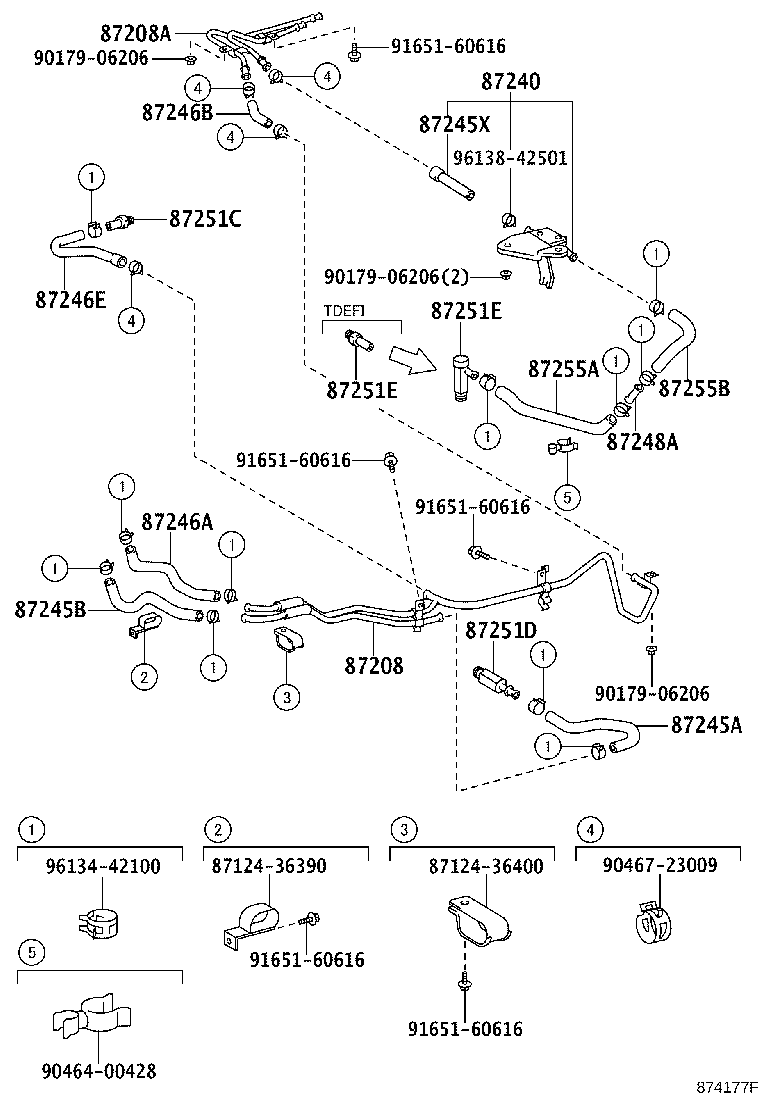

ILLUST NO. 1 OF 3(9301-9907)HZB50..RHD..ARL,GEN

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36442	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87208-36372	HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208-36C00	TRB40,50	08/2007 - 12/2013	1
87208-36372	HZB50..RHD	08/2004 - 01/2015	1
87208-36C01	TRB40,50	12/2013 - 01/2015	1
87208-36372	HZB50..RHD	01/2015 - 12/2999	1
87208-36C01	TRB40,50	01/2015 - 12/2999	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	RZB40,50..GEN;BB42..LHD..WC..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1995	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..LHD..STD..WC;HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 01/1994	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..RHD..(ARL,EUR,GEN);HZB50..LHD..STD..WC..(EUR,GEN)	01/1994 - 05/1995	1
87208-36460	HZB50..LHD..STD..(EUR,GEN);HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36461	HZB50..RHD..5F;HZB50..LHD..STD..GEN	05/1997 - 07/1999	1
87208-36462	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87208-36462	HZB50	08/2004 - 01/2015	1
87208-36730	BB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN)	05/1997 - 07/1999	1
87208-36731	BB42,50,RZB40,50..DSL,EFI,TD	11/2002 - 08/2004	1
87208-36C90	HZB50..RHD	01/2015 - 12/2999	1
87240 - VALVE ASSY, HEATER WATER
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36120	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36120	BB42..RHD;BB42..LHD..SRF;XZB50..21S..WC;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87240-36120	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C481	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-36272	HZB50	08/2004 - 01/2015	1
87245-3C481	RZB40,50	08/2004 - 08/2007	1
87245-36E00	TRB40,50	08/2007 - 01/2015	1
87245-36272	HZB50	01/2015 - 12/2999	1
87245-36E00	TRB40,50	01/2015 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B390	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3B390	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B391	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B391	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3C370	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C370	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36E10	TRB40,50 FRONT HEATER	08/2007 - 01/2015	1
87245-3C370	BB42,HZB50..RHD	01/2015 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3C460	RZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC COLD SPEC	05/1997 - 07/1999	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87245-3B410	BB42..RHD..GEN;BB40,HZB50..RHD	01/1993 - 05/1997	1
87245-3C380	HZB50..RHD;BB42,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245-3C380	TRB40,50	08/2004 - 12/2013	1
87245-3C380	BB50..TD;BB42..LHD..SRF;XZB50..21S..WC;BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36C00	TRB40,50	12/2013 - 01/2015	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480	HZB50	01/1993 - 05/1997	1
87245-3B481	HZB50	05/1997 - 07/1999	1
87245-3B462	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
87245-36E10	TRB40,50	01/2015 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-36300	BB50,HZB50..30S	08/2004 - 01/2015	1
87248-14090	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87248-36300	HZB50..LHD..EX;HZB50..WOC..ARL;HZB50..LHD..WOC;BB50..6F..TDEFI;HZB50..LHD..SRF..WC;BB50,58..LHD..(20S,23S,30S);HZB50..HRF..(DX,STD)..WC..5F	07/1999 - 11/2002	1
87248-36300	BB50..LHD;BB58,HZB50;BB50..RHD..6F	11/2002 - 08/2004	1
87248-36300	HZB50	01/2015 - 12/2999	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36250	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-3B620	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87245-3C080	RZB40,50	09/1993 - 07/1999	1
87245-3B621	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C080	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C080	RZB40,50	11/2002 - 08/2004	1
87245-3B621	HZB50	01/2015 - 12/2999	1
87245-36E20	TRB40,50	01/2015 - 12/2999	1
87245-3B621	HZB50	08/2004 - 01/2015	1
87245-36E20	TRB40,50	08/2007 - 01/2015	1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-36262	HZB50..5F	05/1997 - 07/1999	1
87245-36261	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 05/1997	1
87245-36263	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-36263	HZB50	08/2004 - 01/2015	1
87245-36263	HZB50	01/2015 - 12/2999	1
87245-36A60	XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
Common parts
87124-28030
87124-36130
87124-36150
90179-06206
90460-27001
91651-60616
96112-10250
96134-42100

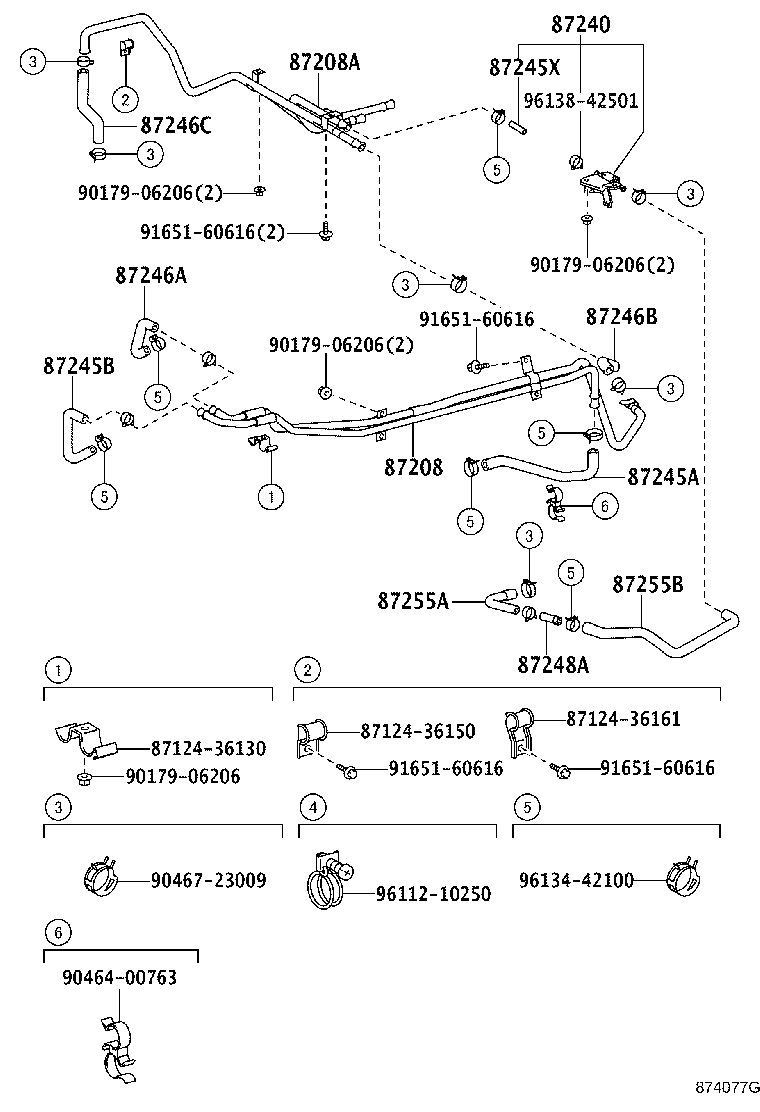

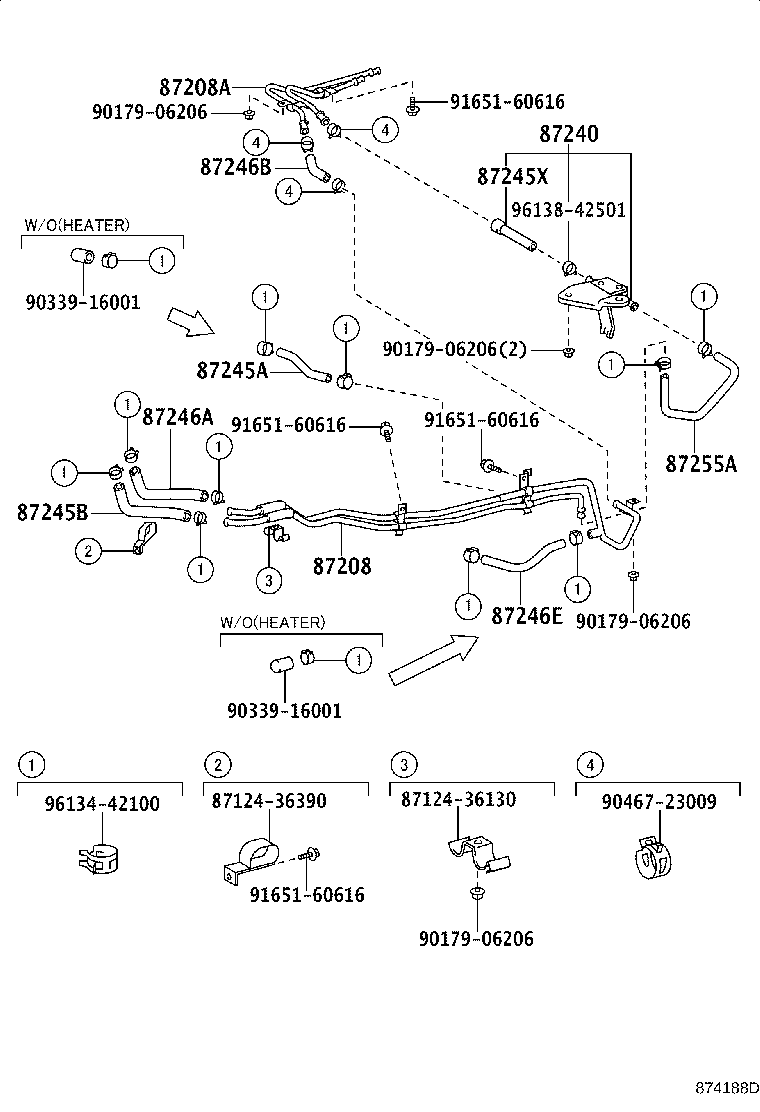

ILLUST NO. 1 OF 3(9301-9907)HZB50..RHD..TD

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36442	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87208-36372	HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208-36C00	TRB40,50	08/2007 - 12/2013	1
87208-36372	HZB50..RHD	08/2004 - 01/2015	1
87208-36C01	TRB40,50	12/2013 - 01/2015	1
87208-36372	HZB50..RHD	01/2015 - 12/2999	1
87208-36C01	TRB40,50	01/2015 - 12/2999	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	RZB40,50..GEN;BB42..LHD..WC..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1995	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..LHD..STD..WC;HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 01/1994	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..RHD..(ARL,EUR,GEN);HZB50..LHD..STD..WC..(EUR,GEN)	01/1994 - 05/1995	1
87208-36460	HZB50..LHD..STD..(EUR,GEN);HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36461	HZB50..RHD..5F;HZB50..LHD..STD..GEN	05/1997 - 07/1999	1
87208-36462	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87208-36462	HZB50	08/2004 - 01/2015	1
87208-36730	BB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN)	05/1997 - 07/1999	1
87208-36731	BB42,50,RZB40,50..DSL,EFI,TD	11/2002 - 08/2004	1
87208-36C90	HZB50..RHD	01/2015 - 12/2999	1
87240 - VALVE ASSY, HEATER WATER
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36120	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36120	BB42..RHD;BB42..LHD..SRF;XZB50..21S..WC;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87240-36120	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C481	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-36272	HZB50	08/2004 - 01/2015	1
87245-3C481	RZB40,50	08/2004 - 08/2007	1
87245-36E00	TRB40,50	08/2007 - 01/2015	1
87245-36272	HZB50	01/2015 - 12/2999	1
87245-36E00	TRB40,50	01/2015 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-36210	HZB50..RHD..TD;HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN	01/1993 - 11/1996	1
87245-3C461	RZB40..22S..CHI;RZB40..WOC..GEN;BB42,HZB50..WC..GCC;HZB50..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;BB42,HZB50..LHD..(20S,26S)..GEN	07/1999 - 11/2002	1
87245-3C360	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C360	BB42,HZB50..RHD	01/2015 - 12/2999	1
87245-3C360	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B390	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3B390	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B391	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B391	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3C370	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C370	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36E10	TRB40,50 FRONT HEATER	08/2007 - 01/2015	1
87245-3C370	BB42,HZB50..RHD	01/2015 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3C460	RZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC COLD SPEC	05/1997 - 07/1999	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87245-3B410	BB42..RHD..GEN;BB40,HZB50..RHD	01/1993 - 05/1997	1
87245-3C380	HZB50..RHD;BB42,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245-3C380	TRB40,50	08/2004 - 12/2013	1
87245-3C380	BB50..TD;BB42..LHD..SRF;XZB50..21S..WC;BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36C00	TRB40,50	12/2013 - 01/2015	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480	HZB50	01/1993 - 05/1997	1
87245-3B481	HZB50	05/1997 - 07/1999	1
87245-3B462	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
87245-36E10	TRB40,50	01/2015 - 12/2999	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36250	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-3B620	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87245-3C080	RZB40,50	09/1993 - 07/1999	1
87245-3B621	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C080	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C080	RZB40,50	11/2002 - 08/2004	1
87245-3B621	HZB50	01/2015 - 12/2999	1
87245-36E20	TRB40,50	01/2015 - 12/2999	1
87245-3B621	HZB50	08/2004 - 01/2015	1
87245-36E20	TRB40,50	08/2007 - 01/2015	1
Common parts
87124-28030
87124-36130
87124-36140
87124-36150
90179-06206
90460-27001
90464-00427
91651-60616
91651-B0820
96112-10250
96134-42100

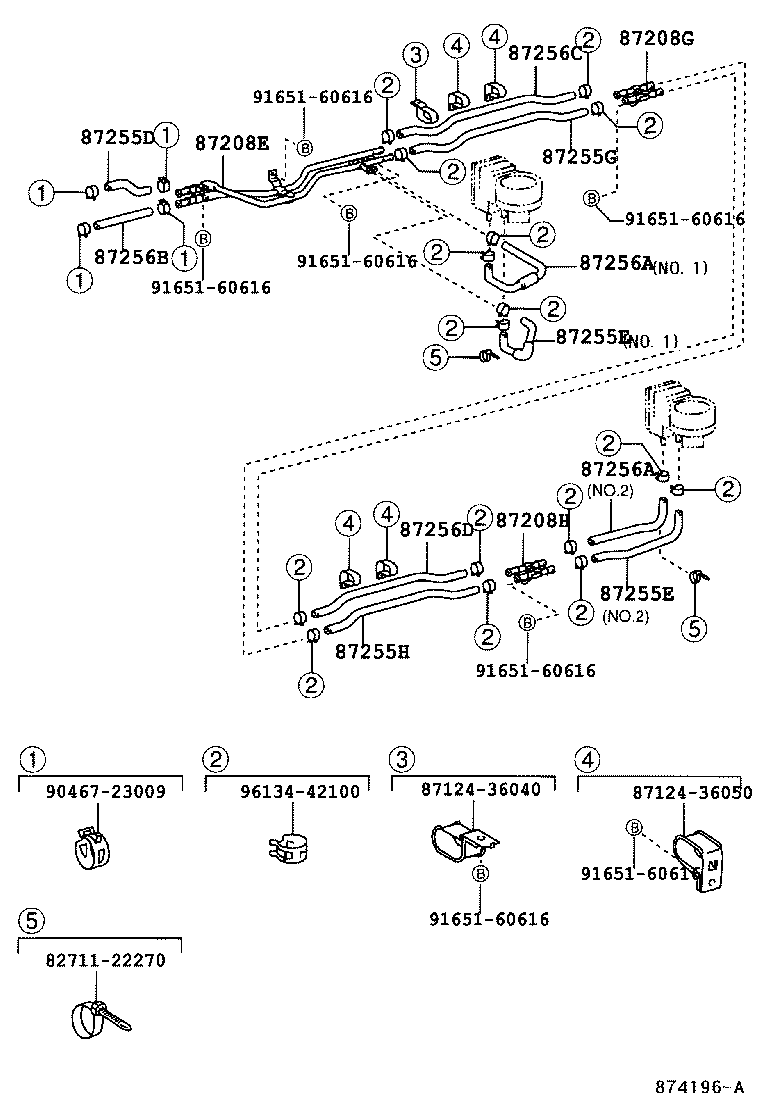

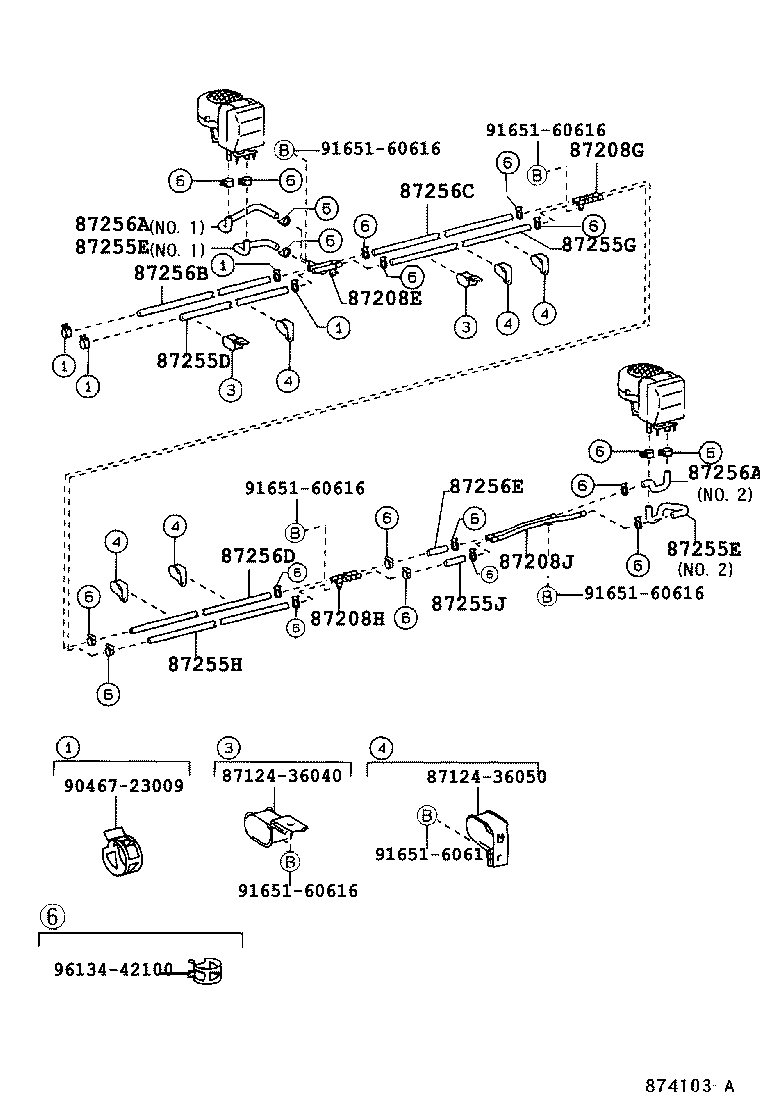

ILLUST NO. 3 OF 3(9301-9907)RHD..IV ; (9301-9907)GCC..4FC ; (9301-9907)BB42..LHD..WOC..GEN ; (9301-9

Click highlighted areas on diagram

Part #	Description	Period	Qty
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-36540	BB42,50,HZB50..RHD..MTM..(DSL,TDEFI)	07/1999 - 08/2001	1
87208-36540	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87208-36540	BB42,HZB50..RHD	08/2004 - 01/2015	1
87208-36D30	BB42,HZB50..RHD	01/2015 - 12/2999	1
Common parts
87124-36240
87124-36250
87124-36260
87124-36270
90179-08017
91651-B0820
94130-00802
96112-10360

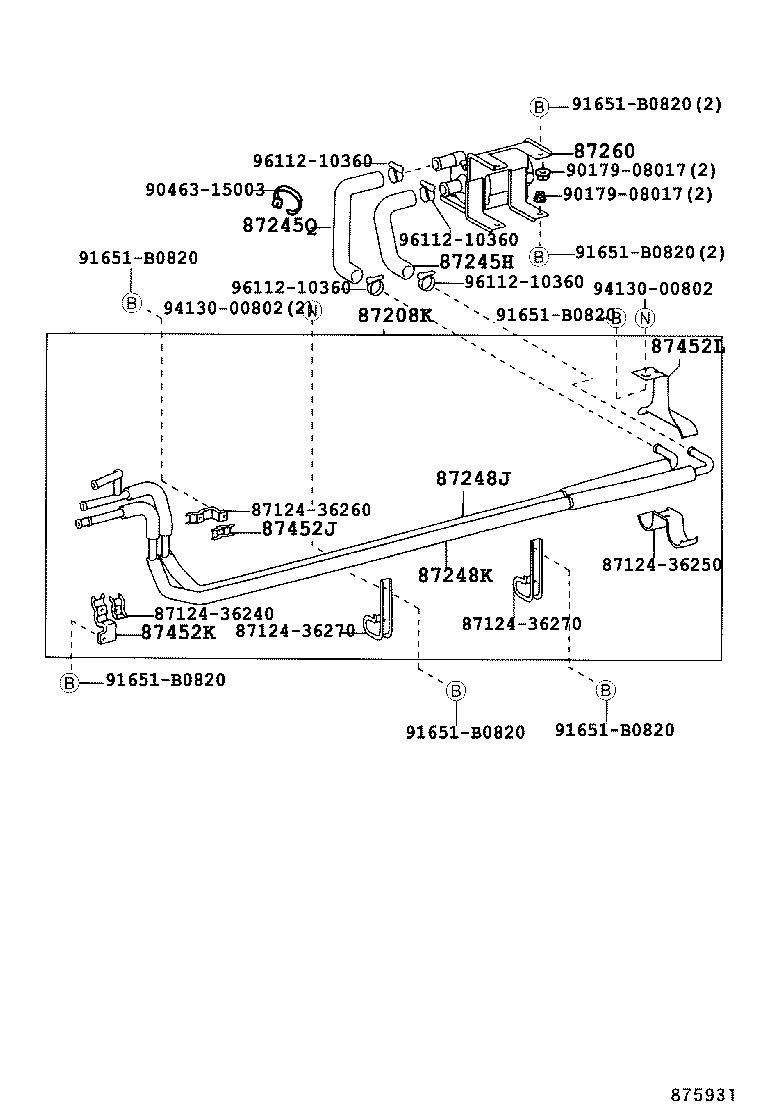

ILLUST NO. 2 OF 3(9301-9907)HZB50..RHD..DX,STD..DSL

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-36350	HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87208-36350	HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87208-36690	HZB50..RHD..(DX,STD)..5F	05/1997 - 07/1999	1
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-36550	HZB50..RHD..TD;BB42,HZB50,RZB40,50..LHD..CBU	08/1993 - 05/1995	1
87208-36550	RZB40,50;BB42..LHD..WC;BB42..WOC..GCC;HZB50..SRF..GCC;BB50,HZB50..RHD..TD;HZB50..LHD..HRF..DSL	05/1995 - 05/1997	1
87208-36540	BB50,HZB50..LHD..EUR;BB40,42,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 07/1999	1
87208-36670	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208-36670	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87208-36670	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87208-36540	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87208-36670	XZB50..21S..WC;BB50,HZB50,TRB50..30S	08/2004 - 01/2015	1
87208-36670	HZB50..LHD;BB42,TRB40,50,XZB40,50..(21S,26S,30S)..(GCC,GEN,TAIW)	01/2015 - 12/2999	1
87208-36E00	HZB50..RHD	01/2015 - 12/2999	1
87208H - PIPE SUB-ASSY, HEATER WATER, H
87208-36530	HZB50,RZB50..ARL,EUR,GCC,GEN	01/1993 - 05/1995	1
87208-36530	BB50,RZB50;HZB50..LHD..HRF;HZB50..SRF..GCC;HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36670	BB50..WOC..5F;HZB50..RHD..5F;HZB50..SRF..GCC;BB50,HZB50..LHD..HRF..CBU;BB42,5#,RZB40,50..DSL,EFI,TDEFI	07/1999 - 08/2001	1
87208-36670	HZB50..RHD..5F;HZB50..LHD..HRF;HZB50..SRF..GCC;BB5#,RZB50..STD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36670	HZB50..HRF;BB50..LHD..CBU;HZB50..SRF..GCC;BB42,58,RZB40,50	08/2001 - 11/2002	1
87208-36670	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87208-36670	HZB50..HRF;HZB50..SRF..GCC;BB42,58,RZB40,50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208-36670	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87208J - PIPE SUB-ASSY, HEATER WATER, J
87208-36530	HZB50..30S..4FC;BB50,HZB50..LHD..TD;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	08/1993 - 05/1997	1
87208-36530	BB4#,HZB50..ARL,EUR,GCC,GEN	01/1993 - 08/1993	1
87208-36690	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87208-36670	HZB50..5F;BB42,5#,RZB40,50..LHD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36690	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87208-36690	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87208-36690	BB42,HZB50,XZB50..RHD..(DX,STD)	01/2015 - 12/2999	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B681	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3C560	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-36G30	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87245-3C560	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87255H - HOSE, HEATER WATER INLET, H
87245-3B660	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87245-3B660	BB4#,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 05/1997	1
87245-3C690	BB50..LHD..CBU;BB42,58,HZB50,RZB40,50	08/2001 - 11/2002	1
87245-3C690	BB50..WOC..5F;BB50..LHD..CBU;BB42,5#,HZB50,RZB40,50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3B661	BB40,42,HZB50..RHD..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3C690	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87245-3C690	BB50..19S,21S,30S;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-36K20	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87255J - HOSE, HEATER WATER INLET, J
99556-31000	HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980	01/1993 - 05/1997	1
87245-3C700	BB50..STD..GEN;BB58,HZB50,RZB50..5F	05/1997 - 07/1999	1
87245-3C710	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-3C710	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87245-3C710	BB42,HZB50,XZB50..RHD..(DX,STD)	01/2015 - 12/2999	1
87245-3C710	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87255K - HOSE, REAR HEATER WATER INLET, K
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720	01/1993 - 08/1993	1
87245-3C690	BB40,42,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,GCC,GEN *H,L=720	08/1993 - 09/1993	1
99556-31000	HZB50..30S..4FC;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F *H,L=720	09/1993 - 05/1997	1
87256G - HOSE, REAR HEATER WATER OUTLET, G
87245-3B670	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3B670	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B671	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B671	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87256J - HOSE, REAR HEATER WATER OUTLRT, J
99556-31000	HZB50..30S..4FC;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F *H,L=720	09/1993 - 05/1997	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,GCC,GEN *H,L=720	08/1993 - 09/1993	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720	01/1993 - 08/1993	1
87245-3C690	BB40,42,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87256K - HOSE, REAR HEATER WATER OUTLET, K
99556-31000	HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980	01/1993 - 05/1997	1
87245-3C700	BB50..STD..GEN;BB58,HZB50,RZB50..5F	05/1997 - 07/1999	1
87256L - HOSE, REAR HEATER WATER OUTLET, L
87245-3B650	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87245-3B650	BB4#,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 05/1997	1
87245-3B651	BB40,42,HZB50..RHD..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B651	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
Common parts
87124-36020
87124-36030
87124-36040
87124-36050
90467-23009
91651-60616
96112-10250
96134-42100
96134-42300

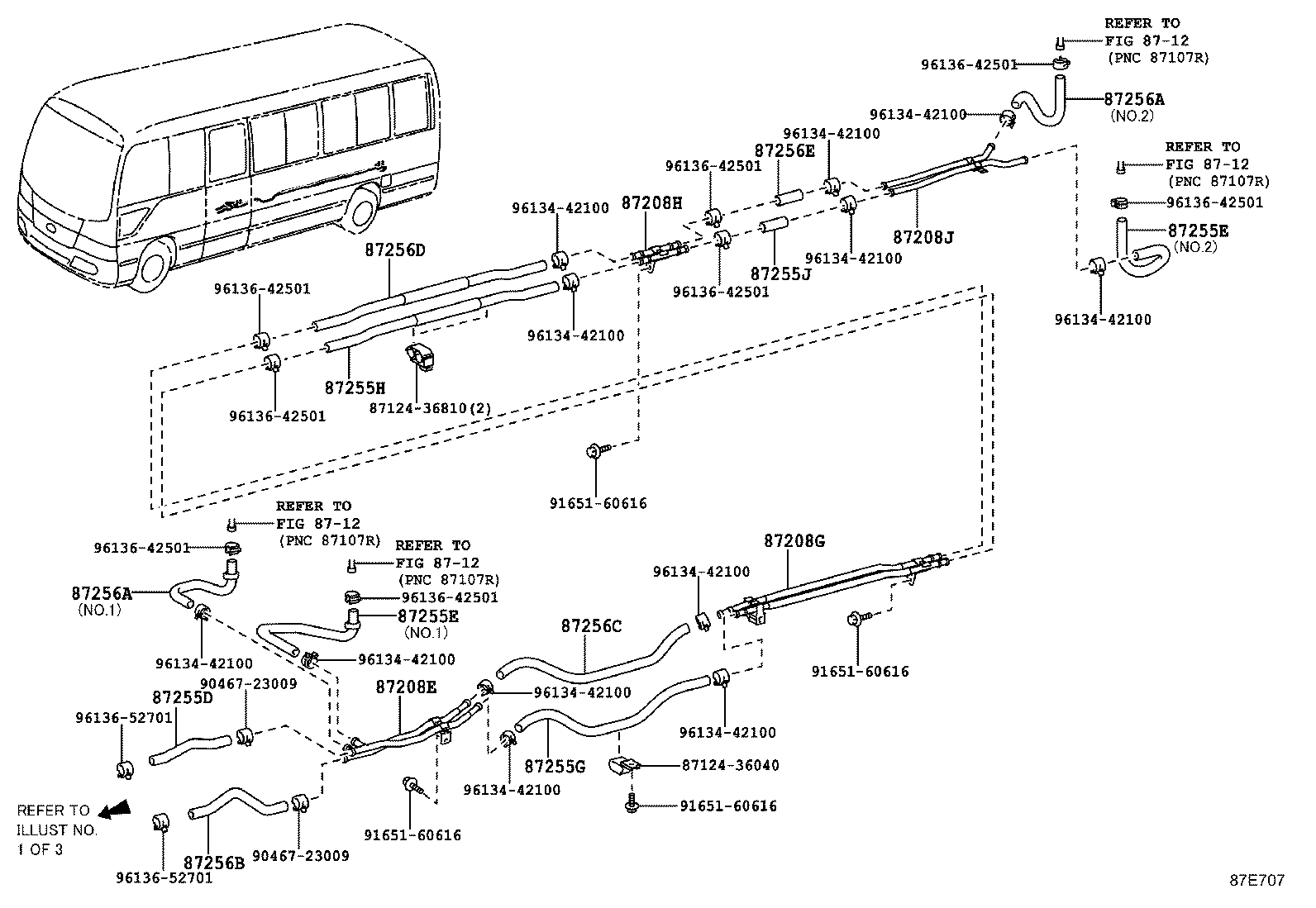

ILLUST NO. 2 OF 3(9301-9907)HZB50..RHD..ARL,GEN

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-36550	HZB50..RHD..TD;BB42,HZB50,RZB40,50..LHD..CBU	08/1993 - 05/1995	1
87208-36550	RZB40,50;BB42..LHD..WC;BB42..WOC..GCC;HZB50..SRF..GCC;BB50,HZB50..RHD..TD;HZB50..LHD..HRF..DSL	05/1995 - 05/1997	1
87208-36540	BB50,HZB50..LHD..EUR;BB40,42,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 07/1999	1
87208-36670	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208-36670	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87208-36670	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87208-36540	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87208-36670	XZB50..21S..WC;BB50,HZB50,TRB50..30S	08/2004 - 01/2015	1
87208-36670	HZB50..LHD;BB42,TRB40,50,XZB40,50..(21S,26S,30S)..(GCC,GEN,TAIW)	01/2015 - 12/2999	1
87208-36E00	HZB50..RHD	01/2015 - 12/2999	1
87208H - PIPE SUB-ASSY, HEATER WATER, H
87208-36530	HZB50,RZB50..ARL,EUR,GCC,GEN	01/1993 - 05/1995	1
87208-36530	BB50,RZB50;HZB50..LHD..HRF;HZB50..SRF..GCC;HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36670	BB50..WOC..5F;HZB50..RHD..5F;HZB50..SRF..GCC;BB50,HZB50..LHD..HRF..CBU;BB42,5#,RZB40,50..DSL,EFI,TDEFI	07/1999 - 08/2001	1
87208-36670	HZB50..RHD..5F;HZB50..LHD..HRF;HZB50..SRF..GCC;BB5#,RZB50..STD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36670	HZB50..HRF;BB50..LHD..CBU;HZB50..SRF..GCC;BB42,58,RZB40,50	08/2001 - 11/2002	1
87208-36670	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87208-36670	HZB50..HRF;HZB50..SRF..GCC;BB42,58,RZB40,50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208-36670	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87208J - PIPE SUB-ASSY, HEATER WATER, J
87208-36530	HZB50..30S..4FC;BB50,HZB50..LHD..TD;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	08/1993 - 05/1997	1
87208-36530	BB4#,HZB50..ARL,EUR,GCC,GEN	01/1993 - 08/1993	1
87208-36690	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87208-36670	HZB50..5F;BB42,5#,RZB40,50..LHD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36690	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87208-36690	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87208-36690	BB42,HZB50,XZB50..RHD..(DX,STD)	01/2015 - 12/2999	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B681	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3C560	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-36G30	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87245-3C560	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87255H - HOSE, HEATER WATER INLET, H
87245-3B660	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87245-3B660	BB4#,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 05/1997	1
87245-3C690	BB50..LHD..CBU;BB42,58,HZB50,RZB40,50	08/2001 - 11/2002	1
87245-3C690	BB50..WOC..5F;BB50..LHD..CBU;BB42,5#,HZB50,RZB40,50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3B661	BB40,42,HZB50..RHD..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3C690	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87245-3C690	BB50..19S,21S,30S;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-36K20	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87255J - HOSE, HEATER WATER INLET, J
99556-31000	HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980	01/1993 - 05/1997	1
87245-3C700	BB50..STD..GEN;BB58,HZB50,RZB50..5F	05/1997 - 07/1999	1
87245-3C710	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-3C710	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87245-3C710	BB42,HZB50,XZB50..RHD..(DX,STD)	01/2015 - 12/2999	1
87245-3C710	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87255K - HOSE, REAR HEATER WATER INLET, K
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720	01/1993 - 08/1993	1
87245-3C690	BB40,42,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,GCC,GEN *H,L=720	08/1993 - 09/1993	1
99556-31000	HZB50..30S..4FC;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F *H,L=720	09/1993 - 05/1997	1
87256G - HOSE, REAR HEATER WATER OUTLET, G
87245-3B670	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3B670	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B671	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B671	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87256J - HOSE, REAR HEATER WATER OUTLRT, J
99556-31000	HZB50..30S..4FC;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F *H,L=720	09/1993 - 05/1997	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,GCC,GEN *H,L=720	08/1993 - 09/1993	1
99556-31000	BB42..RHD..GEN;BB40,HZB50..ARL,EUR,GCC,GEN *H,L=720	01/1993 - 08/1993	1
87245-3C690	BB40,42,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87256K - HOSE, REAR HEATER WATER OUTLET, K
99556-31000	HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980	01/1993 - 05/1997	1
87245-3C700	BB50..STD..GEN;BB58,HZB50,RZB50..5F	05/1997 - 07/1999	1
87256L - HOSE, REAR HEATER WATER OUTLET, L
87245-3B650	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87245-3B650	BB4#,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 05/1997	1
87245-3B651	BB40,42,HZB50..RHD..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B651	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
Common parts
87124-36020
87124-36030
87124-36050
90467-23009
91651-60616
96112-10250
96134-42100
96134-42300

ILLUST NO. 1 OF 3(9907-1501)HZB50..RHD..5F

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36442	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87208-36372	HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208-36C00	TRB40,50	08/2007 - 12/2013	1
87208-36372	HZB50..RHD	08/2004 - 01/2015	1
87208-36C01	TRB40,50	12/2013 - 01/2015	1
87208-36372	HZB50..RHD	01/2015 - 12/2999	1
87208-36C01	TRB40,50	01/2015 - 12/2999	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	RZB40,50..GEN;BB42..LHD..WC..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1995	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..LHD..STD..WC;HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 01/1994	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..RHD..(ARL,EUR,GEN);HZB50..LHD..STD..WC..(EUR,GEN)	01/1994 - 05/1995	1
87208-36460	HZB50..LHD..STD..(EUR,GEN);HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36461	HZB50..RHD..5F;HZB50..LHD..STD..GEN	05/1997 - 07/1999	1
87208-36462	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87208-36462	HZB50	08/2004 - 01/2015	1
87208-36730	BB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN)	05/1997 - 07/1999	1
87208-36731	BB42,50,RZB40,50..DSL,EFI,TD	11/2002 - 08/2004	1
87208-36C90	HZB50..RHD	01/2015 - 12/2999	1
87240 - VALVE ASSY, HEATER WATER
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36120	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36120	BB42..RHD;BB42..LHD..SRF;XZB50..21S..WC;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87240-36120	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C481	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-36272	HZB50	08/2004 - 01/2015	1
87245-3C481	RZB40,50	08/2004 - 08/2007	1
87245-36E00	TRB40,50	08/2007 - 01/2015	1
87245-36272	HZB50	01/2015 - 12/2999	1
87245-36E00	TRB40,50	01/2015 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-36210	HZB50..RHD..TD;HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN	01/1993 - 11/1996	1
87245-3C461	RZB40..22S..CHI;RZB40..WOC..GEN;BB42,HZB50..WC..GCC;HZB50..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;BB42,HZB50..LHD..(20S,26S)..GEN	07/1999 - 11/2002	1
87245-3C360	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C360	BB42,HZB50..RHD	01/2015 - 12/2999	1
87245-3C360	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3C370	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C370	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36E10	TRB40,50 FRONT HEATER	08/2007 - 01/2015	1
87245-3C370	BB42,HZB50..RHD	01/2015 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3C460	RZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC COLD SPEC	05/1997 - 07/1999	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87245-3B410	BB42..RHD..GEN;BB40,HZB50..RHD	01/1993 - 05/1997	1
87245-3C380	HZB50..RHD;BB42,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245-3C380	TRB40,50	08/2004 - 12/2013	1
87245-3C380	BB50..TD;BB42..LHD..SRF;XZB50..21S..WC;BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36C00	TRB40,50	12/2013 - 01/2015	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-3B481	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3B481	HZB50	01/2015 - 12/2999	1
87245-3B481	HZB50	08/2004 - 01/2015	1
87248A - PIPE, HEATER WATER INLET, A
87248-14090	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87248-36300	HZB50..LHD..EX;HZB50..WOC..ARL;HZB50..LHD..WOC;BB50..6F..TDEFI;HZB50..LHD..SRF..WC;BB50,58..LHD..(20S,23S,30S);HZB50..HRF..(DX,STD)..WC..5F	07/1999 - 11/2002	1
87248-36300	BB50..LHD;BB58,HZB50;BB50..RHD..6F	11/2002 - 08/2004	1
87248-36300	BB50,HZB50..30S	08/2004 - 01/2015	1
87248-36300	HZB50	01/2015 - 12/2999	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36250	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-3B620	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87245-3C080	RZB40,50	09/1993 - 07/1999	1
87245-3B621	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C080	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C080	RZB40,50	11/2002 - 08/2004	1
87245-3B621	HZB50	01/2015 - 12/2999	1
87245-36E20	TRB40,50	01/2015 - 12/2999	1
87245-3B621	HZB50	08/2004 - 01/2015	1
87245-36E20	TRB40,50	08/2007 - 01/2015	1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-36262	HZB50..5F	05/1997 - 07/1999	1
87245-36261	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 05/1997	1
87245-36263	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-36263	HZB50	08/2004 - 01/2015	1
87245-36263	HZB50	01/2015 - 12/2999	1
87245-36A60	XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
Common parts
87124-36130
87124-36150
87124-36161
90179-06206
90464-00763
90467-23009
91651-60616
96112-10250
96134-42100
96138-42501

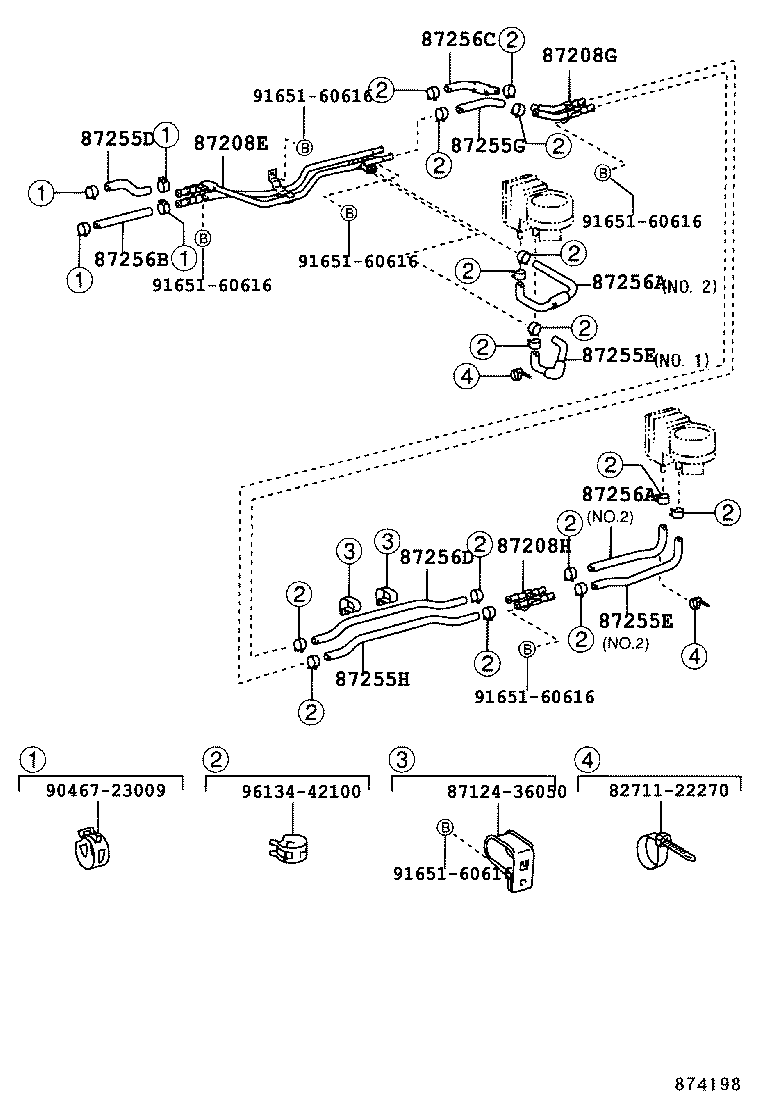

ILLUST NO. 2 OF 3(9907-1501)HZB50..RHD..DX,STD..5F ; (0105-1501)RHD..6F ; (0105-1501)XZB50..ARL

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-36540	BB42,50,HZB50..RHD..MTM..(DSL,TDEFI)	07/1999 - 08/2001	1
87208-36540	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87208-36540	BB42,HZB50..RHD	08/2004 - 01/2015	1
87208-36D30	BB42,HZB50..RHD	01/2015 - 12/2999	1
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-36550	HZB50..RHD..TD;BB42,HZB50,RZB40,50..LHD..CBU	08/1993 - 05/1995	1
87208-36550	RZB40,50;BB42..LHD..WC;BB42..WOC..GCC;HZB50..SRF..GCC;BB50,HZB50..RHD..TD;HZB50..LHD..HRF..DSL	05/1995 - 05/1997	1
87208-36540	BB50,HZB50..LHD..EUR;BB40,42,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 07/1999	1
87208-36670	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208-36670	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87208-36670	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87208-36540	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87208-36670	XZB50..21S..WC;BB50,HZB50,TRB50..30S	08/2004 - 01/2015	1
87208-36670	HZB50..LHD;BB42,TRB40,50,XZB40,50..(21S,26S,30S)..(GCC,GEN,TAIW)	01/2015 - 12/2999	1
87208-36E00	HZB50..RHD	01/2015 - 12/2999	1
87208H - PIPE SUB-ASSY, HEATER WATER, H
87208-36530	HZB50,RZB50..ARL,EUR,GCC,GEN	01/1993 - 05/1995	1
87208-36530	BB50,RZB50;HZB50..LHD..HRF;HZB50..SRF..GCC;HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36670	BB50..WOC..5F;HZB50..RHD..5F;HZB50..SRF..GCC;BB50,HZB50..LHD..HRF..CBU;BB42,5#,RZB40,50..DSL,EFI,TDEFI	07/1999 - 08/2001	1
87208-36670	HZB50..RHD..5F;HZB50..LHD..HRF;HZB50..SRF..GCC;BB5#,RZB50..STD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36670	HZB50..HRF;BB50..LHD..CBU;HZB50..SRF..GCC;BB42,58,RZB40,50	08/2001 - 11/2002	1
87208-36670	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87208-36670	HZB50..HRF;HZB50..SRF..GCC;BB42,58,RZB40,50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208-36670	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87208J - PIPE SUB-ASSY, HEATER WATER, J
87208-36530	HZB50..30S..4FC;BB50,HZB50..LHD..TD;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	08/1993 - 05/1997	1
87208-36530	BB4#,HZB50..ARL,EUR,GCC,GEN	01/1993 - 08/1993	1
87208-36690	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87208-36670	HZB50..5F;BB42,5#,RZB40,50..LHD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36690	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87208-36690	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87208-36690	BB42,HZB50,XZB50..RHD..(DX,STD)	01/2015 - 12/2999	1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-3B661	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87245-3B661	BB42,50,HZB50..RHD..MTM..(DSL,TDEFI)	07/1999 - 08/2001	1
87245-3B661	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-36G10	BB42,HZB50..RHD	01/2015 - 12/2999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B681	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3C560	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-36G30	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87245-3C560	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B681	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3C560	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-36G30	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87245-3C560	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87255G - HOSE, REAR HEATER WATER INLET, G
87245-3C700	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3C700	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87245-3C700	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87245-36G40	HZB50..RHD	01/2015 - 12/2999	1
87245-3C700	XZB50..21S..WC;BB50,HZB50,TRB50..30S	08/2004 - 01/2015	1
87255H - HOSE, HEATER WATER INLET, H
87245-3B660	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87245-3B660	BB4#,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 05/1997	1
87245-3C690	BB50..LHD..CBU;BB42,58,HZB50,RZB40,50	08/2001 - 11/2002	1
87245-3C690	BB50..WOC..5F;BB50..LHD..CBU;BB42,5#,HZB50,RZB40,50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3B661	BB40,42,HZB50..RHD..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3C690	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87245-3C690	BB50..19S,21S,30S;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-36K20	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87255J - HOSE, HEATER WATER INLET, J
99556-31000	HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980	01/1993 - 05/1997	1
87245-3C700	BB50..STD..GEN;BB58,HZB50,RZB50..5F	05/1997 - 07/1999	1
87245-3C710	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-3C710	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87245-3C710	BB42,HZB50,XZB50..RHD..(DX,STD)	01/2015 - 12/2999	1
87245-3C710	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-3B681	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3C550	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C550	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-3C550	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3C550	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87245-36G20	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-3B681	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3C550	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C550	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-3C550	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3C550	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87245-36G20	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-3B651	BB42,50,HZB50..RHD..MTM..(DSL,TDEFI)	07/1999 - 08/2001	1
87245-3B651	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-3B651	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87245-36G00	BB42,HZB50..RHD	01/2015 - 12/2999	1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-3C700	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3C700	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87245-3C700	XZB50..LHD..IV;BB50,58,HZB50,RZB50,TRB50,XZB50..19S,21S,23S,30S	08/2004 - 01/2015	1
87245-3C700	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87245-36G40	HZB50..RHD	01/2015 - 12/2999	1
87256D - HOSE, REAR HEATER WATER OUTLET, D
87245-3C690	BB50..LHD..CBU;BB42,58,HZB50,RZB40,50	08/2001 - 11/2002	1
87245-3C690	BB50..WOC..5F;BB50..LHD..CBU;BB42,5#,HZB50,RZB40,50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-36K20	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87245-3C690	BB50..19S,21S,30S;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C690	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-3C710	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87245-3C710	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-3C710	XZB50..WC..ARL;BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-3C710	BB42,HZB50,XZB50..RHD..(DX,STD)	01/2015 - 12/2999	1
Common parts
87124-36040
87124-36050
90467-23009
91651-60616
96134-42100

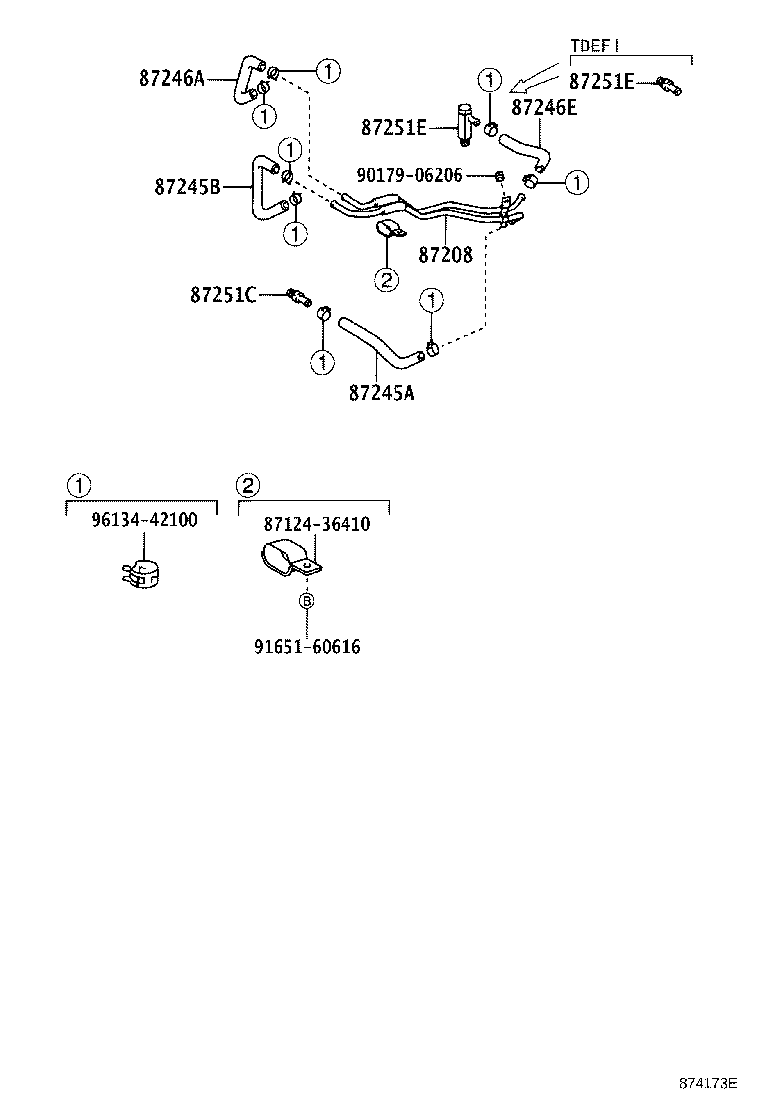

ILLUST NO. 1 OF 3(9907-1501)WOC..CBU..TD ; (9907-1501)BB50..EX..GEN..CBU ; (0104-1501)BB50..EX..IV ;

Click highlighted areas on diagram

FRONT ONLY

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36442	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87208-36372	HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208-36C00	TRB40,50	08/2007 - 12/2013	1
87208-36372	HZB50..RHD	08/2004 - 01/2015	1
87208-36C01	TRB40,50	12/2013 - 01/2015	1
87208-36372	HZB50..RHD	01/2015 - 12/2999	1
87208-36C01	TRB40,50	01/2015 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C481	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-36272	HZB50	08/2004 - 01/2015	1
87245-3C481	RZB40,50	08/2004 - 08/2007	1
87245-36E00	TRB40,50	08/2007 - 01/2015	1
87245-36272	HZB50	01/2015 - 12/2999	1
87245-36E00	TRB40,50	01/2015 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-36210	HZB50..RHD..TD;HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN	01/1993 - 11/1996	1
87245-3C461	RZB40..22S..CHI;RZB40..WOC..GEN;BB42,HZB50..WC..GCC;HZB50..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;BB42,HZB50..LHD..(20S,26S)..GEN	07/1999 - 11/2002	1
87245-3C360	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C360	BB42,HZB50..RHD	01/2015 - 12/2999	1
87245-3C360	BB42,HZB50..RHD	08/2004 - 01/2015	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3C370	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C370	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36E10	TRB40,50 FRONT HEATER	08/2007 - 01/2015	1
87245-3C370	BB42,HZB50..RHD	01/2015 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480	HZB50	01/1993 - 05/1997	1
87245-3B481	HZB50	05/1997 - 07/1999	1
87245-3B462	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
87245-36E10	TRB40,50	01/2015 - 12/2999	1
87251C - JOINT, WATER HOSE THROUGH
87251-30200	BB42..SRF..WC;BB42..WOC..GCC;BB4#,50..RHD..(ARL,EUR,GEN)	05/1995 - 05/1997	1
87251-30200	BB42..LHD..SRF;BB40,42,50..RHD..(ARL,EUR,GEN)	05/1997 - 07/1999	1
87251E - JOINT, WATER, NO.2
87251-95400	BB50..EUR;BB40,42,50..(ARL,GCC,GEN)..CBU	07/1994 - 07/1999	1
87251-95400	BB42,50..DSL,TD	11/2002 - 08/2004	1
87251E - JOINT, WATER, NO.2
87251-95400	BB50..EUR;BB40,42,50..(ARL,GCC,GEN)..CBU	07/1994 - 07/1999	1
87251-95400	BB42,50..DSL,TD	11/2002 - 08/2004	1
Common parts
87124-36410
90179-06206
91651-60616
96134-42100

ILLUST NO. 1 OF 3(9907-1501)BB58 ; (9907-1501)BB50..STD..WC..GEN..CBU..TD ; (0008-1501)BB50..CHI ; (

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36442	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87208-36372	HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208-36C00	TRB40,50	08/2007 - 12/2013	1
87208-36372	HZB50..RHD	08/2004 - 01/2015	1
87208-36C01	TRB40,50	12/2013 - 01/2015	1
87208-36372	HZB50..RHD	01/2015 - 12/2999	1
87208-36C01	TRB40,50	01/2015 - 12/2999	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	RZB40,50..GEN;BB42..LHD..WC..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1995	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..LHD..STD..WC;HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 01/1994	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..RHD..(ARL,EUR,GEN);HZB50..LHD..STD..WC..(EUR,GEN)	01/1994 - 05/1995	1
87208-36460	HZB50..LHD..STD..(EUR,GEN);HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36461	HZB50..RHD..5F;HZB50..LHD..STD..GEN	05/1997 - 07/1999	1
87208-36462	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87208-36462	HZB50	08/2004 - 01/2015	1
87208-36730	BB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN)	05/1997 - 07/1999	1
87208-36731	BB42,50,RZB40,50..DSL,EFI,TD	11/2002 - 08/2004	1
87208-36C90	HZB50..RHD	01/2015 - 12/2999	1
87240 - VALVE ASSY, HEATER WATER
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36120	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36120	BB42..RHD;BB42..LHD..SRF;XZB50..21S..WC;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87240-36120	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C481	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-36272	HZB50	08/2004 - 01/2015	1
87245-3C481	RZB40,50	08/2004 - 08/2007	1
87245-36E00	TRB40,50	08/2007 - 01/2015	1
87245-36272	HZB50	01/2015 - 12/2999	1
87245-36E00	TRB40,50	01/2015 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-36210	HZB50..RHD..TD;HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN	01/1993 - 11/1996	1
87245-3C461	RZB40..22S..CHI;RZB40..WOC..GEN;BB42,HZB50..WC..GCC;HZB50..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;BB42,HZB50..LHD..(20S,26S)..GEN	07/1999 - 11/2002	1
87245-3C360	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C360	BB42,HZB50..RHD	01/2015 - 12/2999	1
87245-3C360	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3C370	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C370	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36E10	TRB40,50 FRONT HEATER	08/2007 - 01/2015	1
87245-3C370	BB42,HZB50..RHD	01/2015 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3C460	RZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC COLD SPEC	05/1997 - 07/1999	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87245-3B410	BB42..RHD..GEN;BB40,HZB50..RHD	01/1993 - 05/1997	1
87245-3C380	HZB50..RHD;BB42,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245-3C380	TRB40,50	08/2004 - 12/2013	1
87245-3C380	BB50..TD;BB42..LHD..SRF;XZB50..21S..WC;BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36C00	TRB40,50	12/2013 - 01/2015	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480	HZB50	01/1993 - 05/1997	1
87245-3B481	HZB50	05/1997 - 07/1999	1
87245-3B462	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
87245-36E10	TRB40,50	01/2015 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-36300	BB50,HZB50..30S	08/2004 - 01/2015	1
87248-14090	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87248-36300	HZB50..LHD..EX;HZB50..WOC..ARL;HZB50..LHD..WOC;BB50..6F..TDEFI;HZB50..LHD..SRF..WC;BB50,58..LHD..(20S,23S,30S);HZB50..HRF..(DX,STD)..WC..5F	07/1999 - 11/2002	1
87248-36300	BB50..LHD;BB58,HZB50;BB50..RHD..6F	11/2002 - 08/2004	1
87248-36300	HZB50	01/2015 - 12/2999	1
87251C - JOINT, WATER HOSE THROUGH
87251-30200	BB42..SRF..WC;BB42..WOC..GCC;BB4#,50..RHD..(ARL,EUR,GEN)	05/1995 - 05/1997	1
87251-30200	BB42..LHD..SRF;BB40,42,50..RHD..(ARL,EUR,GEN)	05/1997 - 07/1999	1
87251E - JOINT, WATER, NO.2
87251-95400	BB50..EUR;BB40,42,50..(ARL,GCC,GEN)..CBU	07/1994 - 07/1999	1
87251-95400	BB42,50..DSL,TD	11/2002 - 08/2004	1
87251E - JOINT, WATER, NO.2
87251-95400	BB50..EUR;BB40,42,50..(ARL,GCC,GEN)..CBU	07/1994 - 07/1999	1
87251-95400	BB42,50..DSL,TD	11/2002 - 08/2004	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36250	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-3B620	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87245-3C080	RZB40,50	09/1993 - 07/1999	1
87245-3B621	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C080	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C080	RZB40,50	11/2002 - 08/2004	1
87245-3B621	HZB50	01/2015 - 12/2999	1
87245-36E20	TRB40,50	01/2015 - 12/2999	1
87245-3B621	HZB50	08/2004 - 01/2015	1
87245-36E20	TRB40,50	08/2007 - 01/2015	1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-36262	HZB50..5F	05/1997 - 07/1999	1
87245-36261	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 05/1997	1
87245-36263	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-36263	HZB50	08/2004 - 01/2015	1
87245-36263	HZB50	01/2015 - 12/2999	1
87245-36A60	XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
Common parts
87124-36390
87124-36400
90179-06206
90464-00428
90467-23009
91651-60616
96134-42100
96138-42501

ILLUST NO. 1 OF 3(9907-1501)RZB40,50 ; (0708-1501)TRB40,50

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36442	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87208-36372	HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208-36C00	TRB40,50	08/2007 - 12/2013	1
87208-36372	HZB50..RHD	08/2004 - 01/2015	1
87208-36C01	TRB40,50	12/2013 - 01/2015	1
87208-36372	HZB50..RHD	01/2015 - 12/2999	1
87208-36C01	TRB40,50	01/2015 - 12/2999	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	RZB40,50..GEN;BB42..LHD..WC..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1995	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..LHD..STD..WC;HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 01/1994	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..RHD..(ARL,EUR,GEN);HZB50..LHD..STD..WC..(EUR,GEN)	01/1994 - 05/1995	1
87208-36460	HZB50..LHD..STD..(EUR,GEN);HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36461	HZB50..RHD..5F;HZB50..LHD..STD..GEN	05/1997 - 07/1999	1
87208-36462	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87208-36462	HZB50	08/2004 - 01/2015	1
87208-36730	BB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN)	05/1997 - 07/1999	1
87208-36731	BB42,50,RZB40,50..DSL,EFI,TD	11/2002 - 08/2004	1
87208-36C90	HZB50..RHD	01/2015 - 12/2999	1
87240 - VALVE ASSY, HEATER WATER
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36120	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36120	BB42..RHD;BB42..LHD..SRF;XZB50..21S..WC;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87240-36120	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C481	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-36272	HZB50	08/2004 - 01/2015	1
87245-3C481	RZB40,50	08/2004 - 08/2007	1
87245-36E00	TRB40,50	08/2007 - 01/2015	1
87245-36272	HZB50	01/2015 - 12/2999	1
87245-36E00	TRB40,50	01/2015 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-36210	HZB50..RHD..TD;HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN	01/1993 - 11/1996	1
87245-3C461	RZB40..22S..CHI;RZB40..WOC..GEN;BB42,HZB50..WC..GCC;HZB50..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;BB42,HZB50..LHD..(20S,26S)..GEN	07/1999 - 11/2002	1
87245-3C360	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C360	BB42,HZB50..RHD	01/2015 - 12/2999	1
87245-3C360	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3C370	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C370	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36E10	TRB40,50 FRONT HEATER	08/2007 - 01/2015	1
87245-3C370	BB42,HZB50..RHD	01/2015 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3C460	RZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC COLD SPEC	05/1997 - 07/1999	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87245-3B410	BB42..RHD..GEN;BB40,HZB50..RHD	01/1993 - 05/1997	1
87245-3C380	HZB50..RHD;BB42,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245-3C380	TRB40,50	08/2004 - 12/2013	1
87245-3C380	BB50..TD;BB42..LHD..SRF;XZB50..21S..WC;BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36C00	TRB40,50	12/2013 - 01/2015	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480	HZB50	01/1993 - 05/1997	1
87245-3B481	HZB50	05/1997 - 07/1999	1
87245-3B462	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
87245-36E10	TRB40,50	01/2015 - 12/2999	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36250	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-3B620	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87245-3C080	RZB40,50	09/1993 - 07/1999	1
87245-3B621	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C080	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C080	RZB40,50	11/2002 - 08/2004	1
87245-3B621	HZB50	01/2015 - 12/2999	1
87245-36E20	TRB40,50	01/2015 - 12/2999	1
87245-3B621	HZB50	08/2004 - 01/2015	1
87245-36E20	TRB40,50	08/2007 - 01/2015	1
Common parts
87124-36130
87124-36390
90179-06206
90339-16001
90467-23009
91651-60616
96134-42100
96138-42501

ILLUST NO. 2 OF 3(9907-1501)BB50,58,HZB50,RZB50..LHD..CHI,GCC,GEN; (0105-1501)LHD..IV..TDEFI ; (060

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-36540	BB42,50,HZB50..RHD..MTM..(DSL,TDEFI)	07/1999 - 08/2001	1
87208-36540	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87208-36540	BB42,HZB50..RHD	08/2004 - 01/2015	1
87208-36D30	BB42,HZB50..RHD	01/2015 - 12/2999	1
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-36550	HZB50..RHD..TD;BB42,HZB50,RZB40,50..LHD..CBU	08/1993 - 05/1995	1
87208-36550	RZB40,50;BB42..LHD..WC;BB42..WOC..GCC;HZB50..SRF..GCC;BB50,HZB50..RHD..TD;HZB50..LHD..HRF..DSL	05/1995 - 05/1997	1
87208-36540	BB50,HZB50..LHD..EUR;BB40,42,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 07/1999	1
87208-36670	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208-36670	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87208-36670	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87208-36540	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87208-36670	XZB50..21S..WC;BB50,HZB50,TRB50..30S	08/2004 - 01/2015	1
87208-36670	HZB50..LHD;BB42,TRB40,50,XZB40,50..(21S,26S,30S)..(GCC,GEN,TAIW)	01/2015 - 12/2999	1
87208-36E00	HZB50..RHD	01/2015 - 12/2999	1
87208H - PIPE SUB-ASSY, HEATER WATER, H
87208-36530	HZB50,RZB50..ARL,EUR,GCC,GEN	01/1993 - 05/1995	1
87208-36530	BB50,RZB50;HZB50..LHD..HRF;HZB50..SRF..GCC;HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36670	BB50..WOC..5F;HZB50..RHD..5F;HZB50..SRF..GCC;BB50,HZB50..LHD..HRF..CBU;BB42,5#,RZB40,50..DSL,EFI,TDEFI	07/1999 - 08/2001	1
87208-36670	HZB50..RHD..5F;HZB50..LHD..HRF;HZB50..SRF..GCC;BB5#,RZB50..STD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36670	HZB50..HRF;BB50..LHD..CBU;HZB50..SRF..GCC;BB42,58,RZB40,50	08/2001 - 11/2002	1
87208-36670	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87208-36670	HZB50..HRF;HZB50..SRF..GCC;BB42,58,RZB40,50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208-36670	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-3B661	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87245-3B661	BB42,50,HZB50..RHD..MTM..(DSL,TDEFI)	07/1999 - 08/2001	1
87245-3B661	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-36G10	BB42,HZB50..RHD	01/2015 - 12/2999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B681	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3C560	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-36G30	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87245-3C560	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B681	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3C560	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-36G30	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87245-3C560	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87255G - HOSE, REAR HEATER WATER INLET, G
87245-3C700	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3C700	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87245-3C700	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87245-36G40	HZB50..RHD	01/2015 - 12/2999	1
87245-3C700	XZB50..21S..WC;BB50,HZB50,TRB50..30S	08/2004 - 01/2015	1
87255H - HOSE, HEATER WATER INLET, H
87245-3B660	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87245-3B660	BB4#,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 05/1997	1
87245-3C690	BB50..LHD..CBU;BB42,58,HZB50,RZB40,50	08/2001 - 11/2002	1
87245-3C690	BB50..WOC..5F;BB50..LHD..CBU;BB42,5#,HZB50,RZB40,50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3B661	BB40,42,HZB50..RHD..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3C690	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87245-3C690	BB50..19S,21S,30S;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-36K20	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-3B681	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3C550	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C550	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-3C550	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3C550	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87245-36G20	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-3B681	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3C550	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C550	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-3C550	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3C550	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87245-36G20	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-3B651	BB42,50,HZB50..RHD..MTM..(DSL,TDEFI)	07/1999 - 08/2001	1
87245-3B651	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-3B651	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87245-36G00	BB42,HZB50..RHD	01/2015 - 12/2999	1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-3C700	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3C700	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87245-3C700	XZB50..LHD..IV;BB50,58,HZB50,RZB50,TRB50,XZB50..19S,21S,23S,30S	08/2004 - 01/2015	1
87245-3C700	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87245-36G40	HZB50..RHD	01/2015 - 12/2999	1
87256D - HOSE, REAR HEATER WATER OUTLET, D
87245-3C690	BB50..LHD..CBU;BB42,58,HZB50,RZB40,50	08/2001 - 11/2002	1
87245-3C690	BB50..WOC..5F;BB50..LHD..CBU;BB42,5#,HZB50,RZB40,50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-36K20	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87245-3C690	BB50..19S,21S,30S;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C690	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
Common parts
82711-22270
87124-36040
87124-36050
90467-23009
91651-60616
96134-42100

ILLUST NO. 2 OF 3(9907-1501)BB42,RZB40..LHD ; (0708-1501)TRB40,50

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-36540	BB42,50,HZB50..RHD..MTM..(DSL,TDEFI)	07/1999 - 08/2001	1
87208-36540	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87208-36540	BB42,HZB50..RHD	08/2004 - 01/2015	1
87208-36D30	BB42,HZB50..RHD	01/2015 - 12/2999	1
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-36550	HZB50..RHD..TD;BB42,HZB50,RZB40,50..LHD..CBU	08/1993 - 05/1995	1
87208-36550	RZB40,50;BB42..LHD..WC;BB42..WOC..GCC;HZB50..SRF..GCC;BB50,HZB50..RHD..TD;HZB50..LHD..HRF..DSL	05/1995 - 05/1997	1
87208-36540	BB50,HZB50..LHD..EUR;BB40,42,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 07/1999	1
87208-36670	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208-36670	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87208-36670	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87208-36540	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87208-36670	XZB50..21S..WC;BB50,HZB50,TRB50..30S	08/2004 - 01/2015	1
87208-36670	HZB50..LHD;BB42,TRB40,50,XZB40,50..(21S,26S,30S)..(GCC,GEN,TAIW)	01/2015 - 12/2999	1
87208-36E00	HZB50..RHD	01/2015 - 12/2999	1
87208H - PIPE SUB-ASSY, HEATER WATER, H
87208-36530	HZB50,RZB50..ARL,EUR,GCC,GEN	01/1993 - 05/1995	1
87208-36530	BB50,RZB50;HZB50..LHD..HRF;HZB50..SRF..GCC;HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36670	BB50..WOC..5F;HZB50..RHD..5F;HZB50..SRF..GCC;BB50,HZB50..LHD..HRF..CBU;BB42,5#,RZB40,50..DSL,EFI,TDEFI	07/1999 - 08/2001	1
87208-36670	HZB50..RHD..5F;HZB50..LHD..HRF;HZB50..SRF..GCC;BB5#,RZB50..STD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36670	HZB50..HRF;BB50..LHD..CBU;HZB50..SRF..GCC;BB42,58,RZB40,50	08/2001 - 11/2002	1
87208-36670	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87208-36670	HZB50..HRF;HZB50..SRF..GCC;BB42,58,RZB40,50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208-36670	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-3B661	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87245-3B661	BB42,50,HZB50..RHD..MTM..(DSL,TDEFI)	07/1999 - 08/2001	1
87245-3B661	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-36G10	BB42,HZB50..RHD	01/2015 - 12/2999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B681	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3C560	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-36G30	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87245-3C560	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B681	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3C560	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-36G30	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87245-3C560	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87255G - HOSE, REAR HEATER WATER INLET, G
87245-3C700	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3C700	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87245-3C700	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87245-36G40	HZB50..RHD	01/2015 - 12/2999	1
87245-3C700	XZB50..21S..WC;BB50,HZB50,TRB50..30S	08/2004 - 01/2015	1
87255H - HOSE, HEATER WATER INLET, H
87245-3B660	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87245-3B660	BB4#,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 05/1997	1
87245-3C690	BB50..LHD..CBU;BB42,58,HZB50,RZB40,50	08/2001 - 11/2002	1
87245-3C690	BB50..WOC..5F;BB50..LHD..CBU;BB42,5#,HZB50,RZB40,50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3B661	BB40,42,HZB50..RHD..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3C690	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87245-3C690	BB50..19S,21S,30S;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-36K20	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-3B681	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3C550	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C550	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-3C550	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3C550	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87245-36G20	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-3B681	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3C550	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C550	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-3C550	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3C550	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87245-36G20	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-3B651	BB42,50,HZB50..RHD..MTM..(DSL,TDEFI)	07/1999 - 08/2001	1
87245-3B651	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-3B651	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87245-36G00	BB42,HZB50..RHD	01/2015 - 12/2999	1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-3C700	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3C700	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87245-3C700	XZB50..LHD..IV;BB50,58,HZB50,RZB50,TRB50,XZB50..19S,21S,23S,30S	08/2004 - 01/2015	1
87245-3C700	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87245-36G40	HZB50..RHD	01/2015 - 12/2999	1
87256D - HOSE, REAR HEATER WATER OUTLET, D
87245-3C690	BB50..LHD..CBU;BB42,58,HZB50,RZB40,50	08/2001 - 11/2002	1
87245-3C690	BB50..WOC..5F;BB50..LHD..CBU;BB42,5#,HZB50,RZB40,50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-36K20	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87245-3C690	BB50..19S,21S,30S;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C690	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
Common parts
82711-22270
87124-36050
90467-23009
91651-60616
96134-42100

ILLUST NO. 3 OF 3(9907-1501)RHD..IV..6F ; (9907-1501)HZB50..LHD..STD..WC..GEN ; (9907-1501)BB42,HZB5

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
87124-36240
87124-36250
87124-36260
87124-36270
90179-08017
90463-15003
91651-B0820
94130-00802
96112-10360

ILLUST NO. 1 OF 3(9301-9907)BB4#,5#,RZB40,50

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36442	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87208-36372	HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208-36C00	TRB40,50	08/2007 - 12/2013	1
87208-36372	HZB50..RHD	08/2004 - 01/2015	1
87208-36C01	TRB40,50	12/2013 - 01/2015	1
87208-36372	HZB50..RHD	01/2015 - 12/2999	1
87208-36C01	TRB40,50	01/2015 - 12/2999	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	RZB40,50..GEN;BB42..LHD..WC..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1995	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..LHD..STD..WC;HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 01/1994	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..RHD..(ARL,EUR,GEN);HZB50..LHD..STD..WC..(EUR,GEN)	01/1994 - 05/1995	1
87208-36460	HZB50..LHD..STD..(EUR,GEN);HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36461	HZB50..RHD..5F;HZB50..LHD..STD..GEN	05/1997 - 07/1999	1
87208-36462	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87208-36462	HZB50	08/2004 - 01/2015	1
87208-36730	BB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN)	05/1997 - 07/1999	1
87208-36731	BB42,50,RZB40,50..DSL,EFI,TD	11/2002 - 08/2004	1
87208-36C90	HZB50..RHD	01/2015 - 12/2999	1
87240 - VALVE ASSY, HEATER WATER
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36120	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36120	BB42..RHD;BB42..LHD..SRF;XZB50..21S..WC;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87240-36120	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C481	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-36272	HZB50	08/2004 - 01/2015	1
87245-3C481	RZB40,50	08/2004 - 08/2007	1
87245-36E00	TRB40,50	08/2007 - 01/2015	1
87245-36272	HZB50	01/2015 - 12/2999	1
87245-36E00	TRB40,50	01/2015 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B390	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3B390	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B391	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B391	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3C370	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C370	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36E10	TRB40,50 FRONT HEATER	08/2007 - 01/2015	1
87245-3C370	BB42,HZB50..RHD	01/2015 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3C460	RZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC COLD SPEC	05/1997 - 07/1999	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87245-3B410	BB42..RHD..GEN;BB40,HZB50..RHD	01/1993 - 05/1997	1
87245-3C380	HZB50..RHD;BB42,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245-3C380	TRB40,50	08/2004 - 12/2013	1
87245-3C380	BB50..TD;BB42..LHD..SRF;XZB50..21S..WC;BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36C00	TRB40,50	12/2013 - 01/2015	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-3B481	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3B481	HZB50	01/2015 - 12/2999	1
87245-3B481	HZB50	08/2004 - 01/2015	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-3B460	RZB40,50	09/1993 - 05/1997	1
87245-3B461	RZB40,50	05/1997 - 07/1999	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36250	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-3B620	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87245-3C080	RZB40,50	09/1993 - 07/1999	1
87245-3B621	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C080	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C080	RZB40,50	11/2002 - 08/2004	1
87245-3B621	HZB50	01/2015 - 12/2999	1
87245-36E20	TRB40,50	01/2015 - 12/2999	1
87245-3B621	HZB50	08/2004 - 01/2015	1
87245-36E20	TRB40,50	08/2007 - 01/2015	1
Common parts
87124-28030
87124-36130
90179-06206
90339-16001
90460-27001
91651-60616
96112-10250
96134-42100

ILLUST NO. 1 OF 3(9401-9907)RZB40,50

Click highlighted areas on diagram

FRONT ONLY

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36442	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87208-36372	HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208-36C00	TRB40,50	08/2007 - 12/2013	1
87208-36372	HZB50..RHD	08/2004 - 01/2015	1
87208-36C01	TRB40,50	12/2013 - 01/2015	1
87208-36372	HZB50..RHD	01/2015 - 12/2999	1
87208-36C01	TRB40,50	01/2015 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C481	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-36272	HZB50	08/2004 - 01/2015	1
87245-3C481	RZB40,50	08/2004 - 08/2007	1
87245-36E00	TRB40,50	08/2007 - 01/2015	1
87245-36272	HZB50	01/2015 - 12/2999	1
87245-36E00	TRB40,50	01/2015 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-3B390	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3B390	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B391	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B391	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3C370	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C370	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36E10	TRB40,50 FRONT HEATER	08/2007 - 01/2015	1
87245-3C370	BB42,HZB50..RHD	01/2015 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3C460	RZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC COLD SPEC	05/1997 - 07/1999	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87245-3B410	BB42..RHD..GEN;BB40,HZB50..RHD	01/1993 - 05/1997	1
87245-3C380	HZB50..RHD;BB42,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245-3C380	TRB40,50	08/2004 - 12/2013	1
87245-3C380	BB50..TD;BB42..LHD..SRF;XZB50..21S..WC;BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36C00	TRB40,50	12/2013 - 01/2015	1
87246D - HOSE, HEATER WATER, OUTLET D
87245-3B460	RZB40,50	09/1993 - 05/1997	1
87245-3B461	RZB40,50	05/1997 - 07/1999	1
Common parts
87124-28030
87124-36130
90179-06206
90339-16001
90339-18001
91651-60616
96112-10250
96134-42100
96134-42300

ILLUST NO. 1 OF 3(0608- )XZB40,5#..RHD..GEN

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36442	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87208-36372	HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208-36C00	TRB40,50	08/2007 - 12/2013	1
87208-36372	HZB50..RHD	08/2004 - 01/2015	1
87208-36C01	TRB40,50	12/2013 - 01/2015	1
87208-36372	HZB50..RHD	01/2015 - 12/2999	1
87208-36C01	TRB40,50	01/2015 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C481	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-36272	HZB50	08/2004 - 01/2015	1
87245-3C481	RZB40,50	08/2004 - 08/2007	1
87245-36E00	TRB40,50	08/2007 - 01/2015	1
87245-36272	HZB50	01/2015 - 12/2999	1
87245-36E00	TRB40,50	01/2015 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-36210	HZB50..RHD..TD;HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN	01/1993 - 11/1996	1
87245-3C461	RZB40..22S..CHI;RZB40..WOC..GEN;BB42,HZB50..WC..GCC;HZB50..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;BB42,HZB50..LHD..(20S,26S)..GEN	07/1999 - 11/2002	1
87245-3C360	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C360	BB42,HZB50..RHD	01/2015 - 12/2999	1
87245-3C360	BB42,HZB50..RHD	08/2004 - 01/2015	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3C370	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C370	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36E10	TRB40,50 FRONT HEATER	08/2007 - 01/2015	1
87245-3C370	BB42,HZB50..RHD	01/2015 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480	HZB50	01/1993 - 05/1997	1
87245-3B481	HZB50	05/1997 - 07/1999	1
87245-3B462	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
87245-36E10	TRB40,50	01/2015 - 12/2999	1
Common parts
87124-36410
90179-06206
90339-16001
91651-60616
96134-42100
96136-42501
Linked diagrams
1106
1603
8712

ILLUST NO. 1 OF 3(1501- )TRB40,50

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36442	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87208-36372	HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208-36C00	TRB40,50	08/2007 - 12/2013	1
87208-36372	HZB50..RHD	08/2004 - 01/2015	1
87208-36C01	TRB40,50	12/2013 - 01/2015	1
87208-36372	HZB50..RHD	01/2015 - 12/2999	1
87208-36C01	TRB40,50	01/2015 - 12/2999	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	RZB40,50..GEN;BB42..LHD..WC..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1995	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..LHD..STD..WC;HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 01/1994	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..RHD..(ARL,EUR,GEN);HZB50..LHD..STD..WC..(EUR,GEN)	01/1994 - 05/1995	1
87208-36460	HZB50..LHD..STD..(EUR,GEN);HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36461	HZB50..RHD..5F;HZB50..LHD..STD..GEN	05/1997 - 07/1999	1
87208-36462	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87208-36462	HZB50	08/2004 - 01/2015	1
87208-36730	BB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN)	05/1997 - 07/1999	1
87208-36731	BB42,50,RZB40,50..DSL,EFI,TD	11/2002 - 08/2004	1
87208-36C90	HZB50..RHD	01/2015 - 12/2999	1
87240 - VALVE ASSY, HEATER WATER
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36120	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36120	BB42..RHD;BB42..LHD..SRF;XZB50..21S..WC;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87240-36120	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C481	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-36272	HZB50	08/2004 - 01/2015	1
87245-3C481	RZB40,50	08/2004 - 08/2007	1
87245-36E00	TRB40,50	08/2007 - 01/2015	1
87245-36272	HZB50	01/2015 - 12/2999	1
87245-36E00	TRB40,50	01/2015 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-36210	HZB50..RHD..TD;HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN	01/1993 - 11/1996	1
87245-3C461	RZB40..22S..CHI;RZB40..WOC..GEN;BB42,HZB50..WC..GCC;HZB50..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;BB42,HZB50..LHD..(20S,26S)..GEN	07/1999 - 11/2002	1
87245-3C360	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C360	BB42,HZB50..RHD	01/2015 - 12/2999	1
87245-3C360	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3C370	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C370	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36E10	TRB40,50 FRONT HEATER	08/2007 - 01/2015	1
87245-3C370	BB42,HZB50..RHD	01/2015 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3C460	RZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC COLD SPEC	05/1997 - 07/1999	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87245-3B410	BB42..RHD..GEN;BB40,HZB50..RHD	01/1993 - 05/1997	1
87245-3C380	HZB50..RHD;BB42,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245-3C380	TRB40,50	08/2004 - 12/2013	1
87245-3C380	BB50..TD;BB42..LHD..SRF;XZB50..21S..WC;BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36C00	TRB40,50	12/2013 - 01/2015	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3B480	HZB50	01/1993 - 05/1997	1
87245-3B481	HZB50	05/1997 - 07/1999	1
87245-3B462	RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
87245-36E10	TRB40,50	01/2015 - 12/2999	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36250	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-3B620	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87245-3C080	RZB40,50	09/1993 - 07/1999	1
87245-3B621	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C080	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C080	RZB40,50	11/2002 - 08/2004	1
87245-3B621	HZB50	01/2015 - 12/2999	1
87245-36E20	TRB40,50	01/2015 - 12/2999	1
87245-3B621	HZB50	08/2004 - 01/2015	1
87245-36E20	TRB40,50	08/2007 - 01/2015	1
Common parts
87124-36130
87124-36390
90179-06206
90339-16001
91651-60616
96134-42100
96136-42501
96136-52701
96138-42501
Linked diagrams
1104
1603
8712

ILLUST NO. 2 OF 3(1501- )HZB50..RHD

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-36540	BB42,50,HZB50..RHD..MTM..(DSL,TDEFI)	07/1999 - 08/2001	1
87208-36540	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87208-36540	BB42,HZB50..RHD	08/2004 - 01/2015	1
87208-36D30	BB42,HZB50..RHD	01/2015 - 12/2999	1
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-36550	HZB50..RHD..TD;BB42,HZB50,RZB40,50..LHD..CBU	08/1993 - 05/1995	1
87208-36550	RZB40,50;BB42..LHD..WC;BB42..WOC..GCC;HZB50..SRF..GCC;BB50,HZB50..RHD..TD;HZB50..LHD..HRF..DSL	05/1995 - 05/1997	1
87208-36540	BB50,HZB50..LHD..EUR;BB40,42,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 07/1999	1
87208-36670	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208-36670	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87208-36670	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87208-36540	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87208-36670	XZB50..21S..WC;BB50,HZB50,TRB50..30S	08/2004 - 01/2015	1
87208-36670	HZB50..LHD;BB42,TRB40,50,XZB40,50..(21S,26S,30S)..(GCC,GEN,TAIW)	01/2015 - 12/2999	1
87208-36E00	HZB50..RHD	01/2015 - 12/2999	1
87208H - PIPE SUB-ASSY, HEATER WATER, H
87208-36530	HZB50,RZB50..ARL,EUR,GCC,GEN	01/1993 - 05/1995	1
87208-36530	BB50,RZB50;HZB50..LHD..HRF;HZB50..SRF..GCC;HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36670	BB50..WOC..5F;HZB50..RHD..5F;HZB50..SRF..GCC;BB50,HZB50..LHD..HRF..CBU;BB42,5#,RZB40,50..DSL,EFI,TDEFI	07/1999 - 08/2001	1
87208-36670	HZB50..RHD..5F;HZB50..LHD..HRF;HZB50..SRF..GCC;BB5#,RZB50..STD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36670	HZB50..HRF;BB50..LHD..CBU;HZB50..SRF..GCC;BB42,58,RZB40,50	08/2001 - 11/2002	1
87208-36670	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87208-36670	HZB50..HRF;HZB50..SRF..GCC;BB42,58,RZB40,50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87208-36670	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87208J - PIPE SUB-ASSY, HEATER WATER, J
87208-36530	HZB50..30S..4FC;BB50,HZB50..LHD..TD;BB4#,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	08/1993 - 05/1997	1
87208-36530	BB4#,HZB50..ARL,EUR,GCC,GEN	01/1993 - 08/1993	1
87208-36690	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87208-36670	HZB50..5F;BB42,5#,RZB40,50..LHD..(GCC,GEN)	05/1997 - 07/1999	1
87208-36690	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87208-36690	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87208-36690	BB42,HZB50,XZB50..RHD..(DX,STD)	01/2015 - 12/2999	1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-3B661	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87245-3B661	BB42,50,HZB50..RHD..MTM..(DSL,TDEFI)	07/1999 - 08/2001	1
87245-3B661	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-36G10	BB42,HZB50..RHD	01/2015 - 12/2999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B681	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3C560	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-36G30	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87245-3C560	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL	08/1993 - 05/1997	1
87245-3B681	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3B680	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)	01/1993 - 08/1993	1
87245-3C560	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C560	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3B671	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-36G30	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87245-3C560	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87255G - HOSE, REAR HEATER WATER INLET, G
87245-3C700	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3C700	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87245-3C700	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87245-36G40	HZB50..RHD	01/2015 - 12/2999	1
87245-3C700	XZB50..21S..WC;BB50,HZB50,TRB50..30S	08/2004 - 01/2015	1
87255H - HOSE, HEATER WATER INLET, H
87245-3B660	BB4#,HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 08/1993	1
87245-3B660	BB4#,HZB50..RHD..(ARL,GEN)..5F	08/1993 - 05/1997	1
87245-3C690	BB50..LHD..CBU;BB42,58,HZB50,RZB40,50	08/2001 - 11/2002	1
87245-3C690	BB50..WOC..5F;BB50..LHD..CBU;BB42,5#,HZB50,RZB40,50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3B661	BB40,42,HZB50..RHD..(ARL,GEN)..5F	05/1997 - 07/1999	1
87245-3C690	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87245-3C690	BB50..19S,21S,30S;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-36K20	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87255J - HOSE, HEATER WATER INLET, J
99556-31000	HZB50..30S..4FC;BB50,HZB50,RZB50..(ARL,EUR,GCC,GEN)..5F *H,L=980	01/1993 - 05/1997	1
87245-3C700	BB50..STD..GEN;BB58,HZB50,RZB50..5F	05/1997 - 07/1999	1
87245-3C710	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-3C710	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87245-3C710	BB42,HZB50,XZB50..RHD..(DX,STD)	01/2015 - 12/2999	1
87245-3C710	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-3B681	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3C550	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C550	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-3C550	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3C550	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87245-36G20	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-3B681	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.1	07/1999 - 08/2001	1
87245-3C550	BB42,50,HZB50..RHD..(21S,26S,30S) NO.2	08/2001 - 08/2004	1
87245-3C550	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI) NO.2	07/1999 - 08/2001	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2001 - 08/2004	1
87245-3B681	BB42,50,HZB50..RHD..(21S,26S,30S) NO.1	08/2004 - 01/2015	1
87245-3C550	BB42,50,HZB50,XZB50..RHD..(21S,26S,30S) NO.2	08/2004 - 01/2015	1
87245-3C550	BB42,HZB50,XZB50..RHD..(DX,STD) NO.2	01/2015 - 12/2999	1
87245-36G20	BB42,HZB50..RHD NO.1	01/2015 - 12/2999	1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-3B651	BB42,50,HZB50..RHD..MTM..(DSL,TDEFI)	07/1999 - 08/2001	1
87245-3B651	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-3B651	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2004 - 01/2015	1
87245-36G00	BB42,HZB50..RHD	01/2015 - 12/2999	1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-3C700	BB50..WOC..5F;BB50..LHD..CBU;BB5#,HZB50,RZB50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-3C700	BB50..LHD..CBU;BB58,HZB50,RZB50	08/2001 - 11/2002	1
87245-3C700	XZB50..LHD..IV;BB50,58,HZB50,RZB50,TRB50,XZB50..19S,21S,23S,30S	08/2004 - 01/2015	1
87245-3C700	BB58,HZB50,RZB50;BB50..19S,21S,30S	11/2002 - 08/2004	1
87245-36G40	HZB50..RHD	01/2015 - 12/2999	1
87256D - HOSE, REAR HEATER WATER OUTLET, D
87245-3C690	BB50..LHD..CBU;BB42,58,HZB50,RZB40,50	08/2001 - 11/2002	1
87245-3C690	BB50..WOC..5F;BB50..LHD..CBU;BB42,5#,HZB50,RZB40,50..MTM..(DSL,EFI,TDEFI)	07/1999 - 08/2001	1
87245-36K20	HZB50,XZB50..DX,STD;BB42,TRB40,50,XZB40..LHD	01/2015 - 12/2999	1
87245-3C690	BB50..19S,21S,30S;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C690	BB42,50,58,HZB50,RZB40,50,TRB40,50,XZB50..19S,21S,23S,26S,30S	08/2004 - 01/2015	1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-3C710	BB42,50,HZB50..RHD..MTM..(DX,STD)..(DSL,TDEFI)	07/1999 - 08/2001	1
87245-3C710	BB42,50,HZB50..RHD..(21S,26S,30S)	08/2001 - 08/2004	1
87245-3C710	XZB50..WC..ARL;BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-3C710	BB42,HZB50,XZB50..RHD..(DX,STD)	01/2015 - 12/2999	1
Common parts
87124-36040
87124-36810
90467-23009
91651-60616
96134-42100
96136-42501
96136-52701
Linked diagrams
8712

ILLUST NO. 1 OF 3(1501- )HZB50..RHD

Click highlighted areas on diagram

FRONT

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-36440	RZB40,50	09/1993 - 05/1997	1
87208-36370	HZB50..RHD	01/1993 - 05/1997	1
87208-36371	HZB50..RHD	05/1997 - 07/1999	1
87208-36441	RZB40,50	05/1997 - 07/1999	1
87208-36442	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87208-36372	HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87208-36442	RZB40,50	11/2002 - 08/2004	1
87208-36C00	TRB40,50	08/2007 - 12/2013	1
87208-36372	HZB50..RHD	08/2004 - 01/2015	1
87208-36C01	TRB40,50	12/2013 - 01/2015	1
87208-36372	HZB50..RHD	01/2015 - 12/2999	1
87208-36C01	TRB40,50	01/2015 - 12/2999	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-36190	RZB40,50..GEN;BB42..LHD..WC..GEN FR MANUAL HEATER,W/O(FILTER) & RR HEATER	01/1993 - 05/1995	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..LHD..STD..WC;HZB50..RHD..(ARL,EUR,GEN)	01/1993 - 01/1994	1
87208-36460	HZB50..WOC..TD;HZB50..SRF..WOC;HZB50..RHD..(ARL,EUR,GEN);HZB50..LHD..STD..WC..(EUR,GEN)	01/1994 - 05/1995	1
87208-36460	HZB50..LHD..STD..(EUR,GEN);HZB50..RHD..(ARL,EUR,GEN)..5F	05/1995 - 05/1997	1
87208-36461	HZB50..RHD..5F;HZB50..LHD..STD..GEN	05/1997 - 07/1999	1
87208-36462	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87208-36462	HZB50	08/2004 - 01/2015	1
87208-36730	BB42..RHD..GEN;RZB40,50..HRF..GCC;BB42,RZB40,50..LHD..SRF;BB40,5#..STD..(ARL,GEN)	05/1997 - 07/1999	1
87208-36731	BB42,50,RZB40,50..DSL,EFI,TD	11/2002 - 08/2004	1
87208-36C90	HZB50..RHD	01/2015 - 12/2999	1
87240 - VALVE ASSY, HEATER WATER
87240-36030	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F W(REAR HEATER)	01/1993 - 05/1997	1
87240-36120	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87240-36120	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87240-36120	BB42..RHD;BB42..LHD..SRF;XZB50..21S..WC;BB50,HZB50,TRB40,50..26S,30S	08/2004 - 01/2015	1
87240-36130	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F	05/1997 - 07/1999	1
87240-36120	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-3B470	RZB40,50	09/1993 - 04/1994	1
87245-36271	HZB50	05/1997 - 07/1999	1
87245-36270	HZB50..DSL;HZB50..LHD..TD	01/1993 - 05/1997	1
87245-36230	HZB50..RHD..TD	01/1993 - 05/1996	1
99556-30500	RZB40,50 *H,L=330	04/1994 - 05/1997	1
87245-3C480	RZB40,50	05/1997 - 07/1999	1
87245-36272	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C481	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C481	RZB40,50	11/2002 - 08/2004	1
87245-36272	HZB50	08/2004 - 01/2015	1
87245-3C481	RZB40,50	08/2004 - 08/2007	1
87245-36E00	TRB40,50	08/2007 - 01/2015	1
87245-36272	HZB50	01/2015 - 12/2999	1
87245-36E00	TRB40,50	01/2015 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-36210	HZB50..RHD..TD;HZB50..LHD..STD..WC..GEN..5F;BB42,HZB50..LHD..SRF..WOC..GEN	01/1993 - 11/1996	1
87245-3C461	RZB40..22S..CHI;RZB40..WOC..GEN;BB42,HZB50..WC..GCC;HZB50..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;BB42,HZB50..LHD..(20S,26S)..GEN	07/1999 - 11/2002	1
87245-3C360	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C360	BB42,HZB50..RHD	01/2015 - 12/2999	1
87245-3C360	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245X - HOSE, HEATER WATER
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.1	01/1993 - 08/1993	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) *H,L=85,NO.3	01/1993 - 08/1993	2
99556-30100	HZB50..30S..4FC;BB4#,50,HZB50,RZB40,50..(ARL,EUR,GCC,GEN)..5F *H,L=55	01/1993 - 05/1997	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD) NO.2	01/1993 - 08/1993	1
87245-3B220	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.2	08/1993 - 05/1997	1
87245-3B230	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL NO.1	08/1993 - 05/1997	1
99556-30100	BB4#..RHD..(19S,26S);HZB50..RHD..(DX,STD)..5F..DSL *H,L=85,NO.3	08/1993 - 05/1997	2
87245-3C550	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.2	05/1997 - 07/1999	1
87245-3C560	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F NO.1	05/1997 - 07/1999	1
87245-3C730	BB50..STD..GEN;BB40,42,58,HZB50,RZB40,50..(ARL,GCC,GEN)..5F FRONT	05/1997 - 07/1999	1
87245-3C710	BB40,42,HZB50..RHD..(DX,STD)..(ARL,GEN)..5F REAR	05/1997 - 07/1999	2
87245-3C410	BB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S	01/2015 - 12/2016	1
87245-3C410	BB50..STD..TD;BB50..(20S,21S)..(ARL,CHI);BB50..(EUR,GEN)..6F..TDEFI;BB42,58,HZB50,RZB40,50..MTM	07/1999 - 08/2004	1
87245-3C410	BB50..LHD;BB50..RHD..6F;XZB50..ARL,EUR,TAIW;BB42,58,HZB50,RZB40,50,TRB40,50	08/2004 - 01/2015	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3B400	BB4#,HZB50..RHD	01/1993 - 07/1994	1
87245-3B401	BB40,42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3B400	BB42..RHD..GEN;BB40,HZB50..RHD	07/1994 - 05/1997	1
87245-3C370	BB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
87245-3C370	BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36E10	TRB40,50 FRONT HEATER	08/2007 - 01/2015	1
87245-3C370	BB42,HZB50..RHD	01/2015 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3C460	RZB40,50..GEN;BB42,HZB50..LHD;RZB40..WOC..GCC COLD SPEC	05/1997 - 07/1999	1
87245-3C440	BB50..STD..GEN;BB40,58,RZB40,50;BB42,HZB50..RHD..(ARL,GEN)	05/1997 - 07/1999	1
87245-3C380	BB50..LHD;BB50..RHD..6F;BB42,58,HZB50,RZB40,50	11/2002 - 08/2004	1
87245-3C380	BB42..WC..GCC;BB42..SRF..GEN;BB50..6F..TDEFI;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB50,58,RZB50..LHD..(20S,23S,30S);HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 11/2002	1
87245-3B410	BB42..RHD..GEN;BB40,HZB50..RHD	01/1993 - 05/1997	1
87245-3C380	HZB50..RHD;BB42,XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
87245-3C380	TRB40,50	08/2004 - 12/2013	1
87245-3C380	BB50..TD;BB42..LHD..SRF;XZB50..21S..WC;BB42,HZB50..RHD	08/2004 - 01/2015	1
87245-36C00	TRB40,50	12/2013 - 01/2015	1
87246C - HOSE, HEATER WATER, OUTLET C
87245-3B481	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3B481	HZB50	01/2015 - 12/2999	1
87245-3B481	HZB50	08/2004 - 01/2015	1
87248A - PIPE, HEATER WATER INLET, A
87248-14090	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87248-36300	HZB50..LHD..EX;HZB50..WOC..ARL;HZB50..LHD..WOC;BB50..6F..TDEFI;HZB50..LHD..SRF..WC;BB50,58..LHD..(20S,23S,30S);HZB50..HRF..(DX,STD)..WC..5F	07/1999 - 11/2002	1
87248-36300	BB50..LHD;BB58,HZB50;BB50..RHD..6F	11/2002 - 08/2004	1
87248-36300	BB50,HZB50..30S	08/2004 - 01/2015	1
87248-36300	HZB50	01/2015 - 12/2999	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-36250	HZB50..RHD..TD	01/1993 - 05/1996	1
87245-3B620	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 07/1999	1
87245-3C080	RZB40,50	09/1993 - 07/1999	1
87245-3B621	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-3C080	RZB40..22S..CHI;RZB40..WOC..GEN;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
87245-3C080	RZB40,50	11/2002 - 08/2004	1
87245-3B621	HZB50	01/2015 - 12/2999	1
87245-36E20	TRB40,50	01/2015 - 12/2999	1
87245-3B621	HZB50	08/2004 - 01/2015	1
87245-36E20	TRB40,50	08/2007 - 01/2015	1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-36262	HZB50..5F	05/1997 - 07/1999	1
87245-36261	HZB50..LHD..TD;HZB50..30S..4FC;HZB50..(ARL,GCC,GEN)..5F	01/1993 - 05/1997	1
87245-36263	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
87245-36263	HZB50	08/2004 - 01/2015	1
87245-36263	HZB50	01/2015 - 12/2999	1
87245-36A60	XZB40,50..21S,26S,30S	01/2015 - 12/2999	1
Common parts
87124-36130
87124-36150
87124-42030
90179-06206
90467-23009
91651-60616
96134-42100
96136-42501
96136-52701
96138-42501
Linked diagrams
1603
8712

HZB50R-ZGMSS (1993)

ILLUST NO. 1 OF 3(9301-9907)HZB50..RHD..ARL,GEN

ILLUST NO. 1 OF 3(9301-9907)HZB50..RHD..TD

ILLUST NO. 3 OF 3(9301-9907)RHD..IV ; (9301-9907)GCC..4FC ; (9301-9907)BB42..LHD..WOC..GEN ; (9301-9

ILLUST NO. 2 OF 3(9301-9907)HZB50..RHD..DX,STD..DSL

ILLUST NO. 2 OF 3(9301-9907)HZB50..RHD..ARL,GEN

ILLUST NO. 1 OF 3(9907-1501)HZB50..RHD..5F

ILLUST NO. 2 OF 3(9907-1501)HZB50..RHD..DX,STD..5F ; (0105-1501)RHD..6F ; (0105-1501)XZB50..ARL

ILLUST NO. 1 OF 3(9907-1501)WOC..CBU..TD ; (9907-1501)BB50..EX..GEN..CBU ; (0104-1501)BB50..EX..IV ;

ILLUST NO. 1 OF 3(9907-1501)BB58 ; (9907-1501)BB50..STD..WC..GEN..CBU..TD ; (0008-1501)BB50..CHI ; (

ILLUST NO. 1 OF 3(9907-1501)RZB40,50 ; (0708-1501)TRB40,50

ILLUST NO. 2 OF 3(9907-1501)BB50,58,HZB50,RZB50..LHD..CHI,GCC,GEN; (0105-1501)LHD..IV..TDEFI ; (060

ILLUST NO. 2 OF 3(9907-1501)BB42,RZB40..LHD ; (0708-1501)TRB40,50

ILLUST NO. 3 OF 3(9907-1501)RHD..IV..6F ; (9907-1501)HZB50..LHD..STD..WC..GEN ; (9907-1501)BB42,HZB5

ILLUST NO. 1 OF 3(9301-9907)BB4#,5#,RZB40,50

ILLUST NO. 1 OF 3(9401-9907)RZB40,50

ILLUST NO. 1 OF 3(0608- )XZB40,5#..RHD..GEN

ILLUST NO. 1 OF 3(1501- )TRB40,50

ILLUST NO. 2 OF 3(1501- )HZB50..RHD

ILLUST NO. 1 OF 3(1501- )HZB50..RHD

Part Price Details
