HZB50R-ZGMSS (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0608-1108)XZB40,5#..ARL,GEN,TAIW ; (0608-1311)XZB50..IV

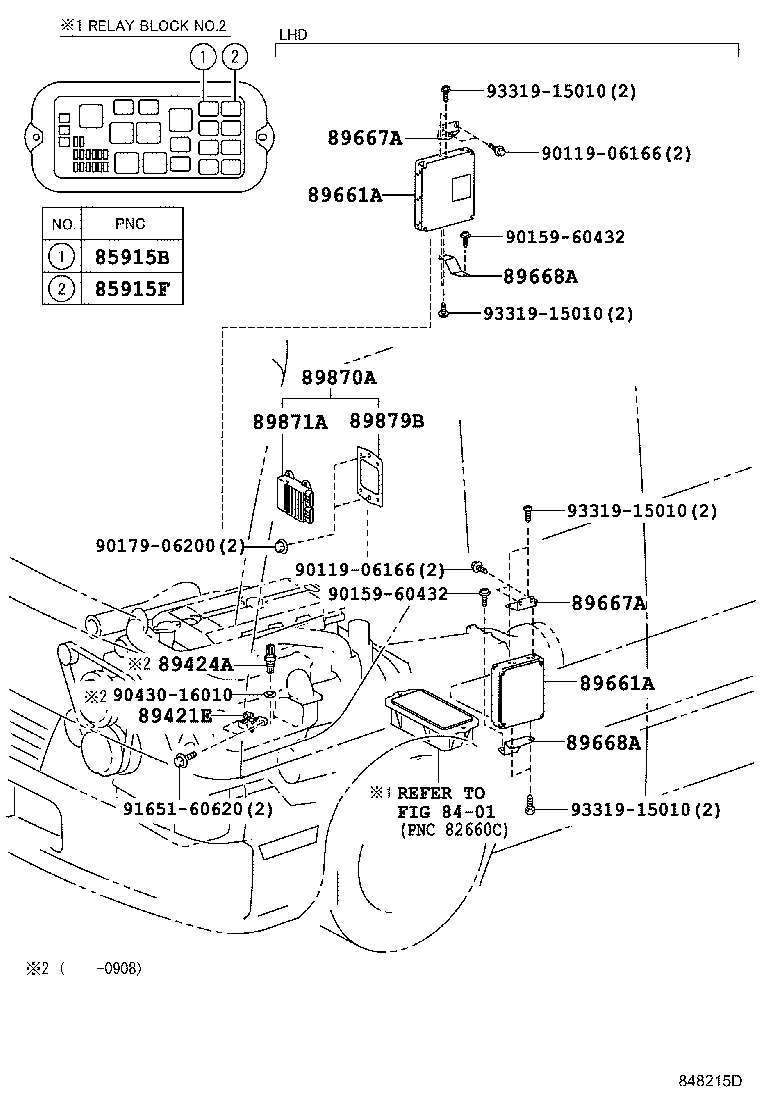

Click highlighted areas on diagram

diagram 8401 85915B 85915F 89421E 89424A 89661A 89661A 89667A 89667A 89668A 89668A 89870A 89871A 89879B 9011906166 9011906166 9015960432 9015960432 9017906200 9043016010 9165160620 9331915010 9331915010 9331915010 9331915010
Part # Description Qty Price
85915B - RELAY, MAIN (FOR DIESEL TURBO)
90987-02027

XZB40,5#

 1
90987-02027

XZB40,5#

 1
85915F - RELAY, SPILL VALVE
90987-02027

XZB40,5#..ARL,GEN,TAIW

 1
90987-02027

XZB40,5#

 1
89421E - SENSOR, VACUUM
89420-37030

XZB40,5#

 1
89420-37030

XZB40,5#

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-60010

XZB40,5#

 1
89661A - COMPUTER, ENGINE CONTROL
89661-36290

XZB40,5#..(GEN,TAIW)..5F

 1
89661-36203

XZB40,5#..(ARL,GEN,TAIW)..5F

 1
89661-36291

XZB40,5#..(GEN,TAIW)..5F

 1
89661A - COMPUTER, ENGINE CONTROL
89661-36290

XZB40,5#..(GEN,TAIW)..5F

 1
89661-36203

XZB40,5#..(ARL,GEN,TAIW)..5F

 1
89661-36291

XZB40,5#..(GEN,TAIW)..5F

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-36050

XZB40,5#..RHD

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-36050

XZB40,5#..RHD

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36050

XZB40,5#..RHD

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36050

XZB40,5#..RHD

 1
89870A - DRIVER ASSY, INJECTOR
89870-36030

XZB40,5#..ARL,GEN,TAIW

 1
89870-36050

XZB40,5#..ARL,GEN,TAIW

 1
89870-36050

XZB40,5#

 1
89871A - DRIVER, INJECTOR
89871-71020

XZB40,50..(21S,26S,30S)..(ARL,GEN)

 1
89871-71020

XZB40,5#..ARL,GEN,TAIW

 1
89879B - BRACKET, INJECTOR DRIVER
89879-36030

XZB40,5#

 1
89879-36030

XZB40,5#..ARL,GEN,TAIW

 1
Common parts
90119-06166
90159-60432
90179-06200
90430-16010
91651-60620
93319-15010
Linked diagrams
8401

(1108-1501)XZB40,5#..ARL,GEN,TAIW ; (1501- )XZB40,5#

Click highlighted areas on diagram

diagram 8401 85915B 85915F 89421E 89661A 89661A 89661A 89667A 89667A 89667A 89668A 89668A 89668A 89870A 89871A 89879B 9011906166 9011906166 9011906166 9015960432 9015960432 9015960432 9165160620 9167380820 9331915010 9331915010 9331915010 9331915010 9331915010 9331915010
Part # Description Qty Price
85915B - RELAY, MAIN (FOR DIESEL TURBO)
90987-02027

XZB40,5#

 1
90987-02027

XZB40,5#

 1
85915F - RELAY, SPILL VALVE
90987-02027

XZB40,5#..ARL,GEN,TAIW

 1
90987-02027

XZB40,5#

 1
89421E - SENSOR, VACUUM
89420-37030

XZB40,5#

 1
89420-37030

XZB40,5#

 1
89661A - COMPUTER, ENGINE CONTROL
89661-36290

XZB40,5#..(GEN,TAIW)..5F

 1
89661-36203

XZB40,5#..(ARL,GEN,TAIW)..5F

 1
89661-36291

XZB40,5#..(GEN,TAIW)..5F

 1
89661A - COMPUTER, ENGINE CONTROL
89661-36290

XZB40,5#..(GEN,TAIW)..5F

 1
89661-36203

XZB40,5#..(ARL,GEN,TAIW)..5F

 1
89661-36291

XZB40,5#..(GEN,TAIW)..5F

 1
89661A - COMPUTER, ENGINE CONTROL
89661-36290

XZB40,5#..(GEN,TAIW)..5F

 1
89661-36203

XZB40,5#..(ARL,GEN,TAIW)..5F

 1
89661-36291

XZB40,5#..(GEN,TAIW)..5F

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-36050

XZB40,5#..RHD

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-36050

XZB40,5#..RHD

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-36050

XZB40,5#..RHD

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36050

XZB40,5#..RHD

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36050

XZB40,5#..RHD

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-36050

XZB40,5#..RHD

 1
89870A - DRIVER ASSY, INJECTOR
89870-36030

XZB40,5#..ARL,GEN,TAIW

 1
89870-36050

XZB40,5#..ARL,GEN,TAIW

 1
89870-36050

XZB40,5#

 1
89871A - DRIVER, INJECTOR
89871-71020

XZB40,50..(21S,26S,30S)..(ARL,GEN)

 1
89871-71020

XZB40,5#..ARL,GEN,TAIW

 1
89879B - BRACKET, INJECTOR DRIVER
89879-36030

XZB40,5#

 1
89879-36030

XZB40,5#..ARL,GEN,TAIW

 1
Common parts
90119-06166
90159-60432
91651-60620
91673-80820
93319-15010
Linked diagrams
8401
