HZB50R-ZGMSS (1993)
Toyota Coaster
(9301-1501)RHD

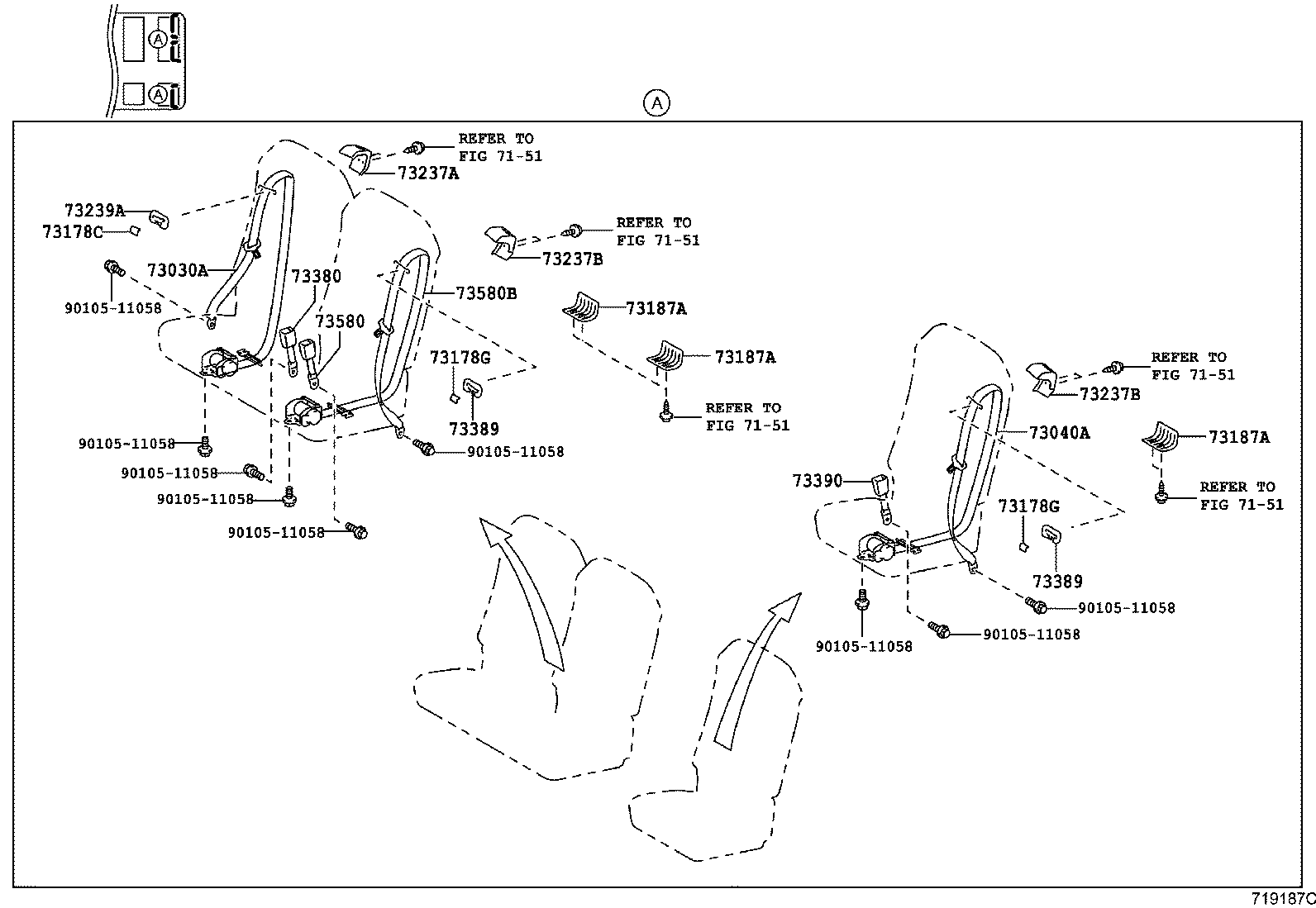

FRONT & REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73019 - SHAFT SUB-ASSY, SEAT BELT | ||||
| 73019-36010E1 |
BB40,42,HZB50..RHD..(ARL,GEN)..5F OAK,TRIM4# |
1 | ||
| 73019-36010E0 |
BB4#,HZB50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 73019-36010B0 |
BB42,HZB50..RHD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36010B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36010B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36010B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36010E2 |
BB42,HZB50..RHD..5F SANDAL WOOD,TRIM4# |
1 | ||
| 73030A - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73040-36021B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73040-36021E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73040-36021E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73360-36140E0 |
BZB40,XZB40,50..RHD GREGE,TRIM1# |
1 | ||
| 73040A - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73030-36021B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73030-36021E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73030-36021E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73370-36100E0 |
BZB40,XZB40,50..RHD GREGE,TRIM1# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-36010E1 |
BB42,HZB50..RHD..STD..GEN..5F W(FRONT SEAT HEAD REST & 3-POINT DRIVERS SEAT BELT),OAK,TRIM4# |
1 | ||
| 73210-36010E0 |
HZB50..SCO;BB42,HZB50..RHD..STD..GEN W(3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 73210-36010E0 |
BB4#,HZB50..RHD..DSL GREIGE,TRIM4# |
1 | ||
| 73360-36010E0 |
BB42,HZB50..RHD..(20S,26S,30S)..GEN DRIVERS SEAT 3-POINT TYPE & ASSISTANTS SEAT 2-POINT FIXED TYPE,GREIGE,TRIM4# |
1 | ||
| 73210-36050E0 |
BB42,HZB50..RHD..STD..GEN..5F W(FRONT SEAT HEAD REST & 3-POINT DRIVERS SEAT BELT),OAK,TRIM4# |
1 | ||
| 73210-36070E0 |
BB50..EX;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(GCC,GEN);BB4#,5#,RZB40,50..(17S,19S,22S,23S,26S,30S)..WC OAK,TRIM4# |
1 | ||
| 73360-36030E0 |
BB42,HZB50..RHD..GEN..5F W(2 POINT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36030B0 |
BB42..RHD..WOC;HZB50..RHD..GEN W(2 POINT SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73210-36051E0 |
BB4#,50,HZB50..RHD..CBU OAK,TRIM4# |
1 | ||
| 73210-36070B0 |
BB42,5#,BZB40,50,HZB50,RZB40,50..WC..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 73360-36030B0 |
HZB50..RHD;BB42..RHD..WOC W(2 POINT SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36010E1 |
BB42,HZB50..RHD..GEN..5F DRIVERS SEAT 3-POINT TYPE & ASSISTANTS SEAT 2-POINT FIXED TYPE,OAK,TRIM4# |
1 | ||
| 73210-36070B0 |
BB42,50,59,BZB40,50,HZB50,XZB40,5#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 73210-36070E1 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..GEN GREGE,TRIM1# |
1 | ||
| 73210-36111E0 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..(ARL,GEN) GREGE,TRIM1# |
1 | ||
| 73210-36110E0 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..(ARL,GEN) GREGE,TRIM1# |
1 | ||
| 73210-36111E0 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD GREGE,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73360-36010E0 |
HZB50..GEN..4FC;BB42,HZB50..LHD..WOC..GEN;BB42,HZB50..RHD..STD..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),GREIGE,TRIM4# |
1 | ||
| 73360-36010E0 |
BB42,HZB50..STD..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),GREIGE,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50..RHD..STD..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(3-POINT)),GREIGE,TRIM4# |
1 | ||
| 73360-36010E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),OAK,TRIM4# |
1 | ||
| 73370-36030E0 |
BB42,HZB50..RHD..STD..GEN..5F W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(3-POINT)),OAK,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50..RHD..GEN GREIGE,TRIM4# |
1 | ||
| 73360-36010E1 |
BB42..22S;RZB40..GEN;HZB50..LHD..WOC..DSL;HZB50..30S..GEN..4FC;HZB50..LHD..SRF..WC..GEN;BB42,RZB50..LHD..SRF..GEN;BB42,HZB50..RHD..STD..GEN..5F W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),OAK,TRIM4# |
1 | ||
| 73370-36040E0 |
BB42,HZB50..RHD..STD..GEN..5F W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(3-POINT)),OAK,TRIM4# |
1 | ||
| 73360-36010E1 |
BB42,RZB40..GEN;HZB50..LHD..WOC;HZB50..RHD..STD..GEN..5F;HZB50,RZB50..LHD..SRF..WC..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),OAK,TRIM4# |
1 | ||
| 73360-36030E0 |
BB42,HZB50..RHD..GEN..5F W(2 POINT PASSENGERS SEAT BELT),OAK,TRIM4# |
1 | ||
| 73370-36060B0 |
BB42,HZB50..RHD W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36030B0 |
BB42,HZB50..RHD..GEN W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,HZB50..RHD..GEN W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060E0 |
BB42,HZB50..RHD..5F W(3 POINT PASSENGER SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36030B0 |
BB42,HZB50..RHD W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,HZB50..RHD W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36030B0 |
BB42,HZB50..RHD W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36030E1 |
BB42,HZB50..RHD W(2 POINT PASSENGERS SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36060E1 |
BB42,HZB50..RHD W(3 POINT PASSENGER SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36041E0 |
BB42,HZB50..RHD..GEN..5F W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73370-36071E0 |
BB42,HZB50..RHD GREGE,TRIM1# |
1 | ||
| 73370-36071E0 |
BB42,HZB50..RHD GREGE,TRIM1# |
1 | ||
| 73370-36070E0 |
BB42,HZB50..RHD GREGE,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73360-36010E0 |
HZB50..GEN..4FC;BB42,HZB50..LHD..WOC..GEN;BB42,HZB50..RHD..STD..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),GREIGE,TRIM4# |
1 | ||
| 73360-36010E0 |
BB42,HZB50..STD..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),GREIGE,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50..RHD..STD..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(3-POINT)),GREIGE,TRIM4# |
1 | ||
| 73360-36010E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),OAK,TRIM4# |
1 | ||
| 73370-36030E0 |
BB42,HZB50..RHD..STD..GEN..5F W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(3-POINT)),OAK,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50..RHD..GEN GREIGE,TRIM4# |
1 | ||
| 73360-36010E1 |
BB42..22S;RZB40..GEN;HZB50..LHD..WOC..DSL;HZB50..30S..GEN..4FC;HZB50..LHD..SRF..WC..GEN;BB42,RZB50..LHD..SRF..GEN;BB42,HZB50..RHD..STD..GEN..5F W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),OAK,TRIM4# |
1 | ||
| 73370-36040E0 |
BB42,HZB50..RHD..STD..GEN..5F W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(3-POINT)),OAK,TRIM4# |
1 | ||
| 73360-36010E1 |
BB42,RZB40..GEN;HZB50..LHD..WOC;HZB50..RHD..STD..GEN..5F;HZB50,RZB50..LHD..SRF..WC..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),OAK,TRIM4# |
1 | ||
| 73360-36030E0 |
BB42,HZB50..RHD..GEN..5F W(2 POINT PASSENGERS SEAT BELT),OAK,TRIM4# |
1 | ||
| 73370-36060B0 |
BB42,HZB50..RHD W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36030B0 |
BB42,HZB50..RHD..GEN W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,HZB50..RHD..GEN W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060E0 |
BB42,HZB50..RHD..5F W(3 POINT PASSENGER SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36030B0 |
BB42,HZB50..RHD W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,HZB50..RHD W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36030B0 |
BB42,HZB50..RHD W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36030E1 |
BB42,HZB50..RHD W(2 POINT PASSENGERS SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36060E1 |
BB42,HZB50..RHD W(3 POINT PASSENGER SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36041E0 |
BB42,HZB50..RHD..GEN..5F W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73370-36071E0 |
BB42,HZB50..RHD GREGE,TRIM1# |
1 | ||
| 73370-36071E0 |
BB42,HZB50..RHD GREGE,TRIM1# |
1 | ||
| 73370-36070E0 |
BB42,HZB50..RHD GREGE,TRIM1# |
1 | ||
| 73224 - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73173-90K00E2 |
BB42,HZB50..RHD..5F SANDAL WOOD,TRIM4# |
1 | ||
| 73173-90K00E0 |
RZB40..WC;BB42..GEN;RZB50..HRF..GEN;BB42,RZB50..WC..GCC;BB40,HZB50..ARL,GCC,GEN GREIGE,TRIM4# |
1 | ||
| 73173-90K00B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00B0 |
BB42,HZB50..RHD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00E1 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,HZB50..RHD..(ARL,GEN)..5F;BB42,HZB50,RZB40..LHD..WC..CBU..5F OAK,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73380-36030E0 |
BB42,HZB50..RHD..STD..GEN 3-POINT TYPE SEAT BELT & 2-POINT FIXED TYPE SEAT BELT,GREIGE,TRIM4# |
1 | ||
| 73230-36020E0 |
BB4#,HZB50..RHD..DSL W(3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 73230-36020E0 |
BB42,HZB50..RHD..STD..GEN W(FRONT SEAT HEAD REST & DRIVERS SEAT BELT(3-POINT)),GREIGE,TRIM4# |
1 | ||
| 73230-36020E1 |
BB42,HZB50..RHD..STD..GEN..5F W(FRONT SEAT HEAD REST & DRIVERS SEAT BELT(3-POINT)),OAK,TRIM4# |
1 | ||
| 73380-36030E1 |
BB42,HZB50..RHD..STD..GEN..5F 3-POINT TYPE SEAT BELT & 2-POINT FIXED TYPE SEAT BELT,OAK,TRIM4# |
1 | ||
| 73230-12580B2 |
XZB50..GEN;XZB50..WOC..CBU;BB42,50,59,BZB40,50,HZB50,XZB40,59..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-12580B2 |
BB42,50,59,BZB40,50,HZB50..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-12580E1 |
BB4#,50,HZB50..RHD..(4FC,5F) SANDAL WOOD,TRIM4# |
1 | ||
| 73230-12580B2 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-36020E0 |
HZB50..LHD..EX;BB4#,HZB50..RHD..DSL W(3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 73230-36050E0 |
BB42,HZB50..RHD..STD..GEN..5F W(FRONT SEAT HEAD REST & DRIVERS SEAT BELT(3-POINT)),OAK,TRIM4# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010E2 |
BB42..WC;BB50..EX;HZB50..HRF..WC;HZB50..WOC..ARL;HZB50..LHD..SRF..WC;BB42,HZB50..LHD..WOC;BB43,5#,RZB40,50..17S,19S,22S,23S,26S,30S SANDAL WOOD,TRIM4# |
1 | ||
| 73233-33010B2 |
BB42..WC;HZB50..GCC,GEN;BB42..LHD..WOC;BB5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 73233-33010B2 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW MD.CHARCOAL,TRIM1# |
1 | ||
| 73233-33010B2 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73380-36030E1 |
BB42,HZB50..RHD..GEN..5F OAK,TRIM4# |
1 | ||
| 73380-36030E0 |
BB42,HZB50..RHD..GEN GREIGE,TRIM4# |
1 | ||
| 73380-36060E0 |
BB42,HZB50..RHD..5F W(3 POINT PASSENGER SEAT BELT),SANDAL WOOD,TRIM4# |
1 | ||
| 73380-36060B0 |
BB42,HZB50..RHD W(3 POINT PASSENGER SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36060B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36200E1 |
BB42,HZB50..RHD GREGE,TRIM1# |
1 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36020E0 |
RZB40,50..STD..GEN FOLDING SEAT & W(3-POINT DRIVERS SEAT BELT & 2-POINT PASSENGERS SEAT BELT),GREIGE,TRIM4# |
2 | ||
| 73307-36010E0 |
RZB40,50..STD..GEN W(3-POINT DRIVERS SEAT BELT & 2-POINT PASSENGERS SEAT BELT & ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
2 | ||
| 73307-36030B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36020E0 |
RZB40,50..STD..GEN FOLDING SEAT & W(3-POINT DRIVERS SEAT BELT & 2-POINT PASSENGERS SEAT BELT),GREIGE,TRIM4# |
2 | ||
| 73307-36010E0 |
RZB40,50..STD..GEN W(3-POINT DRIVERS SEAT BELT & 2-POINT PASSENGERS SEAT BELT & ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
2 | ||
| 73307-36030B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
2 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-36011B0 |
BZB40,50,XZB40,50..STD..GEN GRAY,TRIM1# |
5 | ||
| 73350-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1# |
5 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-36061B0 |
BZB40,50,XZB40,50..STD..GEN GRAY,TRIM1# |
5 | ||
| 73360-36061E0 |
BZB40,50,XZB40 GREGE,TRIM1# |
5 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-36061B0 |
BZB40,50,XZB40,50..STD..GEN GRAY,TRIM1# |
3 | ||
| 73360-36061E0 |
BZB40,50,XZB40 GREGE,TRIM1# |
3 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36100B0 |
RZB40,50..GEN;HZB50..SRF..GEN W(REAR SEAT=02S X 1),MD.CHARCOAL,TRIM1# |
2 | ||
| 73380-36100B0 |
BB42..LHD..WOC;HZB50..HRF..GEN W(REAR SEAT=02S X 1),MD.CHARCOAL,TRIM1# |
2 | ||
| 73380-36100B0 |
BB50,HZB50,RZB50..30S W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73380-36101B0 |
BZB40,50,XZB40,50..STD..GEN MD.CHARCOAL,TRIM1#,NO.1 |
5 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
6 | ||
| 73380-36101E1 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.1 |
5 | ||
| 73380-36101B0 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
5 | ||
| 73380-36101E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF W(REAR SEAT=02S X 1),GREGE,TRIM1# |
2 | ||
| 73380-36101E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
12 | ||
| 73460-36011B0 |
BZB40,50,XZB40,50..RHD..(DX,STD)..CBU MD.CHARCOAL,TRIM1#,NO.2 |
6 | ||
| 73380-36101B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
2 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36100B0 |
RZB40,50..GEN;HZB50..SRF..GEN W(REAR SEAT=02S X 1),MD.CHARCOAL,TRIM1# |
2 | ||
| 73380-36100B0 |
BB42..LHD..WOC;HZB50..HRF..GEN W(REAR SEAT=02S X 1),MD.CHARCOAL,TRIM1# |
2 | ||
| 73380-36100B0 |
BB50,HZB50,RZB50..30S W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73380-36101B0 |
BZB40,50,XZB40,50..STD..GEN MD.CHARCOAL,TRIM1#,NO.1 |
5 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
6 | ||
| 73380-36101E1 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.1 |
5 | ||
| 73380-36101B0 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
5 | ||
| 73380-36101E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF W(REAR SEAT=02S X 1),GREGE,TRIM1# |
2 | ||
| 73380-36101E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
12 | ||
| 73460-36011B0 |
BZB40,50,XZB40,50..RHD..(DX,STD)..CBU MD.CHARCOAL,TRIM1#,NO.2 |
6 | ||
| 73380-36101B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
2 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36100B0 |
RZB40,50..GEN;HZB50..SRF..GEN W(REAR SEAT=02S X 1),MD.CHARCOAL,TRIM1# |
2 | ||
| 73380-36100B0 |
BB42..LHD..WOC;HZB50..HRF..GEN W(REAR SEAT=02S X 1),MD.CHARCOAL,TRIM1# |
2 | ||
| 73380-36100B0 |
BB50,HZB50,RZB50..30S W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73380-36101B0 |
BZB40,50,XZB40,50..STD..GEN MD.CHARCOAL,TRIM1#,NO.1 |
5 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
6 | ||
| 73380-36101E1 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.1 |
5 | ||
| 73380-36101B0 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
5 | ||
| 73380-36101E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF W(REAR SEAT=02S X 1),GREGE,TRIM1# |
2 | ||
| 73380-36101E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
12 | ||
| 73460-36011B0 |
BZB40,50,XZB40,50..RHD..(DX,STD)..CBU MD.CHARCOAL,TRIM1#,NO.2 |
6 | ||
| 73380-36101B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
2 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36100B0 |
RZB40,50..GEN;HZB50..SRF..GEN W(REAR SEAT=02S X 1),MD.CHARCOAL,TRIM1# |
2 | ||
| 73380-36100B0 |
BB42..LHD..WOC;HZB50..HRF..GEN W(REAR SEAT=02S X 1),MD.CHARCOAL,TRIM1# |
2 | ||
| 73380-36100B0 |
BB50,HZB50,RZB50..30S W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73380-36101B0 |
BZB40,50,XZB40,50..STD..GEN MD.CHARCOAL,TRIM1#,NO.1 |
5 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
6 | ||
| 73380-36101E1 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.1 |
5 | ||
| 73380-36101B0 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
5 | ||
| 73380-36101E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF W(REAR SEAT=02S X 1),GREGE,TRIM1# |
2 | ||
| 73380-36101E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
12 | ||
| 73460-36011B0 |
BZB40,50,XZB40,50..RHD..(DX,STD)..CBU MD.CHARCOAL,TRIM1#,NO.2 |
6 | ||
| 73380-36101B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
2 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36100B0 |
RZB40,50..GEN;HZB50..SRF..GEN W(REAR SEAT=02S X 1),MD.CHARCOAL,TRIM1# |
2 | ||
| 73380-36100B0 |
BB42..LHD..WOC;HZB50..HRF..GEN W(REAR SEAT=02S X 1),MD.CHARCOAL,TRIM1# |
2 | ||
| 73380-36100B0 |
BB50,HZB50,RZB50..30S W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73380-36101B0 |
BZB40,50,XZB40,50..STD..GEN MD.CHARCOAL,TRIM1#,NO.1 |
5 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
6 | ||
| 73380-36101E1 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.1 |
5 | ||
| 73380-36101B0 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
5 | ||
| 73380-36101E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF W(REAR SEAT=02S X 1),GREGE,TRIM1# |
2 | ||
| 73380-36101E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
12 | ||
| 73460-36011B0 |
BZB40,50,XZB40,50..RHD..(DX,STD)..CBU MD.CHARCOAL,TRIM1#,NO.2 |
6 | ||
| 73380-36101B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
2 | ||
| 73390A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36100B0 |
HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36101B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36100B0 |
BB50,HZB50,RZB50..30S W(REAR SEAT=01S X 5),MD.CHARCOAL,TRIM1# |
5 | ||
| 73380-36101E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF GREGE,TRIM1# |
1 | ||
| 73380-36101B0 |
BB42..LHD..WC;BZB40,50,XZB50..STD..GEN W(REAR SEAT=01S X 3),MD.CHARCOAL,TRIM1# |
3 | ||
| 73380-36101B0 |
BB50,HZB50,TRB50,XZB50..(21S,30S)..(ARL,GCC,GEN) W(REAR SEAT=01S X 5),MD.CHARCOAL,TRIM1# |
5 | ||
| 73380-36101E1 |
BZB40,50,XZB40;BB42..LHD..WC..GEN W(REAR SEAT=01S X 3),GREGE,TRIM1# |
3 | ||
| 73380-36101E1 |
BB50,HZB50,TRB50,XZB50..(DX,STD)..(ARL,GCC,GEN) W(REAR SEAT=01S X 5),GREGE,TRIM1# |
5 | ||
| 73390A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36100B0 |
HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36101B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36100B0 |
BB50,HZB50,RZB50..30S W(REAR SEAT=01S X 5),MD.CHARCOAL,TRIM1# |
5 | ||
| 73380-36101E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF GREGE,TRIM1# |
1 | ||
| 73380-36101B0 |
BB42..LHD..WC;BZB40,50,XZB50..STD..GEN W(REAR SEAT=01S X 3),MD.CHARCOAL,TRIM1# |
3 | ||
| 73380-36101B0 |
BB50,HZB50,TRB50,XZB50..(21S,30S)..(ARL,GCC,GEN) W(REAR SEAT=01S X 5),MD.CHARCOAL,TRIM1# |
5 | ||
| 73380-36101E1 |
BZB40,50,XZB40;BB42..LHD..WC..GEN W(REAR SEAT=01S X 3),GREGE,TRIM1# |
3 | ||
| 73380-36101E1 |
BB50,HZB50,TRB50,XZB50..(DX,STD)..(ARL,GCC,GEN) W(REAR SEAT=01S X 5),GREGE,TRIM1# |
5 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73470-36021B0 |
RZB40,50..GEN;HZB50..SRF..GEN W(REAR SEAT=02S X 1),GRAY,TRIM1# |
1 | ||
| 73470-36021B0 |
HZB50..RHD GRAY,TRIM1# |
1 | ||
| 73470-36021E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
6 | ||
| 73380-36200E1 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
17 | ||
| 73470-36021B0 |
BB50,HZB50,RZB50,TRB50..30S W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| 73470-36021E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF GREGE,TRIM1# |
1 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73470-36021B0 |
RZB40,50..GEN;HZB50..SRF..GEN W(REAR SEAT=02S X 1),GRAY,TRIM1# |
1 | ||
| 73470-36021B0 |
HZB50..RHD GRAY,TRIM1# |
1 | ||
| 73470-36021E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
6 | ||
| 73380-36200E1 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
17 | ||
| 73470-36021B0 |
BB50,HZB50,RZB50,TRB50..30S W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| 73470-36021E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF GREGE,TRIM1# |
1 | ||
| 73570B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73570-36040B0 |
HZB50..RHD GRAY,TRIM1# |
1 | ||
| 73570-36040B0 |
BB50,HZB50,RZB50,TRB50..30S W(REAR SEAT=01S X 5),GRAY,TRIM1# |
5 | ||
| 73570-36040E1 |
BB50,HZB50,TRB50 W(REAR SEAT=01S X 5),GREGE,TRIM1# |
5 | ||
| 73570-36040E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF GREGE,TRIM1# |
1 | ||
| 73580B - BELT ASSY, REAR SEAT, INNER RH | ||||
| 73590-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73350-36060E0 |
BZB40,XZB40,50..RHD GREGE,TRIM1# |
1 | ||
| 73590-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73590-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73590-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73580B - BELT ASSY, REAR SEAT, INNER RH | ||||
| 73590-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73350-36060E0 |
BZB40,XZB40,50..RHD GREGE,TRIM1# |
1 | ||
| 73590-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73590-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73590-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73590A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73580-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73580-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73580-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73580-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73590A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73580-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73580-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73580-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73580-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| Common parts | ||||
| 90109-08095 | ||||
| 90119-08357 | ||||
| 90119-10493 | ||||
| 90206-12003 | ||||
| 90901-19040 | ||||
| 91552-81020 | ||||
| 91621-40614 | ||||
| 93560-14014 | ||||
| 93560-54014 | ||||
(0408- )
TONGUE STOPPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) GRAY |
1 | ||
| 73219-33010 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# BLACK |
1 | ||
| 73219-33030 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# BEIGE |
1 | ||
| 73219-33030 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) BEIGE |
1 | ||
| 73219-33010 |
BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) BLACK |
1 | ||
| 73219-33020 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# GRAY |
1 | ||
(1501- )RHD
FRONT & REAR(NO.1) & SUB(NO.1)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73019 - SHAFT SUB-ASSY, SEAT BELT | ||||
| 73019-36010E1 |
BB40,42,HZB50..RHD..(ARL,GEN)..5F OAK,TRIM4# |
1 | ||
| 73019-36010E0 |
BB4#,HZB50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 73019-36010B0 |
BB42,HZB50..RHD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36010B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36010B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36010B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73019-36010E2 |
BB42,HZB50..RHD..5F SANDAL WOOD,TRIM4# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-36010E1 |
BB42,HZB50..RHD..STD..GEN..5F W(FRONT SEAT HEAD REST & 3-POINT DRIVERS SEAT BELT),OAK,TRIM4# |
1 | ||
| 73210-36010E0 |
HZB50..SCO;BB42,HZB50..RHD..STD..GEN W(3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 73210-36010E0 |
BB4#,HZB50..RHD..DSL GREIGE,TRIM4# |
1 | ||
| 73360-36010E0 |
BB42,HZB50..RHD..(20S,26S,30S)..GEN DRIVERS SEAT 3-POINT TYPE & ASSISTANTS SEAT 2-POINT FIXED TYPE,GREIGE,TRIM4# |
1 | ||
| 73210-36050E0 |
BB42,HZB50..RHD..STD..GEN..5F W(FRONT SEAT HEAD REST & 3-POINT DRIVERS SEAT BELT),OAK,TRIM4# |
1 | ||
| 73210-36070E0 |
BB50..EX;HZB50..LHD..SRF..WC;HZB50..HRF..WC..(GCC,GEN);BB4#,5#,RZB40,50..(17S,19S,22S,23S,26S,30S)..WC OAK,TRIM4# |
1 | ||
| 73360-36030E0 |
BB42,HZB50..RHD..GEN..5F W(2 POINT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36030B0 |
BB42..RHD..WOC;HZB50..RHD..GEN W(2 POINT SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73210-36051E0 |
BB4#,50,HZB50..RHD..CBU OAK,TRIM4# |
1 | ||
| 73210-36070B0 |
BB42,5#,BZB40,50,HZB50,RZB40,50..WC..(GCC,GEN) GRAY,TRIM1# |
1 | ||
| 73360-36030B0 |
HZB50..RHD;BB42..RHD..WOC W(2 POINT SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36010E1 |
BB42,HZB50..RHD..GEN..5F DRIVERS SEAT 3-POINT TYPE & ASSISTANTS SEAT 2-POINT FIXED TYPE,OAK,TRIM4# |
1 | ||
| 73210-36070B0 |
BB42,50,59,BZB40,50,HZB50,XZB40,5#..RHD..GEN GRAY,TRIM1# |
1 | ||
| 73210-36070E1 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..GEN GREGE,TRIM1# |
1 | ||
| 73210-36111E0 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..(ARL,GEN) GREGE,TRIM1# |
1 | ||
| 73210-36110E0 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..(ARL,GEN) GREGE,TRIM1# |
1 | ||
| 73210-36111E0 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD GREGE,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73360-36010E0 |
HZB50..GEN..4FC;BB42,HZB50..LHD..WOC..GEN;BB42,HZB50..RHD..STD..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),GREIGE,TRIM4# |
1 | ||
| 73360-36010E0 |
BB42,HZB50..STD..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),GREIGE,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50..RHD..STD..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(3-POINT)),GREIGE,TRIM4# |
1 | ||
| 73360-36010E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),OAK,TRIM4# |
1 | ||
| 73370-36030E0 |
BB42,HZB50..RHD..STD..GEN..5F W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(3-POINT)),OAK,TRIM4# |
1 | ||
| 73370-36010E0 |
BB42,HZB50..RHD..GEN GREIGE,TRIM4# |
1 | ||
| 73360-36010E1 |
BB42..22S;RZB40..GEN;HZB50..LHD..WOC..DSL;HZB50..30S..GEN..4FC;HZB50..LHD..SRF..WC..GEN;BB42,RZB50..LHD..SRF..GEN;BB42,HZB50..RHD..STD..GEN..5F W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),OAK,TRIM4# |
1 | ||
| 73370-36040E0 |
BB42,HZB50..RHD..STD..GEN..5F W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(3-POINT)),OAK,TRIM4# |
1 | ||
| 73360-36010E1 |
BB42,RZB40..GEN;HZB50..LHD..WOC;HZB50..RHD..STD..GEN..5F;HZB50,RZB50..LHD..SRF..WC..GEN W(DRIVERS SEAT BELT(3-POINT) & ASSISTANTS SEAT BELT(2-POINT)),OAK,TRIM4# |
1 | ||
| 73360-36030E0 |
BB42,HZB50..RHD..GEN..5F W(2 POINT PASSENGERS SEAT BELT),OAK,TRIM4# |
1 | ||
| 73370-36060B0 |
BB42,HZB50..RHD W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36030B0 |
BB42,HZB50..RHD..GEN W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,HZB50..RHD..GEN W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060E0 |
BB42,HZB50..RHD..5F W(3 POINT PASSENGER SEAT BELT),OAK,TRIM4# |
1 | ||
| 73360-36030B0 |
BB42,HZB50..RHD W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73370-36060B0 |
BB42,HZB50..RHD W(3 POINT PASSENGER SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36030B0 |
BB42,HZB50..RHD W(2 POINT PASSENGERS SEAT BELT),GRAY,TRIM1# |
1 | ||
| 73360-36030E1 |
BB42,HZB50..RHD W(2 POINT PASSENGERS SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36060E1 |
BB42,HZB50..RHD W(3 POINT PASSENGER SEAT BELT),GREGE,TRIM1# |
1 | ||
| 73370-36041E0 |
BB42,HZB50..RHD..GEN..5F W(3 POINT FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 73370-36071E0 |
BB42,HZB50..RHD GREGE,TRIM1# |
1 | ||
| 73370-36071E0 |
BB42,HZB50..RHD GREGE,TRIM1# |
1 | ||
| 73370-36070E0 |
BB42,HZB50..RHD GREGE,TRIM1# |
1 | ||
| 73224 - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73173-90K00E2 |
BB42,HZB50..RHD..5F SANDAL WOOD,TRIM4# |
1 | ||
| 73173-90K00E0 |
RZB40..WC;BB42..GEN;RZB50..HRF..GEN;BB42,RZB50..WC..GCC;BB40,HZB50..ARL,GCC,GEN GREIGE,TRIM4# |
1 | ||
| 73173-90K00B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00B0 |
BB42,HZB50..RHD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 73173-90K00E1 |
RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,HZB50..RHD..(ARL,GEN)..5F;BB42,HZB50,RZB40..LHD..WC..CBU..5F OAK,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73380-36030E0 |
BB42,HZB50..RHD..STD..GEN 3-POINT TYPE SEAT BELT & 2-POINT FIXED TYPE SEAT BELT,GREIGE,TRIM4# |
1 | ||
| 73230-36020E0 |
BB4#,HZB50..RHD..DSL W(3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 73230-36020E0 |
BB42,HZB50..RHD..STD..GEN W(FRONT SEAT HEAD REST & DRIVERS SEAT BELT(3-POINT)),GREIGE,TRIM4# |
1 | ||
| 73230-36020E1 |
BB42,HZB50..RHD..STD..GEN..5F W(FRONT SEAT HEAD REST & DRIVERS SEAT BELT(3-POINT)),OAK,TRIM4# |
1 | ||
| 73380-36030E1 |
BB42,HZB50..RHD..STD..GEN..5F 3-POINT TYPE SEAT BELT & 2-POINT FIXED TYPE SEAT BELT,OAK,TRIM4# |
1 | ||
| 73230-12580B2 |
XZB50..GEN;XZB50..WOC..CBU;BB42,50,59,BZB40,50,HZB50,XZB40,59..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-12580B2 |
BB42,50,59,BZB40,50,HZB50..RHD..(ARL,GEN) MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-12580E1 |
BB4#,50,HZB50..RHD..(4FC,5F) SANDAL WOOD,TRIM4# |
1 | ||
| 73230-12580B2 |
BB42,BZB40,50,HZB50,XZB40,5#..RHD..GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 73230-36020E0 |
HZB50..LHD..EX;BB4#,HZB50..RHD..DSL W(3 POINT FRONT SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 73230-36050E0 |
BB42,HZB50..RHD..STD..GEN..5F W(FRONT SEAT HEAD REST & DRIVERS SEAT BELT(3-POINT)),OAK,TRIM4# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010E2 |
BB42..WC;BB50..EX;HZB50..HRF..WC;HZB50..WOC..ARL;HZB50..LHD..SRF..WC;BB42,HZB50..LHD..WOC;BB43,5#,RZB40,50..17S,19S,22S,23S,26S,30S SANDAL WOOD,TRIM4# |
1 | ||
| 73233-33010B2 |
BB42..WC;HZB50..GCC,GEN;BB42..LHD..WOC;BB5#,BZB40,50,RZB40,50..ARL,GCC,GEN MD.CHARCOAL,TRIM1# |
1 | ||
| 73233-33010B2 |
BB42,5#,BZB40,50,HZB50,RZB40,50,TRB40,50,XZB40,5#..ARL,GCC,GEN,TAIW MD.CHARCOAL,TRIM1# |
1 | ||
| 73233-33010B2 |
BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73380-36030E1 |
BB42,HZB50..RHD..GEN..5F OAK,TRIM4# |
1 | ||
| 73380-36030E0 |
BB42,HZB50..RHD..GEN GREIGE,TRIM4# |
1 | ||
| 73380-36060E0 |
BB42,HZB50..RHD..5F W(3 POINT PASSENGER SEAT BELT),SANDAL WOOD,TRIM4# |
1 | ||
| 73380-36060B0 |
BB42,HZB50..RHD W(3 POINT PASSENGER SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36060B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36200E1 |
BB42,HZB50..RHD GREGE,TRIM1# |
1 | ||
| 73303 - BELT SUB-ASSY, SUB SEAT, OUTER | ||||
| 73303-36040E0 |
HZB50;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) GREGE,TRIM1# |
1 | ||
| 73308 - BELT SUB-ASSY, SUB SEAT, INNER | ||||
| 73308-36030E0 |
HZB50;BB42,TRB40,50,XZB40,50..LHD..(GCC,GEN) GREGE,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-08095 | ||||
| 90119-08357 | ||||
| 90206-12003 | ||||
| 90901-19040 | ||||
| 91621-40614 | ||||
| 93560-14014 | ||||
(1501- )BB42,BZB40,HZB50,XZB40,50..RHD
REAR(NO.2-NO.7)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73330G - BELT ASSY, RR SEAT LAP TYPE | ||||
| 73360-36150E0 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
6 | ||
| 73330H - BELT ASSY, RR SEAT LAP TYPE | ||||
| 73360-36160E0 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
5 | ||
| 73330H - BELT ASSY, RR SEAT LAP TYPE | ||||
| 73360-36160E0 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
5 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-36011B0 |
BZB40,50,XZB40,50..STD..GEN GRAY,TRIM1# |
5 | ||
| 73350-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1# |
5 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-36061B0 |
BZB40,50,XZB40,50..STD..GEN GRAY,TRIM1# |
5 | ||
| 73360-36061E0 |
BZB40,50,XZB40 GREGE,TRIM1# |
5 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-36061B0 |
BZB40,50,XZB40,50..STD..GEN GRAY,TRIM1# |
3 | ||
| 73360-36061E0 |
BZB40,50,XZB40 GREGE,TRIM1# |
3 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36100B0 |
RZB40,50..GEN;HZB50..SRF..GEN W(REAR SEAT=02S X 1),MD.CHARCOAL,TRIM1# |
2 | ||
| 73380-36100B0 |
BB42..LHD..WOC;HZB50..HRF..GEN W(REAR SEAT=02S X 1),MD.CHARCOAL,TRIM1# |
2 | ||
| 73380-36100B0 |
BB50,HZB50,RZB50..30S W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73380-36101B0 |
BZB40,50,XZB40,50..STD..GEN MD.CHARCOAL,TRIM1#,NO.1 |
5 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
6 | ||
| 73380-36101E1 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.1 |
5 | ||
| 73380-36101B0 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),MD.CHARCOAL,TRIM1# |
12 | ||
| 73460-36011E0 |
BZB40,50,XZB40 GREGE,TRIM1#,NO.2 |
5 | ||
| 73380-36101E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF W(REAR SEAT=02S X 1),GREGE,TRIM1# |
2 | ||
| 73380-36101E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
12 | ||
| 73460-36011B0 |
BZB40,50,XZB40,50..RHD..(DX,STD)..CBU MD.CHARCOAL,TRIM1#,NO.2 |
6 | ||
| 73380-36101B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
2 | ||
| 73390A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-36100B0 |
HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36101B0 |
BB42,HZB50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73380-36100B0 |
BB50,HZB50,RZB50..30S W(REAR SEAT=01S X 5),MD.CHARCOAL,TRIM1# |
5 | ||
| 73380-36101E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF GREGE,TRIM1# |
1 | ||
| 73380-36101B0 |
BB42..LHD..WC;BZB40,50,XZB50..STD..GEN W(REAR SEAT=01S X 3),MD.CHARCOAL,TRIM1# |
3 | ||
| 73380-36101B0 |
BB50,HZB50,TRB50,XZB50..(21S,30S)..(ARL,GCC,GEN) W(REAR SEAT=01S X 5),MD.CHARCOAL,TRIM1# |
5 | ||
| 73380-36101E1 |
BZB40,50,XZB40;BB42..LHD..WC..GEN W(REAR SEAT=01S X 3),GREGE,TRIM1# |
3 | ||
| 73380-36101E1 |
BB50,HZB50,TRB50,XZB50..(DX,STD)..(ARL,GCC,GEN) W(REAR SEAT=01S X 5),GREGE,TRIM1# |
5 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73470-36021B0 |
RZB40,50..GEN;HZB50..SRF..GEN W(REAR SEAT=02S X 1),GRAY,TRIM1# |
1 | ||
| 73470-36021B0 |
HZB50..RHD GRAY,TRIM1# |
1 | ||
| 73470-36021E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
6 | ||
| 73380-36200E1 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
17 | ||
| 73470-36021B0 |
BB50,HZB50,RZB50,TRB50..30S W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| 73470-36021E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF GREGE,TRIM1# |
1 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73470-36021B0 |
RZB40,50..GEN;HZB50..SRF..GEN W(REAR SEAT=02S X 1),GRAY,TRIM1# |
1 | ||
| 73470-36021B0 |
HZB50..RHD GRAY,TRIM1# |
1 | ||
| 73470-36021E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
6 | ||
| 73380-36200E1 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
17 | ||
| 73470-36021B0 |
BB50,HZB50,RZB50,TRB50..30S W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| 73470-36021E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF GREGE,TRIM1# |
1 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73470-36021B0 |
RZB40,50..GEN;HZB50..SRF..GEN W(REAR SEAT=02S X 1),GRAY,TRIM1# |
1 | ||
| 73470-36021B0 |
HZB50..RHD GRAY,TRIM1# |
1 | ||
| 73470-36021E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
6 | ||
| 73380-36200E1 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
17 | ||
| 73470-36021B0 |
BB50,HZB50,RZB50,TRB50..30S W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| 73470-36021E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF GREGE,TRIM1# |
1 | ||
| 73470 - BELT ASSY, REAR SEAT, OUTER | ||||
| 73470-36021B0 |
RZB40,50..GEN;HZB50..SRF..GEN W(REAR SEAT=02S X 1),GRAY,TRIM1# |
1 | ||
| 73470-36021B0 |
HZB50..RHD GRAY,TRIM1# |
1 | ||
| 73470-36021E1 |
BB50,HZB50,TRB50 W(REAR SEAT=02S X 6),GREGE,TRIM1# |
6 | ||
| 73380-36200E1 |
HZB50,TRB50,XZB50..STD..(GCC,GEN) GREGE,TRIM1# |
17 | ||
| 73470-36021B0 |
BB50,HZB50,RZB50,TRB50..30S W(REAR SEAT=02S X 6),GRAY,TRIM1# |
6 | ||
| 73470-36021E1 |
BB42..RHD..WOC;BB42,HZB50..RHD..HRF GREGE,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| Linked diagrams | ||||
| 7151 | ||||
(1501- )BZB40,XZB40,50..RHD
LAST ROW(NO.8)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73030A - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73040-36021B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73040-36021E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73040-36021E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73360-36140E0 |
BZB40,XZB40,50..RHD GREGE,TRIM1# |
1 | ||
| 73040A - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73030-36021B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73030-36021E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73030-36021E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73370-36100E0 |
BZB40,XZB40,50..RHD GREGE,TRIM1# |
1 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-36060B0 |
BZB40,XZB40,50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73178G - CAP, SEAT BELT ANCHOR COVER | ||||
| 73179-36010B0 |
BZB40,XZB40,50..RHD MD.CHARCOAL,TRIM1# |
2 | ||
| 73178G - CAP, SEAT BELT ANCHOR COVER | ||||
| 73179-36010B0 |
BZB40,XZB40,50..RHD MD.CHARCOAL,TRIM1# |
2 | ||
| 73187A - GUIDE, REAR SEAT SHOULDER BELT | ||||
| 73343-36010B0 |
BZB40,XZB40,50..RHD MD.CHARCOAL,TRIM1# |
3 | ||
| 73187A - GUIDE, REAR SEAT SHOULDER BELT | ||||
| 73343-36010B0 |
BZB40,XZB40,50..RHD MD.CHARCOAL,TRIM1# |
3 | ||
| 73187A - GUIDE, REAR SEAT SHOULDER BELT | ||||
| 73343-36010B0 |
BZB40,XZB40,50..RHD MD.CHARCOAL,TRIM1# |
3 | ||
| 73237A - COVER, SHOULDER BELT ANCHOR | ||||
| 73137-36010 |
BZB40,XZB40,50..RHD |
1 | ||
| 73237B - COVER, SHOULDER BELT ANCHOR | ||||
| 73138-36010 |
BZB40,XZB40,50..RHD |
2 | ||
| 73237B - COVER, SHOULDER BELT ANCHOR | ||||
| 73138-36010 |
BZB40,XZB40,50..RHD |
2 | ||
| 73239A - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-36050B0 |
BZB40,XZB40,50..RHD MD.CHARCOAL,TRIM1# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-36160E1 |
BZB40,XZB40,50..RHD GREGE,TRIM1# |
1 | ||
| 73389 - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-36050B0 |
BZB40,XZB40,50..RHD MD.CHARCOAL,TRIM1# |
2 | ||
| 73389 - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-36050B0 |
BZB40,XZB40,50..RHD MD.CHARCOAL,TRIM1# |
2 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-36190E1 |
BZB40,XZB40,50..RHD GREGE,TRIM1# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73380-36170E1 |
BZB40,XZB40,50..RHD GREGE,TRIM1# |
1 | ||
| 73580B - BELT ASSY, REAR SEAT, INNER RH | ||||
| 73590-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73350-36060E0 |
BZB40,XZB40,50..RHD GREGE,TRIM1# |
1 | ||
| 73590-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73590-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73590-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| Linked diagrams | ||||
| 7151 | ||||
(1501- )BB42,HZB50..RHD
LAST ROW(NO.8)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73030A - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73040-36021B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73040-36021E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73040-36021E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73360-36140E0 |
BZB40,XZB40,50..RHD GREGE,TRIM1# |
1 | ||
| 73040A - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73030-36021B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73030-36021E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73030-36021E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73370-36100E0 |
BZB40,XZB40,50..RHD GREGE,TRIM1# |
1 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36020E0 |
RZB40,50..STD..GEN FOLDING SEAT & W(3-POINT DRIVERS SEAT BELT & 2-POINT PASSENGERS SEAT BELT),GREIGE,TRIM4# |
2 | ||
| 73307-36010E0 |
RZB40,50..STD..GEN W(3-POINT DRIVERS SEAT BELT & 2-POINT PASSENGERS SEAT BELT & ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
2 | ||
| 73307-36030B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36020E0 |
RZB40,50..STD..GEN FOLDING SEAT & W(3-POINT DRIVERS SEAT BELT & 2-POINT PASSENGERS SEAT BELT),GREIGE,TRIM4# |
2 | ||
| 73307-36010E0 |
RZB40,50..STD..GEN W(3-POINT DRIVERS SEAT BELT & 2-POINT PASSENGERS SEAT BELT & ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
2 | ||
| 73307-36030B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36020E0 |
RZB40,50..STD..GEN FOLDING SEAT & W(3-POINT DRIVERS SEAT BELT & 2-POINT PASSENGERS SEAT BELT),GREIGE,TRIM4# |
2 | ||
| 73307-36010E0 |
RZB40,50..STD..GEN W(3-POINT DRIVERS SEAT BELT & 2-POINT PASSENGERS SEAT BELT & ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
2 | ||
| 73307-36030B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
2 | ||
| 73307 - BELT SUB-ASSY, REAR SEAT, INNER | ||||
| 73307-36020E0 |
RZB40,50..STD..GEN FOLDING SEAT & W(3-POINT DRIVERS SEAT BELT & 2-POINT PASSENGERS SEAT BELT),GREIGE,TRIM4# |
2 | ||
| 73307-36010E0 |
RZB40,50..STD..GEN W(3-POINT DRIVERS SEAT BELT & 2-POINT PASSENGERS SEAT BELT & ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
2 | ||
| 73307-36030B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
2 | ||
| 73307-36030E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
2 | ||
| 73330 - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73360-36150E0 |
HZB50..RHD GREGE,TRIM1# |
1 | ||
| 73340 - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73360-36160E0 |
HZB50..RHD GREGE,TRIM1# |
1 | ||
| 73380F - BELT ASSY, RR SEAT, INNER | ||||
| 73380-36200E1 |
HZB50..RHD GREGE,TRIM1# |
3 | ||
| 73380F - BELT ASSY, RR SEAT, INNER | ||||
| 73380-36200E1 |
HZB50..RHD GREGE,TRIM1# |
3 | ||
| 73380F - BELT ASSY, RR SEAT, INNER | ||||
| 73380-36200E1 |
HZB50..RHD GREGE,TRIM1# |
3 | ||
| 73580B - BELT ASSY, REAR SEAT, INNER RH | ||||
| 73590-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73350-36060E0 |
BZB40,XZB40,50..RHD GREGE,TRIM1# |
1 | ||
| 73590-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73590-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73590-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| 73590A - BELT ASSY, REAR SEAT, INNER LH | ||||
| 73580-36010E0 |
RZB40,50;HZB50..LHD..EX;BB42,HZB50..GCC GREIGE,TRIM4# |
1 | ||
| 73580-36020E1 |
BB42,50,HZB50,TRB40,50 GREGE,TRIM1# |
1 | ||
| 73580-36020B0 |
HZB50;BB42,50,RZB40,50,TRB40,50..LHD..5F GRAY,TRIM1# |
1 | ||
| 73580-36020E1 |
BB42,TRB40,XZB40..26S;HZB50,TRB50,XZB50..30S GREGE,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90119-10493 | ||||
| 91552-81020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
