Toyota Coaster HZB50 EXHAUST BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
EU
COASTER
HZB50R-ZGMSS (1993)
4710 - EXHAUST BRAKE TUBE & CLAMP

HZB50R-ZGMSS (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9301- )BB4#,5#,HZB50

Click highlighted areas on diagram

Part #	Description	Period	Qty
44763D - TUBE, HOSE TO HOSE, NO.1
44763-36040	HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
44763-36040	BB42..RHD..SRF;BB42,59..RHD..WC;BB50..RHD..CBU..TDEFI;HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
44763-36040	HZB50..RHD;BB4#,50..RHD..CBU	01/1993 - 07/1999	1
44763-36040	BB42,50,59,HZB50..RHD..(ARL,GEN)	08/2004 - 12/2005	1
44763-36042	BB42,HZB50,XZB40,5#..RHD	01/2015 - 12/2999	1
44763-36041	BB42,HZB50,XZB40,59..RHD;XZB50..RHD..(20S,21S)..WC	12/2005 - 01/2015	1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36160	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44773-36160	BB4#,5#,HZB50	01/1993 - 07/1999	1
44773-36170	XZB40,5#	01/2015 - 12/2999	1
44773-36160	BB42,50,HZB50..DSL,TD	08/2004 - 03/2007	1
44773-36180	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	04/2007 - 01/2015	1
44773-36180	BB42,HZB50	01/2015 - 12/2999	1
44775F - HOSE, WAY TO CONNECTOR
44775-36030	BB4#,HZB50	01/1993 - 12/1993	1
44775-36030	BB4#,5#;HZB50..DSL;HZB50..LHD..TD	12/1993 - 07/1999	1
44775-36030	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44775-36030	BB42,50,HZB50,XZB5#..DCR,DSL,TD	08/2004 - 03/2007	1
44775-36100	BB42..RHD;BB42..LHD..SRF;BB50,HZB50,XZB40,59;XZB50..(20S,21S)..WC	04/2007 - 01/2015	1
44775-36100	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36100	BB4#,5#,HZB50	01/1993 - 07/1999	1
44779-36100	BB42,50,HZB50..DSL,TD	08/2004 - 03/2007	1
44779-36100	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44779-36121	BB42,HZB50	01/2015 - 12/2999	1
44779-36120	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	04/2007 - 01/2015	1
44779-36110	XZB40,5# NO.2	01/2015 - 12/2999	1
44779-36121	XZB40,5# NO.1	01/2015 - 12/2999	1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	BB4#,5#,HZB50	01/1993 - 07/1999	2
90404-51319	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	2
90404-51319	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	2
90404-51319	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD	08/2004 - 01/2015	2
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	BB4#,5#,HZB50	01/1993 - 07/1999	2
90404-51319	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	2
90404-51319	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	2
90404-51319	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD	08/2004 - 01/2015	2
Common parts
90461-10780
91651-60616
96133-41500
Linked diagrams
4703
4711
8401

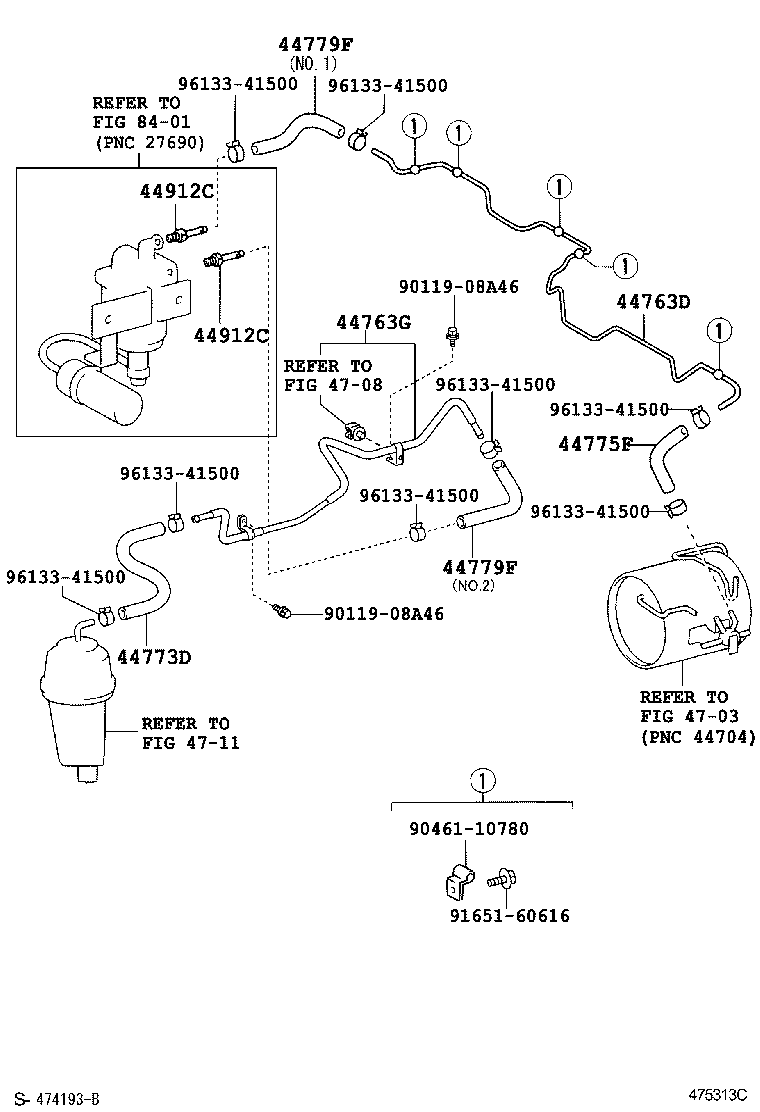

(0608- )XZB40,5#..RHD..ARL,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
44763D - TUBE, HOSE TO HOSE, NO.1
44763-36040	HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
44763-36040	BB42..RHD..SRF;BB42,59..RHD..WC;BB50..RHD..CBU..TDEFI;HZB50..RHD..HRF..STD..WC..GEN..5F	07/1999 - 08/2004	1
44763-36040	HZB50..RHD;BB4#,50..RHD..CBU	01/1993 - 07/1999	1
44763-36040	BB42,50,59,HZB50..RHD..(ARL,GEN)	08/2004 - 12/2005	1
44763-36042	BB42,HZB50,XZB40,5#..RHD	01/2015 - 12/2999	1
44763-36041	BB42,HZB50,XZB40,59..RHD;XZB50..RHD..(20S,21S)..WC	12/2005 - 01/2015	1
44763G - TUBE, HOSE TO HOSE, NO.2
44763-36080	XZB40,5#	01/2015 - 12/2999	1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36160	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44773-36160	BB4#,5#,HZB50	01/1993 - 07/1999	1
44773-36170	XZB40,5#	01/2015 - 12/2999	1
44773-36160	BB42,50,HZB50..DSL,TD	08/2004 - 03/2007	1
44773-36180	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	04/2007 - 01/2015	1
44773-36180	BB42,HZB50	01/2015 - 12/2999	1
44775F - HOSE, WAY TO CONNECTOR
44775-36030	BB4#,HZB50	01/1993 - 12/1993	1
44775-36030	BB4#,5#;HZB50..DSL;HZB50..LHD..TD	12/1993 - 07/1999	1
44775-36030	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44775-36030	BB42,50,HZB50,XZB5#..DCR,DSL,TD	08/2004 - 03/2007	1
44775-36100	BB42..RHD;BB42..LHD..SRF;BB50,HZB50,XZB40,59;XZB50..(20S,21S)..WC	04/2007 - 01/2015	1
44775-36100	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36100	BB4#,5#,HZB50	01/1993 - 07/1999	1
44779-36100	BB42,50,HZB50..DSL,TD	08/2004 - 03/2007	1
44779-36100	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44779-36121	BB42,HZB50	01/2015 - 12/2999	1
44779-36120	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	04/2007 - 01/2015	1
44779-36110	XZB40,5# NO.2	01/2015 - 12/2999	1
44779-36121	XZB40,5# NO.1	01/2015 - 12/2999	1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36100	BB4#,5#,HZB50	01/1993 - 07/1999	1
44779-36100	BB42,50,HZB50..DSL,TD	08/2004 - 03/2007	1
44779-36100	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
44779-36121	BB42,HZB50	01/2015 - 12/2999	1
44779-36120	BB42..RHD;BB50,HZB50;BB42..LHD..SRF	04/2007 - 01/2015	1
44779-36110	XZB40,5# NO.2	01/2015 - 12/2999	1
44779-36121	XZB40,5# NO.1	01/2015 - 12/2999	1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	BB4#,5#,HZB50	01/1993 - 07/1999	2
90404-51319	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	2
90404-51319	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	2
90404-51319	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD	08/2004 - 01/2015	2
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	BB4#,5#,HZB50	01/1993 - 07/1999	2
90404-51319	BB58,59;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	2
90404-51319	BB42,HZB50,XZB40,5#	01/2015 - 12/2999	2
90404-51319	BB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD	08/2004 - 01/2015	2
Common parts
90119-08A46
90461-10780
91651-60616
96133-41500
Linked diagrams
4703
4708
4711
8401

HZB50R-ZGMSS (1993)

(9301- )BB4#,5#,HZB50

(0608- )XZB40,5#..RHD..ARL,GEN
