Toyota Coaster HZB50 STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
EU
COASTER
HZB50R-ZGMSS (1993)
4501 - STEERING COLUMN & SHAFT

HZB50R-ZGMSS (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9301- )BB50,XZB50..MTM..CHI,EUR,GEN,TAIW ; (9301- )BB4#,58,59,BZB40,50,HZB50

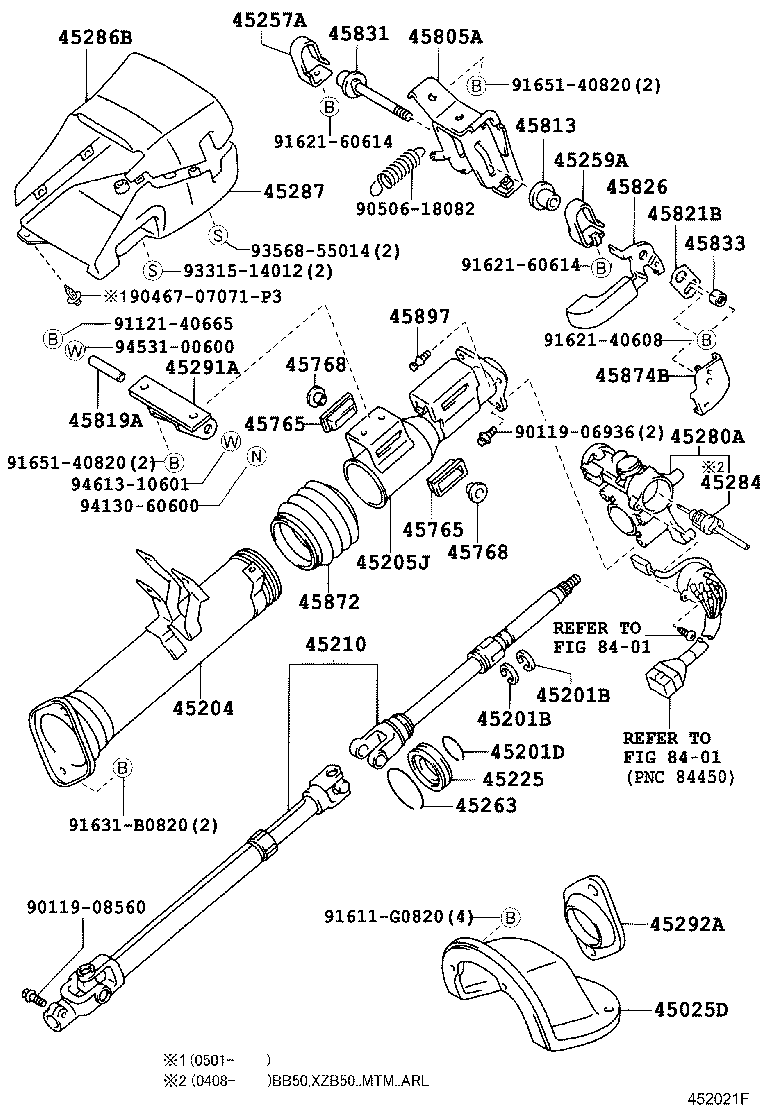

Click highlighted areas on diagram

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-36150	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45025-36140	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45025-36150	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45025-36150	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	BB4#,5#,HZB50,RZB40,50 T=1.20,LOWER	01/1993 - 07/1999	2
90520-17269	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) T=1.20	07/1999 - 08/2004	2
90520-17269	BB4#,5#,HZB50,RZB40,50 T=1.20,UPPER	01/1993 - 07/1999	1
90520-17269	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=1.20	01/2015 - 12/2999	2
90520-17269	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) T=1.20	08/2004 - 01/2015	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	BB4#,5#,HZB50,RZB40,50 T=1.20,LOWER	01/1993 - 07/1999	2
90520-17269	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) T=1.20	07/1999 - 08/2004	2
90520-17269	BB4#,5#,HZB50,RZB40,50 T=1.20,UPPER	01/1993 - 07/1999	1
90520-17269	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=1.20	01/2015 - 12/2999	2
90520-17269	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) T=1.20	08/2004 - 01/2015	2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
96152-00300	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
96152-00300	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
96152-00300	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-36190	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45204-36200	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45204-36200	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45204-36200	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-36200	HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F	01/1993 - 07/1999	1
45205-36200	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..(GEN,TAIW)..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45205-36200	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45205-36200	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..(GCC,GEN,TAIW)..5F	01/2015 - 12/2999	1
45210 - SHAFT ASSY, STEERING MAIN
45210-36090	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45210-36090	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45210-36090	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..(GEN,TAIW)..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45210-36090	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..(GCC,GEN,TAIW)..5F	01/2015 - 12/2999	1
45225 - BLOCK, BEARING
45225-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45225-26010	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45225-26010	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45225-26010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45263 - RING, STEERING COLUMN, NO.1
45263-32010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45263-32010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45263-32010	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45263-32010	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-36210	HZB50..20S,30S	01/1993 - 07/1999	1
45307-36210	HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
45307-36230	BB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB50..STD..GEN..CBU..5F;BB50..(EUR,GEN)..6F..TDEFI;RZB40..(17S,26S)..WC..(GCC,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI)	07/1999 - 08/2004	1
45307-36230	BB42,BZB40,50,TRB40,50,XZB40,5#..(GCC,GEN,TAIW)..5F	01/2015 - 12/2999	1
45307-36210	HZB50	01/2015 - 12/2999	1
45307-36230	TRB40,50,XZB40,59;BB42..RHD..SRF..WC;XZB50..(20S,21S)..(GEN,TAIW)..5F	08/2006 - 01/2015	1
45307-36230	BB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC;BB50,BZB40,50..STD..(LPG,TD) COLD SPEC	08/2004 - 01/2015	1
45307-36210	HZB50	08/2004 - 01/2015	1
45307-36230	HZB50..ARL,EUR;BB4#,5#,RZB40,50	01/1993 - 07/1999	1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-22010	BB4#,50,HZB50..RHD	01/1993 - 07/1999	1
45283-22010	BB42..RHD..SRF;HZB50..RHD..HRF..STD..WC..GEN..5F;BB42,50,59,BZB40,50..RHD..WC..5F..(DSL,LPG,TDEFI)	07/1999 - 08/2004	1
45283-22010	HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
45283-22010	XZB5#..EX..5F;BB42,BZB40,50,HZB50,XZB40..RHD..STD	08/2004 - 01/2015	1
45283-22010	BB42,BZB40,50,HZB50,XZB40,5#..RHD..GEN..5F	01/2015 - 12/2999	1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-22010	BB4#,50,HZB50..RHD	01/1993 - 07/1999	1
45283-22010	BB42..RHD..SRF;HZB50..RHD..HRF..STD..WC..GEN..5F;BB42,50,59,BZB40,50..RHD..WC..5F..(DSL,LPG,TDEFI)	07/1999 - 08/2004	1
45283-22010	HZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN	07/1999 - 08/2001	1
45283-22010	XZB5#..EX..5F;BB42,BZB40,50,HZB50,XZB40..RHD..STD	08/2004 - 01/2015	1
45283-22010	BB42,BZB40,50,HZB50,XZB40,5#..RHD..GEN..5F	01/2015 - 12/2999	1
45286B - COVER, STEERING COLUMN, UPR
45286-36820E0	BB4#,50..RHD;HZB50..RHD..TD;HZB50..RHD..(20S,22S,30S)..(EX,STD)..5F GRAIGE,TRIM4#	01/1993 - 07/1999	1
45286-36820B0	BB42,50,59,BZB40,50,HZB50..RHD..GEN DK.CHARCOAL,TRIM1#	08/2001 - 08/2004	1
45286-36820B0	BB42,BZB40,50,HZB50,XZB40,5#..RHD..GEN..5F DK.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
45286-36820B0	BB42,50,59,BZB40,50,HZB50,XZB40,5#..RHD..GEN..5F DK.CHARCOAL,TRIM1#	08/2004 - 01/2015	1
45286-36820E0	BB4#,50,HZB50..RHD..GEN..5F GRAIGE,TRIM4#	07/1999 - 08/2001	1
45287 - COVER, STEERING COLUMN, LWR
45287-36350E0	BB4#,50,HZB50..RHD..GEN..5F GRAIGE,TRIM4#	07/1999 - 08/2001	1
45287-36350B0	BB42,50,59,BZB40,50,HZB50,XZB40,5#..RHD..GEN..5F DK.CHARCOAL,TRIM1#	08/2004 - 01/2015	1
45287-36350B0	BB42,BZB40,50,HZB50,XZB40,5#..RHD..GEN..5F DK.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
45287-36350B0	BB42,50,59,BZB40,50,HZB50..RHD..GEN DK.CHARCOAL,TRIM1#	08/2001 - 08/2004	1
45287-36350E0	BB4#,50,HZB50..RHD GRAIGE,TRIM4#	01/1993 - 07/1999	1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-27020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45292-36060	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45292-36060	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45292-36060	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45872 - COVER, STEERING COLUMN TUBE
45872-36040	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45872-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45872-36040	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45872-36040	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45897 - BOLT, STEERING LOCK SET
45897-12030	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 02/2002	1
45897-12030	HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F	01/1993 - 07/1999	1
45897-25010	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	02/2002 - 08/2004	1
45897-25010	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45897-25010	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
Common parts
90119-06936
90119-08560
90164-50048
91611-G0820
91612-60820
91631-B0820
91651-40820
91661-B0820
93315-14012
93568-55014
Linked diagrams
8401

(9907-1501)XZB50..GEN..4FC ; (9907-1501)BB50,HZB50,XZB50..RHD..21S,22S ; (1501-

Click highlighted areas on diagram

W(TILT STEERING)

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-36150	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45025-36140	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45025-36150	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45025-36150	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	BB4#,5#,HZB50,RZB40,50 T=1.20,LOWER	01/1993 - 07/1999	2
90520-17269	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) T=1.20	07/1999 - 08/2004	2
90520-17269	BB4#,5#,HZB50,RZB40,50 T=1.20,UPPER	01/1993 - 07/1999	1
90520-17269	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=1.20	01/2015 - 12/2999	2
90520-17269	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) T=1.20	08/2004 - 01/2015	2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	BB4#,5#,HZB50,RZB40,50 T=1.20,LOWER	01/1993 - 07/1999	2
90520-17269	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) T=1.20	07/1999 - 08/2004	2
90520-17269	BB4#,5#,HZB50,RZB40,50 T=1.20,UPPER	01/1993 - 07/1999	1
90520-17269	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5# T=1.20	01/2015 - 12/2999	2
90520-17269	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD) T=1.20	08/2004 - 01/2015	2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
96152-00300	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
96152-00300	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
96152-00300	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45204 - TUBE ASSY, STEERING COLUMN, LOWER
45204-36190	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45204-36200	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45204-36200	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45204-36200	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-36200	HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F	01/1993 - 07/1999	1
45205-36200	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..(GEN,TAIW)..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45205-36200	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45205-36200	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..(GCC,GEN,TAIW)..5F	01/2015 - 12/2999	1
45210 - SHAFT ASSY, STEERING MAIN
45210-36090	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45210-36090	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45210-36090	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..(GEN,TAIW)..5F;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45210-36090	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..(GCC,GEN,TAIW)..5F	01/2015 - 12/2999	1
45225 - BLOCK, BEARING
45225-26010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45225-26010	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45225-26010	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45225-26010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45263 - RING, STEERING COLUMN, NO.1
45263-32010	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45263-32010	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45263-32010	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45263-32010	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45286B - COVER, STEERING COLUMN, UPR
45286-36820E0	BB4#,50..RHD;HZB50..RHD..TD;HZB50..RHD..(20S,22S,30S)..(EX,STD)..5F GRAIGE,TRIM4#	01/1993 - 07/1999	1
45286-36820B0	BB42,50,59,BZB40,50,HZB50..RHD..GEN DK.CHARCOAL,TRIM1#	08/2001 - 08/2004	1
45286-36820B0	BB42,BZB40,50,HZB50,XZB40,5#..RHD..GEN..5F DK.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
45286-36820B0	BB42,50,59,BZB40,50,HZB50,XZB40,5#..RHD..GEN..5F DK.CHARCOAL,TRIM1#	08/2004 - 01/2015	1
45286-36820E0	BB4#,50,HZB50..RHD..GEN..5F GRAIGE,TRIM4#	07/1999 - 08/2001	1
45287 - COVER, STEERING COLUMN, LWR
45287-36350E0	BB4#,50,HZB50..RHD..GEN..5F GRAIGE,TRIM4#	07/1999 - 08/2001	1
45287-36350B0	BB42,50,59,BZB40,50,HZB50,XZB40,5#..RHD..GEN..5F DK.CHARCOAL,TRIM1#	08/2004 - 01/2015	1
45287-36350B0	BB42,BZB40,50,HZB50,XZB40,5#..RHD..GEN..5F DK.CHARCOAL,TRIM1#	01/2015 - 12/2016	1
45287-36350B0	BB42,50,59,BZB40,50,HZB50..RHD..GEN DK.CHARCOAL,TRIM1#	08/2001 - 08/2004	1
45287-36350E0	BB4#,50,HZB50..RHD GRAIGE,TRIM4#	01/1993 - 07/1999	1
45292A - COVER, MAIN SHAFT LOWER DUST
45292-27020	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45292-36060	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45292-36060	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45292-36060	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45872 - COVER, STEERING COLUMN TUBE
45872-36040	BB4#,5#,HZB50,RZB40,50	01/1993 - 07/1999	1
45872-36040	BB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
45872-36040	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
45872-36040	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45897 - BOLT, STEERING LOCK SET
45897-12030	BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;HZB50..HRF..(DX,STD)..WC..5F;BB5#,BZB40,RZB50..EFI,LPG,TDEFI;HZB50,RZB40..LHD..(17S,20S,26S)..WC;HZB50,RZB40..(22S,26S)..WOC..(ARL,GEN)	07/1999 - 02/2002	1
45897-12030	HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F	01/1993 - 07/1999	1
45897-25010	HZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,EUR,GCC,GEN	02/2002 - 08/2004	1
45897-25010	BB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
45897-25010	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#	01/2015 - 12/2999	1
Common parts
90119-06936
90119-08560
90467-07071P3
90506-18082
91121-40665
91611-G0820
91621-40608
91621-60614
91631-B0820
91651-40820
93315-14012
93568-55014
94130-60600
94531-00600
94613-10601
Linked diagrams
8401

HZB50R-ZGMSS (1993)

(9301- )BB50,XZB50..MTM..CHI,EUR,GEN,TAIW ; (9301- )BB4#,58,59,BZB40,50,HZB50

(9907-1501)XZB50..GEN..4FC ; (9907-1501)BB50,HZB50,XZB50..RHD..21S,22S ; (1501-

Part Price Details
