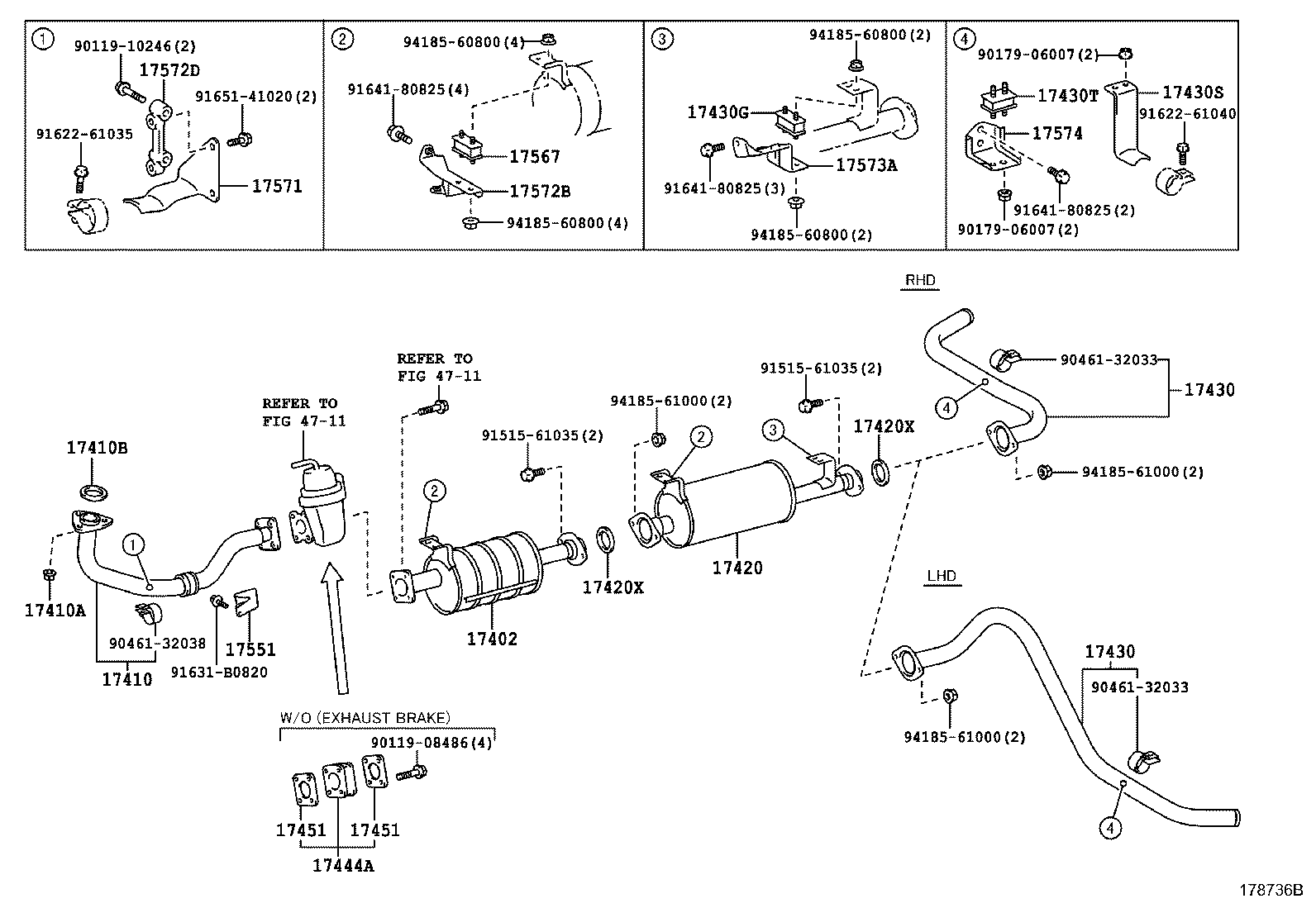

HZB50R-ZGMSS (1993)
Toyota Coaster
(9301-0602)1HZ# ; (0602-1501)1HZ..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2 | ||||
| 17402-17050 |
15BFT,1HZ..BB50,HZB50 |
1 | ||
| 17402-17050 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..WOC..ARL;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..LHD..CBU..5F;1HZ..HZB50..HRF..(DX,STD)..WC..5F |
1 | ||
| 17402-17050 |
15BFT,1HZ#..BB5#,HZB50 |
1 | ||
| 17402-17051 |
15BFT,1HZ..BB50,HZB50 |
1 | ||
| 17402-17050 |
15BFT,1HZ..BB50,HZB50 |
1 | ||
| 17402-17051 |
1HZ..HZB50 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-17110 |
1HZ..HZB50..GCC,GEN,SCO |
1 | ||
| 17401-17110 |
1HZ..HZB50 |
1 | ||
| 17401-17110 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 17401-17111 |
1HZ..HZB50 |
1 | ||
| 17401-17111 |
1HZ..HZB50 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-17110 |
1HZ..HZB50..GCC,GEN,SCO |
1 | ||
| 17401-17110 |
1HZ..HZB50 |
1 | ||
| 17401-17110 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 17401-17111 |
1HZ..HZB50 |
1 | ||
| 17401-17111 |
1HZ..HZB50 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F;1HZ,3RZFE..HZB50,RZB40..LHD..WOC..GEN;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC;1HZ,3RZFE..HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);15BFTE,1BZFPE,3RZFE..BB5#,BZB40,50,RZB50..ARL,EUR,GCC,GEN |
3 | ||
| 90179-10070 |
14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
3 | ||
| 90179-10070 |
14B..BB42..LHD..SRF;N04C,14B..BB42,XZB59..RHD;N04C..XZB50..(20S,21S)..WC;N04C,15BFT,1BZFPE,1HZ..BB50,BZB40,50,HZB50,XZB40..STD |
3 | ||
| 90179-10070 |
N04C,14B,1BZFPE,1HZ..BB42,BZB40,50,HZB50,XZB40,5# |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F;1HZ,3RZFE..HZB50,RZB40..LHD..WOC..GEN;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC;1HZ,3RZFE..HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);15BFTE,1BZFPE,3RZFE..BB5#,BZB40,50,RZB50..ARL,EUR,GCC,GEN |
3 | ||
| 90179-10070 |
14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
3 | ||
| 90179-10070 |
14B..BB42..LHD..SRF;N04C,14B..BB42,XZB59..RHD;N04C..XZB50..(20S,21S)..WC;N04C,15BFT,1BZFPE,1HZ..BB50,BZB40,50,HZB50,XZB40..STD |
3 | ||
| 90179-10070 |
N04C,14B,1BZFPE,1HZ..BB42,BZB40,50,HZB50,XZB40,5# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06059 |
14B,15BFT,3B,1HZ..BB4#,5#,HZB50 |
1 | ||
| 90917-06059 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
1 | ||
| 90917-06059 |
14B,1HZ..BB42,HZB50 |
1 | ||
| 90917-06059 |
14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1HZ..BB50,HZB50 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06059 |
14B,15BFT,3B,1HZ..BB4#,5#,HZB50 |
1 | ||
| 90917-06059 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
1 | ||
| 90917-06059 |
14B,1HZ..BB42,HZB50 |
1 | ||
| 90917-06059 |
14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1HZ..BB50,HZB50 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-17150 |
1HZ..HZB50..GCC,GEN,SCO |
1 | ||
| 17403-17150 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 17403-17151 |
1HZ..HZB50 |
1 | ||
| 17403-17151 |
1HZ..HZB50 |
1 | ||
| 17403-17151 |
1HZ..HZB50 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06054 |
15BFT,1HZ#..BB5#,HZB50 NO.2 |
1 | ||
| 90917-06054 |
15BFT..BB50..EX;15BFT..BB50..WOC..5F;15BFT..BB50..STD..CBU;15BFTE,1HZ,3RZFE..BB5#,HZB50,RZB50 NO.2 |
1 | ||
| 90917-06054 |
1HZ..HZB50..GCC,GEN;15B#,1BZFPE..BB5#,BZB50..ARL,EUR,GEN |
1 | ||
| 90917-06054 |
3RZFE..RZB50..GCC;15B#,1BZFPE,1HZ..BB5#,BZB50,HZB50 |
1 | ||
| 90917-06054 |
1HZ..HZB50..GEN;2TRFE..TRB50..GCC |
2 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06054 |
15BFT,1HZ#..BB5#,HZB50 NO.2 |
1 | ||
| 90917-06054 |
15BFT..BB50..EX;15BFT..BB50..WOC..5F;15BFT..BB50..STD..CBU;15BFTE,1HZ,3RZFE..BB5#,HZB50,RZB50 NO.2 |
1 | ||
| 90917-06054 |
1HZ..HZB50..GCC,GEN;15B#,1BZFPE..BB5#,BZB50..ARL,EUR,GEN |
1 | ||
| 90917-06054 |
3RZFE..RZB50..GCC;15B#,1BZFPE,1HZ..BB5#,BZB50,HZB50 |
1 | ||
| 90917-06054 |
1HZ..HZB50..GEN;2TRFE..TRB50..GCC |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-17140 |
15BFT,1HZ#..BB50,HZB50..RHD |
1 | ||
| 17405-17140 |
1HZ..HZB50..RHD..HRF..STD..WC..GEN..5F |
1 | ||
| 17405-17140 |
1HZ..HZB50..RHD |
1 | ||
| 17405-17140 |
1HZ..HZB50..RHD |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-17140 |
15BFT,1HZ#..BB50,HZB50..RHD |
1 | ||
| 17405-17140 |
1HZ..HZB50..RHD..HRF..STD..WC..GEN..5F |
1 | ||
| 17405-17140 |
1HZ..HZB50..RHD |
1 | ||
| 17405-17140 |
1HZ..HZB50..RHD |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17567-58010 |
15BFT,3B,1HZ#,3RZF..BB40,43,5#,HZB50,RZB40 |
1 | ||
| 17567-58010 |
3RZFE..RZB40..GEN;15B#,1BZFPE,1HZ..BB5#,BZB40,HZB50 |
1 | ||
| 17567-58010 |
1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40;15BFT..BB50..STD..GEN..CBU..5F;1HZ,3RZFE..HZB50,RZB40..LHD..WOC..GEN;1HZ,3RZFE..HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 17567-58010 |
N04C,15BFT,1BZFPE,1HZ,2TRFE..BB50,BZB40,HZB50,TRB40,XZB40..GEN |
1 | ||
| 17567-58010 |
2TRFE..TRB40..GEN;N04C,1BZFPE,1HZ..BZB40,50,HZB50,XZB40 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-17010 |
15BFT,1HZ#..BB5#,HZB50 |
1 | ||
| 17561-17010 |
15BFT,1HZ,2TRFE..BB50,HZB50,TRB40,50..GEN |
1 | ||
| 17561-17010 |
15BFT,1HZ..BB50,HZB50 |
1 | ||
| 17561-17010 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..WOC..ARL;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..LHD..CBU..5F;1HZ..HZB50..HRF..(DX,STD)..WC..5F |
1 | ||
| 17561-17010 |
N04C,1HZ,2TRFE..HZB50,TRB40,50,XZB40..(26S,30S)..GEN |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-17010 |
3RZFE..RZB40,50..GEN;14B,15B#,1BZFPE,1HZ..BB42,5#,BZB40,50,HZB50 |
1 | ||
| 17567-17010 |
14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 17567-17020 |
N04C..XZB40..26S;14B,1BZFPE,1HZ,2TRFE..BB42,BZB40,50,HZB50,TRB40,50..GEN |
1 | ||
| 17567-17020 |
14B..BB42..RHD;14B..BB42..LHD..SRF..GEN;15BFT,1BZFPE,1HZ,2TRFE..BB50,BZB40,50,HZB50,TRB40,50..STD..GEN |
1 | ||
| 17567-17010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F;1HZ,3RZFE..HZB50,RZB40..LHD..WOC..GEN;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC;1HZ,3RZFE..HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);15BFTE,1BZFPE,3RZFE..BB5#,BZB40,50,RZB50..ARL,EUR,GCC,GEN |
1 | ||
| 17444A - SPACER, EXHAUST FRONT PIPE | ||||
| 17404-58030 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F |
1 | ||
| 17404-58030 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 17404-58030 |
1HZ..HZB50 |
1 | ||
| 17404-58030 |
1HZ..HZB50 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 46759-36040 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F FR |
2 | ||
| 90917-06054 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F RR |
1 | ||
| 90917-06054 |
15BFT..BB50..WOC..5F;15BFTE,1HZ..BB58,HZB50;15BFT..BB50..(19S,20S)..GEN RR |
1 | ||
| 90917-06054 |
1HZ..HZB50..GCC,GEN REAR |
1 | ||
| 46759-36040 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC FRONT |
2 | ||
| 90917-06054 |
1HZ..HZB50..GEN REAR |
2 | ||
| 46759-36040 |
1HZ..HZB50 |
2 | ||
| 46759-36040 |
1HZ..HZB50..GEN FRONT |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 46759-36040 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F FR |
2 | ||
| 90917-06054 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F RR |
1 | ||
| 90917-06054 |
15BFT..BB50..WOC..5F;15BFTE,1HZ..BB58,HZB50;15BFT..BB50..(19S,20S)..GEN RR |
1 | ||
| 90917-06054 |
1HZ..HZB50..GCC,GEN REAR |
1 | ||
| 46759-36040 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC FRONT |
2 | ||
| 90917-06054 |
1HZ..HZB50..GEN REAR |
2 | ||
| 46759-36040 |
1HZ..HZB50 |
2 | ||
| 46759-36040 |
1HZ..HZB50..GEN FRONT |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 46759-36040 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F FR |
2 | ||
| 90917-06054 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F RR |
1 | ||
| 90917-06054 |
15BFT..BB50..WOC..5F;15BFTE,1HZ..BB58,HZB50;15BFT..BB50..(19S,20S)..GEN RR |
1 | ||
| 90917-06054 |
1HZ..HZB50..GCC,GEN REAR |
1 | ||
| 46759-36040 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC FRONT |
2 | ||
| 90917-06054 |
1HZ..HZB50..GEN REAR |
2 | ||
| 46759-36040 |
1HZ..HZB50 |
2 | ||
| 46759-36040 |
1HZ..HZB50..GEN FRONT |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 46759-36040 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F FR |
2 | ||
| 90917-06054 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F RR |
1 | ||
| 90917-06054 |
15BFT..BB50..WOC..5F;15BFTE,1HZ..BB58,HZB50;15BFT..BB50..(19S,20S)..GEN RR |
1 | ||
| 90917-06054 |
1HZ..HZB50..GCC,GEN REAR |
1 | ||
| 46759-36040 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC FRONT |
2 | ||
| 90917-06054 |
1HZ..HZB50..GEN REAR |
2 | ||
| 46759-36040 |
1HZ..HZB50 |
2 | ||
| 46759-36040 |
1HZ..HZB50..GEN FRONT |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 46759-36040 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F FR |
2 | ||
| 90917-06054 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F RR |
1 | ||
| 90917-06054 |
15BFT..BB50..WOC..5F;15BFTE,1HZ..BB58,HZB50;15BFT..BB50..(19S,20S)..GEN RR |
1 | ||
| 90917-06054 |
1HZ..HZB50..GCC,GEN REAR |
1 | ||
| 46759-36040 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC FRONT |
2 | ||
| 90917-06054 |
1HZ..HZB50..GEN REAR |
2 | ||
| 46759-36040 |
1HZ..HZB50 |
2 | ||
| 46759-36040 |
1HZ..HZB50..GEN FRONT |
2 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-17010 |
14B,3B,1HZ#..BB4#,HZB50 |
1 | ||
| 17551-17011 |
14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 17551-17011 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F;1HZ,3RZFE..HZB50,RZB40..LHD..WOC..GEN;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC;1HZ,3RZFE..HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);15BFTE,1BZFPE,3RZFE..BB5#,BZB40,50,RZB50..ARL,EUR,GCC,GEN |
1 | ||
| 17551-17011 |
14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1BZFPE,1HZ,2TRFE..BB50,BZB40,50,HZB50,TRB40,50..STD |
1 | ||
| 17551-17011 |
14B,1BZFPE,1HZ,2TRFE..BB42,BZB40,50,HZB50,TRB40,50 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-58010 |
15BFT,1HZ#..BB5#,HZB50 |
2 | ||
| 17567-58010 |
15BFTE..BB5#;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F |
2 | ||
| 17567-58010 |
15BFT,1HZ..BB50,HZB50 |
2 | ||
| 17567-58010 |
1HZ..HZB50 |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-17080 |
1HZ..HZB50..5F |
1 | ||
| 17571-17080 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 17571-17080 |
1HZ..HZB50 |
1 | ||
| 17571-17080 |
1HZ..HZB50 |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-17080 |
1HZ..HZB50..5F |
1 | ||
| 17571-17080 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 17571-17080 |
1HZ..HZB50 |
1 | ||
| 17571-17080 |
1HZ..HZB50 |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-17080 |
1HZ..HZB50..5F |
1 | ||
| 17571-17080 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 17571-17080 |
1HZ..HZB50 |
1 | ||
| 17571-17080 |
1HZ..HZB50 |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-17030 |
15BFT,1HZ#..BB5#,HZB50 |
2 | ||
| 17572-17030 |
15BFTE..BB5#;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F |
2 | ||
| 17572-17030 |
15BFT,1HZ..BB50,HZB50 |
2 | ||
| 17572-17030 |
1HZ..HZB50 |
2 | ||
| 17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17579-73010 |
14B,15BFT,3B,1HZ..BB4#,5#,HZB50..5F |
1 | ||
| 17579-73010 |
14B,1BZFPE,1HZ..BB42,BZB40,50,HZB50 |
1 | ||
| 17579-73010 |
14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1BZFPE,1HZ..BB50,BZB40,50,HZB50..STD |
1 | ||
| 17579-73010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-17010 |
15BFT,1HZ#..BB5#,HZB50 |
1 | ||
| 17573-17010 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB50,58,BZB50;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 17573-17010 |
2TRFE..TRB50..GCC;15BFT,1HZ..BB50,HZB50 |
1 | ||
| 17573-17010 |
3RZFE..RZB50..GCC;15B#,1BZFPE,1HZ..BB50,58,BZB50,HZB50 |
1 | ||
| 17573-17010 |
1HZ..HZB50;2TRFE..TRB50..GCC |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-58170 |
N04C,14B,1BZFPE,1HZ,2TRFE..BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17574-17010 |
14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 17574-58170 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F;1HZ,3RZFE..HZB50,RZB40..LHD..WOC..GEN;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC;1HZ,3RZFE..HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);15BFTE,1BZFPE,3RZFE..BB5#,BZB40,50,RZB50..ARL,EUR,GCC,GEN |
1 | ||
| 17574-58170 |
14B..BB42..LHD..SRF..GEN;N04C,14B..BB42,XZB59..RHD;N04C..XZB50..(20S,21S)..WC;N04C,15BFT,1BZFPE,1HZ,2TRFE..BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..GEN |
1 | ||
| Common parts | ||||
| 90119-08486 | ||||
| 90119-10246 | ||||
| 90179-06007 | ||||
| 90461-32033 | ||||
| 90461-32038 | ||||
| 91515-61035 | ||||
| 91622-61035 | ||||
| 91622-61040 | ||||
| 91631-B0820 | ||||
| 91632-60820 | ||||
| 91641-80825 | ||||
| 91651-41020 | ||||
| 91651-B0825 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
(1501- )1HZ..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2 | ||||
| 17402-17050 |
15BFT,1HZ..BB50,HZB50 |
1 | ||
| 17402-17050 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..WOC..ARL;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..LHD..CBU..5F;1HZ..HZB50..HRF..(DX,STD)..WC..5F |
1 | ||
| 17402-17050 |
15BFT,1HZ#..BB5#,HZB50 |
1 | ||
| 17402-17051 |
15BFT,1HZ..BB50,HZB50 |
1 | ||
| 17402-17050 |
15BFT,1HZ..BB50,HZB50 |
1 | ||
| 17402-17051 |
1HZ..HZB50 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-17110 |
1HZ..HZB50..GCC,GEN,SCO |
1 | ||
| 17401-17110 |
1HZ..HZB50 |
1 | ||
| 17401-17110 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 17401-17111 |
1HZ..HZB50 |
1 | ||
| 17401-17111 |
1HZ..HZB50 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F;1HZ,3RZFE..HZB50,RZB40..LHD..WOC..GEN;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC;1HZ,3RZFE..HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);15BFTE,1BZFPE,3RZFE..BB5#,BZB40,50,RZB50..ARL,EUR,GCC,GEN |
3 | ||
| 90179-10070 |
14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
3 | ||
| 90179-10070 |
14B..BB42..LHD..SRF;N04C,14B..BB42,XZB59..RHD;N04C..XZB50..(20S,21S)..WC;N04C,15BFT,1BZFPE,1HZ..BB50,BZB40,50,HZB50,XZB40..STD |
3 | ||
| 90179-10070 |
N04C,14B,1BZFPE,1HZ..BB42,BZB40,50,HZB50,XZB40,5# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06059 |
14B,15BFT,3B,1HZ..BB4#,5#,HZB50 |
1 | ||
| 90917-06059 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
1 | ||
| 90917-06059 |
14B,1HZ..BB42,HZB50 |
1 | ||
| 90917-06059 |
14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1HZ..BB50,HZB50 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-17150 |
1HZ..HZB50..GCC,GEN,SCO |
1 | ||
| 17403-17150 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 17403-17151 |
1HZ..HZB50 |
1 | ||
| 17403-17151 |
1HZ..HZB50 |
1 | ||
| 17403-17151 |
1HZ..HZB50 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06054 |
15BFT,1HZ#..BB5#,HZB50 NO.2 |
1 | ||
| 90917-06054 |
15BFT..BB50..EX;15BFT..BB50..WOC..5F;15BFT..BB50..STD..CBU;15BFTE,1HZ,3RZFE..BB5#,HZB50,RZB50 NO.2 |
1 | ||
| 90917-06054 |
1HZ..HZB50..GCC,GEN;15B#,1BZFPE..BB5#,BZB50..ARL,EUR,GEN |
1 | ||
| 90917-06054 |
3RZFE..RZB50..GCC;15B#,1BZFPE,1HZ..BB5#,BZB50,HZB50 |
1 | ||
| 90917-06054 |
1HZ..HZB50..GEN;2TRFE..TRB50..GCC |
2 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06054 |
15BFT,1HZ#..BB5#,HZB50 NO.2 |
1 | ||
| 90917-06054 |
15BFT..BB50..EX;15BFT..BB50..WOC..5F;15BFT..BB50..STD..CBU;15BFTE,1HZ,3RZFE..BB5#,HZB50,RZB50 NO.2 |
1 | ||
| 90917-06054 |
1HZ..HZB50..GCC,GEN;15B#,1BZFPE..BB5#,BZB50..ARL,EUR,GEN |
1 | ||
| 90917-06054 |
3RZFE..RZB50..GCC;15B#,1BZFPE,1HZ..BB5#,BZB50,HZB50 |
1 | ||
| 90917-06054 |
1HZ..HZB50..GEN;2TRFE..TRB50..GCC |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-17140 |
15BFT,1HZ#..BB50,HZB50..RHD |
1 | ||
| 17405-17140 |
1HZ..HZB50..RHD..HRF..STD..WC..GEN..5F |
1 | ||
| 17405-17140 |
1HZ..HZB50..RHD |
1 | ||
| 17405-17140 |
1HZ..HZB50..RHD |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-17140 |
15BFT,1HZ#..BB50,HZB50..RHD |
1 | ||
| 17405-17140 |
1HZ..HZB50..RHD..HRF..STD..WC..GEN..5F |
1 | ||
| 17405-17140 |
1HZ..HZB50..RHD |
1 | ||
| 17405-17140 |
1HZ..HZB50..RHD |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17567-58010 |
15BFT,3B,1HZ#,3RZF..BB40,43,5#,HZB50,RZB40 |
1 | ||
| 17567-58010 |
3RZFE..RZB40..GEN;15B#,1BZFPE,1HZ..BB5#,BZB40,HZB50 |
1 | ||
| 17567-58010 |
1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40;15BFT..BB50..STD..GEN..CBU..5F;1HZ,3RZFE..HZB50,RZB40..LHD..WOC..GEN;1HZ,3RZFE..HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN) |
1 | ||
| 17567-58010 |
N04C,15BFT,1BZFPE,1HZ,2TRFE..BB50,BZB40,HZB50,TRB40,XZB40..GEN |
1 | ||
| 17567-58010 |
2TRFE..TRB40..GEN;N04C,1BZFPE,1HZ..BZB40,50,HZB50,XZB40 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-17010 |
15BFT,1HZ#..BB5#,HZB50 |
1 | ||
| 17561-17010 |
15BFT,1HZ,2TRFE..BB50,HZB50,TRB40,50..GEN |
1 | ||
| 17561-17010 |
15BFT,1HZ..BB50,HZB50 |
1 | ||
| 17561-17010 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..WOC..ARL;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..LHD..CBU..5F;1HZ..HZB50..HRF..(DX,STD)..WC..5F |
1 | ||
| 17561-17010 |
N04C,1HZ,2TRFE..HZB50,TRB40,50,XZB40..(26S,30S)..GEN |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17567-17010 |
3RZFE..RZB40,50..GEN;14B,15B#,1BZFPE,1HZ..BB42,5#,BZB40,50,HZB50 |
1 | ||
| 17567-17010 |
14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 17567-17020 |
N04C..XZB40..26S;14B,1BZFPE,1HZ,2TRFE..BB42,BZB40,50,HZB50,TRB40,50..GEN |
1 | ||
| 17567-17020 |
14B..BB42..RHD;14B..BB42..LHD..SRF..GEN;15BFT,1BZFPE,1HZ,2TRFE..BB50,BZB40,50,HZB50,TRB40,50..STD..GEN |
1 | ||
| 17567-17010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F;1HZ,3RZFE..HZB50,RZB40..LHD..WOC..GEN;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC;1HZ,3RZFE..HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);15BFTE,1BZFPE,3RZFE..BB5#,BZB40,50,RZB50..ARL,EUR,GCC,GEN |
1 | ||
| 17444A - SPACER, EXHAUST FRONT PIPE | ||||
| 17404-58030 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F |
1 | ||
| 17404-58030 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 17404-58030 |
1HZ..HZB50 |
1 | ||
| 17404-58030 |
1HZ..HZB50 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 46759-36040 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F FR |
2 | ||
| 90917-06054 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F RR |
1 | ||
| 90917-06054 |
15BFT..BB50..WOC..5F;15BFTE,1HZ..BB58,HZB50;15BFT..BB50..(19S,20S)..GEN RR |
1 | ||
| 90917-06054 |
1HZ..HZB50..GCC,GEN REAR |
1 | ||
| 46759-36040 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC FRONT |
2 | ||
| 90917-06054 |
1HZ..HZB50..GEN REAR |
2 | ||
| 46759-36040 |
1HZ..HZB50 |
2 | ||
| 46759-36040 |
1HZ..HZB50..GEN FRONT |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 46759-36040 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F FR |
2 | ||
| 90917-06054 |
1HZ..HZB50..30S..4FC;1HZ..HZB50..(ARL,GCC,GEN)..5F RR |
1 | ||
| 90917-06054 |
15BFT..BB50..WOC..5F;15BFTE,1HZ..BB58,HZB50;15BFT..BB50..(19S,20S)..GEN RR |
1 | ||
| 90917-06054 |
1HZ..HZB50..GCC,GEN REAR |
1 | ||
| 46759-36040 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC FRONT |
2 | ||
| 90917-06054 |
1HZ..HZB50..GEN REAR |
2 | ||
| 46759-36040 |
1HZ..HZB50 |
2 | ||
| 46759-36040 |
1HZ..HZB50..GEN FRONT |
2 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-17010 |
14B,3B,1HZ#..BB4#,HZB50 |
1 | ||
| 17551-17011 |
14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 17551-17011 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F;1HZ,3RZFE..HZB50,RZB40..LHD..WOC..GEN;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC;1HZ,3RZFE..HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);15BFTE,1BZFPE,3RZFE..BB5#,BZB40,50,RZB50..ARL,EUR,GCC,GEN |
1 | ||
| 17551-17011 |
14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1BZFPE,1HZ,2TRFE..BB50,BZB40,50,HZB50,TRB40,50..STD |
1 | ||
| 17551-17011 |
14B,1BZFPE,1HZ,2TRFE..BB42,BZB40,50,HZB50,TRB40,50 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-58010 |
15BFT,1HZ#..BB5#,HZB50 |
2 | ||
| 17567-58010 |
15BFTE..BB5#;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F |
2 | ||
| 17567-58010 |
15BFT,1HZ..BB50,HZB50 |
2 | ||
| 17567-58010 |
1HZ..HZB50 |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-17080 |
1HZ..HZB50..5F |
1 | ||
| 17571-17080 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC |
1 | ||
| 17571-17080 |
1HZ..HZB50 |
1 | ||
| 17571-17080 |
1HZ..HZB50 |
1 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-17030 |
15BFT,1HZ#..BB5#,HZB50 |
2 | ||
| 17572-17030 |
15BFTE..BB5#;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F |
2 | ||
| 17572-17030 |
15BFT,1HZ..BB50,HZB50 |
2 | ||
| 17572-17030 |
1HZ..HZB50 |
2 | ||
| 17572D - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17579-73010 |
14B,15BFT,3B,1HZ..BB4#,5#,HZB50..5F |
1 | ||
| 17579-73010 |
14B,1BZFPE,1HZ..BB42,BZB40,50,HZB50 |
1 | ||
| 17579-73010 |
14B..BB42..RHD;14B..BB42..LHD..SRF;15BFT,1BZFPE,1HZ..BB50,BZB40,50,HZB50..STD |
1 | ||
| 17579-73010 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-17010 |
1HZ..HZB50;2TRFE..TRB50..GCC |
1 | ||
| 17573-17010 |
15BFT,1HZ#..BB5#,HZB50 |
1 | ||
| 17573-17010 |
1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC;15BFTE,1BZFPE..BB50,58,BZB50;15BFT..BB50..STD..GEN..CBU..5F |
1 | ||
| 17573-17010 |
2TRFE..TRB50..GCC;15BFT,1HZ..BB50,HZB50 |
1 | ||
| 17573-17010 |
3RZFE..RZB50..GCC;15B#,1BZFPE,1HZ..BB50,58,BZB50,HZB50 |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-58170 |
14B..BB42..LHD..SRF..GEN;N04C,14B..BB42,XZB59..RHD;N04C..XZB50..(20S,21S)..WC;N04C,15BFT,1BZFPE,1HZ,2TRFE..BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..GEN |
1 | ||
| 17574-58170 |
N04C,14B,1BZFPE,1HZ,2TRFE..BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GEN,TAIW |
1 | ||
| 17574-17010 |
14B,15BFT,3B,1HZ#,3RZF..BB4#,5#,HZB50,RZB40,50 |
1 | ||
| 17574-58170 |
14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;1HZ..HZB50..LHD..SRF..WC;15BFT..BB50..STD..GEN..CBU..5F;1HZ,3RZFE..HZB50,RZB40..LHD..WOC..GEN;14B,1HZ..BB42,HZB50..HRF..(26S,30S)..WC;1HZ,3RZFE..HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN);15BFTE,1BZFPE,3RZFE..BB5#,BZB40,50,RZB50..ARL,EUR,GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-08486 | ||||
| 90119-10246 | ||||
| 90179-06007 | ||||
| 90461-32033 | ||||
| 90461-32038 | ||||
| 91515-61035 | ||||
| 91622-61035 | ||||
| 91622-61040 | ||||
| 91631-B0820 | ||||
| 91641-80825 | ||||
| 91651-41020 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 4711 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
