HZB50R-ZEMSSQ (1993)

Toyota Coaster

Production Jan 1993 - Nov 2002
Engine 1HZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )XZB50..GEN..4FC ; (9907- )BB50,HZB50,XZB50..RHD..21S,22S

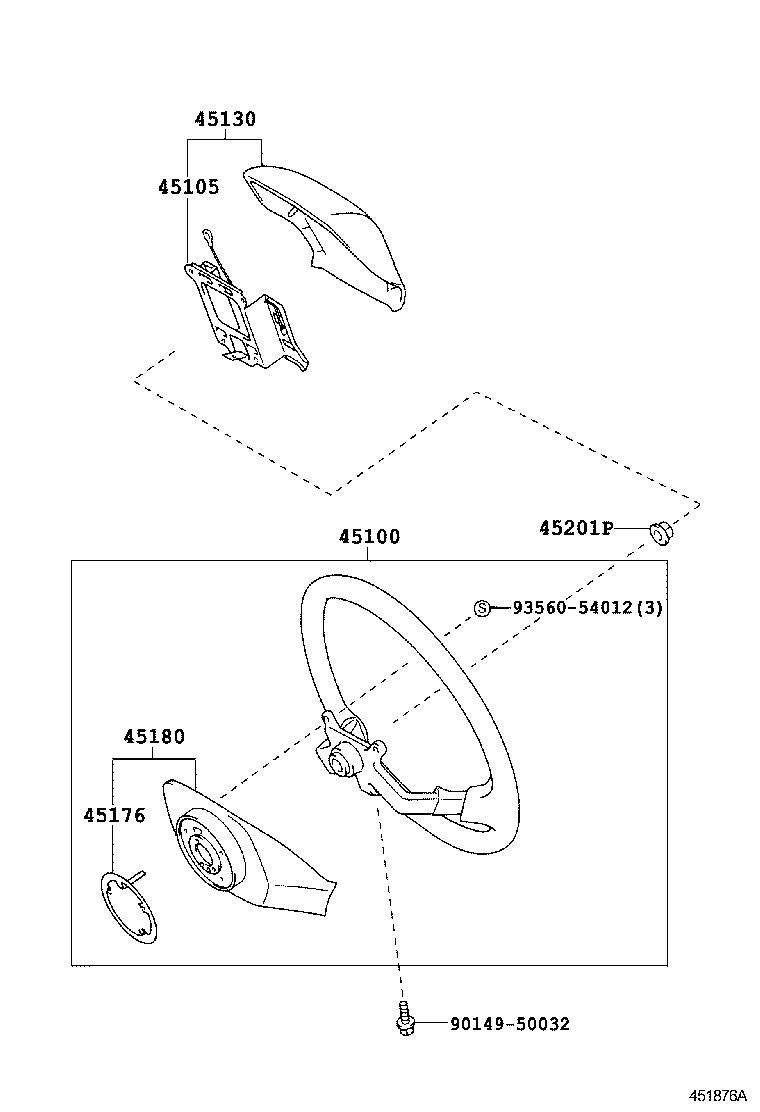

Click highlighted areas on diagram

2-SPOKE,URETHANE

diagram 45100 45105 45130 45176 45180 45201P 9014950032 9356054012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36110E0

HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F

2SPOKE,POLYPROPYLENE,GRAIGE,TRIM4#

 1
45100-36140E0

HZB50..22S

2-SPOKE,URETHANE,GREIGE,TRIM4#

 1
45100-36110E0

BB50..EX;BB50..WOC..5F;HZB50..(GCC,GEN)..5F;BB4#,5#,RZB40,50..17S,19S,22S,23S,26S,30S

2SPOKE,POLYPROPYLENE,GRAIGE,TRIM4#

 1
45100-36140B1

HZB50..ARL

2-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-36030

HZB50..ARL

 1
45105-36010

HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F

 1
45130 - BUTTON ASSY, HORN
45130-36100E0

HZB50..TD

GRAIGE,TRIM4#

 1
45130-36100E0

HZB50..TD;BB4#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)

GRAIGE,TRIM4#

 1
45130-36120B1

HZB50..ARL

DK.CHARCOAL,TRIM1#

 1
45130-36090E0

HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(EX,STD)..5F..DSL

GREIGE,TRIM4#

 1
45130-36120E0

HZB50..22S

GREIGE,TRIM4#

 1
45130-36090E0

BB50..EX;BB50..WOC..5F;HZB50..(GCC,GEN)..5F;BB4#,5#,RZB40,50..17S,19S,22S,23S,26S,30S

GREIGE,TRIM4#

 1
45176 - RING, HORN CONTACT
45176-36010

BB4#,5#,HZB50,RZB40,50

 1
45176-36020

HZB50..ARL

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-36030E0

HZB50..22S

GREIGE,TRIM4#

 1
45180-36030B1

HZB50..ARL

DK.CHARCOAL,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

BB4#,HZB50

 1
90179-12071

BB50,HZB50,RZB40,50..ARL,CHI

 1
90179-12071

BB4#,5#,HZB50,RZB40,50

 1
Common parts
90149-50032
93560-54012

(9301- )BB50,XZB50..MTM..CHI,EUR,GEN,TAIW ; (9301- )BB4#,58,59,BZB40,50,RZB40

Click highlighted areas on diagram

2-SPOKE,POLYPROPYLENE

diagram 45100 45105 45130 45176 45201P 9331514010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36110E0

HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F

2SPOKE,POLYPROPYLENE,GRAIGE,TRIM4#

 1
45100-36110E0

HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F

2SPOKE,POLYPROPYLENE,GRAIGE,TRIM4#

 1
45100-36140E0

HZB50..22S

2-SPOKE,URETHANE,GREIGE,TRIM4#

 1
45100-36140E0

HZB50..22S

2-SPOKE,URETHANE,GREIGE,TRIM4#

 1
45100-36110E0

BB50..EX;BB50..WOC..5F;HZB50..(GCC,GEN)..5F;BB4#,5#,RZB40,50..17S,19S,22S,23S,26S,30S

2SPOKE,POLYPROPYLENE,GRAIGE,TRIM4#

 1
45100-36110E0

BB50..EX;BB50..WOC..5F;HZB50..(GCC,GEN)..5F;BB4#,5#,RZB40,50..17S,19S,22S,23S,26S,30S

2SPOKE,POLYPROPYLENE,GRAIGE,TRIM4#

 1
45100-36140B1

HZB50..ARL

2-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#

 1
45100-36140B1

HZB50..ARL

2-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-36030

HZB50..ARL

 1
45105-36030

HZB50..ARL

 1
45105-36010

HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F

 1
45105-36010

HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F

 1
45130 - BUTTON ASSY, HORN
45130-36100E0

HZB50..TD

GRAIGE,TRIM4#

 1
45130-36100E0

HZB50..TD

GRAIGE,TRIM4#

 1
45130-36100E0

HZB50..TD;BB4#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)

GRAIGE,TRIM4#

 1
45130-36100E0

HZB50..TD;BB4#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)

GRAIGE,TRIM4#

 1
45130-36120B1

HZB50..ARL

DK.CHARCOAL,TRIM1#

 1
45130-36120B1

HZB50..ARL

DK.CHARCOAL,TRIM1#

 1
45130-36090E0

HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(EX,STD)..5F..DSL

GREIGE,TRIM4#

 1
45130-36090E0

HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(EX,STD)..5F..DSL

GREIGE,TRIM4#

 1
45130-36120E0

HZB50..22S

GREIGE,TRIM4#

 1
45130-36120E0

HZB50..22S

GREIGE,TRIM4#

 1
45130-36090E0

BB50..EX;BB50..WOC..5F;HZB50..(GCC,GEN)..5F;BB4#,5#,RZB40,50..17S,19S,22S,23S,26S,30S

GREIGE,TRIM4#

 1
45130-36090E0

BB50..EX;BB50..WOC..5F;HZB50..(GCC,GEN)..5F;BB4#,5#,RZB40,50..17S,19S,22S,23S,26S,30S

GREIGE,TRIM4#

 1
45176 - RING, HORN CONTACT
45176-36010

BB4#,5#,HZB50,RZB40,50

 1
45176-36010

BB4#,5#,HZB50,RZB40,50

 1
45176-36020

HZB50..ARL

 1
45176-36020

HZB50..ARL

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

BB4#,HZB50

 1
90179-12086

BB4#,HZB50

 1
90179-12071

BB50,HZB50,RZB40,50..ARL,CHI

 1
90179-12071

BB50,HZB50,RZB40,50..ARL,CHI

 1
90179-12071

BB4#,5#,HZB50,RZB40,50

 1
90179-12071

BB4#,5#,HZB50,RZB40,50

 1
Common parts
93315-14010
93510-13010

(9301-9907)HZB50..WOC..ARL ; (9301- )HZB50..WOC..TD ; (9301- )HZB50..20S,26S,

Click highlighted areas on diagram

2-SPOKE,POLYPROPYLENE

diagram 45100 45105 45130 45176 45201P 9331514010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36110E0

HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F

2SPOKE,POLYPROPYLENE,GRAIGE,TRIM4#

 1
45100-36110E0

HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F

2SPOKE,POLYPROPYLENE,GRAIGE,TRIM4#

 1
45100-36140E0

HZB50..22S

2-SPOKE,URETHANE,GREIGE,TRIM4#

 1
45100-36140E0

HZB50..22S

2-SPOKE,URETHANE,GREIGE,TRIM4#

 1
45100-36110E0

BB50..EX;BB50..WOC..5F;HZB50..(GCC,GEN)..5F;BB4#,5#,RZB40,50..17S,19S,22S,23S,26S,30S

2SPOKE,POLYPROPYLENE,GRAIGE,TRIM4#

 1
45100-36110E0

BB50..EX;BB50..WOC..5F;HZB50..(GCC,GEN)..5F;BB4#,5#,RZB40,50..17S,19S,22S,23S,26S,30S

2SPOKE,POLYPROPYLENE,GRAIGE,TRIM4#

 1
45100-36140B1

HZB50..ARL

2-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#

 1
45100-36140B1

HZB50..ARL

2-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-36030

HZB50..ARL

 1
45105-36030

HZB50..ARL

 1
45105-36010

HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F

 1
45105-36010

HZB50..TD;HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)..5F

 1
45130 - BUTTON ASSY, HORN
45130-36100E0

HZB50..TD

GRAIGE,TRIM4#

 1
45130-36100E0

HZB50..TD

GRAIGE,TRIM4#

 1
45130-36100E0

HZB50..TD;BB4#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)

GRAIGE,TRIM4#

 1
45130-36100E0

HZB50..TD;BB4#,RZB40,50;HZB50..(20S,22S,30S)..(EX,STD)

GRAIGE,TRIM4#

 1
45130-36120B1

HZB50..ARL

DK.CHARCOAL,TRIM1#

 1
45130-36120B1

HZB50..ARL

DK.CHARCOAL,TRIM1#

 1
45130-36090E0

HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(EX,STD)..5F..DSL

GREIGE,TRIM4#

 1
45130-36090E0

HZB50..30S..4FC;BB4#,5#,RZB40,50;HZB50..(EX,STD)..5F..DSL

GREIGE,TRIM4#

 1
45130-36120E0

HZB50..22S

GREIGE,TRIM4#

 1
45130-36120E0

HZB50..22S

GREIGE,TRIM4#

 1
45130-36090E0

BB50..EX;BB50..WOC..5F;HZB50..(GCC,GEN)..5F;BB4#,5#,RZB40,50..17S,19S,22S,23S,26S,30S

GREIGE,TRIM4#

 1
45130-36090E0

BB50..EX;BB50..WOC..5F;HZB50..(GCC,GEN)..5F;BB4#,5#,RZB40,50..17S,19S,22S,23S,26S,30S

GREIGE,TRIM4#

 1
45176 - RING, HORN CONTACT
45176-36010

BB4#,5#,HZB50,RZB40,50

 1
45176-36010

BB4#,5#,HZB50,RZB40,50

 1
45176-36020

HZB50..ARL

 1
45176-36020

HZB50..ARL

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

BB4#,HZB50

 1
90179-12086

BB4#,HZB50

 1
90179-12071

BB50,HZB50,RZB40,50..ARL,CHI

 1
90179-12071

BB50,HZB50,RZB40,50..ARL,CHI

 1
90179-12071

BB4#,5#,HZB50,RZB40,50

 1
90179-12071

BB4#,5#,HZB50,RZB40,50

 1
Common parts
93315-14010
93510-13010
