HZB50R-ZCMQS (1993)
Toyota Coaster

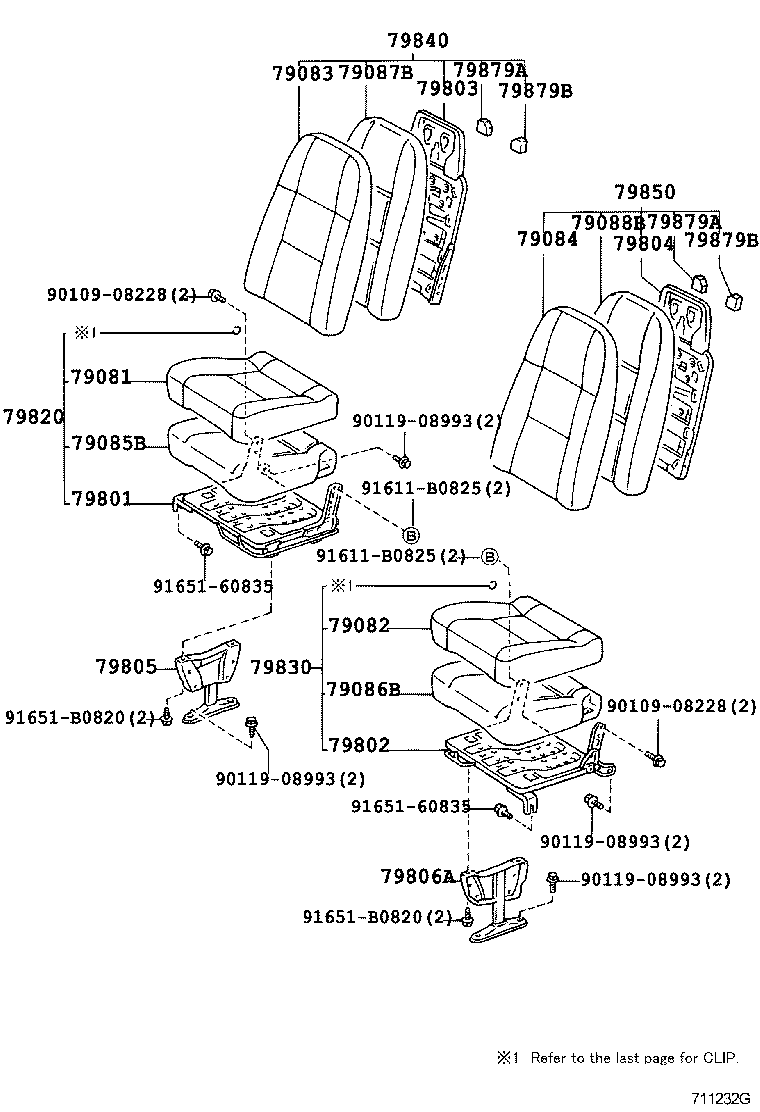

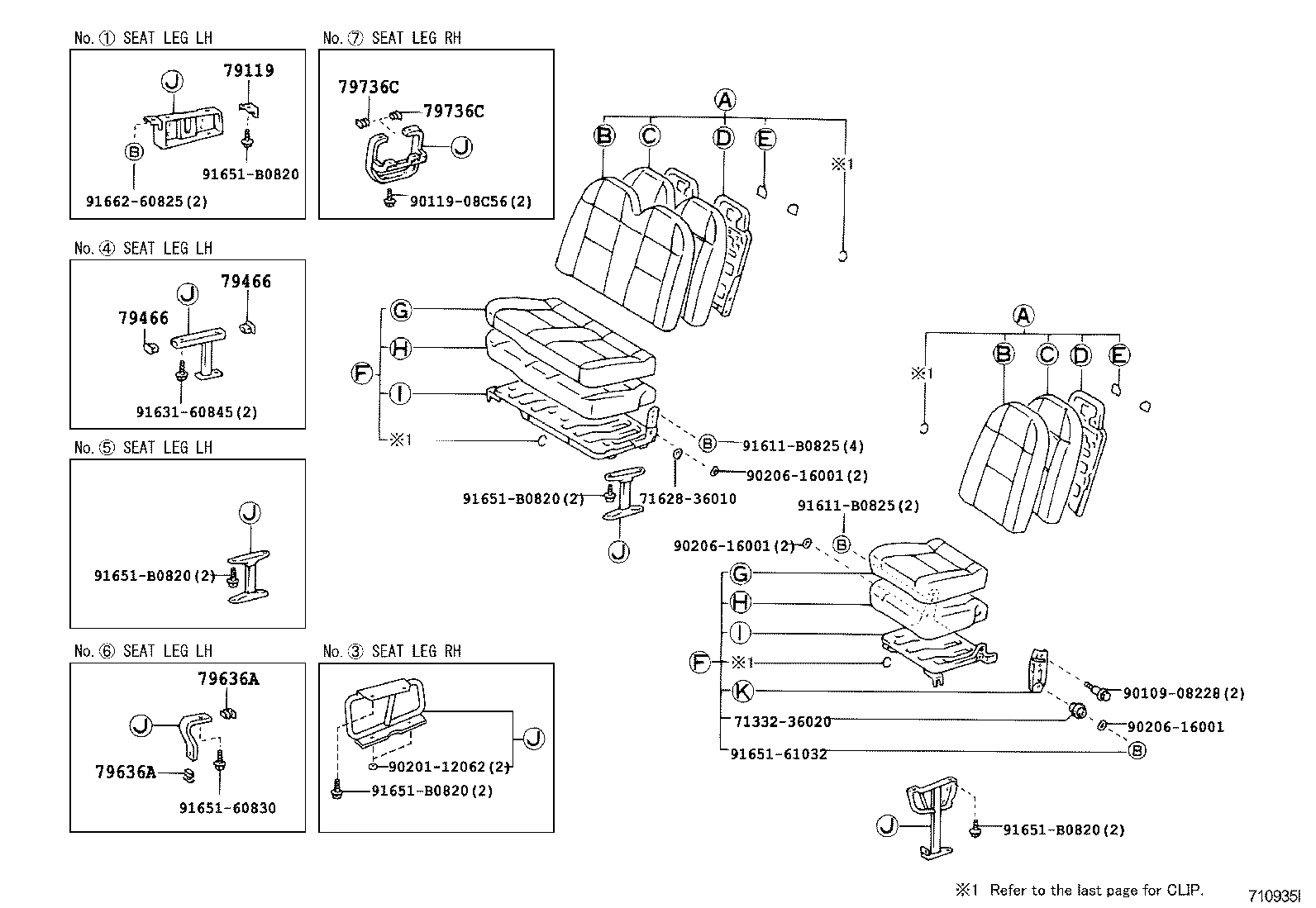

ILLUST NO. 1 OF 2(9301-1501)BB42,50,BZB40,50,HZB50,XZB40,50..RHD
HIGH BACK REAR SEAT NO.1-NO.8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79119 - BRACKET, NO.1 SEAT LEG, NO.2 | ||||
| 79119-36012E0 |
BB58,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 79119-36012E0 |
RZB40..EX;BB58,HZB50..(20S,22S)..GEN..5F GREIGE,TRIM4# |
1 | ||
| 79119-36010E0 |
BB42,HZB50,RZB40,50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..SCO;HZB50..LHD..EX;BB58,HZB50..(DX,STD)..CBU;BB4#,50,RZB40,50..17S,19S,20S,26S,30S |
2 | ||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..SCO;HZB50..LHD..EX;BB58,HZB50..(DX,STD)..CBU;BB4#,50,RZB40,50..17S,19S,20S,26S,30S |
2 | ||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79643-36010E0 |
HZB50..SCO;BB42,43,50..17S,20S SEAT = TYPE B OR TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB42..RHD..22S;HZB50,RZB40..EX..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79636A - COVER, NO.6 SEAT LEG, LH | ||||
| 79236-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79236-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..DSL |
2 | ||
| 79636A - COVER, NO.6 SEAT LEG, LH | ||||
| 79236-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79236-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..DSL |
2 | ||
| Common parts | ||||
| 71332-36020 | ||||
| 90109-08228 | ||||
| 90206-16001 | ||||
| 90389-10036 | ||||
| 91611-B0825 | ||||
| 91631-60845 | ||||
| 91651-60830 | ||||
| 91651-61032 | ||||
| 91651-B0820 | ||||
| 91662-60825 | ||||
(9301-0408)RHD

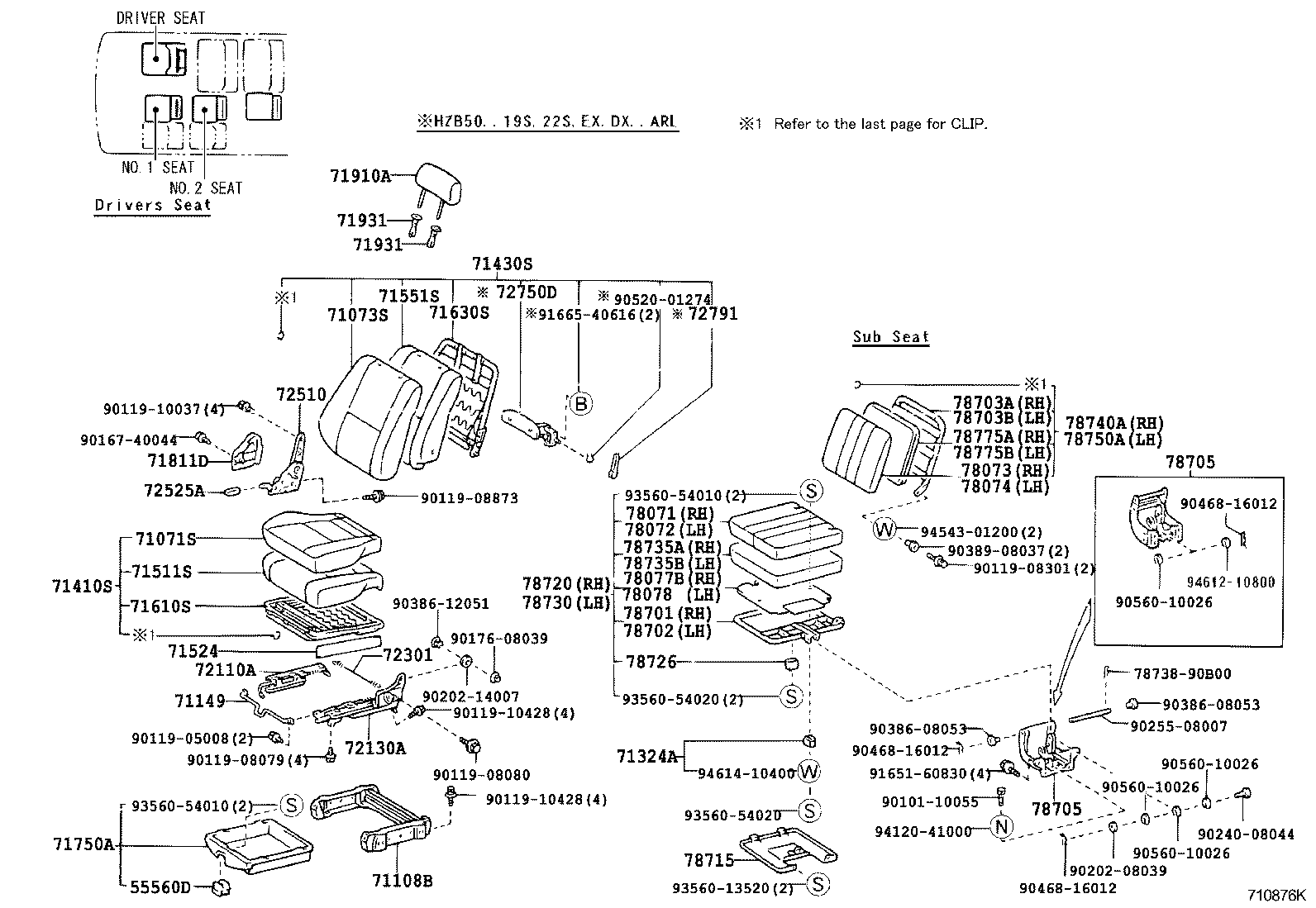

DRIVER & SUB SEAT NO.1-NO.7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00E0 |
BB4#,HZB50..DSL GREIGE,TRIM4# |
1 | ||
| 72250-36010E0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 GREIGE,TRIM4# |
1 | ||
| 72250-36010E0 |
BB4#,5#,HZB50,RZB40,50..CBU GREIGE,TRIM4# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-36030E2 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 71071-36031E2 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 71071-36031E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 71071-36021E5 |
HZB50..ARL;BB40,50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 71071-36021E4 |
HZB50..ARL;BB40,50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 71071-36031E7 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 71071-36021E0 |
HZB50..ARL;BB40,50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 71071-36090E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-36030E2 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 71073-36140E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-36010E0 |
HZB50..30S;HZB50..DX,EX;BB42,RZB40,50..GCC,GEN SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 71108-36011E0 |
RZB40..EX;BB5#,HZB50..(20S,22S)..GEN..5F SEAT = TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 71108-36010E0 |
BB4#,HZB50,RZB40,50..CBU GREIGE,TRIM4# |
1 | ||
| 71108-36011E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 71149 - WIRE, FRONT SEAT CUSHION CONNECTING | ||||
| 71149-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
1 | ||
| 71149-36010 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-36030E0 |
HZB50..RHD..EX..(ARL,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 71410-36022E0 |
HZB50..ARL;BB40,50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 71410-36031E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 71410-36120E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-36050E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 71430-36051E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 71430-36052E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 71430-36160E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-36010 |
BB4#,HZB50..RHD..DSL |
1 | ||
| 71501-36011 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 71501-36011 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-36010 |
BB4#,5#,HZB50,RZB40,50..CBU |
2 | ||
| 71524-36010 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-36010 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S);BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 71551-36010 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-36011 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 71610-36010 |
BB4#,HZB50..RHD..DSL |
1 | ||
| 71610-36020 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-36050 |
BB42,HZB50..RHD..(GEN,SCO) |
1 | ||
| 71630-36030 |
BB42,HZB50..RHD..(GEN,SCO) |
1 | ||
| 71630-36051 |
BB42,43,50,HZB50..RHD..(GEN,SCO) |
1 | ||
| 71630-36051 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-36010E0 |
BB4#,5#,HZB50,RZB40,50..CBU GREIGE,TRIM4# |
1 | ||
| 71750-36010E0 |
BB50..EX;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50 GREIGE,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20160E0 |
BB4#,50,HZB50..RHD..(4FC,5F) GREIGE,TRIM4# |
1 | ||
| 71811-20160E0 |
BB4#,50,HZB50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60040E2 |
BB42..22S;BB42,HZB50..GCC;BB42,50..RHD..5F;BB42..LHD..HRF..WOC;HZB50..RHD..(DX,STD);BB5#,RZB40,50..STD..CBU GREIGE,TRIM4# |
1 | ||
| 71910-60040E2 |
BB42,HZB50..SRF..GCC;BB42,HZB50..LHD..HRF..STD;BB42,HZB50..RHD..(DX,STD)..(ARL,GEN);BB40,5#,RZB40,50..19S,20S,22S,26S,30S GREIGE,TRIM4# |
1 | ||
| 71910-36010E2 |
HZB50,RZB40..EX..(ARL,GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 71910-36030E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070E1 |
RZB40;BB4#,HZB50,RZB50..19S,20S,22S,26S,30S W(LOCK),SEPARATE TYPE HEAD REST,ROSEWOOD,TRIM4# |
1 | ||
| 71931-10020E4 |
HZB50..GEN..4FC;HZB50,RZB40..LHD..EX;BB42,HZB50..RHD..(19S,20S,22S,26S,30S);BB4#,HZB50,RZB40,50..(19S,26S,30S)..STD..(ARL,GCC) W/O(LOCK),GREIGE,TRIM4# |
1 | ||
| 71931-10020E1 |
HZB50..LHD..EX;HZB50..LHD..SRF..WC;HZB50..LHD..WOC..DSL;HZB50..30S..GEN..4FC;BB42,RZB40,50..LHD..SRF;HZB50,RZB40,50..HRF..GCC;BB4#,HZB50..RHD..(19S,20S,22S,26S,30S) W/O(LOCK),ROSEWOOD,TRIM4# |
1 | ||
| 71930-10070E4 |
HZB50..GEN..4FC;HZB50,RZB40..LHD..EX;BB42,HZB50..RHD..(19S,20S,22S,26S,30S);BB4#,HZB50,RZB40,50..(19S,26S,30S)..STD..(ARL,GCC) W(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-44010E5 |
BB50..EX;BB50..STD..CBU;BB42,58,HZB50,RZB40,50 W(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71931-10020E1 |
BB42,HZB50..LHD..HRF;BB42,HZB50..SRF..GCC;BB40,5#,RZB40,50..CBU;BB42,HZB50..RHD..(ARL,GEN) W/O(LOCK),ROSEWOOD,TRIM4# |
1 | ||
| 71930-10070E1 |
BB42,HZB50..LHD..HRF;BB42,HZB50..SRF..GCC;BB40,5#,RZB40,50..CBU;BB42,HZB50..RHD..(ARL,GEN) W(LOCK),ROSEWOOD,TRIM4# |
1 | ||
| 71931-12040L3 |
BB50..EX;BB50..STD..CBU;BB42,58,HZB50,RZB40,50 W/O(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070E1 |
RZB40;BB4#,HZB50,RZB50..19S,20S,22S,26S,30S W(LOCK),SEPARATE TYPE HEAD REST,ROSEWOOD,TRIM4# |
1 | ||
| 71931-10020E4 |
HZB50..GEN..4FC;HZB50,RZB40..LHD..EX;BB42,HZB50..RHD..(19S,20S,22S,26S,30S);BB4#,HZB50,RZB40,50..(19S,26S,30S)..STD..(ARL,GCC) W/O(LOCK),GREIGE,TRIM4# |
1 | ||
| 71931-10020E1 |
HZB50..LHD..EX;HZB50..LHD..SRF..WC;HZB50..LHD..WOC..DSL;HZB50..30S..GEN..4FC;BB42,RZB40,50..LHD..SRF;HZB50,RZB40,50..HRF..GCC;BB4#,HZB50..RHD..(19S,20S,22S,26S,30S) W/O(LOCK),ROSEWOOD,TRIM4# |
1 | ||
| 71930-10070E4 |
HZB50..GEN..4FC;HZB50,RZB40..LHD..EX;BB42,HZB50..RHD..(19S,20S,22S,26S,30S);BB4#,HZB50,RZB40,50..(19S,26S,30S)..STD..(ARL,GCC) W(LOCK),GREIGE,TRIM4# |
1 | ||
| 71930-44010E5 |
BB50..EX;BB50..STD..CBU;BB42,58,HZB50,RZB40,50 W(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 71931-10020E1 |
BB42,HZB50..LHD..HRF;BB42,HZB50..SRF..GCC;BB40,5#,RZB40,50..CBU;BB42,HZB50..RHD..(ARL,GEN) W/O(LOCK),ROSEWOOD,TRIM4# |
1 | ||
| 71930-10070E1 |
BB42,HZB50..LHD..HRF;BB42,HZB50..SRF..GCC;BB40,5#,RZB40,50..CBU;BB42,HZB50..RHD..(ARL,GEN) W(LOCK),ROSEWOOD,TRIM4# |
1 | ||
| 71931-12040L3 |
BB50..EX;BB50..STD..CBU;BB42,58,HZB50,RZB40,50 W/O(LOCK),SANDAL WOOD,TRIM4# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-36010 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 72110-36010 |
BB4#,HZB50..RHD..DSL |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-36010 |
BB4#,HZB50..RHD..DSL |
1 | ||
| 72130-36011 |
HZB50..RHD..SRF;BB43,50..RHD..5F;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-60020 |
BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN |
1 | ||
| 72301-60020 |
BB4#,HZB50..DSL |
1 | ||
| 72301-36020 |
BB4#,HZB50,RZB40,50..CBU |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-36010 |
BB4#,HZB50..RHD..DSL |
1 | ||
| 72510-36020 |
BB50..EX..GEN;HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 72510-36011 |
BB4#,50,HZB50..RHD..CBU |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60030E2 |
BB4#,50,HZB50..RHD..(4FC,5F) GREIGE,TRIM4# |
1 | ||
| 72525-60030E2 |
BB4#,50,HZB50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 72525-95700E0 |
BB4#,HZB50..RHD..DSL GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 78738-90B00 | ||||
| 90101-10055 | ||||
| 90119-05008 | ||||
| 90119-08079 | ||||
| 90119-08080 | ||||
| 90119-08301 | ||||
| 90119-08873 | ||||
| 90119-10037 | ||||
| 90119-10428 | ||||
| 90167-40044 | ||||
| 90176-08039 | ||||
| 90202-08039 | ||||
| 90202-14007 | ||||
| 90240-08044 | ||||
| 90255-08007 | ||||
| 90386-08053 | ||||
| 90386-12051 | ||||
| 90389-08037 | ||||
| 90468-16012 | ||||
| 90520-01274 | ||||
| 90560-10026 | ||||
| 91651-60830 | ||||
| 91665-40616 | ||||
| 93560-13520 | ||||
| 93560-54010 | ||||
| 93560-54020 | ||||
| 94120-41000 | ||||
| 94543-01200 | ||||
| 94614-10400 | ||||

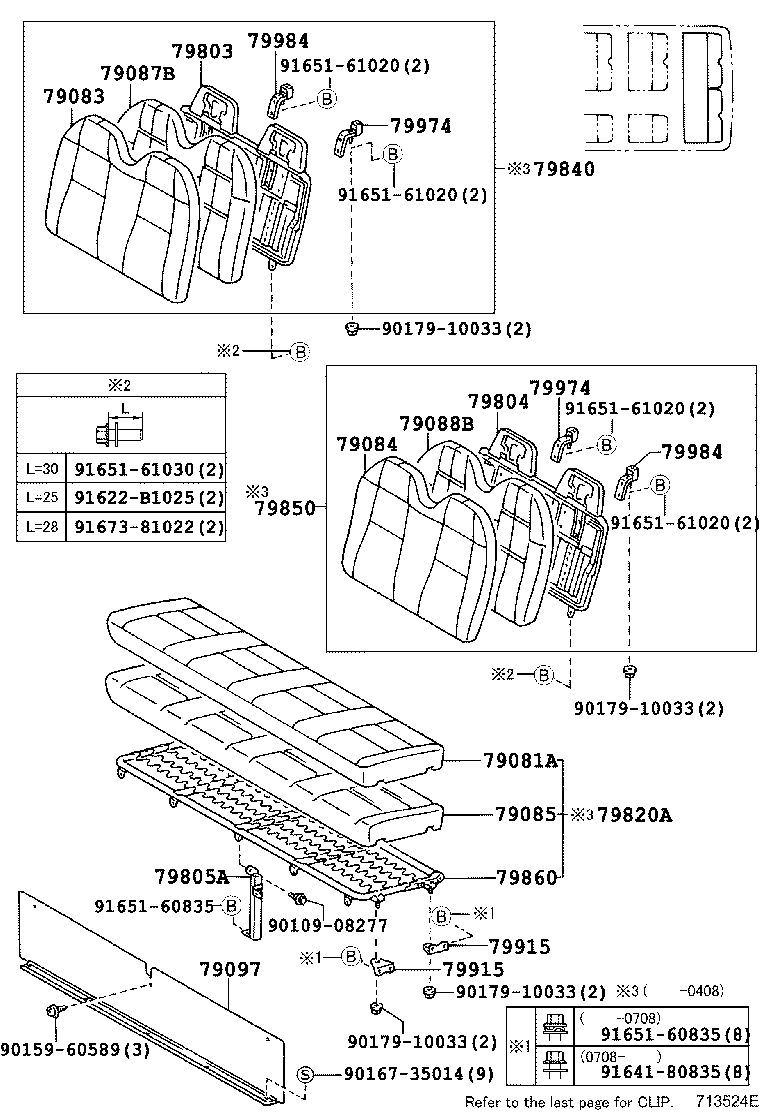

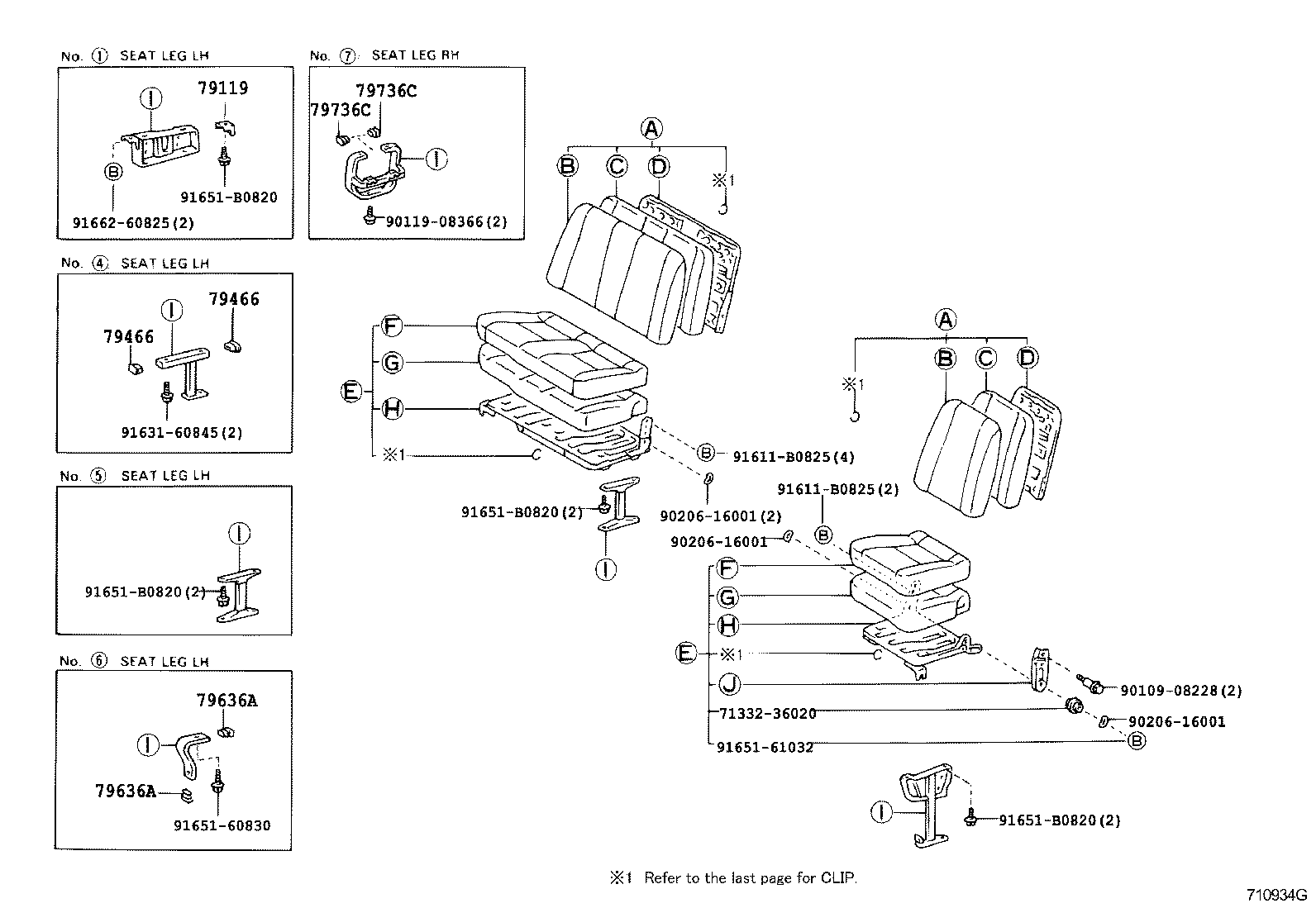

ILLUST NO. 1 OF 2(9301-1501)BB40,HZB50,XZB50..RHD
REAR SEAT NO.1-NO.8(19S,21S,22S)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79119 - BRACKET, NO.1 SEAT LEG, NO.2 | ||||
| 79119-36012E0 |
BB58,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 79119-36012E0 |
RZB40..EX;BB58,HZB50..(20S,22S)..GEN..5F GREIGE,TRIM4# |
1 | ||
| 79119-36010E0 |
BB42,HZB50,RZB40,50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..SCO;HZB50..LHD..EX;BB58,HZB50..(DX,STD)..CBU;BB4#,50,RZB40,50..17S,19S,20S,26S,30S |
2 | ||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..SCO;HZB50..LHD..EX;BB58,HZB50..(DX,STD)..CBU;BB4#,50,RZB40,50..17S,19S,20S,26S,30S |
2 | ||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79636A - COVER, NO.6 SEAT LEG, LH | ||||
| 79236-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79236-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..DSL |
2 | ||
| 79636A - COVER, NO.6 SEAT LEG, LH | ||||
| 79236-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79236-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..DSL |
2 | ||
| 79736C - COVER, NO.7 SEAT LEG, RH | ||||
| 79236-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN |
2 | ||
| 79736C - COVER, NO.7 SEAT LEG, RH | ||||
| 79236-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN |
2 | ||
| Common parts | ||||
| 71332-36020 | ||||
| 90109-08228 | ||||
| 90119-08366 | ||||
| 90206-16001 | ||||
| 91611-B0825 | ||||
| 91631-60845 | ||||
| 91651-60830 | ||||
| 91651-61032 | ||||
| 91651-B0820 | ||||
| 91662-60825 | ||||
ILLUST NO. 1 OF 2(9301-1501)BB42,43,50,BZB40,HZB50,XZB50..RHD

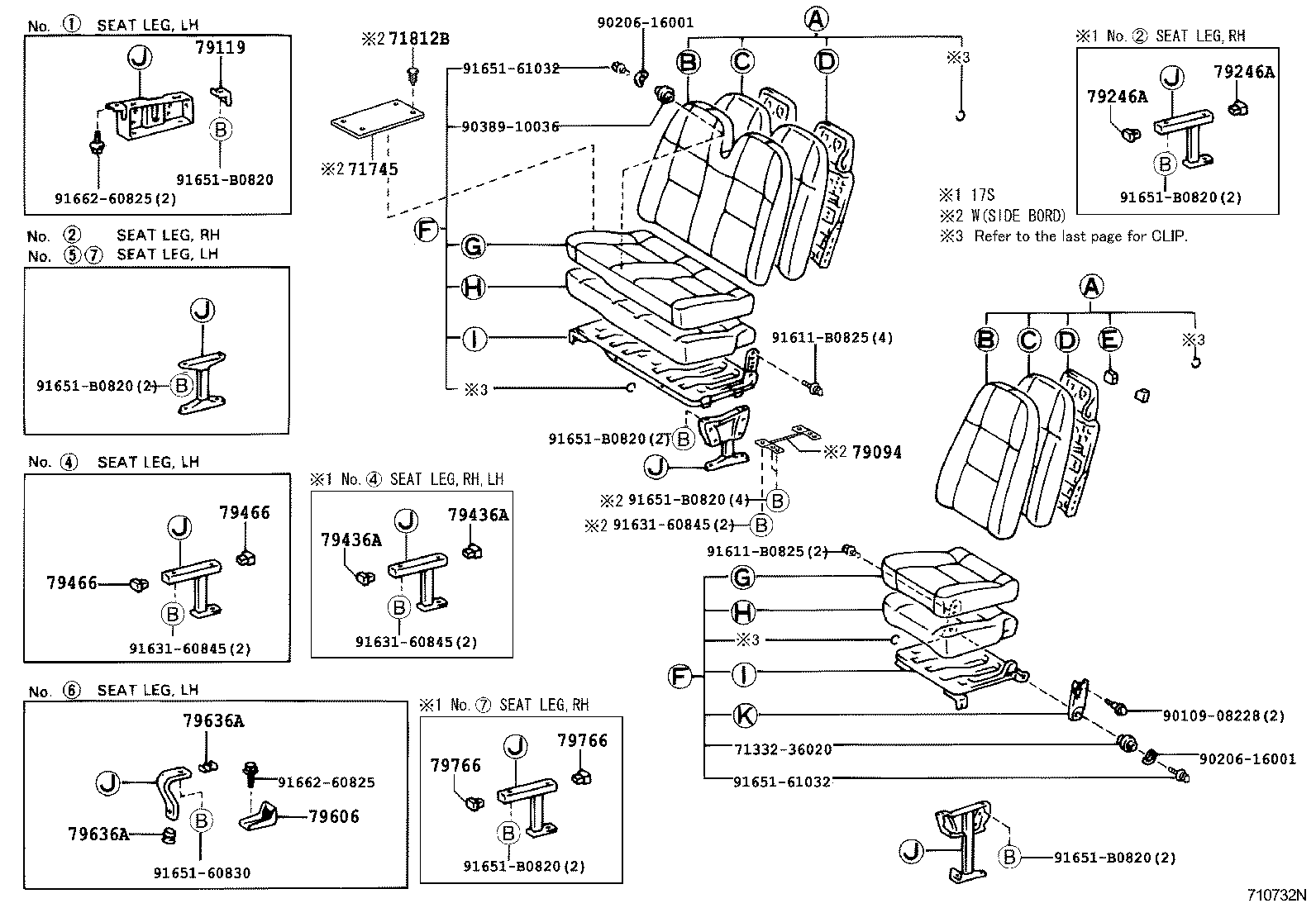

MID-HIBACK REAR SEAT NO.1-NO.8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79119 - BRACKET, NO.1 SEAT LEG, NO.2 | ||||
| 79119-36012E0 |
BB58,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 79119-36012E0 |
RZB40..EX;BB58,HZB50..(20S,22S)..GEN..5F GREIGE,TRIM4# |
1 | ||
| 79119-36010E0 |
BB42,HZB50,RZB40,50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..SCO;HZB50..LHD..EX;BB58,HZB50..(DX,STD)..CBU;BB4#,50,RZB40,50..17S,19S,20S,26S,30S |
2 | ||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..SCO;HZB50..LHD..EX;BB58,HZB50..(DX,STD)..CBU;BB4#,50,RZB40,50..17S,19S,20S,26S,30S |
2 | ||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79636A - COVER, NO.6 SEAT LEG, LH | ||||
| 79236-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79236-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..DSL |
2 | ||
| 79636A - COVER, NO.6 SEAT LEG, LH | ||||
| 79236-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79236-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..DSL |
2 | ||
| 79736C - COVER, NO.7 SEAT LEG, RH | ||||
| 79236-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN |
2 | ||
| 79736C - COVER, NO.7 SEAT LEG, RH | ||||
| 79236-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN |
2 | ||
| Common parts | ||||
| 71332-36020 | ||||
| 71628-36010 | ||||
| 90109-08228 | ||||
| 90119-08C56 | ||||
| 90201-12062 | ||||
| 90206-16001 | ||||
| 91611-B0825 | ||||
| 91631-60845 | ||||
| 91651-60830 | ||||
| 91651-61032 | ||||
| 91651-B0820 | ||||
| 91662-60825 | ||||
(9301-9907)

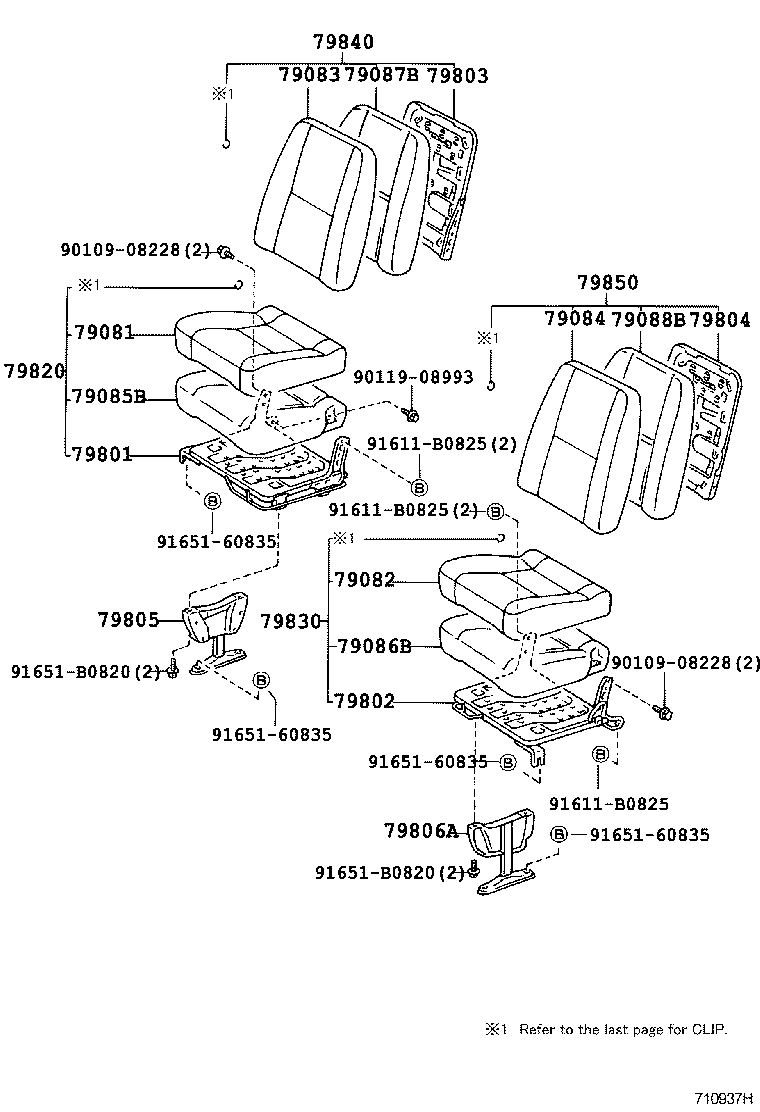

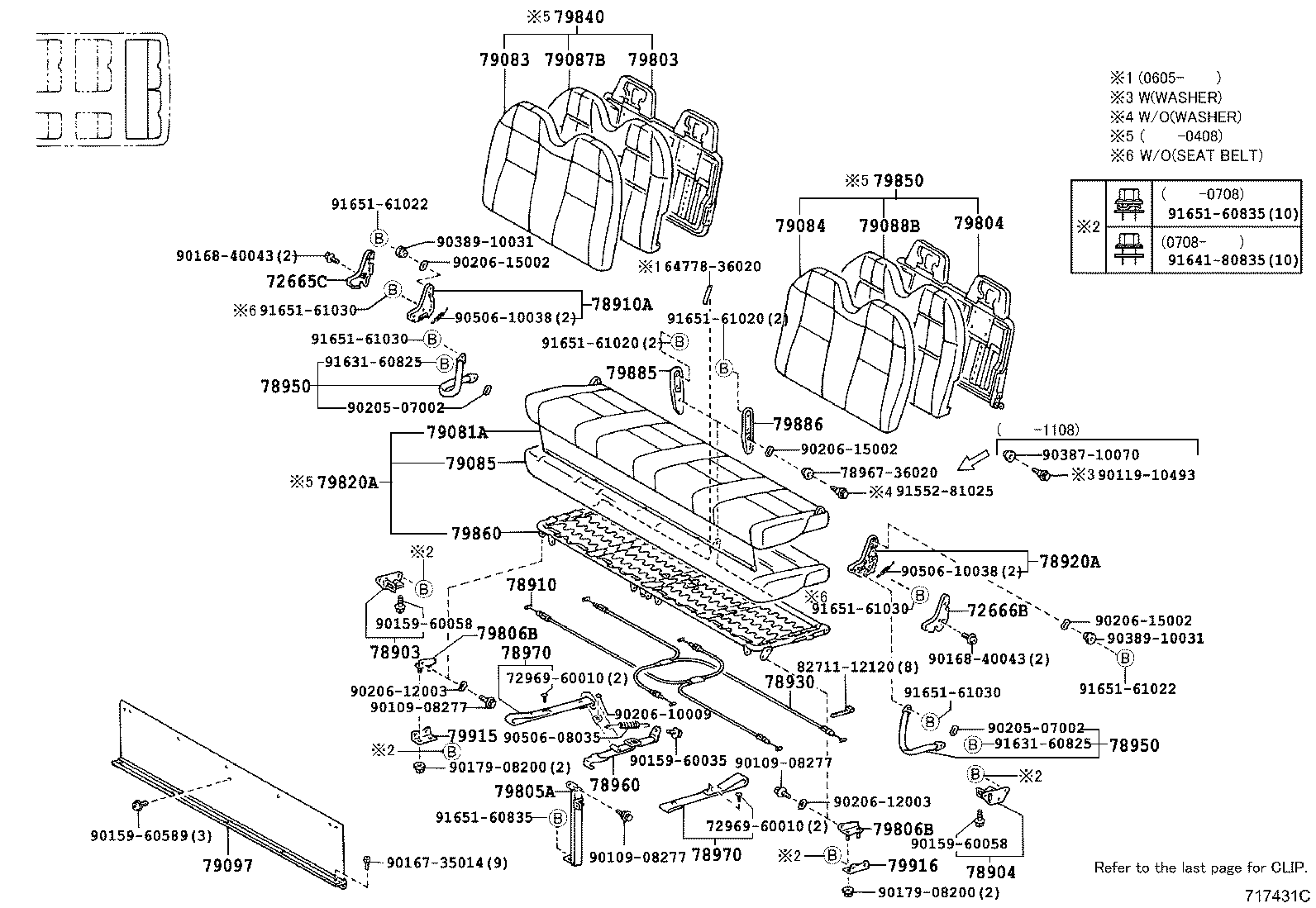

LAST ROW SEAT(NO.8),W(*SSBD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36080E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36080E3 |
HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79083-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36140E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36110E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36070E3 |
HZB50..EX..GEN;RZB40..EX..GCC GREIGE,TRIM4# |
1 | ||
| 79084-36130E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79085B - PAD SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79035-36051 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79086B - PAD SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79016-36121 |
BB58;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79027-36030 |
HZB50..DX;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F FABRIC SEAT |
1 | ||
| 79087-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79801 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79101-36040E0 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79101-36040E0 |
BB43,50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 79802 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79802-36011E0 |
HZB50..22S;BB43,5#..(17S,20S,23S)..GEN GREIGE,TRIM4# |
1 | ||
| 79802-36010E0 |
BB58;HZB50..RHD..(DX,STD);BB40,42,50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79803-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79806A - LEG SUB-ASSY, NO.8 SEAT, LH | ||||
| 79841-36020 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36050E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79840-36190E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36070E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79850-36140E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36240E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90109-08228 | ||||
| 90119-08993 | ||||
| 91611-B0825 | ||||
| 91651-60835 | ||||
| 91651-B0820 | ||||

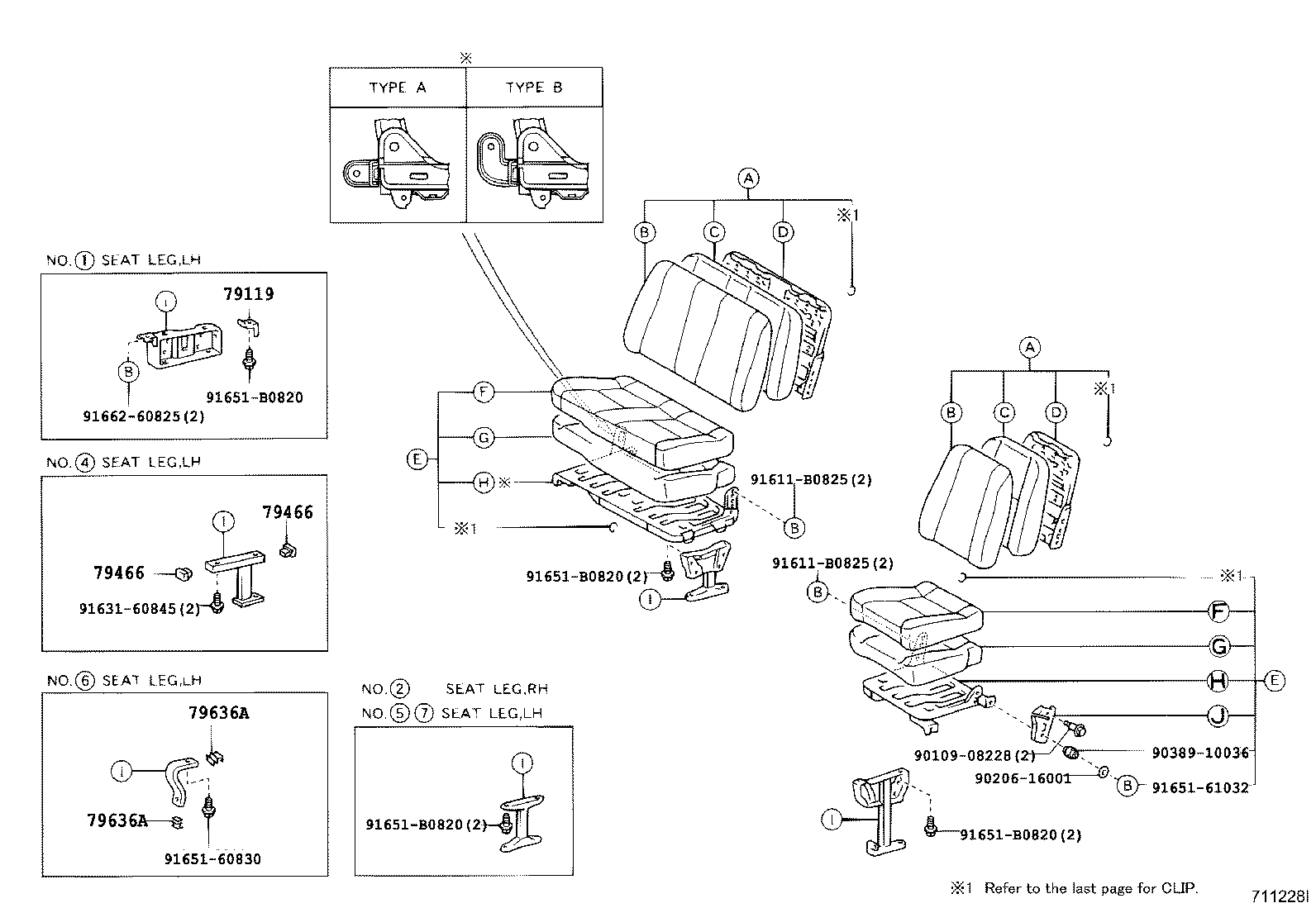

ILLUST NO. 1 OF 2(9301-1501)BB42,43,BZB40,50,HZB50..RHD

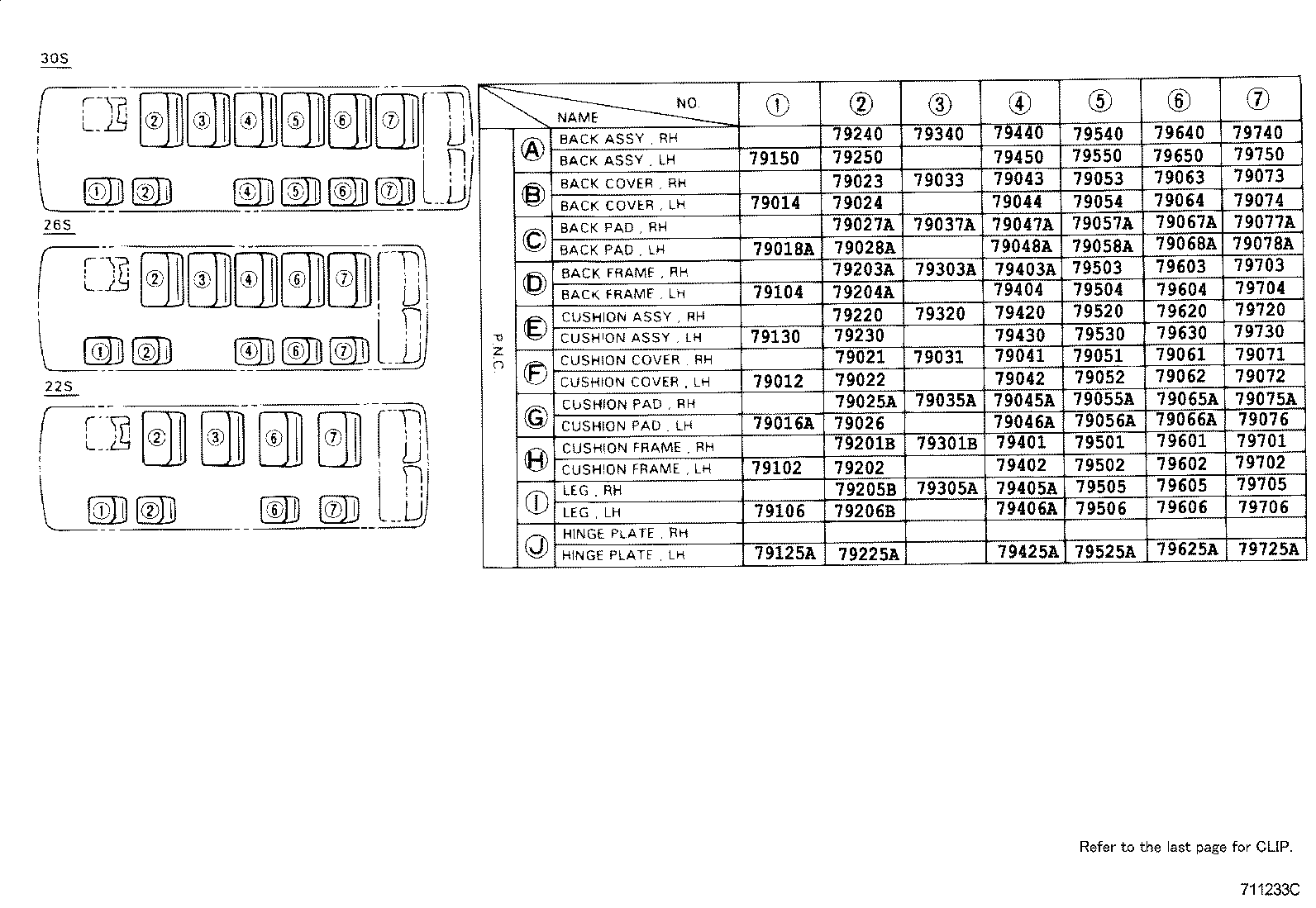

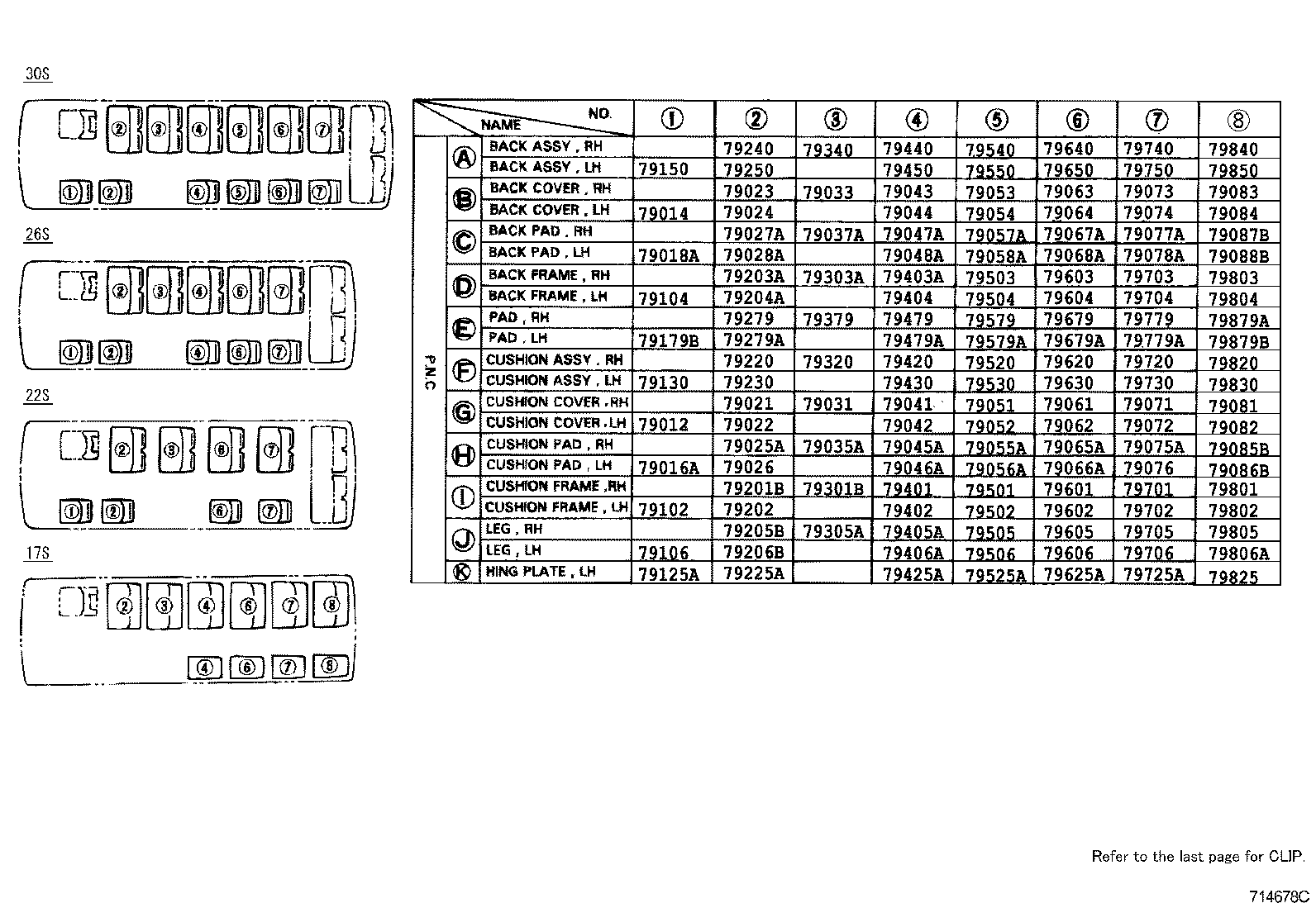

REAR SEAT NO.1-NO.7(30S,26S,22S)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79119 - BRACKET, NO.1 SEAT LEG, NO.2 | ||||
| 79119-36012E0 |
BB58,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 79119-36012E0 |
RZB40..EX;BB58,HZB50..(20S,22S)..GEN..5F GREIGE,TRIM4# |
1 | ||
| 79119-36010E0 |
BB42,HZB50,RZB40,50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..SCO;HZB50..LHD..EX;BB58,HZB50..(DX,STD)..CBU;BB4#,50,RZB40,50..17S,19S,20S,26S,30S |
2 | ||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..SCO;HZB50..LHD..EX;BB58,HZB50..(DX,STD)..CBU;BB4#,50,RZB40,50..17S,19S,20S,26S,30S |
2 | ||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79636A - COVER, NO.6 SEAT LEG, LH | ||||
| 79236-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79236-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..DSL |
2 | ||
| 79636A - COVER, NO.6 SEAT LEG, LH | ||||
| 79236-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79236-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..DSL |
2 | ||
| Common parts | ||||
| 90109-08228 | ||||
| 90206-16001 | ||||
| 90389-10036 | ||||
| 91611-B0825 | ||||
| 91631-60845 | ||||
| 91651-60830 | ||||
| 91651-61032 | ||||
| 91651-B0820 | ||||
| 91662-60825 | ||||
ILLUST NO. 1 OF 2(9301-1501)BB42,43,50,BZB40,50,HZB50,XZB50..RHD

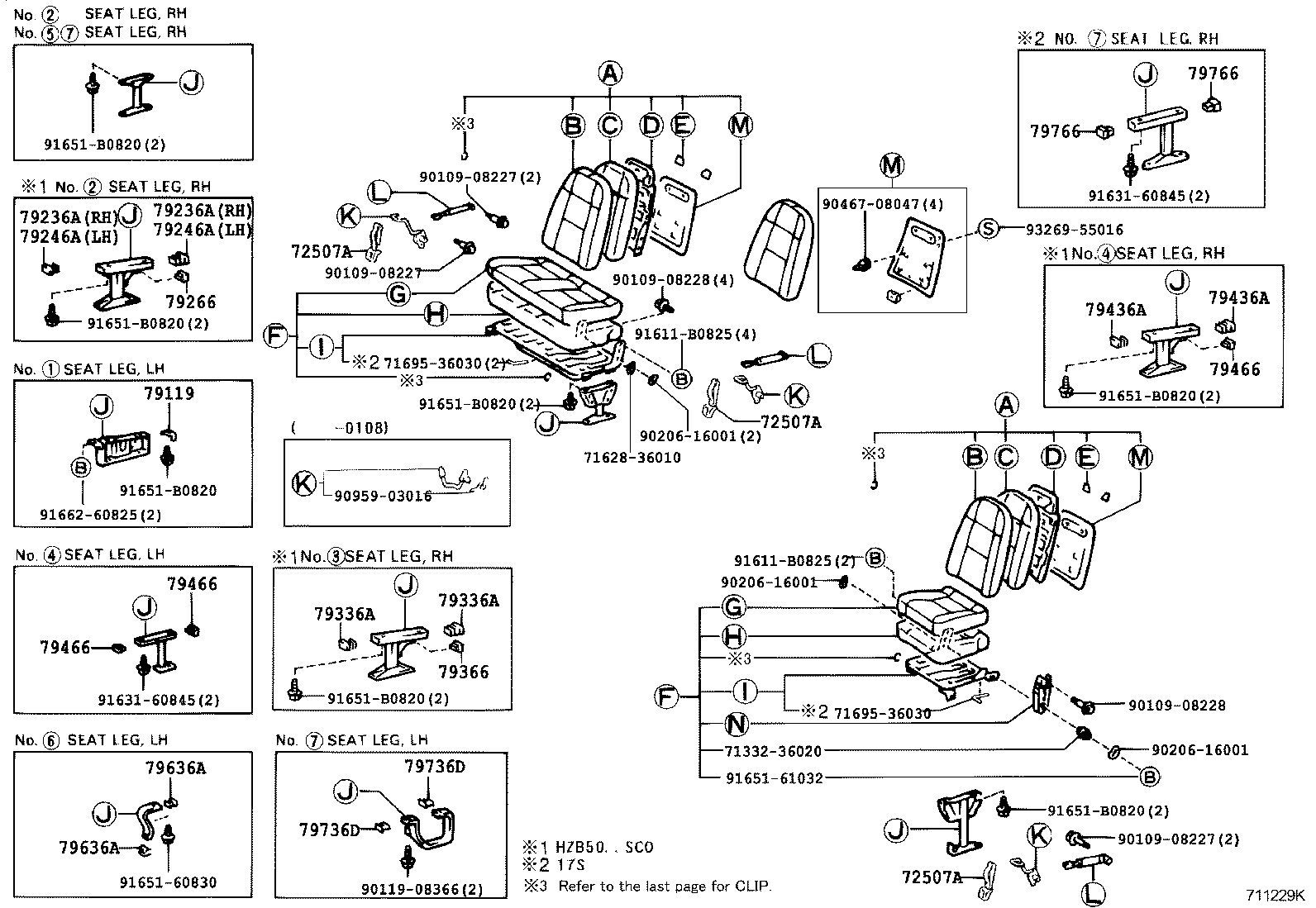

RECLINING REAR SEAT NO.1-NO.8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79119 - BRACKET, NO.1 SEAT LEG, NO.2 | ||||
| 79119-36012E0 |
BB58,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 79119-36012E0 |
RZB40..EX;BB58,HZB50..(20S,22S)..GEN..5F GREIGE,TRIM4# |
1 | ||
| 79119-36010E0 |
BB42,HZB50,RZB40,50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 79266 - COVER, NO.3 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..SCO;BB42,43,50..17S,20S |
2 | ||
| 79366-36020 |
BB43,50..RHD..CBU |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..SCO;HZB50..LHD..EX;BB58,HZB50..(DX,STD)..CBU;BB4#,50,RZB40,50..17S,19S,20S,26S,30S |
2 | ||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..SCO;HZB50..LHD..EX;BB58,HZB50..(DX,STD)..CBU;BB4#,50,RZB40,50..17S,19S,20S,26S,30S |
2 | ||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36020 |
HZB50..SCO;HZB50..LHD..EX;BB58,HZB50..(DX,STD)..CBU;BB4#,50,RZB40,50..17S,19S,20S,26S,30S |
2 | ||
| 79366-36020 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79636A - COVER, NO.6 SEAT LEG, LH | ||||
| 79236-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79236-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..DSL |
2 | ||
| 79636A - COVER, NO.6 SEAT LEG, LH | ||||
| 79236-36010 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
2 | ||
| 79236-36010 |
HZB50..SCO;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..DSL |
2 | ||
| 79736D - COVER, NO.7 SEAT LEG, LH | ||||
| 79236-36010 |
BB42..RHD..22S;HZB50..RHD..EX..(ARL,GEN) |
2 | ||
| 79736D - COVER, NO.7 SEAT LEG, LH | ||||
| 79236-36010 |
BB42..RHD..22S;HZB50..RHD..EX..(ARL,GEN) |
2 | ||
| Common parts | ||||
| 71332-36020 | ||||
| 71628-36010 | ||||
| 71695-36030 | ||||
| 90109-08227 | ||||
| 90109-08228 | ||||
| 90119-08366 | ||||
| 90206-16001 | ||||
| 90467-08047 | ||||
| 90959-03016 | ||||
| 91611-B0825 | ||||
| 91631-60845 | ||||
| 91651-60830 | ||||
| 91651-61032 | ||||
| 91651-B0820 | ||||
| 91662-60825 | ||||
| 93269-55016 | ||||
(9301-9907)
LAST ROW SEAT(NO.8),W(*SSBD & *HBS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36080E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36080E3 |
HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79083-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36140E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36110E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36070E3 |
HZB50..EX..GEN;RZB40..EX..GCC GREIGE,TRIM4# |
1 | ||
| 79084-36130E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79085B - PAD SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79035-36051 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79086B - PAD SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79016-36121 |
BB58;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79027-36030 |
HZB50..DX;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F FABRIC SEAT |
1 | ||
| 79087-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79801 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79101-36040E0 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79101-36040E0 |
BB43,50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 79802 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79802-36011E0 |
HZB50..22S;BB43,5#..(17S,20S,23S)..GEN GREIGE,TRIM4# |
1 | ||
| 79802-36010E0 |
BB58;HZB50..RHD..(DX,STD);BB40,42,50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79803-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79806A - LEG SUB-ASSY, NO.8 SEAT, LH | ||||
| 79841-36020 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36050E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79840-36190E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36070E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79850-36140E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36240E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79879A - PAD, NO.8 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| 79879A - PAD, NO.8 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| 79879B - PAD, NO.8 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| 79879B - PAD, NO.8 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| Common parts | ||||
| 90109-08228 | ||||
| 90119-08993 | ||||
| 91611-B0825 | ||||
| 91651-60835 | ||||
| 91651-B0820 | ||||

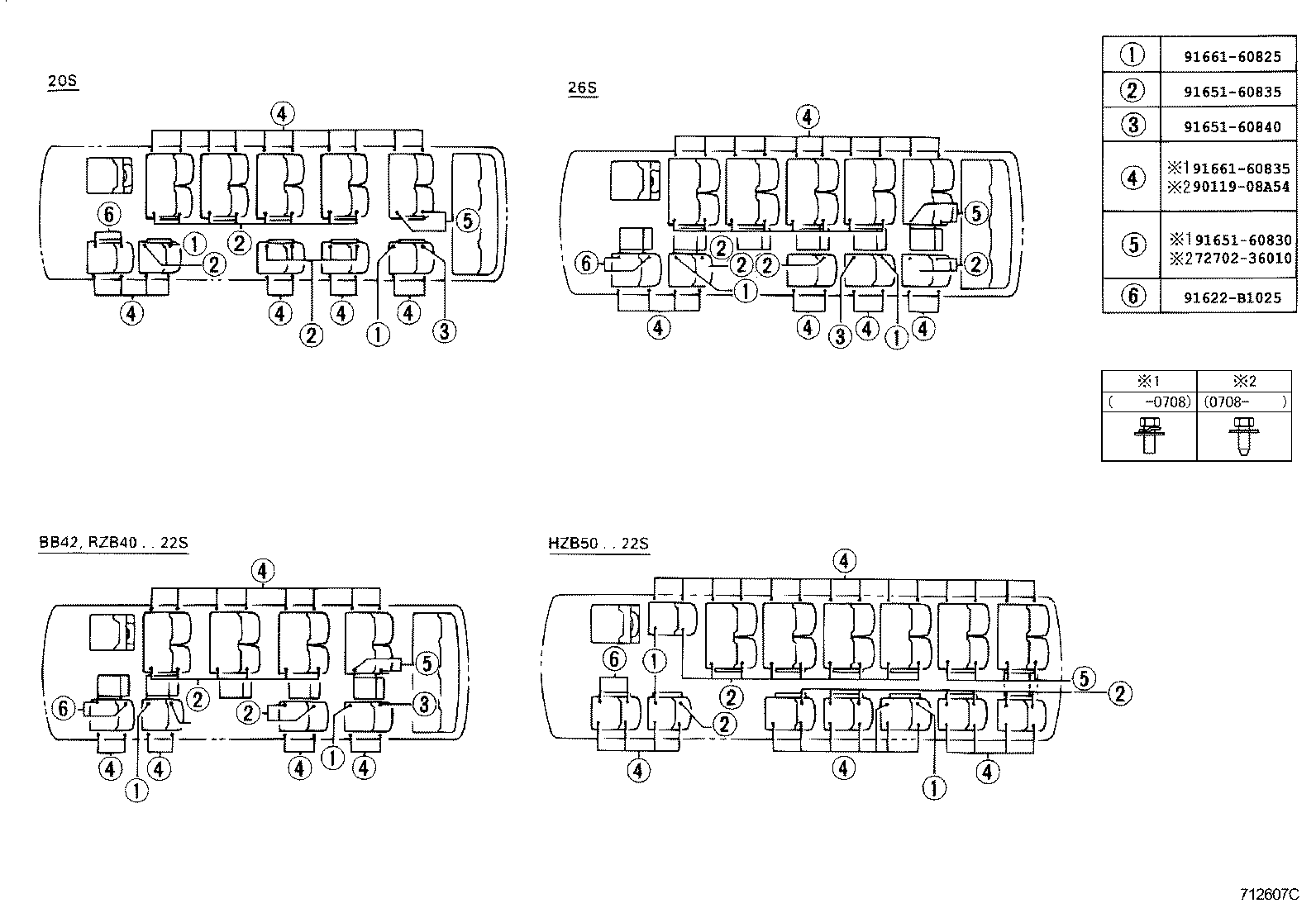

ILLUST NO. 2 OF 2(9301-1501)BB42,43,BZB40,50,HZB50..RHD
REAR SEAT NO.1-NO.7(30S,26S,22S)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-36110E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36110E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36420E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79012-36110E7 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79012-36110E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79016A - PAD SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79016-36010 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 79016-36010 |
HZB50..RHD..EX |
1 | ||
| 79016-36121 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79018A - PAD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79016-36090 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 79016-36090 |
HZB50..RHD..EX |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36250E1 |
HZB50..RHD..EX..GEN SINGAPORE SPEC,GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79013-36050E3 |
HZB50..RHD..EX..GEN SINGAPORE SPEC,GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79035A - PAD SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79037A - PAD SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79016-36090 |
BB50,HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79017-36070 |
HZB50..SCO;BB42,50..RHD..(20S,26S);HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79016-36090 |
BB50,HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36070 |
HZB50..SCO;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
BB50,HZB50..RHD..20S KNIT SEAT,GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..20S |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79076 - PAD SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79016-36121 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79016-36090 |
HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79017-36070 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-36040E0 |
BB42,HZB50..RHD..GEN SEAT = TYPE C OR TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
HZB50..RHD..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36040E0 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN GREIGE,TRIM4# |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79103-36030 |
HZB50..RHD..EX W(BOTTLE OPENER) |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN W(BOTTLE OPENER) |
1 | ||
| 79104-36020 |
HZB50..RHD..EX |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-36032E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79106-36030E0 |
BB42,HZB50..RHD..GEN GREIGE,TRIM4# |
1 | ||
| 79106-36031E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79106-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79125A - PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
HZB50..RHD..EX W(FRONT SEAT BELT = 3POINT) |
1 | ||
| 79125-36010 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 79125-36010 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-36440E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104 & W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79130-36430E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-36150E0 |
HZB50..RHD..EX..GEN ***,W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79150-36510E0 |
HZB50..RHD..EX ***,W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-36040E0 |
BB40,42,HZB50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79202-36040E0 |
BB42,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..RHD..(ARL,GEN);HZB50..RHD..(20S,22S,30S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB4#..RHD;HZB50..RHD..(20S,22S,30S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-36010E0 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79206-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79206-36010E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79225A - PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79125-36010 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79125-36010 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-36120E0 |
HZB50..RHD..EX..(ARL,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79130-36560E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79150-36060E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36510E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79301B - FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79101-36150E0 |
BB50,HZB50..RHD..EX SINGAPRE SPEC,GRAIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..ARL,SCO;HZB50..RHD..(20S,22S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79305-36020E0 |
BB50,HZB50..RHD..EX SINGAPORE SPEC,GRAIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79320-36110E0 |
HZB50..RHD..EX ***,SINGAPORE SPEC,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79150-36020E2 |
HZB50..RHD..EX..GEN ***,SINGAPORE SPEC,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79401 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79402 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79102-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
BB50,HZB50..RHD..20S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79403A - FRAME SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79404 - FRAME SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
HZB50..EX;BB50..EX..CHI |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..ARL,SCO;HZB50..20S,22S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79505-36010E0 |
BB58,HZB50..(20S,22S)..GEN..5F GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50..EX..CHI;BB58,HZB50..20S,23S GREIGE,TRIM4# |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79425A - PLATE, NO.4 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79130-36290E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36610E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..EX;BB50..EX..CHI ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..EX;BB50..EX..CHI ***,GREIGE,TRIM4# |
1 | ||
| 79503 - FRAME SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79103-36061 |
BB42,50..RHD..GEN;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79504 - FRAME SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79601 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79601-36030E0 |
HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79601-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79602 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79702-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79702-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79603 - FRAME SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79604 - FRAME SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79104-36020 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79505-36010E0 |
BB42,HZB50,RZB40..(17S,20S,22S)..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50,RZB40..EX..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79643-36010E0 |
HZB50..SCO;BB42,43,50..17S,20S SEAT = TYPE B OR TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB42..RHD..22S;HZB50,RZB40..EX..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79720-36110E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36440E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79625A - PLATE, NO.6 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79730-36030E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36740E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36240E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79701 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79601-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79702 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79702-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79703 - FRAME SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..20S LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79704 - FRAME SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79505-36010E0 |
BB42..GCC,SCO;BB42..LHD..26S..GEN;HZB50..LHD..STD..DSL;HZB50..RHD..(20S,22S);BB40,RZB40,50..19S,26S,30S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX;BB42..LHD..HRF..26S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB58;BB50,HZB50..RHD..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79706-36030E0 |
HZB50..RHD..EX NO.7 SEAT LEG TYPE,GREIGE,TRIM4# |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79720-36110E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79725A - PLATE, NO.7 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79730-36030E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36610E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36240E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
ILLUST NO. 2 OF 2(9301-1501)BB42,43,50,BZB40,50,HZB50,XZB50..RHD
RECLINING REAR SEAT NO.1-NO.8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72501H - ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36060E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
BB50,HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 72501J - ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36060E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
BB50,HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 72501K - ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36010E0 |
HZB50..EX GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
BB58;BB50,HZB50..EX GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
HZB50..EX;BB42..LHD..HRF..26S GREIGE,TRIM4# |
1 | ||
| 72501-36060E0 |
BB5#,HZB50..20S,23S GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
HZB50..EX;BB42..LHD..HRF..26S GREIGE,TRIM4# |
1 | ||
| 72501M - ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36060E0 |
BB5#,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
BB58;BB50,HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
HZB50,RZB40..EX;BB42..LHD..HRF..26S GREIGE,TRIM4# |
1 | ||
| 72501N - ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36010E0 |
HZB50,RZB40..EX;BB42..LHD..HRF..26S GREIGE,TRIM4# |
1 | ||
| 72501-36060E0 |
BB5#,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
BB58;BB50,HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 72502B - ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72502-36100E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72502C - ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72502-36020E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 72502-36100E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72502D - ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72502-36020E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 72502-36100E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72502F - ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72502-36100E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72502-36020E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 72502G - ARM SUB-ASSY NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72502-36100E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72502-36020E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 72502M - ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72502-36010E0 |
BB58;BB50,HZB50..EX GREIGE,TRIM4# |
1 | ||
| 72502-36070E0 |
BB5#,HZB50..20S,23S GREIGE,TRIM4# |
1 | ||
| 72502P - ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72502-36010E0 |
BB58;BB50,HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 72502-36010E0 |
HZB50,RZB40..EX..(ARL,GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 72502-36070E0 |
BB5#,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 72502Q - ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72502-36010E0 |
BB58;BB50,HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 72502-36070E0 |
BB5#,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 72508B - SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36020 |
HZB50..RHD..EX |
2 | ||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
2 | ||
| 72508C - SHAFT SUB-ASSY, NO.3 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
2 | ||
| 72508-36020 |
HZB50..RHD..EX |
2 | ||
| 72508D - SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
2 | ||
| 72508-36020 |
HZB50..RHD..EX |
2 | ||
| 72508F - SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36020 |
HZB50..RHD..EX |
2 | ||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
2 | ||
| 72508G - SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36020 |
HZB50..RHD..EX..GEN |
2 | ||
| 72508-36020 |
HZB50..RHD..EX |
2 | ||
| 72508M - SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36020 |
HZB50..RHD..EX |
1 | ||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 72508P - SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 72508-36020 |
HZB50..RHD..EX |
1 | ||
| 72508Q - SHAFT SUB-SEAT, NO.7 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 72508-36020 |
HZB50..RHD..EX |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-36110E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36110E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36420E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79012-36110E7 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79012-36110E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79016A - PAD SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79016-36010 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 79016-36010 |
HZB50..RHD..EX |
1 | ||
| 79016-36121 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79018A - PAD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79016-36090 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 79016-36090 |
HZB50..RHD..EX |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36250E1 |
HZB50..RHD..EX..GEN SINGAPORE SPEC,GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79013-36050E3 |
HZB50..RHD..EX..GEN SINGAPORE SPEC,GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79035A - PAD SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79037A - PAD SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79016-36090 |
BB50,HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79017-36070 |
HZB50..SCO;BB42,50..RHD..(20S,26S);HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79016-36090 |
BB50,HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36070 |
HZB50..SCO;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
BB50,HZB50..RHD..20S KNIT SEAT,GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..20S |
1 | ||
| 79076 - PAD SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79016-36121 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79016-36090 |
HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79017-36070 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36080E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36080E3 |
HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79083-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36140E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36110E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36070E3 |
HZB50..EX..GEN;RZB40..EX..GCC GREIGE,TRIM4# |
1 | ||
| 79084-36130E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79085B - PAD SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79035-36051 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79086B - PAD SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79016-36121 |
BB58;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79027-36030 |
HZB50..DX;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F FABRIC SEAT |
1 | ||
| 79087-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-36040E0 |
BB42,HZB50..RHD..GEN SEAT = TYPE C OR TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
HZB50..RHD..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36040E0 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN GREIGE,TRIM4# |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79103-36030 |
HZB50..RHD..EX W(BOTTLE OPENER) |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN W(BOTTLE OPENER) |
1 | ||
| 79104-36020 |
HZB50..RHD..EX |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-36032E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79106-36030E0 |
BB42,HZB50..RHD..GEN GREIGE,TRIM4# |
1 | ||
| 79106-36031E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79106-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79109C - BOARD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79207-36010D0 |
HZB50..RHD..EX..GEN W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79207-36010B0 |
HZB50..RHD..EX W(BOTTLE OPENER),MD.CHARCOAL,TRIM1# |
1 | ||
| 79207-36020B0 |
HZB50..RHD..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79125A - PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
HZB50..RHD..EX W(FRONT SEAT BELT = 3POINT) |
1 | ||
| 79125-36010 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 79125-36010 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-36440E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104 & W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79130-36430E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-36150E0 |
HZB50..RHD..EX..GEN ***,W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79150-36510E0 |
HZB50..RHD..EX ***,W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79179B - PAD, NO.1 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-36040E0 |
BB40,42,HZB50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79202-36040E0 |
BB42,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..RHD..(ARL,GEN);HZB50..RHD..(20S,22S,30S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB4#..RHD;HZB50..RHD..(20S,22S,30S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-36010E0 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79206-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79206-36010E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79209 - BOARD SUB-ASSY, NO.2 SEAT BACK | ||||
| 79207-36010D0 |
HZB50..EX..(ARL,GEN) GREIGE,TRIM4#,RH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,LH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,LH |
1 | ||
| 79207-36010D0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4#,RH |
1 | ||
| 79209B - BOARD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79207-36010D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79225A - PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79125-36010 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79125-36010 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-36120E0 |
HZB50..RHD..EX..(ARL,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79130-36560E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79150-36060E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36510E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79279 - PAD, NO.2 SEAT BACK HEADREST | ||||
| 79179-36010 |
HZB50..EX..(ARL,GEN) |
4 | ||
| 79179-36010 |
BB42..22S;BB42..WOC..GCC;HZB50..RHD..EX;BB42..RHD..HRF..WOC |
4 | ||
| 79279A - PAD, NO.1 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB42..22S;BB42..WOC..GCC;HZB50..RHD..EX |
2 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79179-36010 |
BB42..LHD;HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79301B - FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79101-36150E0 |
BB50,HZB50..RHD..EX SINGAPRE SPEC,GRAIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..ARL,SCO;HZB50..RHD..(20S,22S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79305-36020E0 |
BB50,HZB50..RHD..EX SINGAPORE SPEC,GRAIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79309 - BOARD SUB-ASSY, NO.3 SEAT BACK | ||||
| 79207-36010D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,RH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,LH |
1 | ||
| 79207-36010D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,RH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,LH |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79320-36110E0 |
HZB50..RHD..EX ***,SINGAPORE SPEC,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79150-36020E2 |
HZB50..RHD..EX..GEN ***,SINGAPORE SPEC,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79379 - PAD, NO.3 SEAT BACK HEADREST | ||||
| 79179-36010 |
HZB50..RHD..EX |
4 | ||
| 79179-36010 |
HZB50..RHD..EX;BB42..RHD..HRF..WOC |
4 | ||
| 79401 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79402 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79102-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
BB50,HZB50..RHD..20S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79403A - FRAME SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79404 - FRAME SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
HZB50..EX;BB50..EX..CHI |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..ARL,SCO;HZB50..20S,22S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79505-36010E0 |
BB58,HZB50..(20S,22S)..GEN..5F GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50..EX..CHI;BB58,HZB50..20S,23S GREIGE,TRIM4# |
1 | ||
| 79409 - BOARD SUB-ASSY, NO.4 SEAT BACK | ||||
| 79207-36010D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,LH |
1 | ||
| 79207-36010D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,LH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,RH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,RH |
1 | ||
| 79409B - BOARD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79207-36020D0 |
HZB50..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79207-36020D0 |
HZB50..EX..GEN W(2 POINT PASSENGERS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79207-36020B0 |
HZB50..EX;BB50..EX..CHI W(2 POINT PASSENGERS SEAT BELT),MD.CHARCOAL,TRIM4# |
1 | ||
| 79415B - PLATE, NO.4 SEAT CUSHION HINGE, NO.2 RH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79130-36290E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36610E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..EX;BB50..EX..CHI ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..EX;BB50..EX..CHI ***,GREIGE,TRIM4# |
1 | ||
| 79479 - PAD, NO.4 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
HZB50..RHD..EX..(ARL,GEN) |
4 | ||
| 79179-36010 |
HZB50..RHD..EX |
4 | ||
| 79479A - PAD, NO.4 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN)..5F |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79503 - FRAME SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79103-36061 |
BB42,50..RHD..GEN;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79504 - FRAME SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79601 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79601-36030E0 |
HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79601-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79602 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79702-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79702-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79603 - FRAME SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79604 - FRAME SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79104-36020 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79505-36010E0 |
BB42,HZB50,RZB40..(17S,20S,22S)..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50,RZB40..EX..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79643-36010E0 |
HZB50..SCO;BB42,43,50..17S,20S SEAT = TYPE B OR TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB42..RHD..22S;HZB50,RZB40..EX..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79609 - BOARD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79207-36010D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,LH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,RH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,RH |
1 | ||
| 79207-36010D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,LH |
1 | ||
| 79609A - BOARD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79207-36020D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79207-36020D0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79207-36020B0 |
BB50..EX..CHI;HZB50..RHD..EX W(2 POINT PASSENGERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 79615A - PLATE, NO.6 SEAT CUSHION HINGE, NO.2 RH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79720-36110E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36440E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79730-36030E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36740E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36240E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79679 - PAD, NO.6 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
HZB50..RHD..EX..(ARL,GEN) |
4 | ||
| 79179-36010 |
HZB50..RHD..EX |
4 | ||
| 79679A - PAD, NO.6 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79701 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79601-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79702 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79702-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79703 - FRAME SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..20S LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79704 - FRAME SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79505-36010E0 |
BB42..GCC,SCO;BB42..LHD..26S..GEN;HZB50..LHD..STD..DSL;HZB50..RHD..(20S,22S);BB40,RZB40,50..19S,26S,30S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX;BB42..LHD..HRF..26S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB58;BB50,HZB50..RHD..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79706-36030E0 |
HZB50..RHD..EX NO.7 SEAT LEG TYPE,GREIGE,TRIM4# |
1 | ||
| 79709 - BOARD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79207-36010D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,RH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,LH |
1 | ||
| 79207-36020B0 |
BB50..EX..CHI;HZB50,RZB40..EX W(REAR ASH RECEPTACLE),MD.CHARCOAL,TRIM1# |
1 | ||
| 79207-36010D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,RH |
1 | ||
| 79207-36010B0 |
HZB50..RHD..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,LH |
1 | ||
| 79709A - BOARD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79207-36020D0 |
HZB50..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79207-36020B0 |
BB50..EX..CHI;HZB50,RZB40..EX W(2 POINT PASSENGERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 79207-36020D0 |
HZB50,RZB40..EX..(GCC,GEN) W(2 POINT PASSENGERS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79715A - PLATE, NO.7 SEAT CUSHION HINGE, NO.2 RH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79720-36110E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79730-36030E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36610E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36240E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79779 - PAD, NO.7 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
BB42..22S;BB42..WOC..GCC;HZB50..RHD..EX |
4 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
4 | ||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
4 | ||
| 79779A - PAD, NO.7 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79801 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79101-36040E0 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79101-36040E0 |
BB43,50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 79802 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79802-36011E0 |
HZB50..22S;BB43,5#..(17S,20S,23S)..GEN GREIGE,TRIM4# |
1 | ||
| 79802-36010E0 |
BB58;HZB50..RHD..(DX,STD);BB40,42,50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79803-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79806A - LEG SUB-ASSY, NO.8 SEAT, LH | ||||
| 79841-36020 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36050E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79840-36190E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36070E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79850-36140E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36240E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79879A - PAD, NO.8 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| 79879B - PAD, NO.8 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
(9301-1501)
PART NAME CODE TABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72501H - ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36060E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
BB50,HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 72501J - ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36060E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
BB50,HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 72501K - ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36010E0 |
HZB50..EX GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
BB58;BB50,HZB50..EX GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
HZB50..EX;BB42..LHD..HRF..26S GREIGE,TRIM4# |
1 | ||
| 72501-36060E0 |
BB5#,HZB50..20S,23S GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
HZB50..EX;BB42..LHD..HRF..26S GREIGE,TRIM4# |
1 | ||
| 72501M - ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36060E0 |
BB5#,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
BB58;BB50,HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
HZB50,RZB40..EX;BB42..LHD..HRF..26S GREIGE,TRIM4# |
1 | ||
| 72501N - ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36010E0 |
HZB50,RZB40..EX;BB42..LHD..HRF..26S GREIGE,TRIM4# |
1 | ||
| 72501-36060E0 |
BB5#,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 72501-36010E0 |
BB58;BB50,HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 72502B - ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72502-36100E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72502C - ARM SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72502-36020E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 72502-36100E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72502D - ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72502-36020E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 72502-36100E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72502F - ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72502-36100E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72502-36020E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 72502G - ARM SUB-ASSY NO.7 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72502-36100E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 72502-36020E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 72502J - ARM SUB-ASSY NO.1 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72502-36010E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 72502-36010E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 72502-36070E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 72502K - ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72502-36070E0 |
BB5#,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 72502M - ARM SUB-ASSY, NO.4 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72502-36010E0 |
BB58;BB50,HZB50..EX GREIGE,TRIM4# |
1 | ||
| 72502-36070E0 |
BB5#,HZB50..20S,23S GREIGE,TRIM4# |
1 | ||
| 72502P - ARM SUB-ASSY, NO.6 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72502-36010E0 |
BB58;BB50,HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 72502-36010E0 |
HZB50,RZB40..EX..(ARL,GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 72502-36070E0 |
BB5#,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 72502Q - ARM SUB-ASSY, NO.7 SEAT RECLINING ADJUSTER, UPPER NO.2 | ||||
| 72502-36010E0 |
BB58;BB50,HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 72502-36070E0 |
BB5#,HZB50,RZB40..17S,20S,23S GREIGE,TRIM4# |
1 | ||
| 72508B - SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36020 |
HZB50..RHD..EX |
2 | ||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
2 | ||
| 72508C - SHAFT SUB-ASSY, NO.3 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
2 | ||
| 72508-36020 |
HZB50..RHD..EX |
2 | ||
| 72508D - SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
2 | ||
| 72508-36020 |
HZB50..RHD..EX |
2 | ||
| 72508F - SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36020 |
HZB50..RHD..EX |
2 | ||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
2 | ||
| 72508G - SHAFT SUB-ASSY, NO.7 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36020 |
HZB50..RHD..EX..GEN |
2 | ||
| 72508-36020 |
HZB50..RHD..EX |
2 | ||
| 72508J - SHAFT SUB-SEAT, NO.1 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36020 |
HZB50..RHD..EX |
1 | ||
| 72508-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 72508K - SHAFT SUB-SEAT, NO.2 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36020 |
BB58;BB50,HZB50,RZB40..EX |
2 | ||
| 72508-36020 |
BB5#,HZB50,RZB40..17S,20S,23S |
2 | ||
| 72508M - SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36020 |
HZB50..RHD..EX |
1 | ||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 72508P - SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 72508-36020 |
HZB50..RHD..EX |
1 | ||
| 72508Q - SHAFT SUB-SEAT, NO.7 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36020 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 72508-36020 |
HZB50..RHD..EX |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-36062E7 |
RZB40,50..GEN;BB42,HZB50..LHD..HRF..STD..GEN HI-BACK HALF KNIT REAR SEAT & W(ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79011-36062E6 |
RZB40,50..GEN;BB42,HZB50..LHD..HRF..STD..GEN HI-BACK HALF KNIT REAR SEAT & W(ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79011-36062E5 |
RZB40,50..GEN;BB42,HZB50..LHD..HRF..STD..GEN HI-BACK HALF KNIT REAR SEAT & W(ASSISTANTS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-36110E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36110E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36420E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79012-36110E7 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79012-36110E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79016A - PAD SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79016-36010 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 79016-36010 |
HZB50..RHD..EX |
1 | ||
| 79016-36121 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79017A - PAD SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79017-36070 |
HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79018A - PAD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79016-36090 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 79016-36090 |
HZB50..RHD..EX |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36250E1 |
HZB50..RHD..EX..GEN SINGAPORE SPEC,GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79013-36050E3 |
HZB50..RHD..EX..GEN SINGAPORE SPEC,GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79035A - PAD SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79037A - PAD SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79016-36090 |
BB50,HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79017-36070 |
HZB50..SCO;BB42,50..RHD..(20S,26S);HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79016-36090 |
BB50,HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36070 |
HZB50..SCO;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
BB50,HZB50..RHD..20S KNIT SEAT,GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..20S |
1 | ||
| 79076 - PAD SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79016-36121 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79016-36090 |
HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79017-36070 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36080E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36080E3 |
HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79083-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36140E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36110E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36070E3 |
HZB50..EX..GEN;RZB40..EX..GCC GREIGE,TRIM4# |
1 | ||
| 79084-36130E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79085B - PAD SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79035-36051 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79086B - PAD SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79016-36121 |
BB58;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79027-36030 |
HZB50..DX;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F FABRIC SEAT |
1 | ||
| 79087-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-36040E0 |
BB42,HZB50..RHD..GEN SEAT = TYPE C OR TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
HZB50..RHD..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36040E0 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN GREIGE,TRIM4# |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-36030 |
HZB50..RHD..EX |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79103-36030 |
HZB50..RHD..EX W(BOTTLE OPENER) |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN W(BOTTLE OPENER) |
1 | ||
| 79104-36020 |
HZB50..RHD..EX |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-36032E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79106-36030E0 |
BB42,HZB50..RHD..GEN GREIGE,TRIM4# |
1 | ||
| 79106-36031E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79106-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79109C - BOARD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79207-36010D0 |
HZB50..RHD..EX..GEN W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79207-36010B0 |
HZB50..RHD..EX W(BOTTLE OPENER),MD.CHARCOAL,TRIM1# |
1 | ||
| 79207-36020B0 |
HZB50..RHD..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79115A - PLATE, NO.1 SEAT CUSHION HINGE, NO.2 RH | ||||
| 79115-36010 |
HZB50..RHD..EX..GEN |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-36042E6 |
RZB40,50..GEN;HZB50..LHD..HRF..WOC ***,HI-BACK HALF KNIT REAR SEAT & W(ASSISTANTS SEAT BELT,GREIGE,TRIM4# |
1 | ||
| 79120-36041E6 |
RZB40,50..GEN;HZB50..30S..GEN..4FC;BB42,HZB50..LHD..WOC..GEN ***,HI-BACK HALF KNIT REAR SEAT & W(ASSISTANTS SEAT BELT,GREIGE,TRIM4# |
1 | ||
| 79125 - PLATE, NO.1 SEAT CUSHION HINGE, NO.1 LH | ||||
| 79125-36010 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79125A - PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
HZB50..RHD..EX W(FRONT SEAT BELT = 3POINT) |
1 | ||
| 79125-36010 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 79125-36010 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-36440E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104 & W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79130-36430E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-36150E0 |
HZB50..RHD..EX..GEN ***,W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79150-36510E0 |
HZB50..RHD..EX ***,W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79179B - PAD, NO.1 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-36040E0 |
BB40,42,HZB50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79202-36040E0 |
BB42,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..RHD..(ARL,GEN);HZB50..RHD..(20S,22S,30S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB4#..RHD;HZB50..RHD..(20S,22S,30S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-36010E0 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79206-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79206-36010E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79209 - BOARD SUB-ASSY, NO.2 SEAT BACK | ||||
| 79207-36010D0 |
HZB50..EX..(ARL,GEN) GREIGE,TRIM4#,RH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,LH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,LH |
1 | ||
| 79207-36010D0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4#,RH |
1 | ||
| 79209B - BOARD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79207-36010D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79225A - PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79125-36010 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79125-36010 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-36120E0 |
HZB50..RHD..EX..(ARL,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79130-36560E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79150-36060E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36510E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79279 - PAD, NO.2 SEAT BACK HEADREST | ||||
| 79179-36010 |
HZB50..EX..(ARL,GEN) |
4 | ||
| 79179-36010 |
BB42..22S;BB42..WOC..GCC;HZB50..RHD..EX;BB42..RHD..HRF..WOC |
4 | ||
| 79279A - PAD, NO.1 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB42..22S;BB42..WOC..GCC;HZB50..RHD..EX |
2 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79179-36010 |
BB42..LHD;HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79301B - FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79101-36150E0 |
BB50,HZB50..RHD..EX SINGAPRE SPEC,GRAIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..ARL,SCO;HZB50..RHD..(20S,22S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79305-36020E0 |
BB50,HZB50..RHD..EX SINGAPORE SPEC,GRAIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79309 - BOARD SUB-ASSY, NO.3 SEAT BACK | ||||
| 79207-36010D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,RH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,LH |
1 | ||
| 79207-36010D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,RH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,LH |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79320-36110E0 |
HZB50..RHD..EX ***,SINGAPORE SPEC,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79150-36020E2 |
HZB50..RHD..EX..GEN ***,SINGAPORE SPEC,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79379 - PAD, NO.3 SEAT BACK HEADREST | ||||
| 79179-36010 |
HZB50..RHD..EX |
4 | ||
| 79179-36010 |
HZB50..RHD..EX;BB42..RHD..HRF..WOC |
4 | ||
| 79401 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79402 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79102-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
BB50,HZB50..RHD..20S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79403A - FRAME SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79404 - FRAME SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
HZB50..EX;BB50..EX..CHI |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..ARL,SCO;HZB50..20S,22S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79505-36010E0 |
BB58,HZB50..(20S,22S)..GEN..5F GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50..EX..CHI;BB58,HZB50..20S,23S GREIGE,TRIM4# |
1 | ||
| 79409 - BOARD SUB-ASSY, NO.4 SEAT BACK | ||||
| 79207-36010D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,LH |
1 | ||
| 79207-36010D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,LH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,RH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,RH |
1 | ||
| 79409B - BOARD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79207-36020D0 |
HZB50..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79207-36020D0 |
HZB50..EX..GEN W(2 POINT PASSENGERS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79207-36020B0 |
HZB50..EX;BB50..EX..CHI W(2 POINT PASSENGERS SEAT BELT),MD.CHARCOAL,TRIM4# |
1 | ||
| 79415B - PLATE, NO.4 SEAT CUSHION HINGE, NO.2 RH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79425A - PLATE, NO.4 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79130-36290E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36610E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..EX;BB50..EX..CHI ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..EX;BB50..EX..CHI ***,GREIGE,TRIM4# |
1 | ||
| 79479 - PAD, NO.4 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
HZB50..RHD..EX..(ARL,GEN) |
4 | ||
| 79179-36010 |
HZB50..RHD..EX |
4 | ||
| 79479A - PAD, NO.4 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN)..5F |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79503 - FRAME SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79103-36061 |
BB42,50..RHD..GEN;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79504 - FRAME SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79601 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79601-36030E0 |
HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79601-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79602 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79702-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79702-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79603 - FRAME SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79604 - FRAME SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79104-36020 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79505-36010E0 |
BB42,HZB50,RZB40..(17S,20S,22S)..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50,RZB40..EX..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79643-36010E0 |
HZB50..SCO;BB42,43,50..17S,20S SEAT = TYPE B OR TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB42..RHD..22S;HZB50,RZB40..EX..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79609 - BOARD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79207-36010D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,LH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,RH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,RH |
1 | ||
| 79207-36010D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,LH |
1 | ||
| 79609A - BOARD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79207-36020D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79207-36020D0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79207-36020B0 |
BB50..EX..CHI;HZB50..RHD..EX W(2 POINT PASSENGERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 79615A - PLATE, NO.6 SEAT CUSHION HINGE, NO.2 RH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79720-36110E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36440E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79625A - PLATE, NO.6 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79730-36030E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36740E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36240E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79679 - PAD, NO.6 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
HZB50..RHD..EX..(ARL,GEN) |
4 | ||
| 79179-36010 |
HZB50..RHD..EX |
4 | ||
| 79679A - PAD, NO.6 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79701 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79601-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79702 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79702-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79703 - FRAME SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..20S LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79704 - FRAME SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79505-36010E0 |
BB42..GCC,SCO;BB42..LHD..26S..GEN;HZB50..LHD..STD..DSL;HZB50..RHD..(20S,22S);BB40,RZB40,50..19S,26S,30S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX;BB42..LHD..HRF..26S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB58;BB50,HZB50..RHD..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79706-36030E0 |
HZB50..RHD..EX NO.7 SEAT LEG TYPE,GREIGE,TRIM4# |
1 | ||
| 79709 - BOARD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79207-36010D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,RH |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,LH |
1 | ||
| 79207-36020B0 |
BB50..EX..CHI;HZB50,RZB40..EX W(REAR ASH RECEPTACLE),MD.CHARCOAL,TRIM1# |
1 | ||
| 79207-36010D0 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4#,RH |
1 | ||
| 79207-36010B0 |
HZB50..RHD..EX MD.CHARCOAL,TRIM1# |
1 | ||
| 79207-36020D0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4#,LH |
1 | ||
| 79709A - BOARD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79207-36020D0 |
HZB50..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79207-36020B0 |
BB50..EX..CHI;HZB50,RZB40..EX W(2 POINT PASSENGERS SEAT BELT),MD.CHARCOAL,TRIM1# |
1 | ||
| 79207-36020D0 |
HZB50,RZB40..EX..(GCC,GEN) W(2 POINT PASSENGERS SEAT BELT),GREIGE,TRIM4# |
1 | ||
| 79715A - PLATE, NO.7 SEAT CUSHION HINGE, NO.2 RH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79720-36110E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79725A - PLATE, NO.7 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79730-36030E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36610E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79736C - COVER, NO.7 SEAT LEG, RH | ||||
| 79236-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN |
2 | ||
| 79736D - COVER, NO.7 SEAT LEG, LH | ||||
| 79236-36010 |
BB42..RHD..22S;HZB50..RHD..EX..(ARL,GEN) |
2 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36240E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79779 - PAD, NO.7 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
BB42..22S;BB42..WOC..GCC;HZB50..RHD..EX |
4 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
4 | ||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
4 | ||
| 79779A - PAD, NO.7 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79801 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79101-36040E0 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79101-36040E0 |
BB43,50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 79802 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79802-36011E0 |
HZB50..22S;BB43,5#..(17S,20S,23S)..GEN GREIGE,TRIM4# |
1 | ||
| 79802-36010E0 |
BB58;HZB50..RHD..(DX,STD);BB40,42,50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79803-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79806A - LEG SUB-ASSY, NO.8 SEAT, LH | ||||
| 79841-36020 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36050E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79840-36190E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36070E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79850-36140E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36240E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79879A - PAD, NO.8 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| 79879B - PAD, NO.8 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
(9301-1501)RHD..17S,20S
REAR SEAT FITTING PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 72702-36010 | ||||
| 90119-08A54 | ||||
| 90119-08A85 | ||||
| 91651-60830 | ||||
| 91651-60835 | ||||
| 91661-60825 | ||||
| 91661-60835 | ||||
(9301-1501)RHD..20S,22S,26S
REAR SEAT FITTING PARTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 72702-36010 | ||||
| 90119-08A54 | ||||
| 91622-B1025 | ||||
| 91651-60830 | ||||
| 91651-60835 | ||||
| 91651-60840 | ||||
| 91661-60825 | ||||
| 91661-60835 | ||||
(9301-1501)
LAST ROW SEAT(NO.8)FIX BENCH,W(*HBS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-36110E0 |
HZB50..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79081-36290E2 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79081-36280E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79081-36260E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79081-36020E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36080E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36080E3 |
HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79083-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36140E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36110E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36070E3 |
HZB50..EX..GEN;RZB40..EX..GCC GREIGE,TRIM4# |
1 | ||
| 79084-36130E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36020 |
BB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN) |
1 | ||
| 79085-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79027-36030 |
HZB50..DX;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F FABRIC SEAT |
1 | ||
| 79087-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-36061E0 |
RZB40..EX;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79097-36061E0 |
BB50,RZB40..LHD..(17S,20S,30S);BB42,HZB50,RZB40,50..(CHI,GEN)..5F FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79097-36020E0 |
HZB50..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79097-36060E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79803-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79805A - LEG SUB-ASSY, FOLD SEAT, FRONT | ||||
| 79805-36010E0 |
BB42,HZB50,RZB40,50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 79805-36010E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79805-36010E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79820A - CUSHION ASSY, NO.8 SEAT | ||||
| 79820-36080E0 |
HZB50..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79820-36340E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79820-36400E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79820-36100E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,W(FABRIC SEAT),GREIGE,TRIM4# |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36050E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79840-36190E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36070E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79850-36140E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36240E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79860 - SPRING ASSY, NO.8 SEAT CUSHION | ||||
| 79860-36020 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING SEAT) |
1 | ||
| 79860-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING SEAT) |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN FOLDING SEAT |
1 | ||
| 79915-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN FOLDING SEAT |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN FOLDING SEAT |
1 | ||
| 79915-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN FOLDING SEAT |
1 | ||
| Common parts | ||||
| 90109-08277 | ||||
| 90159-60589 | ||||
| 90167-35014 | ||||
| 90179-10033 | ||||
| 91622-B1025 | ||||
| 91641-80835 | ||||
| 91651-60835 | ||||
| 91651-61020 | ||||
| 91651-61030 | ||||
| 91673-81022 | ||||
ILLUST NO. 2 OF 2(9301-1501)BB40,HZB50,XZB50..RHD
REAR SEAT NO.1-NO.8(19S,21S,22S)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-36110E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36110E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36420E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79012-36110E7 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79012-36110E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79016A - PAD SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79016-36010 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 79016-36010 |
HZB50..RHD..EX |
1 | ||
| 79016-36121 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79018A - PAD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79016-36090 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 79016-36090 |
HZB50..RHD..EX |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36250E1 |
HZB50..RHD..EX..GEN SINGAPORE SPEC,GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79013-36050E3 |
HZB50..RHD..EX..GEN SINGAPORE SPEC,GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79035A - PAD SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79037A - PAD SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79016-36090 |
BB50,HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79017-36070 |
HZB50..SCO;BB42,50..RHD..(20S,26S);HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79016-36090 |
BB50,HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36070 |
HZB50..SCO;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
BB50,HZB50..RHD..20S KNIT SEAT,GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..20S |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79076 - PAD SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79016-36121 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79016-36090 |
HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79017-36070 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36080E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36080E3 |
HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79083-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36140E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36110E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36070E3 |
HZB50..EX..GEN;RZB40..EX..GCC GREIGE,TRIM4# |
1 | ||
| 79084-36130E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79085B - PAD SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79035-36051 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79086B - PAD SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79016-36121 |
BB58;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79027-36030 |
HZB50..DX;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F FABRIC SEAT |
1 | ||
| 79087-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-36040E0 |
BB42,HZB50..RHD..GEN SEAT = TYPE C OR TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
HZB50..RHD..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36040E0 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN GREIGE,TRIM4# |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79103-36030 |
HZB50..RHD..EX W(BOTTLE OPENER) |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN W(BOTTLE OPENER) |
1 | ||
| 79104-36020 |
HZB50..RHD..EX |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-36032E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79106-36030E0 |
BB42,HZB50..RHD..GEN GREIGE,TRIM4# |
1 | ||
| 79106-36031E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79106-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79125A - PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
HZB50..RHD..EX W(FRONT SEAT BELT = 3POINT) |
1 | ||
| 79125-36010 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 79125-36010 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-36440E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104 & W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79130-36430E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-36150E0 |
HZB50..RHD..EX..GEN ***,W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79150-36510E0 |
HZB50..RHD..EX ***,W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-36040E0 |
BB40,42,HZB50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79202-36040E0 |
BB42,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..RHD..(ARL,GEN);HZB50..RHD..(20S,22S,30S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB4#..RHD;HZB50..RHD..(20S,22S,30S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-36010E0 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79206-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79206-36010E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79225A - PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79125-36010 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79125-36010 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-36120E0 |
HZB50..RHD..EX..(ARL,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79130-36560E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79150-36060E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36510E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79301B - FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79101-36150E0 |
BB50,HZB50..RHD..EX SINGAPRE SPEC,GRAIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..ARL,SCO;HZB50..RHD..(20S,22S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79305-36020E0 |
BB50,HZB50..RHD..EX SINGAPORE SPEC,GRAIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79320-36110E0 |
HZB50..RHD..EX ***,SINGAPORE SPEC,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79150-36020E2 |
HZB50..RHD..EX..GEN ***,SINGAPORE SPEC,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79401 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79402 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79102-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
BB50,HZB50..RHD..20S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79403A - FRAME SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79404 - FRAME SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
HZB50..EX;BB50..EX..CHI |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..ARL,SCO;HZB50..20S,22S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79505-36010E0 |
BB58,HZB50..(20S,22S)..GEN..5F GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50..EX..CHI;BB58,HZB50..20S,23S GREIGE,TRIM4# |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79425A - PLATE, NO.4 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79130-36290E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36610E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..EX;BB50..EX..CHI ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..EX;BB50..EX..CHI ***,GREIGE,TRIM4# |
1 | ||
| 79503 - FRAME SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79103-36061 |
BB42,50..RHD..GEN;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79504 - FRAME SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79601 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79601-36030E0 |
HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79601-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79602 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79702-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79702-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79603 - FRAME SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79604 - FRAME SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79104-36020 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79505-36010E0 |
BB42,HZB50,RZB40..(17S,20S,22S)..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50,RZB40..EX..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79643-36010E0 |
HZB50..SCO;BB42,43,50..17S,20S SEAT = TYPE B OR TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB42..RHD..22S;HZB50,RZB40..EX..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79720-36110E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36440E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79625A - PLATE, NO.6 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79730-36030E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36740E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36240E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79701 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79601-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79702 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79702-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79703 - FRAME SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..20S LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79704 - FRAME SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79505-36010E0 |
BB42..GCC,SCO;BB42..LHD..26S..GEN;HZB50..LHD..STD..DSL;HZB50..RHD..(20S,22S);BB40,RZB40,50..19S,26S,30S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX;BB42..LHD..HRF..26S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB58;BB50,HZB50..RHD..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79706-36030E0 |
HZB50..RHD..EX NO.7 SEAT LEG TYPE,GREIGE,TRIM4# |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79720-36110E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79725A - PLATE, NO.7 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79730-36030E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36610E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36240E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79801 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79101-36040E0 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79101-36040E0 |
BB43,50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 79802 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79802-36011E0 |
HZB50..22S;BB43,5#..(17S,20S,23S)..GEN GREIGE,TRIM4# |
1 | ||
| 79802-36010E0 |
BB58;HZB50..RHD..(DX,STD);BB40,42,50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79803-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79806A - LEG SUB-ASSY, NO.8 SEAT, LH | ||||
| 79841-36020 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36050E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79840-36190E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36070E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79850-36140E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36240E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
ILLUST NO. 2 OF 2(9301-1501)BB42,43,50,BZB40,HZB50,XZB50..RHD
MID-HIBACK REAR SEAT NO.1-NO.8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-36110E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36110E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36420E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79012-36110E7 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79012-36110E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79016A - PAD SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79016-36010 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 79016-36010 |
HZB50..RHD..EX |
1 | ||
| 79016-36121 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79018A - PAD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79016-36090 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 79016-36090 |
HZB50..RHD..EX |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36250E1 |
HZB50..RHD..EX..GEN SINGAPORE SPEC,GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79013-36050E3 |
HZB50..RHD..EX..GEN SINGAPORE SPEC,GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79035A - PAD SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79037A - PAD SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79016-36090 |
BB50,HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79017-36070 |
HZB50..SCO;BB42,50..RHD..(20S,26S);HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79016-36090 |
BB50,HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36070 |
HZB50..SCO;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
BB50,HZB50..RHD..20S KNIT SEAT,GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..20S |
1 | ||
| 79076 - PAD SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79016-36121 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79016-36090 |
HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79017-36070 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36080E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36080E3 |
HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79083-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36140E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36110E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36070E3 |
HZB50..EX..GEN;RZB40..EX..GCC GREIGE,TRIM4# |
1 | ||
| 79084-36130E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79085B - PAD SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79035-36051 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79086B - PAD SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79016-36121 |
BB58;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79027-36030 |
HZB50..DX;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F FABRIC SEAT |
1 | ||
| 79087-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-36040E0 |
BB42,HZB50..RHD..GEN SEAT = TYPE C OR TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
HZB50..RHD..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36040E0 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN GREIGE,TRIM4# |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79103-36030 |
HZB50..RHD..EX W(BOTTLE OPENER) |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN W(BOTTLE OPENER) |
1 | ||
| 79104-36020 |
HZB50..RHD..EX |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-36032E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79106-36030E0 |
BB42,HZB50..RHD..GEN GREIGE,TRIM4# |
1 | ||
| 79106-36031E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79106-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79125A - PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
HZB50..RHD..EX W(FRONT SEAT BELT = 3POINT) |
1 | ||
| 79125-36010 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 79125-36010 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-36440E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104 & W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79130-36430E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-36150E0 |
HZB50..RHD..EX..GEN ***,W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79150-36510E0 |
HZB50..RHD..EX ***,W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79179B - PAD, NO.1 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-36040E0 |
BB40,42,HZB50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79202-36040E0 |
BB42,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..RHD..(ARL,GEN);HZB50..RHD..(20S,22S,30S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB4#..RHD;HZB50..RHD..(20S,22S,30S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-36010E0 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79206-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79206-36010E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79225A - PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79125-36010 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79125-36010 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-36120E0 |
HZB50..RHD..EX..(ARL,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79130-36560E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79150-36060E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36510E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79279 - PAD, NO.2 SEAT BACK HEADREST | ||||
| 79179-36010 |
HZB50..EX..(ARL,GEN) |
4 | ||
| 79179-36010 |
BB42..22S;BB42..WOC..GCC;HZB50..RHD..EX;BB42..RHD..HRF..WOC |
4 | ||
| 79279A - PAD, NO.1 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB42..22S;BB42..WOC..GCC;HZB50..RHD..EX |
2 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79179-36010 |
BB42..LHD;HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79301B - FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79101-36150E0 |
BB50,HZB50..RHD..EX SINGAPRE SPEC,GRAIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..ARL,SCO;HZB50..RHD..(20S,22S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79305-36020E0 |
BB50,HZB50..RHD..EX SINGAPORE SPEC,GRAIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79320-36110E0 |
HZB50..RHD..EX ***,SINGAPORE SPEC,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79150-36020E2 |
HZB50..RHD..EX..GEN ***,SINGAPORE SPEC,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79379 - PAD, NO.3 SEAT BACK HEADREST | ||||
| 79179-36010 |
HZB50..RHD..EX |
4 | ||
| 79179-36010 |
HZB50..RHD..EX;BB42..RHD..HRF..WOC |
4 | ||
| 79401 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79402 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79102-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
BB50,HZB50..RHD..20S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79403A - FRAME SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79404 - FRAME SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
HZB50..EX;BB50..EX..CHI |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..ARL,SCO;HZB50..20S,22S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79505-36010E0 |
BB58,HZB50..(20S,22S)..GEN..5F GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50..EX..CHI;BB58,HZB50..20S,23S GREIGE,TRIM4# |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79425A - PLATE, NO.4 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79130-36290E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36610E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..EX;BB50..EX..CHI ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..EX;BB50..EX..CHI ***,GREIGE,TRIM4# |
1 | ||
| 79479 - PAD, NO.4 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
HZB50..RHD..EX..(ARL,GEN) |
4 | ||
| 79179-36010 |
HZB50..RHD..EX |
4 | ||
| 79479A - PAD, NO.4 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN)..5F |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79503 - FRAME SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79103-36061 |
BB42,50..RHD..GEN;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79504 - FRAME SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79601 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79601-36030E0 |
HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79601-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79602 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79702-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79702-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79603 - FRAME SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79604 - FRAME SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79104-36020 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79505-36010E0 |
BB42,HZB50,RZB40..(17S,20S,22S)..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50,RZB40..EX..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79643-36010E0 |
HZB50..SCO;BB42,43,50..17S,20S SEAT = TYPE B OR TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB42..RHD..22S;HZB50,RZB40..EX..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79720-36110E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36440E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79625A - PLATE, NO.6 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79730-36030E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36740E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36240E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79679 - PAD, NO.6 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
HZB50..RHD..EX..(ARL,GEN) |
4 | ||
| 79179-36010 |
HZB50..RHD..EX |
4 | ||
| 79679A - PAD, NO.6 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79701 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79601-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79702 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79702-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79703 - FRAME SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..20S LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79704 - FRAME SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79505-36010E0 |
BB42..GCC,SCO;BB42..LHD..26S..GEN;HZB50..LHD..STD..DSL;HZB50..RHD..(20S,22S);BB40,RZB40,50..19S,26S,30S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX;BB42..LHD..HRF..26S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB58;BB50,HZB50..RHD..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79706-36030E0 |
HZB50..RHD..EX NO.7 SEAT LEG TYPE,GREIGE,TRIM4# |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79720-36110E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79725A - PLATE, NO.7 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79730-36030E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36610E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36240E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79779 - PAD, NO.7 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
BB42..22S;BB42..WOC..GCC;HZB50..RHD..EX |
4 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
4 | ||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
4 | ||
| 79779A - PAD, NO.7 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79801 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79101-36040E0 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79101-36040E0 |
BB43,50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 79802 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79802-36011E0 |
HZB50..22S;BB43,5#..(17S,20S,23S)..GEN GREIGE,TRIM4# |
1 | ||
| 79802-36010E0 |
BB58;HZB50..RHD..(DX,STD);BB40,42,50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79803-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79806A - LEG SUB-ASSY, NO.8 SEAT, LH | ||||
| 79841-36020 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36050E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79840-36190E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36070E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79850-36140E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36240E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79879A - PAD, NO.8 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| 79879B - PAD, NO.8 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
ILLUST NO. 2 OF 2(9301-1501)BB42,50,BZB40,50,HZB50,XZB40,50..RHD
HIGH BACK REAR SEAT NO.1-NO.8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-36110E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36110E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36420E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79012-36110E7 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79012-36110E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79016A - PAD SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79016-36010 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 79016-36010 |
HZB50..RHD..EX |
1 | ||
| 79016-36121 |
HZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79018A - PAD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79016-36090 |
HZB50..RHD..EX..(ARL,GEN) |
1 | ||
| 79016-36090 |
HZB50..RHD..EX |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36250E1 |
HZB50..RHD..EX..GEN SINGAPORE SPEC,GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79013-36050E3 |
HZB50..RHD..EX..GEN SINGAPORE SPEC,GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79035A - PAD SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79037A - PAD SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79016-36090 |
BB50,HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79017-36070 |
HZB50..SCO;BB42,50..RHD..(20S,26S);HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79052 - COVER SUB-ASSY, NO.5 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79016-36090 |
BB50,HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36070 |
HZB50..SCO;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79071 - COVER SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79021-36160E1 |
BB50,HZB50..RHD..20S KNIT SEAT,GREIGE,TRIM4# |
1 | ||
| 79021-36320E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79072 - COVER SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79012-36170E1 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79012-36430E0 |
HZB50..RHD..EX GREGE,TRIM4# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
2 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
2 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79023-36050E2 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E5 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79023-36050E8 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36050E6 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79023-36110E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79075A - PAD SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79035-36030 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79035-36030 |
BB50,HZB50..RHD..20S |
1 | ||
| 79076 - PAD SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79016-36121 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79016-36090 |
HZB50..RHD..EX |
1 | ||
| 79016-36090 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79077A - PAD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79017-36080 |
HZB50..RHD..EX |
2 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
2 | ||
| 79078A - PAD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79017-36070 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F HI-BACK HALF KNIT REAR SEAT |
1 | ||
| 79017-36080 |
HZB50..RHD..EX..GEN |
1 | ||
| 79017-36080 |
HZB50..RHD..EX |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36080E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36080E3 |
HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79083-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36140E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36110E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36070E3 |
HZB50..EX..GEN;RZB40..EX..GCC GREIGE,TRIM4# |
1 | ||
| 79084-36130E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79085B - PAD SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79035-36051 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79086B - PAD SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79016-36121 |
BB58;BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD) |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79027-36030 |
HZB50..DX;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F FABRIC SEAT |
1 | ||
| 79087-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-36040E0 |
BB42,HZB50..RHD..GEN SEAT = TYPE C OR TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
HZB50..RHD..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79102-36040E0 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN GREIGE,TRIM4# |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79103-36030 |
HZB50..RHD..EX W(BOTTLE OPENER) |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN W(BOTTLE OPENER) |
1 | ||
| 79104-36020 |
HZB50..RHD..EX |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-36032E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79106-36030E0 |
BB42,HZB50..RHD..GEN GREIGE,TRIM4# |
1 | ||
| 79106-36031E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79106-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79125A - PLATE, NO.1 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
HZB50..RHD..EX W(FRONT SEAT BELT = 3POINT) |
1 | ||
| 79125-36010 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 79125-36010 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-36440E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104 & W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79130-36430E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-36150E0 |
HZB50..RHD..EX..GEN ***,W(BOTTLE OPENER),GREIGE,TRIM4# |
1 | ||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79150-36510E0 |
HZB50..RHD..EX ***,W(REFRIGERATOR),GREIGE,TRIM4# |
1 | ||
| 79179B - PAD, NO.1 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-36040E0 |
BB40,42,HZB50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79202-36040E0 |
BB42,HZB50..RHD GREIGE,TRIM4# |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..RHD..(ARL,GEN);HZB50..RHD..(20S,22S,30S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB4#..RHD;HZB50..RHD..(20S,22S,30S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-36010E0 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79206-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79206-36010E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79225A - PLATE, NO.2 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79125-36010 |
HZB50..RHD..SRF;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79125-36010 |
BB40,42,HZB50..RHD..(ARL,GEN) |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-36120E0 |
HZB50..RHD..EX..(ARL,GEN) ***,GREIGE,TRIM4# |
1 | ||
| 79130-36560E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79150-36060E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36510E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79279 - PAD, NO.2 SEAT BACK HEADREST | ||||
| 79179-36010 |
HZB50..EX..(ARL,GEN) |
4 | ||
| 79179-36010 |
BB42..22S;BB42..WOC..GCC;HZB50..RHD..EX;BB42..RHD..HRF..WOC |
4 | ||
| 79279A - PAD, NO.1 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB42..22S;BB42..WOC..GCC;HZB50..RHD..EX |
2 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79179-36010 |
BB42..LHD;HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79301B - FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79101-36150E0 |
BB50,HZB50..RHD..EX SINGAPRE SPEC,GRAIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..ARL,SCO;HZB50..RHD..(20S,22S)..(ARL,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79305-36020E0 |
BB50,HZB50..RHD..EX SINGAPORE SPEC,GRAIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..GEN SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79320-36110E0 |
HZB50..RHD..EX ***,SINGAPORE SPEC,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..RHD..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79150-36020E2 |
HZB50..RHD..EX..GEN ***,SINGAPORE SPEC,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79379 - PAD, NO.3 SEAT BACK HEADREST | ||||
| 79179-36010 |
HZB50..RHD..EX |
4 | ||
| 79179-36010 |
HZB50..RHD..EX;BB42..RHD..HRF..WOC |
4 | ||
| 79401 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79402 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79102-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
BB50,HZB50..RHD..20S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79403A - FRAME SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79404 - FRAME SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
HZB50..EX;BB50..EX..CHI |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79505-36010E0 |
BB4#..ARL,SCO;HZB50..20S,22S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79505-36010E0 |
BB58,HZB50..(20S,22S)..GEN..5F GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50..EX..CHI;BB58,HZB50..20S,23S GREIGE,TRIM4# |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79320-36030E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79425A - PLATE, NO.4 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79130-36290E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36610E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79440 - BACK ASSY, NO.4 SEAT, RH | ||||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79140-36240E0 |
HZB50..EX;BB50..EX..CHI ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79450 - BACK ASSY, NO.4 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..EX;BB50..EX..CHI ***,GREIGE,TRIM4# |
1 | ||
| 79479 - PAD, NO.4 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
HZB50..RHD..EX..(ARL,GEN) |
4 | ||
| 79179-36010 |
HZB50..RHD..EX |
4 | ||
| 79479A - PAD, NO.4 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN)..5F |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79503 - FRAME SUB-ASSY, NO.5 SEAT BACK, RH | ||||
| 79103-36061 |
BB42,50..RHD..GEN;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79504 - FRAME SUB-ASSY, NO.5 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79601 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79601-36030E0 |
HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79601-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79602 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79702-36030E0 |
HZB50..RHD..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79702-36030E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79603 - FRAME SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79604 - FRAME SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79104-36020 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79505-36010E0 |
BB42,HZB50,RZB40..(17S,20S,22S)..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50,RZB40..EX..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79643-36010E0 |
HZB50..SCO;BB42,43,50..17S,20S SEAT = TYPE B OR TYPE C-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB42..RHD..22S;HZB50,RZB40..EX..(GCC,GEN) SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX GREIGE,TRIM4# |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79720-36110E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36440E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79625A - PLATE, NO.6 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79730-36030E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36740E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79640 - BACK ASSY, NO.6 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36240E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79650 - BACK ASSY, NO.6 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79679 - PAD, NO.6 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
HZB50..RHD..EX..(ARL,GEN) |
4 | ||
| 79179-36010 |
HZB50..RHD..EX |
4 | ||
| 79679A - PAD, NO.6 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79701 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, RH | ||||
| 79601-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79101-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79702 - FRAME SUB-ASSY, NO.7 SEAT CUSHION, LH | ||||
| 79702-36030E0 |
BB50,HZB50..RHD..20S GREIGE,TRIM4# |
1 | ||
| 79102-36030E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79703 - FRAME SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79104-36020 |
HZB50..RHD..20S LH |
1 | ||
| 79103-36030 |
HZB50..RHD..EX..GEN RH |
1 | ||
| 79704 - FRAME SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79104-36020 |
HZB50..RHD..EX..GEN |
1 | ||
| 79103-36030 |
BB50..EX..CHI;HZB50,RZB40..EX LH |
1 | ||
| 79104-36020 |
BB50..EX..CHI;HZB50,RZB40..EX |
1 | ||
| 79705 - LEG SUB-ASSY, NO.7 SEAT, RH | ||||
| 79505-36010E0 |
BB42..GCC,SCO;BB42..LHD..26S..GEN;HZB50..LHD..STD..DSL;HZB50..RHD..(20S,22S);BB40,RZB40,50..19S,26S,30S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB50,HZB50..RHD..EX..CBU GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
HZB50..RHD..EX;BB42..LHD..HRF..26S SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79505-36010E0 |
BB58;BB50,HZB50..RHD..EX SEAT = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79706 - LEG SUB-ASSY, NO.7 SEAT, LH | ||||
| 79706-36030E0 |
HZB50..RHD..EX NO.7 SEAT LEG TYPE,GREIGE,TRIM4# |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79720-36110E0 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79220-36340E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79725A - PLATE, NO.7 SEAT CUSHION HINGE, NO.2 LH | ||||
| 79115-36010 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79730-36030E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79130-36610E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79740 - BACK ASSY, NO.7 SEAT, RH | ||||
| 79140-36170E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,LH |
1 | ||
| 79240-36020E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4#,RH |
1 | ||
| 79140-36240E0 |
BB50..EX..CHI;HZB50,RZB40..EX ***,SEAT = TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79350-36070E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79750 - BACK ASSY, NO.7 SEAT, LH | ||||
| 79150-36040E1 |
HZB50..RHD..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79150-36310E0 |
HZB50..RHD..EX ***,GREIGE,TRIM4# |
1 | ||
| 79779 - PAD, NO.7 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
BB42..22S;BB42..WOC..GCC;HZB50..RHD..EX |
4 | ||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
4 | ||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
4 | ||
| 79779A - PAD, NO.7 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB40,HZB50..RHD..(19S,20S,22S)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..(DX,EX)..(ARL,GEN) |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79179-36010 |
HZB50..RHD..EX |
2 | ||
| 79801 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, RH | ||||
| 79101-36040E0 |
BB4#,50..RHD..CBU;HZB50..RHD..(DX,STD)..5F SEAT = TYPE D-*104,GREIGE,TRIM4# |
1 | ||
| 79101-36040E0 |
BB43,50..RHD..CBU GREIGE,TRIM4# |
1 | ||
| 79802 - FRAME SUB-ASSY, NO.8 SEAT CUSHION, LH | ||||
| 79802-36011E0 |
HZB50..22S;BB43,5#..(17S,20S,23S)..GEN GREIGE,TRIM4# |
1 | ||
| 79802-36010E0 |
BB58;HZB50..RHD..(DX,STD);BB40,42,50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79803-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79806A - LEG SUB-ASSY, NO.8 SEAT, LH | ||||
| 79841-36020 |
BB50,HZB50..RHD..EX..CBU |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36050E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79840-36190E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36070E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79850-36140E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36240E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79879A - PAD, NO.8 SEAT BACK HEADREST, RH | ||||
| 79179-36010 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
| 79879B - PAD, NO.8 SEAT BACK HEADREST, LH | ||||
| 79179-36010 |
BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F;HZB50..(DX,EX)..(ARL,SCO) |
1 | ||
(9301-1501)
LAST ROW SEAT(NO.8)=FOLDING BENCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-36010E0 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN GREIGE,TRIM4# |
1 | ||
| 72665-36010E0 |
BB50,RZB40..LHD..(17S,20S,30S);BB42,HZB50,RZB40,50..(CHI,GEN)..5F GREIGE,TRIM4# |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-36010E0 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN GREIGE,TRIM4# |
1 | ||
| 72666-36010E0 |
BB50,RZB40..LHD..(17S,20S,30S);BB42,HZB50,RZB40,50..(CHI,GEN)..5F GREIGE,TRIM4# |
1 | ||
| 78903 - STRIKER SUB-ASSY, FOLD SEAT LEG LOCK | ||||
| 78903-36010 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN |
1 | ||
| 78903-36010 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 78904 - STRIKER SUB-ASSY, FOLD SEAT LOCK, NO.2 | ||||
| 78904-36010 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 78904-36010 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN |
1 | ||
| 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 | ||||
| 78910-36020 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN |
1 | ||
| 78910-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 78910A - LOCK ASSY, FOLD SEAT, RH | ||||
| 78910-36010 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN |
1 | ||
| 78910-36010 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 78920A - LOCK ASSY, FOLD SEAT, LH | ||||
| 78920-36010 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN |
1 | ||
| 78920-36010 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 78930 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3 | ||||
| 78930-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 78930-36020 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-36010E0 |
BB50,RZB40..LHD..(17S,20S,30S);BB42,HZB50,RZB40,50..(CHI,GEN)..5F GREIGE,TRIM4# |
2 | ||
| 78950-36010E0 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN GREIGE,TRIM4# |
2 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-36010E0 |
BB50,RZB40..LHD..(17S,20S,30S);BB42,HZB50,RZB40,50..(CHI,GEN)..5F GREIGE,TRIM4# |
2 | ||
| 78950-36010E0 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN GREIGE,TRIM4# |
2 | ||
| 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 | ||||
| 78960-36020E0 |
BB50..EX..CHI;BB42,HZB50,RZB40..(17S,20S,22S)..(CHI,GCC,GEN)..5F GREIGE,TRIM4# |
1 | ||
| 78960-36020E0 |
BB42,HZB50,RZB40..(17S,20S,22S)..(GCC,GEN)..5F GREIGE,TRIM4# |
1 | ||
| 78970 - BAND ASSY, SEAT LOCK | ||||
| 78970-36010E0 |
BB50,RZB40..LHD..(17S,20S,30S);BB42,HZB50,RZB40,50..(CHI,GEN)..5F GREIGE,TRIM4# |
2 | ||
| 78970-36010E0 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN GREIGE,TRIM4# |
2 | ||
| 78970 - BAND ASSY, SEAT LOCK | ||||
| 78970-36010E0 |
BB50,RZB40..LHD..(17S,20S,30S);BB42,HZB50,RZB40,50..(CHI,GEN)..5F GREIGE,TRIM4# |
2 | ||
| 78970-36010E0 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN GREIGE,TRIM4# |
2 | ||
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-36110E0 |
HZB50..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79081-36290E2 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79081-36280E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79081-36260E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79081-36020E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36080E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36080E3 |
HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79083-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36140E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36110E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36070E3 |
HZB50..EX..GEN;RZB40..EX..GCC GREIGE,TRIM4# |
1 | ||
| 79084-36130E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36020 |
BB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN) |
1 | ||
| 79085-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79027-36030 |
HZB50..DX;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F FABRIC SEAT |
1 | ||
| 79087-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-36061E0 |
RZB40..EX;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79097-36061E0 |
BB50,RZB40..LHD..(17S,20S,30S);BB42,HZB50,RZB40,50..(CHI,GEN)..5F FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79097-36020E0 |
HZB50..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79097-36060E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79803-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79805A - LEG SUB-ASSY, FOLD SEAT, FRONT | ||||
| 79805-36010E0 |
BB42,HZB50,RZB40,50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 79805-36010E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79805-36010E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79806B - LEG SUB ASSY, FOLD SEAT REAR | ||||
| 79831-36020 |
RZB40..EX..GCC;BB42..LHD..SRF..GEN;HZB50,RZB40..(17S,20S,22S,26S)..GEN;BB42,HZB50,RZB50..LHD..(22S,30S)..GEN RH |
1 | ||
| 79841-36020 |
RZB40..EX..GCC;BB42..LHD..SRF..GEN;HZB50,RZB40..(17S,20S,22S,26S)..GEN;BB42,HZB50,RZB50..LHD..(22S,30S)..GEN LH |
1 | ||
| 79831-36020 |
RZB40..EX;RZB40..GEN;BB42..RHD..GEN;BB42..LHD..SRF..GEN;HZB50..(20S,30S)..GEN;BB42,RZB50..(22S,30S)..GEN RH |
1 | ||
| 79841-36020 |
RZB40,50..GEN;HZB50,RZB40..EX;BB42,HZB50..LHD..HRF..STD..GEN LH |
1 | ||
| 79831-36020 |
RZB40,50..GEN;HZB50,RZB40..EX;BB42,HZB50..LHD..HRF..STD..GEN RH |
1 | ||
| 71309-36050E0 |
HZB50..RHD..(DX,STD)..5F;BB40,42,50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79841-36020 |
RZB40..EX;RZB40..GEN;BB42..RHD..GEN;BB42..LHD..SRF..GEN;HZB50..(20S,30S)..GEN;BB42,RZB50..(22S,30S)..GEN LH |
1 | ||
| 79806B - LEG SUB ASSY, FOLD SEAT REAR | ||||
| 79831-36020 |
RZB40..EX..GCC;BB42..LHD..SRF..GEN;HZB50,RZB40..(17S,20S,22S,26S)..GEN;BB42,HZB50,RZB50..LHD..(22S,30S)..GEN RH |
1 | ||
| 79841-36020 |
RZB40..EX..GCC;BB42..LHD..SRF..GEN;HZB50,RZB40..(17S,20S,22S,26S)..GEN;BB42,HZB50,RZB50..LHD..(22S,30S)..GEN LH |
1 | ||
| 79831-36020 |
RZB40..EX;RZB40..GEN;BB42..RHD..GEN;BB42..LHD..SRF..GEN;HZB50..(20S,30S)..GEN;BB42,RZB50..(22S,30S)..GEN RH |
1 | ||
| 79841-36020 |
RZB40,50..GEN;HZB50,RZB40..EX;BB42,HZB50..LHD..HRF..STD..GEN LH |
1 | ||
| 79831-36020 |
RZB40,50..GEN;HZB50,RZB40..EX;BB42,HZB50..LHD..HRF..STD..GEN RH |
1 | ||
| 71309-36050E0 |
HZB50..RHD..(DX,STD)..5F;BB40,42,50..RHD..(ARL,GEN) GREIGE,TRIM4# |
1 | ||
| 79841-36020 |
RZB40..EX;RZB40..GEN;BB42..RHD..GEN;BB42..LHD..SRF..GEN;HZB50..(20S,30S)..GEN;BB42,RZB50..(22S,30S)..GEN LH |
1 | ||
| 79820A - CUSHION ASSY, NO.8 SEAT | ||||
| 79820-36080E0 |
HZB50..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79820-36340E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79820-36400E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79820-36100E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,W(FABRIC SEAT),GREIGE,TRIM4# |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36050E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79840-36190E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36070E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79850-36140E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36240E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79860 - SPRING ASSY, NO.8 SEAT CUSHION | ||||
| 79860-36020 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING SEAT) |
1 | ||
| 79860-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING SEAT) |
1 | ||
| 79885 - HINGE, FOLD SEAT BACK SET, RH | ||||
| 79885-36010E0 |
BB50,RZB40..LHD..(17S,20S,30S);BB42,HZB50,RZB40,50..(CHI,GEN)..5F GREIGE,TRIM4# |
1 | ||
| 79885-36010E0 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN GREIGE,TRIM4# |
1 | ||
| 79886 - HINGE, FOLD SEAT BACK SET, LH | ||||
| 79886-36010E0 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN GREIGE,TRIM4# |
1 | ||
| 79886-36010E0 |
BB50,RZB40..LHD..(17S,20S,30S);BB42,HZB50,RZB40,50..(CHI,GEN)..5F GREIGE,TRIM4# |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN FOLDING SEAT |
1 | ||
| 79915-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN FOLDING SEAT |
1 | ||
| 79916 - BRACKET, SEAT LEG, NO.2 | ||||
| 79916-36020 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN |
1 | ||
| 79916-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| Common parts | ||||
| 64778-36020 | ||||
| 72969-60010 | ||||
| 78967-36020 | ||||
| 82711-12120 | ||||
| 90109-08277 | ||||
| 90119-10493 | ||||
| 90159-60035 | ||||
| 90159-60058 | ||||
| 90159-60589 | ||||
| 90167-35014 | ||||
| 90168-40043 | ||||
| 90179-08200 | ||||
| 90205-07002 | ||||
| 90206-10009 | ||||
| 90206-12003 | ||||
| 90206-15002 | ||||
| 90387-10070 | ||||
| 90389-10031 | ||||
| 90506-08035 | ||||
| 90506-10038 | ||||
| 91552-81025 | ||||
| 91631-60825 | ||||
| 91641-80835 | ||||
| 91651-60835 | ||||
| 91651-61020 | ||||
| 91651-61022 | ||||
| 91651-61030 | ||||
(9301- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(9301-1501)
LAST ROW SEAT(NO.8)=FIX BENCH TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 79081A - COVER SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79081-36110E0 |
HZB50..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79081-36290E2 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79081-36280E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79081-36260E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79081-36020E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79083-36080E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79083-36080E3 |
HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79083-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79083-36140E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79084-36110E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79084-36070E3 |
HZB50..EX..GEN;RZB40..EX..GCC GREIGE,TRIM4# |
1 | ||
| 79084-36130E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79085 - PAD SUB-ASSY, NO.8 SEAT CUSHION | ||||
| 79085-36020 |
BB42,RZB40,50..GCC,GEN;HZB50..(20S,30S)..(GCC,GEN) |
1 | ||
| 79085-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN |
1 | ||
| 79087B - PAD SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79087-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79027-36030 |
HZB50..DX;BB42,50..RHD..GEN;HZB50..RHD..STD..GEN..5F FABRIC SEAT |
1 | ||
| 79087-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088B - PAD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79088-36010 |
HZB50..EX..GEN;RZB40..EX..GCC;BB42,HZB50,RZB40,50..LHD..(17S,22S,26S,30S)..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79088-36010 |
HZB50..RHD..EX;BB42,RZB40..22S..GEN HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT |
1 | ||
| 79097 - PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL | ||||
| 79097-36061E0 |
RZB40..EX;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79097-36061E0 |
BB50,RZB40..LHD..(17S,20S,30S);BB42,HZB50,RZB40,50..(CHI,GEN)..5F FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79097-36020E0 |
HZB50..EX..GEN GREIGE,TRIM4# |
1 | ||
| 79097-36060E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79803 - FRAME SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79803-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79803-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804 - FRAME SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79804-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79804-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING REAR SEAT) |
1 | ||
| 79805A - LEG SUB-ASSY, FOLD SEAT, FRONT | ||||
| 79805-36010E0 |
BB42,HZB50,RZB40,50..GCC,GEN GREIGE,TRIM4# |
1 | ||
| 79805-36010E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79805-36010E0 |
BB50..EX..CHI;HZB50,RZB40..EX GREIGE,TRIM4# |
1 | ||
| 79820A - CUSHION ASSY, NO.8 SEAT | ||||
| 79820-36080E0 |
HZB50..EX..GEN ***,GREIGE,TRIM4# |
1 | ||
| 79820-36340E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79820-36400E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79820-36100E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,W(FABRIC SEAT),GREIGE,TRIM4# |
1 | ||
| 79840 - BACK ASSY, NO.8 SEAT, RH | ||||
| 79840-36120E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79840-36050E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79840-36190E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79850 - BACK ASSY, NO.8 SEAT, LH | ||||
| 79850-36070E0 |
HZB50,RZB40..EX..(GCC,GEN) GREIGE,TRIM4# |
1 | ||
| 79850-36140E1 |
HZB50..30S..GEN;BB42,RZB40,50..GEN ***,HI-BACK HALF KNIT REAR SEAT & FOLDING SEAT,GREIGE,TRIM4# |
1 | ||
| 79850-36240E1 |
BB50..EX..CHI;HZB50,RZB40..EX ***,GREIGE,TRIM4# |
1 | ||
| 79860 - SPRING ASSY, NO.8 SEAT CUSHION | ||||
| 79860-36020 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN W(FOLDING SEAT) |
1 | ||
| 79860-36020 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN W(FOLDING SEAT) |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN FOLDING SEAT |
1 | ||
| 79915-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN FOLDING SEAT |
1 | ||
| 79915 - BRACKET, SEAT LEG | ||||
| 79915-36030 |
RZB40..EX..GCC;BB42,RZB40,50..GEN;HZB50..(20S,30S)..GEN FOLDING SEAT |
1 | ||
| 79915-36030 |
HZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN FOLDING SEAT |
1 | ||
| Common parts | ||||
| 90109-08227 | ||||
| 90159-60589 | ||||
| 90167-35014 | ||||
| 90179-10033 | ||||
| 91622-B1025 | ||||
| 91641-80835 | ||||
| 91651-60835 | ||||
| 91651-61020 | ||||
| 91651-61030 | ||||
| 91673-81022 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
