8719 - HEATING & AIR CONDITIONING - COMPRESSOR

HZB50L-ZGMSSV (1993)

Toyota Coaster

Production Jan 1993 - Dec 2016

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

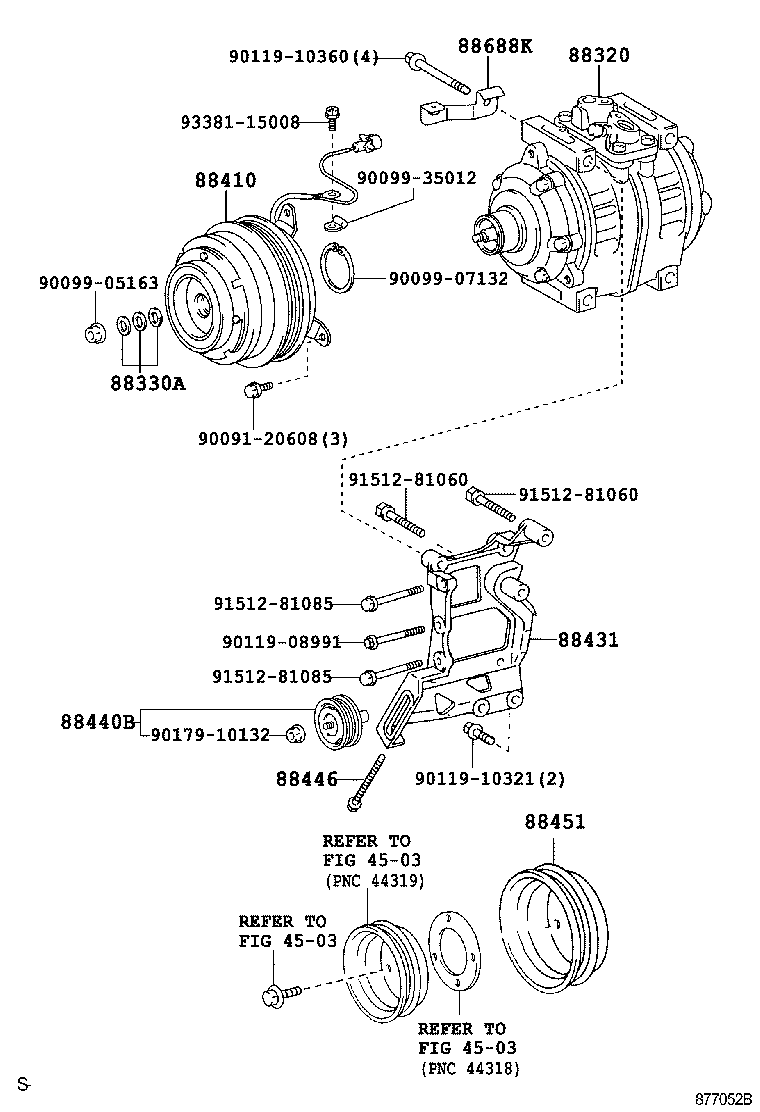

ILLUST NO. 1 OF 2(9301-0408)HZB50

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-36041	BB4#,5#..WC	05/1997 - 07/1999	1
88412-36040	HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88412-36040	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	1
88412-36041	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88412-36080	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88412-36130	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-36240	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88411-36240	BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88411-36260	BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88320 - COMPRESSOR ASSY, COOLER
88320-36360	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88320-36530	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	02/1996 - 07/1999	1
88320-36520	RZB50..GCC;RZB50..HRF..GEN;BB4#,50,RZB40..WC	02/1996 - 05/1997	1
88320-36520	BB4#,5#..WC	05/1997 - 07/1999	1
88320-36530	HZB50,XZB40,5#..WC	01/2015 - 12/2999	1
88320-36540	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88320-36530	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88320-36560	BB42,50,BZB40,50..WC..(GCC,GEN)..(DSL,LPG,TD)	01/2002 - 08/2004	1
88320-36540	TRB40,50..WC	01/2015 - 12/2999	1
88320-36530	HZB50,XZB40,59..WC;XZB50..(20S,21S)..WC	08/2004 - 01/2015	1
88320-36540	TRB40,50..WC	08/2004 - 01/2015	1
88320-36560	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050	RZB50..GCC;HZB50..HRF..WC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88335-12050	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88335-12050	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..RHD..HRF..WC..DSL;HZB50,RZB40..LHD..WC..5F	02/1996 - 05/1997	1
88335-12050	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88335-12050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88335-12050	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-36040	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88403-36040	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88410 - CLUTCH ASSY, MAGNET
88410-36341	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88410-36341	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 05/1997	1
88410-36340	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 01/1997	1
88410-36340	BB4#,50..WC	01/1997 - 05/1997	1
88410-36510	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88410-36341	BB58,59;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88410-36520	BZB40,50	08/2001 - 08/2004	1
88410-36430	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88410-36510	HZB50..WC	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50..STD	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	08/2004 - 01/2015	1
88410-36510	HZB50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36421	BB4#,5#..WC	01/1993 - 07/1999	1
88431-36550	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88431-36570	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88431-36610	HZB50..WC	08/2004 - 01/2015	1
88431-36570	RZB40,50..WC	08/2004 - 08/2007	1
88431-36421	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88431-36690	TRB40,50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88431-E0150	XZB40,5#..WC	01/2015 - 12/2999	1
88431-36690	TRB40,50..WC	08/2007 - 01/2015	1
88431-36421	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88431-36421	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
88440B - PULLEY ASSY, IDLE
88440-36130	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88440-36170	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
16604-76010	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88440-36130	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
16604-76010	HZB50..WC	08/2004 - 01/2015	1
88440-36130	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88440-36171	TRB40,50..WC	01/2015 - 12/2999	1
16604-76010	HZB50..WC	01/2015 - 12/2999	1
88440-36171	TRB40,50..WC	05/2014 - 01/2015	1
88440-36130	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88440-36170	RZB40,50,TRB40,50..WC	08/2004 - 04/2014	1
88444 - BRACKET, IDLE PULLEY
88444-36091	BB4#,5#..WC	01/1993 - 07/1999	1
88444-36091	BB50..EX;BB50..WC..TDEFI;BB4#,5#..STD..WC..CBU	07/1999 - 08/2001	1
88444-36150	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88444-36092	BB42,5#,BZB40,50..WC..(ARL,EUR,GCC,GEN)	08/2001 - 08/2004	1
88444-36150	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88444-36150	HZB50..WC	01/2015 - 12/2999	1
88444-36150	HZB50..WC	08/2004 - 01/2015	1
88444-36092	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88446 - BOLT, IDLE PULLEY
90099-04306	BB4#,5#..WC	01/1993 - 07/1999	1
90105-08099	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88446-35010	TRB40,50..WC	08/2007 - 01/2015	1
88446-60030	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90105-08099	HZB50..WC	08/2004 - 01/2015	1
88446-60030	RZB40,50..WC	08/2004 - 08/2007	1
90105-08099	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88446-35010	TRB40,50..WC	01/2015 - 12/2999	1
90105-08099	HZB50..WC	01/2015 - 12/2999	1
90099-04306	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
90099-04306	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
90099-04306	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88688K - BRACKET, COOLER COMPRESSOR
88688-36610	BB4#,5#	05/1997 - 07/1999	1
88688-36620	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 07/1999	1
88688-36441	RZB40..22S..CHI;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
88688-36610	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88688-36620	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88688-36441	RZB40,50..WC	11/2002 - 08/2004	1
88688-36620	HZB50..WC	08/2004 - 01/2015	1
88688-36620	HZB50..WC	01/2015 - 12/2999	1
88688-3B120	XZB40,5#..WC	01/2015 - 12/2999	1
88688-36610	BB42,BZB40,50..WC	01/2015 - 12/2999	1
Common parts
90091-20608
90099-05163
90099-07132
90119-10360
91511-61030
91512-61050
91512-G1025
91552-81030
93381-15008

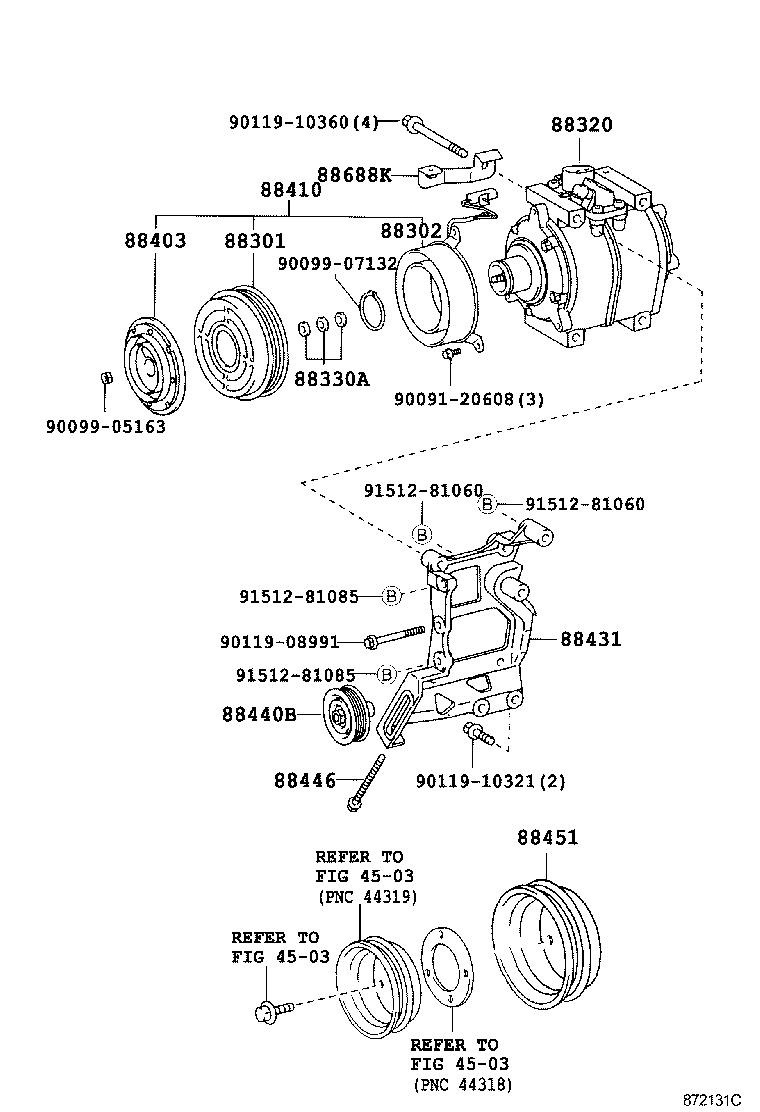

ILLUST NO. 1 OF 2(9309-0408)RZB40,50

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-36041	BB4#,5#..WC	05/1997 - 07/1999	1
88412-36040	HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88412-36040	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	1
88412-36041	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88412-36080	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88412-36130	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-36240	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88411-36240	BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88411-36260	BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88320 - COMPRESSOR ASSY, COOLER
88320-36360	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88320-36530	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	02/1996 - 07/1999	1
88320-36520	RZB50..GCC;RZB50..HRF..GEN;BB4#,50,RZB40..WC	02/1996 - 05/1997	1
88320-36520	BB4#,5#..WC	05/1997 - 07/1999	1
88320-36530	HZB50,XZB40,5#..WC	01/2015 - 12/2999	1
88320-36540	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88320-36530	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88320-36560	BB42,50,BZB40,50..WC..(GCC,GEN)..(DSL,LPG,TD)	01/2002 - 08/2004	1
88320-36540	TRB40,50..WC	01/2015 - 12/2999	1
88320-36530	HZB50,XZB40,59..WC;XZB50..(20S,21S)..WC	08/2004 - 01/2015	1
88320-36540	TRB40,50..WC	08/2004 - 01/2015	1
88320-36560	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050	RZB50..GCC;HZB50..HRF..WC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88335-12050	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88335-12050	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..RHD..HRF..WC..DSL;HZB50,RZB40..LHD..WC..5F	02/1996 - 05/1997	1
88335-12050	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88335-12050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88335-12050	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-36040	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88403-36040	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88410 - CLUTCH ASSY, MAGNET
88410-36341	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88410-36341	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 05/1997	1
88410-36340	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 01/1997	1
88410-36340	BB4#,50..WC	01/1997 - 05/1997	1
88410-36510	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88410-36341	BB58,59;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88410-36520	BZB40,50	08/2001 - 08/2004	1
88410-36430	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88410-36510	HZB50..WC	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50..STD	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	08/2004 - 01/2015	1
88410-36510	HZB50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36421	BB4#,5#..WC	01/1993 - 07/1999	1
88431-36550	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88431-36570	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88431-36610	HZB50..WC	08/2004 - 01/2015	1
88431-36570	RZB40,50..WC	08/2004 - 08/2007	1
88431-36421	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88431-36690	TRB40,50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88431-E0150	XZB40,5#..WC	01/2015 - 12/2999	1
88431-36690	TRB40,50..WC	08/2007 - 01/2015	1
88431-36421	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88431-36421	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
88440B - PULLEY ASSY, IDLE
88440-36130	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88440-36170	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
16604-76010	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88440-36130	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
16604-76010	HZB50..WC	08/2004 - 01/2015	1
88440-36130	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88440-36171	TRB40,50..WC	01/2015 - 12/2999	1
16604-76010	HZB50..WC	01/2015 - 12/2999	1
88440-36171	TRB40,50..WC	05/2014 - 01/2015	1
88440-36130	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88440-36170	RZB40,50,TRB40,50..WC	08/2004 - 04/2014	1
88446 - BOLT, IDLE PULLEY
90099-04306	BB4#,5#..WC	01/1993 - 07/1999	1
90105-08099	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88446-35010	TRB40,50..WC	08/2007 - 01/2015	1
88446-60030	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90105-08099	HZB50..WC	08/2004 - 01/2015	1
88446-60030	RZB40,50..WC	08/2004 - 08/2007	1
90105-08099	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88446-35010	TRB40,50..WC	01/2015 - 12/2999	1
90105-08099	HZB50..WC	01/2015 - 12/2999	1
90099-04306	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
90099-04306	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
90099-04306	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88451 - PULLEY, CRANKSHAFT
88451-36200	TRB40,50..WC	08/2007 - 01/2015	1
88451-36200	TRB40,50..WC	01/2015 - 12/2999	1
88451-36120	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88688K - BRACKET, COOLER COMPRESSOR
88688-36610	BB4#,5#	05/1997 - 07/1999	1
88688-36620	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 07/1999	1
88688-36441	RZB40..22S..CHI;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
88688-36610	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88688-36620	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88688-36441	RZB40,50..WC	11/2002 - 08/2004	1
88688-36620	HZB50..WC	08/2004 - 01/2015	1
88688-36620	HZB50..WC	01/2015 - 12/2999	1
88688-3B120	XZB40,5#..WC	01/2015 - 12/2999	1
88688-36610	BB42,BZB40,50..WC	01/2015 - 12/2999	1
Common parts
90091-20608
90099-05163
90099-07132
90119-08991
90119-10321
90119-10360
91512-81060
91512-81085
Linked diagrams
4503

ILLUST NO. 2 OF 2(9301-0408)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88308A - PUMP SUB-ASSY,OIL
88308-36010	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	1
88308-36010	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88308-36010	HZB50..LHD..EX;BB58,59,BZB40,50;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88316C - KEY, COMPRESSOR CRANKSHAFT
90099-13011	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	1
90099-13011	HZB50..LHD..EX;BB58,59,BZB40,50;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
90099-13011	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88320B - BOLT, SERVICE VALVE
90099-04924	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	4
90099-04924	BB42,50..WC..(GCC,GEN)..(DSL,TD)	01/2002 - 08/2004	4
90099-04924	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	4
90099-04924	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB5#,BZB40,50..WC..(LPG,TDEFI)	07/1999 - 08/2004	4
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-36090	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	1
88321-36090	HZB50..LHD..EX;BB58,59,BZB40,50;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88321-36090	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88321A - PLATE SUB-ASSY, VALVE
88306-36020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL FRONT	01/1993 - 05/1997	1
88306-36020	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC FRONT	05/1997 - 07/1999	1
88306-36030	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL REAR	01/1993 - 05/1997	1
88306-36030	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC REAR	05/1997 - 07/1999	1
88306-36020	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC FRONT	07/1999 - 08/2004	1
88306-36040	BZB40,50 FRONT	08/2001 - 08/2004	1
88306-36030	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC REAR	07/1999 - 08/2004	1
88306-36050	BZB40,50 REAR	08/2001 - 08/2004	1
88306-36040	BB42,50..WC..(GCC,GEN)..(DSL,TD) FRONT	01/2002 - 08/2004	1
88306-36050	BB42,50..WC..(GCC,GEN)..(DSL,TD) REAR	01/2002 - 08/2004	1
88321A - PLATE SUB-ASSY, VALVE
88306-36020	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL FRONT	01/1993 - 05/1997	1
88306-36020	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC FRONT	05/1997 - 07/1999	1
88306-36030	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL REAR	01/1993 - 05/1997	1
88306-36030	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC REAR	05/1997 - 07/1999	1
88306-36020	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC FRONT	07/1999 - 08/2004	1
88306-36040	BZB40,50 FRONT	08/2001 - 08/2004	1
88306-36030	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC REAR	07/1999 - 08/2004	1
88306-36050	BZB40,50 REAR	08/2001 - 08/2004	1
88306-36040	BB42,50..WC..(GCC,GEN)..(DSL,TD) FRONT	01/2002 - 08/2004	1
88306-36050	BB42,50..WC..(GCC,GEN)..(DSL,TD) REAR	01/2002 - 08/2004	1
88323A - GASKET, COMPRESSOR
88323-36070	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	1
88323-36070	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88323-36070	HZB50..LHD..EX;BB58,59,BZB40,50;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88325A - PIN, CYLINDER BLOCK
90099-08058	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	4
90099-08058	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB5#,BZB40,50..WC..(LPG,TDEFI)	07/1999 - 08/2004	4
90099-08058	BB42,50..WC..(GCC,GEN)..(DSL,TD)	01/2002 - 08/2004	4
90099-08058	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	4
88325A - PIN, CYLINDER BLOCK
90099-08058	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	4
90099-08058	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB5#,BZB40,50..WC..(LPG,TDEFI)	07/1999 - 08/2004	4
90099-08058	BB42,50..WC..(GCC,GEN)..(DSL,TD)	01/2002 - 08/2004	4
90099-08058	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	4
88325A - PIN, CYLINDER BLOCK
90099-08058	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	4
90099-08058	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB5#,BZB40,50..WC..(LPG,TDEFI)	07/1999 - 08/2004	4
90099-08058	BB42,50..WC..(GCC,GEN)..(DSL,TD)	01/2002 - 08/2004	4
90099-08058	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	4
88325A - PIN, CYLINDER BLOCK
90099-08058	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	4
90099-08058	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB5#,BZB40,50..WC..(LPG,TDEFI)	07/1999 - 08/2004	4
90099-08058	BB42,50..WC..(GCC,GEN)..(DSL,TD)	01/2002 - 08/2004	4
90099-08058	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	4
88329E - BOLT, COMPRESSOR, NO.1
88329-36030	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	5
88329-36030	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	5
88329-36030	HZB50..LHD..EX;BB58,59,BZB40,50;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	5
88329F - BOLT, COMPRESSOR, NO.2
88329-36040	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	2
88329-36040	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	2
88329-36040	HZB50..LHD..EX;BB58,59,BZB40,50;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	2
88335 - GASKET KIT, OVERHAUL
88335-36050	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	1
88335-36050	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88335-36050	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88335-36070	BB42,50..WC..(GCC,GEN)..(DSL,TD)	01/2002 - 08/2004	1
88335-36070	BZB40,50	08/2001 - 08/2004	1
88343B - REED, SUCTION VALVE
88343-36040	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	2
88343-36040	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	2
88343-36040	HZB50..LHD..EX;BB58,59,BZB40,50;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	2
88343B - REED, SUCTION VALVE
88343-36040	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	2
88343-36040	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	2
88343-36040	HZB50..LHD..EX;BB58,59,BZB40,50;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	2
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-36060	BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..SRF..WC;HZB50..HRF..WC..5F..DSL;HZB50,RZB50..LHD..WC..(EUR,GCC)..(CBR,TD)	01/1993 - 07/1994	1
88360-36080	RZB50..GCC;RZB50..HRF..GEN;BB4#,50,RZB40..WC	02/1996 - 05/1997	1
88360-36080	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	07/1994 - 02/1996	1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90006	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,50,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	1
90096-90006	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
90096-90006	HZB50..LHD..EX;BB58,59,BZB40,50;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88371A - VALVE, SUCTION
88371-36290	BB4#,5#..WC	05/1997 - 07/1999	1
88371-36230	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88371-36230	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88371-36290	BZB40,50	08/2001 - 08/2004	1
88371-36290	BB42,50..WC..(GCC,GEN)..(DSL,TD)	01/2002 - 08/2004	1
88371-36290	RZB50..GCC;RZB50..HRF..GEN;BB4#,50,RZB40..WC	01/1993 - 05/1997	1

ILLUST NO. 1 OF 2(9301-0408)BB4#,5#,BZB40,50

Click highlighted areas on diagram

Part #	Description	Period	Qty

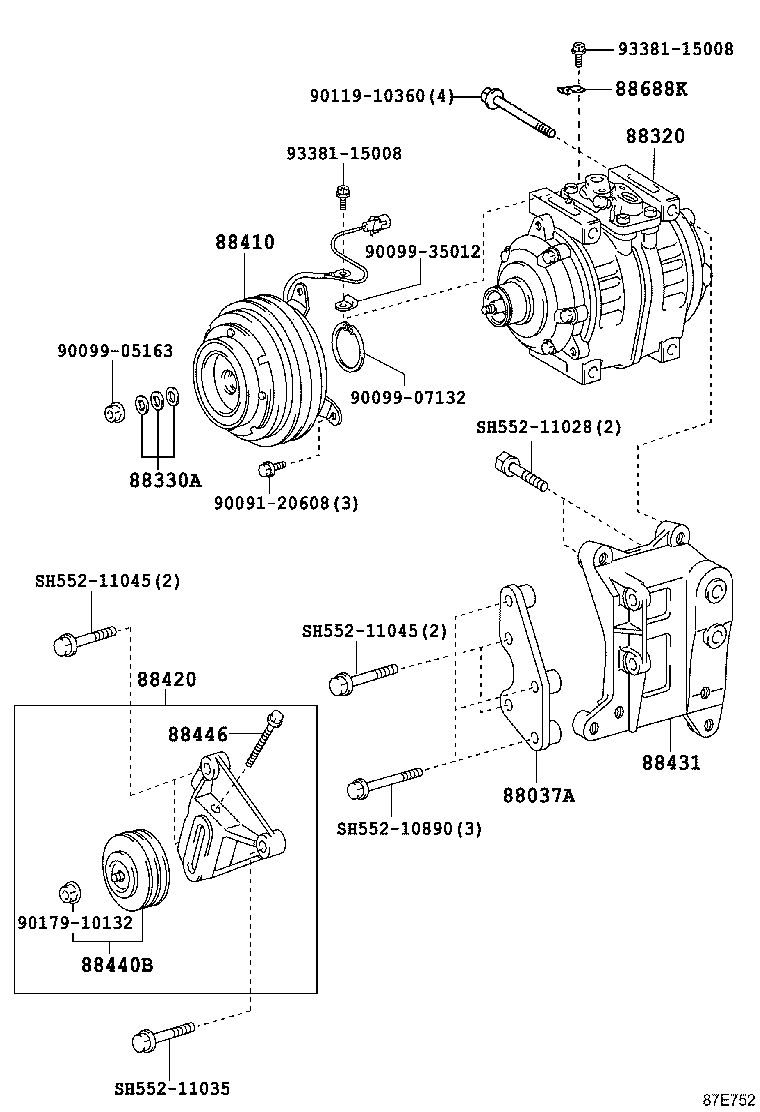

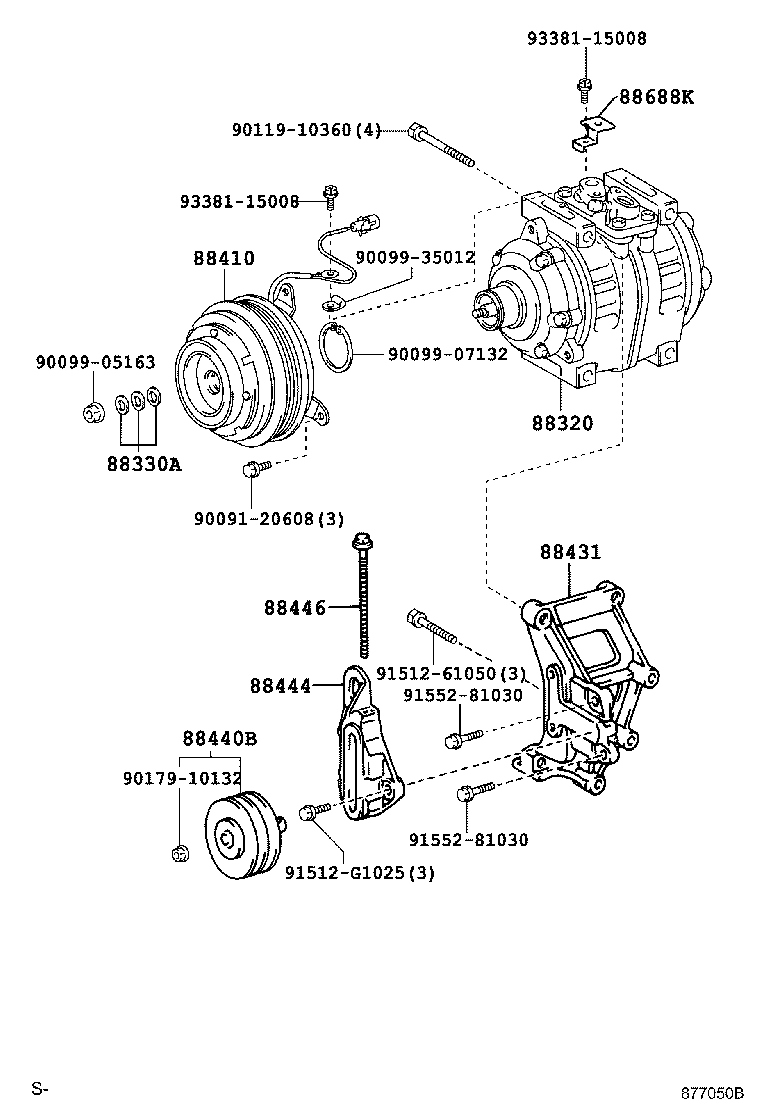

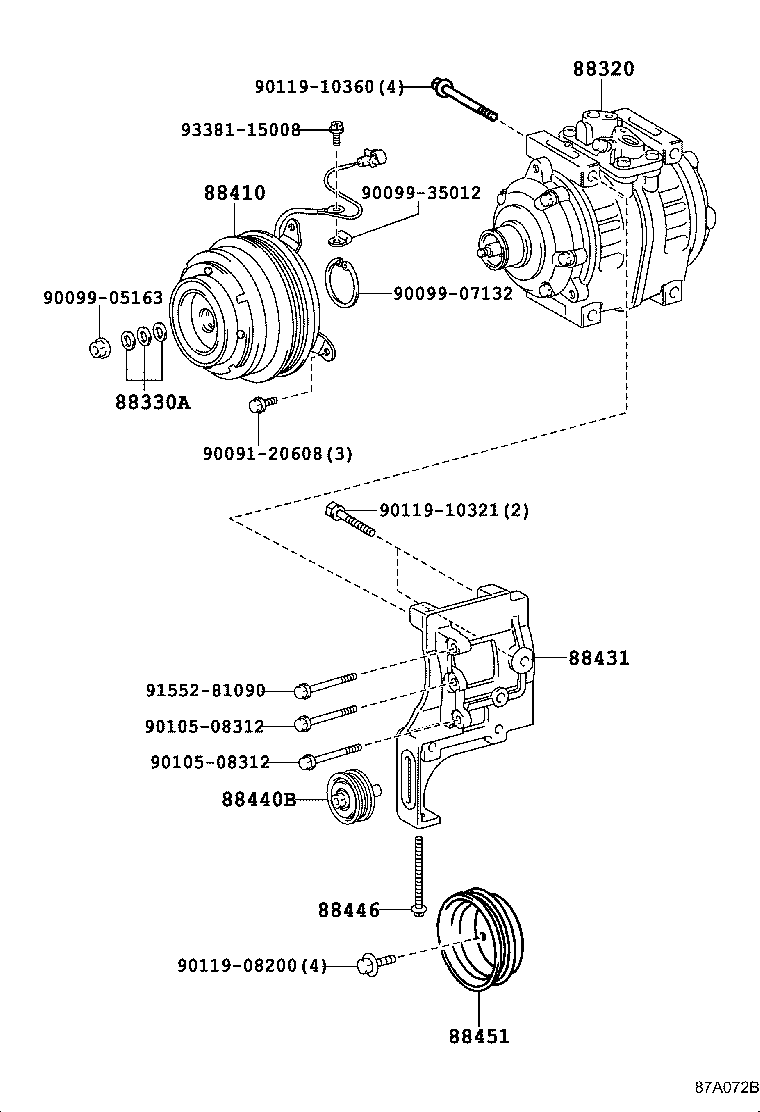

88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-36041	BB4#,5#..WC	05/1997 - 07/1999	1
88412-36040	HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88412-36040	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 05/1997	1
88412-36041	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88412-36080	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88412-36130	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-36240	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88411-36240	BB58,59;HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88411-36260	BZB40,50,RZB40,50..(17S,21S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88320 - COMPRESSOR ASSY, COOLER
88320-36360	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88320-36530	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	02/1996 - 07/1999	1
88320-36520	RZB50..GCC;RZB50..HRF..GEN;BB4#,50,RZB40..WC	02/1996 - 05/1997	1
88320-36520	BB4#,5#..WC	05/1997 - 07/1999	1
88320-36530	HZB50,XZB40,5#..WC	01/2015 - 12/2999	1
88320-36540	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88320-36530	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88320-36560	BB42,50,BZB40,50..WC..(GCC,GEN)..(DSL,LPG,TD)	01/2002 - 08/2004	1
88320-36540	TRB40,50..WC	01/2015 - 12/2999	1
88320-36530	HZB50,XZB40,59..WC;XZB50..(20S,21S)..WC	08/2004 - 01/2015	1
88320-36540	TRB40,50..WC	08/2004 - 01/2015	1
88320-36560	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050	RZB50..GCC;HZB50..HRF..WC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88335-12050	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88335-12050	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..RHD..HRF..WC..DSL;HZB50,RZB40..LHD..WC..5F	02/1996 - 05/1997	1
88335-12050	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88335-12050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88335-12050	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-36040	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88403-36040	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88410 - CLUTCH ASSY, MAGNET
88410-36341	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88410-36341	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 05/1997	1
88410-36340	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 01/1997	1
88410-36340	BB4#,50..WC	01/1997 - 05/1997	1
88410-36510	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88410-36341	BB58,59;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88410-36520	BZB40,50	08/2001 - 08/2004	1
88410-36430	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88410-36510	HZB50..WC	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50..STD	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	08/2004 - 01/2015	1
88410-36510	HZB50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36421	BB4#,5#..WC	01/1993 - 07/1999	1
88431-36550	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88431-36570	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88431-36610	HZB50..WC	08/2004 - 01/2015	1
88431-36570	RZB40,50..WC	08/2004 - 08/2007	1
88431-36421	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88431-36690	TRB40,50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88431-E0150	XZB40,5#..WC	01/2015 - 12/2999	1
88431-36690	TRB40,50..WC	08/2007 - 01/2015	1
88431-36421	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88431-36421	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
88440B - PULLEY ASSY, IDLE
88440-36130	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88440-36170	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
16604-76010	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88440-36130	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
16604-76010	HZB50..WC	08/2004 - 01/2015	1
88440-36130	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88440-36171	TRB40,50..WC	01/2015 - 12/2999	1
16604-76010	HZB50..WC	01/2015 - 12/2999	1
88440-36171	TRB40,50..WC	05/2014 - 01/2015	1
88440-36130	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88440-36170	RZB40,50,TRB40,50..WC	08/2004 - 04/2014	1
88444 - BRACKET, IDLE PULLEY
88444-36091	BB4#,5#..WC	01/1993 - 07/1999	1
88444-36091	BB50..EX;BB50..WC..TDEFI;BB4#,5#..STD..WC..CBU	07/1999 - 08/2001	1
88444-36150	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88444-36092	BB42,5#,BZB40,50..WC..(ARL,EUR,GCC,GEN)	08/2001 - 08/2004	1
88444-36150	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88444-36150	HZB50..WC	01/2015 - 12/2999	1
88444-36150	HZB50..WC	08/2004 - 01/2015	1
88444-36092	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88446 - BOLT, IDLE PULLEY
90099-04306	BB4#,5#..WC	01/1993 - 07/1999	1
90105-08099	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88446-35010	TRB40,50..WC	08/2007 - 01/2015	1
88446-60030	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90105-08099	HZB50..WC	08/2004 - 01/2015	1
88446-60030	RZB40,50..WC	08/2004 - 08/2007	1
90105-08099	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88446-35010	TRB40,50..WC	01/2015 - 12/2999	1
90105-08099	HZB50..WC	01/2015 - 12/2999	1
90099-04306	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
90099-04306	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
90099-04306	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88688K - BRACKET, COOLER COMPRESSOR
88688-36610	BB4#,5#	05/1997 - 07/1999	1
88688-36620	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 07/1999	1
88688-36441	RZB40..22S..CHI;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
88688-36610	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88688-36620	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88688-36441	RZB40,50..WC	11/2002 - 08/2004	1
88688-36620	HZB50..WC	08/2004 - 01/2015	1
88688-36620	HZB50..WC	01/2015 - 12/2999	1
88688-3B120	XZB40,5#..WC	01/2015 - 12/2999	1
88688-36610	BB42,BZB40,50..WC	01/2015 - 12/2999	1
Common parts
90091-20608
90099-04313
90099-04914
90099-05163
90099-07132
90099-35012
90119-08086
90119-08361
90119-10038
90119-10360
90179-10132
93381-15008

(0408- )HZB50

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-36360	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88320-36530	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	02/1996 - 07/1999	1
88320-36520	RZB50..GCC;RZB50..HRF..GEN;BB4#,50,RZB40..WC	02/1996 - 05/1997	1
88320-36520	BB4#,5#..WC	05/1997 - 07/1999	1
88320-36530	HZB50,XZB40,5#..WC	01/2015 - 12/2999	1
88320-36540	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88320-36530	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88320-36560	BB42,50,BZB40,50..WC..(GCC,GEN)..(DSL,LPG,TD)	01/2002 - 08/2004	1
88320-36540	TRB40,50..WC	01/2015 - 12/2999	1
88320-36530	HZB50,XZB40,59..WC;XZB50..(20S,21S)..WC	08/2004 - 01/2015	1
88320-36540	TRB40,50..WC	08/2004 - 01/2015	1
88320-36560	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050	RZB50..GCC;HZB50..HRF..WC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88335-12050	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88335-12050	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..RHD..HRF..WC..DSL;HZB50,RZB40..LHD..WC..5F	02/1996 - 05/1997	1
88335-12050	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88335-12050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88335-12050	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88410 - CLUTCH ASSY, MAGNET
88410-36341	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88410-36341	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 05/1997	1
88410-36340	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 01/1997	1
88410-36340	BB4#,50..WC	01/1997 - 05/1997	1
88410-36510	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88410-36341	BB58,59;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88410-36520	BZB40,50	08/2001 - 08/2004	1
88410-36430	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88410-36510	HZB50..WC	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50..STD	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	08/2004 - 01/2015	1
88410-36510	HZB50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36421	BB4#,5#..WC	01/1993 - 07/1999	1
88431-36550	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88431-36570	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88431-36610	HZB50..WC	08/2004 - 01/2015	1
88431-36570	RZB40,50..WC	08/2004 - 08/2007	1
88431-36421	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88431-36690	TRB40,50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88431-E0150	XZB40,5#..WC	01/2015 - 12/2999	1
88431-36690	TRB40,50..WC	08/2007 - 01/2015	1
88431-36421	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88431-36421	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
88440B - PULLEY ASSY, IDLE
88440-36130	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88440-36170	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
16604-76010	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88440-36130	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
16604-76010	HZB50..WC	08/2004 - 01/2015	1
88440-36130	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88440-36171	TRB40,50..WC	01/2015 - 12/2999	1
16604-76010	HZB50..WC	01/2015 - 12/2999	1
88440-36171	TRB40,50..WC	05/2014 - 01/2015	1
88440-36130	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88440-36170	RZB40,50,TRB40,50..WC	08/2004 - 04/2014	1
88444 - BRACKET, IDLE PULLEY
88444-36091	BB4#,5#..WC	01/1993 - 07/1999	1
88444-36091	BB50..EX;BB50..WC..TDEFI;BB4#,5#..STD..WC..CBU	07/1999 - 08/2001	1
88444-36150	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88444-36092	BB42,5#,BZB40,50..WC..(ARL,EUR,GCC,GEN)	08/2001 - 08/2004	1
88444-36150	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88444-36150	HZB50..WC	01/2015 - 12/2999	1
88444-36150	HZB50..WC	08/2004 - 01/2015	1
88444-36092	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88446 - BOLT, IDLE PULLEY
90099-04306	BB4#,5#..WC	01/1993 - 07/1999	1
90105-08099	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88446-35010	TRB40,50..WC	08/2007 - 01/2015	1
88446-60030	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90105-08099	HZB50..WC	08/2004 - 01/2015	1
88446-60030	RZB40,50..WC	08/2004 - 08/2007	1
90105-08099	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88446-35010	TRB40,50..WC	01/2015 - 12/2999	1
90105-08099	HZB50..WC	01/2015 - 12/2999	1
90099-04306	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
90099-04306	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
90099-04306	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88688K - BRACKET, COOLER COMPRESSOR
88688-36610	BB4#,5#	05/1997 - 07/1999	1
88688-36620	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 07/1999	1
88688-36441	RZB40..22S..CHI;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
88688-36610	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88688-36620	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88688-36441	RZB40,50..WC	11/2002 - 08/2004	1
88688-36620	HZB50..WC	08/2004 - 01/2015	1
88688-36620	HZB50..WC	01/2015 - 12/2999	1
88688-3B120	XZB40,5#..WC	01/2015 - 12/2999	1
88688-36610	BB42,BZB40,50..WC	01/2015 - 12/2999	1
Common parts
90091-20608
90099-05163
90099-07132
90099-35012
90119-10360
90179-10132
91512-61050
91512-G1025
91552-81030
93381-15008

(0408- )BB42,5#,BZB40,50

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-36360	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88320-36530	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	02/1996 - 07/1999	1
88320-36520	RZB50..GCC;RZB50..HRF..GEN;BB4#,50,RZB40..WC	02/1996 - 05/1997	1
88320-36520	BB4#,5#..WC	05/1997 - 07/1999	1
88320-36530	HZB50,XZB40,5#..WC	01/2015 - 12/2999	1
88320-36540	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88320-36530	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88320-36560	BB42,50,BZB40,50..WC..(GCC,GEN)..(DSL,LPG,TD)	01/2002 - 08/2004	1
88320-36540	TRB40,50..WC	01/2015 - 12/2999	1
88320-36530	HZB50,XZB40,59..WC;XZB50..(20S,21S)..WC	08/2004 - 01/2015	1
88320-36540	TRB40,50..WC	08/2004 - 01/2015	1
88320-36560	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050	RZB50..GCC;HZB50..HRF..WC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88335-12050	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88335-12050	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..RHD..HRF..WC..DSL;HZB50,RZB40..LHD..WC..5F	02/1996 - 05/1997	1
88335-12050	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88335-12050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88335-12050	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88410 - CLUTCH ASSY, MAGNET
88410-36341	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88410-36341	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 05/1997	1
88410-36340	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 01/1997	1
88410-36340	BB4#,50..WC	01/1997 - 05/1997	1
88410-36510	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88410-36341	BB58,59;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88410-36520	BZB40,50	08/2001 - 08/2004	1
88410-36430	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88410-36510	HZB50..WC	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50..STD	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	08/2004 - 01/2015	1
88410-36510	HZB50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36421	BB4#,5#..WC	01/1993 - 07/1999	1
88431-36550	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88431-36570	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88431-36610	HZB50..WC	08/2004 - 01/2015	1
88431-36570	RZB40,50..WC	08/2004 - 08/2007	1
88431-36421	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88431-36690	TRB40,50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88431-E0150	XZB40,5#..WC	01/2015 - 12/2999	1
88431-36690	TRB40,50..WC	08/2007 - 01/2015	1
88431-36421	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88431-36421	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
88440B - PULLEY ASSY, IDLE
88440-36130	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88440-36170	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
16604-76010	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88440-36130	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
16604-76010	HZB50..WC	08/2004 - 01/2015	1
88440-36130	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88440-36171	TRB40,50..WC	01/2015 - 12/2999	1
16604-76010	HZB50..WC	01/2015 - 12/2999	1
88440-36171	TRB40,50..WC	05/2014 - 01/2015	1
88440-36130	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88440-36170	RZB40,50,TRB40,50..WC	08/2004 - 04/2014	1
88444 - BRACKET, IDLE PULLEY
88444-36091	BB4#,5#..WC	01/1993 - 07/1999	1
88444-36091	BB50..EX;BB50..WC..TDEFI;BB4#,5#..STD..WC..CBU	07/1999 - 08/2001	1
88444-36150	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88444-36092	BB42,5#,BZB40,50..WC..(ARL,EUR,GCC,GEN)	08/2001 - 08/2004	1
88444-36150	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88444-36150	HZB50..WC	01/2015 - 12/2999	1
88444-36150	HZB50..WC	08/2004 - 01/2015	1
88444-36092	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88446 - BOLT, IDLE PULLEY
90099-04306	BB4#,5#..WC	01/1993 - 07/1999	1
90105-08099	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88446-35010	TRB40,50..WC	08/2007 - 01/2015	1
88446-60030	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90105-08099	HZB50..WC	08/2004 - 01/2015	1
88446-60030	RZB40,50..WC	08/2004 - 08/2007	1
90105-08099	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88446-35010	TRB40,50..WC	01/2015 - 12/2999	1
90105-08099	HZB50..WC	01/2015 - 12/2999	1
90099-04306	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
90099-04306	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
90099-04306	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88688K - BRACKET, COOLER COMPRESSOR
88688-36610	BB4#,5#	05/1997 - 07/1999	1
88688-36620	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 07/1999	1
88688-36441	RZB40..22S..CHI;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
88688-36610	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88688-36620	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88688-36441	RZB40,50..WC	11/2002 - 08/2004	1
88688-36620	HZB50..WC	08/2004 - 01/2015	1
88688-36620	HZB50..WC	01/2015 - 12/2999	1
88688-3B120	XZB40,5#..WC	01/2015 - 12/2999	1
88688-36610	BB42,BZB40,50..WC	01/2015 - 12/2999	1
Common parts
90091-20608
90099-04313
90099-04914
90099-05163
90099-07132
90099-35012
90119-08086
90119-08361
90119-10038
90119-10360
90179-10132
93381-15008

(0408-0708)RZB40,50

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-36360	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88320-36530	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	02/1996 - 07/1999	1
88320-36520	RZB50..GCC;RZB50..HRF..GEN;BB4#,50,RZB40..WC	02/1996 - 05/1997	1
88320-36520	BB4#,5#..WC	05/1997 - 07/1999	1
88320-36530	HZB50,XZB40,5#..WC	01/2015 - 12/2999	1
88320-36540	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88320-36530	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88320-36560	BB42,50,BZB40,50..WC..(GCC,GEN)..(DSL,LPG,TD)	01/2002 - 08/2004	1
88320-36540	TRB40,50..WC	01/2015 - 12/2999	1
88320-36530	HZB50,XZB40,59..WC;XZB50..(20S,21S)..WC	08/2004 - 01/2015	1
88320-36540	TRB40,50..WC	08/2004 - 01/2015	1
88320-36560	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050	RZB50..GCC;HZB50..HRF..WC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88335-12050	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88335-12050	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..RHD..HRF..WC..DSL;HZB50,RZB40..LHD..WC..5F	02/1996 - 05/1997	1
88335-12050	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88335-12050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88335-12050	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88410 - CLUTCH ASSY, MAGNET
88410-36341	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88410-36341	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 05/1997	1
88410-36340	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 01/1997	1
88410-36340	BB4#,50..WC	01/1997 - 05/1997	1
88410-36510	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88410-36341	BB58,59;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88410-36520	BZB40,50	08/2001 - 08/2004	1
88410-36430	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88410-36510	HZB50..WC	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50..STD	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	08/2004 - 01/2015	1
88410-36510	HZB50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36421	BB4#,5#..WC	01/1993 - 07/1999	1
88431-36550	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88431-36570	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88431-36610	HZB50..WC	08/2004 - 01/2015	1
88431-36570	RZB40,50..WC	08/2004 - 08/2007	1
88431-36421	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88431-36690	TRB40,50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88431-E0150	XZB40,5#..WC	01/2015 - 12/2999	1
88431-36690	TRB40,50..WC	08/2007 - 01/2015	1
88431-36421	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88431-36421	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
88440B - PULLEY ASSY, IDLE
88440-36130	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88440-36170	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
16604-76010	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88440-36130	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
16604-76010	HZB50..WC	08/2004 - 01/2015	1
88440-36130	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88440-36171	TRB40,50..WC	01/2015 - 12/2999	1
16604-76010	HZB50..WC	01/2015 - 12/2999	1
88440-36171	TRB40,50..WC	05/2014 - 01/2015	1
88440-36130	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88440-36170	RZB40,50,TRB40,50..WC	08/2004 - 04/2014	1
88446 - BOLT, IDLE PULLEY
90099-04306	BB4#,5#..WC	01/1993 - 07/1999	1
90105-08099	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88446-35010	TRB40,50..WC	08/2007 - 01/2015	1
88446-60030	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90105-08099	HZB50..WC	08/2004 - 01/2015	1
88446-60030	RZB40,50..WC	08/2004 - 08/2007	1
90105-08099	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88446-35010	TRB40,50..WC	01/2015 - 12/2999	1
90105-08099	HZB50..WC	01/2015 - 12/2999	1
90099-04306	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
90099-04306	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
90099-04306	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88451 - PULLEY, CRANKSHAFT
88451-36200	TRB40,50..WC	08/2007 - 01/2015	1
88451-36200	TRB40,50..WC	01/2015 - 12/2999	1
88451-36120	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88688K - BRACKET, COOLER COMPRESSOR
88688-36610	BB4#,5#	05/1997 - 07/1999	1
88688-36620	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 07/1999	1
88688-36441	RZB40..22S..CHI;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
88688-36610	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88688-36620	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88688-36441	RZB40,50..WC	11/2002 - 08/2004	1
88688-36620	HZB50..WC	08/2004 - 01/2015	1
88688-36620	HZB50..WC	01/2015 - 12/2999	1
88688-3B120	XZB40,5#..WC	01/2015 - 12/2999	1
88688-36610	BB42,BZB40,50..WC	01/2015 - 12/2999	1
Common parts
90091-20608
90099-05163
90099-07132
90099-35012
90119-08991
90119-10321
90119-10360
90179-10132
91512-81060
91512-81085
93381-15008
Linked diagrams
4503

(0708- )TRB40,50

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-36360	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88320-36530	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	02/1996 - 07/1999	1
88320-36520	RZB50..GCC;RZB50..HRF..GEN;BB4#,50,RZB40..WC	02/1996 - 05/1997	1
88320-36520	BB4#,5#..WC	05/1997 - 07/1999	1
88320-36530	HZB50,XZB40,5#..WC	01/2015 - 12/2999	1
88320-36540	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88320-36530	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88320-36560	BB42,50,BZB40,50..WC..(GCC,GEN)..(DSL,LPG,TD)	01/2002 - 08/2004	1
88320-36540	TRB40,50..WC	01/2015 - 12/2999	1
88320-36530	HZB50,XZB40,59..WC;XZB50..(20S,21S)..WC	08/2004 - 01/2015	1
88320-36540	TRB40,50..WC	08/2004 - 01/2015	1
88320-36560	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050	RZB50..GCC;HZB50..HRF..WC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88335-12050	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88335-12050	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..RHD..HRF..WC..DSL;HZB50,RZB40..LHD..WC..5F	02/1996 - 05/1997	1
88335-12050	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88335-12050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88335-12050	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88410 - CLUTCH ASSY, MAGNET
88410-36341	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88410-36341	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 05/1997	1
88410-36340	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 01/1997	1
88410-36340	BB4#,50..WC	01/1997 - 05/1997	1
88410-36510	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88410-36341	BB58,59;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88410-36520	BZB40,50	08/2001 - 08/2004	1
88410-36430	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88410-36510	HZB50..WC	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50..STD	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	08/2004 - 01/2015	1
88410-36510	HZB50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36421	BB4#,5#..WC	01/1993 - 07/1999	1
88431-36550	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88431-36570	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88431-36610	HZB50..WC	08/2004 - 01/2015	1
88431-36570	RZB40,50..WC	08/2004 - 08/2007	1
88431-36421	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88431-36690	TRB40,50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88431-E0150	XZB40,5#..WC	01/2015 - 12/2999	1
88431-36690	TRB40,50..WC	08/2007 - 01/2015	1
88431-36421	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88431-36421	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
88440B - PULLEY ASSY, IDLE
88440-36130	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88440-36170	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
16604-76010	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88440-36130	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
16604-76010	HZB50..WC	08/2004 - 01/2015	1
88440-36130	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88440-36171	TRB40,50..WC	01/2015 - 12/2999	1
16604-76010	HZB50..WC	01/2015 - 12/2999	1
88440-36171	TRB40,50..WC	05/2014 - 01/2015	1
88440-36130	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88440-36170	RZB40,50,TRB40,50..WC	08/2004 - 04/2014	1
88446 - BOLT, IDLE PULLEY
90099-04306	BB4#,5#..WC	01/1993 - 07/1999	1
90105-08099	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88446-35010	TRB40,50..WC	08/2007 - 01/2015	1
88446-60030	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90105-08099	HZB50..WC	08/2004 - 01/2015	1
88446-60030	RZB40,50..WC	08/2004 - 08/2007	1
90105-08099	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88446-35010	TRB40,50..WC	01/2015 - 12/2999	1
90105-08099	HZB50..WC	01/2015 - 12/2999	1
90099-04306	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
90099-04306	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
90099-04306	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88451 - PULLEY, CRANKSHAFT
88451-36200	TRB40,50..WC	08/2007 - 01/2015	1
88451-36200	TRB40,50..WC	01/2015 - 12/2999	1
88451-36120	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
Common parts
90091-20608
90099-05163
90099-07132
90099-35012
90105-08312
90119-08200
90119-10321
90119-10360
91552-81090
93381-15008

(0608- )XZB40,5#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88037A - BRACKET SET,COMPRESSOR MOUNTING
S1250-61520	XZB40,5#..WC	01/2015 - 12/2999	1
88320 - COMPRESSOR ASSY, COOLER
88320-36360	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88320-36530	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	02/1996 - 07/1999	1
88320-36520	RZB50..GCC;RZB50..HRF..GEN;BB4#,50,RZB40..WC	02/1996 - 05/1997	1
88320-36520	BB4#,5#..WC	05/1997 - 07/1999	1
88320-36530	HZB50,XZB40,5#..WC	01/2015 - 12/2999	1
88320-36540	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88320-36530	HZB50..LHD..EX;BB5#..WC..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88320-36560	BB42,50,BZB40,50..WC..(GCC,GEN)..(DSL,LPG,TD)	01/2002 - 08/2004	1
88320-36540	TRB40,50..WC	01/2015 - 12/2999	1
88320-36530	HZB50,XZB40,59..WC;XZB50..(20S,21S)..WC	08/2004 - 01/2015	1
88320-36540	TRB40,50..WC	08/2004 - 01/2015	1
88320-36560	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050	RZB50..GCC;HZB50..HRF..WC;RZB50..HRF..GEN;BB4#,5#,RZB40..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88335-12050	RZB50..GCC;BB4#,RZB40..WC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 02/1996	1
88335-12050	RZB50..GCC;HZB50..GCC..4FC;RZB50..HRF..GEN;HZB50..RHD..HRF..WC..DSL;HZB50,RZB40..LHD..WC..5F	02/1996 - 05/1997	1
88335-12050	HZB50..LHD..EX;HZB50..HRF..30S..WC;BB50..WC..IV..TDEFI;HZB50..LHD..SRF..WC;BB50..(19S,20S)..TDEFI;BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50,RZB40..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88335-12050	BB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88335-12050	BB42..LHD..SRF..WC;BB42,XZB59..RHD..WC;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..WC..(DCR,DSL,EFI,LPG,TD)	08/2004 - 01/2015	1
88410 - CLUTCH ASSY, MAGNET
88410-36341	BB4#,5#..WC;HZB50..HRF..WC;HZB50..LHD..SRF..WC	05/1997 - 07/1999	1
88410-36341	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 05/1997	1
88410-36340	BB4#,50..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 01/1997	1
88410-36340	BB4#,50..WC	01/1997 - 05/1997	1
88410-36510	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88410-36341	BB58,59;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88410-36520	BZB40,50	08/2001 - 08/2004	1
88410-36430	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88410-36510	HZB50..WC	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50..STD	08/2004 - 01/2015	1
88410-36430	TRB40,50..WC	08/2004 - 01/2015	1
88410-36510	HZB50..WC	01/2015 - 12/2999	1
88410-36520	BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88420 - PULLEY ASSY, IDLE, W/BRACKET
88420-E0011	XZB40,5#..WC	01/2015 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36421	BB4#,5#..WC	01/1993 - 07/1999	1
88431-36550	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88431-36570	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
88431-36610	HZB50..WC	08/2004 - 01/2015	1
88431-36570	RZB40,50..WC	08/2004 - 08/2007	1
88431-36421	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88431-36690	TRB40,50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..WC	01/2015 - 12/2999	1
88431-36610	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88431-E0150	XZB40,5#..WC	01/2015 - 12/2999	1
88431-36690	TRB40,50..WC	08/2007 - 01/2015	1
88431-36421	BB42,BZB40,50..WC	01/2015 - 12/2999	1
88431-36421	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
88440B - PULLEY ASSY, IDLE
88440-36130	BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88440-36170	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
16604-76010	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88440-36130	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
16604-76010	HZB50..WC	08/2004 - 01/2015	1
88440-36130	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88440-36171	TRB40,50..WC	01/2015 - 12/2999	1
16604-76010	HZB50..WC	01/2015 - 12/2999	1
88440-36171	TRB40,50..WC	05/2014 - 01/2015	1
88440-36130	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88440-36170	RZB40,50,TRB40,50..WC	08/2004 - 04/2014	1
88446 - BOLT, IDLE PULLEY
90099-04306	BB4#,5#..WC	01/1993 - 07/1999	1
90105-08099	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL	01/1993 - 07/1999	1
88446-35010	TRB40,50..WC	08/2007 - 01/2015	1
88446-60030	RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)	07/1999 - 08/2004	1
90105-08099	HZB50..WC	08/2004 - 01/2015	1
88446-60030	RZB40,50..WC	08/2004 - 08/2007	1
90105-08099	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88446-35010	TRB40,50..WC	01/2015 - 12/2999	1
90105-08099	HZB50..WC	01/2015 - 12/2999	1
90099-04306	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
90099-04306	BB42,5#,BZB40,50..WC	08/2004 - 01/2015	1
90099-04306	BB42,BZB40,50,XZB40,5#..WC	01/2015 - 12/2999	1
88688K - BRACKET, COOLER COMPRESSOR
88688-36610	BB4#,5#	05/1997 - 07/1999	1
88688-36620	HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC	01/1997 - 07/1999	1
88688-36441	RZB40..22S..CHI;RZB40,50..(17S,26S,30S)..WC	07/1999 - 11/2002	1
88688-36610	BB58,59,BZB40,50;BB50..WC..IV..TDEFI;BB50..(19S,20S)..TDEFI;BB42,50..(17S,21S,26S,30S)..WC..(ARL,GCC,GEN)	07/1999 - 08/2004	1
88688-36620	HZB50..LHD..EX;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC	07/1999 - 08/2004	1
88688-36441	RZB40,50..WC	11/2002 - 08/2004	1
88688-36620	HZB50..WC	08/2004 - 01/2015	1
88688-36620	HZB50..WC	01/2015 - 12/2999	1
88688-3B120	XZB40,5#..WC	01/2015 - 12/2999	1
88688-36610	BB42,BZB40,50..WC	01/2015 - 12/2999	1
Common parts
90091-20608
90099-05163
90099-07132
90099-35012
90119-10360
90179-10132
93381-15008
SH552-10890
SH552-11028
SH552-11035
SH552-11045

HZB50L-ZGMSSV (1993)

ILLUST NO. 1 OF 2(9301-0408)HZB50

ILLUST NO. 1 OF 2(9309-0408)RZB40,50

ILLUST NO. 2 OF 2(9301-0408)

ILLUST NO. 1 OF 2(9301-0408)BB4#,5#,BZB40,50

(0408- )HZB50

(0408- )BB42,5#,BZB40,50

(0408-0708)RZB40,50

(0708- )TRB40,50

(0608- )XZB40,5#

Part Price Details
